So you're gonna add a compressor...

[FusionCruiser]

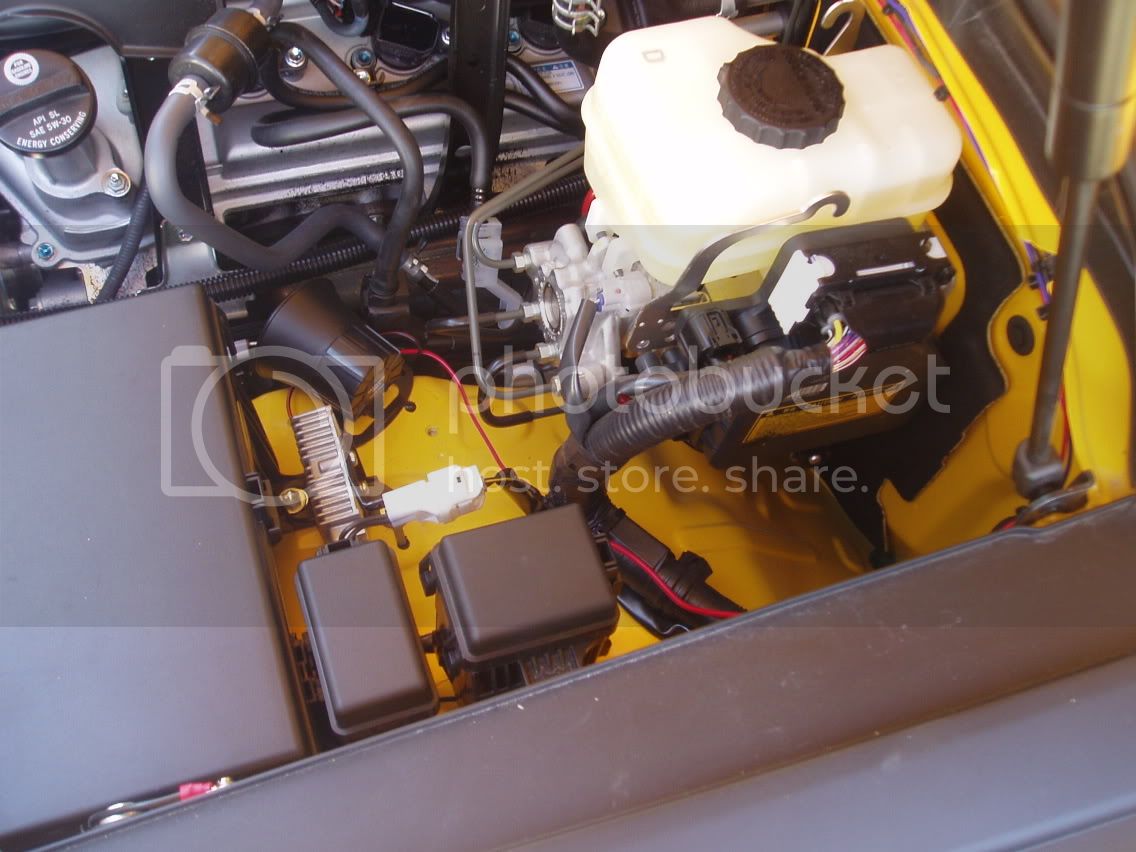

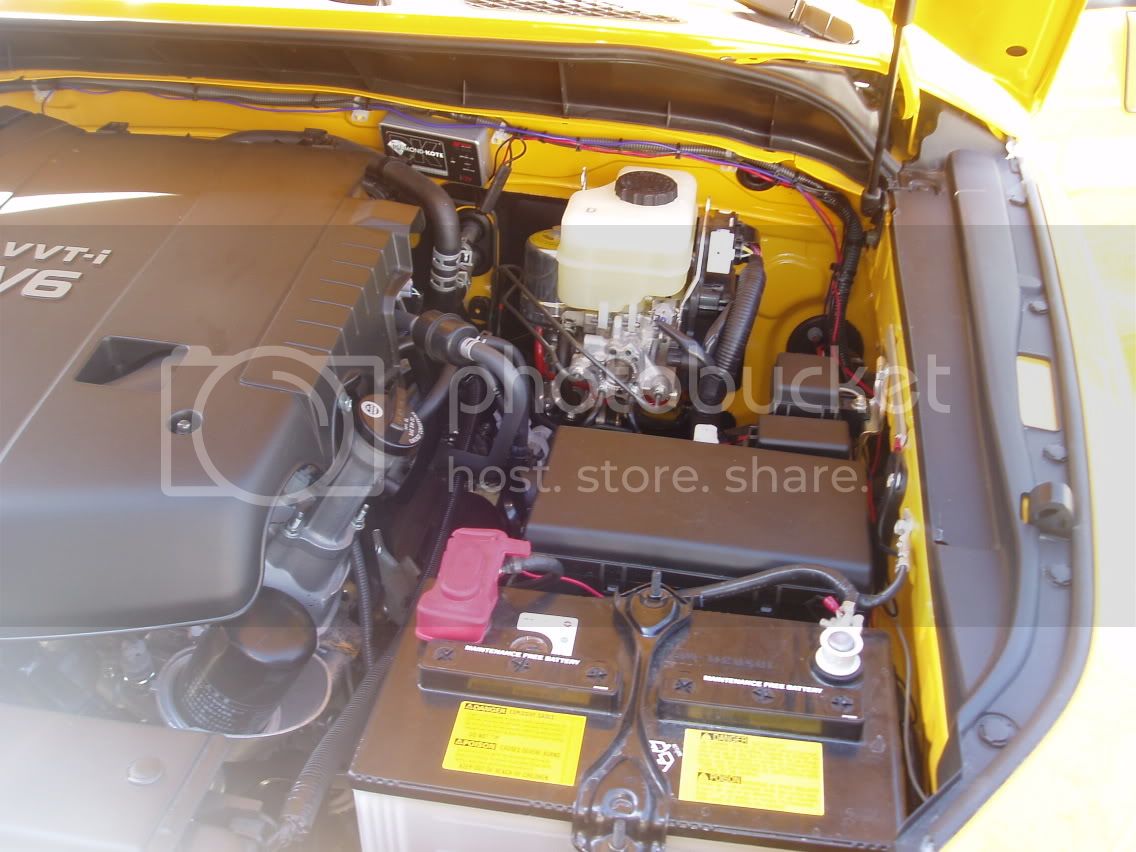

If you are wanting to add a compressor when you get your FJ, I thought you might want some engine bay shots to start your planning.

Hope they're useful.

Shawn



[EAST TX FJ]

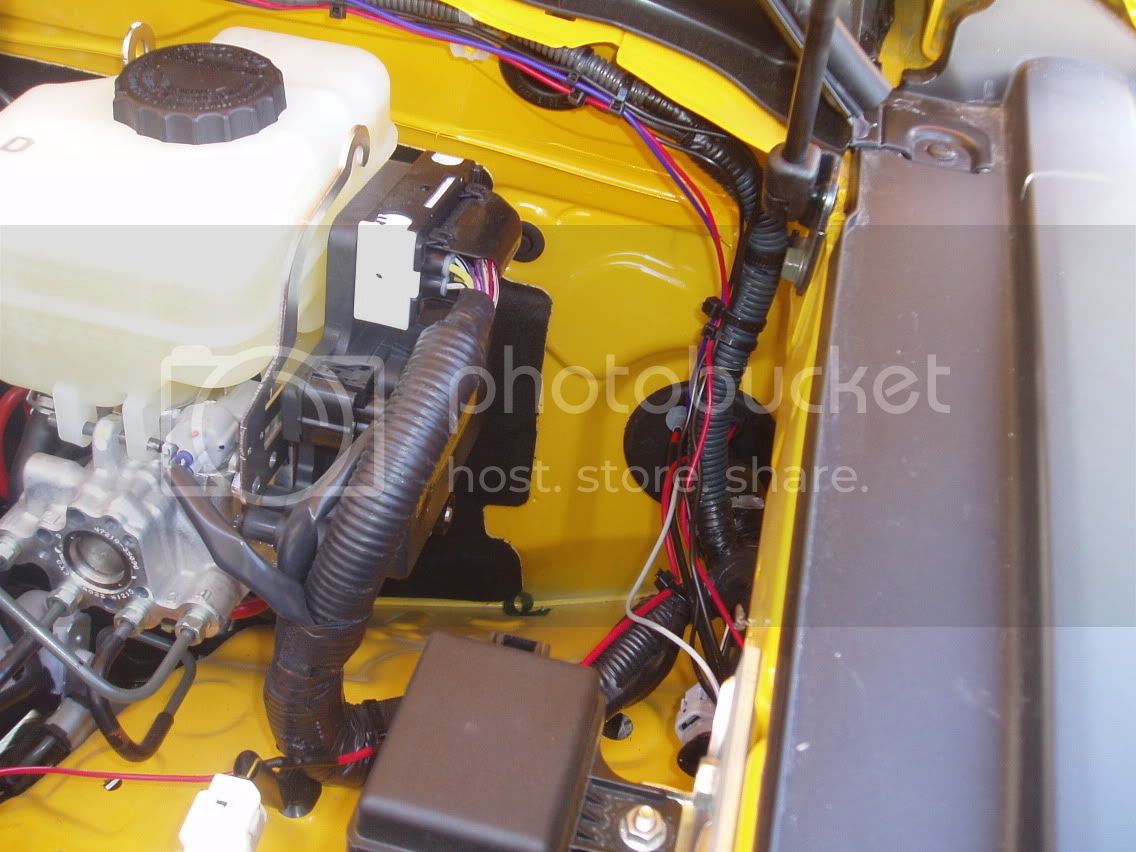

whats that little module on the fire wall neer the master cylinder?



[loeky]

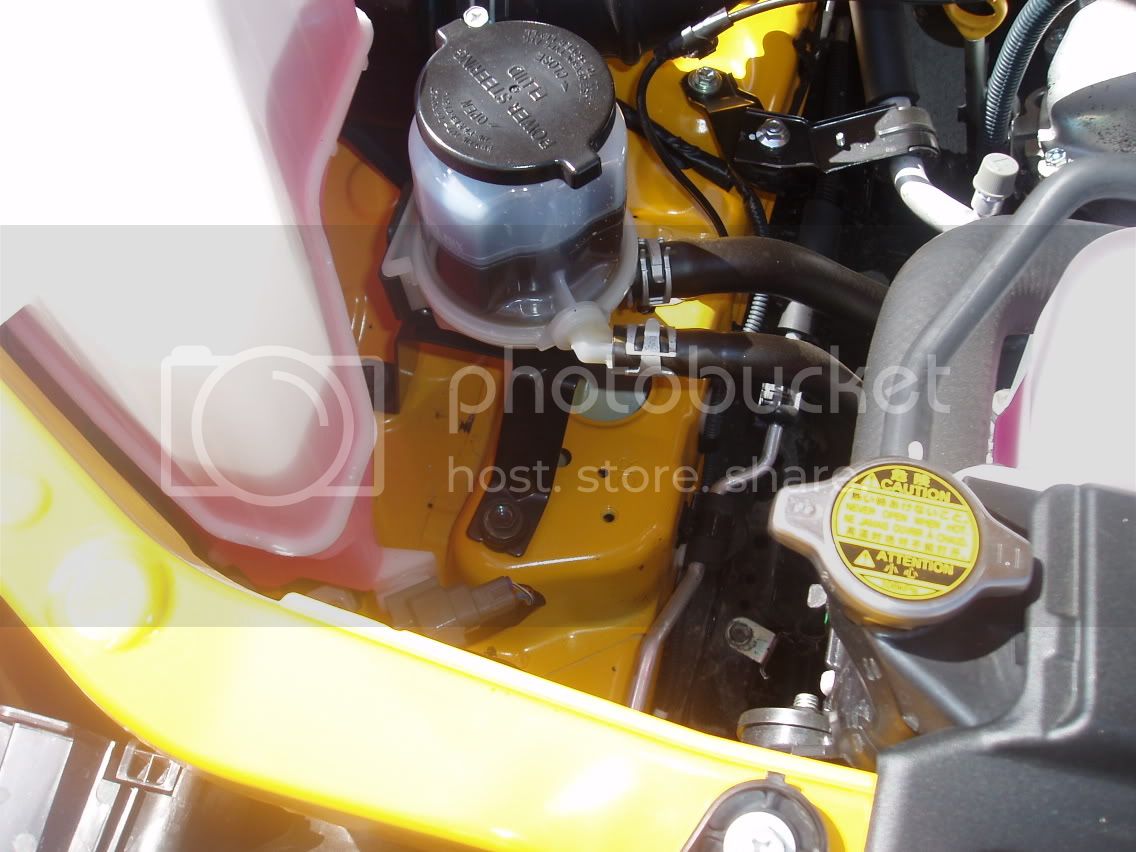

for a brand new vehicle, that wiring in the second picture is really a mess. looks pretty otherwise, though!



[FusionCruiser]

whats that little module on the fire wall neer the master cylinder?

Electronic Rust Inhibitor. Guarantees the whole vehicle against rust for life.

Similar to this:

http://www.ruststoponline.com/benefits-of-rust-protection.html



[saskdiesel]

I had one of those electronic rust controlers on my JDM Surf.
Didn't seem to stop the rust and they don't salt the roads in Japan!



[EAST TX FJ]

Huh didnt know there was such a thing. i guess cause we dont need that knid of stuff down here in Texas



[Beowulf]

Electronic Rust Inhibitor.

You might ask your installer if they've ever heard of wire loom; aka convoluted tubing.

-B-



[FusionCruiser]

You might ask your installer if they've ever heard of wire loom; aka convoluted tubing.

-B-

Dealer installed. As was the security system in that area as well.



[Beowulf]

Dealer installed. As was the security system in that area as well.

I would take it back and ask for a professional installer. Sorry, but that's just me and loose wires (yes, I see the wire ties) in my new truck just wouldn't cut it.

My 2c

-B-



[AATLAS1X]

I would take it back and ask for a professional installer. Sorry, but that's just me and loose wires (yes, I see the wire ties) in my new truck just wouldn't cut it.

My 2c

-B-

GREAT, I can hear the complaints coming already......(service advisor hiding)



[Beowulf]

AATLAS1X,
Are you a service advisor? If yes, what would you do? (Just curious...)

-B-



[Vitesse_6]

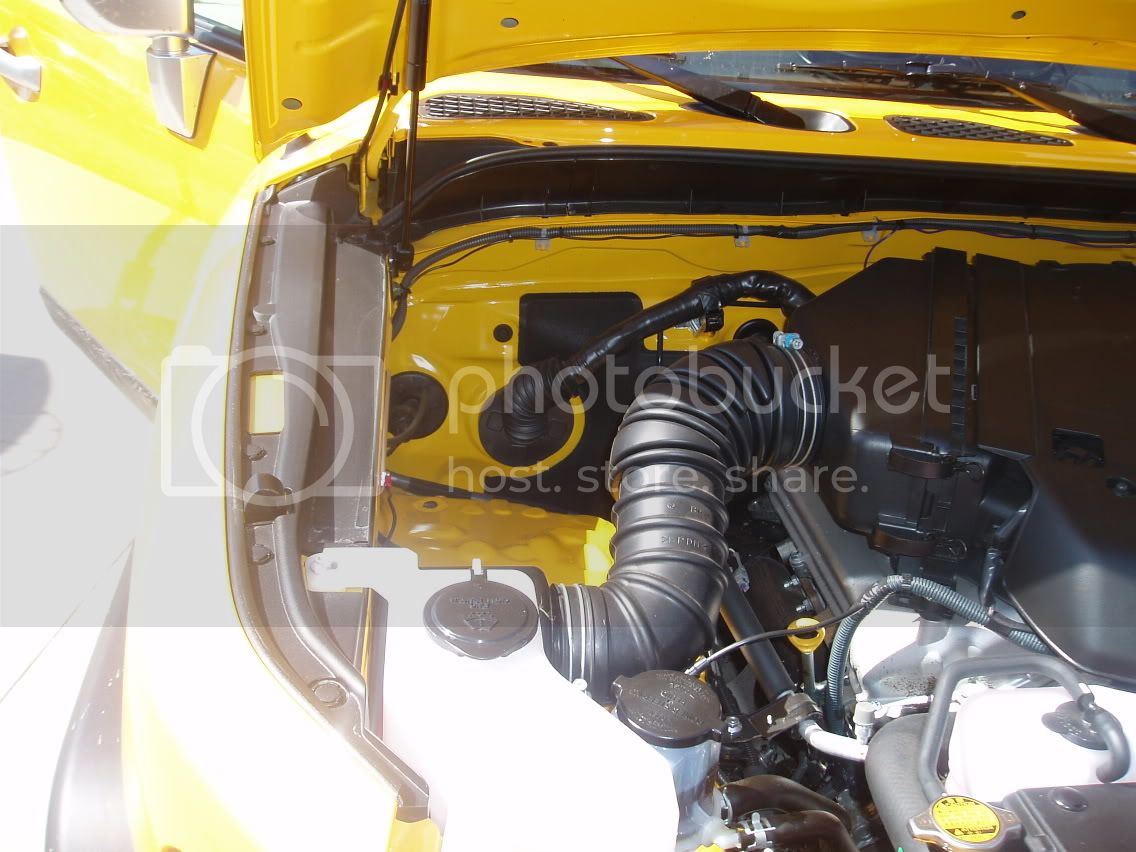

The area on the right side of the engine is where it was located at SEMA, Its a horrible shot but you can see the top of the compressor.
I also agree about the wires, But Its your call.
Good luck



[Trollhole]

for a brand new vehicle, that wiring in the second picture is really a mess. looks pretty otherwise, though!

Well I wasn't going to say anything since he didn't say who installed it but that is a terrible job.



[BC_FJC]

Can't put it in the top left, thats where the second battery is going.... unless I can fit them both in the factory location by turning them sideways??? I plan on moving my pair of 6 packs from my truck and giving my truck a single battery again before I sell it.



[Hltoppr]

I would take it back and ask for a professional installer. Sorry, but that's just me and loose wires (yes, I see the wire ties) in my new truck just wouldn't cut it.

My 2c

-B-

Ya know, I gotta overwhelmingly agree with B...I wouldn't even allow myself to do a job like that unless it was a temporary trail fix.



-H-



[Go4aRyd]

I'm putting my Optima in the empty on the right as well. Is anyone using a compressor other than ARB? (high volume pumps?)



[FusionCruiser]

I'm putting my Optima in the empty on the right as well. Is anyone using a compressor other than ARB? (high volume pumps?)

Here is the one I want...



[Vitesse_6]

Maybe its just me but unless you have a winch and use it regularly I just dont see the need for 2 batteries? I have a winch on the 40 and only one batt. and havent needed more.....Must be a Canada thing
On the Quick air, I have a co2 tank that I built for 1/2 of what they cost, Sure you need to refill them but I can go almost a year before I need a refill and I do help other that dont have the means.
Good luck
