Sector Shaft Questions (1 Viewer)

dannyvp

SILVER Star
Joined
Jul 3, 2018
Messages
630
Location
Hernando, MS
I have an early steering box at WTOR being rebuilt. The sector shaft is bent to the point of rebuilding problems.
They said put the 105 sector shaft in it. I've seen lots of threads on here about that not working with early boxes. They said is no issue, its the same shaft in all boxes.

What gives?


mattressking

10 digits to freedom
Joined
Nov 27, 2016
Messages
2,288
Location
San Diego, Calif.
105 shaft is technically only an upgrade for an 80 box.

Has anyone attempted it into a 60 box? Unsure, buy the shaft and measure or find someone with a 105 shaft and do some measurements. Never had one side by side.

Most don't have issues with 60 series boxes...80s have issues where the power piston was increased in size and the diameter of the splines on the sector shaft would twist under heavy stress. 105 shaft increased spline diameter to resolve. This wasn't an issue in 60 boxes.

I wouldn't worry about the 60 box, you'll be fine. If you went to an 80 series box, it would make sense to upgrade to 105 sector shaft/pitman arm then you'd have a bullet proof box.

Last edited:

dannyvp

SILVER Star
Joined
Jul 3, 2018
Messages
630
Location
Hernando, MS
I don’t want to upgrade. WTOR says my shaft has too much “wobble”.

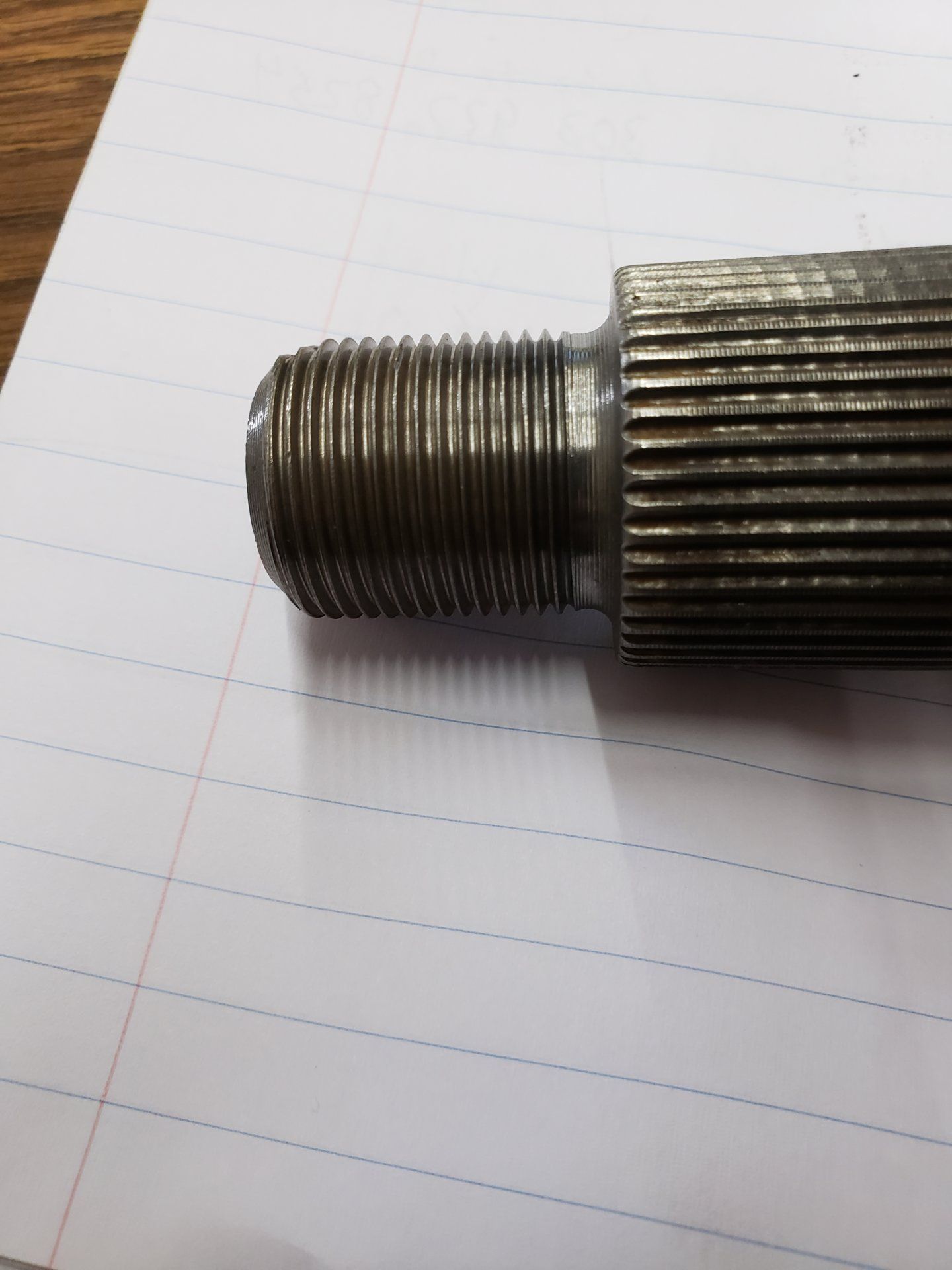

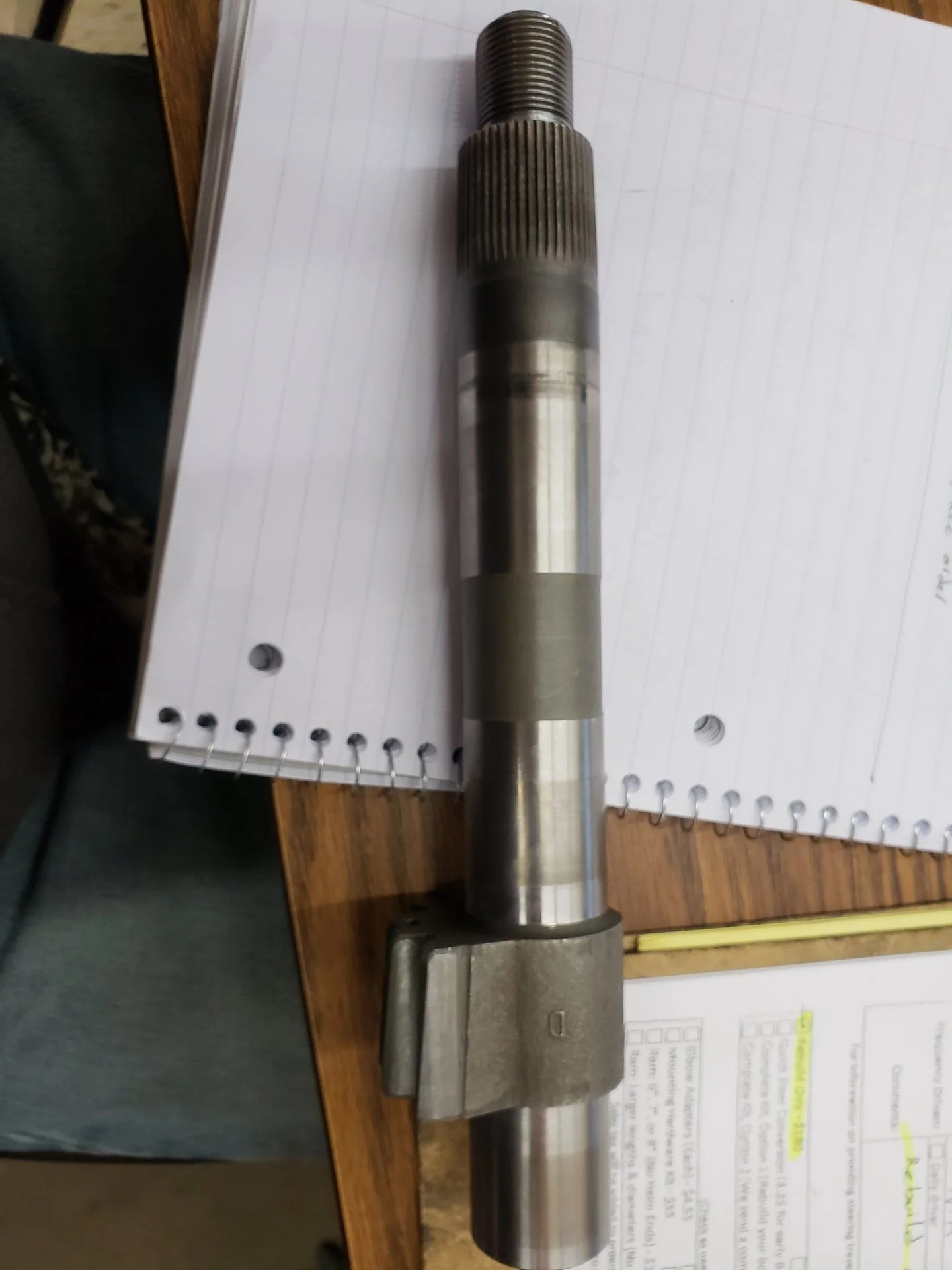

Attached is a video and pics from them.





dannyvp

SILVER Star
Joined
Jul 3, 2018
Messages
630
Location
Hernando, MS
I have a video but I cant get it to upload, go figure.
WTOR says the shaft is straight but the splines or at the splines is the wobble.


Mace

rock scientist..
Staff member
s-Moderator
Joined
Feb 17, 2002
Messages
21,626
Location
Las Vegas
I would trust WTOR, they tend to do good work.

Get another stock sector shaft. Unless yours just was not chocked in the lathe properly (not likely IMHO)


FJ60Seth

SILVER Star
Joined
Nov 15, 2010
Messages
2,001
Location
Altadena CA
dannyvp

I’m in the same boat as you. Our boxes are probably sitting next to each other at WTOR.

I went through the PDF’s of the original Toyota microfiche and I found that the part number for the sector shaft changed in early 1985 for US spec 60’s. I’m almost positive that a late-60/62/80 sector shaft cannot be used in an early 60 box. The part number for the early 60 sector shaft is 44111-60020

There may be some good news though. Using the 60020 part number, I ordered a new, made in Japan, sector shaft from Amayama. ETA is Feb 5-13. My cc has been billed, so I’m presuming it’s in stock. After I receive it and forward it to WTOR, I’ll report back.


Last edited:

Tapage

Club 4X4 Panamá
Joined
Apr 4, 2003
Messages
23,562
Location
Panamá
Maybe dumb question .. but with the cost of a new sector shaft, would not make sense just install an upgraded ( 105 shaft ) 80 series box or a late 60 series box ?


FJ60Seth

SILVER Star
Joined
Nov 15, 2010
Messages
2,001
Location
Altadena CA
Maybe dumb question .. but with the cost of a new sector shaft, would not make sense just install an upgraded ( 105 shaft ) 80 series box or a late 60 series box ?

I thought about that. The issue is that the bolt pattern is different. To make things more complicated, the frame is internally sleeved to keep it from deforming. To do things right, I suspect a portion of the frame would have to replaced.


dannyvp

SILVER Star
Joined
Jul 3, 2018
Messages
630
Location
Hernando, MS
I thought about cutting a section of frame if I have too for an upgraded box.
I still have a gear box in my truck. The one at WTOR was just my easy plan for a one day swap and upgrade.

How much was your shaft?


Tapage

Club 4X4 Panamá
Joined
Apr 4, 2003
Messages
23,562
Location
Panamá
I thought about that. The issue is that the bolt pattern is different. To make things more complicated, the frame is internally sleeved to keep it from deforming. To do things right, I suspect a portion of the frame would have to replaced.

I know about the bolt pattern differences .. but IIRC are not that big .. an adapter flange can be made to make it work ?


Spike Strip

Midnight Rider
SILVER Star
Joined
Nov 22, 2005
Messages
15,089
Location
City of Angels
That shaft is bad. Vid is pretty clear. If WTOR says you can use the 105, I would trust them; They've done more Toyota boxes than I've eaten Wheaties.


FJ60Seth

SILVER Star
Joined
Nov 15, 2010
Messages
2,001
Location
Altadena CA
That shaft is bad. Vid is pretty clear. If WTOR says you can use the 105, I would trust them; They've done more Toyota boxes than I've eaten Wheaties.
Do you know the fulll part number for the 105 sector shaft? If it’s for the 80 box I’m almost positive it won’t fit the early 60.
