So started the dreaded oil cover job, some screws came out fine others not so much. Went with the “let me just drill the cover off and buy a $23 one. It went well but got a little carried away and drill into the oil pump itself. How bad did I mess up? Should I change the oil pump? Or will putting some JB weld in there help me prevent any leaks?

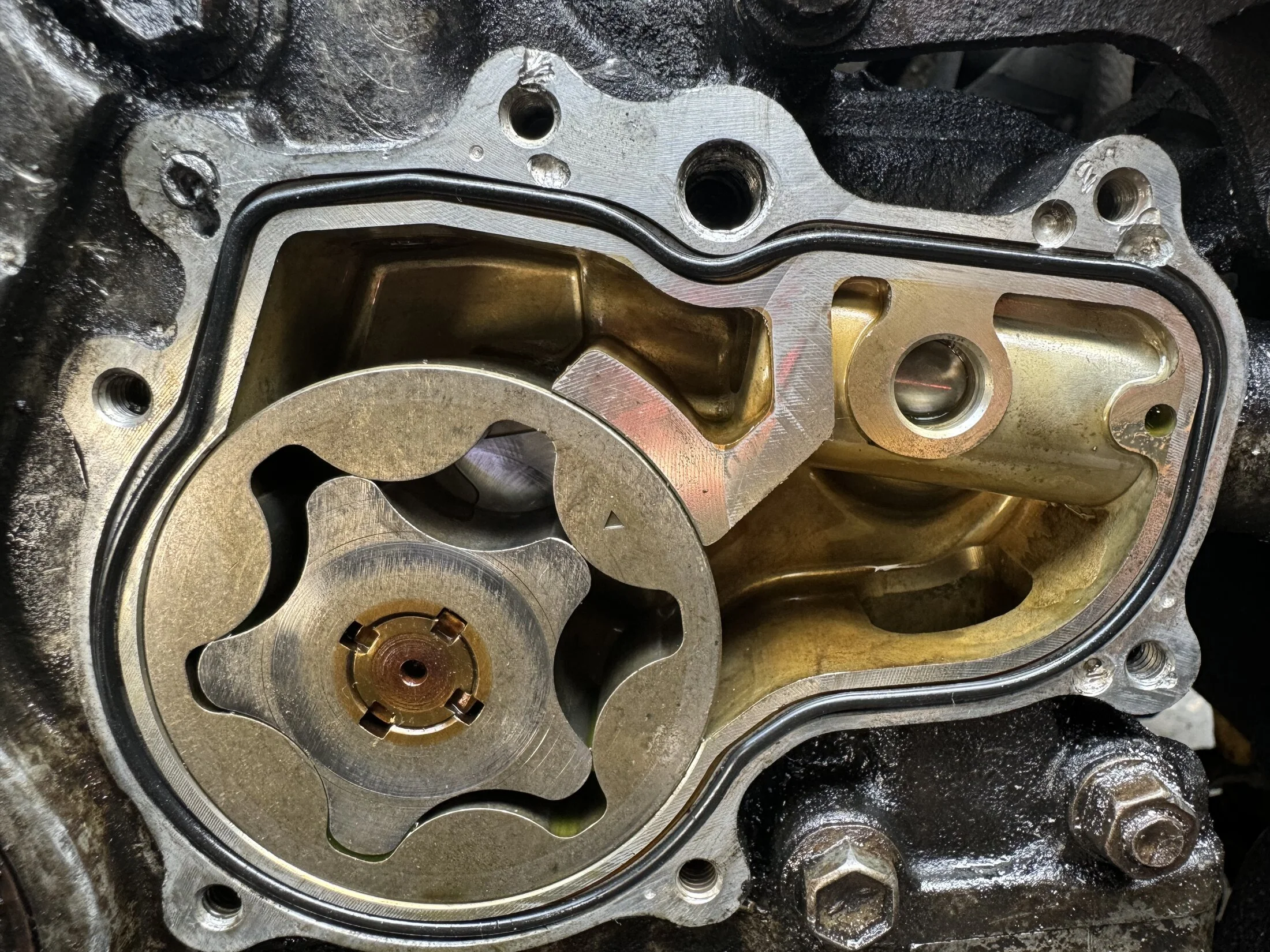

Oil pump cover how bad did I ****ed up
- Thread starter landingtheLC
- Start date
This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.
You're lucky. All the wood-peckering is on the non-pressureized side of the o-ring.
I'd guess you'll be OK to clean it up, back fill with J-B Weld and it will stay oil tight.
How you're going to keep it out of the o-ring groove is another problem.
I'd guess you'll be OK to clean it up, back fill with J-B Weld and it will stay oil tight.
How you're going to keep it out of the o-ring groove is another problem.
OMFG!
Do you have a problem with hitting the right hole with the GF too?
You can recover here too. Fortunately, all of your issues are outside the O-Ring, even though a couple have compromised the seal channel.
Get the last screw out.
Use a flat file and smooth the entire surface SLIGHTLY enough to take off all the burrs made by the drill. You lay it flat across the ENTIRE surface, not just on the area you jacked the surface.
Yes, you can use JB Weld to fill those craters, but you'll need to fill them, then smooth them off at the same time you do the previous statement. make sure you clean the craters with Brakleen before you put in the JB weld so it will actually stick.
You will need to run a tap into all those holes to clean out the threads.
Make damn sure to keep all metal particles out of the gear area as well as any other debris, as that is the heart of the oil feed to your engine. Any debris in there goes to your bearings.
What does the oil pump cover piece look like? Did you turn it into swiss cheese also?
Also, that is the oil pump HOUSING you drilled into which is part of the timing cover. To replace that, you need to pull the engine. It's also not $23.00
Maybe in the future, you should consider paying someone else to do the work.
- Thread starter
- #5
No I was referring to the oil pump cover is not in the picture. I wasn’t suppose to hit the timing cover hahaha
- Thread starter
- #6
Since I started this project I haven’t been near any of my GFs holes hahaha. It was the angle I was doing it with the Radiator on I should had taken it out first place. All the screws came out well after I took the cover off. They’re all working good only issue is the wholes in the timing cover.
Main thing is to first remove the broken off screw.
Have you tried an EasyOut or Grab It?
Having said that and looking at the carnage I would not suggest the OP attempt to fix anything with power tools or taps, it could make things worse.
To clean up the holes there are clean out taps (thread restorers) that you screw in by hand that remove gunk but won't cut new threads
@landingtheLC : if new screws will go into those threads ie: a test fit before you install a new pump cover you won't need to use a tap or thread restorer. I would just blow them out with brake cleaner (cover your eyes and/or look away as the cleaner will blow straight back at your face!!)
The critical suface is the flat area where the oil pump cover clamps down onto the corresponding mating surface of the timing cover, but that doesn't look that bad and FIPG may be work well along with the O-ring IMHO
As mentioned above JB Weld could work but as mentioned the damaged is on the outside of the O-ring. But for that area it might be hard to keep it in place ie: the JB Weld will want to slump or slide downward. That could be fixed later with a dremel if too much got into the gland for the O-ring but again, difficult to work in that area for anyone and too easy to damage the soft aluminum. So I would not suggest using a dremel.
@landingtheLC : a safer option, if needed at all?? might be to use FIPG (form in place gasket maker) to fill the damaged areas after everything is completely degreased with brake cleaner for example
Technically, nothing should get into the gland or interfere with the movement of the O-ring but FWIW (to ensure a long term seal) I've used an extremely small amount of FIPG placed on the outer rim of the face of the oil pump cover just before installing the cover. I do this by putting the gasket maker on my finger first then scrape a small amount off as I work around the edge of the pump cover mating surface (note: this is not the Factory Method, just the way I've done it YMMV). Whichever way you do it, you do not want to get the gasket maker to squeeze out into the pump rotor.
One tip: after you've got the new O-ring into the groove/gland, to help get the cover on evenly, I've taken longer screws of the same thread (?M6 x1mm IIRC) and cut the heads off (made my own studs) then threaded a couple of those into a couple of holes. That allows you to "hang" the cover first then slide it back into place without the cover sliding/slipping around and disturbing the O-ring. if that makes sense, then start installing the screws and remove the studs.
Note: the use of a small amount of gasket maker for the oil pump cover may be controversial and it's not recommended or mentioned in the FSM, it's just something some people including myself have used to help ensure a long term seal. FWIW.
Have you tried an EasyOut or Grab It?
Having said that and looking at the carnage I would not suggest the OP attempt to fix anything with power tools or taps, it could make things worse.
To clean up the holes there are clean out taps (thread restorers) that you screw in by hand that remove gunk but won't cut new threads
@landingtheLC : if new screws will go into those threads ie: a test fit before you install a new pump cover you won't need to use a tap or thread restorer. I would just blow them out with brake cleaner (cover your eyes and/or look away as the cleaner will blow straight back at your face!!)
The critical suface is the flat area where the oil pump cover clamps down onto the corresponding mating surface of the timing cover, but that doesn't look that bad and FIPG may be work well along with the O-ring IMHO
As mentioned above JB Weld could work but as mentioned the damaged is on the outside of the O-ring. But for that area it might be hard to keep it in place ie: the JB Weld will want to slump or slide downward. That could be fixed later with a dremel if too much got into the gland for the O-ring but again, difficult to work in that area for anyone and too easy to damage the soft aluminum. So I would not suggest using a dremel.
@landingtheLC : a safer option, if needed at all?? might be to use FIPG (form in place gasket maker) to fill the damaged areas after everything is completely degreased with brake cleaner for example
Technically, nothing should get into the gland or interfere with the movement of the O-ring but FWIW (to ensure a long term seal) I've used an extremely small amount of FIPG placed on the outer rim of the face of the oil pump cover just before installing the cover. I do this by putting the gasket maker on my finger first then scrape a small amount off as I work around the edge of the pump cover mating surface (note: this is not the Factory Method, just the way I've done it YMMV). Whichever way you do it, you do not want to get the gasket maker to squeeze out into the pump rotor.
One tip: after you've got the new O-ring into the groove/gland, to help get the cover on evenly, I've taken longer screws of the same thread (?M6 x1mm IIRC) and cut the heads off (made my own studs) then threaded a couple of those into a couple of holes. That allows you to "hang" the cover first then slide it back into place without the cover sliding/slipping around and disturbing the O-ring. if that makes sense, then start installing the screws and remove the studs.
Note: the use of a small amount of gasket maker for the oil pump cover may be controversial and it's not recommended or mentioned in the FSM, it's just something some people including myself have used to help ensure a long term seal. FWIW.
Last edited:
- Thread starter
- #8
Oh keeping the JBweld out of the o-ring grove that’s a good point I don’t think I want them mixing up. What about just using one of those gasket makers and filing it up with that instead of Jbweld ?
"What about just using one of those gasket makers and filing it up with that instead of Jbweld ?"

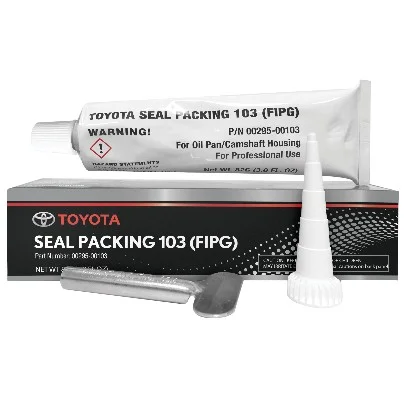

Read post #7 above. You can use Toyota's "Seal Packing" 00295-00103 (Seal Packing 103) or any of the other similar gasket maker products, everyone has their favorite like Permatex Ultra Black, Permatex The Right Stuff, etc, etc
