Thanks Flux, ESH if say you are near will give you kiss and hugs thanks buddy for the link. anyway here is my first attempt have taken profile from the exhaust gasket given with the turbo and has sent a 10" SS plate for water cutting where as to adapt SS down pipe. a similar down pipe as the pict below. if this setup seems to be dificult then will proceed to buy what you have suggested less headache.

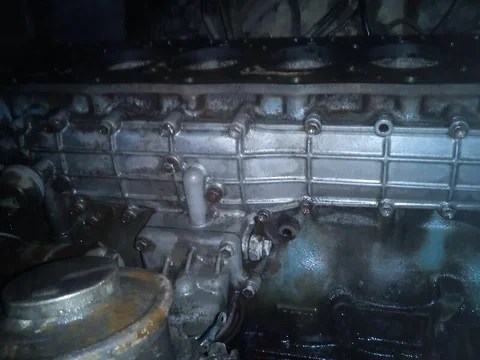

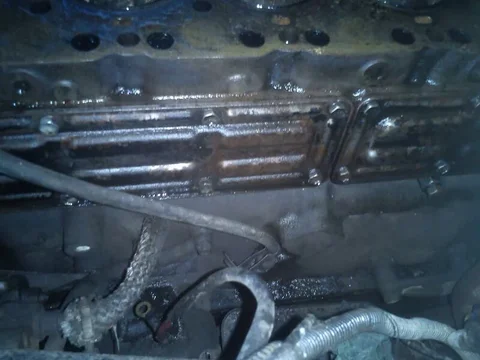

Thanks Alaricikticky, As part of add on turbo and inter cooler job decided to replace head gasket and when i'm there thought of painting the motor so washed it with de-greaser chemical and result was very impressive so thought of sharing it.

10379427_1506354932926872_1420892116_n.jpg 10466662_1505785769650455_2021740375_n.jpg 10466769_1505782756317423_1012144395_n.jpg 10474244_1505785716317127_437290468_n.jpg 10476374_1506354522926913_454875896_n.jpg

started to paint engine will be completing it today timing case and rocker cover has been sent for buffing and polishing and will put back head together to start of with my turbo charging.



Almost done, came out to be awesome simply loved it.



Hope you guys like my build, head and fuel pump installed timing need to be adjusted again will be doing it tomorrow. wish could get the water pump and other bits and pieces installed and get her fired by next Wednesday to kick of with my turbo charging work.








Hi friends was in the right track till a few weeks before when i screwed up something really bad, gave my fuel lines connecting Fuel pump and injectors for nickel coating and when got it back found rusting inside fuel lines which i'm not able to clear even after few rounds of chemical wash and don't want some dirt get inside injectors nor the engine block, so now sourcing fuel lines and one of our member have agreed to ship it for 100+70$ so while waiting for parts to arrive, some fab work where kicked in fabricated SS pipe line for silencer 3" and turbo hooked up intercooler mounting clamps. also finished front grills and light bezel and it really came out nice really felt happy would like to thank our member ESH for this.



After a long wait bought used Fuel lines from Canada from a Mud member, lot's of home work has been done in this 1 month for turbo and inter cooler stuff.
1) SS pipe line for inter cooler and turbo plumping completed.
2) oil lines and water lines for CT26 turbo charger fabricated.
3) Exhaust lines, down pipes all done and finally hoked will start and test run her after 14 months of hibernation with all body and mechanical works carried out.


sorry for bad quality photo's will try to take better pictures.

Looks like your welds are having a hard time penetrating that chrome finish. You may want to try grinding that off before you weld them fully, it should make it easier to penetrate and probably much better for your lungs too.
Nothing but respect for your determination, I wish I was half as motivated as you are on my project.

Loving the progress! Keep it up!

That grill and headlight setup is throwing me for a loop though.

Essar all the spot welds smoothly grind and welded these photos where taken while we where trying to fix a trial setup. Thanks Johnny, felt sad since there was no comments after 24 hrs of me posting update and your words means a lot to me, today we tried to crank her up and she roared within 2 crank but something went wrong, Oil line for turbo gave up and splashed oil all over so stopped fixing the oil line will start her tomorrow.

Last edited:
Keep at it mate we're all watching, you're just doing stuff we haven't seen done in ways we're not used to seeing it done.

Crick60 thanks, if go to Toyota service centers they might do the type of work someone would expect on a LC, but my truck was in a very bad shape they might not recognize is a LC are a Toyota, also i have never seen a HJ60 in my place before, also in this build i know each and every strong and week points of my truck which i might not be informed if go to Toyota guys that's one main reason choose to do it this way. today second attempt self motor giving trouble removed and cleaned it twice still same looking for new self starter in US please suggest me where i can get it so i save in shipment.

Essar yes bro in need of few parts in 12 volt, starter motor, front wiper motor, Edix motor and 150 amps 12volt alternator which can be sourced in US, as my parents will carry India shipping from Australia is expensive task.

Photo'a taken while we drove from Trichy my home town to a friend workshop for painting works in Madurai 160kms all the way she run fine without any drama. Zero exhaust note was expecting her to be louder but my 50cc motor is much louder.
