Need to get my hands on pistons asap (3 Viewers)

[ptotheo]

Hello!

Please help

I’ve searched the web looking for pistons (131011702002) hd-t mark 2(b). Does anyone know where I could get my hands on some?
I’m located in Norway, but got a friend over in the states now who is traveling back in a week or so.

Would love to have it running by summer holliday in 1,5 month

Partsouq is out of stock
Amayama is out of stock
Yoshiparts is out of stock



[manofthewoods]

Hello!

Please help

I’ve searched the web looking for pistons (131011702002) hd-t mark 2(b). Does anyone know where I could get my hands on some?
I’m located in Norway, but got a friend over in the states now who is traveling back in a week or so.

Would love to have it running by summer holliday in 1,5 month

Partsouq is out of stock
Amayama is out of stock
Yoshiparts is out of stock

Maybe try Megazip?



[Rodger1957]

Try EGGE Machine, they do custom engine machine work, forge pistons etc.



[Eurasiaoverland]

Maybe try Megazip?

They use the same suppliers as above, so answer will be the same. These companies don't hold stock.



[dmjay]

Try Engines Australia.



[AussieHJCruza]

Can't seem to find 13101-17020-02 in stock (which I believe is the early 1HD-T piston, to 08/92) anywhere but 99% sure we can get 6x 13101-17040-02 (which if I can read a parts diagram properly)is the later piston, 08/92 to 01/95 inside a couple of weeks.



[Eurasiaoverland]

Hello!

Please help

I’ve searched the web looking for pistons (131011702002) hd-t mark 2(b). Does anyone know where I could get my hands on some?
I’m located in Norway, but got a friend over in the states now who is traveling back in a week or so.

Would love to have it running by summer holliday in 1,5 month

Partsouq is out of stock
Amayama is out of stock
Yoshiparts is out of stock

It's not that they are out of stock, the parts are out of production. Therefore you need to get lucky with some NOS (pretty unlikely in the US), use a substituted part, or go aftermarket.

Partsouq do a set of 6 Indonesian Teikin pistons. No idea if they are worth fitting or not. https://partsouq.com/en/search/all?q=1310117020#46325ASTD-1

Mag Engines, also in the UAE, do a set of unknown provenance (will be Indonesia or PRC) with Japanese rings. PISTON & RING SET TOYOTA 1HD-T-II 12V 4.2 LTR – Mag Engines - https://magengines.com/product/piston-ring-set-toyota-1hd-t-ii-12v-4-2-ltr/



[ptotheo]

Can't seem to find 13101-17020-02 in stock (which I believe is the early 1HD-T piston, to 08/92) anywhere but 99% sure we can get 6x 13101-17040-02 (which if I can read a parts diagram properly)is the later piston, 08/92 to 01/95 inside a couple of weeks.

Yoshiparts said they could get them in about 2-3 weeks, but you know when everything else is ready those 2-3 weeks feels like forever



[AussieHJCruza]

Can't seem to find 13101-17020-02 in stock (which I believe is the early 1HD-T piston, to 08/92) anywhere but 99% sure we can get 6x 13101-17040-02 (which if I can read a parts diagram properly)is the later piston, 08/92 to 01/95 inside a couple of weeks.

Further to this

Chamber in the piston of 39.1mm are 8/92 or earlier
Later piston has chamber of 42.4mm diameter.

The larger diameter chamber is shallower so compression ratio is the same.

I'm told by a reputable injection shop that as long as you match the injector seat washers to the correct piston (early or late) they are interchangeable.



[Eurasiaoverland]

Yoshiparts said they could get them in about 2-3 weeks, but you know when everything else is ready those 2-3 weeks feels like forever

Don't worry, they will get back to you in a few days to say they are discontinued.



[AussieHJCruza]

Don't worry, they will get back to you in a few days to say they are discontinued.

Have had this issue with Yoshi and Impex, neither of these suppliers keep any stock and try to order the parts once they receive an order themselves.



[ptotheo]

Further to this

Chamber in the piston of 39.1mm are 8/92 or earlier
Later piston has chamber of 42.4mm diameter.

The larger diameter chamber is shallower so compression ratio is the same.

I'm told by a reputable injection shop that as long as you match the injector seat washers to the correct piston (early or late) they are interchangeable.

Yeah I’ve have looked at that myself, but then again I need to drill the sylinders too, just got them hooned



[ptotheo]

Don't worry, they will get back to you in a few days to say they are discontinued.

Yeah i prefer to order from partsouq, I have had zero problems, 5 business days from Japan? To Norway, that’s faster then inland post service



[AussieHJCruza]

Yeah I’ve have looked at that myself, but then again I need to drill the sylinders too, just got them hooned

The piston diameter is the same, the combusrion chamber in the middle of the late piston is larger diameter and shallower than the early piston. You don't need to rebore



[Kernal]

@ptotheo : What year/model diesel 80 Series are you working on, example: HDJ80L-GNEPX (or other) found on the VIN plate?

Different years/models/markets may have different piston options:

Partsouq parts diagram:

Partsouq list of piston options: (13101-17020-02 indicates 01.1990 -08.1992?)

Found photos for comparison (based on @AussieHJCruza post with part numbers

)

If the 13101-17040-02 is considered by Toyota a suitable replacement (superceded?) part here's some links:

Amayama has ~120 of the 13101-17040-02 available in UAE:

Toyota 13101-17040-02 (131011704002) PISTON SUB-ASSY, W/PIN

Toyota 13101-17040-02 (131011704002) PISTON SUB-ASSY, W/PIN. New & genuine Japanese car parts. Fast shipping. Low prices. Request a quote from Amayama Trading Co. online.

www.amayama.com

---------------------------------------------------------------------------------------------------

Partsouq has the best price for 13101-17040-02 (IME Partsouq ships quicker than most others, at least to the US):

https://partsouq.com/en/search/all?q=13101-17040-02

---------------------------------------------------------------------------------------------------


Partsroutestore (UAE-search on ebay) also has a set of 13101-17040-02 for a good price

---------------------------------------------------------------------------------------------------------------

And then there's Japan4x4, if anyone can find a part it would be him:

Japan4x4 Export Service

JDM Toyota, Nissan, Mistubishi, Japanese vehicles and parts

export.japan4x4.com

(scroll to the Contact page for email and phone numbers)


13101-17040-02 (as mentioned by @AussieHJCruza note the size/shape differences of the combustion chamber compared to 13101-17020-02):

----------------------------------------------------------------------------------------------------------------------------------------------------------------------


13101-17020-02 which doesn't seem available anywhere (out of production?):

FWIW I checked the diesel forum and it was asked/discussed twice (but never answered) if the later piston (13101-17040-02) was a direct replacement for the out of production piston (13101-17020-02).



[CharlieS]

What about one of the custom piston shops?



[ptotheo]

@ptotheo : What year/model diesel 80 Series are you working on, example: HDJ80L-GNEPX (or other) found on the VIN plate?

Different years/models/markets may have different piston options:

Partsouq parts diagram:

View attachment 3912934

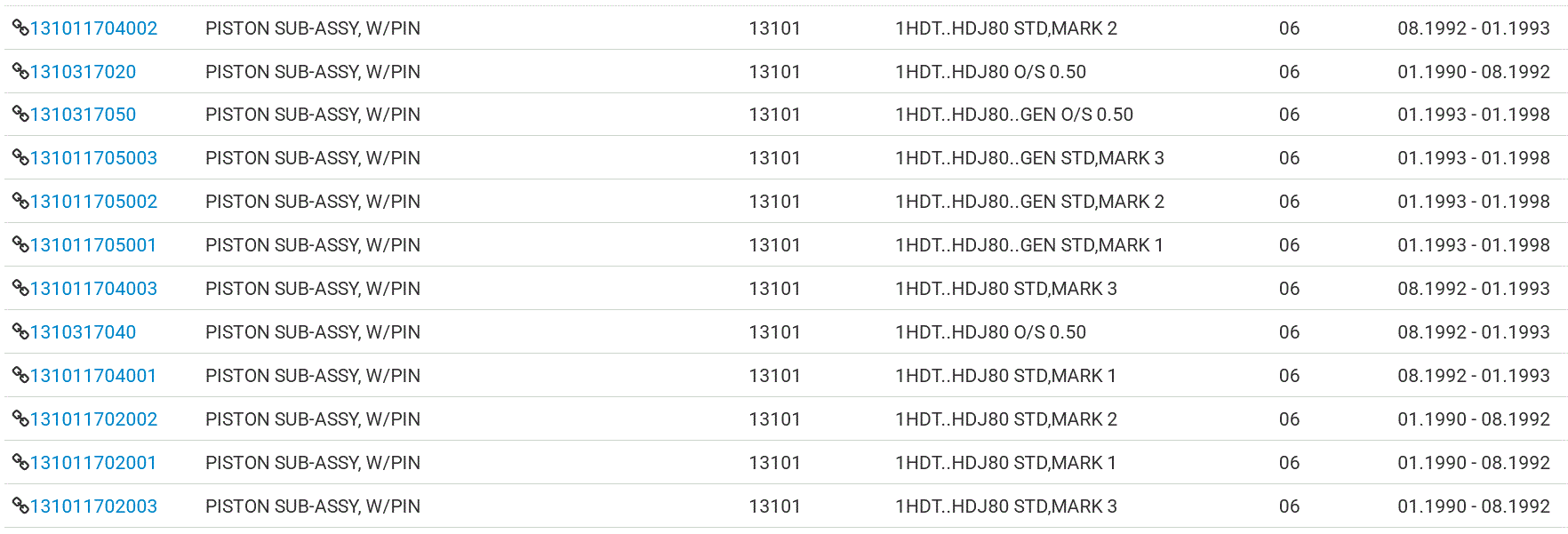

Partsouq list of piston options: (13101-17020-02 indicates 01.1990 -08.1992?)

View attachment 3912935


Found photos for comparison (based on @AussieHJCruza post with part numbers

)

If the 13101-17040-02 is considered by Toyota a suitable replacement (superceded?) part here's some links:

Amayama has ~120 of the 13101-17040-02 available in UAE:

Toyota 13101-17040-02 (131011704002) PISTON SUB-ASSY, W/PIN

Toyota 13101-17040-02 (131011704002) PISTON SUB-ASSY, W/PIN. New & genuine Japanese car parts. Fast shipping. Low prices. Request a quote from Amayama Trading Co. online.

www.amayama.com

---------------------------------------------------------------------------------------------------

Partsouq has the best price for 13101-17040-02 (IME Partsouq ships quicker than most others, at least to the US):

https://partsouq.com/en/search/all?q=13101-17040-02

---------------------------------------------------------------------------------------------------


Partsroutestore (UAE-search on ebay) also has a set of 13101-17040-02 for a good price

---------------------------------------------------------------------------------------------------------------

And then there's Japan4x4, if anyone can find a part it would be him:

Japan4x4 Export Service

JDM Toyota, Nissan, Mistubishi, Japanese vehicles and parts

export.japan4x4.com

(scroll to the Contact page for email and phone numbers)

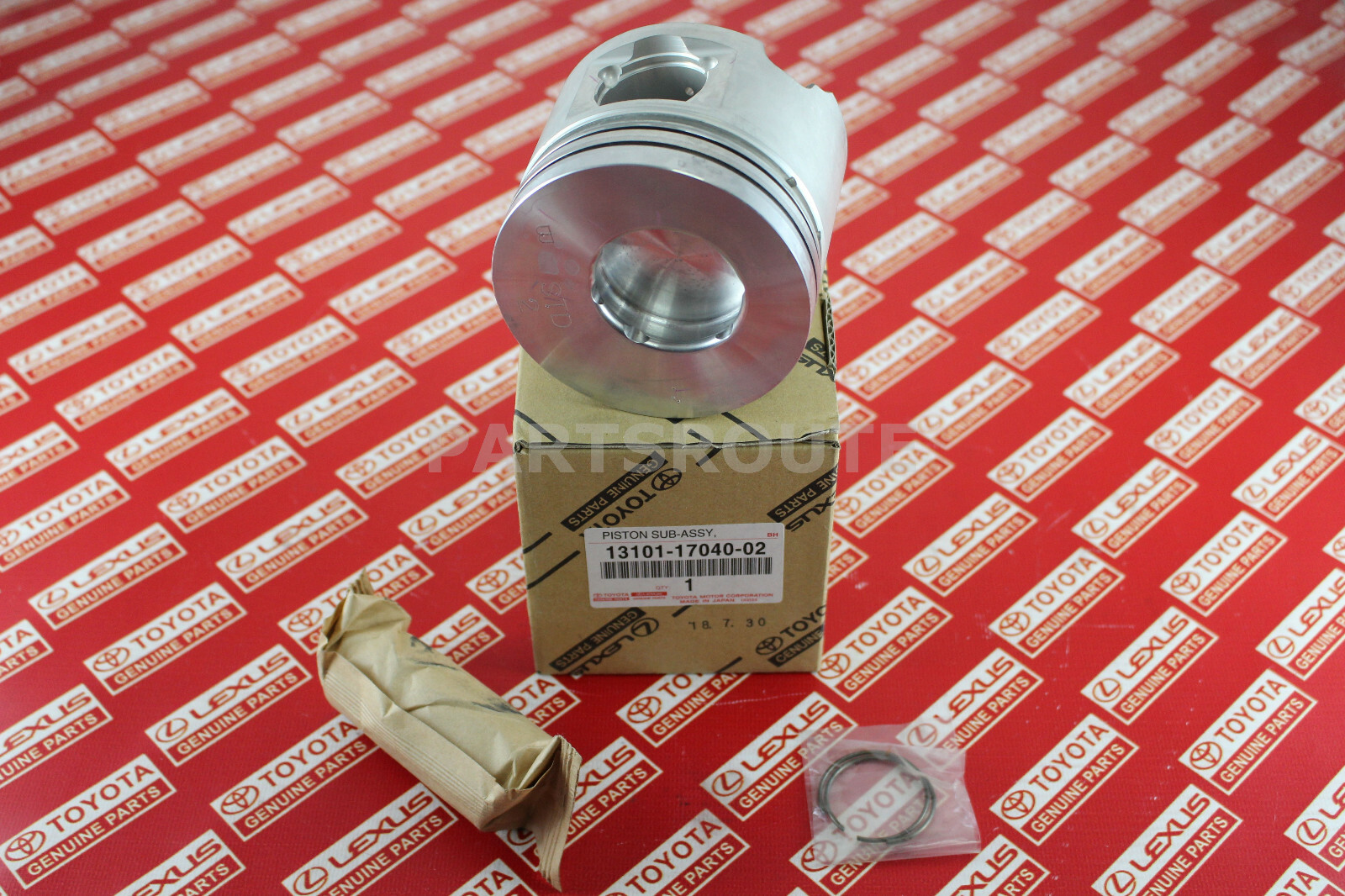

13101-17040-02 (as mentioned by @AussieHJCruza note the size/shape differences of the combustion chamber compared to 13101-17020-02):

View attachment 3912616

----------------------------------------------------------------------------------------------------------------------------------------------------------------------


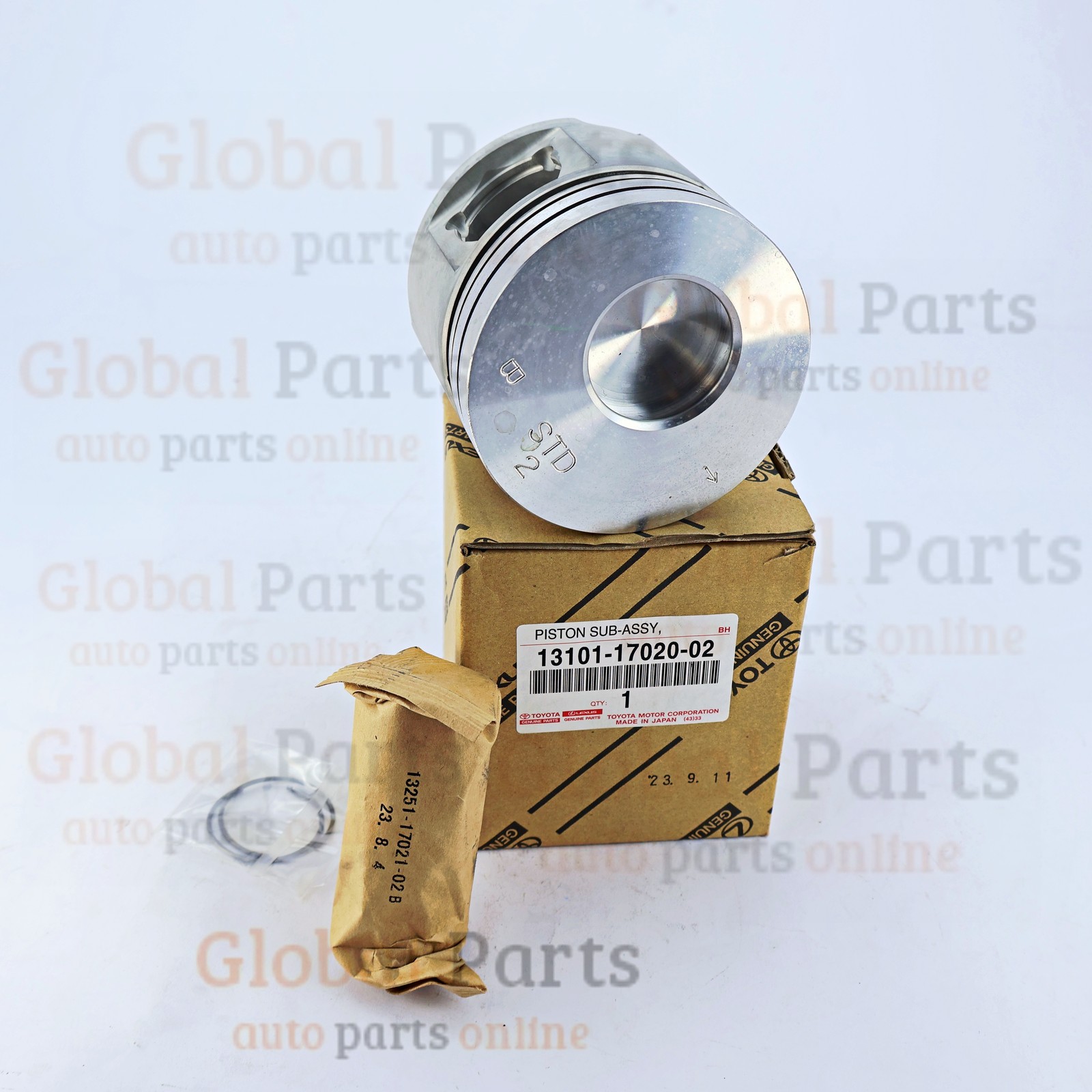

13101-17020-02 which doesn't seem available anywhere (out of production?):


View attachment 3912617


FWIW I checked the diesel forum and it was asked/discussed twice (but never answered) if the later piston (13101-17040-02) was a direct replacement for the out of production piston (13101-17020-02).

Thanks for the answer!

Any idea witch shims I need for the injectors if I’m going for 13101-17040-02. ?
I’ve got one order in for the 92 pistons, but think I will order a set of 13101-17040-02 to but then again I need the shims.



[AussieHJCruza]

Thanks for the answer!

Any idea witch shims I need for the injectors if I’m going for 13101-17040-02. ?
I’ve got one order in for the 92 pistons, but think I will order a set of 13101-17040-02 to but then again I need the shims.

11176-27011 should be the PN for injector seats for late pistons

Early pistons = 11176-17010



[Kernal]

@ptotheo : What year/model diesel 80 Series are you working on, example: HDJ80L-GNEPX (?? or other), you'll find it on the VIN plate?
