LED High beams and headlight black out

Since I have some (unpaid) time on my hands I went ahead and did some totally unneeded aesthetic work on the trucks headlights.

I wanted to incorporate LED high beam projectors so I could blackout my lights. The LED lights have added some challenges to wiring which I will address later on in more detail. For now here is the process I went through to get everything together.

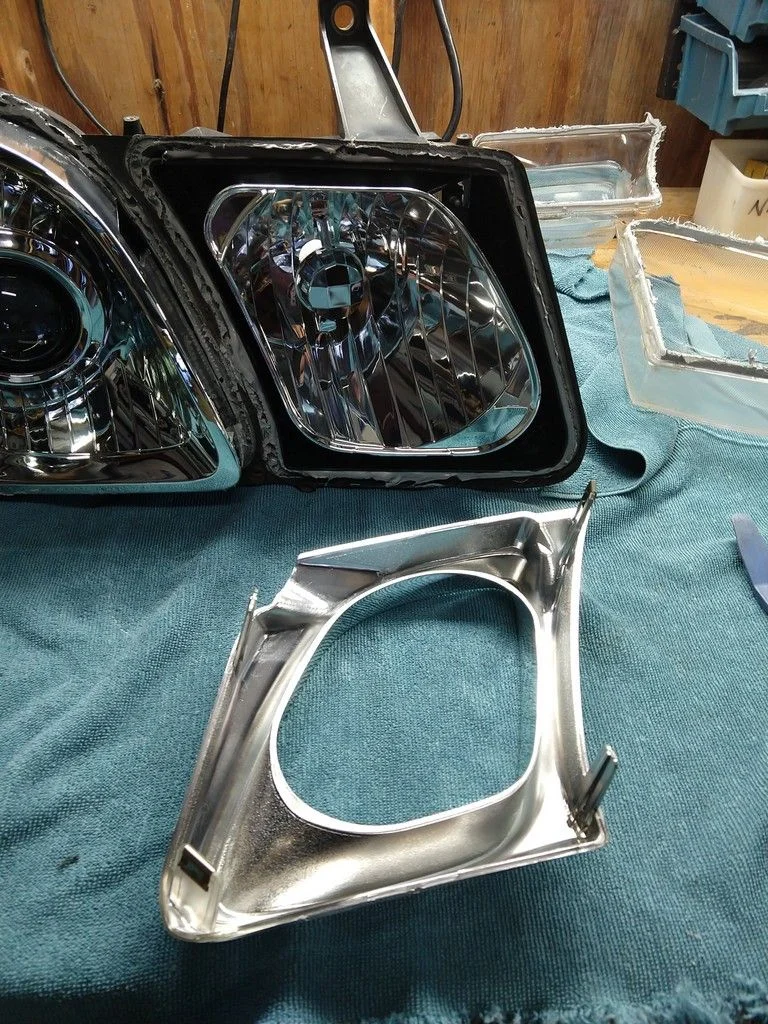

You need to bake/heat up your headlights and take the covers off. Be careful when separating to control the soft sealant, once it hardens it is tough to get off once. To remove the high beam first gently pop off the outer ring:

It held in with clips:

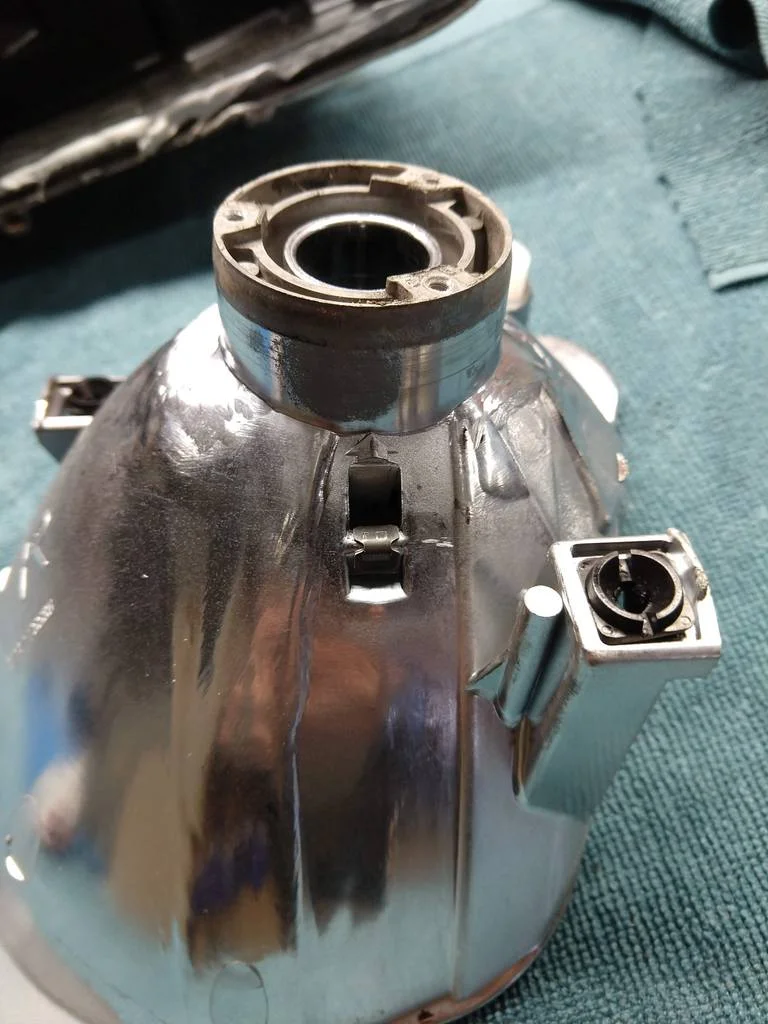

The high beam reflector housing is similar to the low beam. There are 2 adjustment screws in the rear and a ball. Loosen the adjusters but don't remove completely, this will allow you to pop the ball free without the housing flying out (Thanks @Luke111 for the tip).

The bulb shroud is removed by bending the tabs in back straight and pulling it through the front.

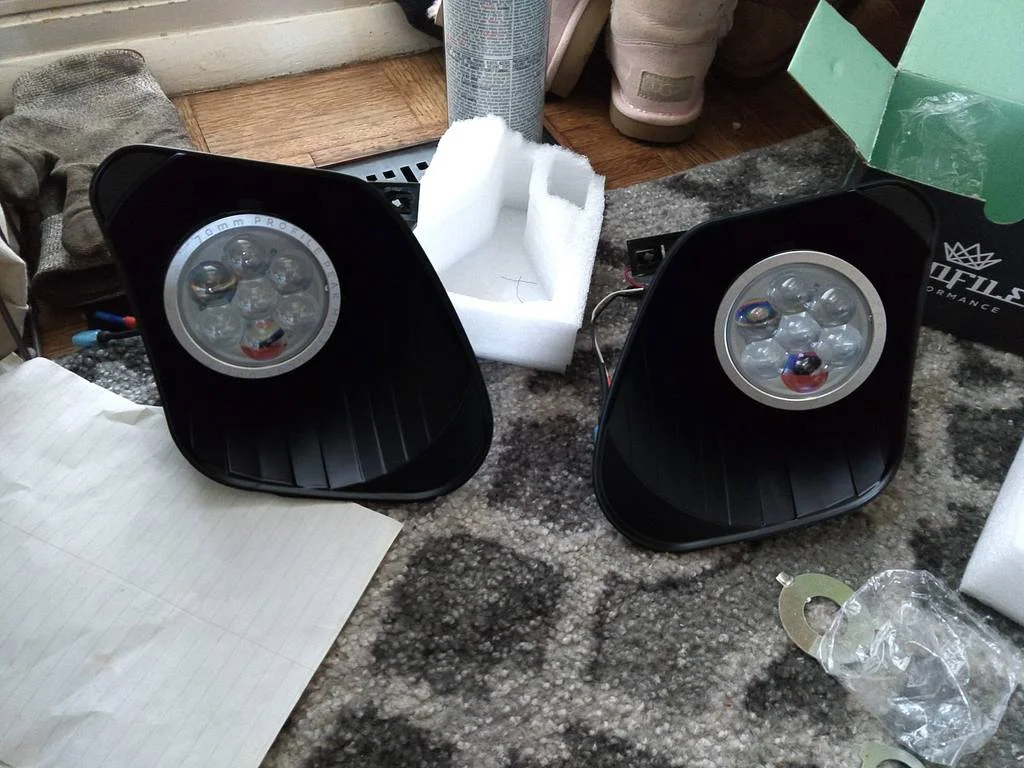

Test fit LED



[frogers935]

Painting the lights, like any painting, takes a good amount of prep work to get it right. I used a combination of Oven Off and scotch brite. The oven off removes the chrome pretty well (Actually not chrome but most likely Al) but some of the harder to reach spots required some rubbing. I liked using the scotchbrite to rough the surface up a bit.

The sequence I followed Oven Off/Scrub -> thoroughly wash soap and water -> water rinse -> dry -> clean with IPA -> tack cloth -> Paint in light coats (I think I did 5-6).

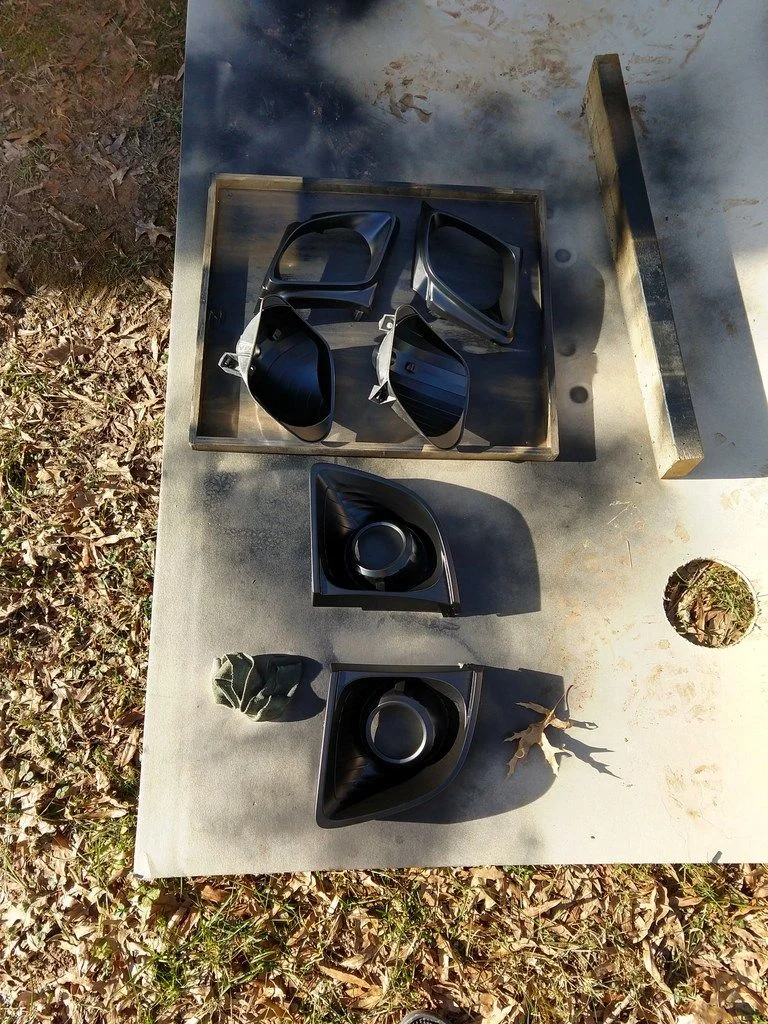

Prepped for paint:

After final coat

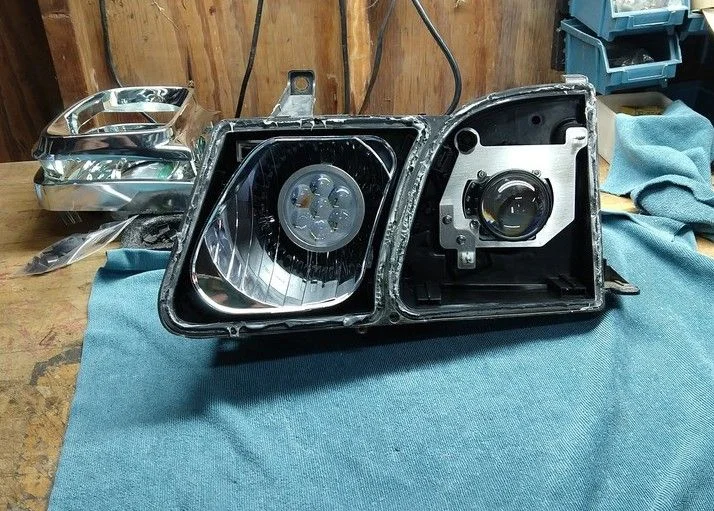

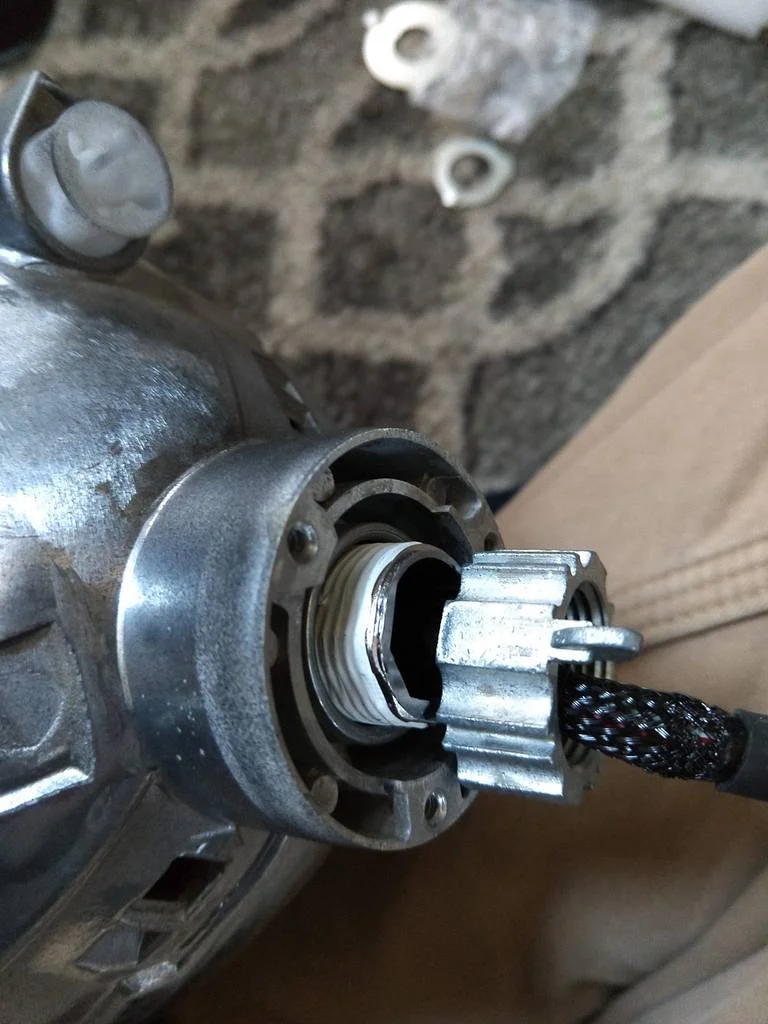

Test fit LED. Note I am not using shrouds and I did not extend the shaft to have the LED sit further out. I will see how this works once everything is hooked up

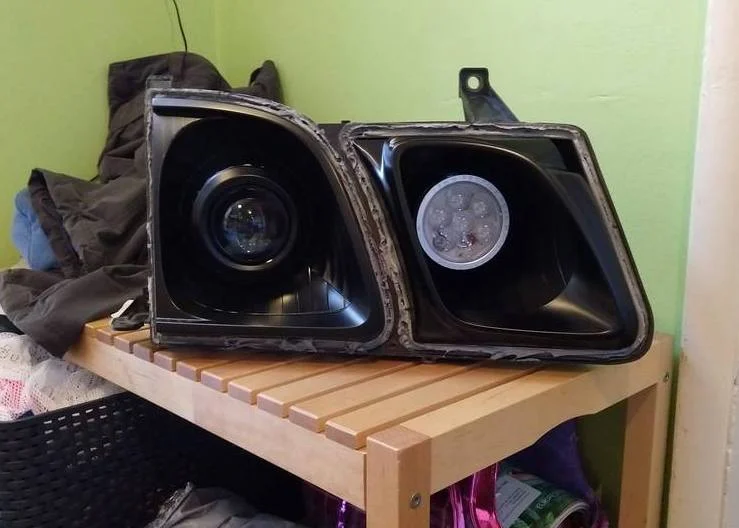

Full assembly

I will have better pictures, light output, and wiring diagrams soon. (Sooner if the government doesn't open)



[frogers935]

As I work on the wiring and install I want to thank both @jerryb and @Luke111 (should have done it in my initial post). Lou has been great helping me get this setup and anyone in the market for the HID I highly recommend him for the brackets and anything else lighting. Jerry has been helping me work through the wiring and has been great to correspond with.



[frogers935]

Everything back together. I ended up polishing the covers and they look better but still show lots of signs of wear. One of my high beam covers has some spider web cracking in it, must be in the middle of the plastic b/c I couldn't sand it down. Ideally I'd replace these if I could find them. Also I plasti dipped my chrome grill black to match the lights.

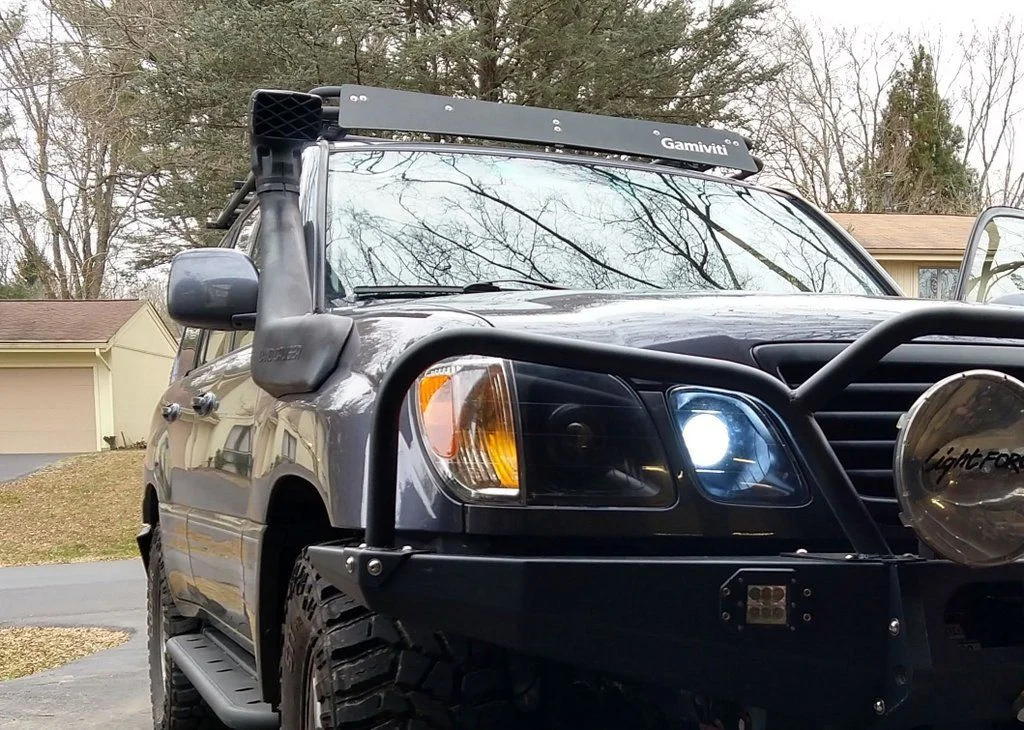

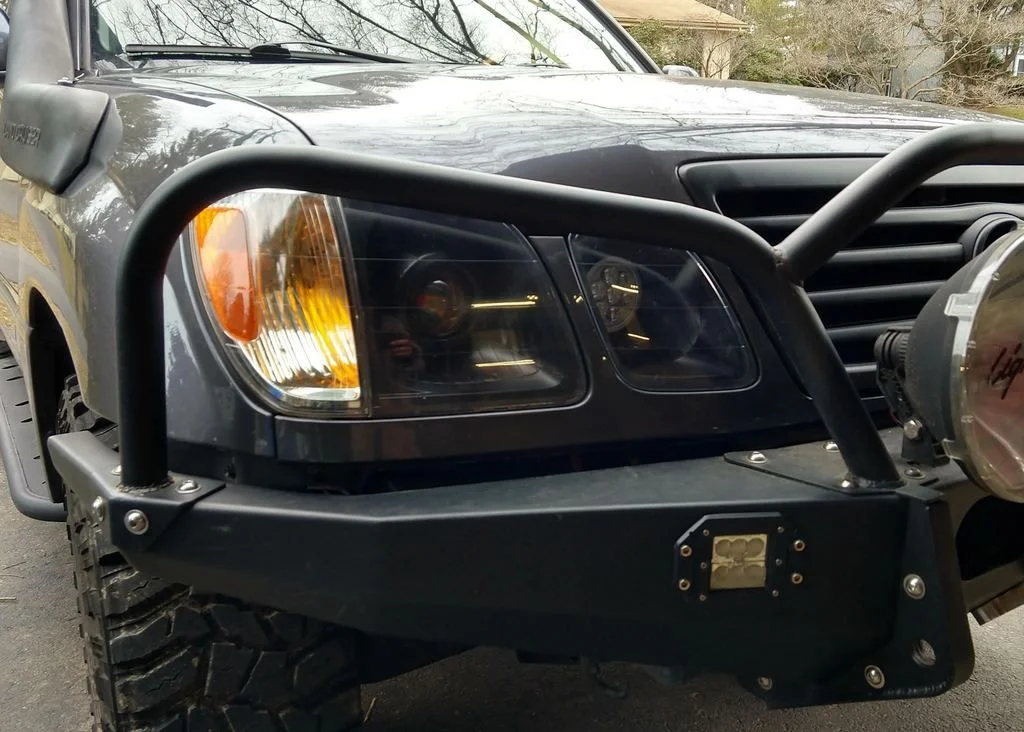

Overall it looks good, light output is great. I still need to aim the high beams then I will get some night shots. I will still follow up with the wiring (it is not a plug and play setup), for now here is what it looks like.

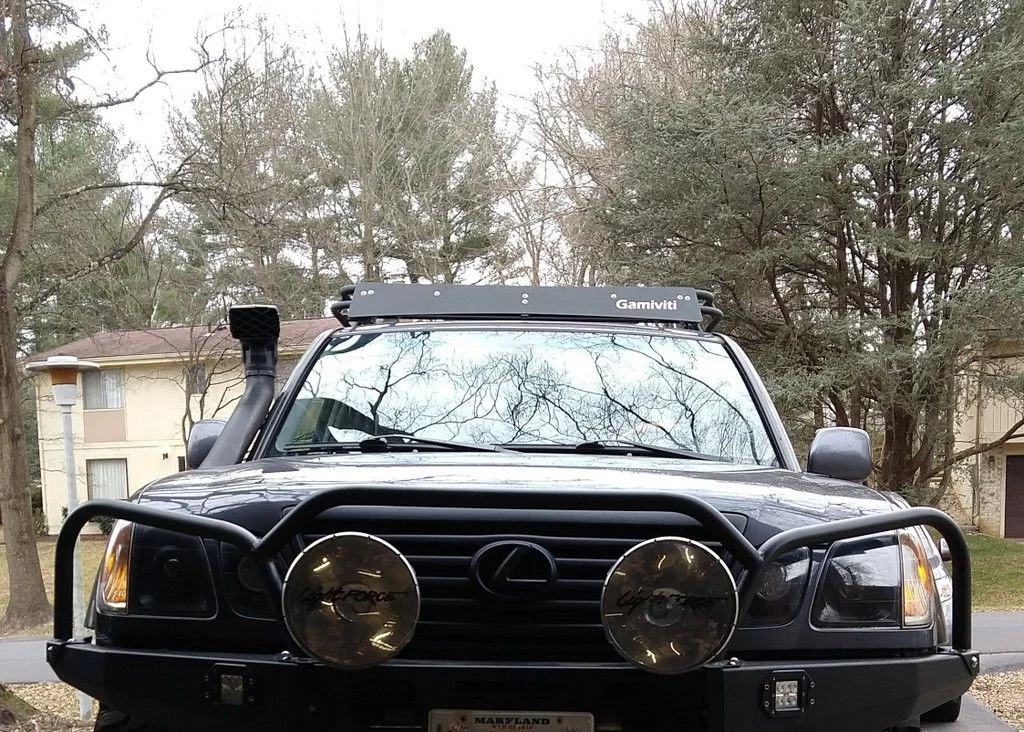

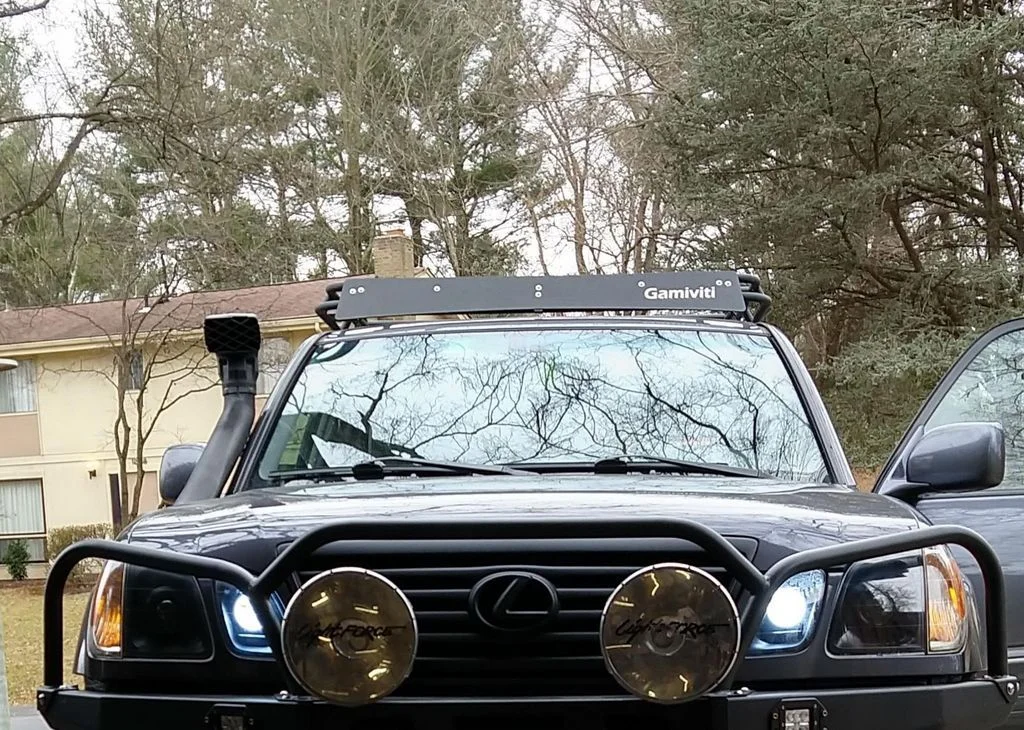

LED DRL on (note on with ACC not working like stock DRL, I have the stock DRL disabled with techstream - will explain in wiring)



[Luke111]

Looks great..... did you end up following @jerryb advice on wiring?



[frogers935]

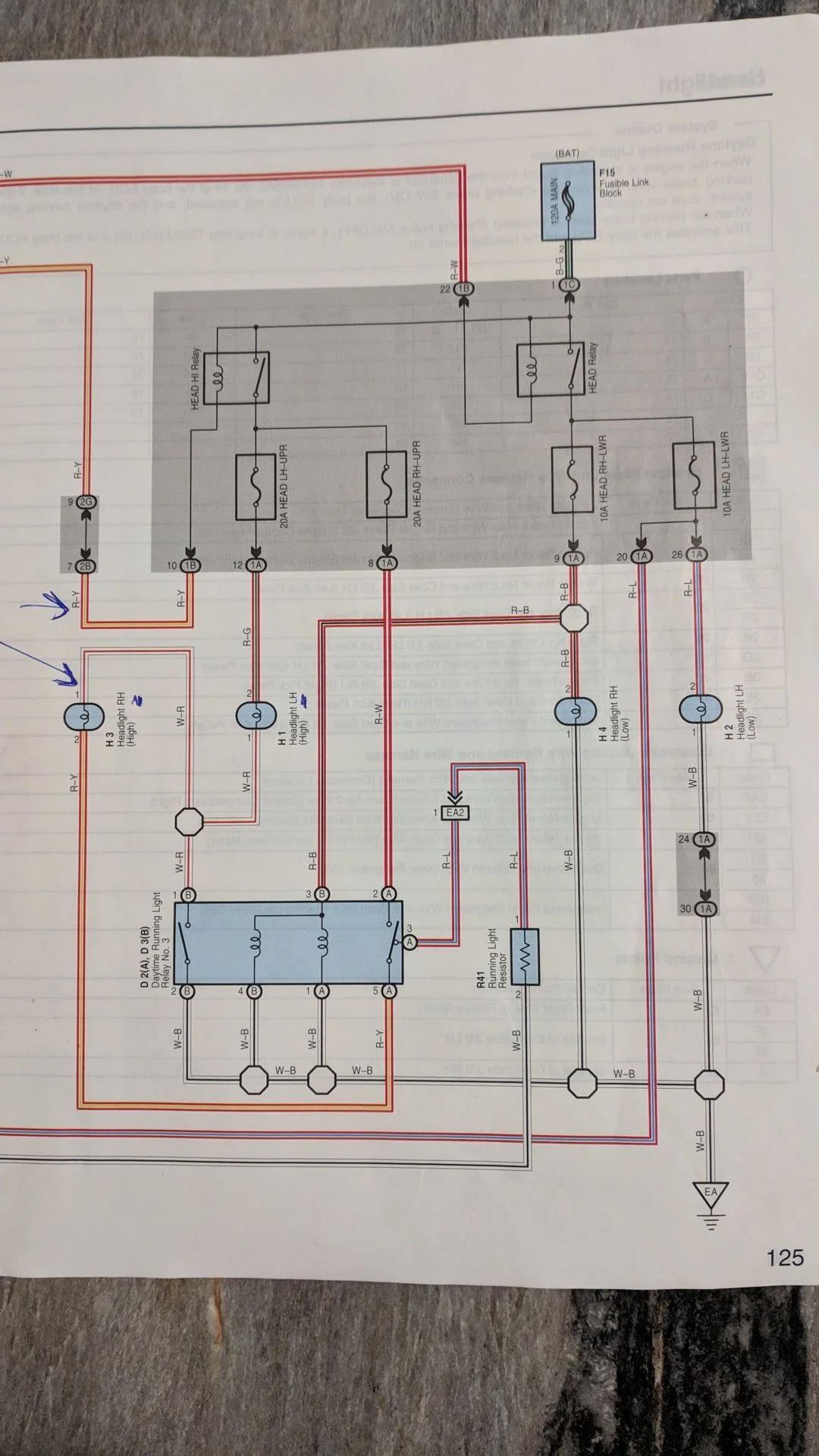

Yes we ended up doing about the same thing. I did a bunch of testing and the way I am running them now is not the way I am going to leave it. Based on the circuit diagram I think I can modify it to run in a stock manner.

- The LED High beam has 3 wires out - (2) +12V (one for main and one for DRL), 1 Common GND

- The stock (06 LX470) has one circuit for both the High beam and DRLs. When the DRL is on there is a switch in the relay that diverts the current flow through a resistor to GND. This drops the voltage in the circuit so the high beams operate at a lower light output. *** With stock bulbs the voltage for DRL's is ~6V ***

- With the LED's hooked up the stock circuit has some issues. Since the LEDs aren't the same 'load' as stock bulbs the voltage drop is not the same. I measured ~8.9V with the LED (main output) hooked up. This is enough to turn on the main LEDs (although not full brightness).

Current Solution: Disabled DRL via techstream. Kept main LED hooked to stock wiring. Wired DRL to ACC +12 via engine bay fusebox. Ran additionally wiring from LED to chassis GND.

Results: High beams work as they should. DRLs are on once truck is started. A switch could easily be added to disable this when needed.

Future Solution Initial Thoughts (opinions and suggestions welcome): I am going to attempt to replace the resistor in the DRL path to reduce the voltage to ~3-5V, most likely I will use a potentiometer to dial this in. This should prevent the main LEDs from turning on. I will use this reduced voltage to feed a DC-DC converter to bump it back upto 12V on a separate circuit to power the LED DRLs. Possibly need a relay to separate the circuit not sure yet.



[Rolocado]

Had a busy weekend working on the truck. I set out to repack the front bearings and install my new SS brake lines/flush system - I managed to get both done. The repack went smoothly but ran into the typical problems with the brakes - seized nuts on the hard lines and corroded bleeder screws (I had new ones in my cart when I ordered my parts not sure how I ended up without them).

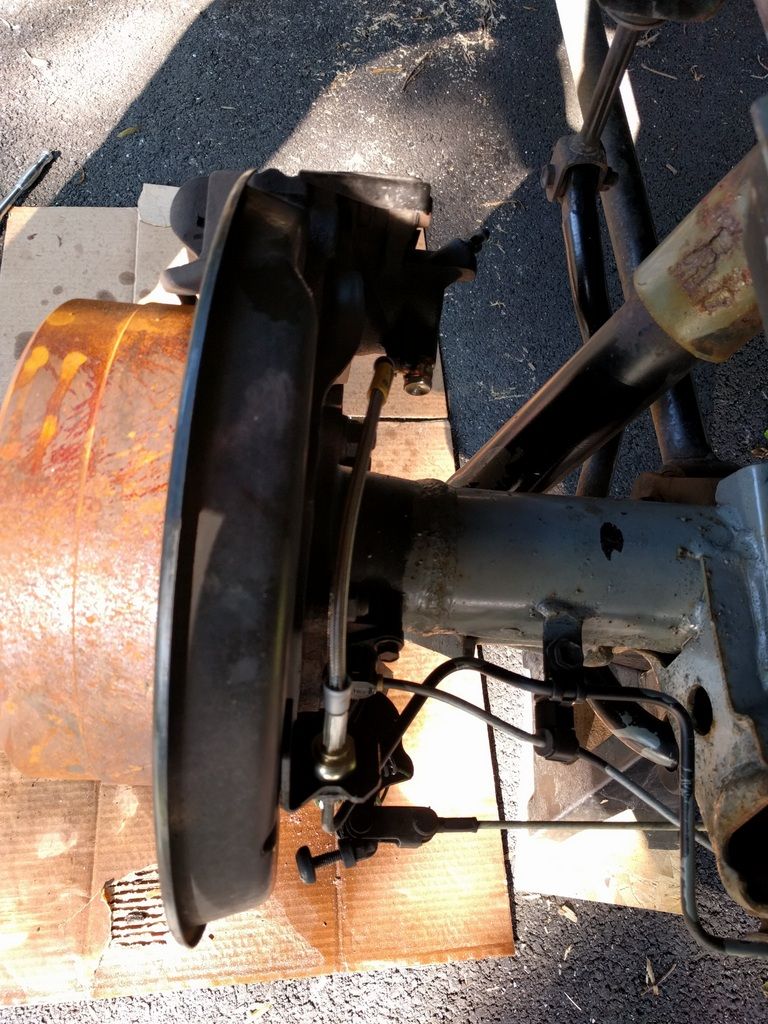

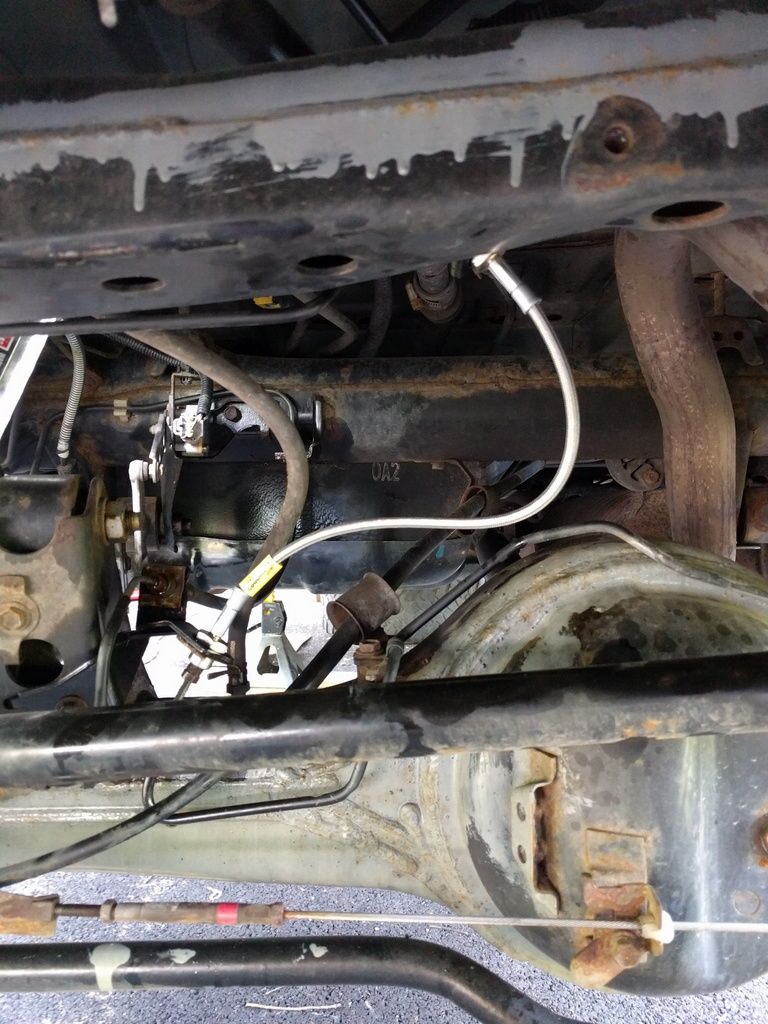

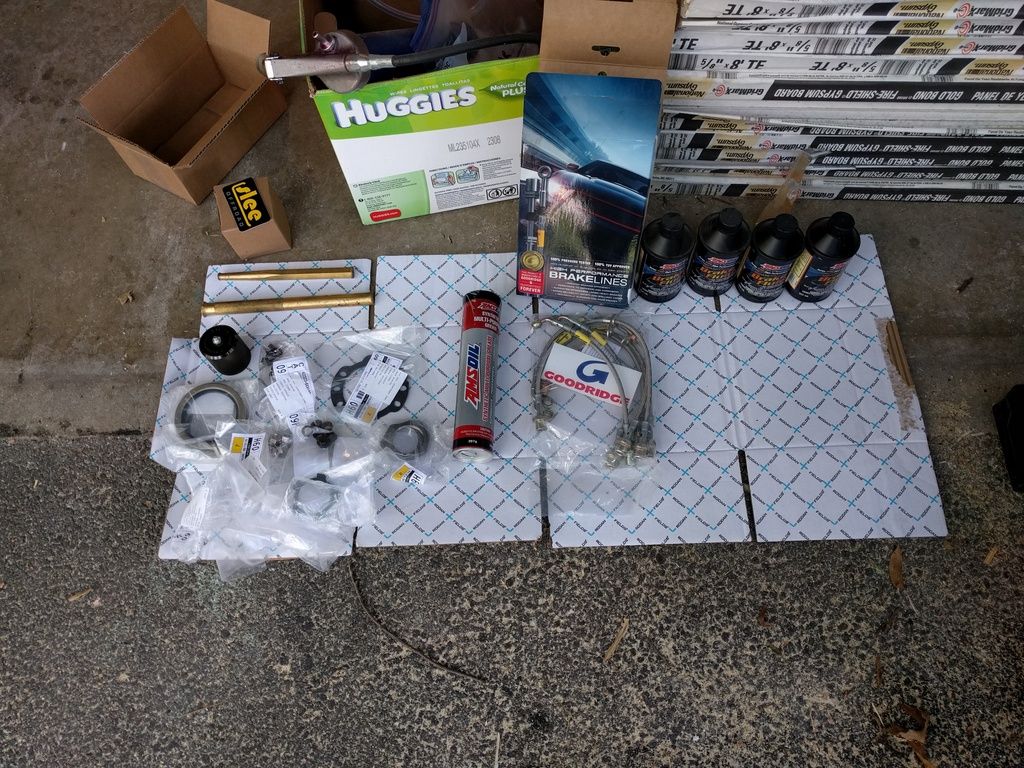

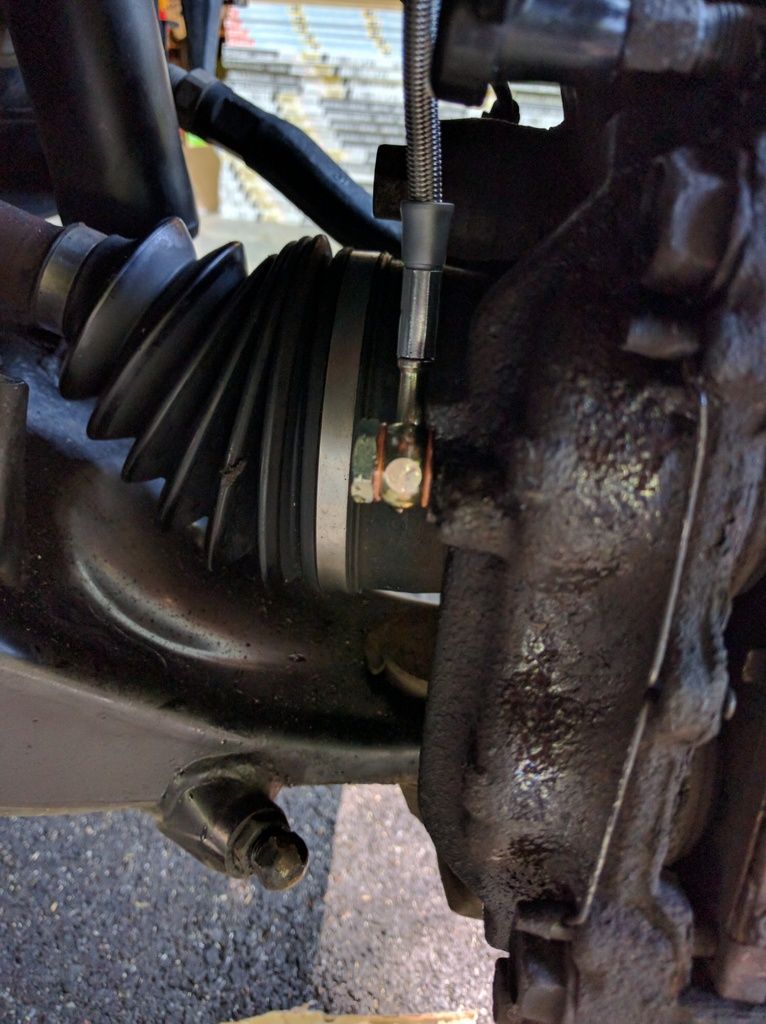

Anyways here are a few pictures unfortunately not many - I was pressed for time. I will do a full review on the Goodridge SS brake line install shortly but for now here are the few pics I have:
