LX470 HID RETROFIT PROJECTOR BRACKET (3 Viewers)

Luke111

Supporting Vendor
Joined
Aug 6, 2006
Messages
3,091
Location
Northern Virginia


LX470 HID RETROFIT PROJECTOR BRACKETS ARE AVAILABLE

www.lbbuiltwerks.com



HID MINI H1 BRACKET AND PROJECTOR INSTALL GUIDE



In my quest to simplify the retrofit process in my LX470 I decided to have a bracket made that matches the OEM attachment points which will allow you to simply bolt on the projector, button up your lights and you're done.




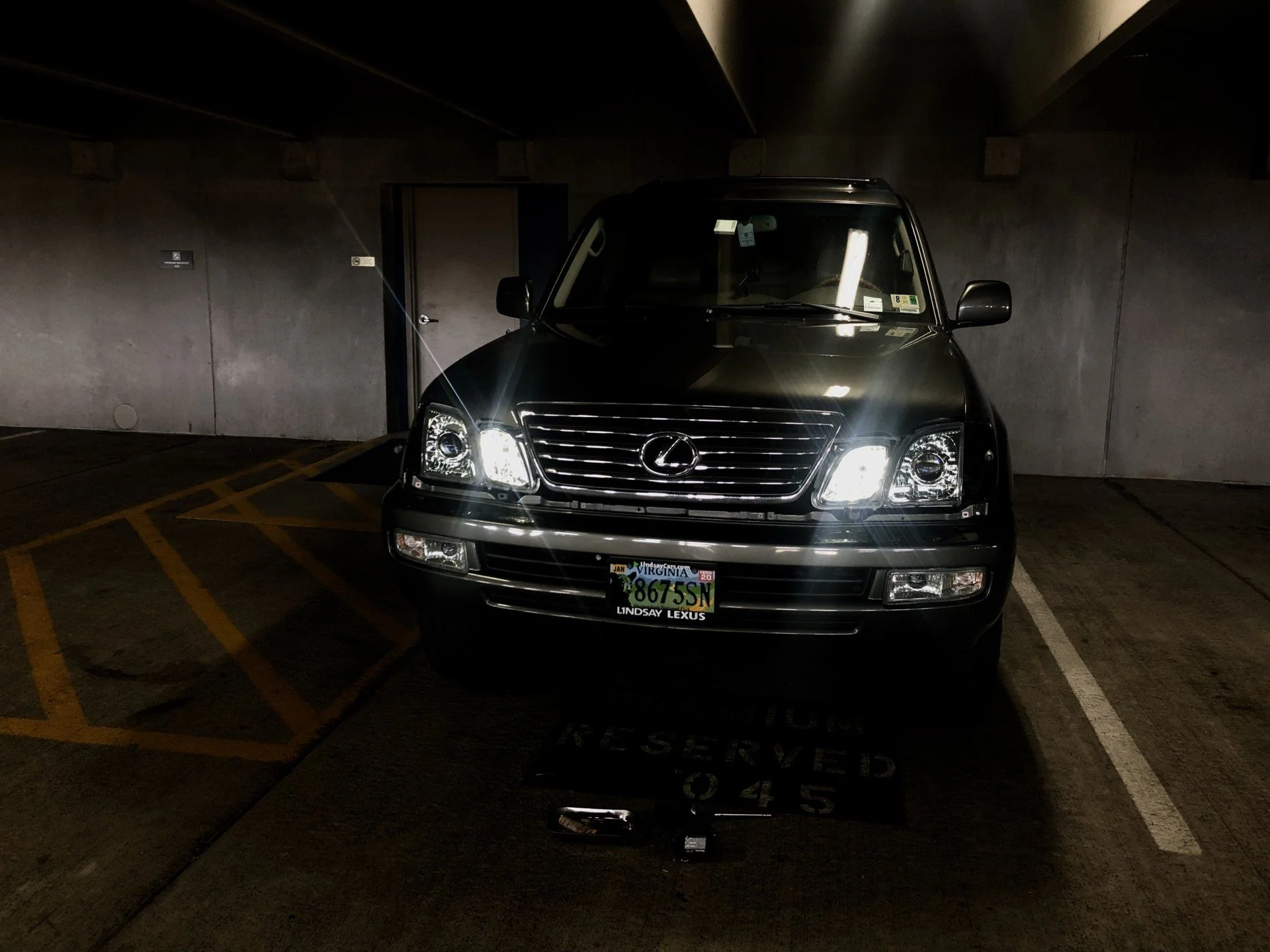

View attachment 1519515










Last edited:

bamabrock

Ain’t Life Grand
SILVER Star
Joined
Jan 22, 2010
Messages
3,578
Location
Birmingham, AL


Your planning this for Lexus only?
Another question if this will be available for LC. Very cool!
You dont really need a bracket for the LC if you are using one of the aftermarket projectors with threaded mounts like the morimoto Mini H1 or Mini D2S 4.0. The D2S is bigger than the H1 so your results may vary, but I know the H1 fits based on the LC I had with a H1 projector with the standard mini gatlin gun shroud. On the LC 98-02 models at least, you have to slightly trim the housing to make room for the shroud (if you dont, the projector will be angled down because the top would hit the housing otherwise) and you may have to trim the bulb holder where the bulb goes in on the backside of the housing to be able to screw down the nut on the projector shaft. the 03-07 LC headlights do not have the clearance issue with the shroud.

Last edited:

Luke111

Supporting Vendor
Joined
Aug 6, 2006
Messages
3,091
Location
Northern Virginia

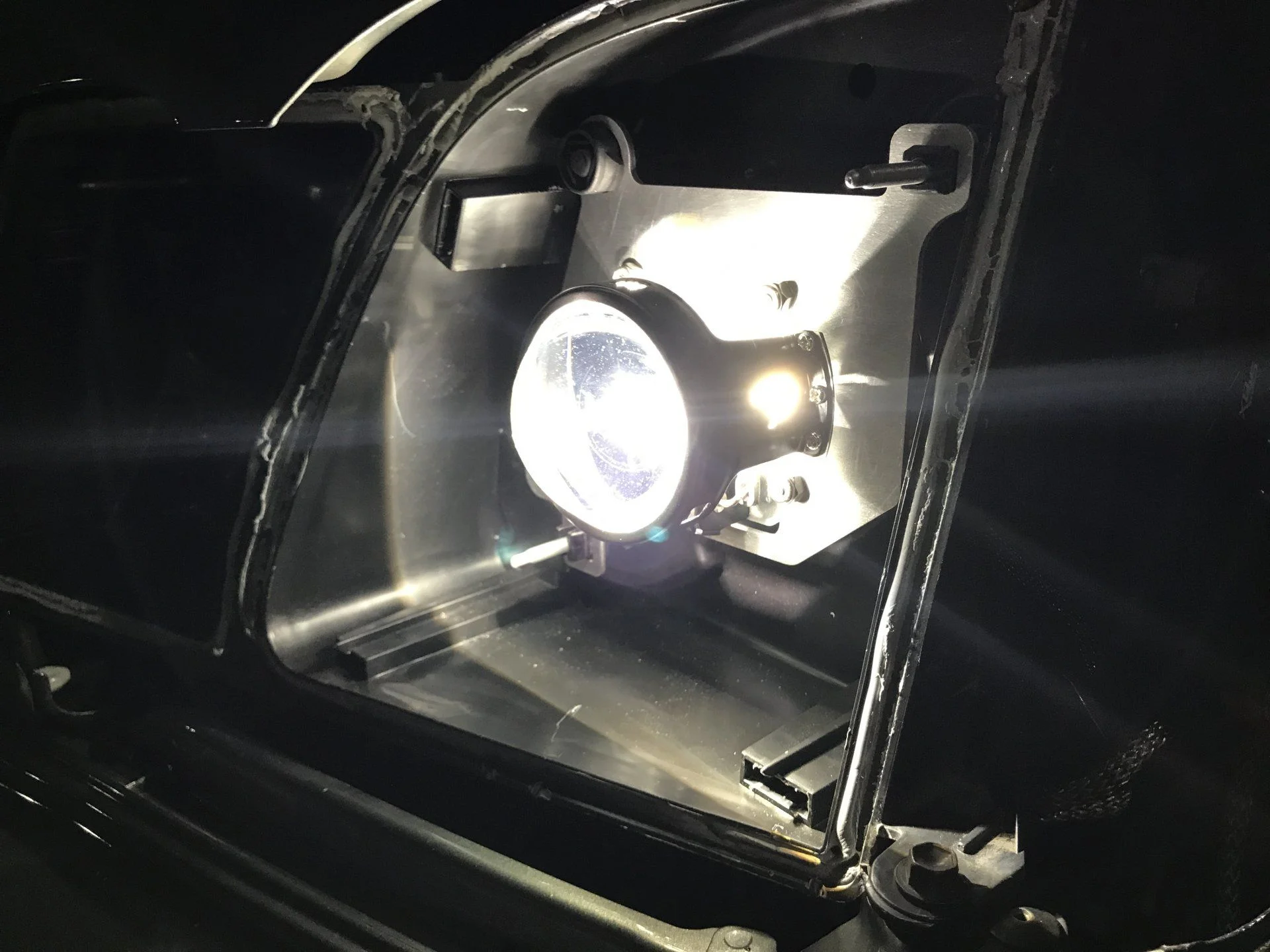

Bamabrock, covered the question and as you can see below one half of the LX projector is also the bracket. It took me about one hour to cut the OEM projector and almost a few fingers which drove me down the road to making a bracket.


Last edited:

suprarx7nut

The YotaMD Guy
Supporting Vendor
Joined
Sep 28, 2010
Messages
3,158
Location
Colorado


I'm anxious to see exactly what this ends up looking like for the LC. I've been wanting to do something similar. HIDs are an astounding upgrade when done properly. I'd love a set on the 100.


Luke111

Supporting Vendor
Joined
Aug 6, 2006
Messages
3,091
Location
Northern Virginia


I'm anxious to see exactly what this ends up looking like for the LC. I've been wanting to do something similar. HIDs are an astounding upgrade when done properly. I'd love a set on the 100.
I'll have to research the LC if you don't have OEM projectors you don't need the bracket to do a HID retro fit . 3 post up Bamabrock
explains. The LC has a shroud that the projector mounts too so it's easier then the LX


Luke111

Supporting Vendor
Joined
Aug 6, 2006
Messages
3,091
Location
Northern Virginia


I should have a set to test in a few days... but have decided not to 3D print them as it takes a few hours to make a set. We are looking at having them molded which will keep the cost down and produce a much stronger bracket. I'm all in and very dedicated to make this happen.
