HID BRACKET INSTALL GUIDE

Important revision have been added on Page 2 please review before you get started

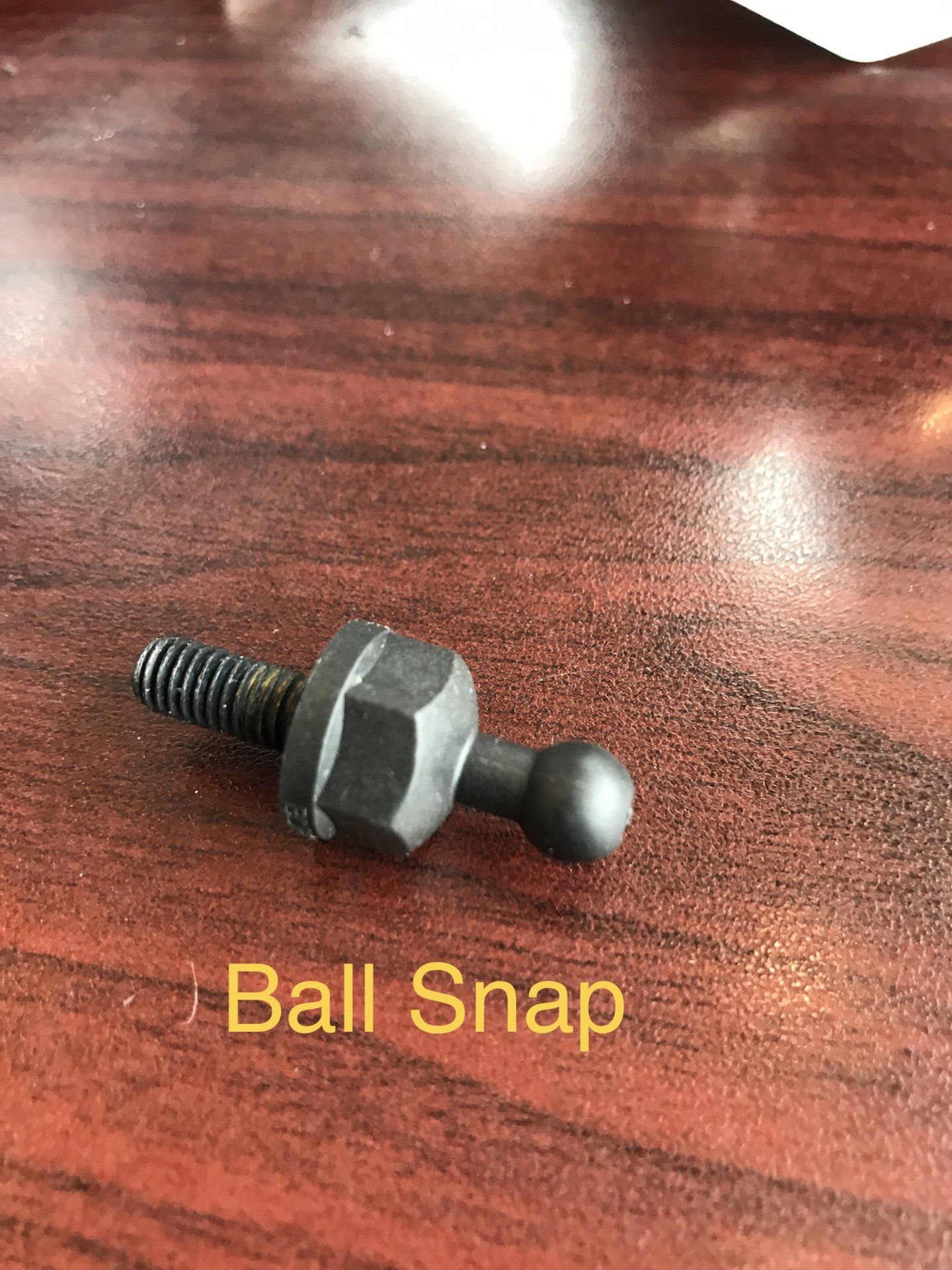

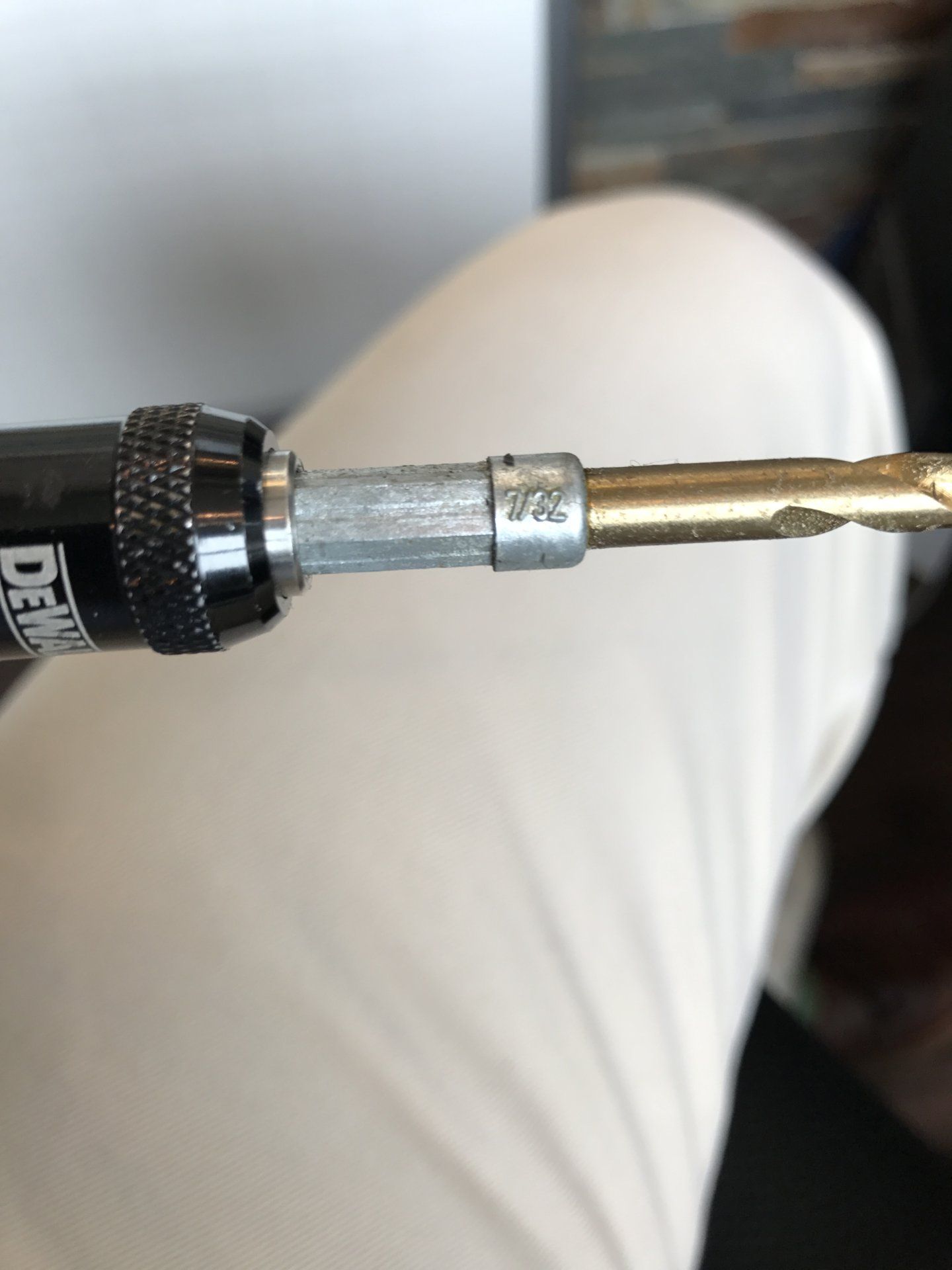

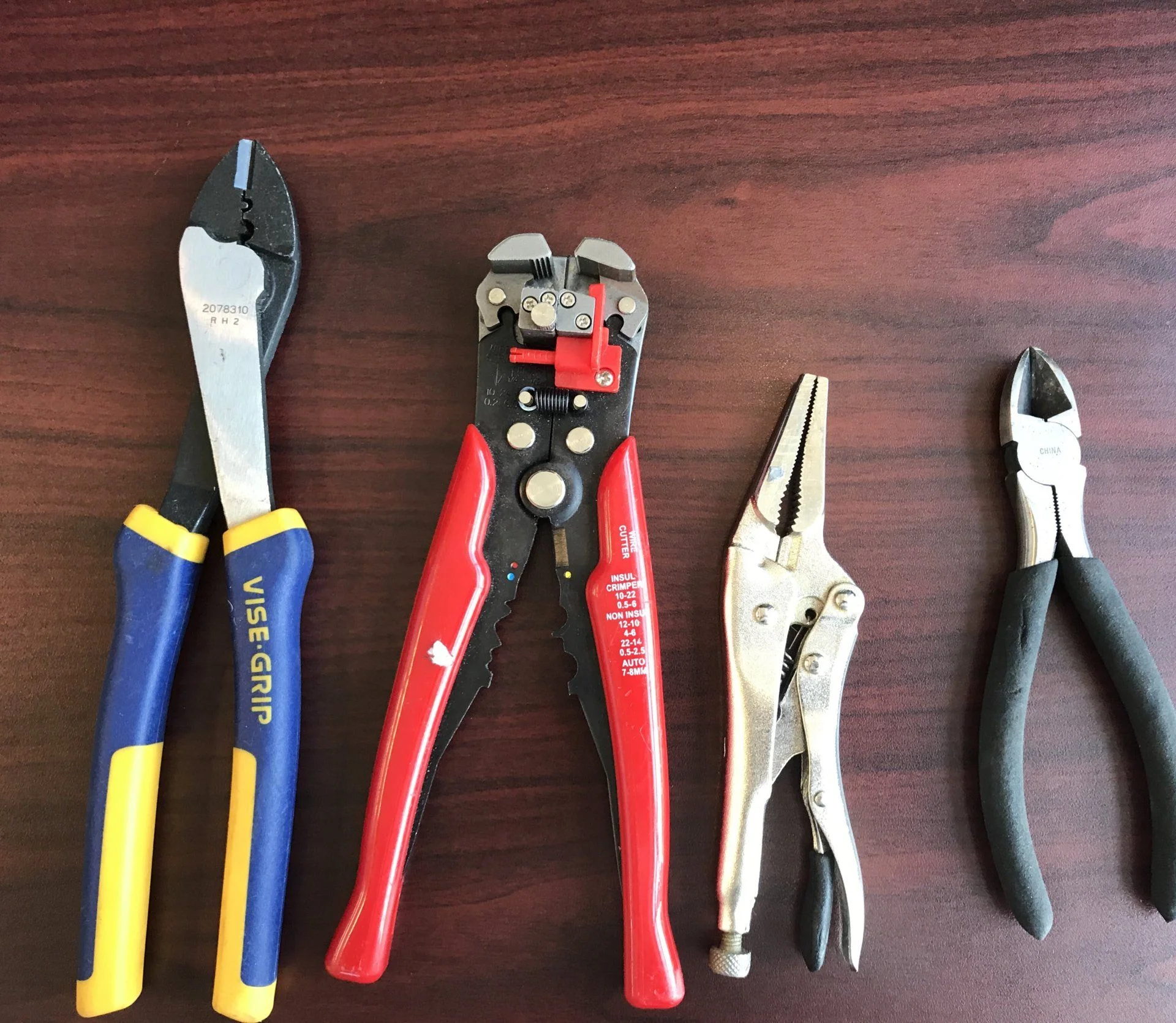

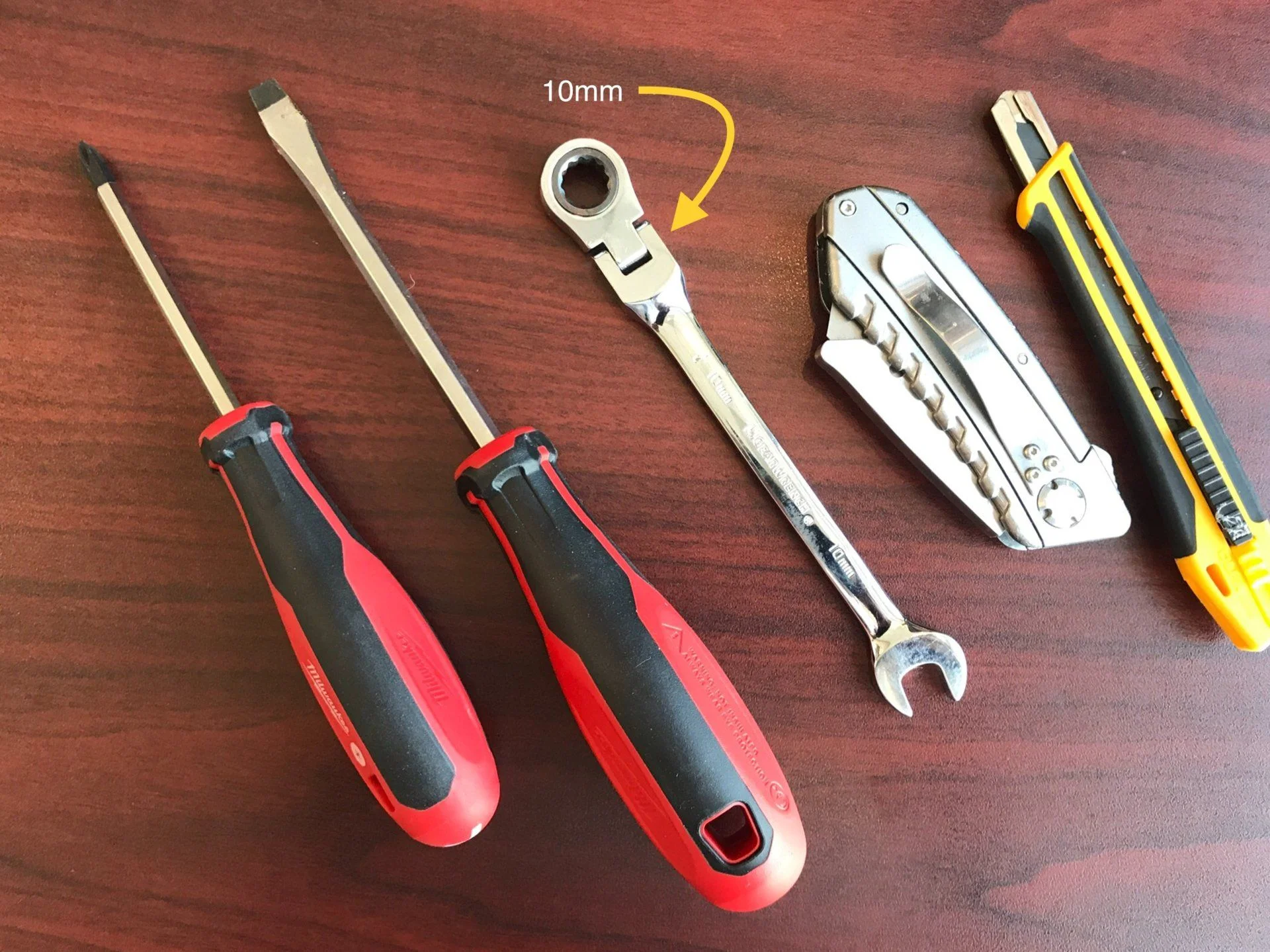

I few of you have requested a install guide along with tools needed and a hardware purchase list. It’s not a video but the photos have text. The guide picks up after headlight removal and lens removal.

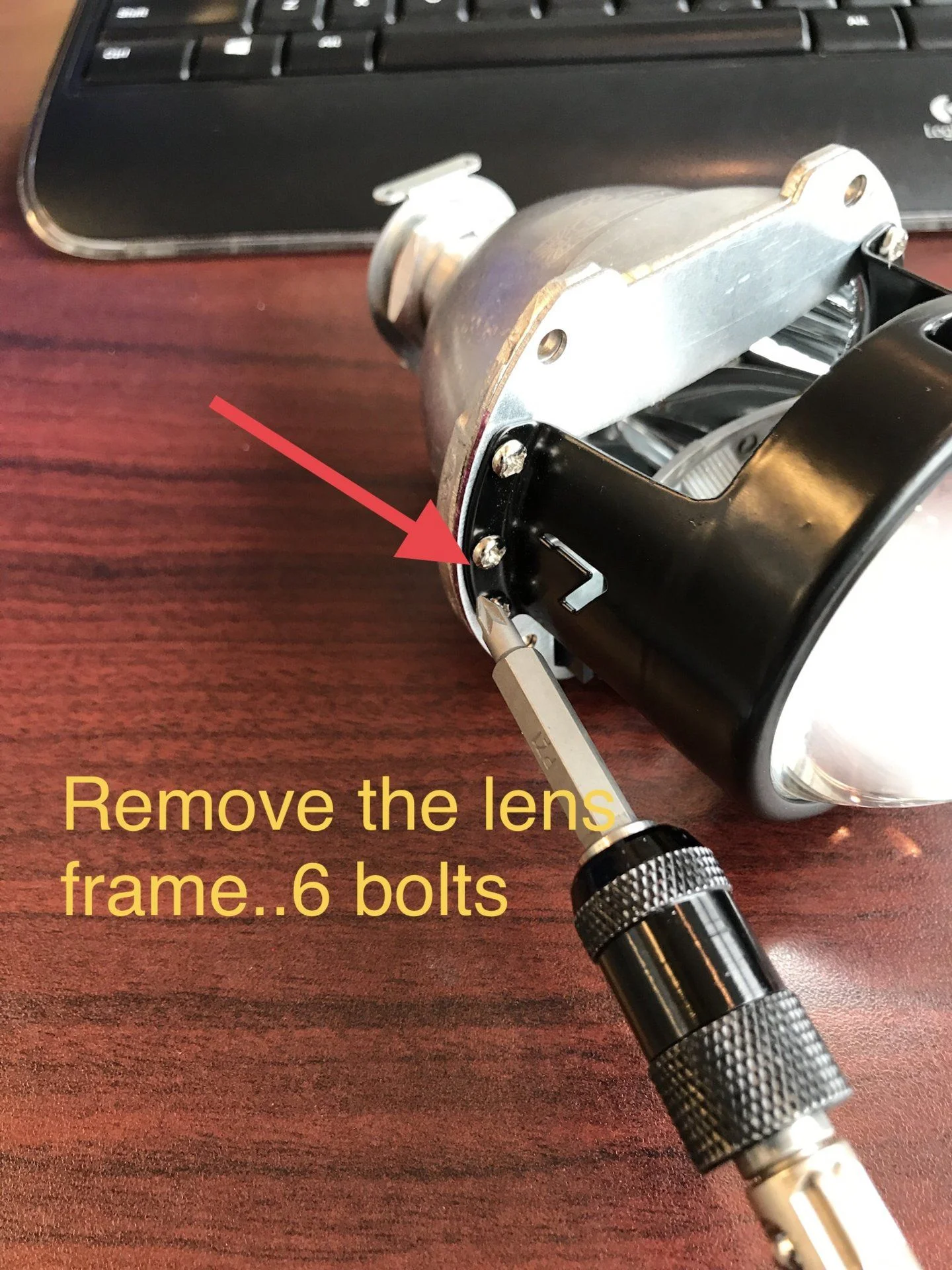

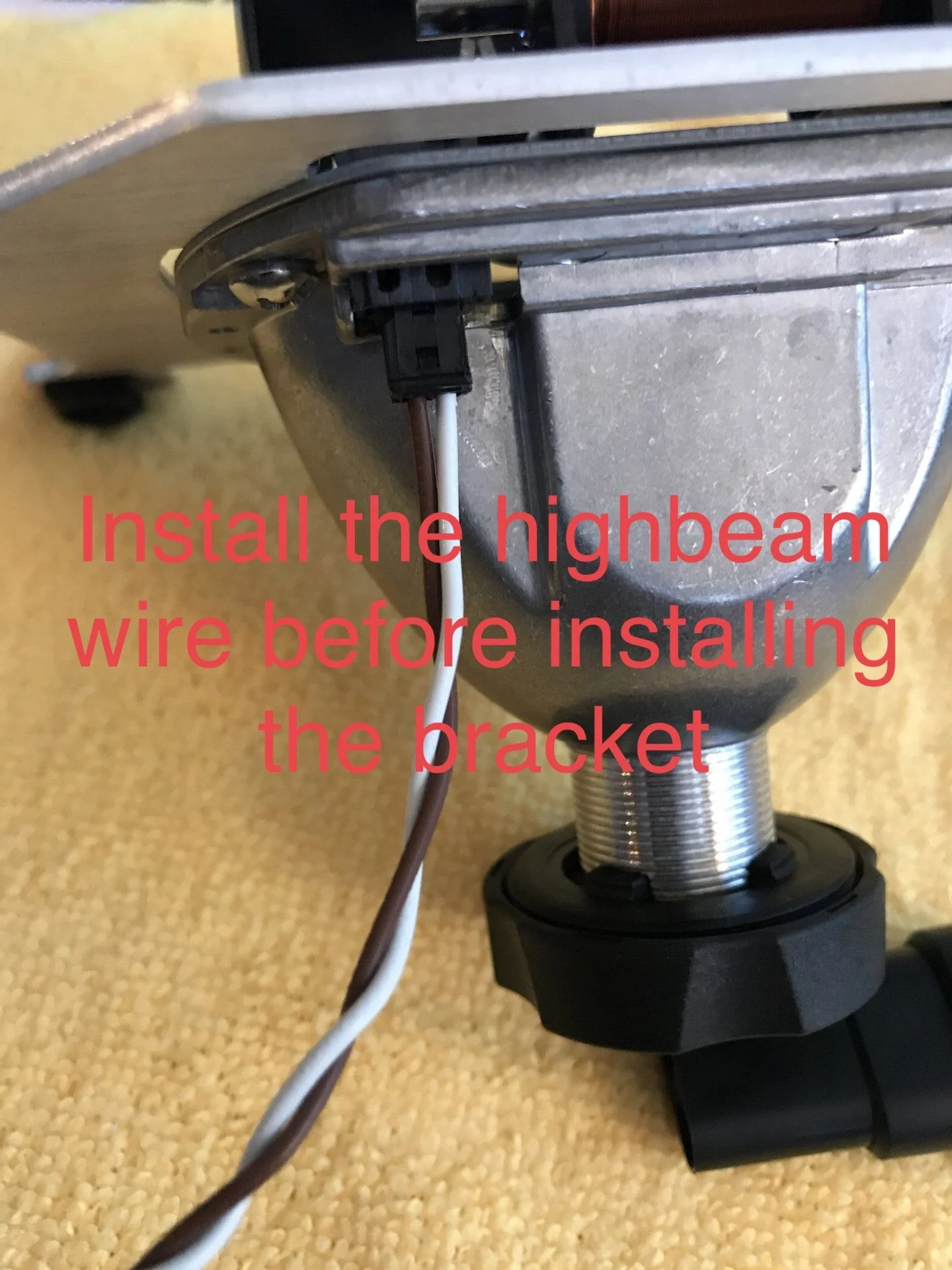

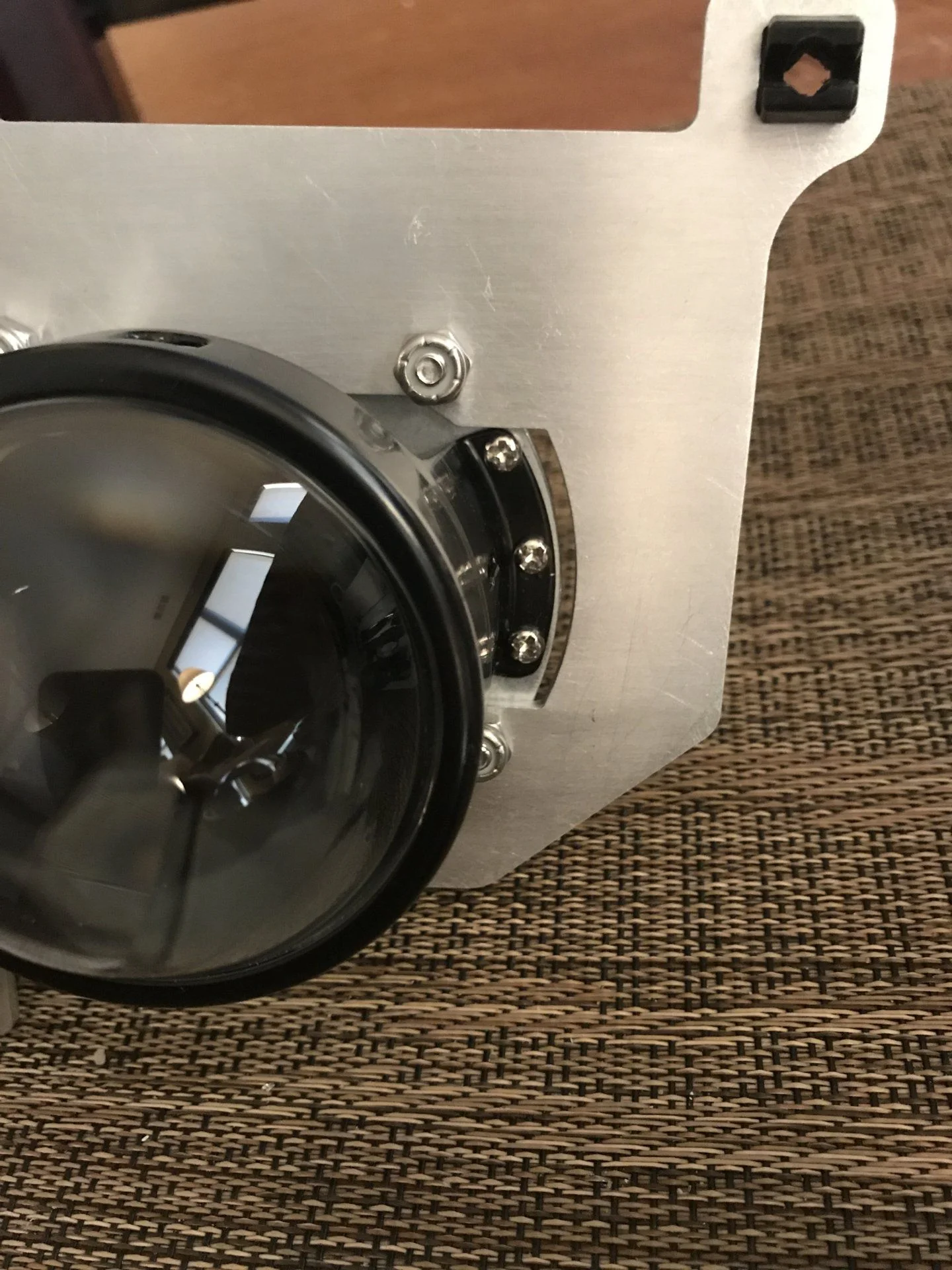

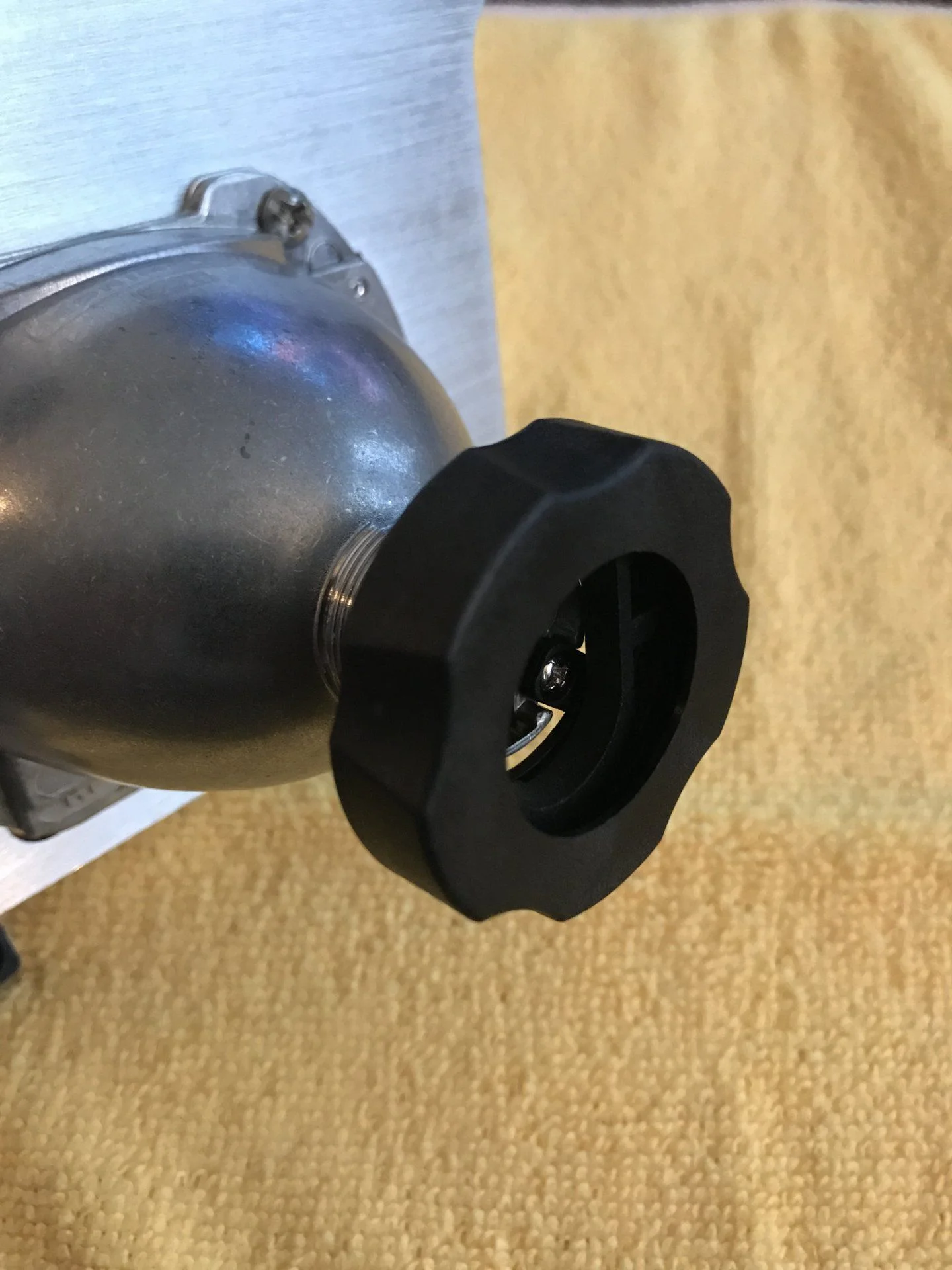

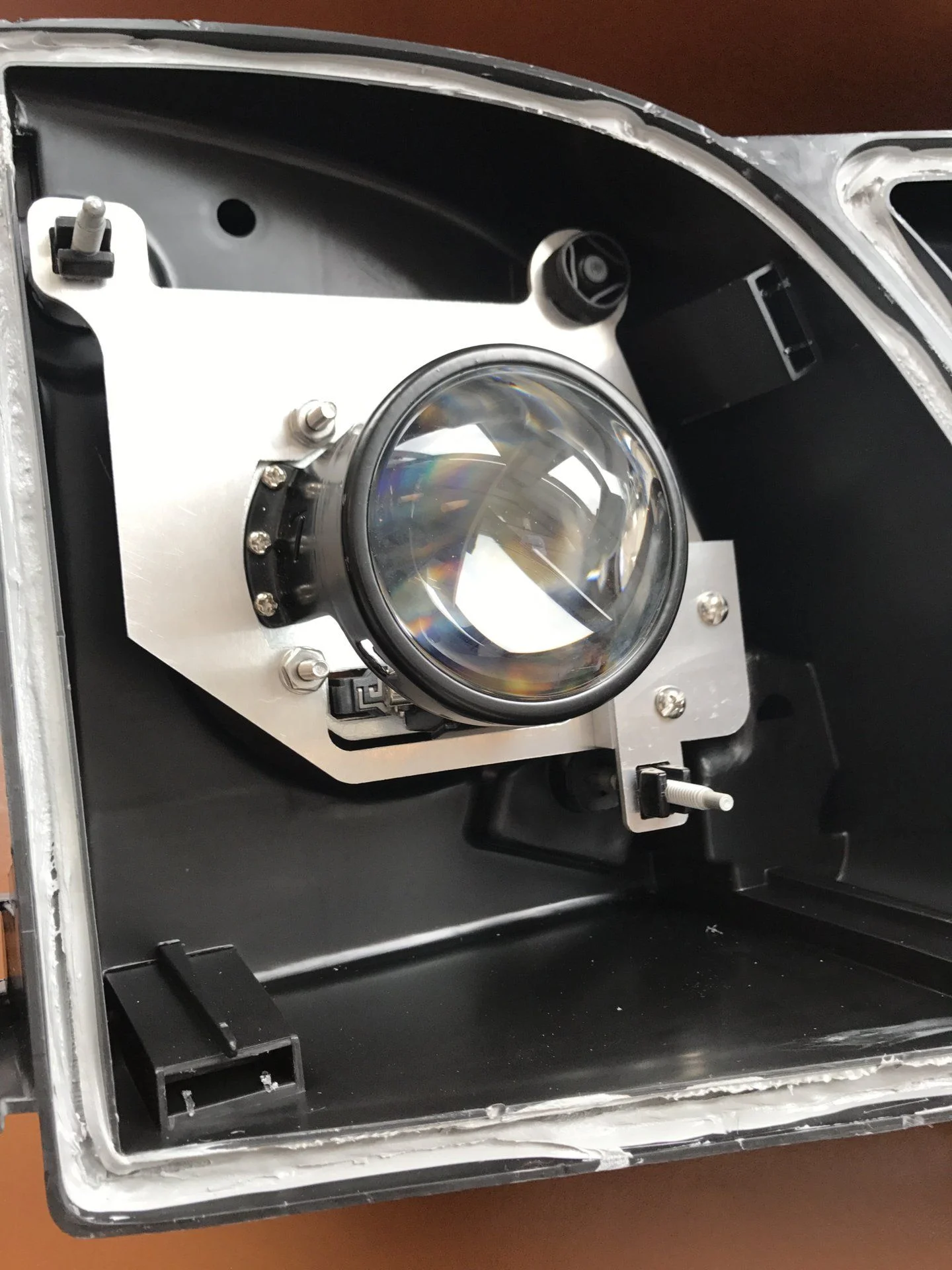

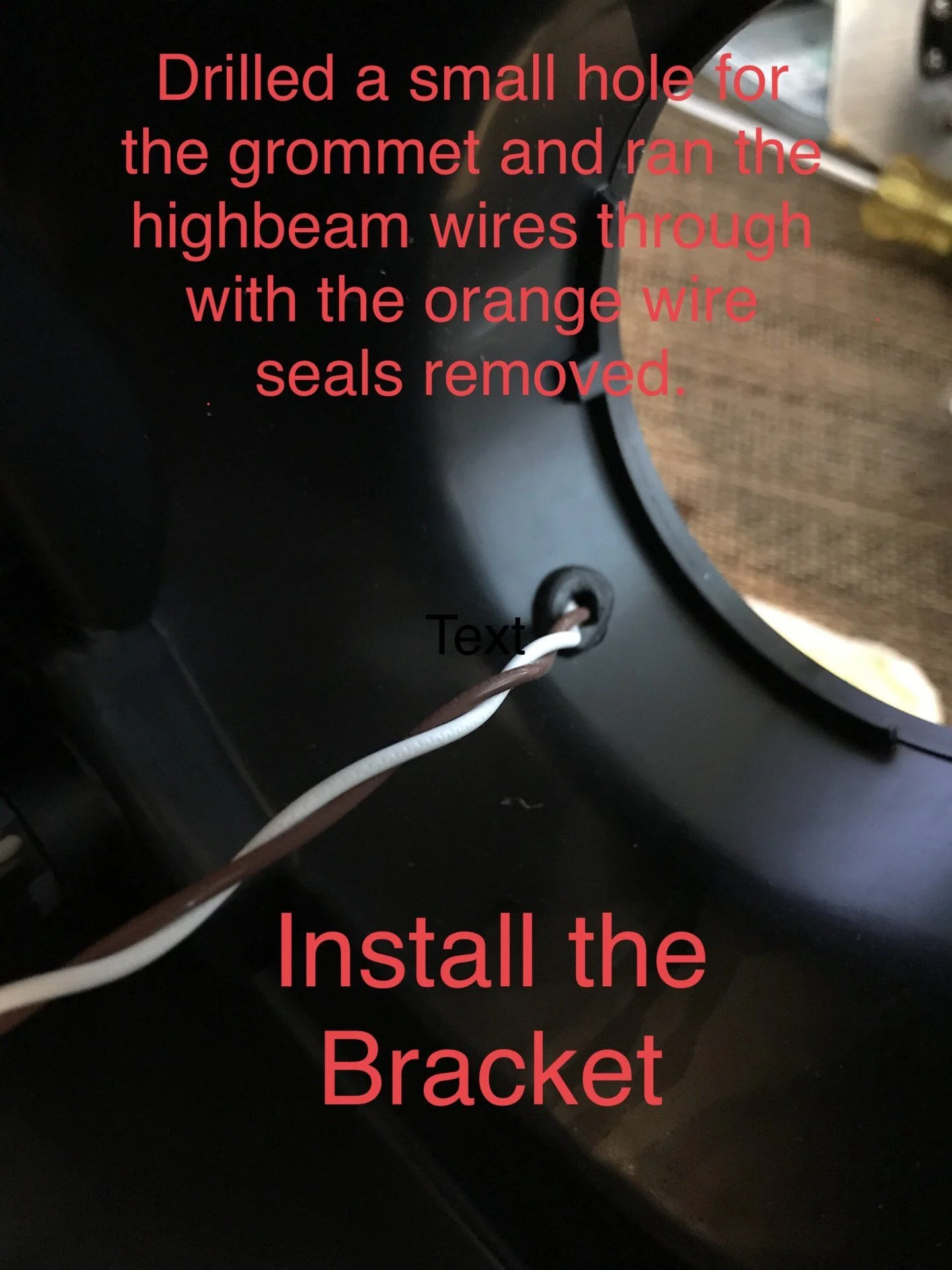

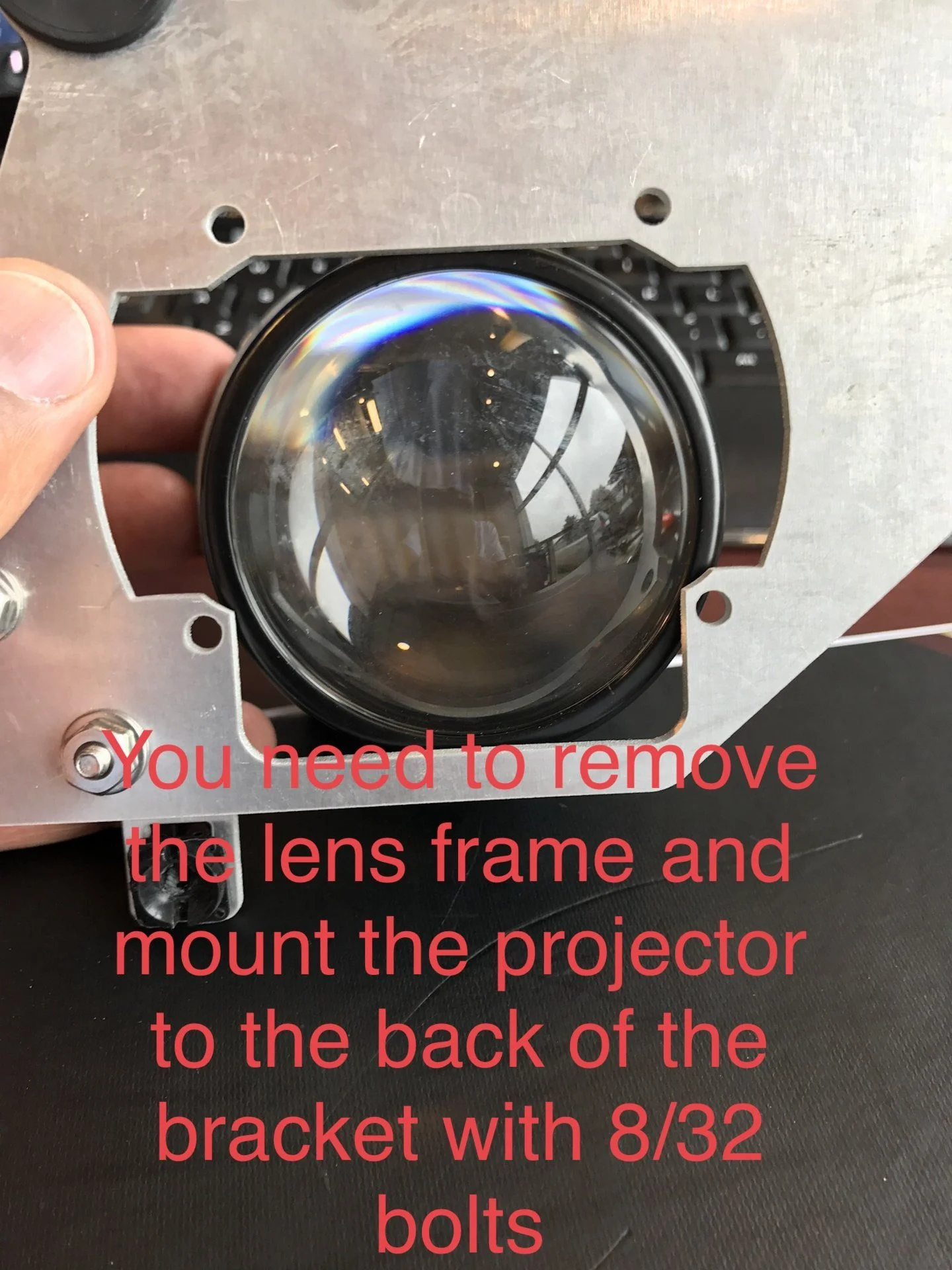

Before sealing your lights. The mounting holes on the brackets are larger allowing a slight rotational adjustment. So please install the light housing using all 3 bolts and make your rotational adjustment (leveling the cut off) by simply turning the projector with your hand. The mounting bolts should be snug but not tight allowing you to slightly rotate until level. Just make sure you tighten them up before sealing.
The height and side to side adjustment which can be done from the front turning the adjusters with vice grips.
I would recommend you install and check leveling one final time before sealing. You can make height and side to side adjustments with the lights sealed but if the lights are not level it will require you to bake them again ....Total PITA .. "Check twice and seal"


Lou





WATCH A FEW VIDEOS FOR HELPFUL INFORMATION





CALL TRS vs online ordering, all the guys there are knowledgeable and helpful

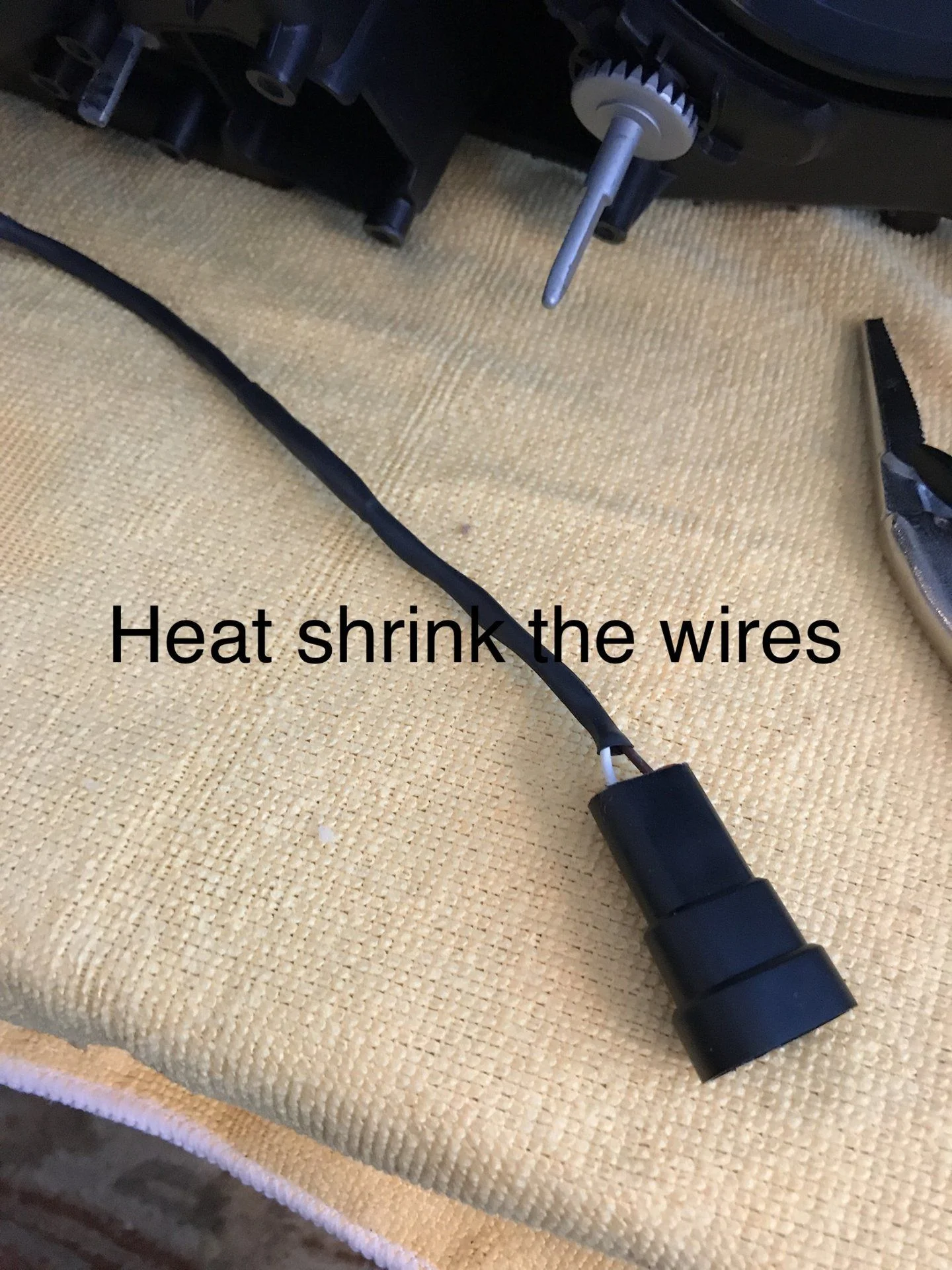

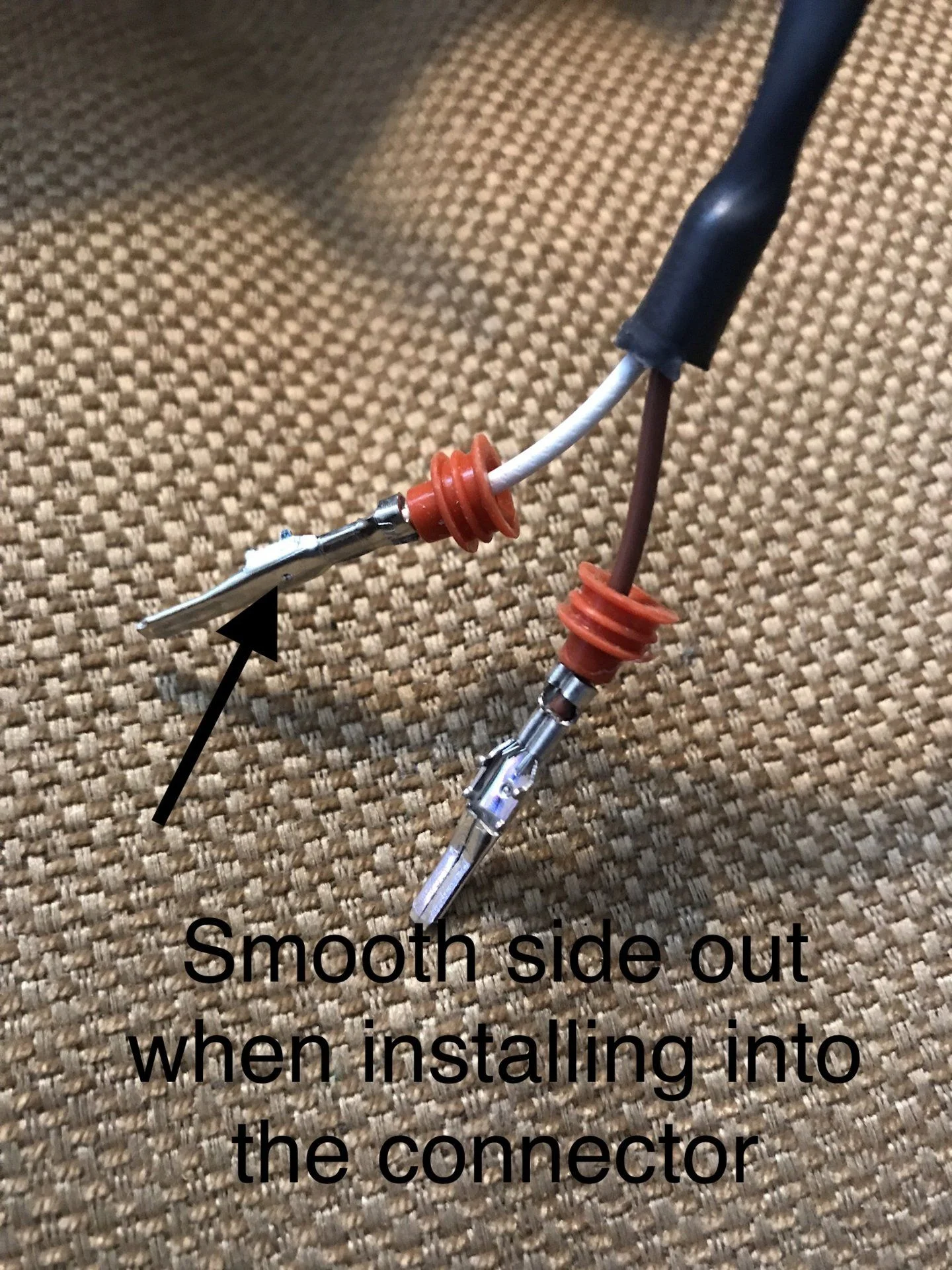

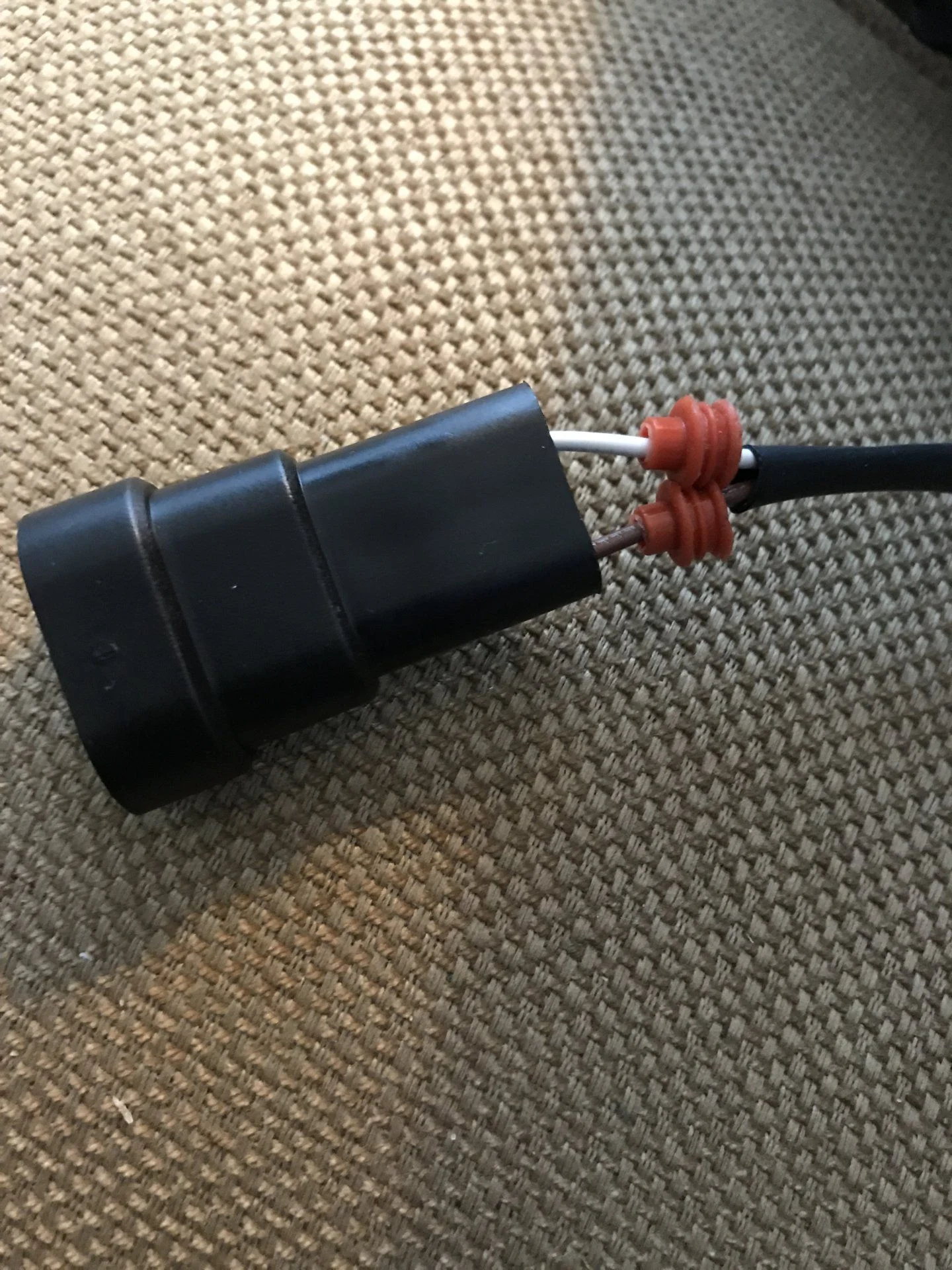

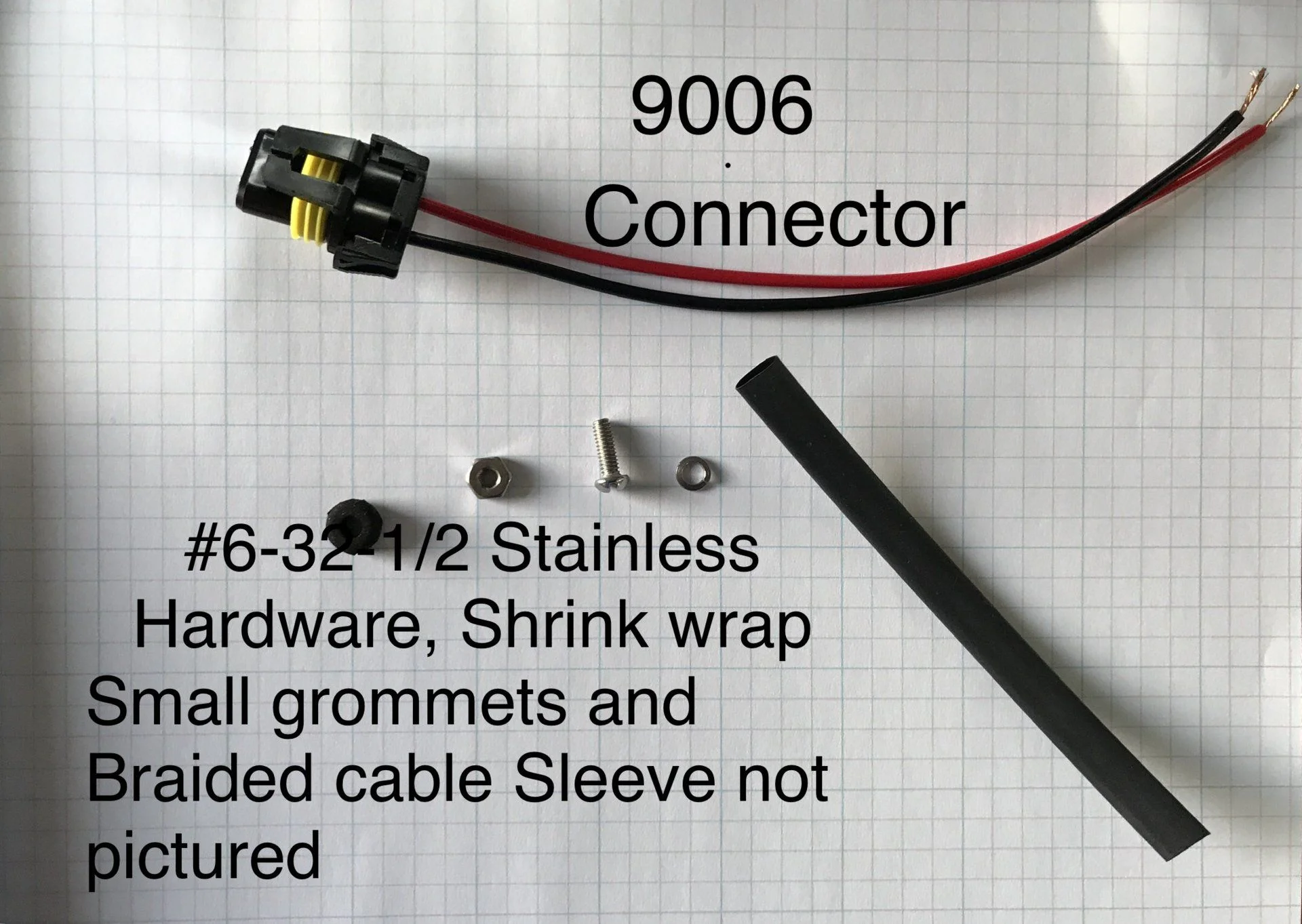

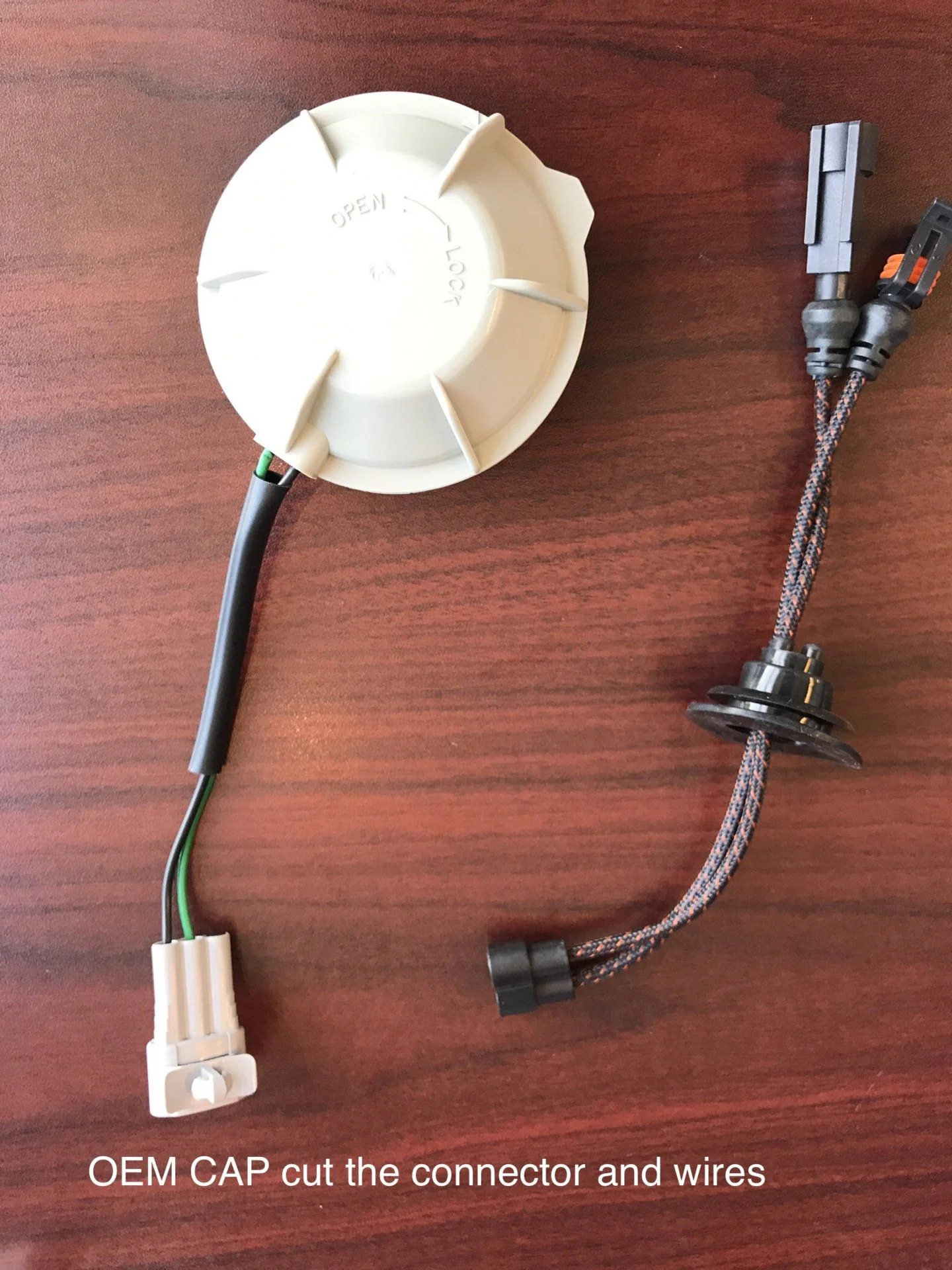

The single male 9006 is used to replace the battery side OEM connector

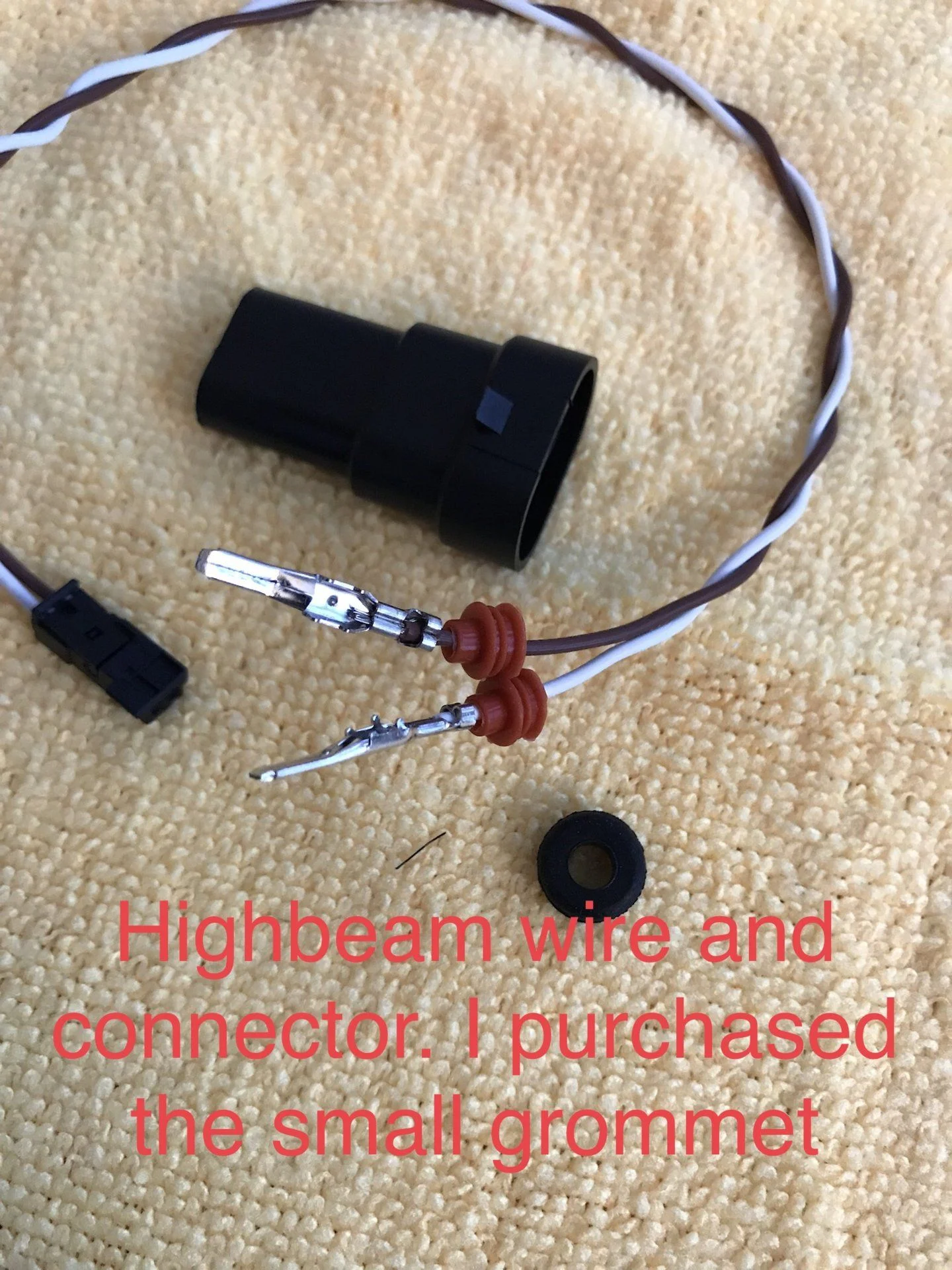

The high beam splitters are used to trigger the high beams


LX470 HEADLIGHT REMOVAL GUIDE

LX 470 headlamp removal



LINKS FOR THINGS YOU NEED TO ORDER

Amazon.com: iJDMTOY (2) 900-Series 9005 9006 Female Adapter Wiring Harness Sockets Wire For Headlights Fog Lights: Automotive

Morimoto RetroRubber Butyl Glue

I USE THE 9006 EXTENSION FOR ADDED LENGTH TO CONNECT THE PASSENGER SIDE BALLAST

9006 Extension Cords

High Beam Splitters

https://www.theretrofitsource.com/complete-retrofit-kits/universal-kits/bixenon-
morimoto-mini-h1-stage-3.html


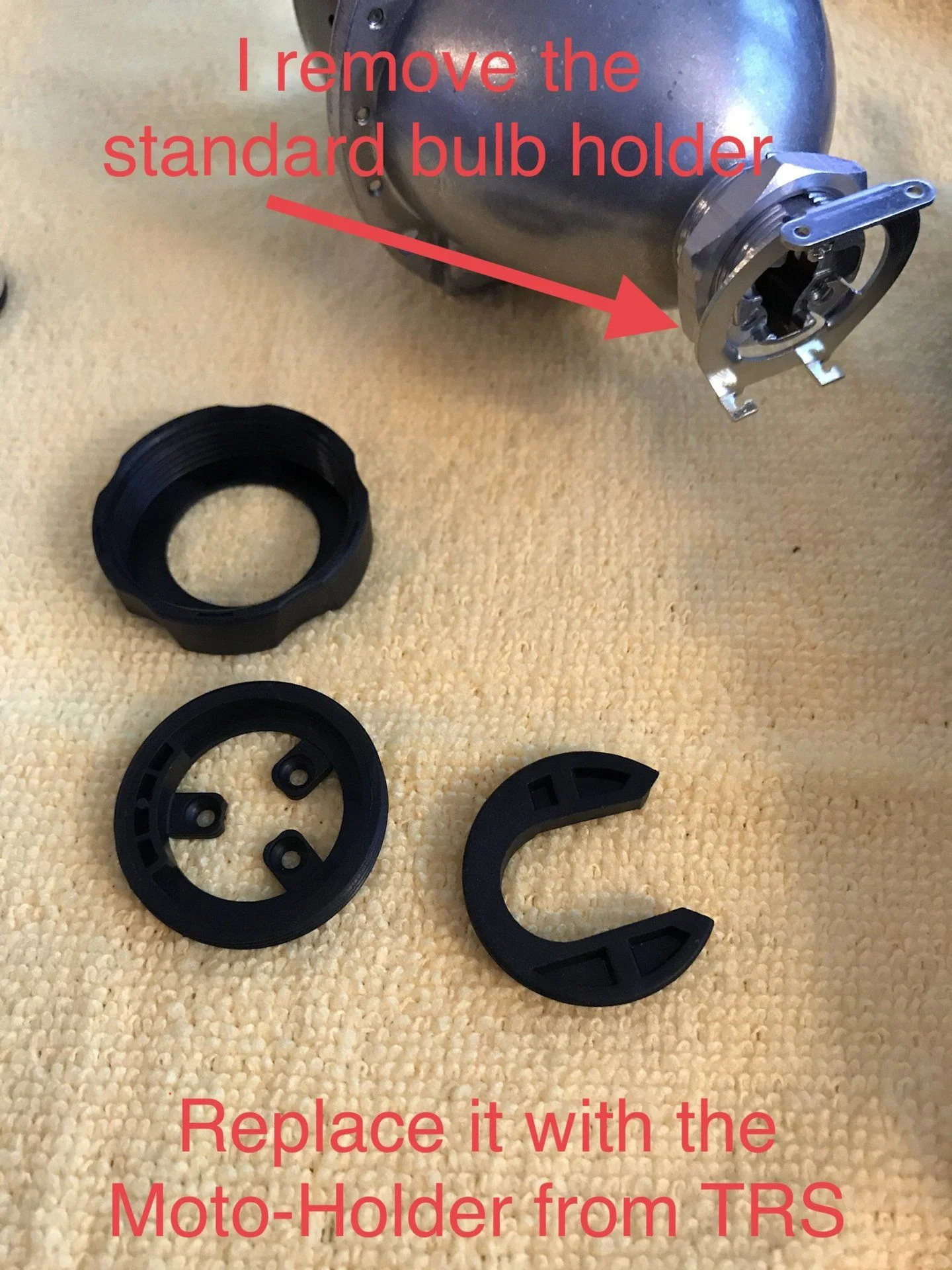

Morimoto MotoHo1ders

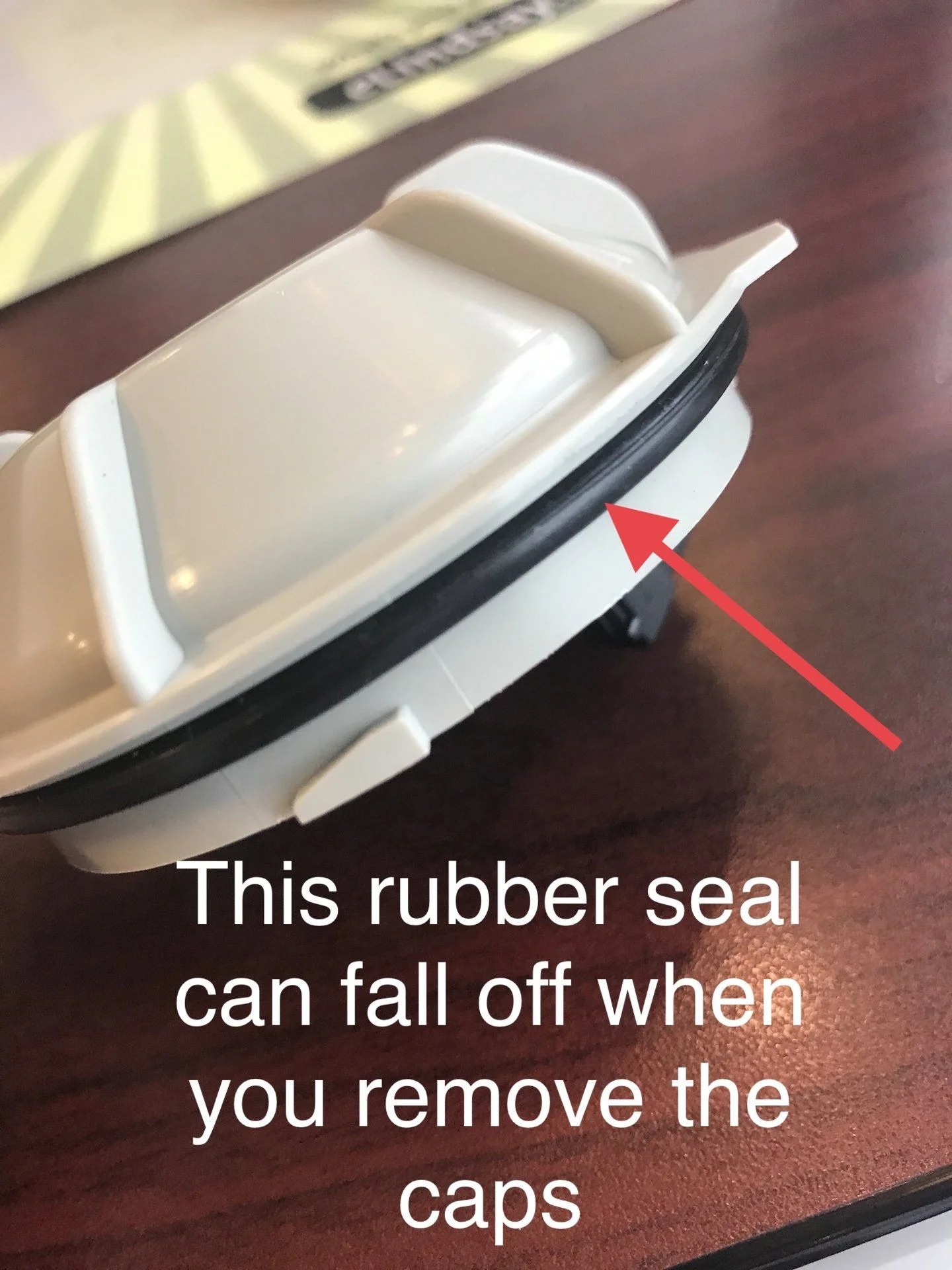

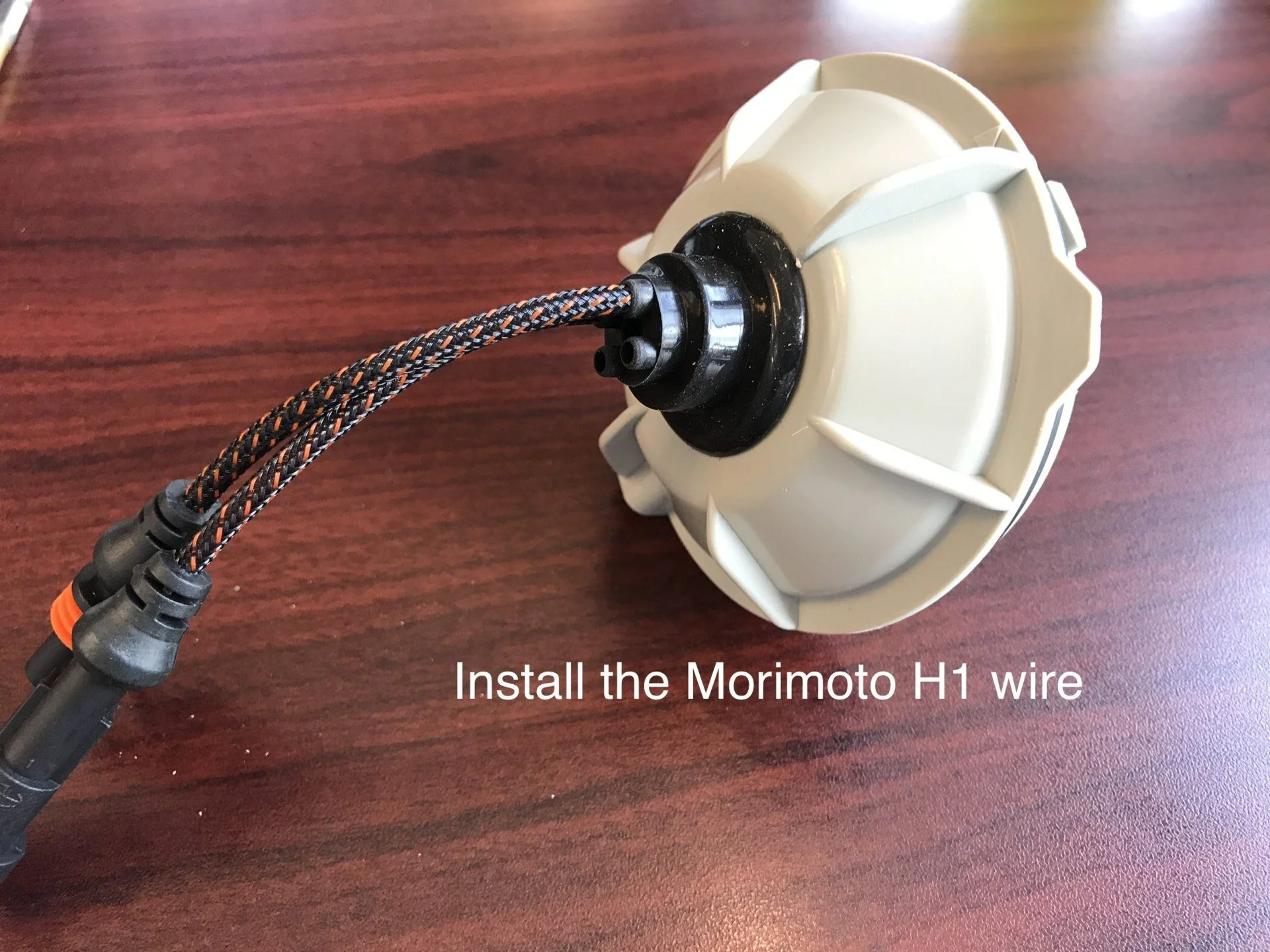

Great Housing Cap

https://www.amazon.com/gp/product/B01J6SU6BY/ref=oh_aui_detailpage_o04_s00?ie=UTF8&psc=1



WIRING GUIDE LINK

https://www.theretrofitsource.com/media/custom/upload/File-1473952402.pdf

INSTALLING THE BULB

https://www.theretrofitsource.com/media/custom/upload/BixBulbs.pdf

TRS INSTALL GUIDES

https://www.theretrofitsource.com/guides.html/












View attachment 1550667


Last edited:

Luke111

Supporting Vendor
Joined
Aug 6, 2006
Messages
3,092
Location
Northern Virginia

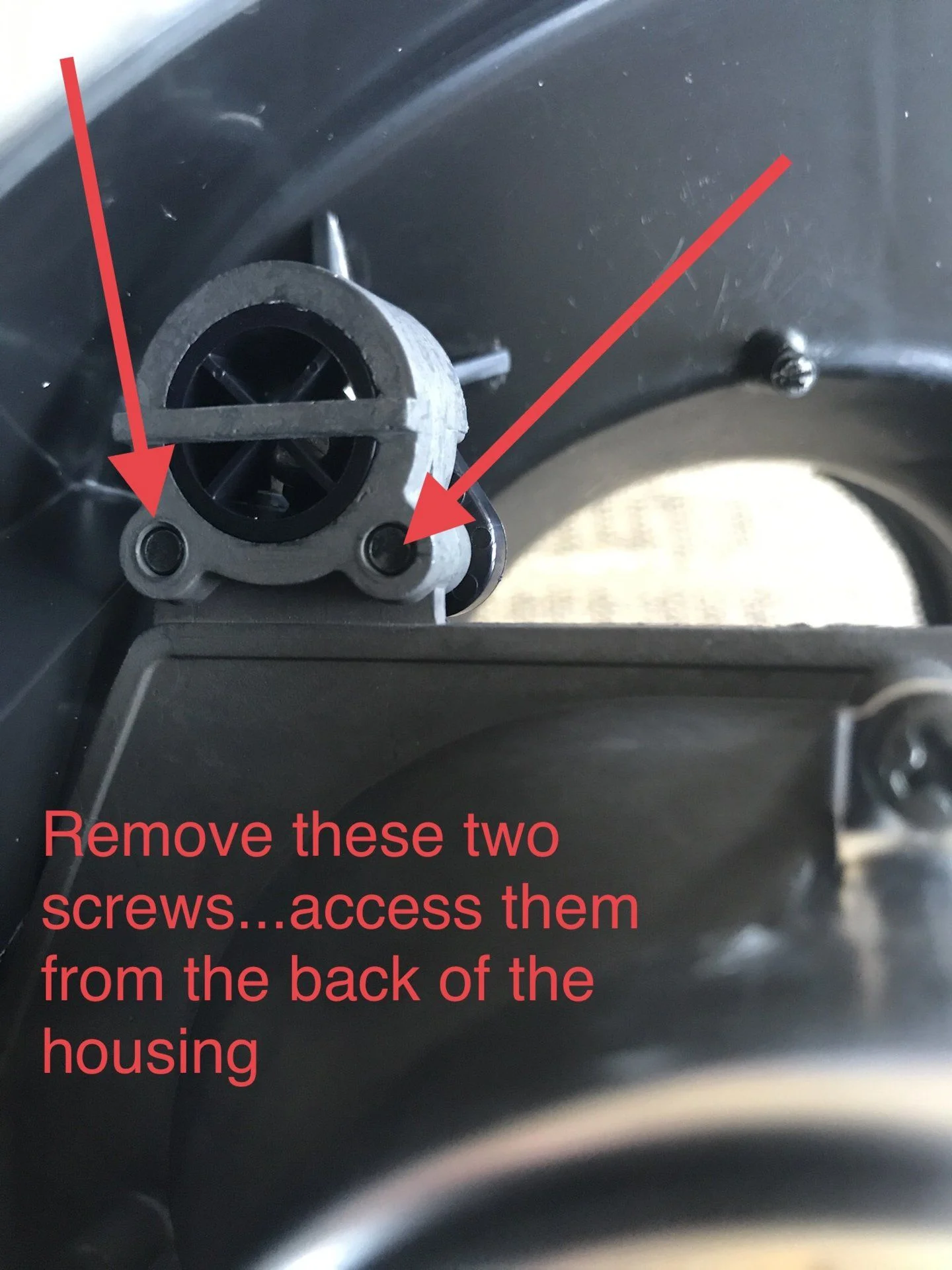

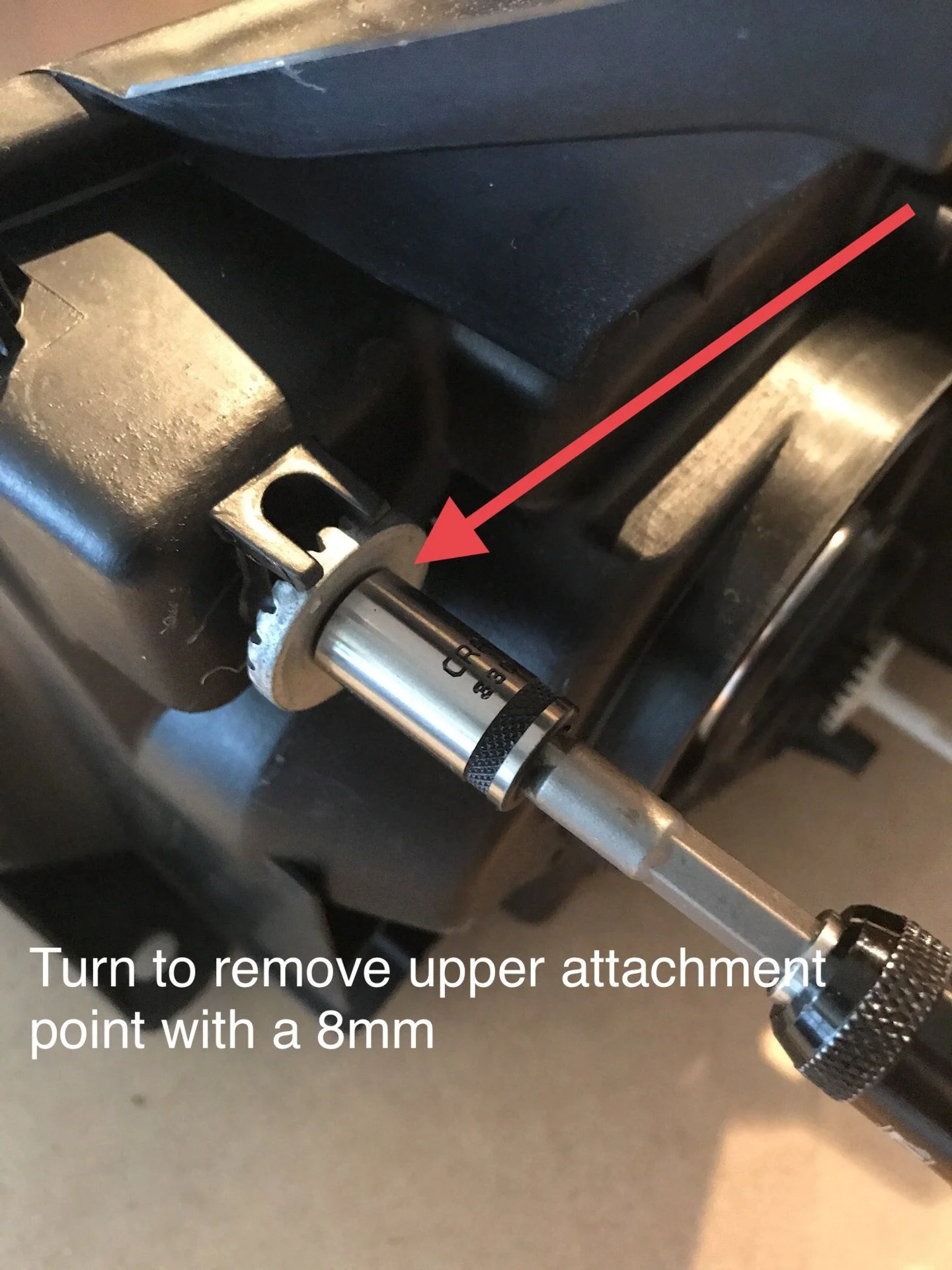

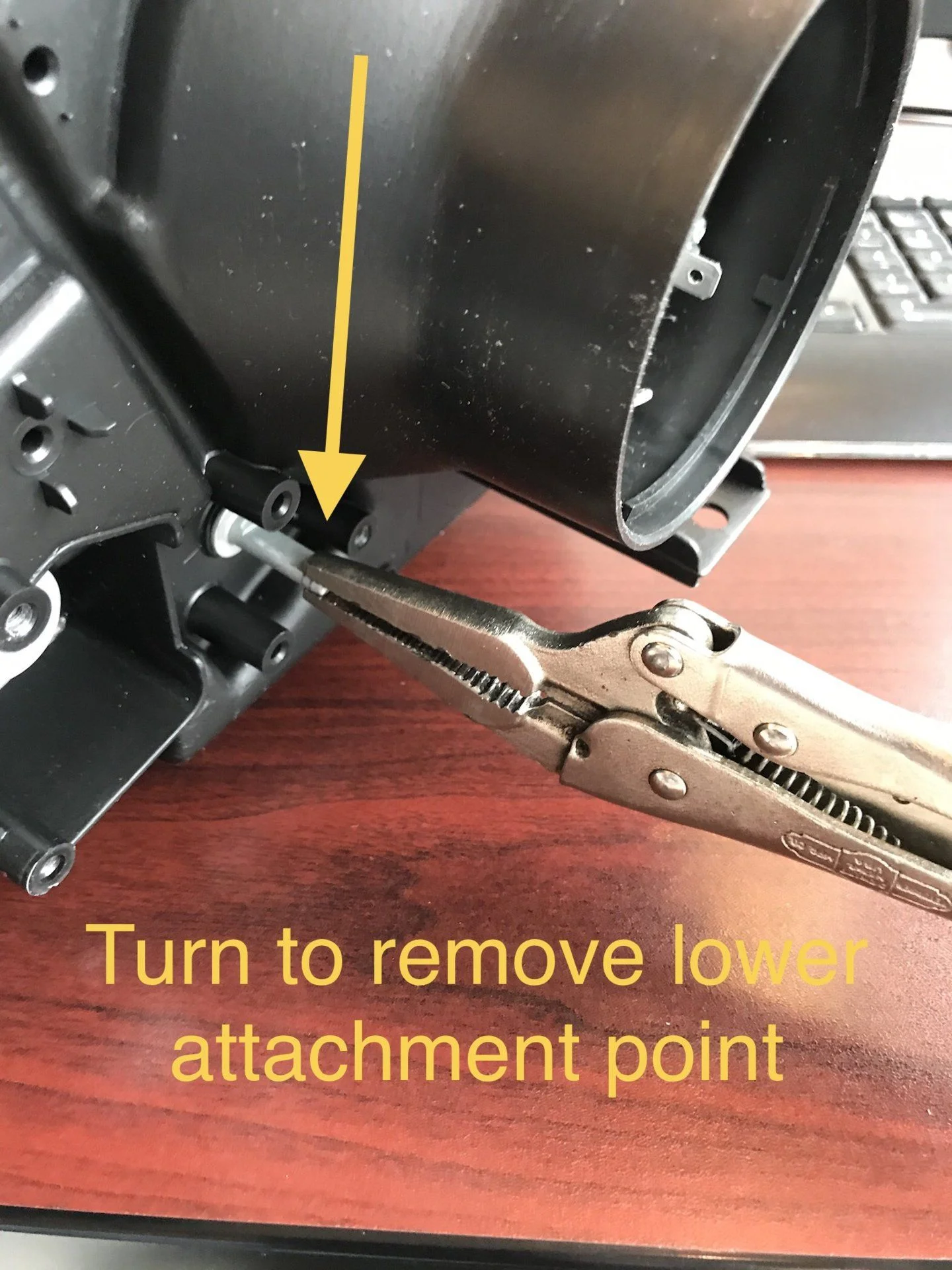

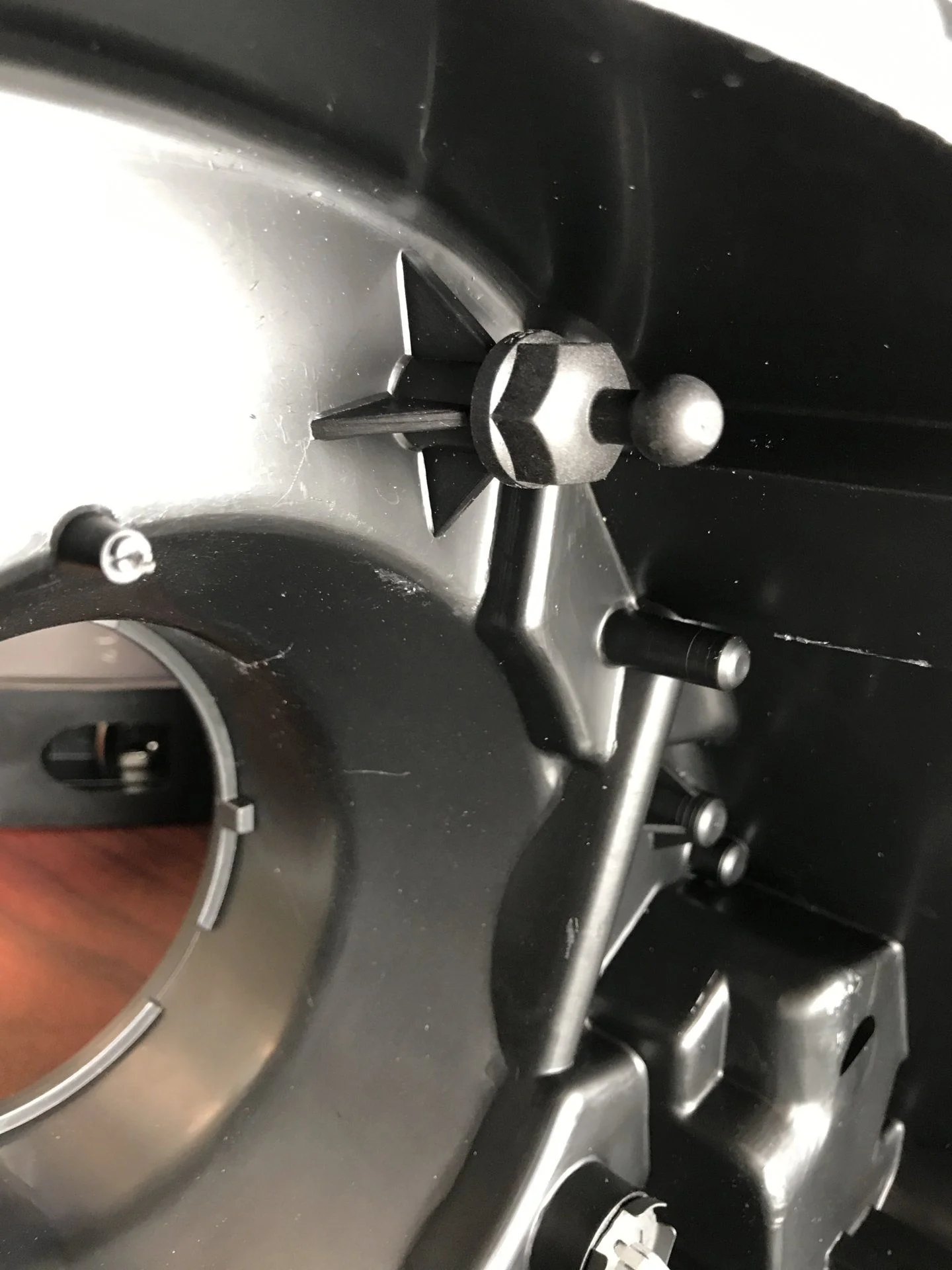

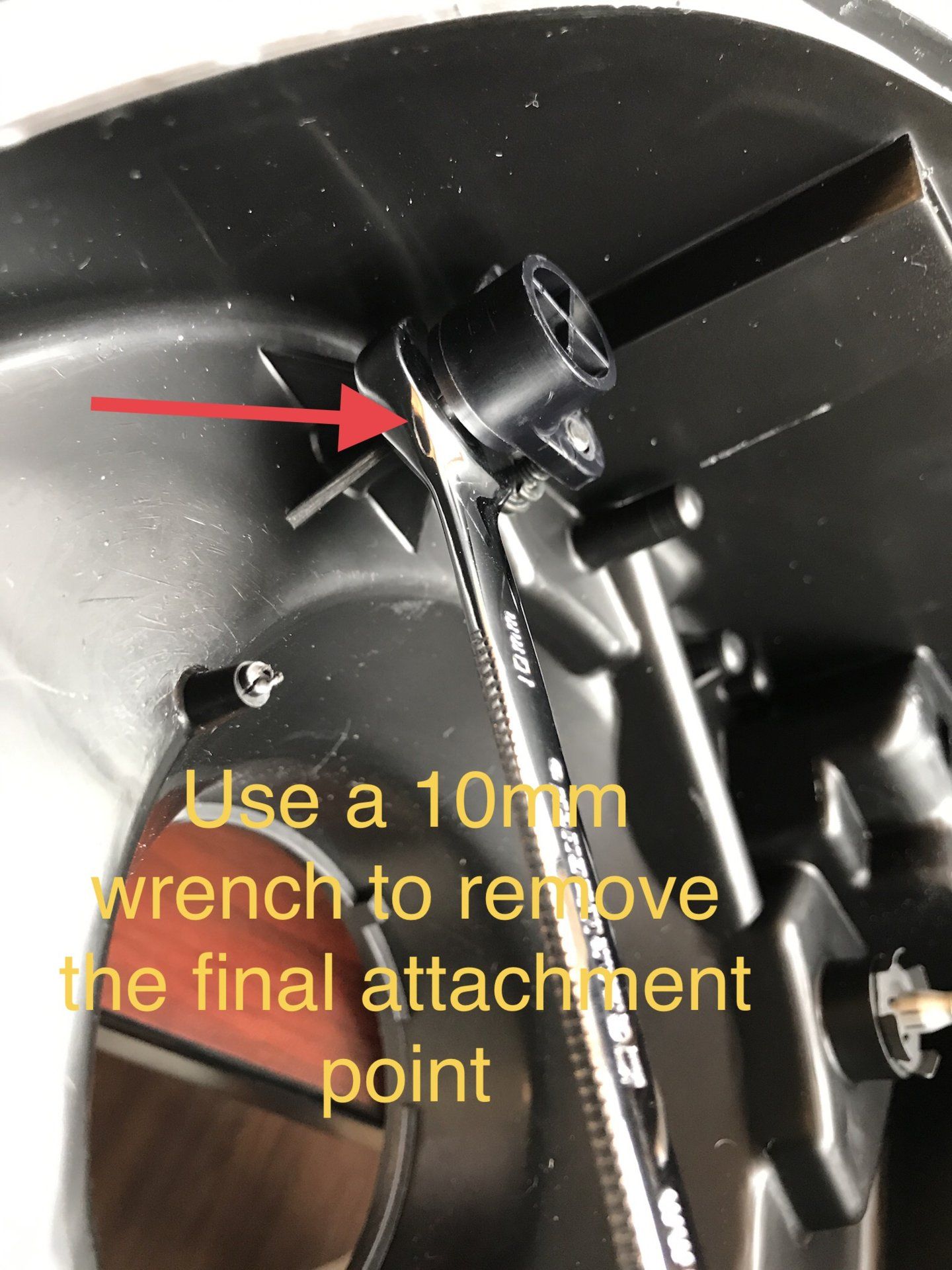

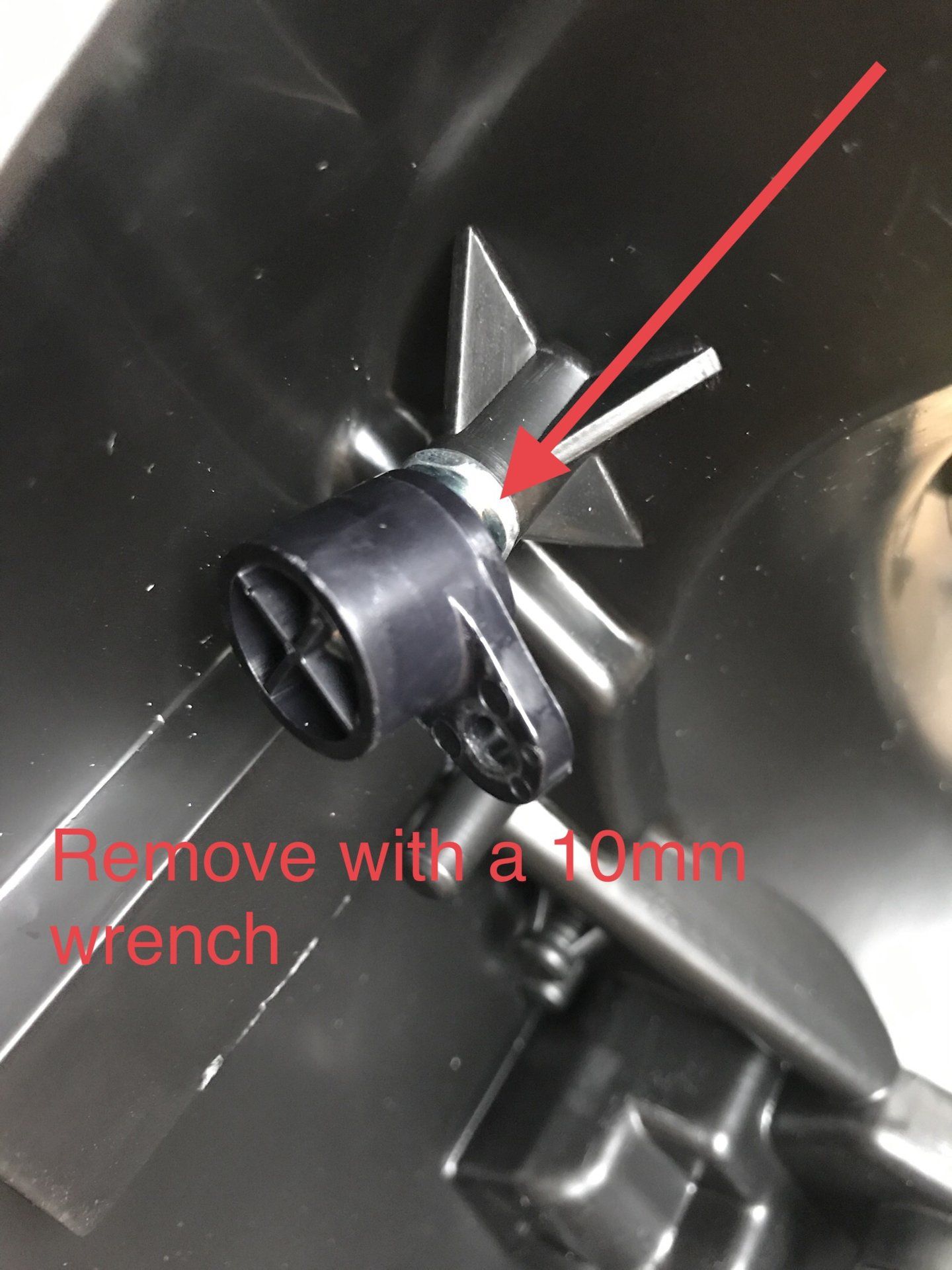

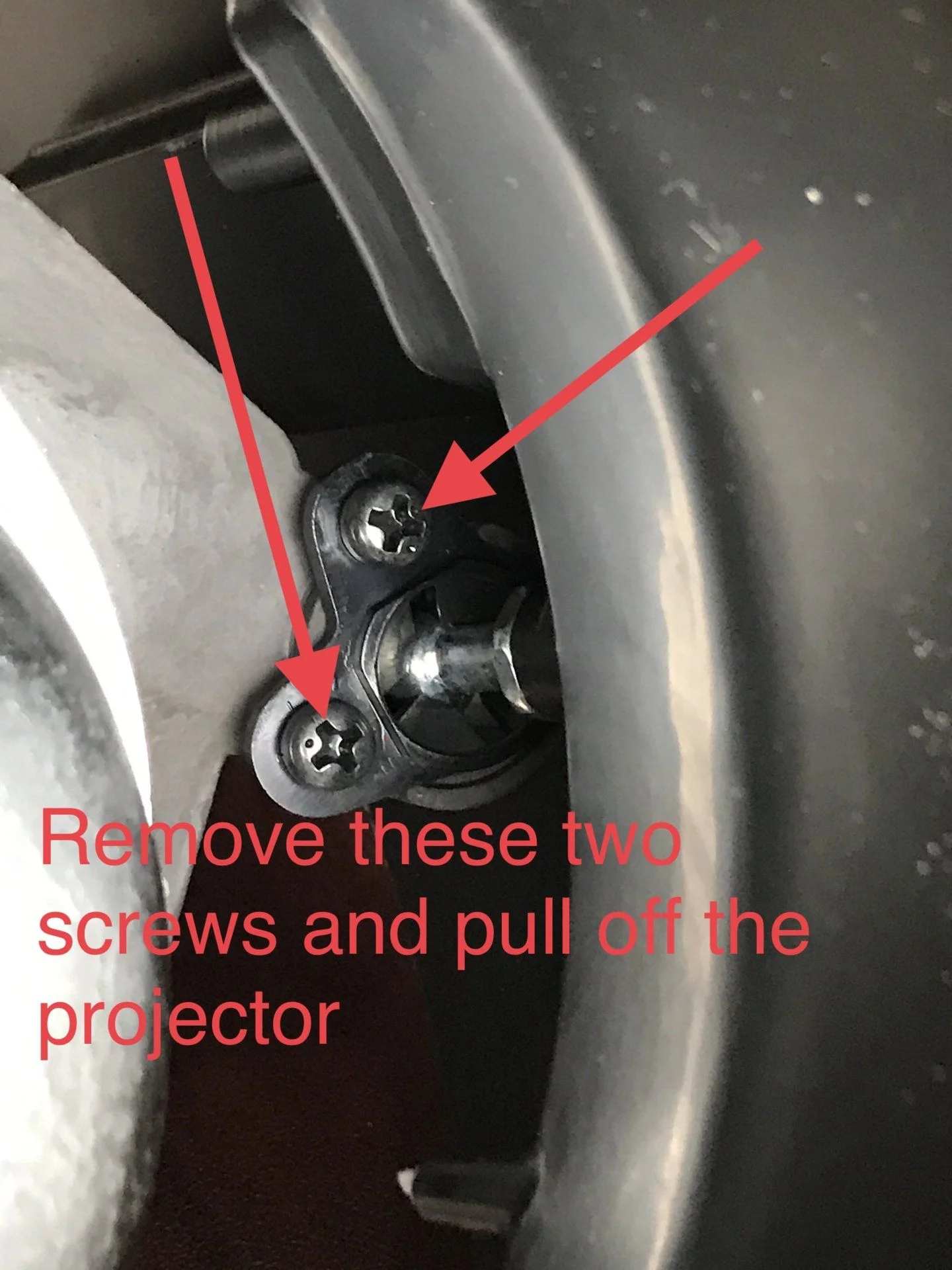

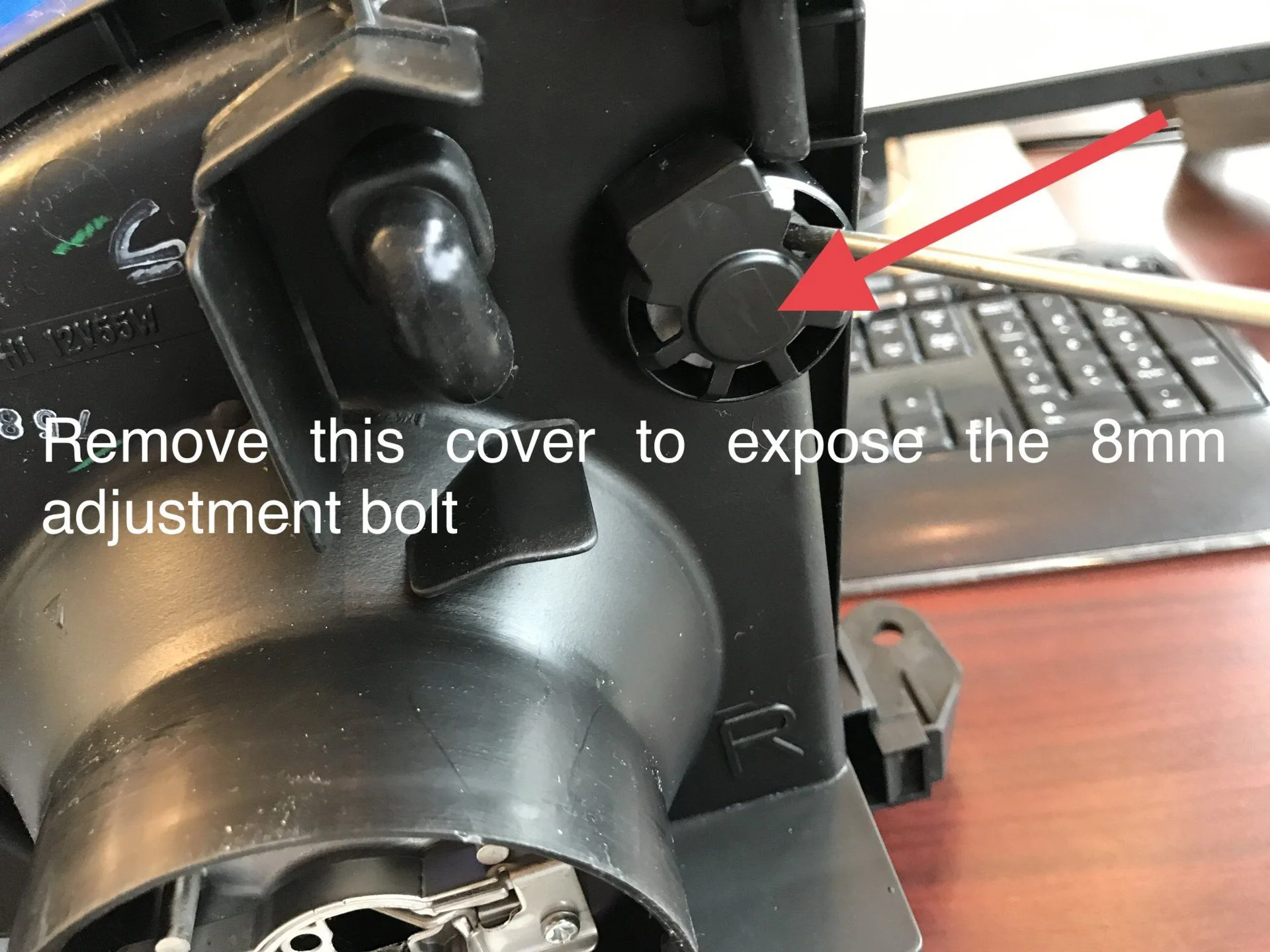

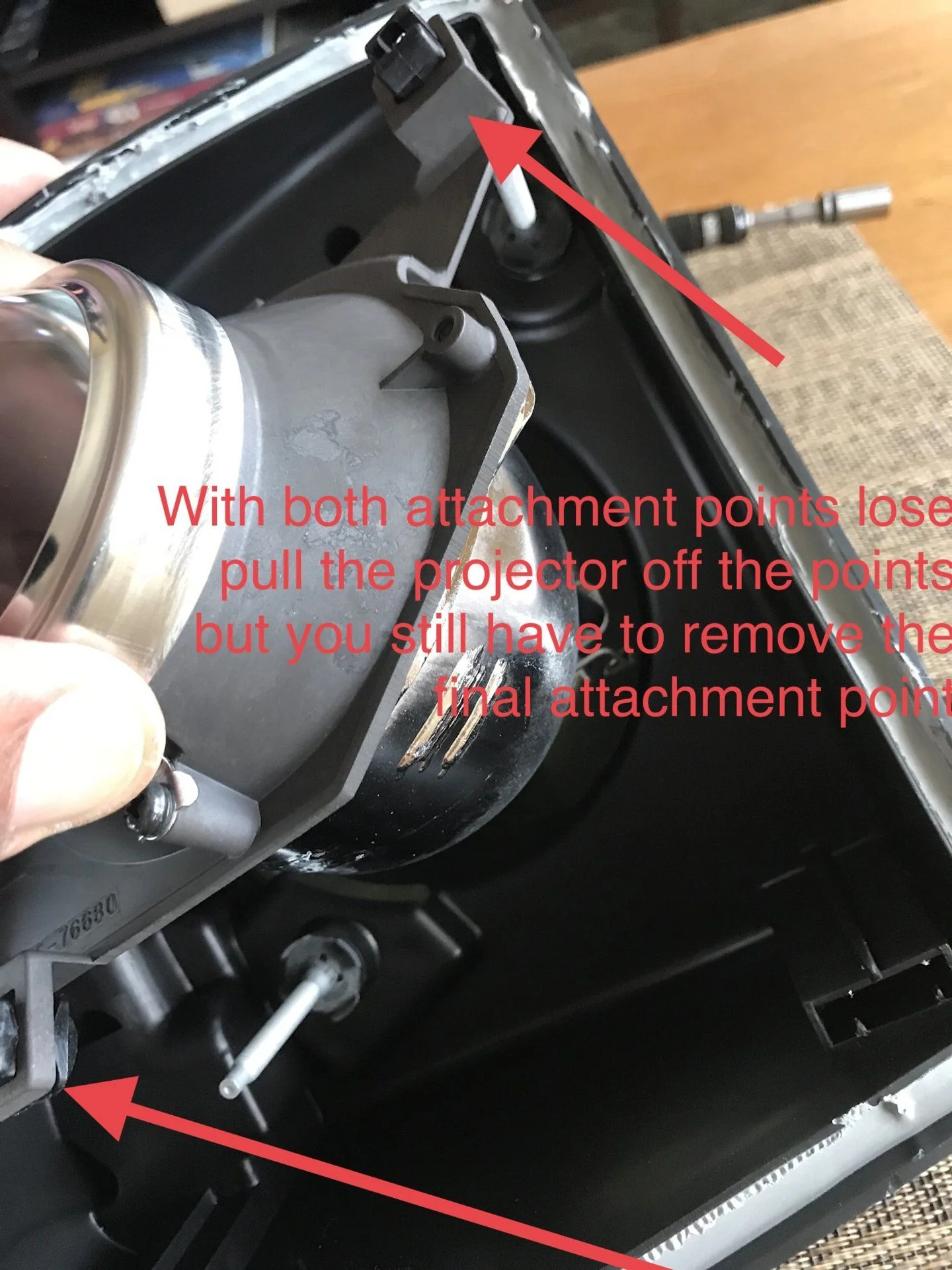

Remove the combination adjuster and covers exposing the adjusters you’ll need to turn to remove the OEM projector
