Disk Conversion (Right Side Done)

ArmyFJ

Lookin’ for mud in all the wrong places.
GOLD Star
Joined
Mar 3, 2006
Messages
719
Location
NOVA

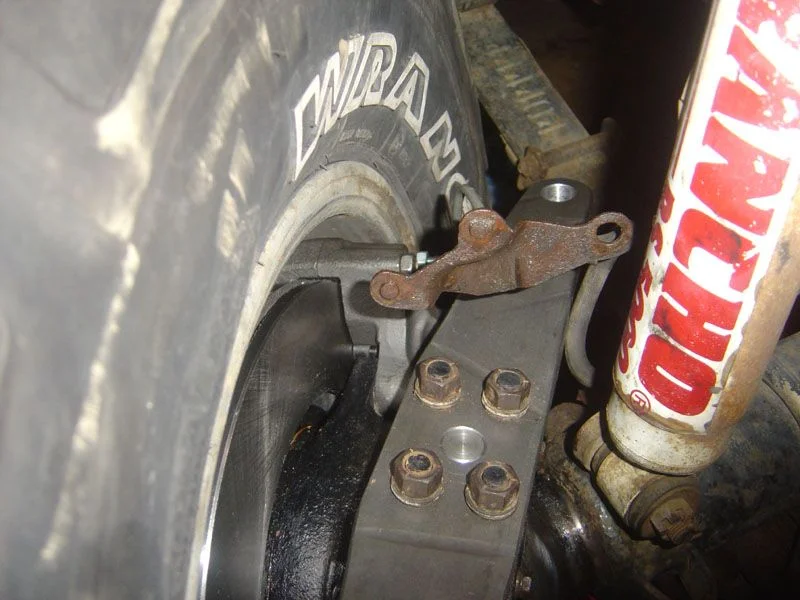

Wow. What a project...but fun. I have the right side done finally and I am wondering what people did about the brake junction (pic) when using a dust plate eliminator. I was thinking about remaking a line and mounting the junction to the top of the arm under the nut. Thoughts?

Matthew
Brake Bracket.jpg

Joined
Jan 29, 2003
Messages
2,633
Location
Peyton, CO
I wouldn't use a knuckle nut to mount the brake junction. I've seen some folks just use a longer flex hose from the hard line at the axle housing directly to the caliper.


dgangle

total rice
Joined
Nov 24, 2004
Messages
4,013
Location
Heart of Dixie
The junction attaches to the backing plate...which you don't have so just do like Miker says. The short one worked for me.

http://www.ih8mud.com/techtrivia.php

"front axle outer hoses (skips backing plate) - NAPA 38881 (longer) or 38878 (shorter) "

Last edited:

ArmyFJ

Lookin’ for mud in all the wrong places.
GOLD Star
Joined
Mar 3, 2006
Messages
719
Location
NOVA
Looks good thanks for the info.

Matthew

Joined
Apr 29, 2007
Messages
26
Location
The Dalles, Oregon

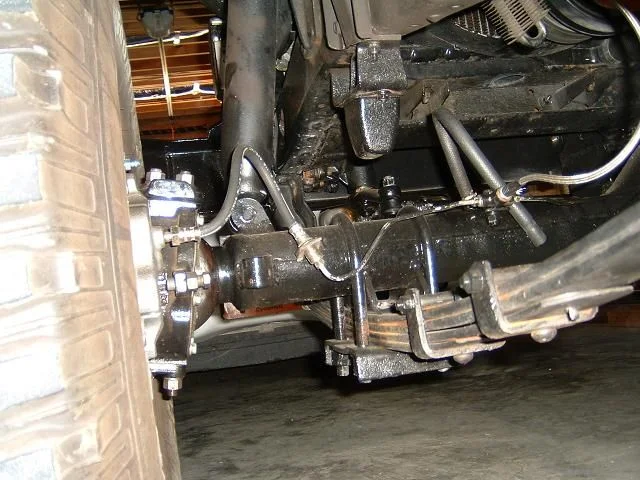

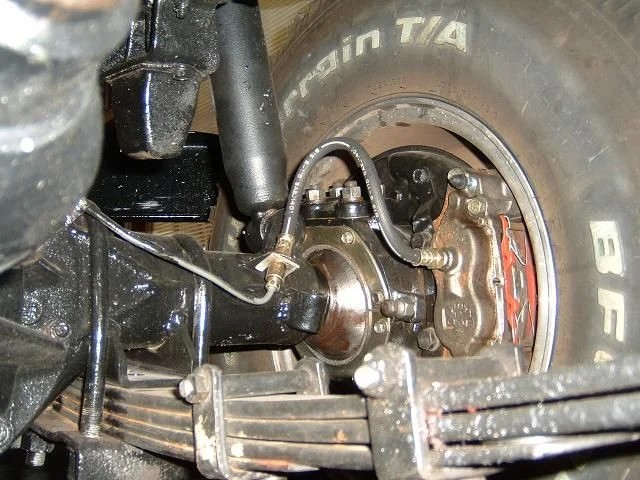

I'm curious if someone could tell me more about the part that I circled in the pic. I put a disc brake conversion on the front and have begun rerouting my brake lines but I can't figure out what to do for going from the left side to the right. I saw on a '74 that there was the junction that I circled and I think that is what I want. I have a '70 though which routes around the front of the radiator so that part isn't on my axle housing.

Edit: inserting a picasa image doesn't seem to work, guess you'll have to click the link to see the pic....
FJ40 brake junction

Joined
Dec 8, 2003
Messages
1,013
Location
So Cal
On the newer models (I think 72+) the lines run across the axel (just like the rear does)

On the older models (Single circuit maybe) it runs across the front for the frame with a hose from the frame to the wheel cyl.

When I changed my 70 over to a dual circuit master, I ran the front lines in the same manner as they came from the factory, across the front of the frame with a hose down to each caliper. In the past, I have had the lines on the axel crushed by dumb tow truck drivers hooking up to the axel and crushing the lines...

Shawn

Joined
Mar 6, 2007
Messages
418
Location
Western Washington
I'm curious if someone could tell me more about the part that I circled in the pic. I put a disc brake conversion on the front and have begun rerouting my brake lines but I can't figure out what to do for going from the left side to the right. I saw on a '74 that there was the junction that I circled and I think that is what I want. I have a '70 though which routes around the front of the radiator so that part isn't on my axle housing.

Edit: inserting a picasa image doesn't seem to work, guess you'll have to click the link to see the pic....
FJ40 brake junction

Swing by Napa with your pic and they will hook you up.
