Does anyone have a diagram of all the coolant/heater/oil cooler hoses for a 1974 fj? I want to make sure it’s all hooked back properly.
Thank you in advance
Thank you in advance
Coolant/heater/oil cooler line diagram
- Thread starter my383z
- Start date
This site may earn a commission from merchant affiliate
links, including eBay, Amazon, Skimlinks, and others.
WarDamnEagle
SILVER Star
FJ55? It always helps to give us some information. FJ to us is an FJ Cruiser.

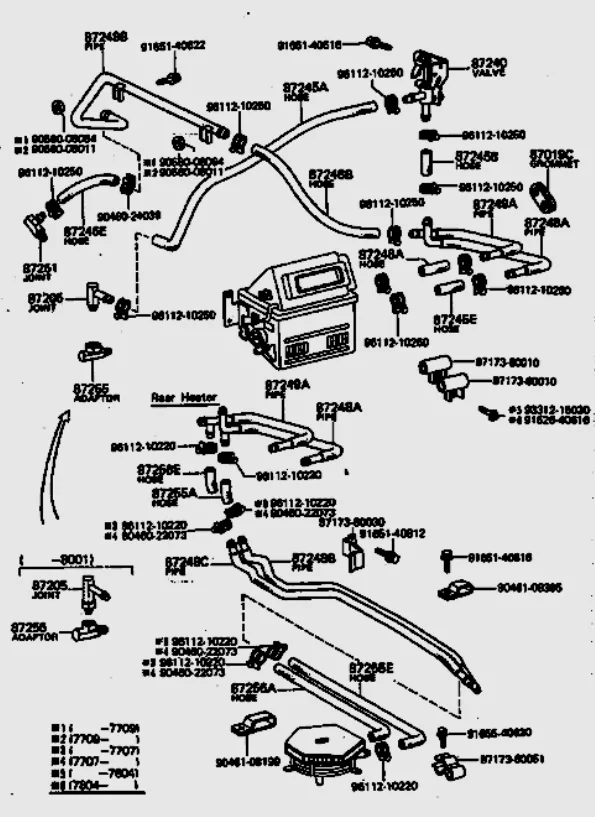

There is no engine oil cooler listed for a US 1974 FJ55 in the parts diagrams. Here is one from the 1977 diagrams:
There is no engine oil cooler listed for a US 1974 FJ55 in the parts diagrams. Here is one from the 1977 diagrams:
- Thread starter
- #3

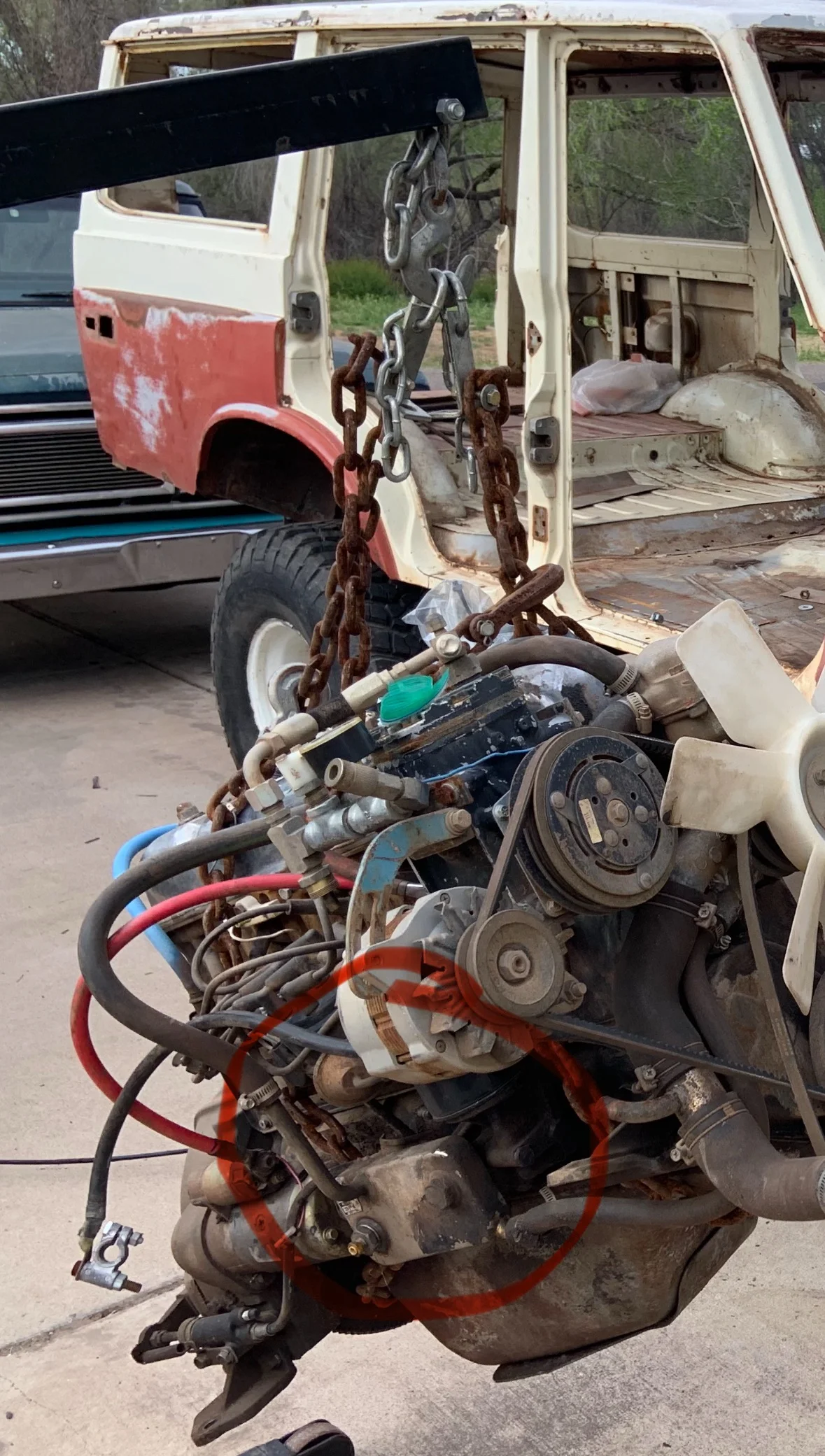

Sorry the engine/drivetrain is out of a totaled 1974 fj 55 and now is installed in my 71 fj 40. Still a work in progress. Complete custom frame off build. Utilizing almost all toyota components.
Mark W
Yep, I really don't really care that much I guess.
There were no oil coolers on NA F series engines prior to 1980.
The only coolant lines on a 1974 model F engine are for the heater. Out of the engine at the back of the head, into the engine at the water pump.
FWIW, the above comment about how "we" consider FJ to mean FJ Cruiser.... Nope. FJ Cruisers are ugly 4Runners and I don't ever think about them when discussing land Cruisers.
"FJ" was the prefix for the model designator for a gasoline 6cylinder powered Land Cruiser prior to the 1993 model.
"BJ"was the prefix for the diesel powered (4 or 6 cylinder) Land Cruisers during that time period
Referring to any Land Cruiser as an "FJ" marks you as a kid or a jeep guy.
Mark...
The only coolant lines on a 1974 model F engine are for the heater. Out of the engine at the back of the head, into the engine at the water pump.
FWIW, the above comment about how "we" consider FJ to mean FJ Cruiser.... Nope. FJ Cruisers are ugly 4Runners and I don't ever think about them when discussing land Cruisers.
"FJ" was the prefix for the model designator for a gasoline 6cylinder powered Land Cruiser prior to the 1993 model.
"BJ"was the prefix for the diesel powered (4 or 6 cylinder) Land Cruisers during that time period
Referring to any Land Cruiser as an "FJ" marks you as a kid or a jeep guy.
Mark...
- Thread starter
- #5
lol. I am neither a kid nor a jeep guy but I can understand the sentiment… I have owned the fj 40 for 25 years and am just now building it. It’s weird that the 1974 fj55 did not come with an oilThere were no oil coolers on NA F series engines prior to 1980.
The only coolant lines on a 1974 model F engine are for the heater. Out of the engine at the back of the head, into the engine at the water pump.
FWIW, the above comment about how "we" consider FJ to mean FJ Cruiser.... Nope. FJ Cruisers are ugly 4Runners and I don't ever think about them when discussing land Cruisers.
"FJ" was the prefix for the model designator for a gasoline 6cylinder powered Land Cruiser prior to the 1993 model.
"BJ"was the prefix for the diesel powered (4 or 6 cylinder) Land Cruisers during that time period
Referring to any Land Cruiser as an "FJ" marks you as a kid or a jeep guy.
Mark...
Cooler as mine certainly has one. The rest of the truck was completely original prior to totaling.
What do I have to do now to lose the stigma as an outsider and untarnished my name?
or is it even possible?
RUSH55
SILVER Star

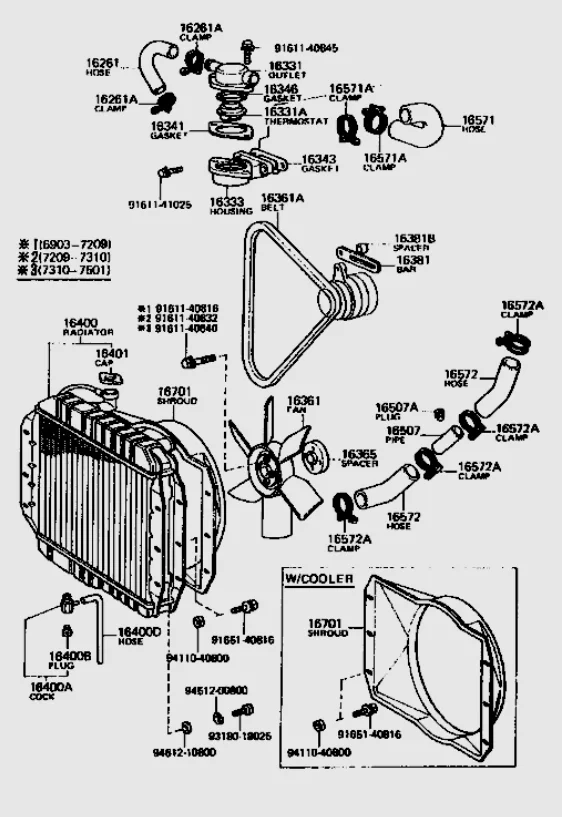

Then what do you call this? From 1977.
No stigma associated to you.What do I have to do now to lose the stigma as an outsider and untarnished my name?
Pretty ironic that some old codger that very rarely ever comes down here or participates in any of the ongoing threads, wants to chime in on a new thread from a new guy, give wrong information, and then proceed to chastise while simultaneously bearing a sig that basically reads, IDGAF. Funny!
WarDamnEagle
SILVER Star
FWIW, my best guess is that the oil coolers on a '77, for example, were "California Spec", based on the parts diagrams that I'm looking at. Also pretty certain there were no oil coolers on '74 NA FJ55s. My '77 FJ55 does not have an oil cooler.
