Anyone know what hubs these are? (1 Viewer)

[shelfboy1]

never had those on any of my cruisers but they came on several jeeps ive had



[middlecalf]

‘63 FJ45



[Drake2]

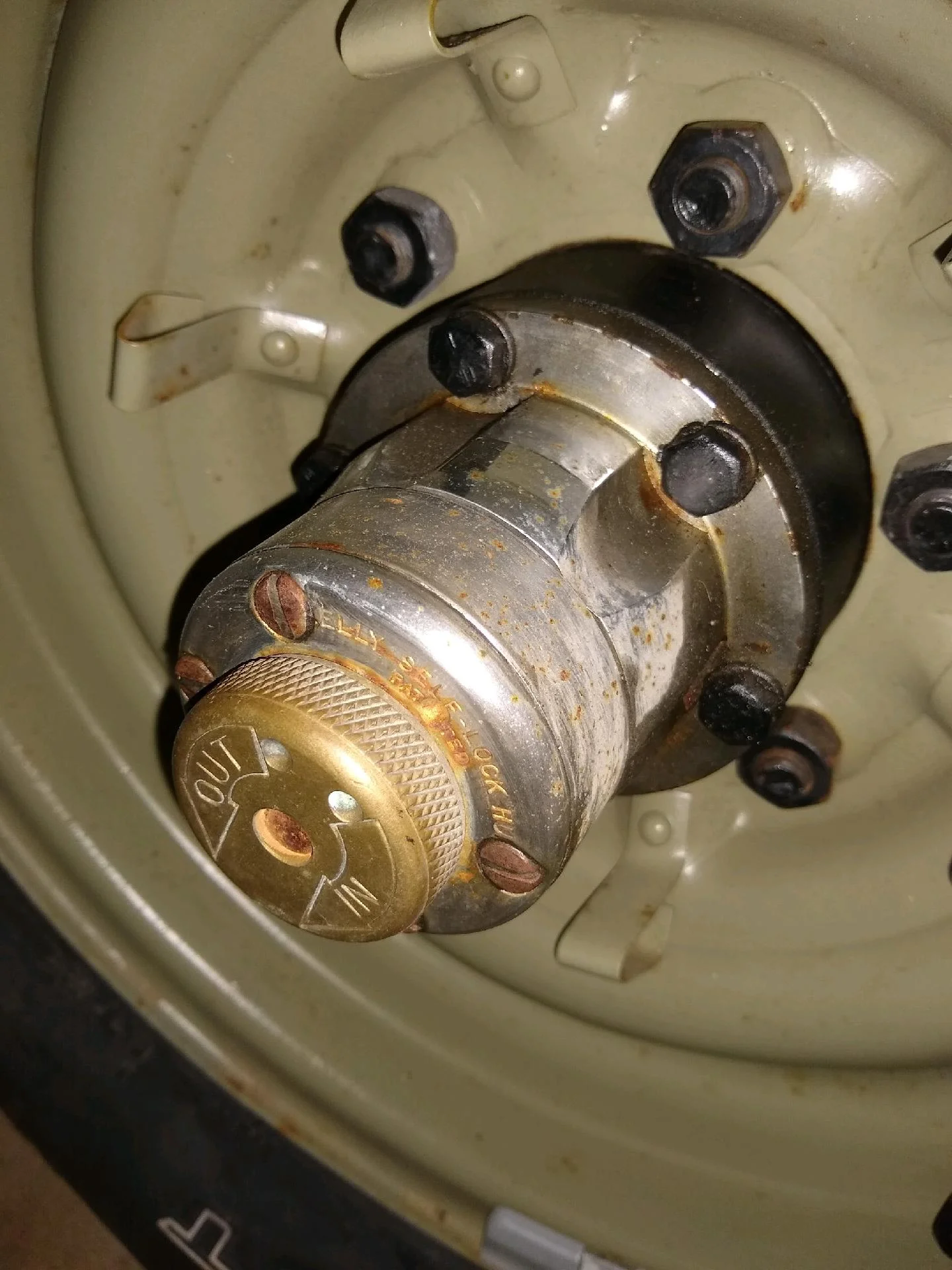

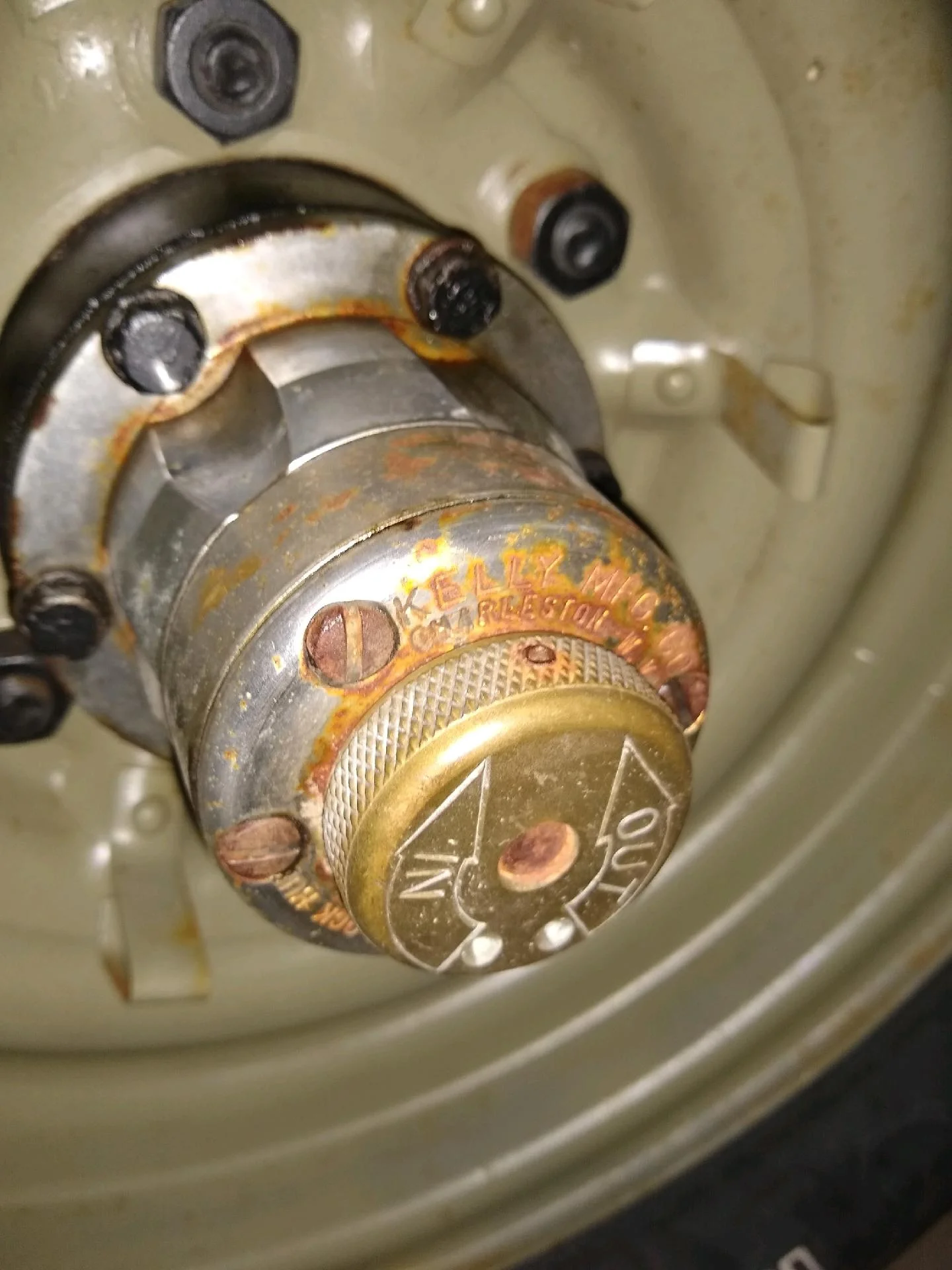

Just when I thought I found them all......these pop up on a 66/67 that a friend picked up from Iowa IIRC. Kelly Manufacturing in Charleston, West Virginia. Kelly "Self-Lock" Of course I'm now looking for a set to add to the collection so if you have them and are willing to sell......let me know please.



[65swb45]

Wow! That is WAY obscure. I wonder what the engagement mechanism is like, if it’s anything like the thumb screw ones?

Do you have Fairey hubs in your collection Drake?



[Drake2]

Wow! That is WAY obscure. I wonder what the engagement mechanism is like, if it’s anything like the thumb screw ones?

Do you have Fairey hubs in your collection Drake?

Good Morning Mark, these Kelly units are pretty cool looking and I would be very interested to see the inside workings as well. I don't believe I have any Fairey units. Can you send a couple pics please so i can verify?
Thanks
Drake



[65swb45]

Good Morning Mark, these Kelly units are pretty cool looking and I would be very interested to see the inside workings as well. I don't believe I have any Fairey units. Can you send a couple pics please so i can verify?
Thanks
Drake

For Sale - SoCal: NOS Fairey disc brake locking hubs

In the truest sense of the word, these are NOS. They have been on my shelf for 30 years! I had quite frankly forgotten about them until I saw a post from @Drake2 this morning about a different hub. They were advertised as fitting both the long-body 76-78 birfields as well as the 79-90. The...

forum.ih8mud.com



[Roastchestnuts]

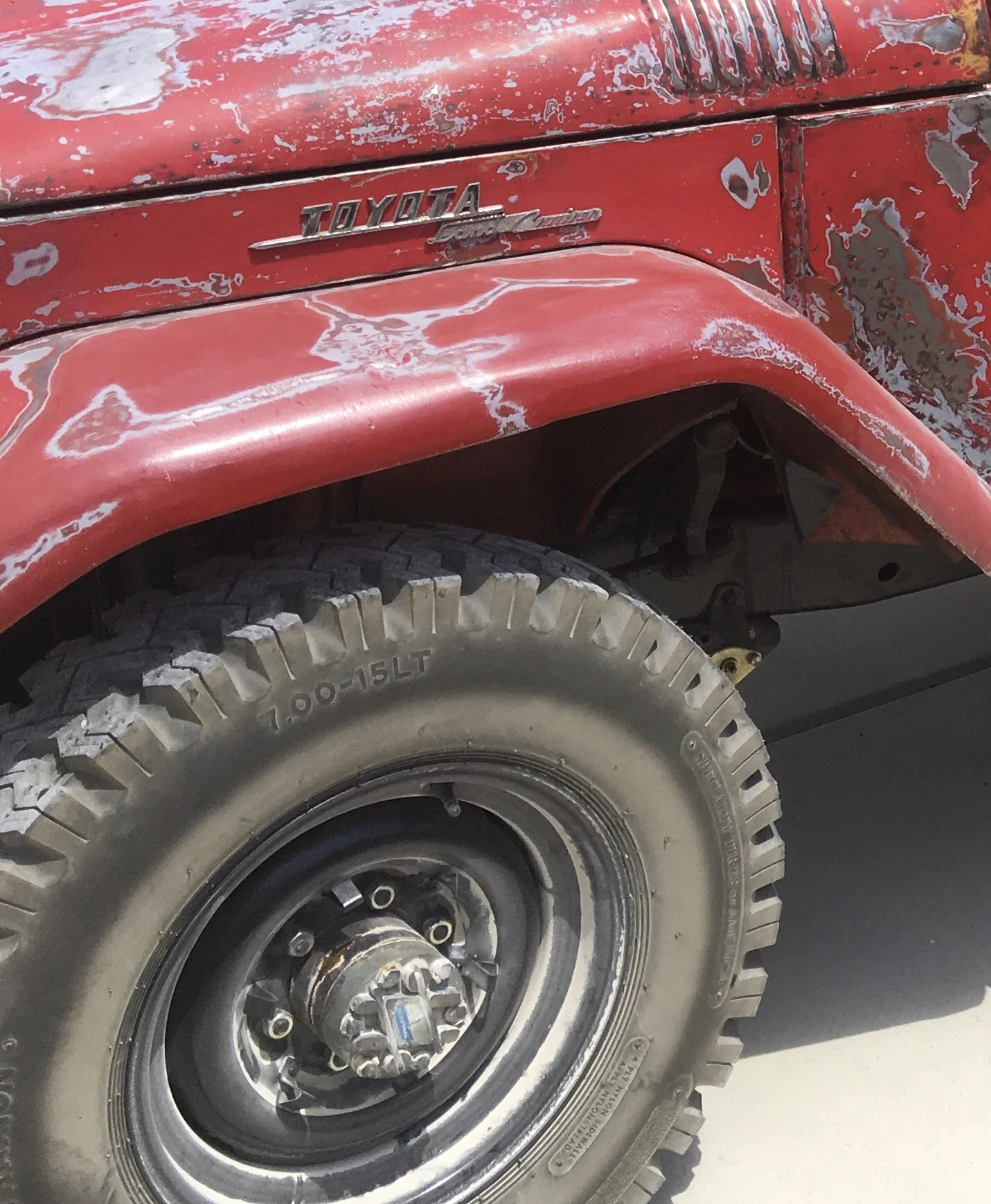

‘63 FJ45
View attachment 2893351

I feel like I have seen these on a cj3b. I really like how they work!



[Drake2]

I feel like I have seen these on a cj3b. I really like how they work!

I have seen them on Heeps as well.



[Drake2]

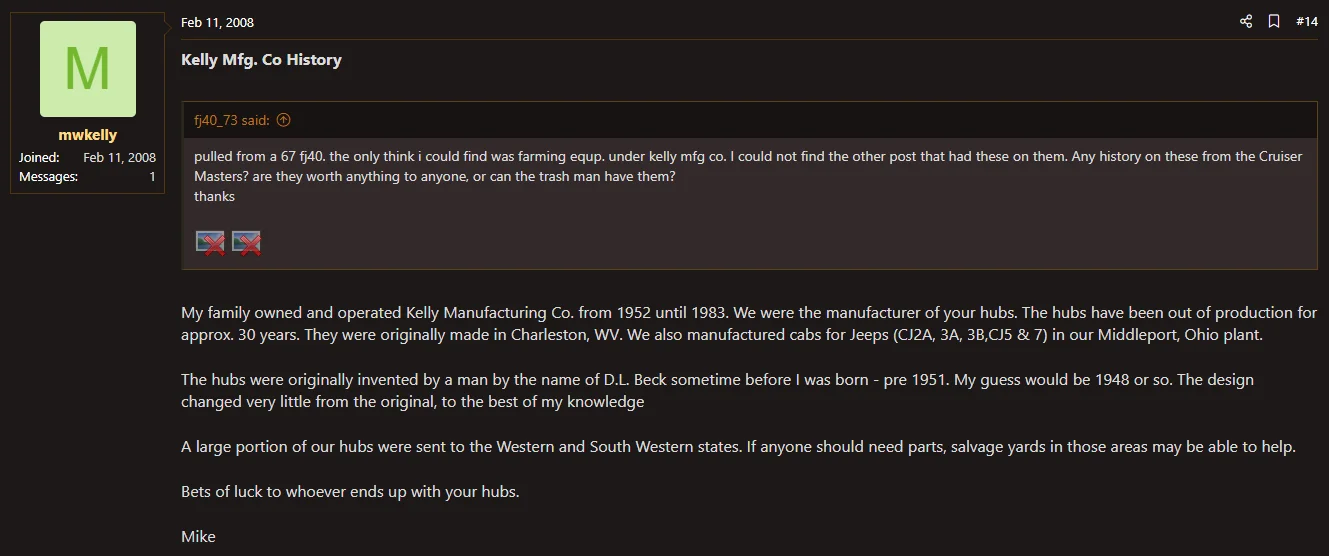

A bit more info about the Kelly units.....pulled from a very old post



[Living in the Past]

Just when I thought I found them all......these pop up on a 66/67 that a friend picked up from Iowa IIRC. Kelly Manufacturing in Charleston, West Virginia. Kelly "Self-Lock" Of course I'm now looking for a set to add to the collection so if you have them and are willing to sell......let me know please.

View attachment 3230829

View attachment 3230830

Wonder how close they are to these hubs.

I see the flathead screws being a issue if you tear the hub down.



[Drake2]

Wonder how close they are to these hubs.

I see the flathead screws being a issue if you tear the hub down.

View attachment 3231296

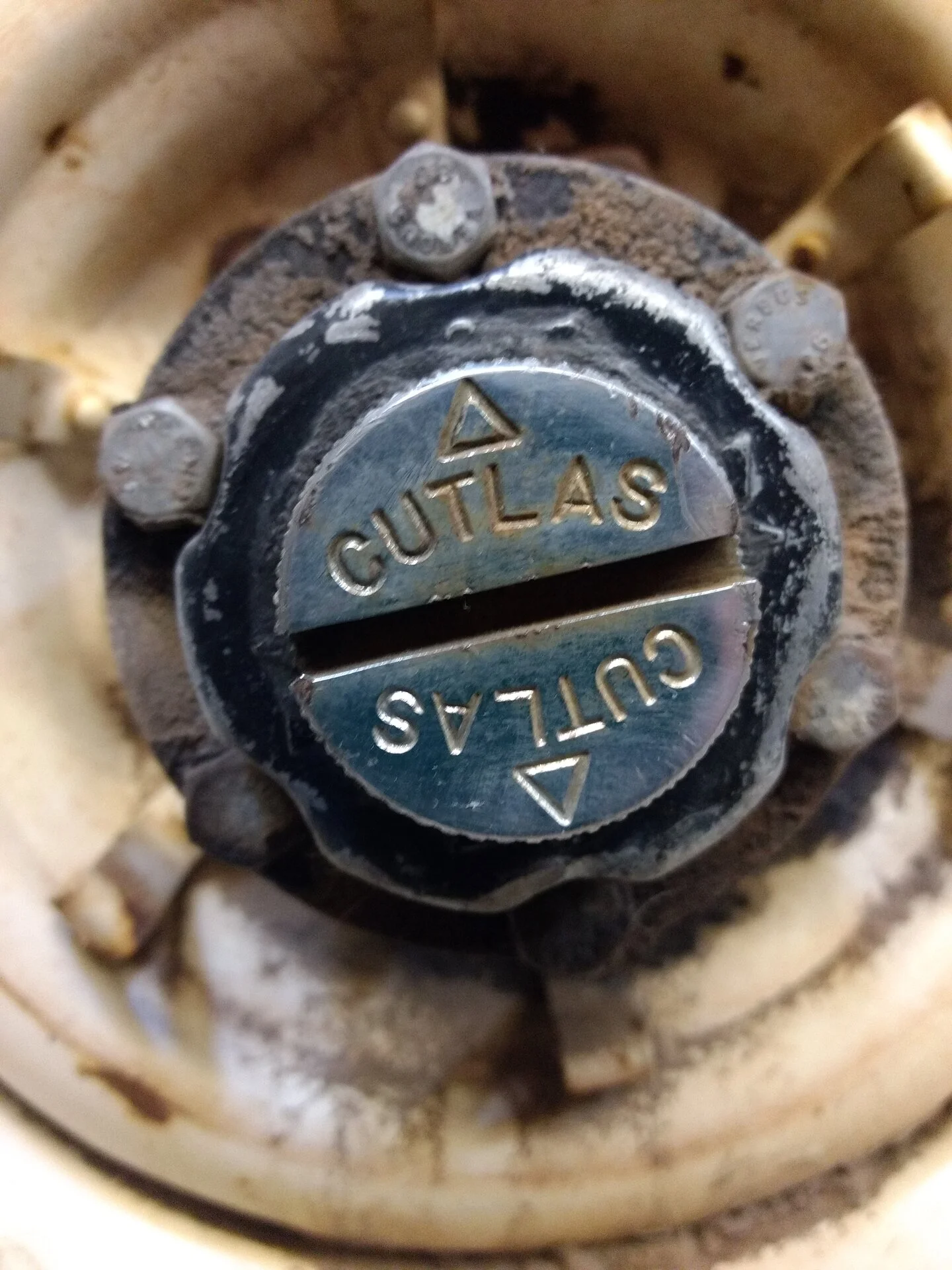

I have a few sets of the Cutlass branded units. Some shorter and some taller versions. Most of mine will go into the hub display after they get cleaned up.



[Drake2]

Wonder how close they are to these hubs.

I see the flathead screws being a issue if you tear the hub down.

View attachment 3231296

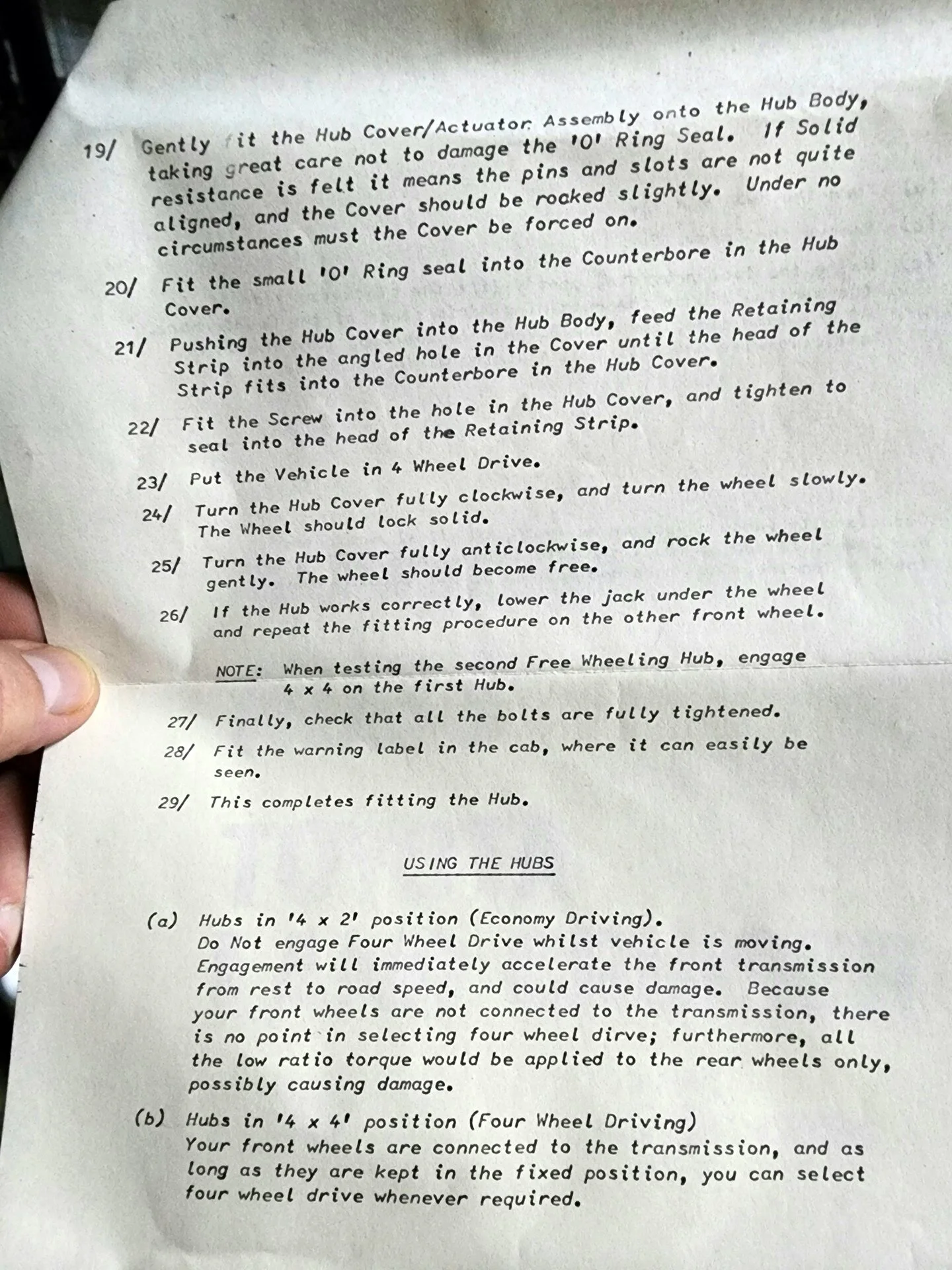

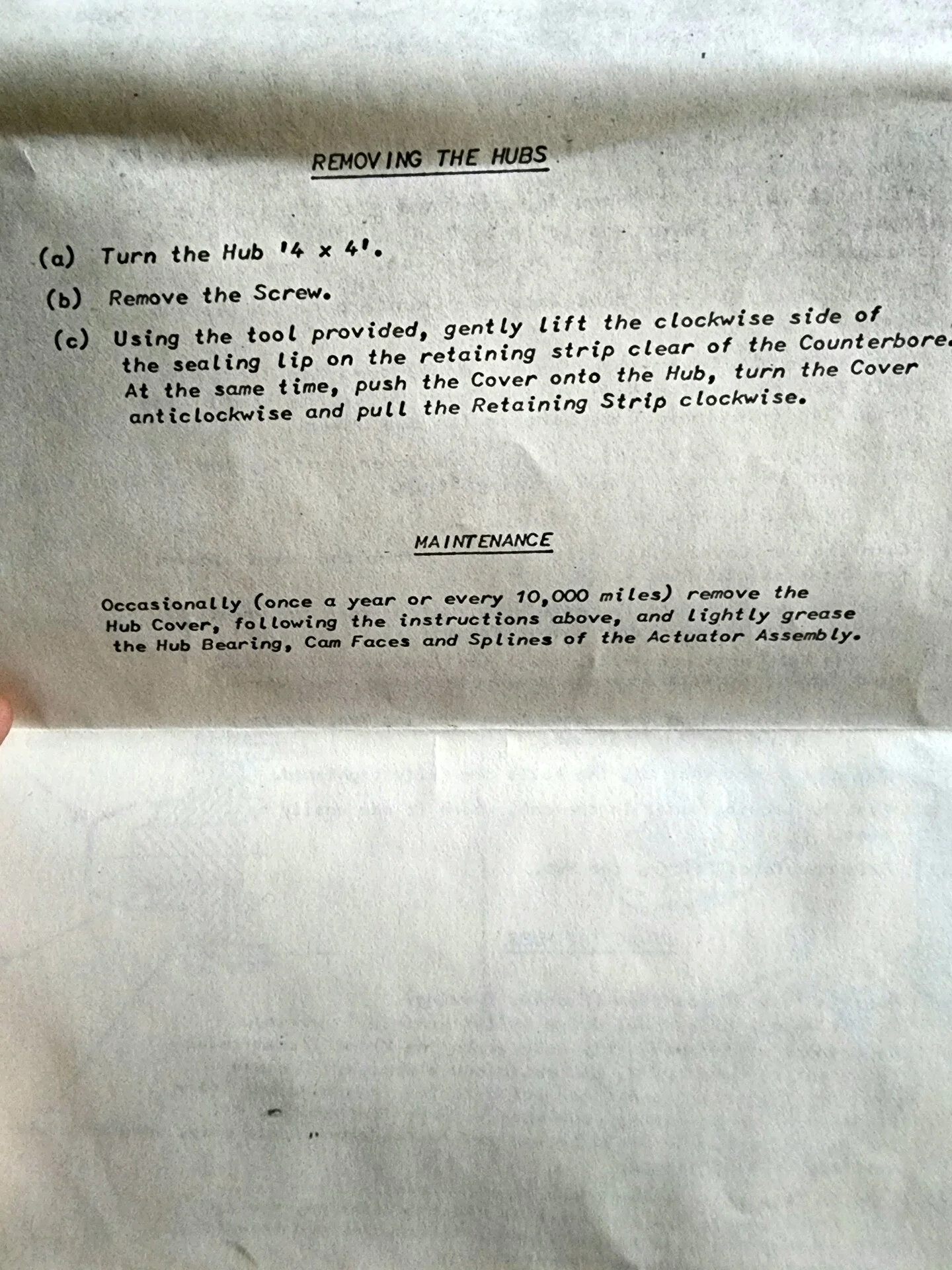

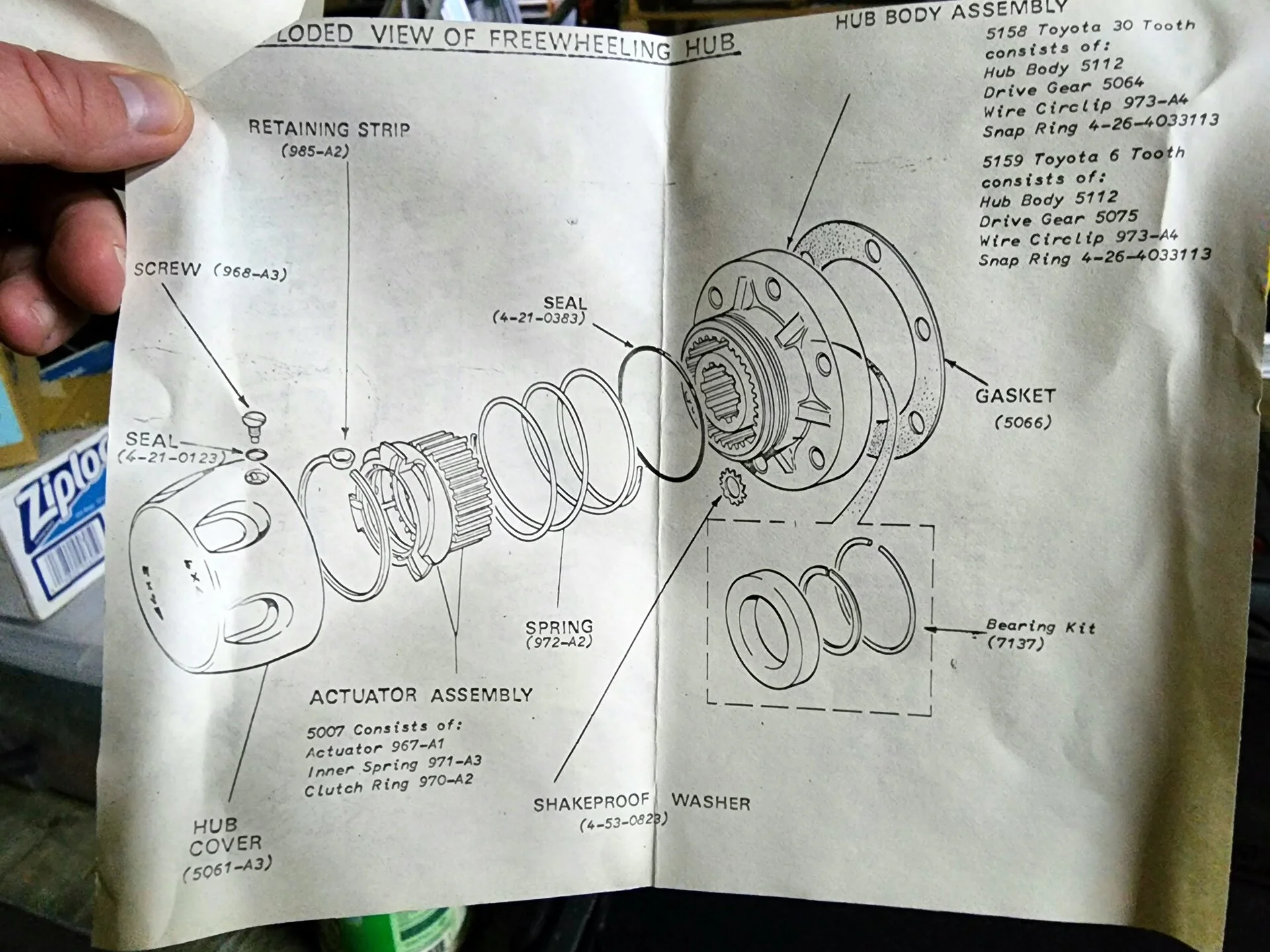

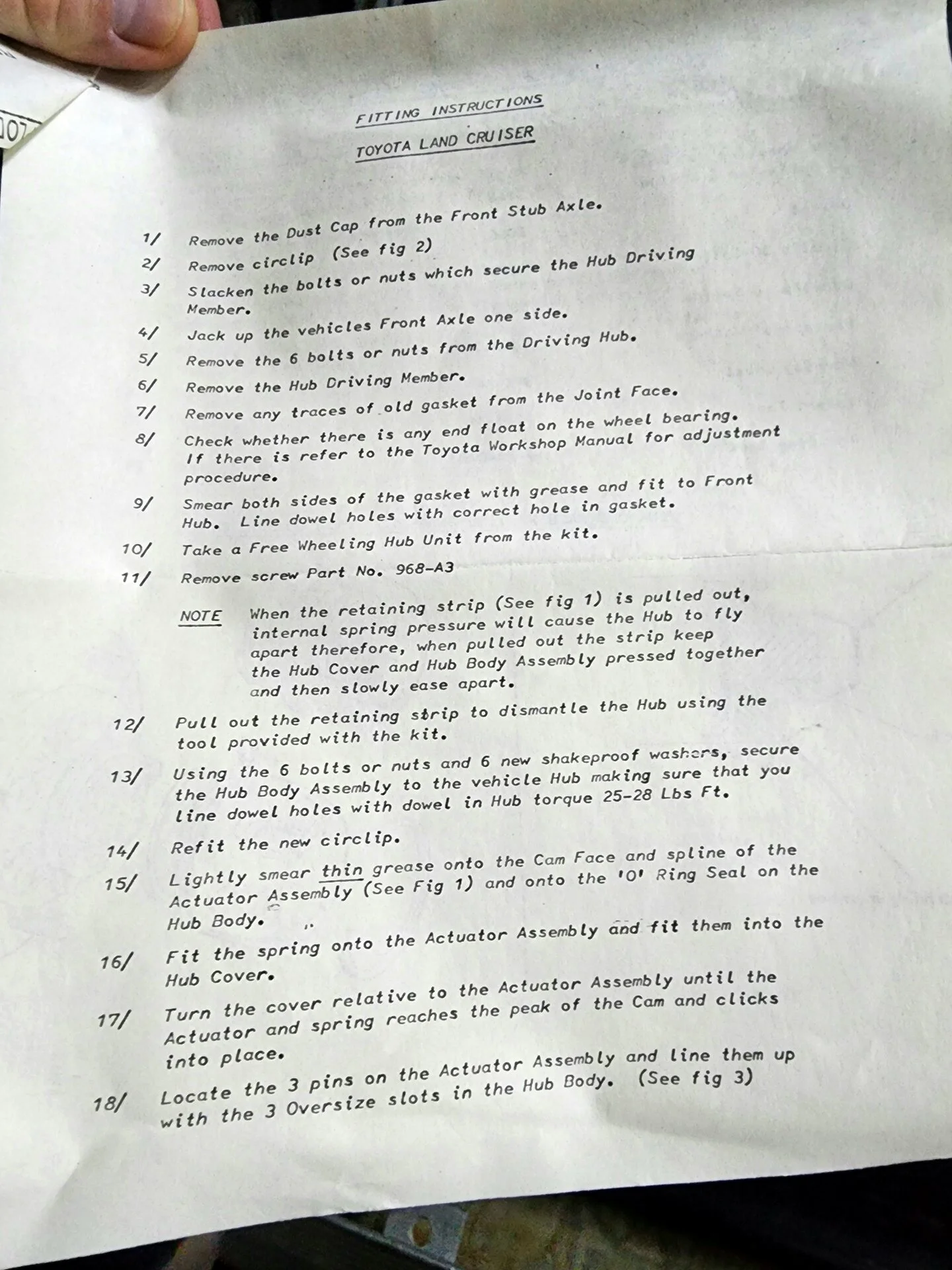

Here are the Fairey install docs you were looking for.



[65swb45]

I actually have an OE set of paper instructions that are on the shelf next to where the hubs were. Probably put them there after I installed a previous set…in the last century.
