SOLD 1971 Manual Steering Box (1 Viewer)

[cmbaileycpa]

Vehicle Model

1. 40 Series

Location

Atlanta, Georgia United States

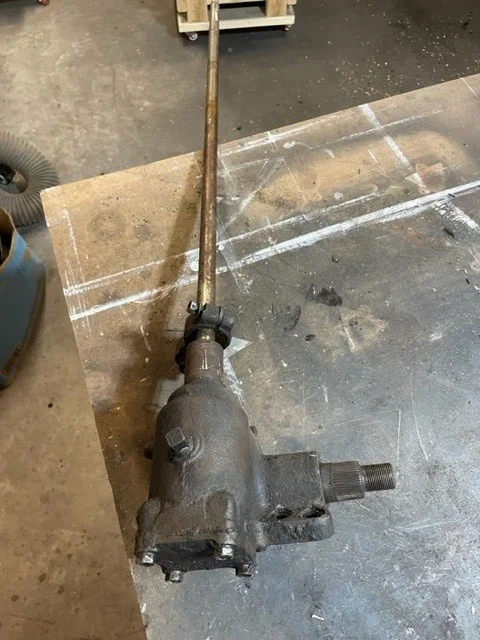

Have a 1971 Manual Steering Box and shaft for sale. Turns freely. Located in Atlanta, GA area.



[Casey E]

Free ?



[cmbaileycpa]

Free ?

Well I need to get something for it.



[kevos37]

Well I need to get something for it.

$20



[65swb45]

Interested…but not in bidding.



[cmbaileycpa]

$20

$100 plus shipping



[cmbaileycpa]

Interested…but not in bidding.

$100 plus shipping?



[kevos37]

$100 plus shipping

I will defer to 65swb45



[65swb45]

If you can pull the side cover and pull out the sector shaft to determine if the roller is still usable, I will pay your asking price. Unfortunately, the last three boxes I inq about all had damaged sector rollers.



[cmbaileycpa]

If you can pull the side cover and pull out the sector shaft to determine if the roller is still usable, I will pay your asking price. Unfortunately, the last three boxes I inq about all had damaged sector rollers.

Yes Sir. Happy to do that. I can do so in the morning. Can you text your phone number to name and I can call you or send you pictures? 678-602-8247.



[cmbaileycpa]

If you can pull the side cover and pull out the sector shaft to determine if the roller is still usable, I will pay your asking price. Unfortunately, the last three boxes I inq about all had damaged sector rollers.



[cmbaileycpa]

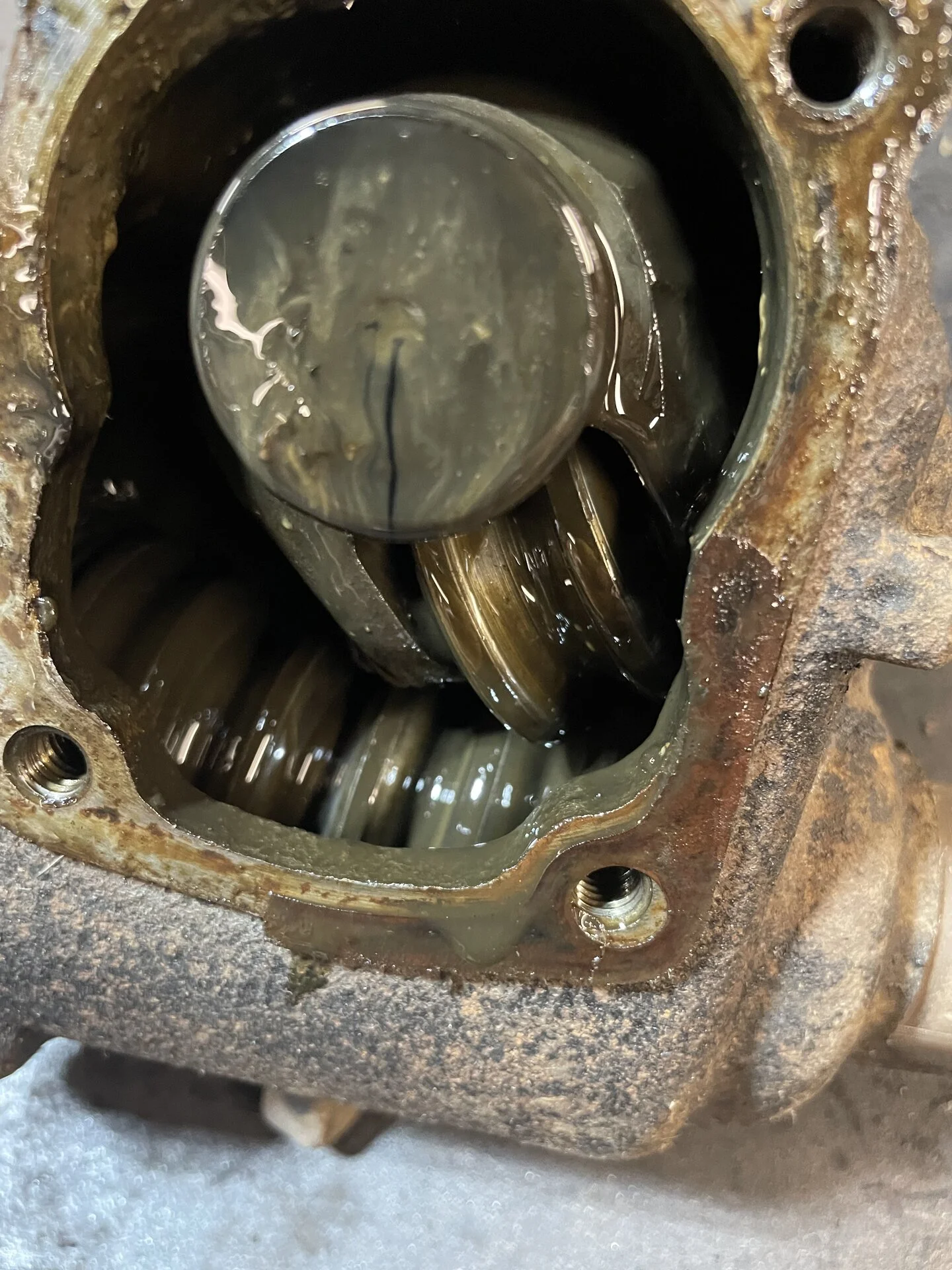

View attachment 3437366

If you send me your email, I can send you a video of the mechanism working. Thanks.



[thundermcawesum]

If you can pull the side cover and pull out the sector shaft to determine if the roller is still usable, I will pay your asking price. Unfortunately, the last three boxes I inq about all had damaged sector rollers.

What are you looking to see in a good roller?



[65swb45]

Sorry I couldn’t reply yesterday; crazy busy. I have a sample of what I’m NOT looking for on my Wall Of Shame at the shop. Unfortunately, I will not be back there until Monday.

You will need to rotate the sector to its mid-point to remove it from the housing and wipe the grease off the outside faces of the roller bearing. If either of the faces are scored or pitted, it is not safe to reuse.

Also, if the seal surface of the shaft is scored,the box won’t seal. THAT I have a picture of in my phone.



[65swb45]

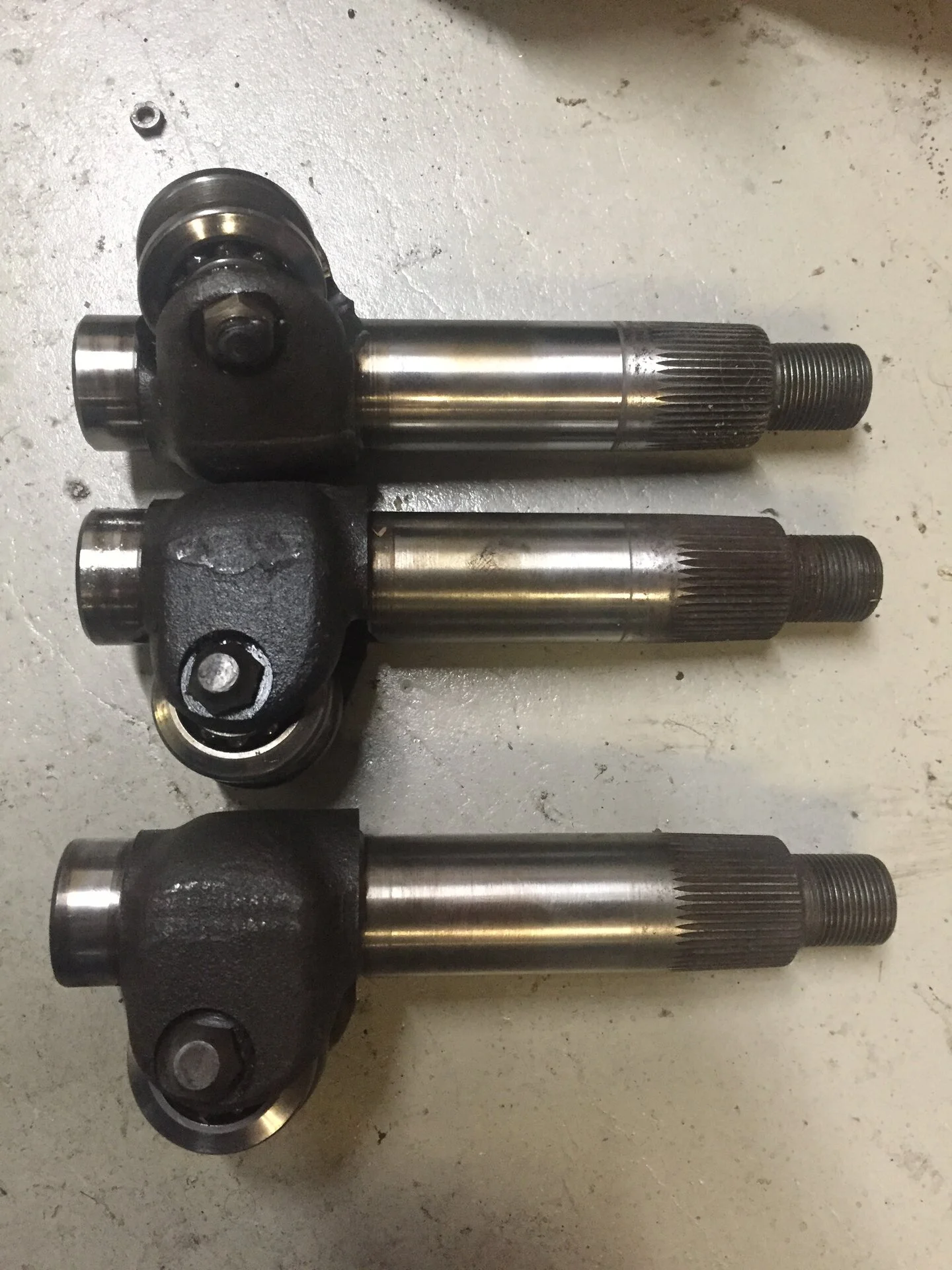

The one on top is heavily scored.



[cruisermatt]

View attachment 3438050
The one on top is heavily scored.

If the need gets bad, those grooves don’t look hard at all to TIG, grind and polish back to spec.



[CHU TOY]

I realize this gear box is for a 1971 FJ-40, but does anyone know if the worm gear can be swapped out for use in a 1966 FJ-40?



[pardion]

I realize this gear box is for a 1971 FJ-40, but does anyone know if the worm gear can be swapped out for use in a 1966 FJ-40?

A quick look in a parts manual will tell you. Not near mine for a few days or I would look it up for you.



[CHU TOY]

Never mind, the splines on the shaft are different 36 vs 33



[cmbaileycpa]

View attachment 3438050
The one on top is heavily scored.

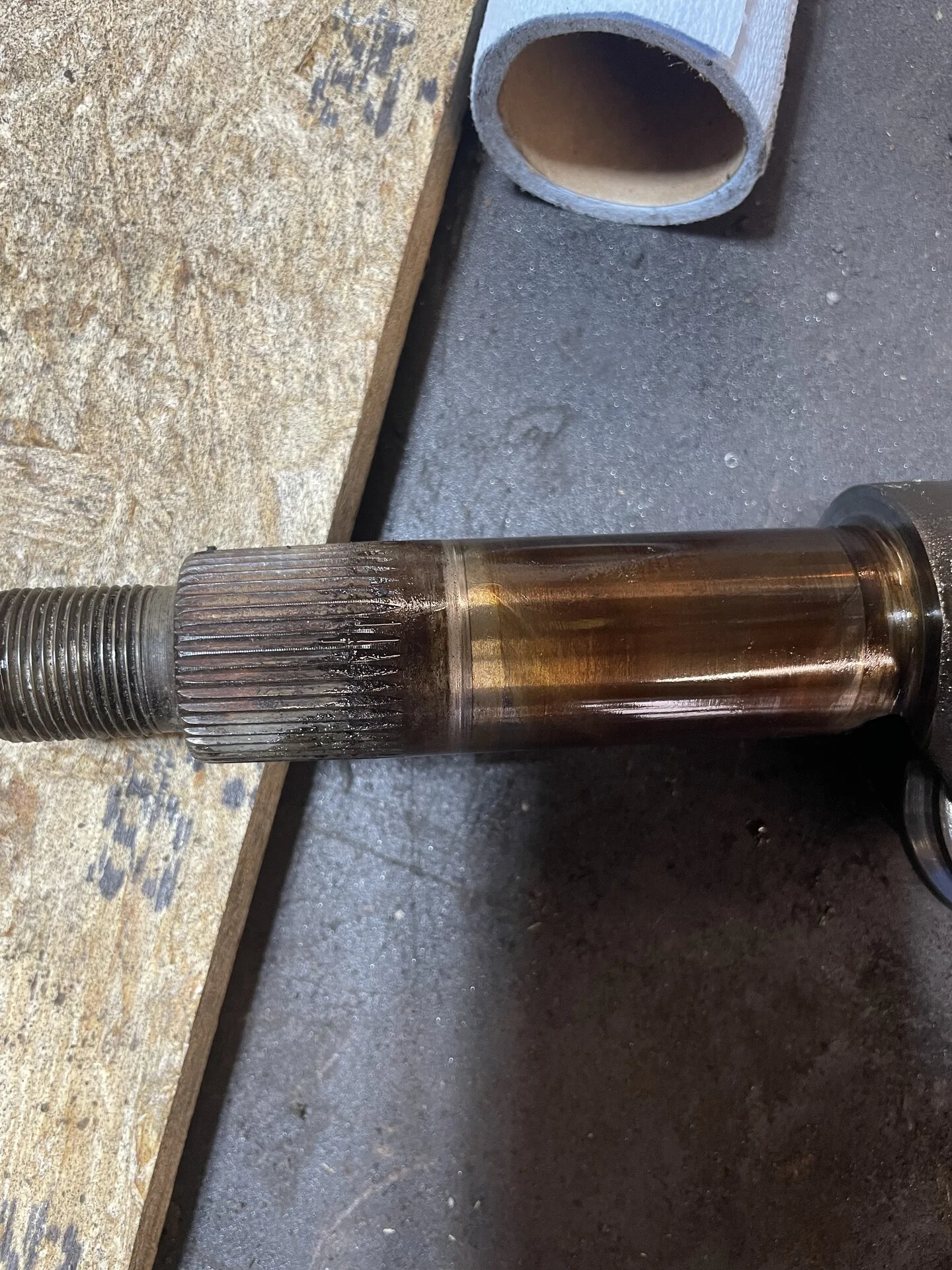

Here is what the sector shaft on my steering box looks like.
