TexasLandCruiser

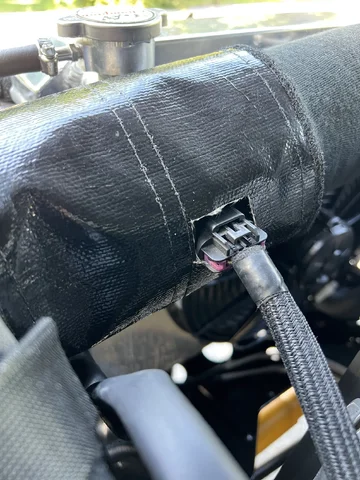

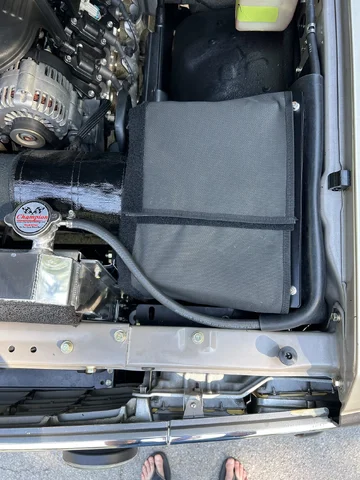

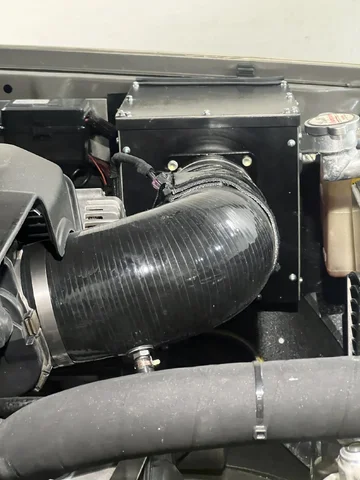

Some additional pics. I added a shroud around the intake to help IAT. The silicone tube replaced the aluminum

That is d*mn fine work sir! Great eye to the details!

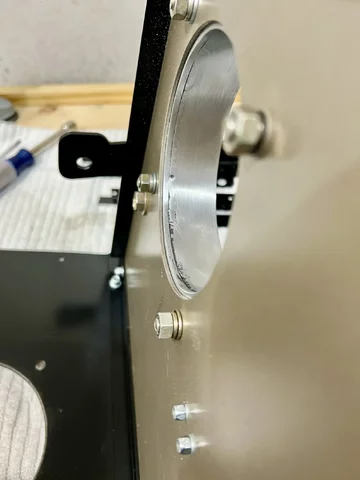

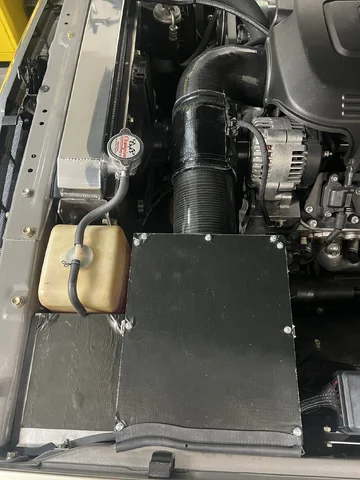

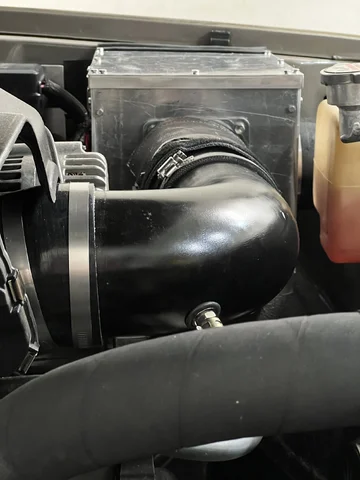

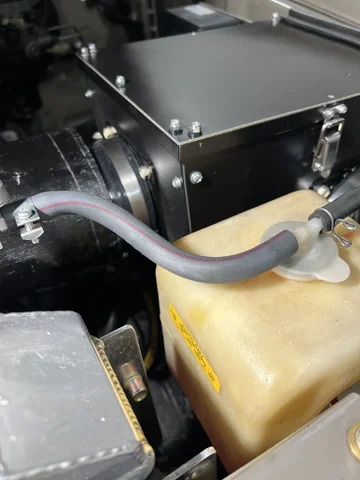

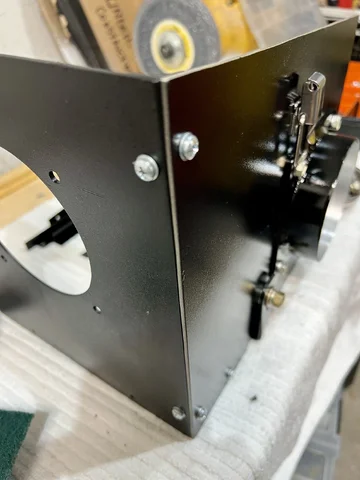

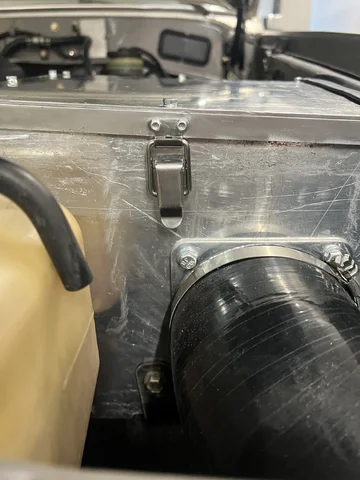

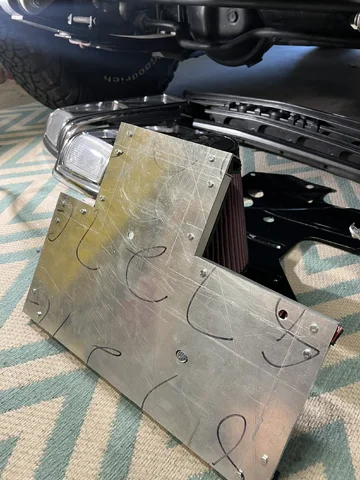

Finished my intake air box. A lot of changes and redos on a few parts but fits like a glove. Getting paint right took 2 days

Quick weekend getaway heading to Byron Bay. Weather was ordinary but company was perfect.

Nice find on that compact solution

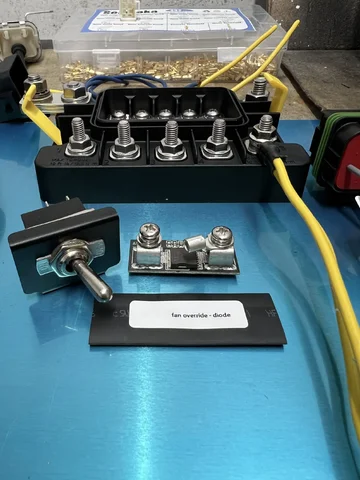

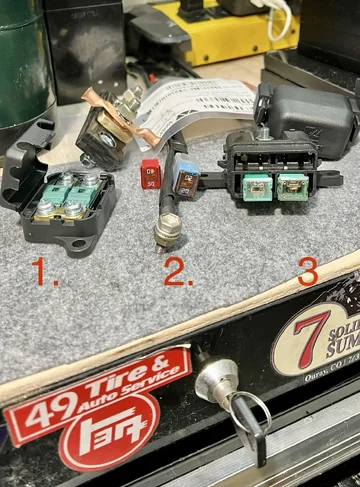

@CruiserTrash has a good turnkey solution. I did mine and took some work but done now. I had the Blue Sea box using Bussman type 1 breakers but took up too much room for too little capacity of a box. I needed 1 stop all systems. The Egis hub core...

Fartin' around at the 2025 Toyota Jamboree

The Torfab box didn't work for me in the end. Did okay job but this is the diesel version steel box and I could keep the steel from soaking up heat over the duration of a trip more than an hour.

Thank you.

Wow mate, super nice work with this. Well done.

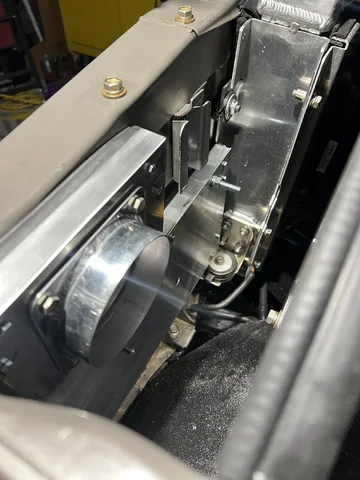

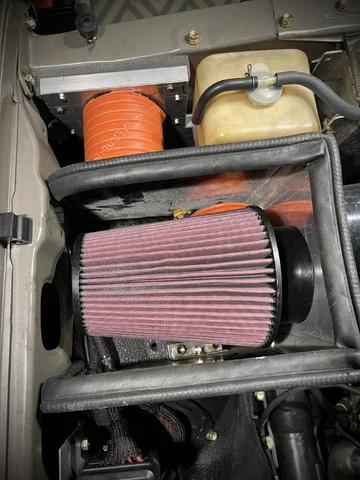

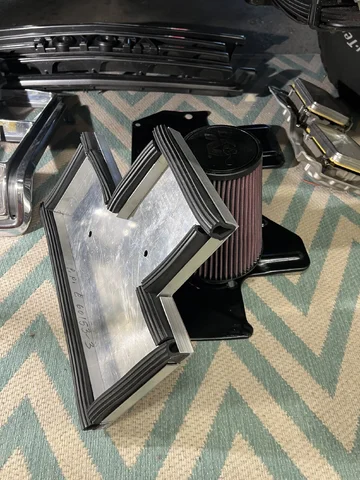

Last week finished up completely replacing my intake air system. Created a plenum or a true cold air ram. Dropped my IATs 25% overall and ambient was only 15 degrees over outside. In the photo looking through the support you see fresh aluminum...

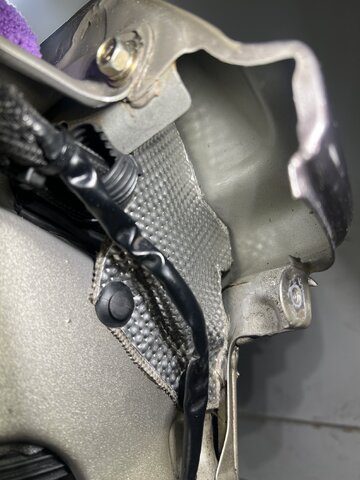

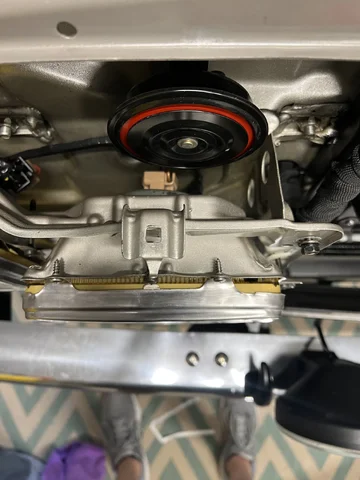

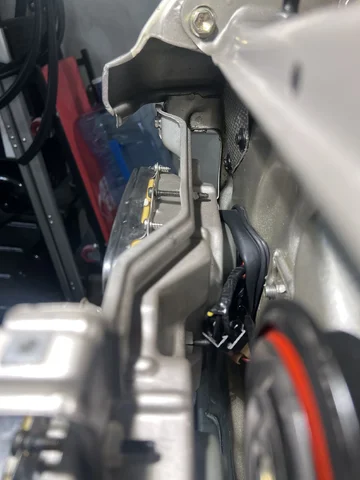

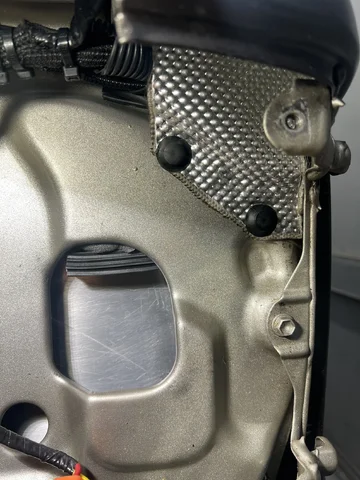

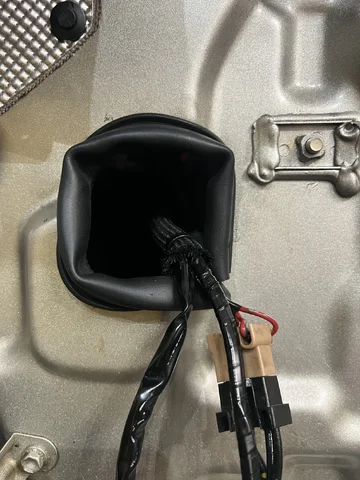

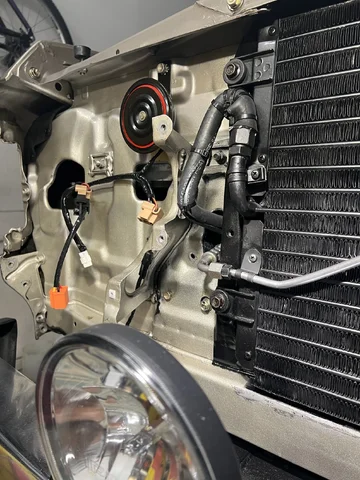

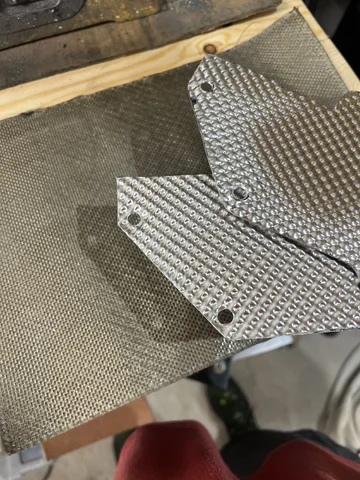

Last night I finish sealing the radiator support from air leaks. Here I used D shaped edge trim and surrounded the sockets for the headlights. The lights now seal the holes closed. I have some embossed aluminum heat shield and cut up replacement...

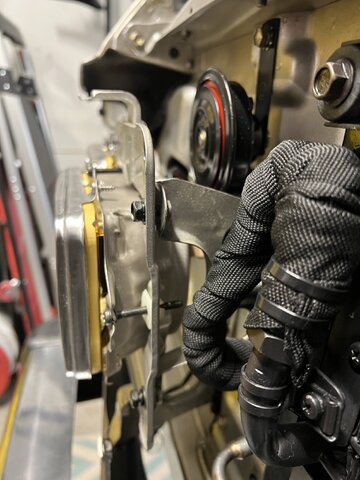

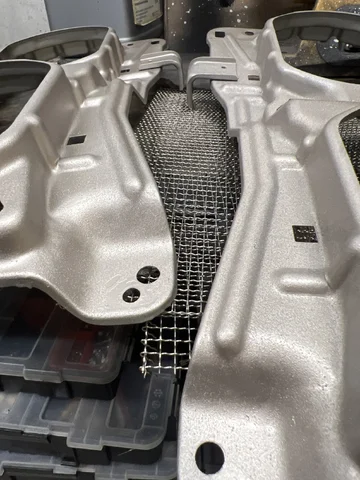

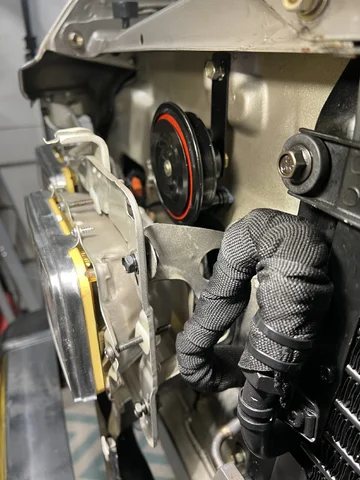

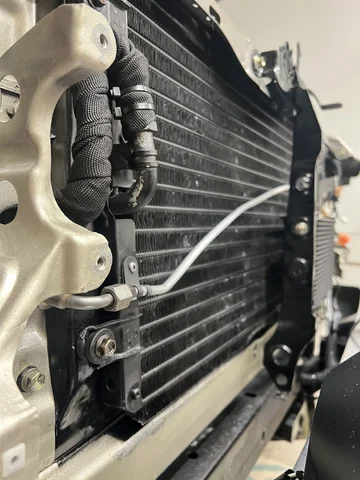

While I had the grill off I pulled the light housings and cleaned and painted. Cleaned old paint off the hot line across the front of the condenser. I bought some excess nylons 1" covering for hydraulic lines a while back. Great for sleeves to...

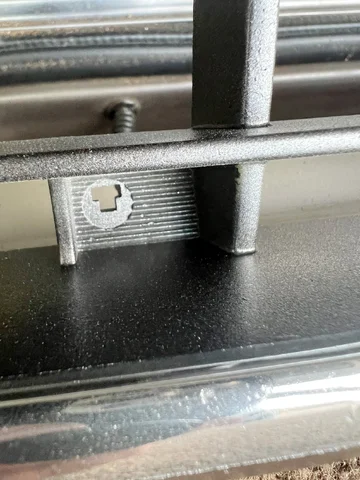

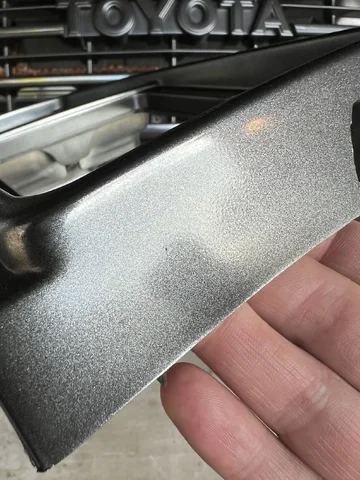

Cleaned up the grill and surrounds. Duplicolor OEM Toyota Grey Metallic. Used scotchbrite red to clean up paint, 0000 wool to polish chrome. 100% better. Delamination spots used syringe and filled voids with resin epoxy. Stable now.

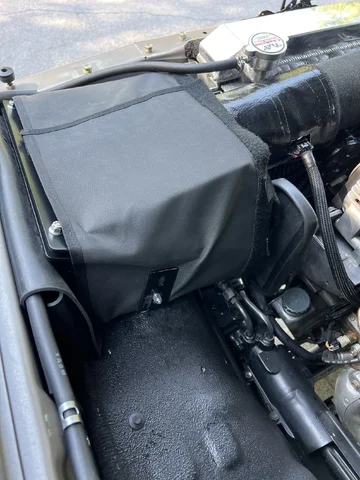

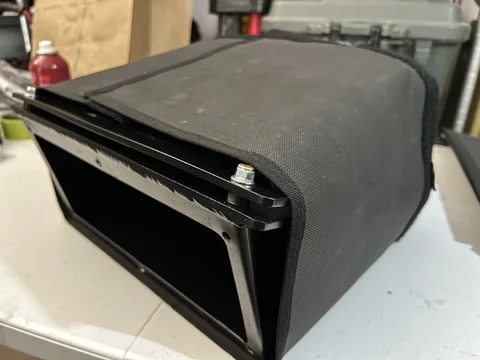

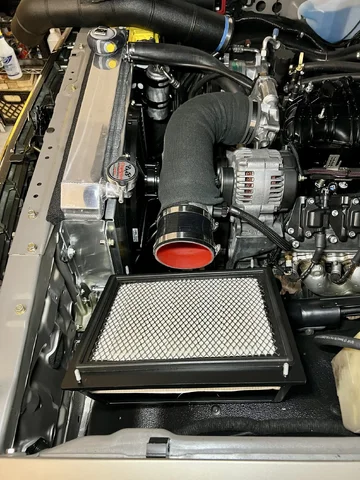

The air box is for the Disesl LC. Fabrication by Torfab. They've got 2 versions this one is a straight tube connection, their LS Swap is aluminum and the intake tube comes in at a 45 degree. Uses a flat panel that can be bought at the local...

In a world full of shortcuts, Chris sets the standard for how things should be done. He’s more than my mechanic—he’s been a trusted advisor and moral compass through some tough decisions. If you value honesty, craftsmanship, and someone who truly...

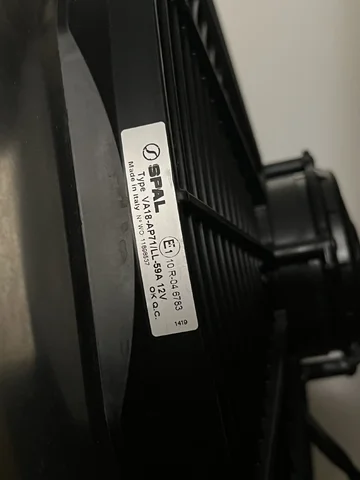

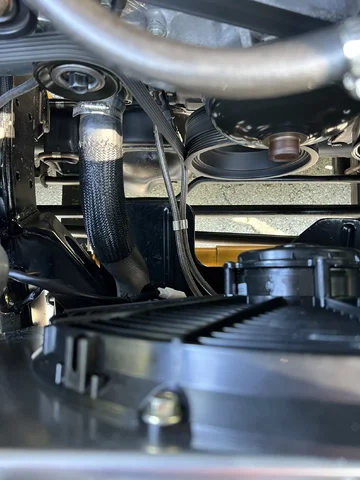

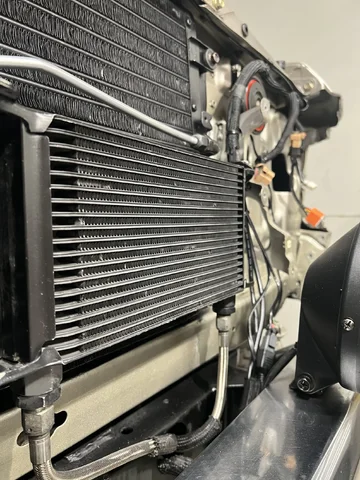

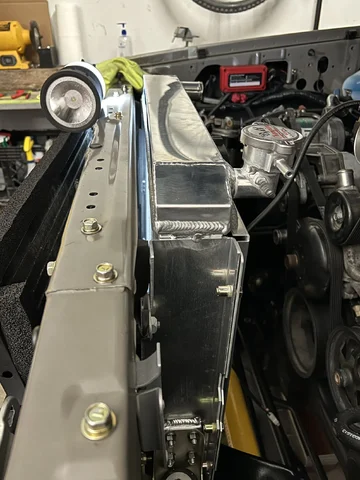

Champion 3 core cut to support, BTB Products ordered. Top hose to passenger side as well. The transmission cooler is not internal so ran the trans to stack. Much better cooling with those 2 not sharing same fluid. Spal 16" brushed with Mishimoto...
