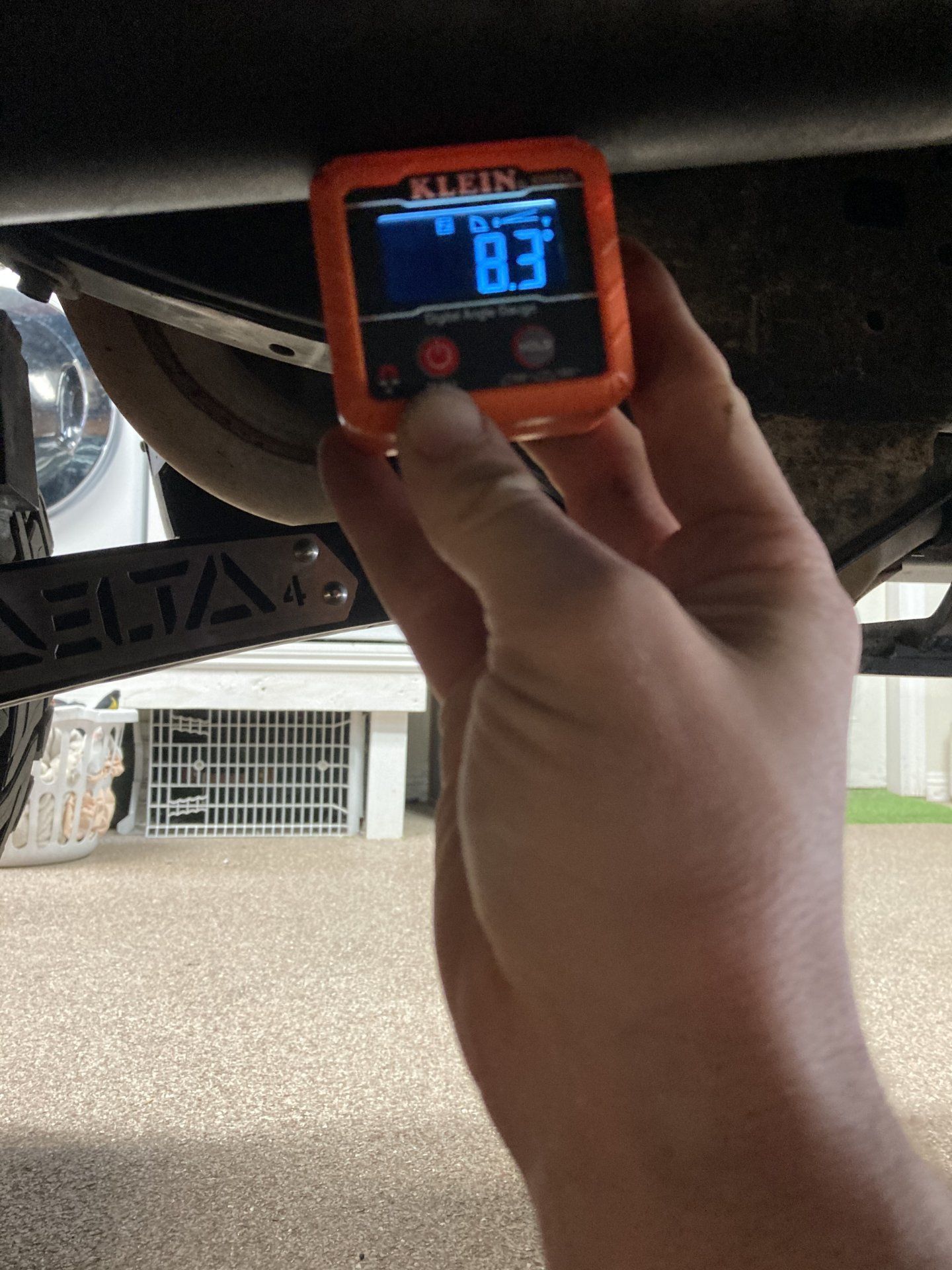

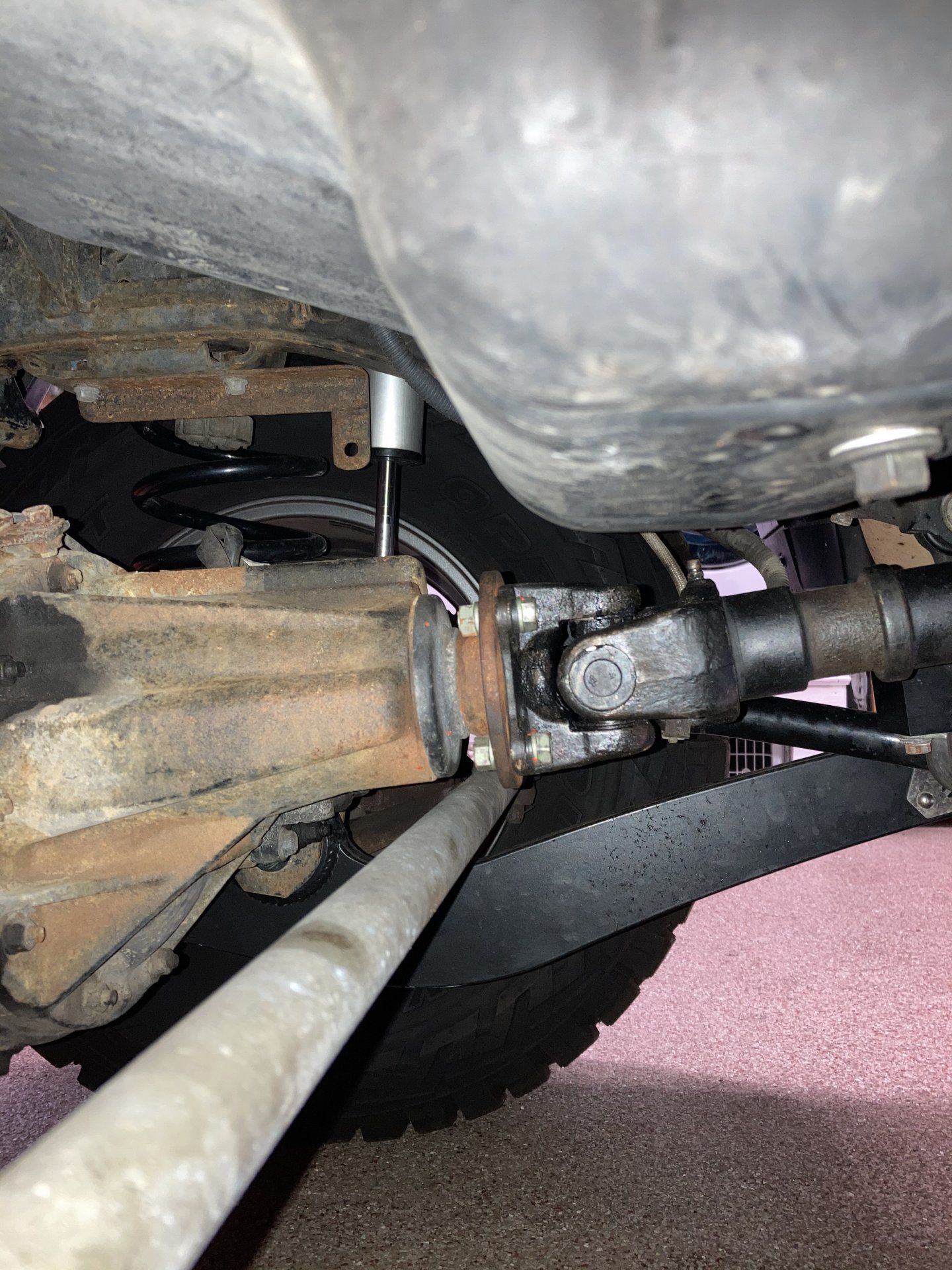

what the next step is to take a reading of the operating angle of the front U-joint on the DC shaft. Ideally it should be 0 degrees but should work up to 1 degree.I just measured...17.25" // 21.25" so looks almost dead on with what you got. 3" of lift then?
Thanks for the advice! I'll do that next and report back.what the next step is to take a reading of the operating angle of the front U-joint on the DC shaft. Ideally it should be 0 degrees but should work up to 1 degree.
here is a thread that might help you.
DC-Shaft pinion check

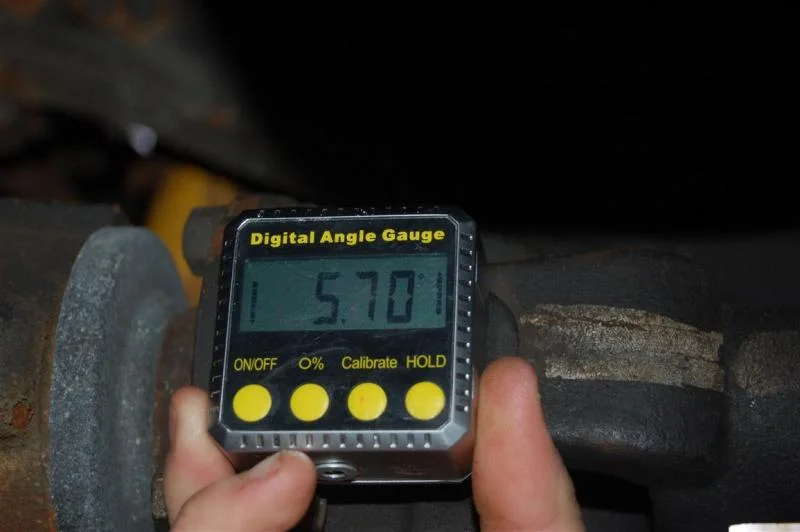

I've had a few questions about vibrations and whether or not a DC shaft is the solution/problem. So I decided to post up how I evaluate the pinion angle to confirm if the pinion is aligned correctly for a DC shaft to operate without any vibrations. The technical aspect of this is that a DC...forum.ih8mud.com
Another option (but not one for everybody) is a 2wd conversion.I find this kind of stuff very interesting. Here is my take on it but I am no expert so take it with a grain of salt and alot of this may be a rehashing of already known info. BTW, I run a OME lift and no caster correction, not the most stable at speed but acceptable, no vibes and I don't daily drive it anyway.
The stock suspension geometry does a good job of keeping the u-joint angles happy through the arc of suspension travel. Even with a decent amount of lift they will continue be happy but as we all know, as the amount the lift goes up the amount of positive caster goes down and high speed stability goes away. This is important, because if the stock geometry does a good job of maintaining good angles, when we introduce a change to the front pinion angle with a form of caster correction in an attempt gain stability we are now disrupting the stock driveline geometry and there's a pretty good chance we will introduce a vibration.
Unfortunately, that leaves a bit of a quandary. Do I deal with wandering front end at speed while keeping a (relatively) vibe free front end or do I adjust the caster to give stable feel at highway speed at the expense of a vibe free front end? Its a bit of a catch 22.
There is a way to get our cake and eat it to (good highway manners and no vibes) but its not a simple as just bolting on parts and hoping it will all work out. It may, but more than likely it won't. The solution is caster correction and a DC driveshaft but you cant just install both and suddenly fix all the issues, it takes alot of measuring and setting things up to work. The first thing to know is that whenever there is a working angle in a u-joint, when the part of the shaft before the first u-joint (pinion flange) is spinning at a constant speed the part after the first u-joint(the shaft itself) is now spinning at a inconstant speed, in a ideal world the second u-joint is working at the same angle as the first cancelling out the inconstant speed so the portion after the second u-joint(t-case flange) is now spinning at a constant speed. All a DC driveshaft is is a self supporting/self centering two-piece drive shaft where the secondary small driveshaft(the DC portion) self cancels its own speed oscillations. But for that to work the single joint has to run at essentially no working angle(the pinion has to essentially point right at the front transfer case flange) thusly introducing no rotational oscillations in the long portion of the driveshaft.
The only way to insure for sure that you are setting it up right is to install the lift, measure how much pinion angle change you will need to keep the working angle of the first u-joint the less than 1 degree needed for correct DC driveshaft operation and choose the correct caster correction to achieve it. Fortunately, we have some very good vendors on the forum that have been down the road before and can help you out but even then there are alot of variables within each vehicle that make it tough to tell you that what they have experienced will absolutely work for you, then only way to know for sure is to measure your vehicle yourself.
Once again, I am by no means a expert on the subject and may be missing a core factor but this is how I interpret the facts and my opinions on it, take it for what its worth.
It’s all about working within the geometry constraints of the system. Problems arise when people venture out and want something more or different out of the system. When you do that some trucks might respond ok and others won’t. There really is no reason one of our trucks with a 3” lift can’t have its caster within the factory specs and not have a vibration problem. It’s been done hundreds of times.I find this kind of stuff very interesting. Here is my take on it but I am no expert so take it with a grain of salt and alot of this may be a rehashing of already known info. BTW, I run a OME lift and no caster correction, not the most stable at speed but acceptable, no vibes and I don't daily drive it anyway.
The stock suspension geometry does a good job of keeping the u-joint angles happy through the arc of suspension travel. Even with a decent amount of lift they will continue be happy but as we all know, as the amount the lift goes up the amount of positive caster goes down and high speed stability goes away. This is important, because if the stock geometry does a good job of maintaining good angles, when we introduce a change to the front pinion angle with a form of caster correction in an attempt gain stability we are now disrupting the stock driveline geometry and there's a pretty good chance we will introduce a vibration.
Unfortunately, that leaves a bit of a quandary. Do I deal with wandering front end at speed while keeping a (relatively) vibe free front end or do I adjust the caster to give stable feel at highway speed at the expense of a vibe free front end? Its a bit of a catch 22.
There is a way to get our cake and eat it to (good highway manners and no vibes) but its not a simple as just bolting on parts and hoping it will all work out. It may, but more than likely it won't. The solution is caster correction and a DC driveshaft but you cant just install both and suddenly fix all the issues, it takes alot of measuring and setting things up to work. The first thing to know is that whenever there is a working angle in a u-joint, when the part of the shaft before the first u-joint (pinion flange) is spinning at a constant speed the part after the first u-joint(the shaft itself) is now spinning at a inconstant speed, in a ideal world the second u-joint is working at the same angle as the first cancelling out the inconstant speed so the portion after the second u-joint(t-case flange) is now spinning at a constant speed. All a DC driveshaft is is a self supporting/self centering two-piece drive shaft where the secondary small driveshaft(the DC portion) self cancels its own speed oscillations. But for that to work the single joint has to run at essentially no working angle(the pinion has to essentially point right at the front transfer case flange) thusly introducing no rotational oscillations in the long portion of the driveshaft.
The only way to insure for sure that you are setting it up right is to install the lift, measure how much pinion angle change you will need to keep the working angle of the first u-joint the less than 1 degree needed for correct DC driveshaft operation and choose the correct caster correction to achieve it. Fortunately, we have some very good vendors on the forum that have been down the road before and can help you out but even then there are alot of variables within each vehicle that make it tough to tell you that what they have experienced will absolutely work for you, then only way to know for sure is to measure your vehicle yourself.
Once again, I am by no means a expert on the subject and may be missing a core factor but this is how I interpret the facts and my opinions on it, take it for what its worth.
There, fixed that for youIt’s been donehundredsthousands of times.
You explained it very well, and the video Delta posted is so good at showing what the front and rear shaft need to be doing if they are stock. If they are a DC, then as landtank pointed out, the front diff end needs to be within 1* and the dc portion of the shaft is bolted to the transfer, not the front diff.I find this kind of stuff very interesting. Here is my take on it but I am no expert so take it with a grain of salt and alot of this may be a rehashing of already known info. BTW, I run a OME lift and no caster correction, not the most stable at speed but acceptable, no vibes and I don't daily drive it anyway.
The stock suspension geometry does a good job of keeping the u-joint angles happy through the arc of suspension travel. Even with a decent amount of lift they will continue be happy but as we all know, as the amount the lift goes up the amount of positive caster goes down and high speed stability goes away. This is important, because if the stock geometry does a good job of maintaining good angles, when we introduce a change to the front pinion angle with a form of caster correction in an attempt gain stability we are now disrupting the stock driveline geometry and there's a pretty good chance we will introduce a vibration.
Unfortunately, that leaves a bit of a quandary. Do I deal with wandering front end at speed while keeping a (relatively) vibe free front end or do I adjust the caster to give stable feel at highway speed at the expense of a vibe free front end? Its a bit of a catch 22.
There is a way to get our cake and eat it to (good highway manners and no vibes) but its not a simple as just bolting on parts and hoping it will all work out. It may, but more than likely it won't. The solution is caster correction and a DC driveshaft but you cant just install both and suddenly fix all the issues, it takes alot of measuring and setting things up to work. The first thing to know is that whenever there is a working angle in a u-joint, when the part of the shaft before the first u-joint (pinion flange) is spinning at a constant speed the part after the first u-joint(the shaft itself) is now spinning at a inconstant speed, in a ideal world the second u-joint is working at the same angle as the first cancelling out the inconstant speed so the portion after the second u-joint(t-case flange) is now spinning at a constant speed. All a DC driveshaft is is a self supporting/self centering two-piece drive shaft where the secondary small driveshaft(the DC portion) self cancels its own speed oscillations. But for that to work the single joint has to run at essentially no working angle(the pinion has to essentially point right at the front transfer case flange) thusly introducing no rotational oscillations in the long portion of the driveshaft.
The only way to insure for sure that you are setting it up right is to install the lift, measure how much pinion angle change you will need to keep the working angle of the first u-joint the less than 1 degree needed for correct DC driveshaft operation and choose the correct caster correction to achieve it. Fortunately, we have some very good vendors on the forum that have been down the road before and can help you out but even then there are alot of variables within each vehicle that make it tough to tell you that what they have experienced will absolutely work for you, then only way to know for sure is to measure your vehicle yourself.
Once again, I am by no means a expert on the subject and may be missing a core factor but this is how I interpret the facts and my opinions on it, take it for what its worth.
my 2.5" plates work for lifts between 2"-3" and my 4" plates work for lifts between 3.5"-4.5". The gap between the two plates was intentional.You explained it very well, and the video Delta posted is so good at showing what the front and rear shaft need to be doing if they are stock. If they are a DC, then as landtank pointed out, the front diff end needs to be within 1* and the dc portion of the shaft is bolted to the transfer, not the front diff.

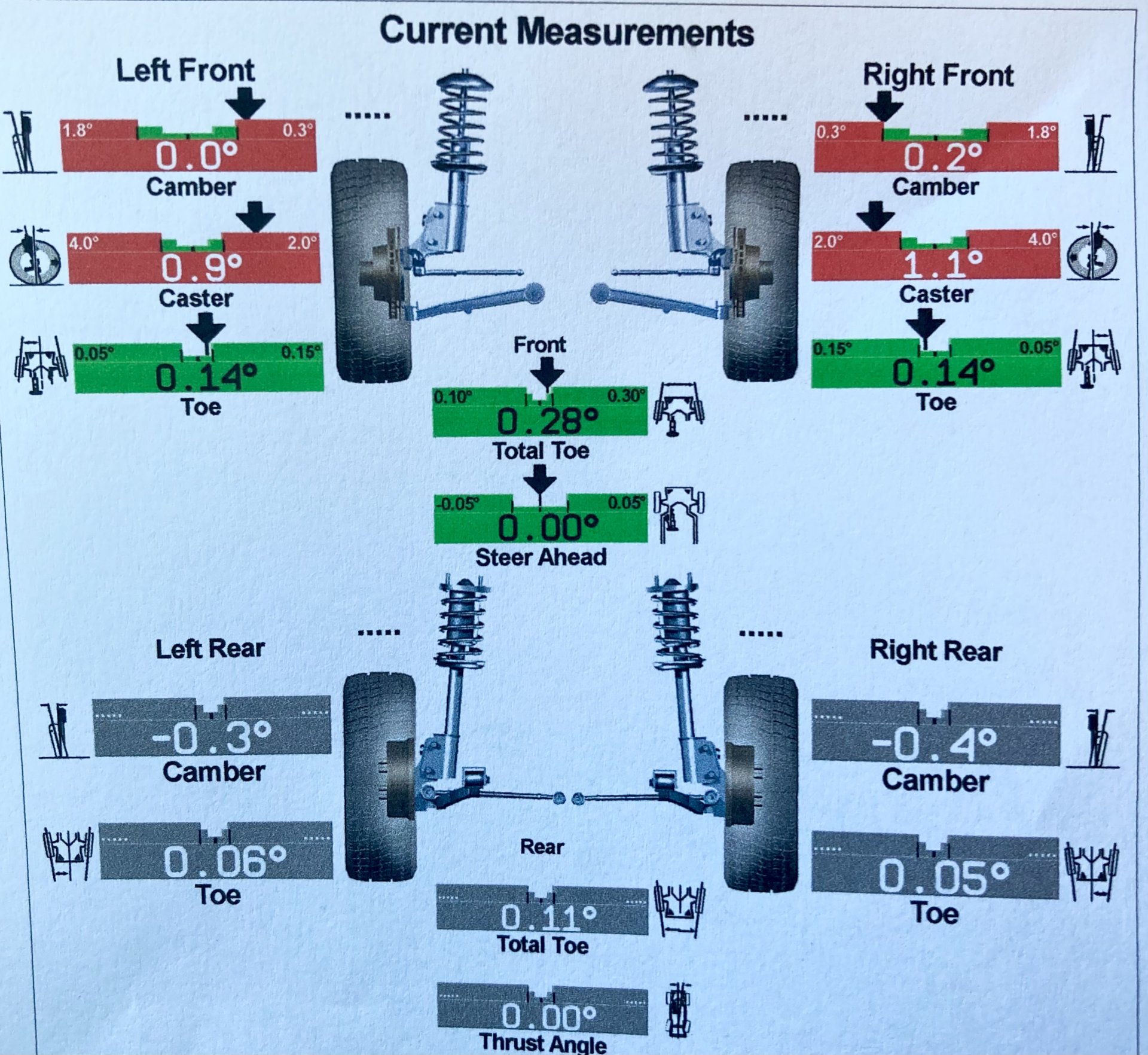

Edit; As I go down this path, I am learning that the higher the lift the more caster is needed, and it seems that around 3" of lift is the the threshold that is too much caster correction is beyond a stock shaft, and either a dc shaft is needed or caster must be reduced.
Ha! You knew this long before I did!my 2.5" plates work for lifts between 2"-3" and my 4" plates work for lifts between 3.5"-4.5". The gap between the two plates was intentional.
You explained it very well, and the video Delta posted is so good at showing what the front and rear shaft need to be doing if they are stock. If they are a DC, then as landtank pointed out, the front diff end needs to be within 1* and the dc portion of the shaft is bolted to the transfer, not the front diff.
Edit; As I go down this path, I am learning that the higher the lift the more caster is needed, and it seems that around 3" of lift is the the threshold that is too much caster correction is beyond a stock shaft, and either a dc shaft is needed or caster must be reduced.
^^^ This whole thing is what I was getting at by my queries a while back, but I'm not near smert enough to express it.I find this kind of stuff very interesting. Here is my take on it but I am no expert so take it with a grain of salt and alot of this may be a rehashing of already known info. BTW, I run a OME lift and no caster correction, not the most stable at speed but acceptable, no vibes and I don't daily drive it anyway.
Once again, I am by no means a expert on the subject and may be missing a core factor but this is how I interpret the facts and my opinions on it, take it for what its worth.
Should I be worried about that angle?I’m surprised you don’t feel any vibrations.
