Pinion Seal Replaced
So this weekend I got a chance to get under the truck again and replace the pinion seal that started leaking last week. It was nice to finally get back to working on the LandCruiser, and I think I'm going to try to work on it more often now, I'd like to try to get as many of the little problems and quirks worked out before spring/summer time comes around, so I can just go out and enjoy driving it!
Changing the seal was pretty uneventful, and other than having a little trouble getting the seal seated at first, there were no real problems.

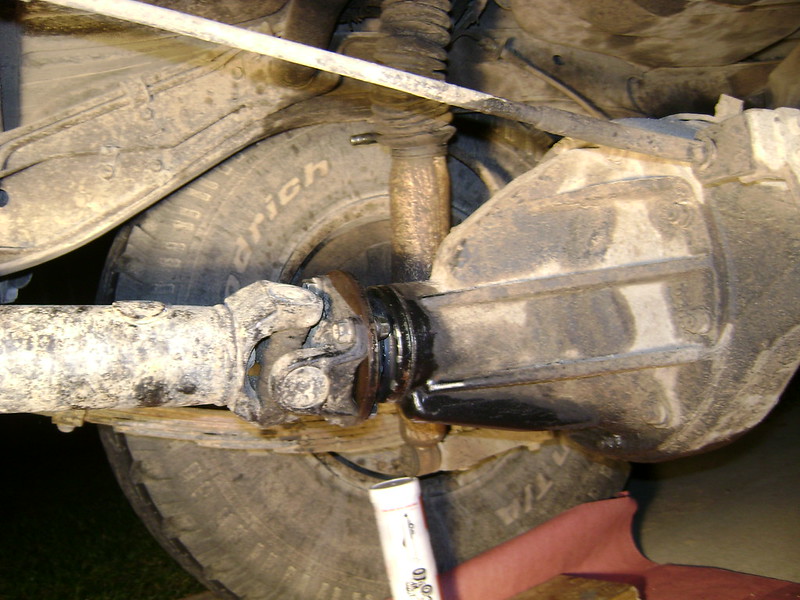

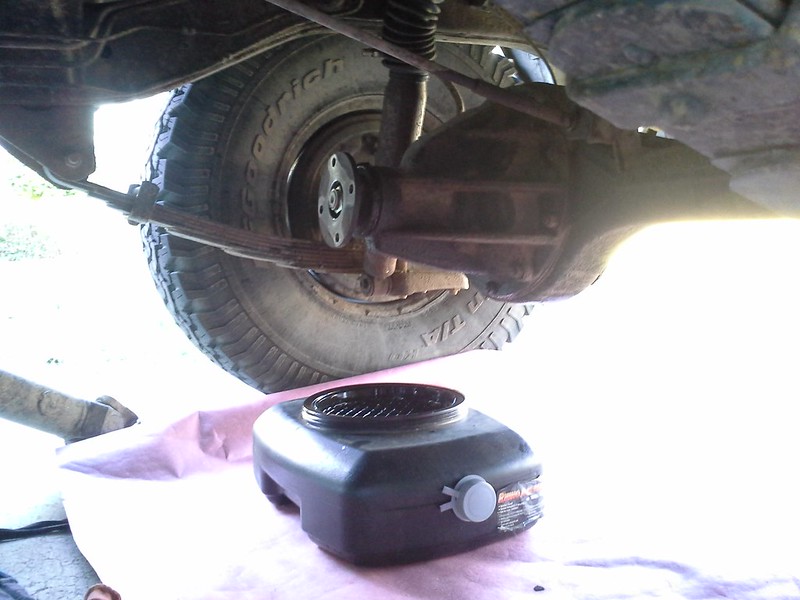

The first step was to remove the 4 bolts holding the driveshaft to the joint flange. From there, just swing the driveshaft off to the side and out of the way.
Untitled by Darrell Vaughn, on Flickr

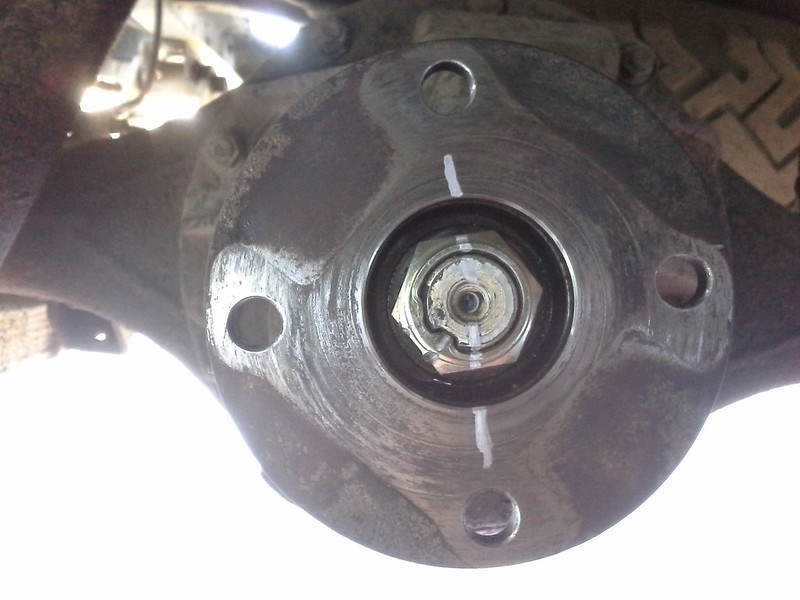

After that was done, I scribed a line across the lock nut and flange and used a sharpie to fill it in. This was to know where to tighten the nut down to when I was done.
Untitled by Darrell Vaughn, on Flickr

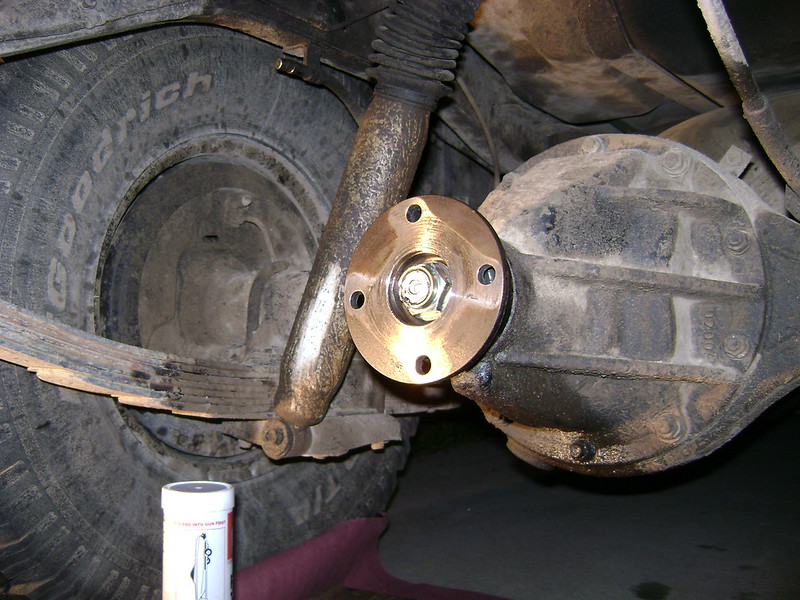

Once the lock nut is removed, the joint flange, (or whatever its called), pulls straight out, revealing the pinion seal. I used a large screwdriver to pry the old seal out. This truck's pinion seal had been replaced at some point, probably not a whole long time ago. The seal that was in there was a pretty pathetic looking piece compared to the seal I got from Marlin Crawler. When removing the joint flange, and then the seal, it is a good idea to have a catch pan under the differential to catch any gear oil that might come out. (and don't park facing downhill
)
This is what was behind my seal. It didn't look original to the truck, and was powdercoated grey ??...
DSC02645 by Darrell Vaughn, on Flickr
DSC02643 by Darrell Vaughn, on Flickr

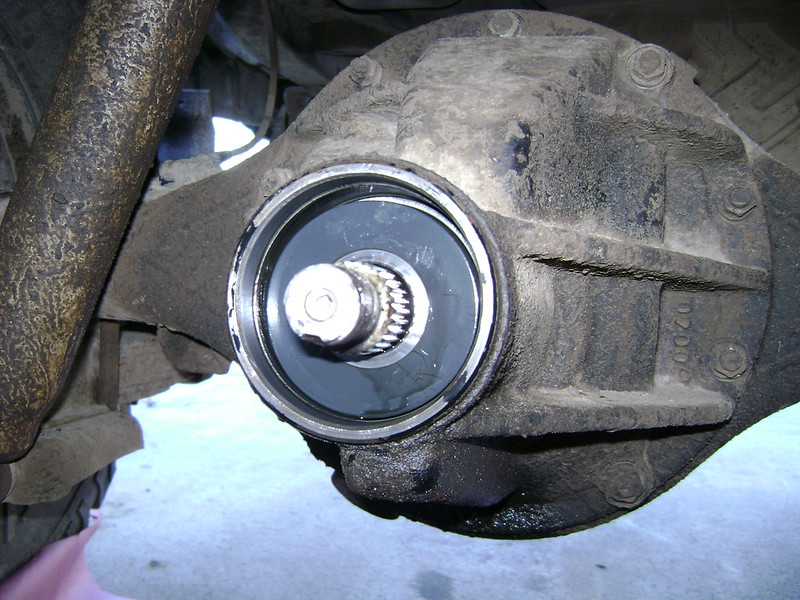

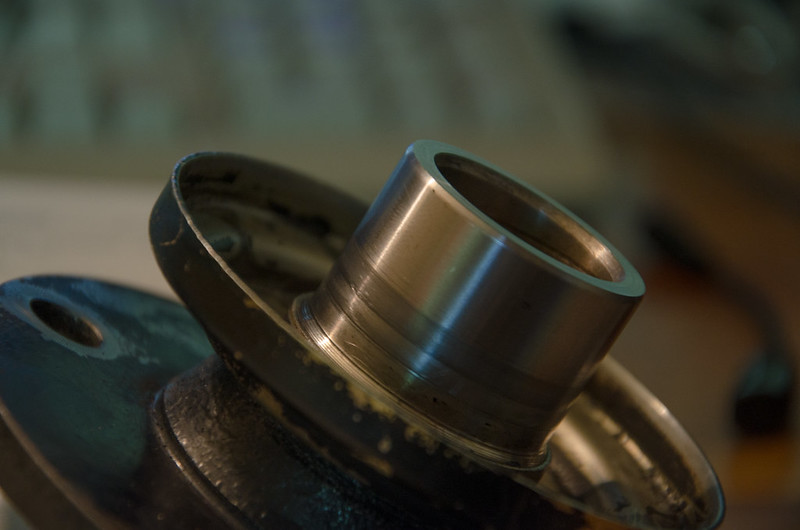

Anyway, after that was off, I crawled out from under the truck and got a better look at the surface the seal rides on. There was a small groove that was not deep enough for me to consider an issue. (the pic almost makes it look worse than it did in person)
_DLV3754 by Darrell Vaughn, on Flickr

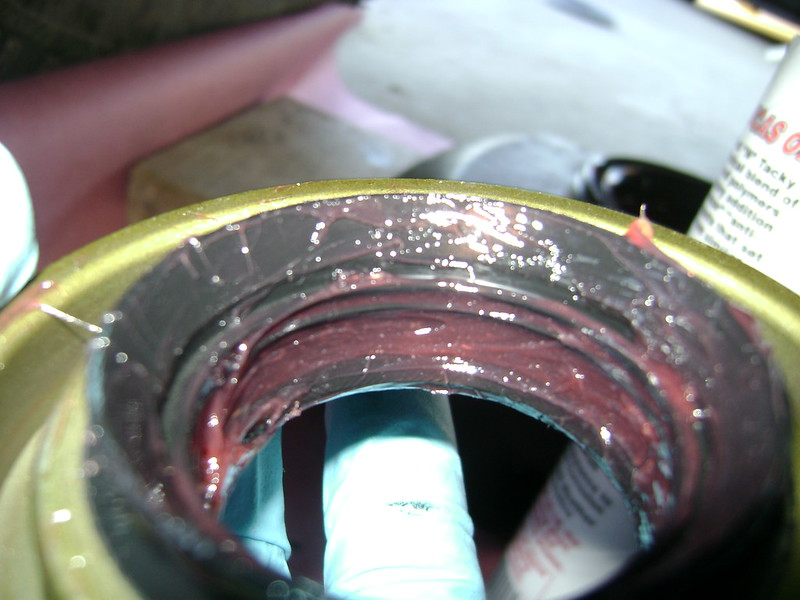

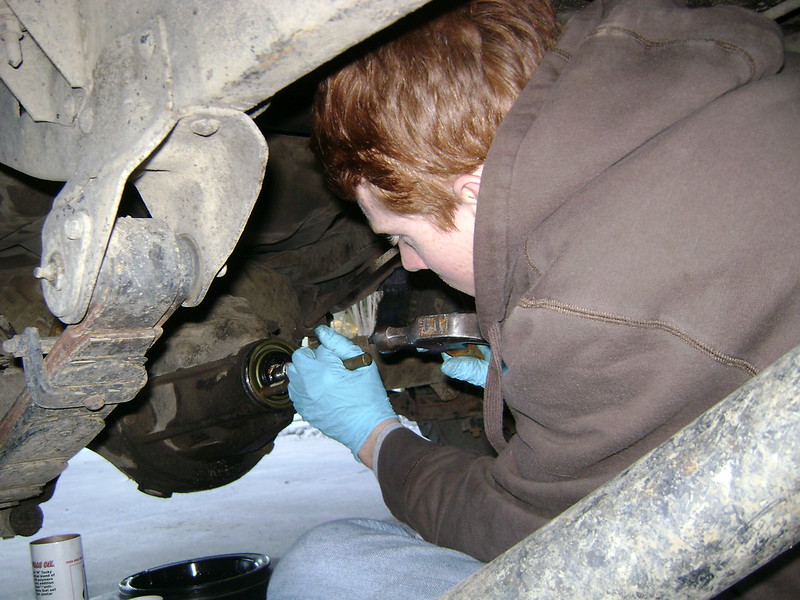

Once I confirmed that that was in good condition, I got the seal all greased up, and cleaned up the bore it presses into on the differential. The next step was to get the seal pressed into place. This is the only thing that I had any issues with. Getting it to grab ahold, and stay seated as you get the opposite sides of the seal pounded in is a little tricky, but once you get it started, its just a matter of tapping it in little by little in the same fashion you tighten lug nuts. (opposing sides of the seal with each hit, or ~120* apart with three points per go, and altering the starting point by ~60* every forth hit) <<if that makes any sense<<
DSC02647 by Darrell Vaughn, on Flickr
Pressing the seal in:
DSC02649 by Darrell Vaughn, on Flickr

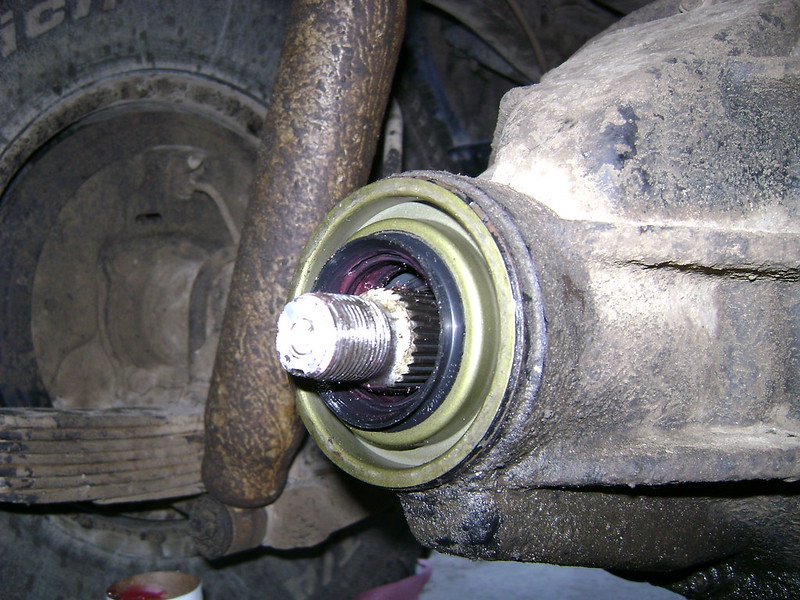

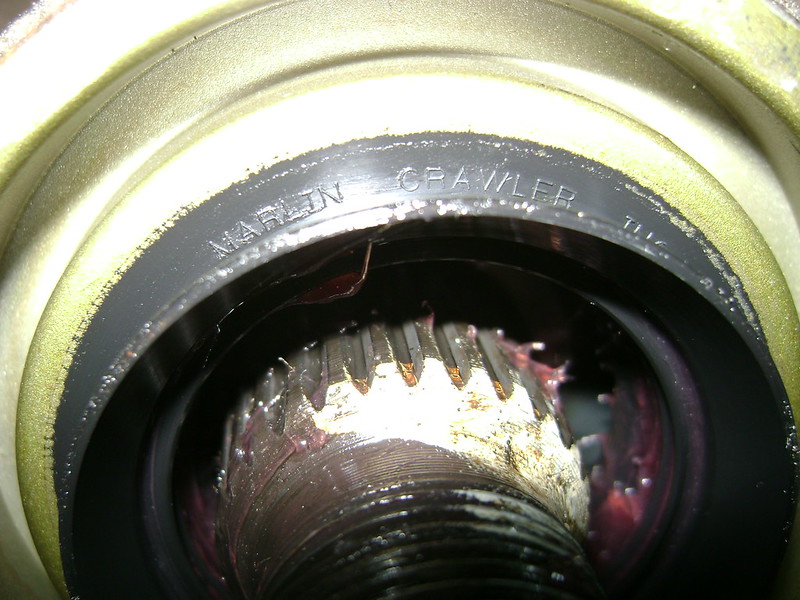

Seal fully seated:
DSC02658 by Darrell Vaughn, on Flickr
DSC02664 by Darrell Vaughn, on Flickr
After that was done, I made sure that no dirt had gotten onto the seal, added a touch more grease to the seal, and the sealing surface on the joint flange, then lined up the splines and the mark I had made and pushed the part through the seal. Next came replacing the lock nut after cleaning any dirt and oil off of it. I used the line I marked on it again to ensure I put roughly the same amount of torque on it. Once it was in I used a large screwdriver to put a dent in it where the key is cut into the shaft to ensure it wouldn't back off in the future.
I reused the nut because I didn't have a replacement this weekend, but if anyone else needs to replace their pinion seal, I would recommend getting a new one.
DSC02665 by Darrell Vaughn, on Flickr
Once that is done all that's left to do is line up the driveshaft again and replace the 4 bolts that hold it to the joint flange. Make sure to get them nice and tight, wouldn't want those suckers coming lose on ya'!
DSC02668 by Darrell Vaughn, on Flickr
I finished the seal yesterday, and drained and replaced the gear oil this afternoon because I've been meaning to do it anyway. Make sure that you at least top off your gear oil though, if you had a leak, then you are going to have less oil than you should.

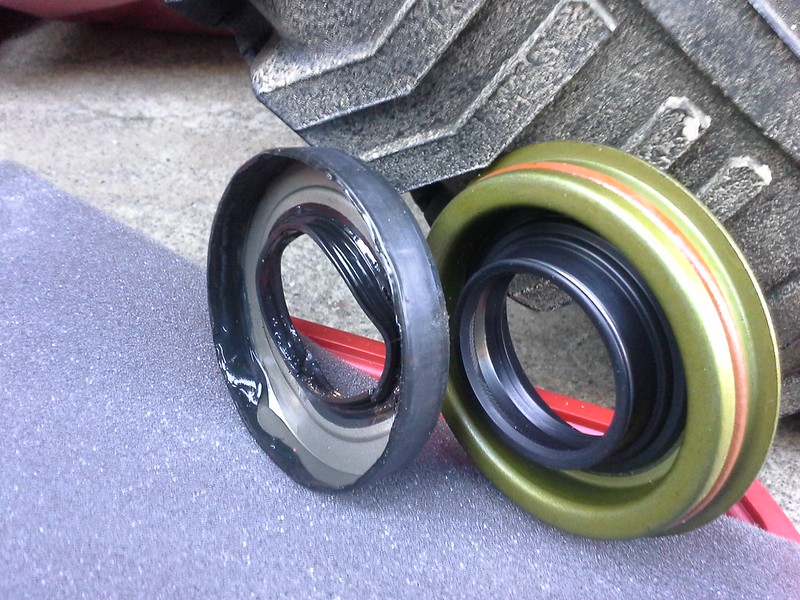

Here is a comparison of the "National" seal that I pulled out, and the Marlin seal that I put back in:
Untitled by Darrell Vaughn, on Flickr

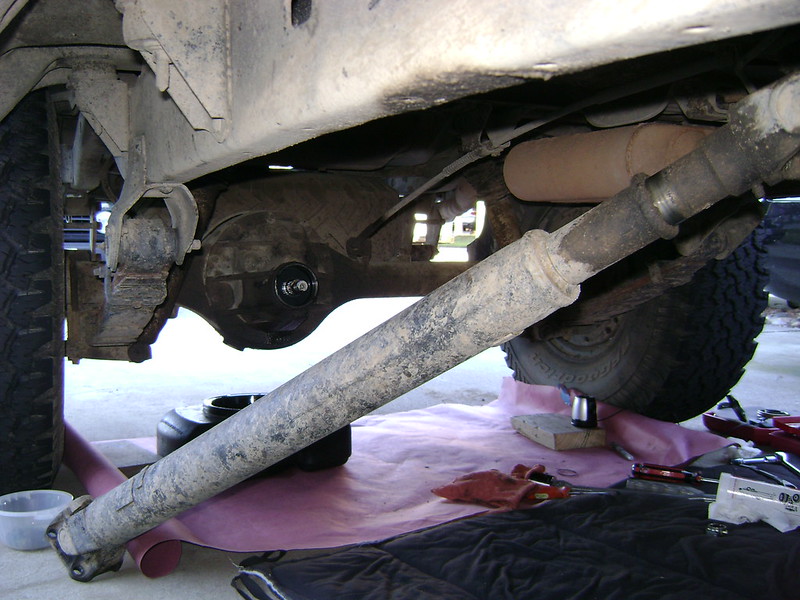

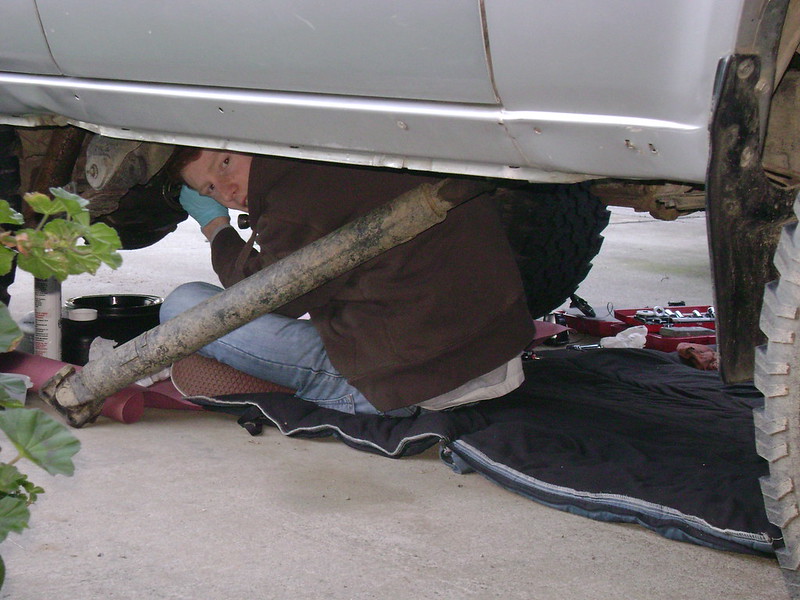

The benefits of being a relativity small guy and working on a lifted truck
DSC02654 by Darrell Vaughn, on Flickr
