Rocker arm question

Joined
Mar 14, 2012
Messages
130
Location
Buxton, ME
This image is from a 1976 2F engine. Two of the rocker arms are at an angle compared to the rest. Is this normal, or is something damaged? I can't find any definitive answers anywhere (and I don't even really know where to look).

Joined
Jan 5, 2017
Messages
3,861
Location
Charlotte, NC & Alexandria, VA
The rocker arm position, relative to the horizontal, is entirely dependent on the position of the cam lobe beneath the pushrod. Since the valves have to match teh positions of the pistons, which themselves are dependent upon the position of the crankshaft journals, not all of them will be in the same positions at any given point in time. Maybe this will help:


TheHardWay

Ain't as easy as it looks
SILVER Star
Joined
Dec 29, 2013
Messages
1,702
Location
Las Cruces, NM
Optical illusion. Ask me how I know.


fyton2v

SILVER Star
Joined
Jan 7, 2004
Messages
621
Location
Santa Rosa Valley, CA
I’m having a difficult time seeing the problem you’re describing. Are you saying that those two rods and rockers are different than all the others when the valves are in an open position?

Joined
Dec 13, 2012
Messages
1,958
Location
KY

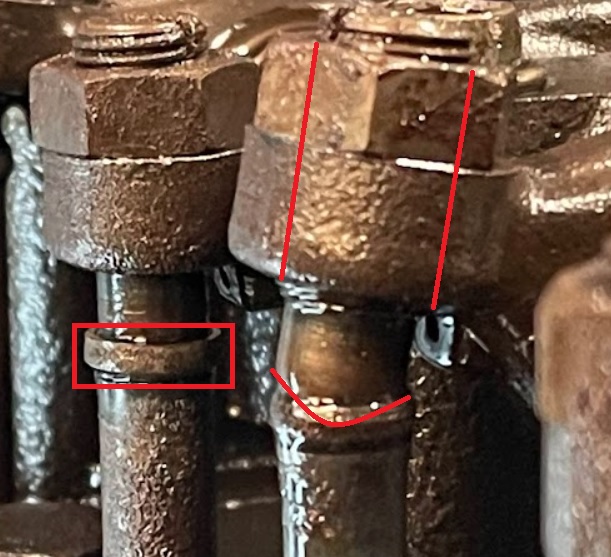

Let me see if I can clear this up for you. The portion of the pushrod you think might be bent is actually the end of the valve adjuster that is part of the rocker arm.

fj40 valve adjusters.jpg


The collar at the top of the pushrod is a cup. The end of the valve adjustment stud is rounded to fit the cup. When adjusting the valves you loosen the nut on top and using a screw driver lengthen or shorten how far down the adjuster is positioned.

Hope this helps.

Joined
Mar 14, 2012
Messages
130
Location
Buxton, ME
Let me see if I can clear this up for you. The portion of the pushrod you think might be bent is actually the end of the valve adjuster that is part of the rocker arm.

View attachment 3076576

The collar at the top of the pushrod is a cup. The end of the valve adjustment stud is rounded to fit the cup. When adjusting the valves you loosen the nut on top and using a screw driver lengthen or shorten how far down the adjuster is positioned.

Hope this helps.
I think that clears it up. Thanks for your help!

Joined
Jan 5, 2017
Messages
3,861
Location
Charlotte, NC & Alexandria, VA
The ball and socket arrangement between the pushrod and rocker arm allows for the rocker to move in an arc, while the pushrod is constrained to move in a linear path. It's OK.
