Builds RICCI the HJ75RP gets touched by a Yankee (1 Viewer)

[oksohearmeout]

You need to bring the Ute to next years 70 Series Meet & Greet.

Fully intend to. Had a wedding this year which prevented me from going.



[oksohearmeout]

11/20/21 update

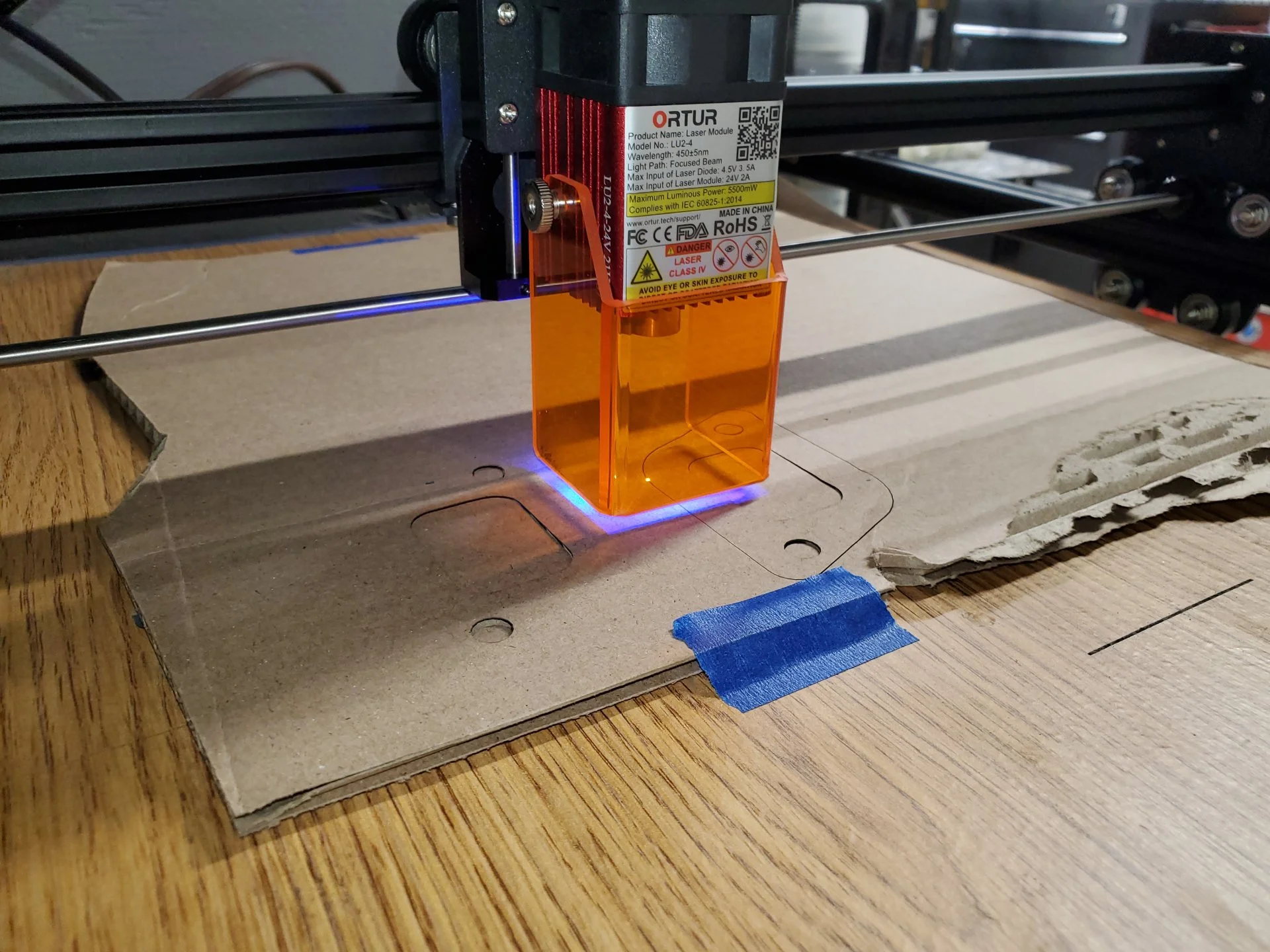

Busted out the CNC Laser Engraver to start making the turbo manifold flange.

Had to make myself some new coasters while I was at it too. Can you blame me, these turned out wicked cool! Don't crucify me though, i ran out of slate before I could make a 55 and a 75)

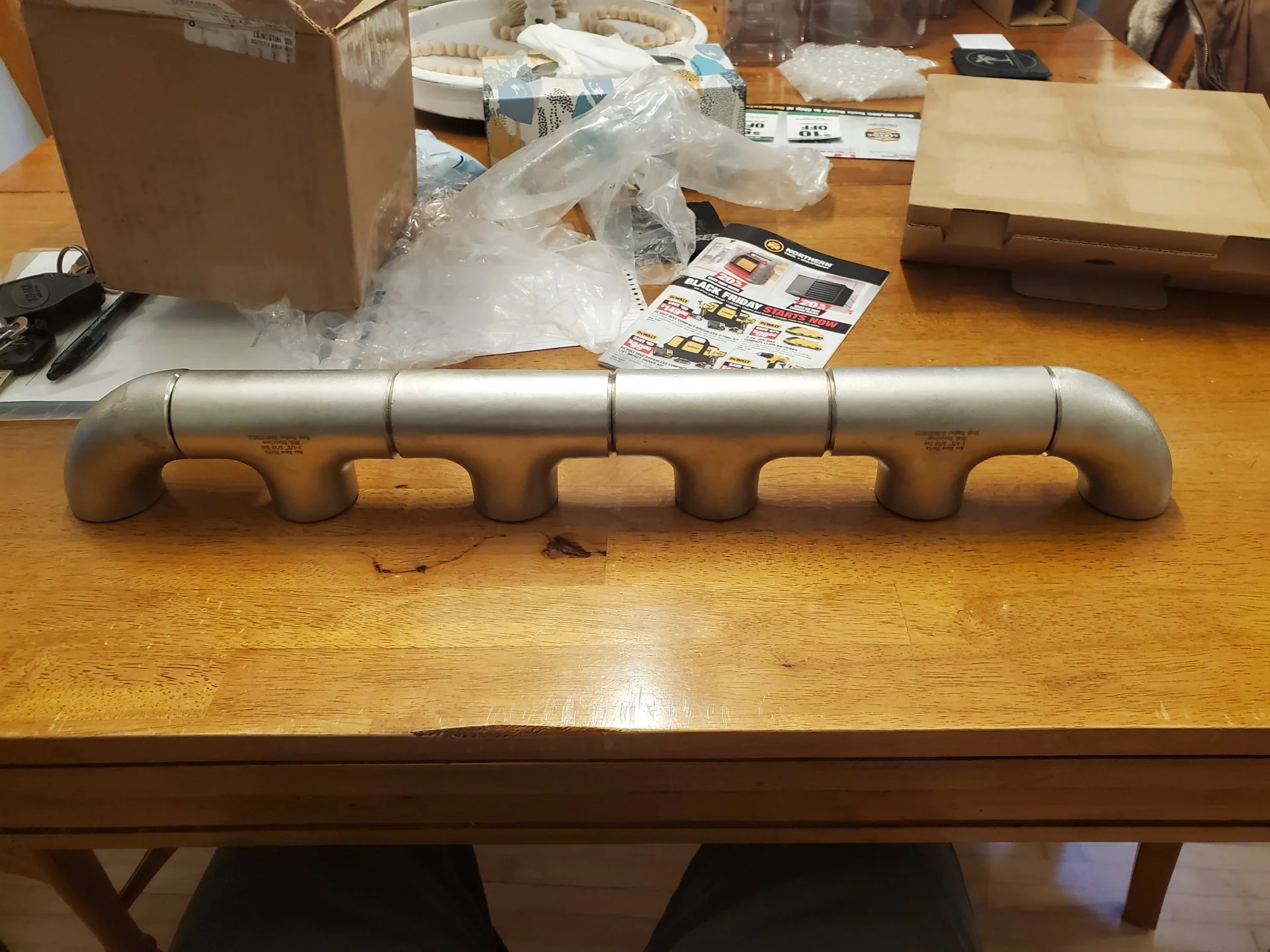

Ss304 SCH10 parts arrived for my manifold. Just need to finish the 6 port flange and we can get to burning metal!



[oksohearmeout]

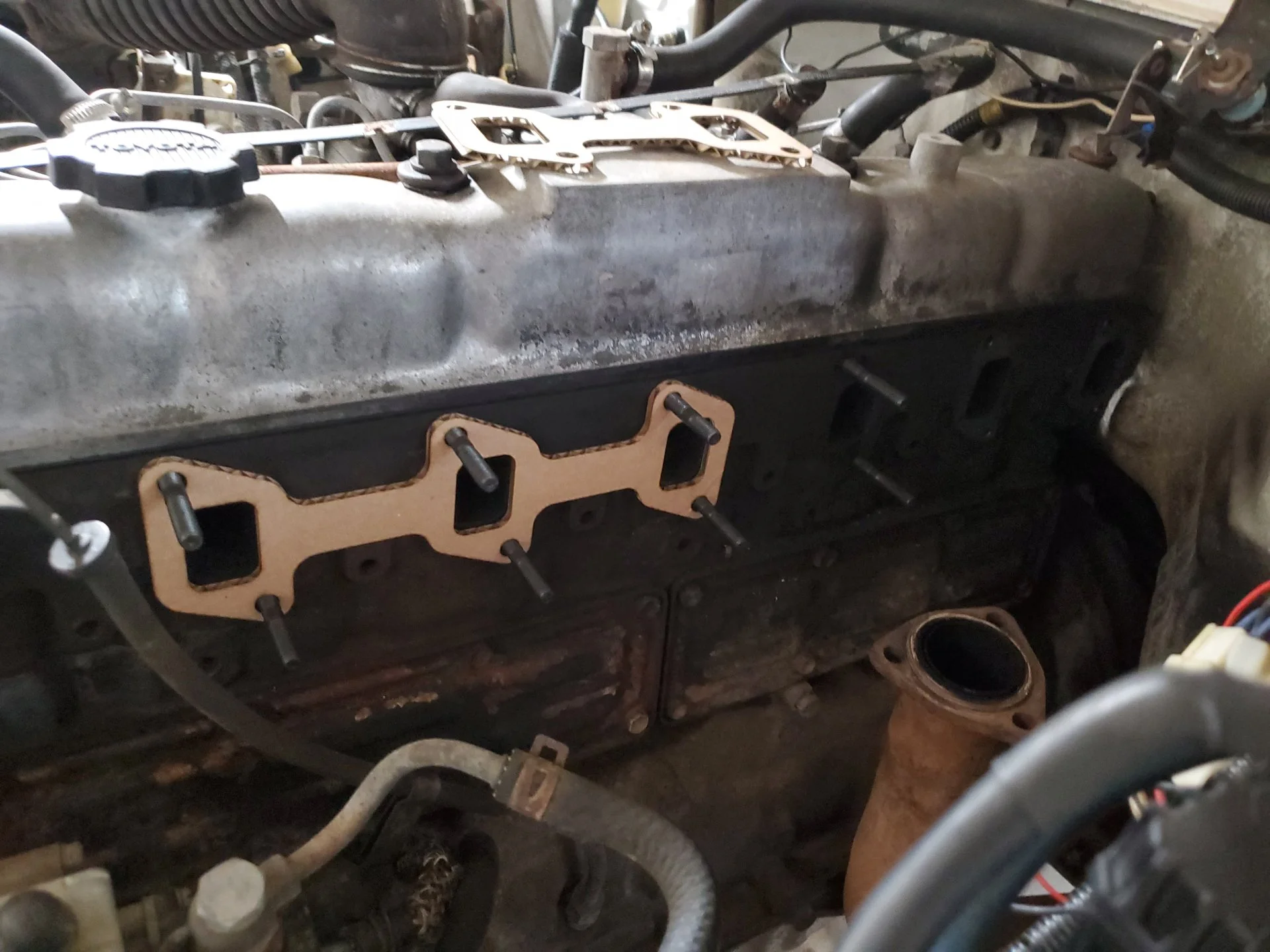

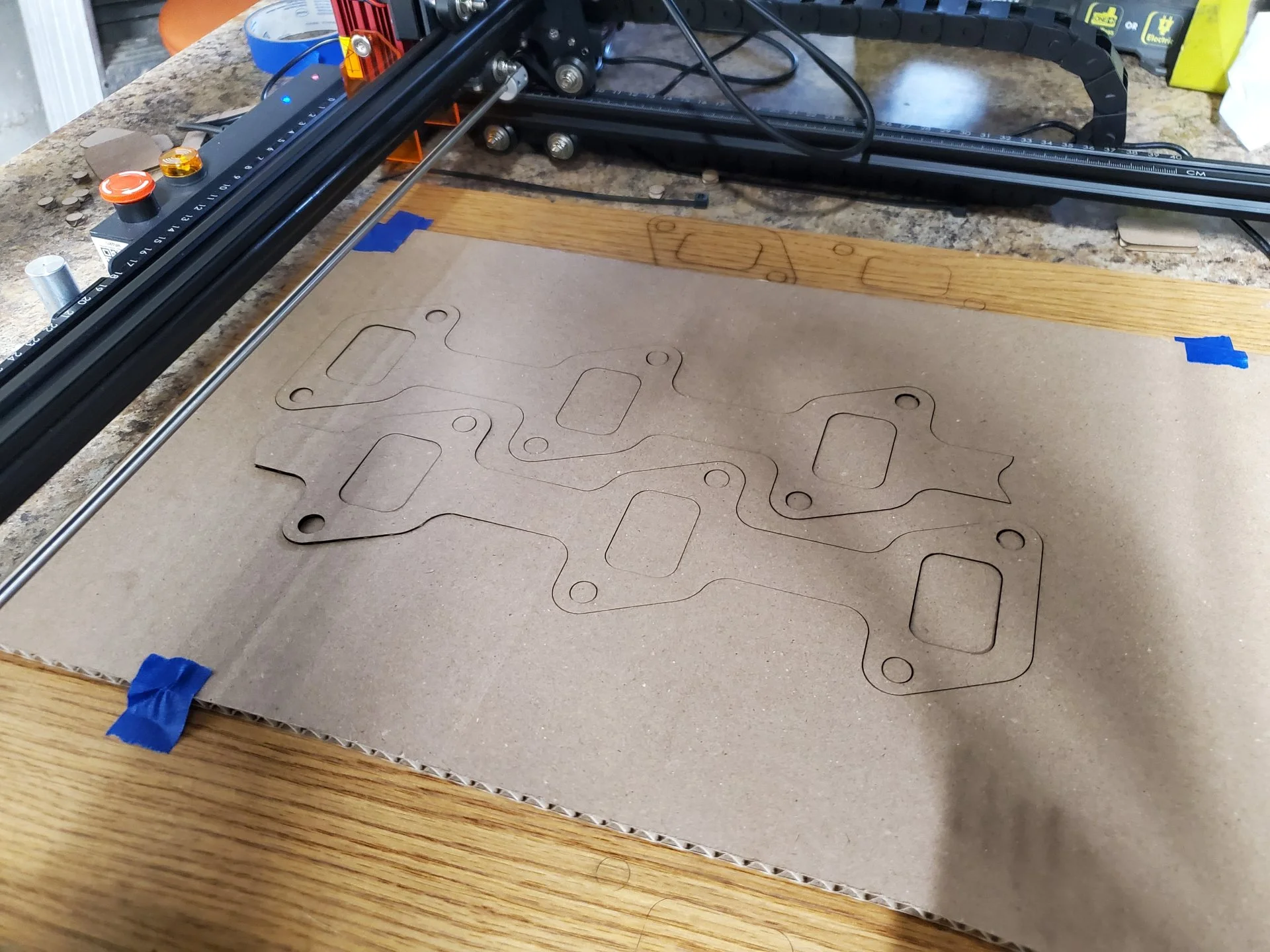

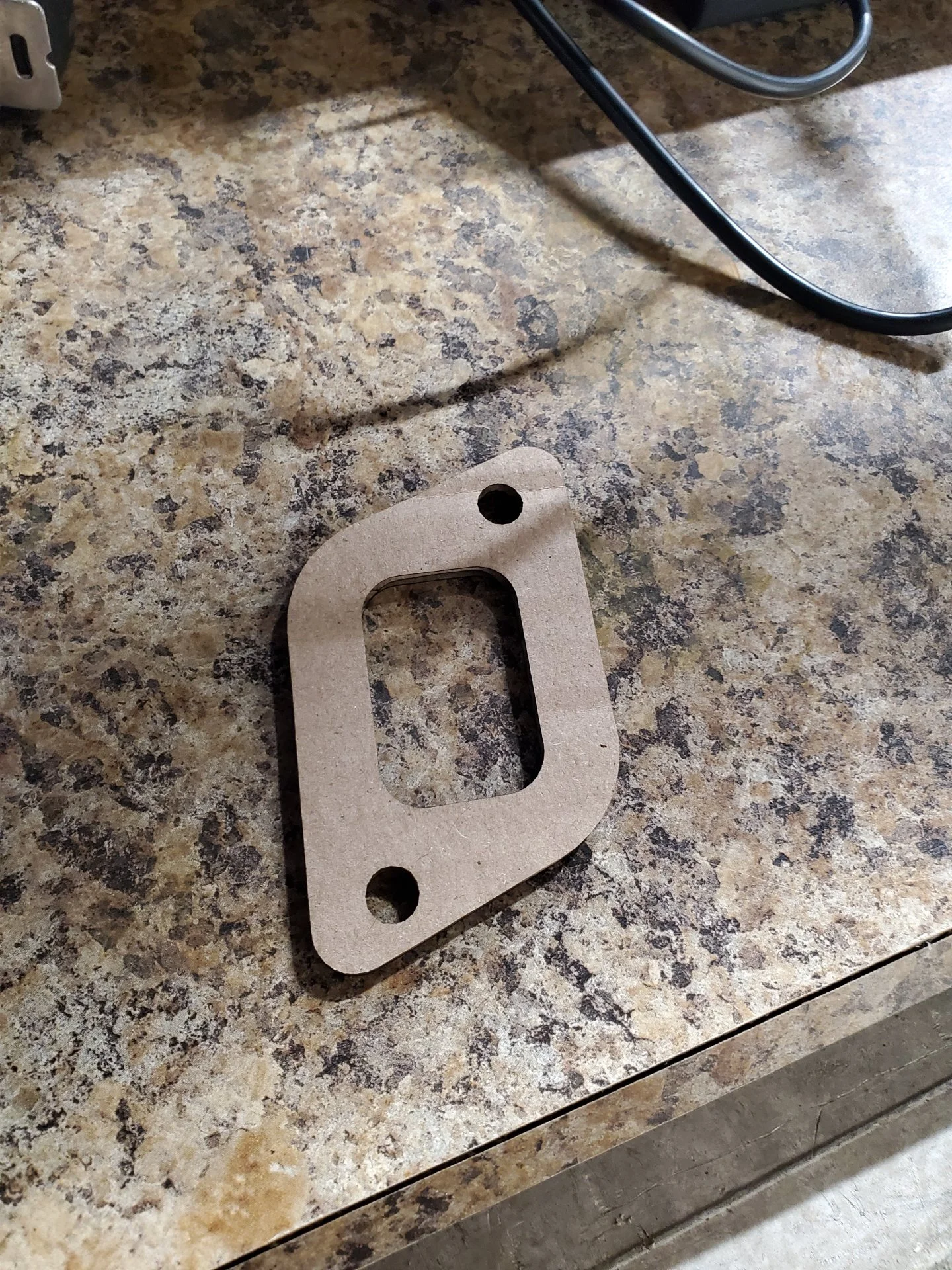

A couple revisions, we have a dialed in exhaust manifold flange

A couple minor touch ups and I'll laser/waterjet the actual flange from SS304.

Ill put all of the Tee's on the lathe to shorten them appropriately to fit the spacing of the 2H's ports.



[oksohearmeout]

Threw the fittings on the lathe and trimmed them to fit.

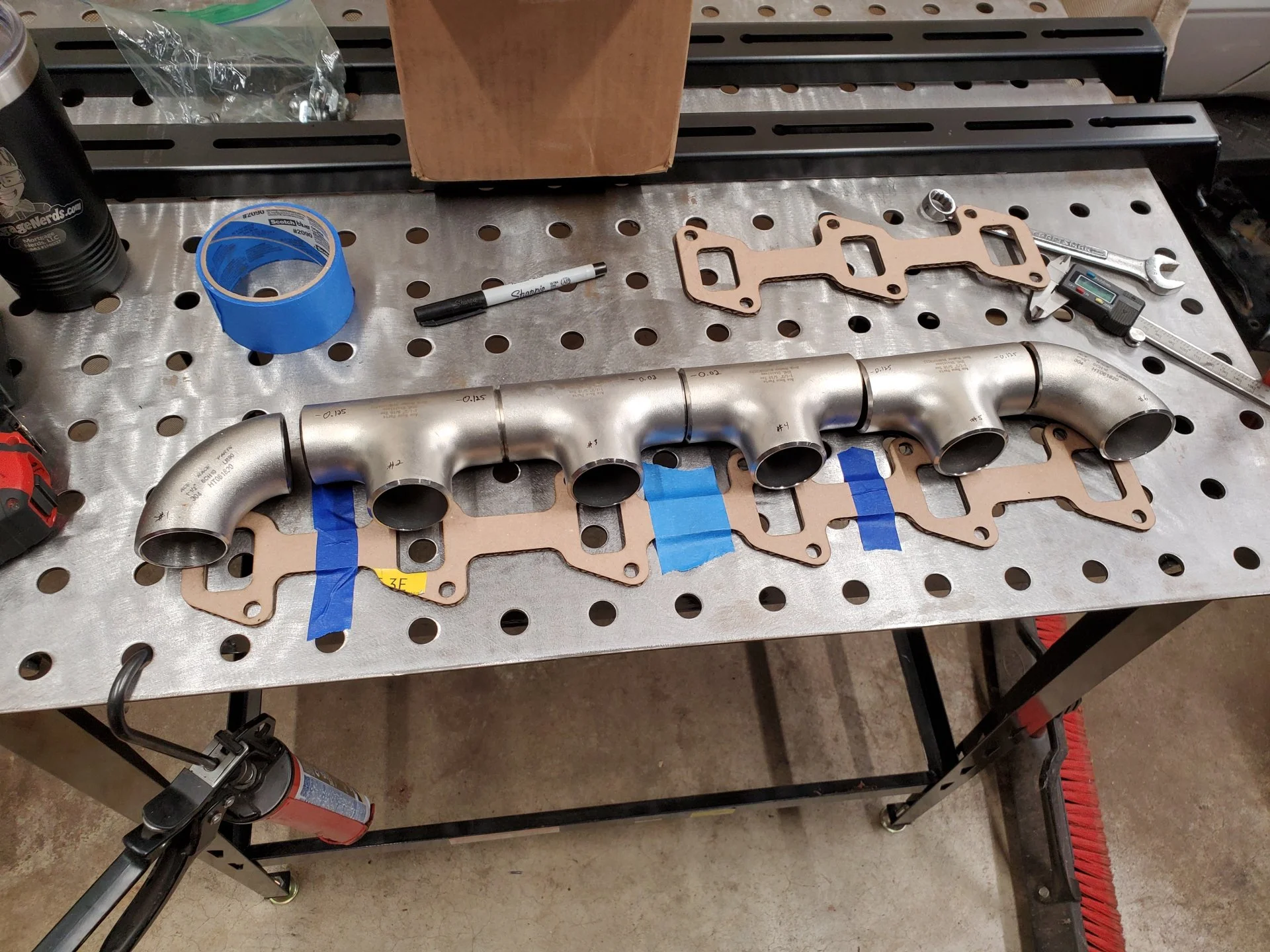

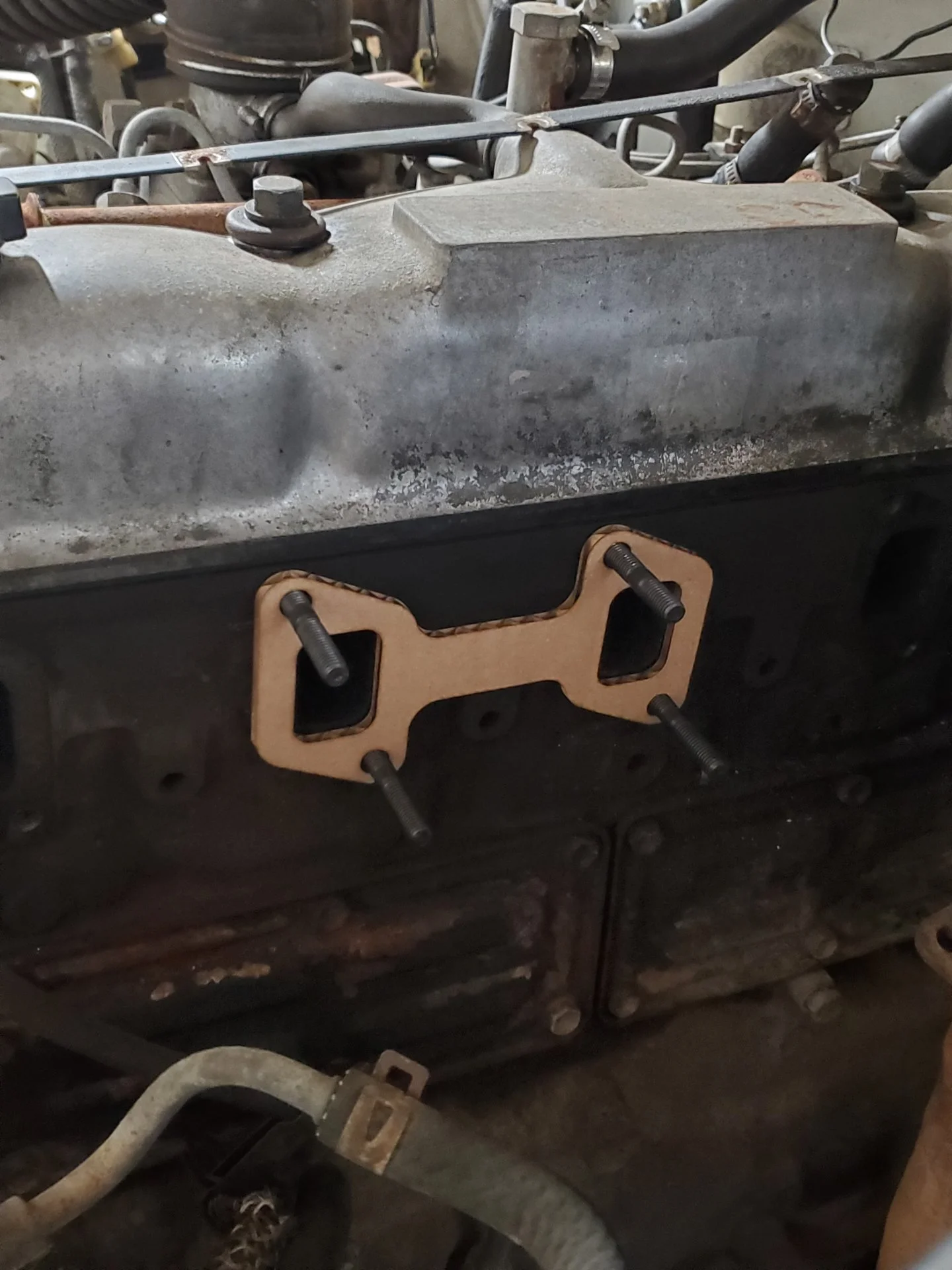

Mocked up with my cardboard template.

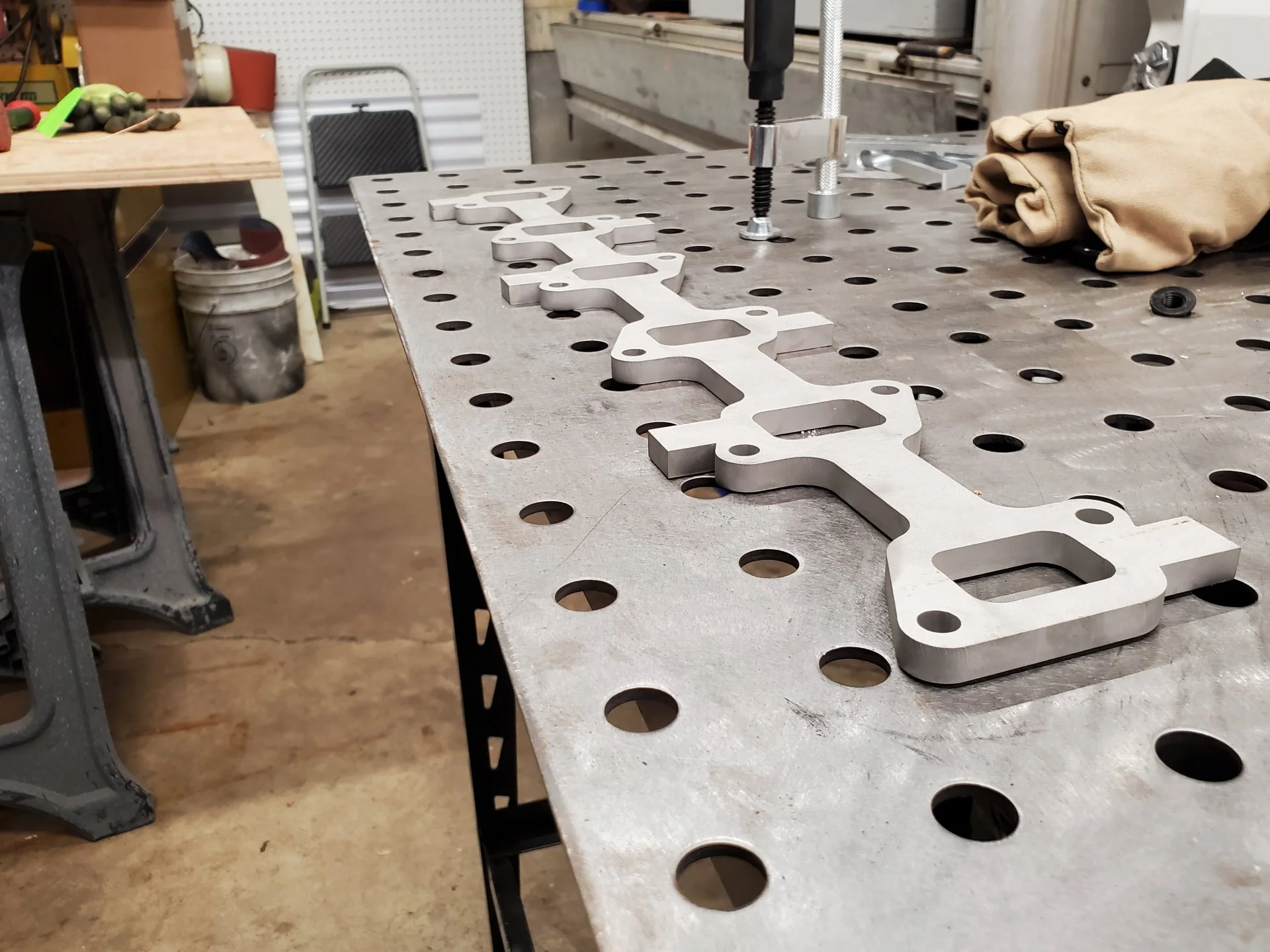

Flange came back from waterjet. Got a tour of the facility. It's crazy to think they can cut 17+" thick stainless! Tried to pay for it. Come to find out my girlfriend had stopped by this morning and paid it for me, as a surprise. What a doll!

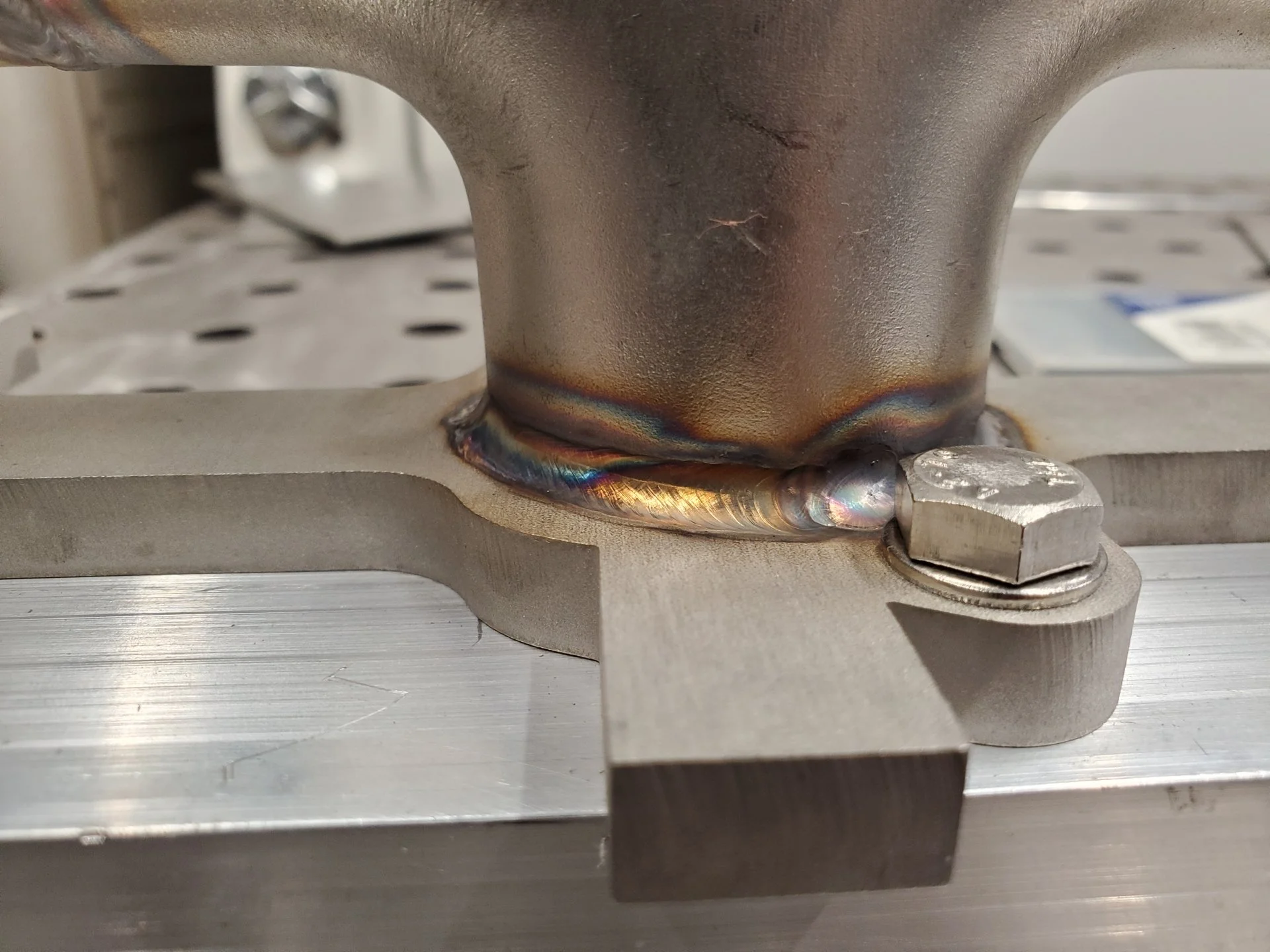

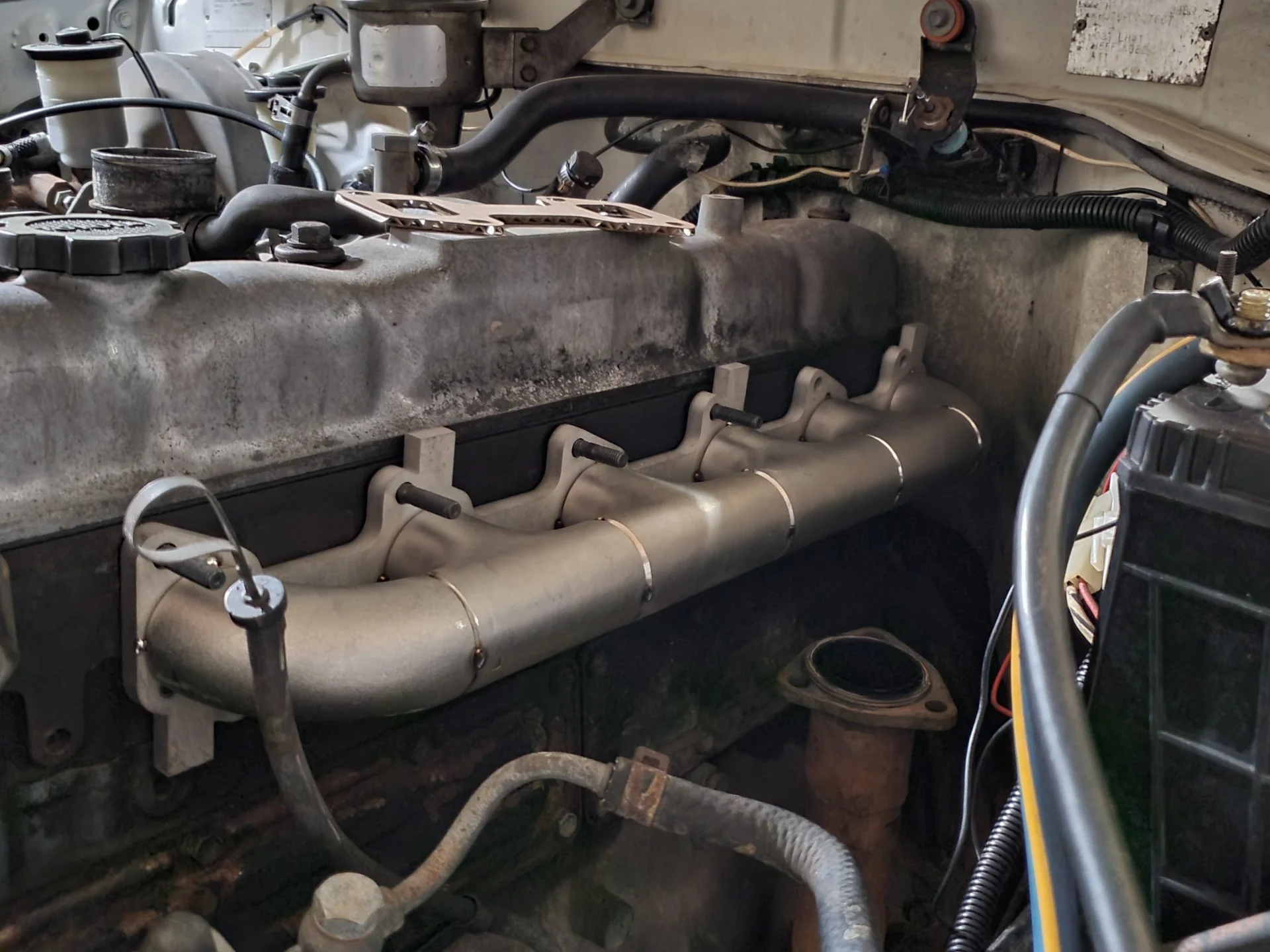

LIKE A GLOVEEEEE

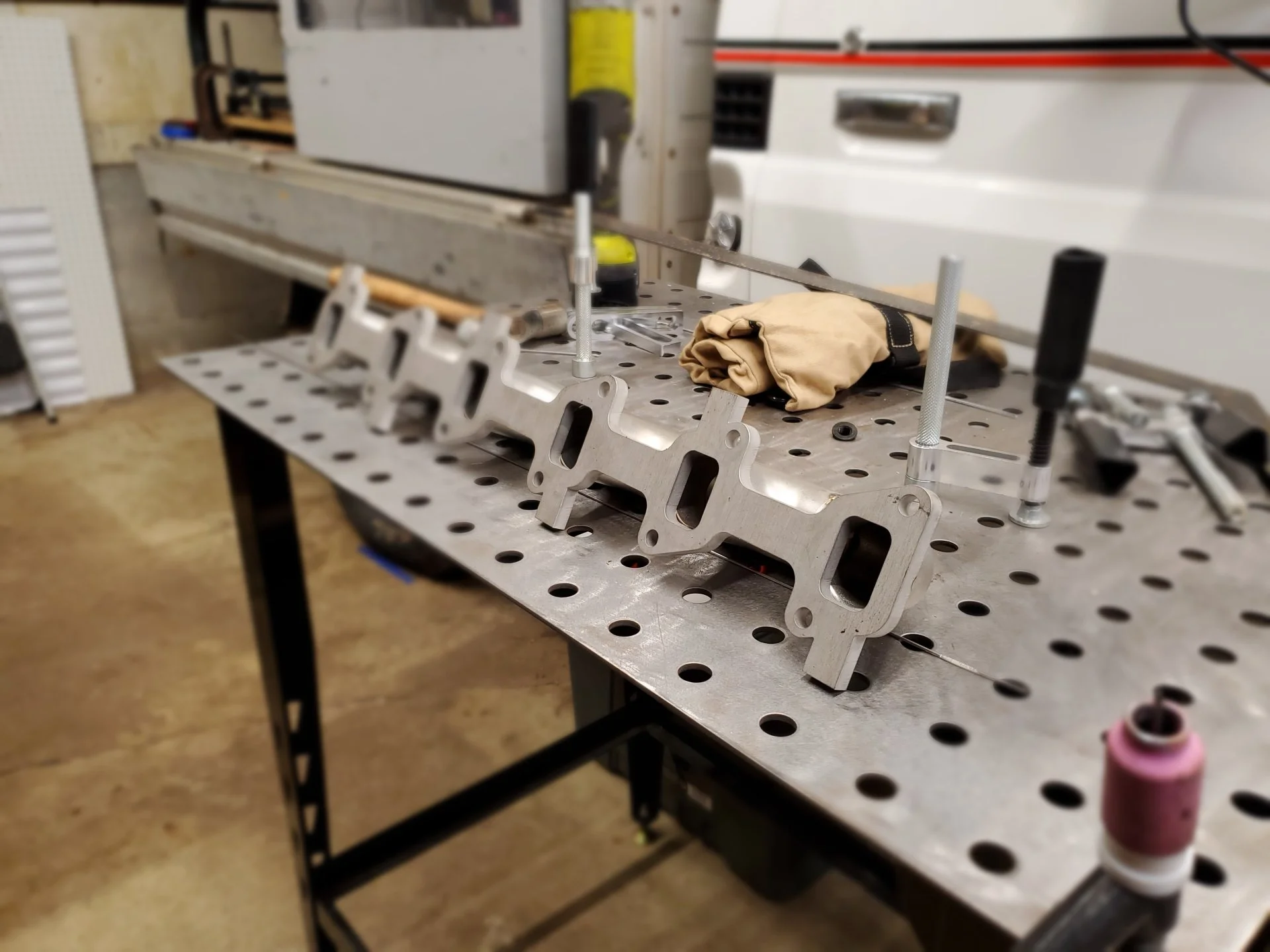

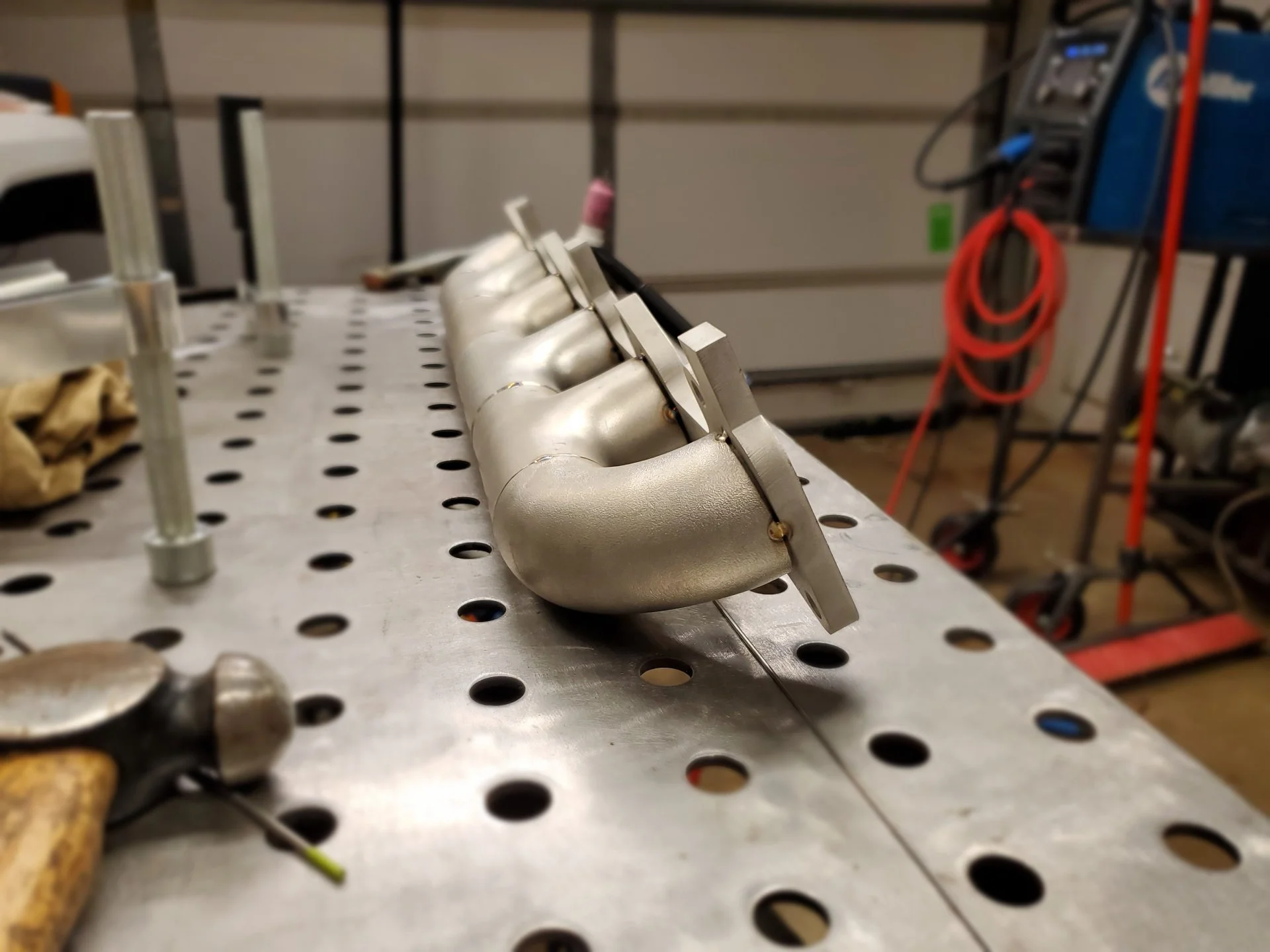

Tight as, but she fits! Back purging and welding is tomorrow.



[oksohearmeout]

Don't mind the cow, I work at a Wisconsin cheese factory...

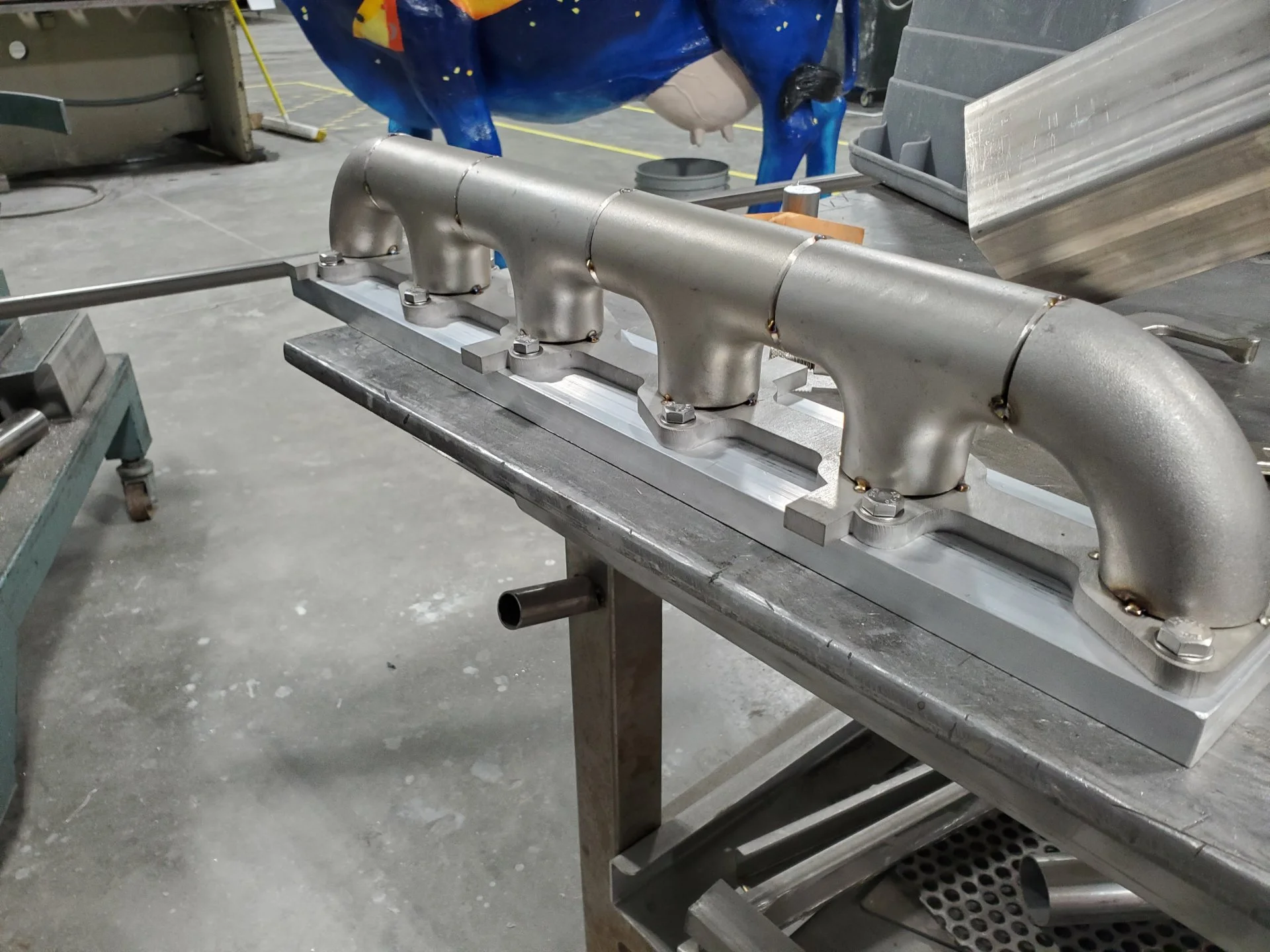

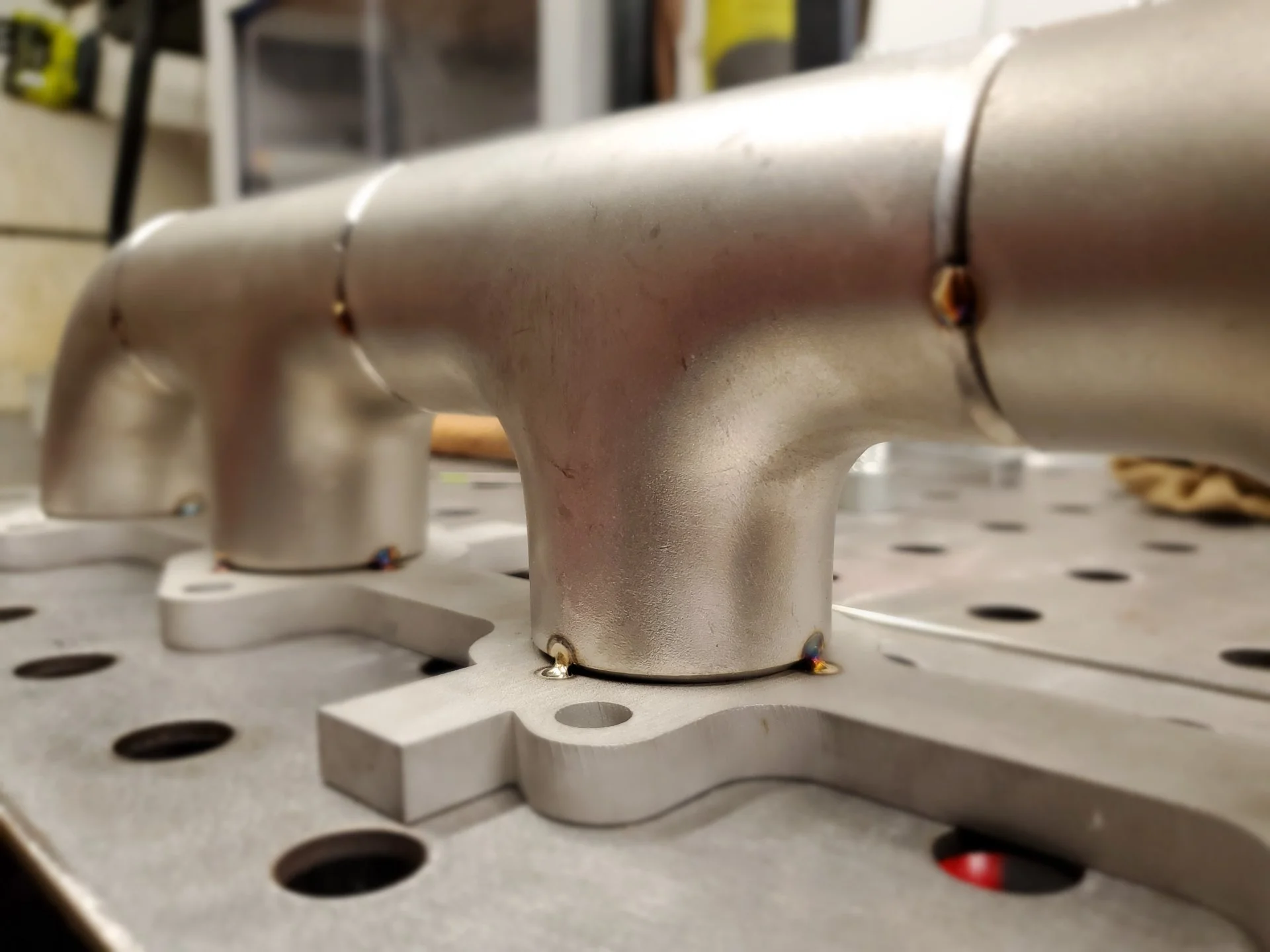

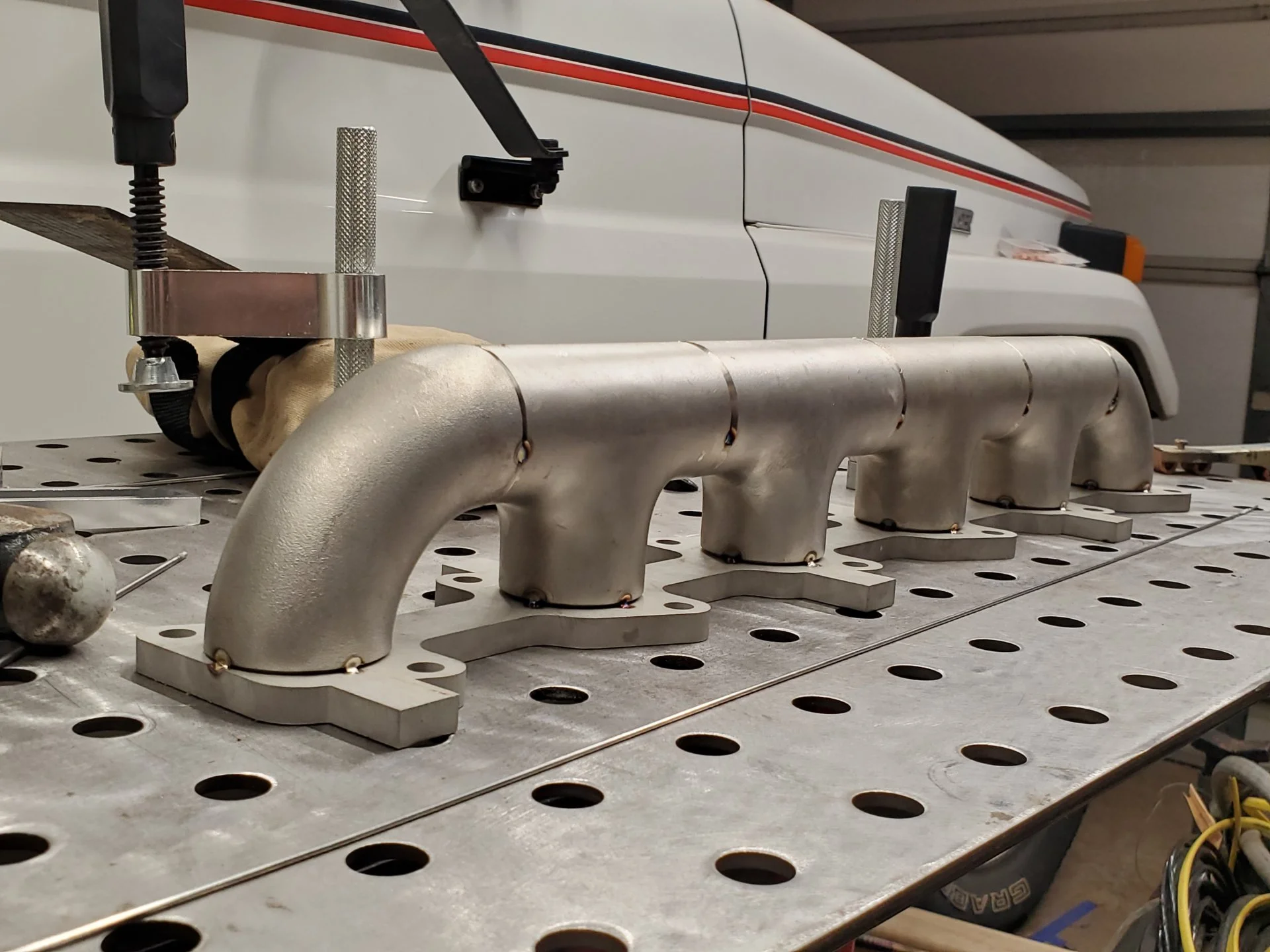

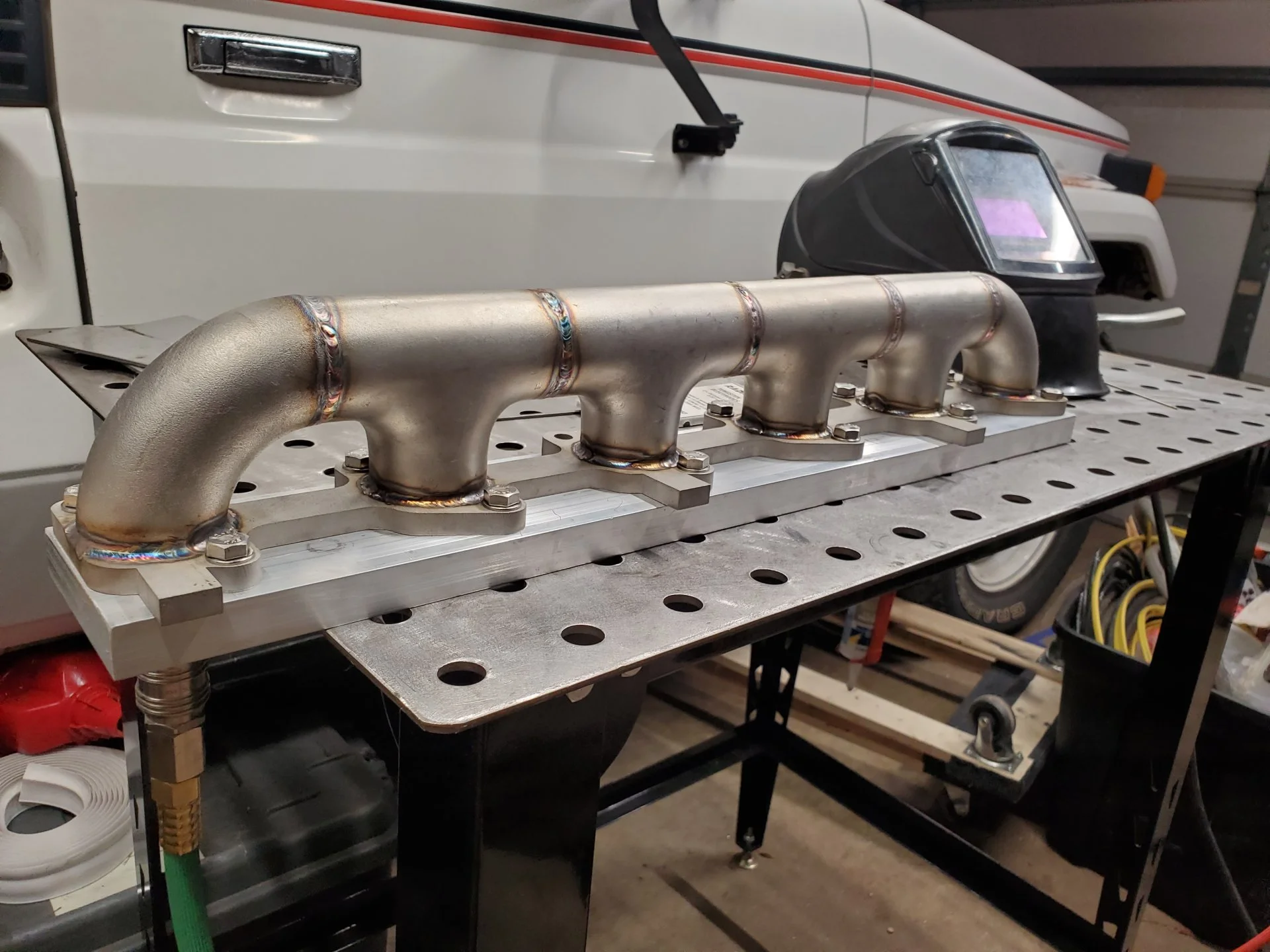

I mounted the manifold to a thick piece of scrap aluminum to act as a purge plug as well as a heat sink.

All melted together. With a design like this, there's infinate backpressure and 0 emissions!



[SKULLYOTA]

Which turbo were you going with?



[oksohearmeout]

Which turbo were you going with?

If I told you, you wouldn't have a reason to stay tuned

Garrett GT2560R is what I'm after with a custom hot side inlet. (Vband instead of a 4 bolt flange)



[oksohearmeout]

Happy Chrimbus, I finally remembered to upload something.

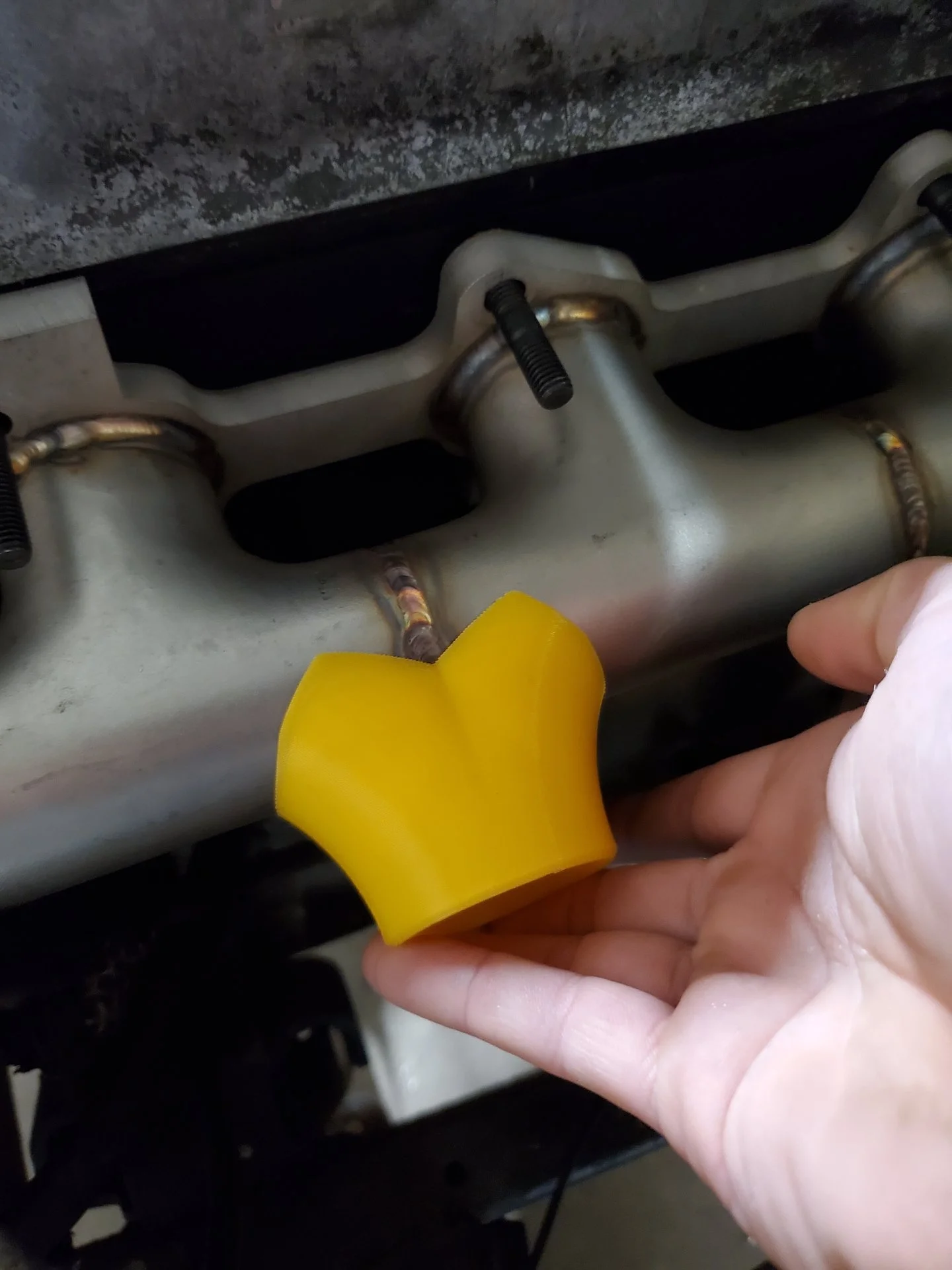

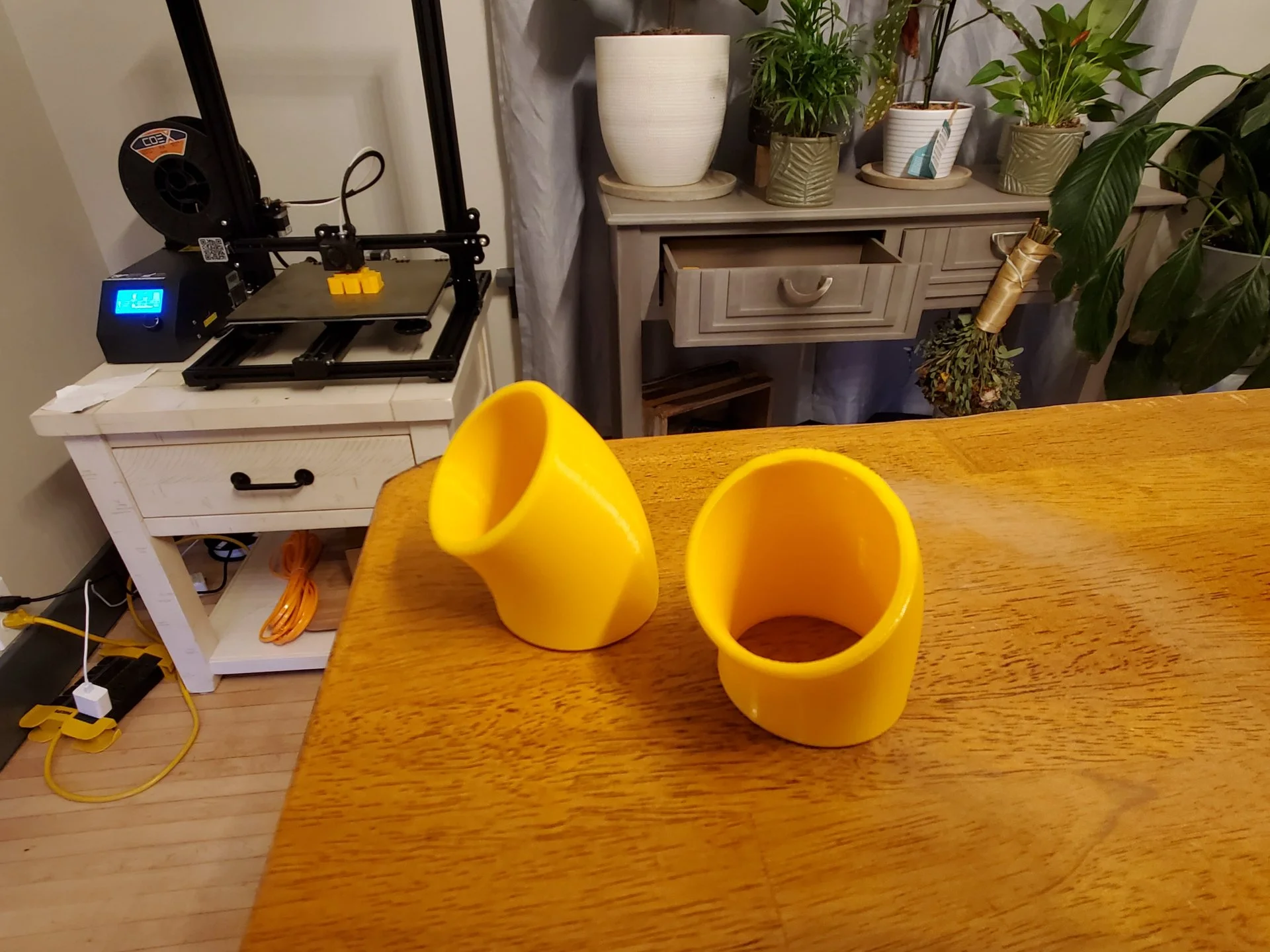

I finally had an excuse to buy a 3d printer, and I started off by designing my manifold to turbo merge.

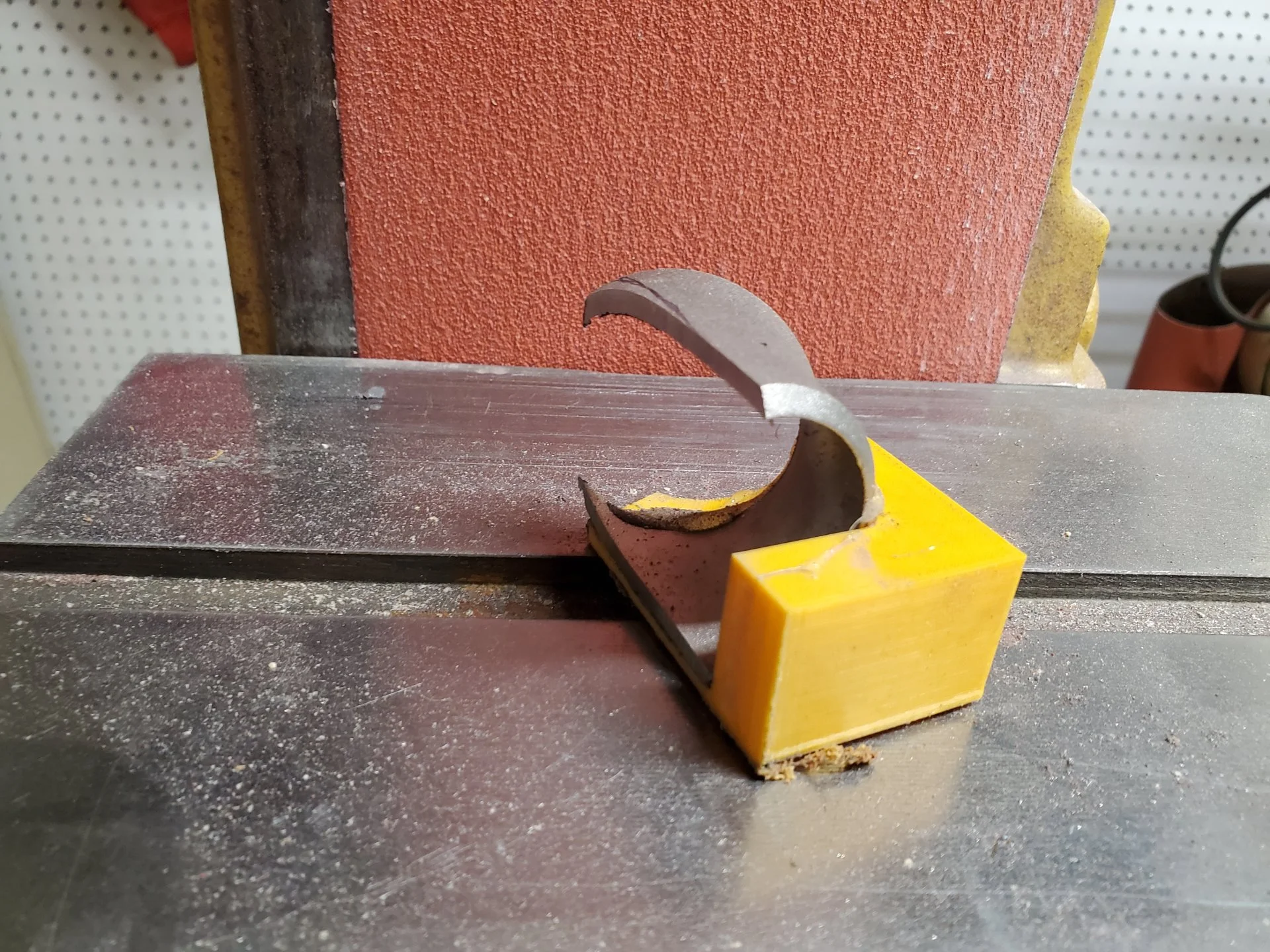

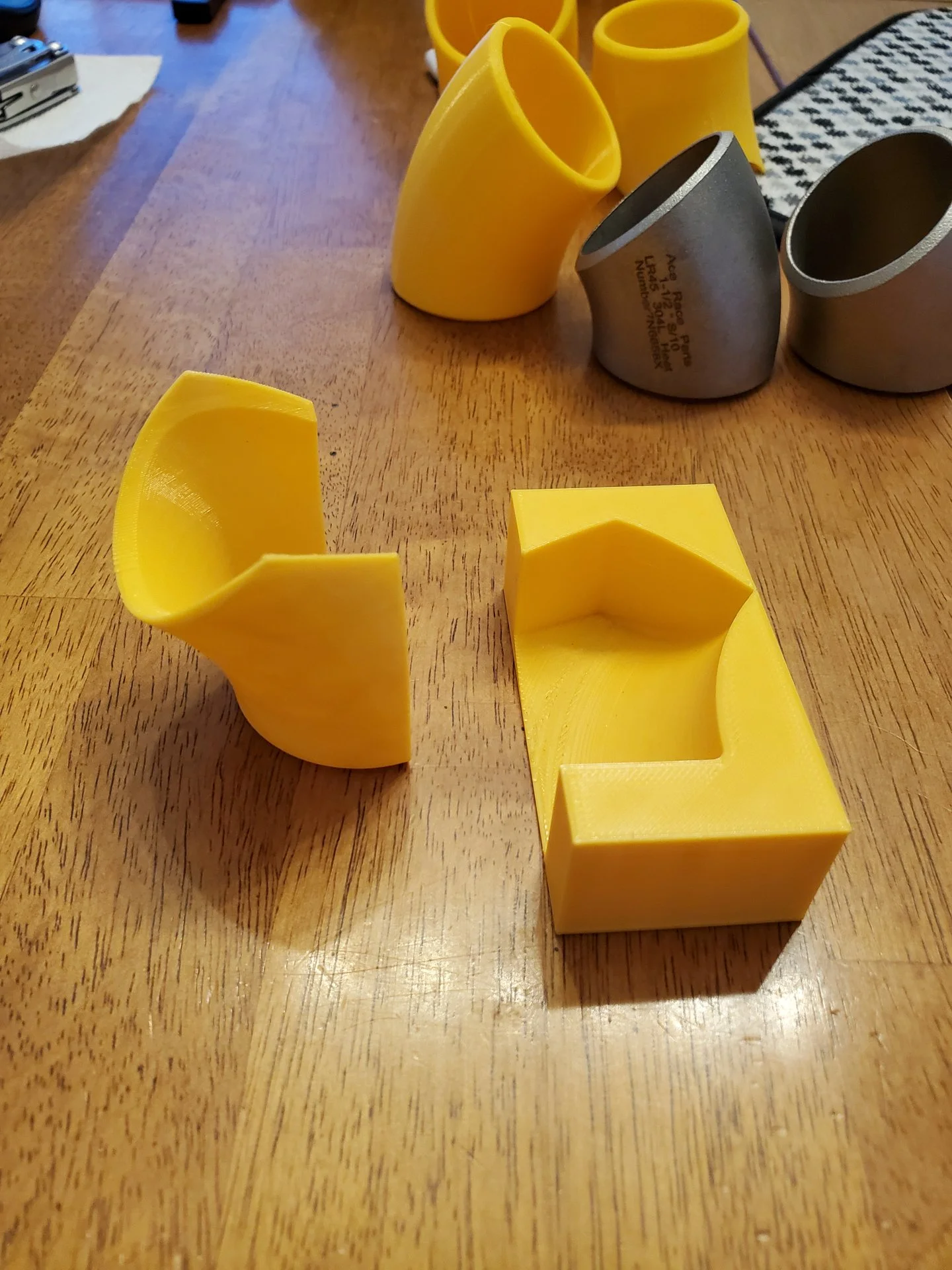

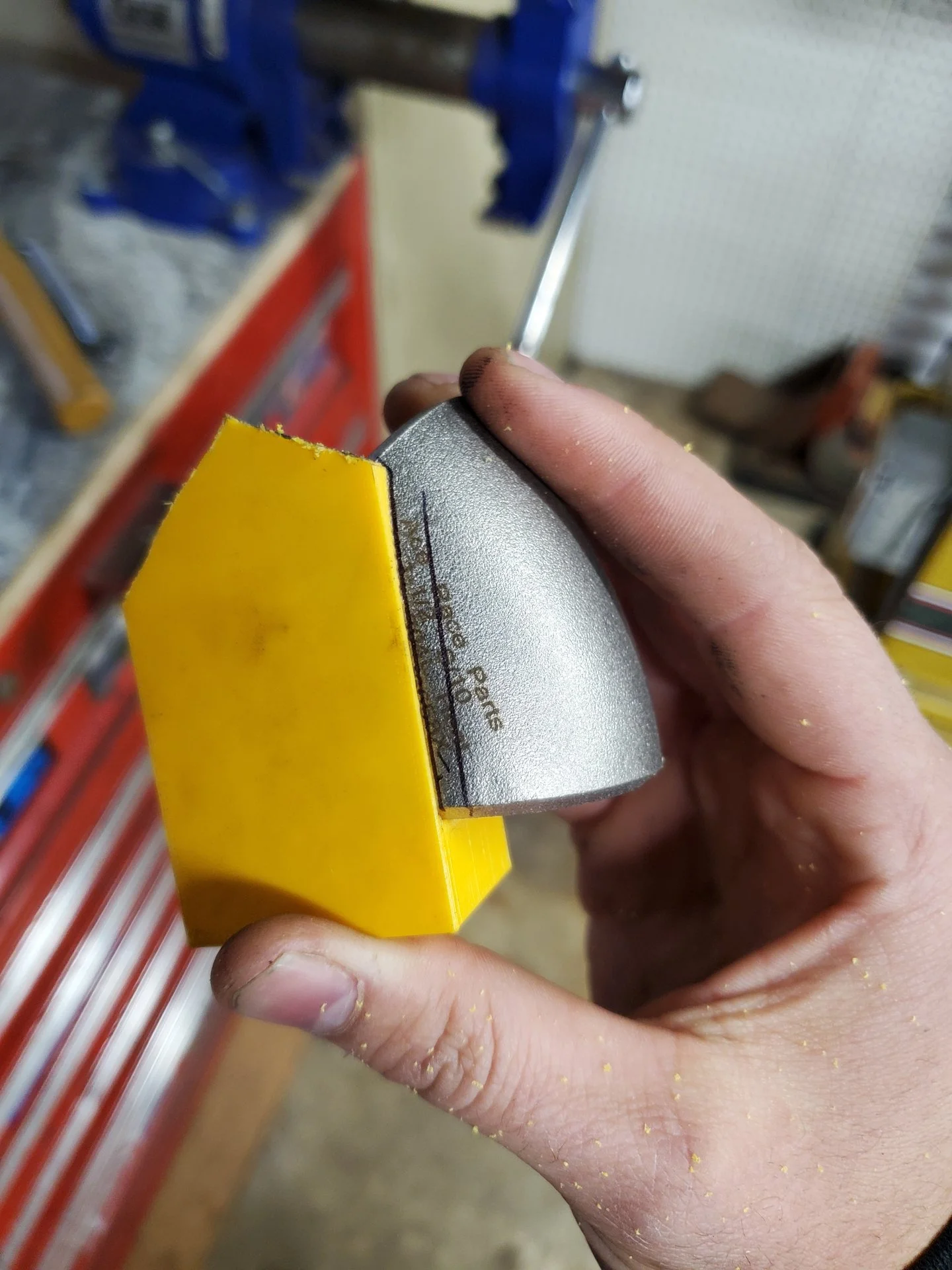

After a couple revisions it was time to make a mold/cutting template

Then putting that up against some metal..

I cut two of these up. It could have gone a little better. I'm considering scrapping them and doing the same idea with 90's instead of 45's to give the collector a smoother transition. Leave a comment below on what you think I should do!

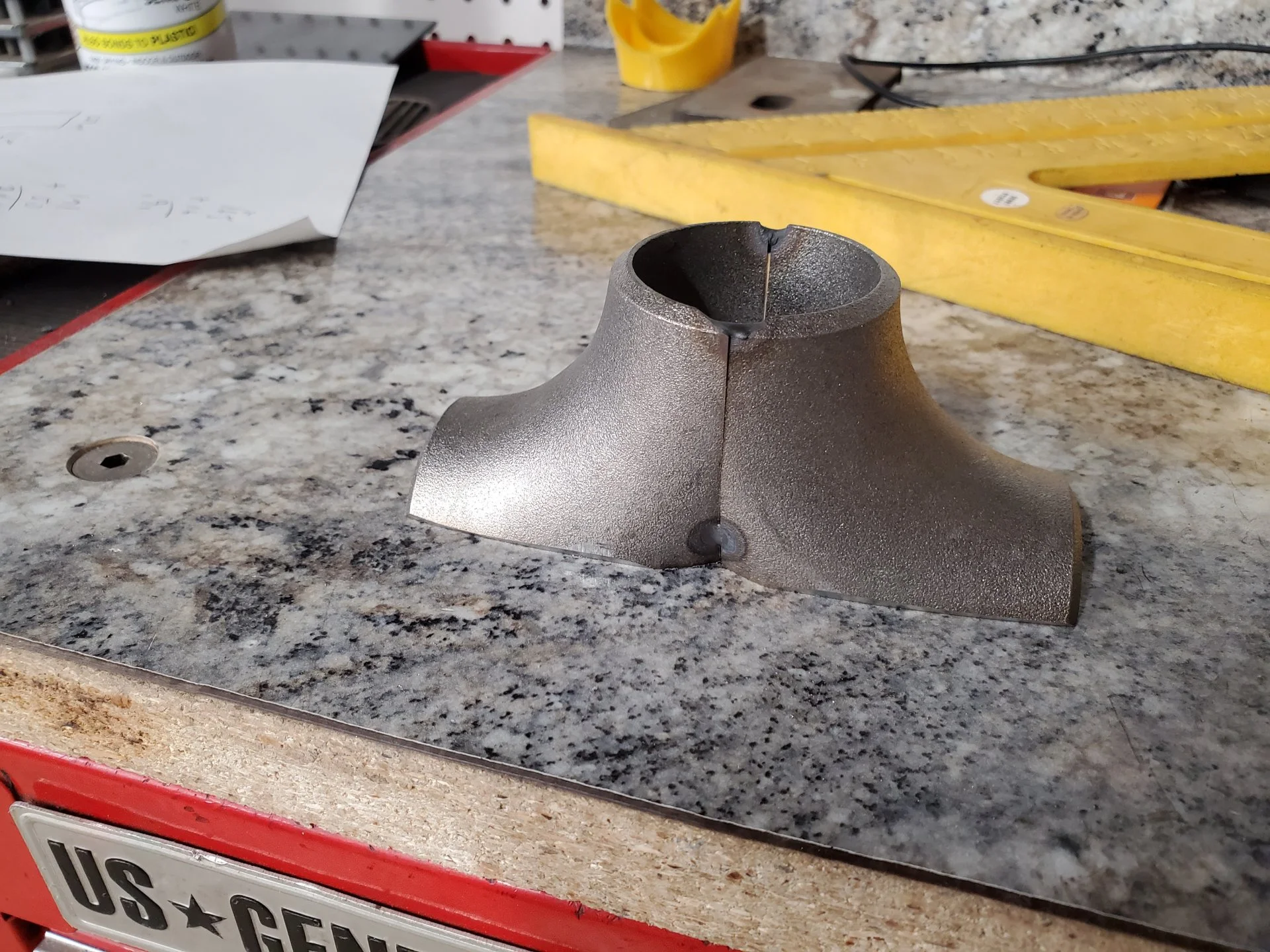

Here it is, super tiny, not offering much of a transition whatsoever. I was hoping for the sides to sweep out a bit more like the 3d printed model I had. The elbows I got were a much tighter radius than the file I had printed.
Maybe I'm overthinking this, considering it's a 2h that makes all of 6 Horsepower.

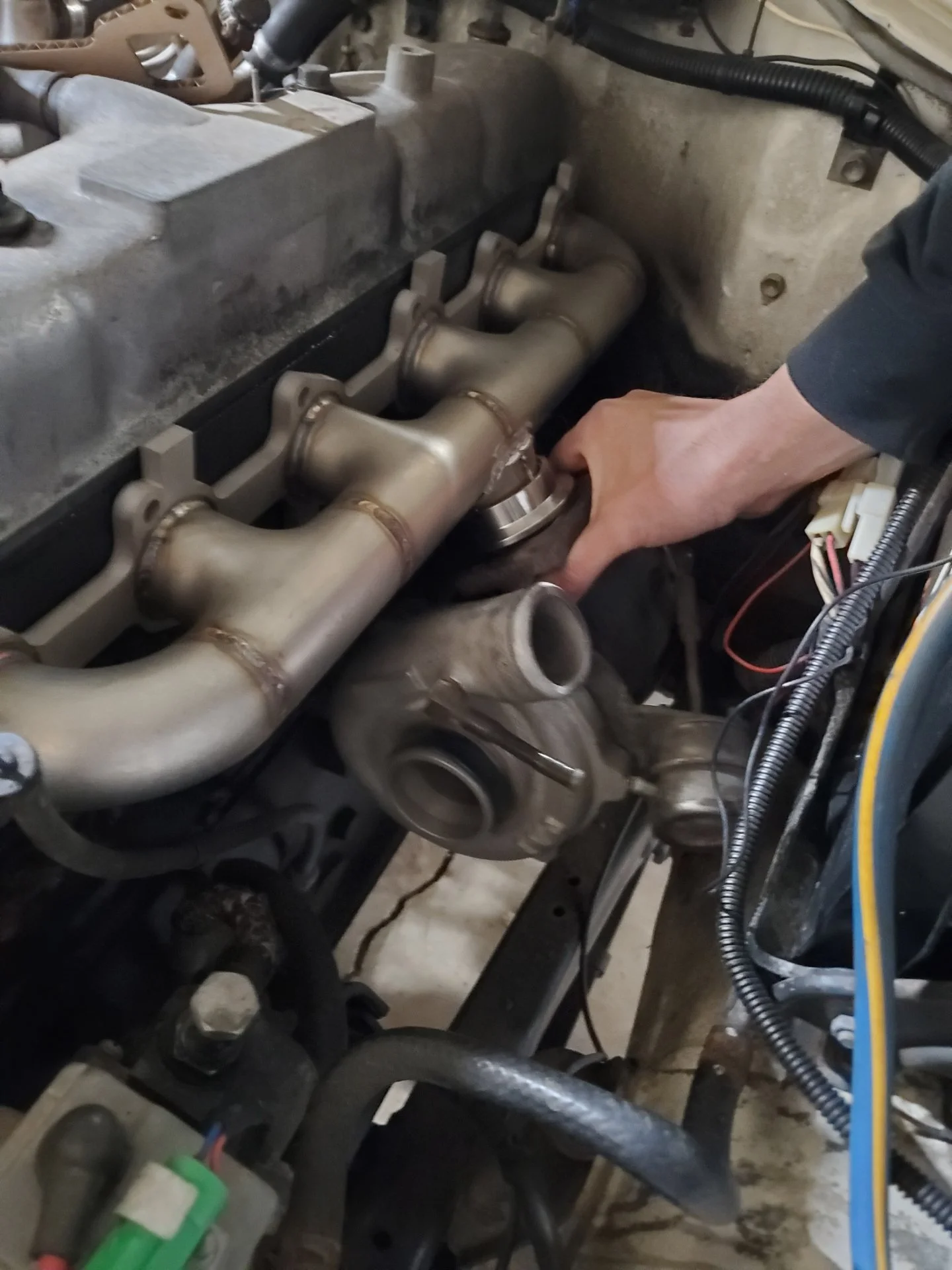

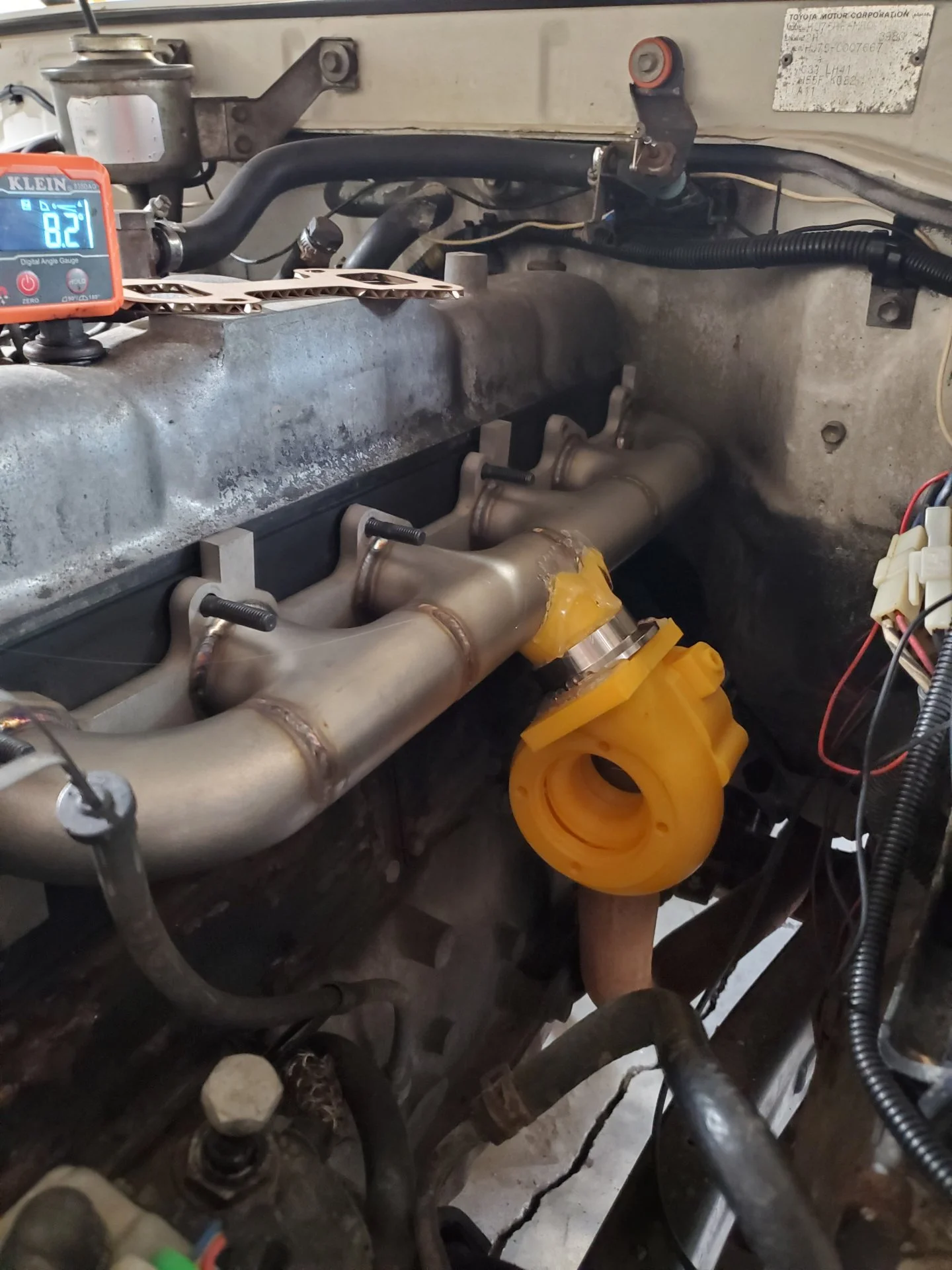

Here's a blown up GT2554 I'm using to verify actual fitment since my 3d printed turbo is not an accurate size (GT2880).

Pending on what yall say and what I decide on, I'll either redo this merge or start machining the port out and welding stuff together.



[SKULLYOTA]

if it were me, i'd make that outlet on the manifold as big as possible and match the turbo flange (if that's the turbo you're using?). seems like a restriction imo, and feels like there's a lot of threads about high EGT 2H's.

your manifold looks amazing btw



[oksohearmeout]

if it were me, i'd make that outlet on the manifold as big as possible and match the turbo flange (if that's the turbo you're using?). seems like a restriction imo, and feels like there's a lot of threads about high EGT 2H's.

your manifold looks amazing btw

Thanks for the feedback!

That's not the turbo I'm using, the turbo im using will have a Vband flange like my prototype outlet has. I definitely see your view on the restriction though. I'll keep that in mind when making my decision.



[SNLC]

That is nice design and fab work.

Cheers



[oksohearmeout]

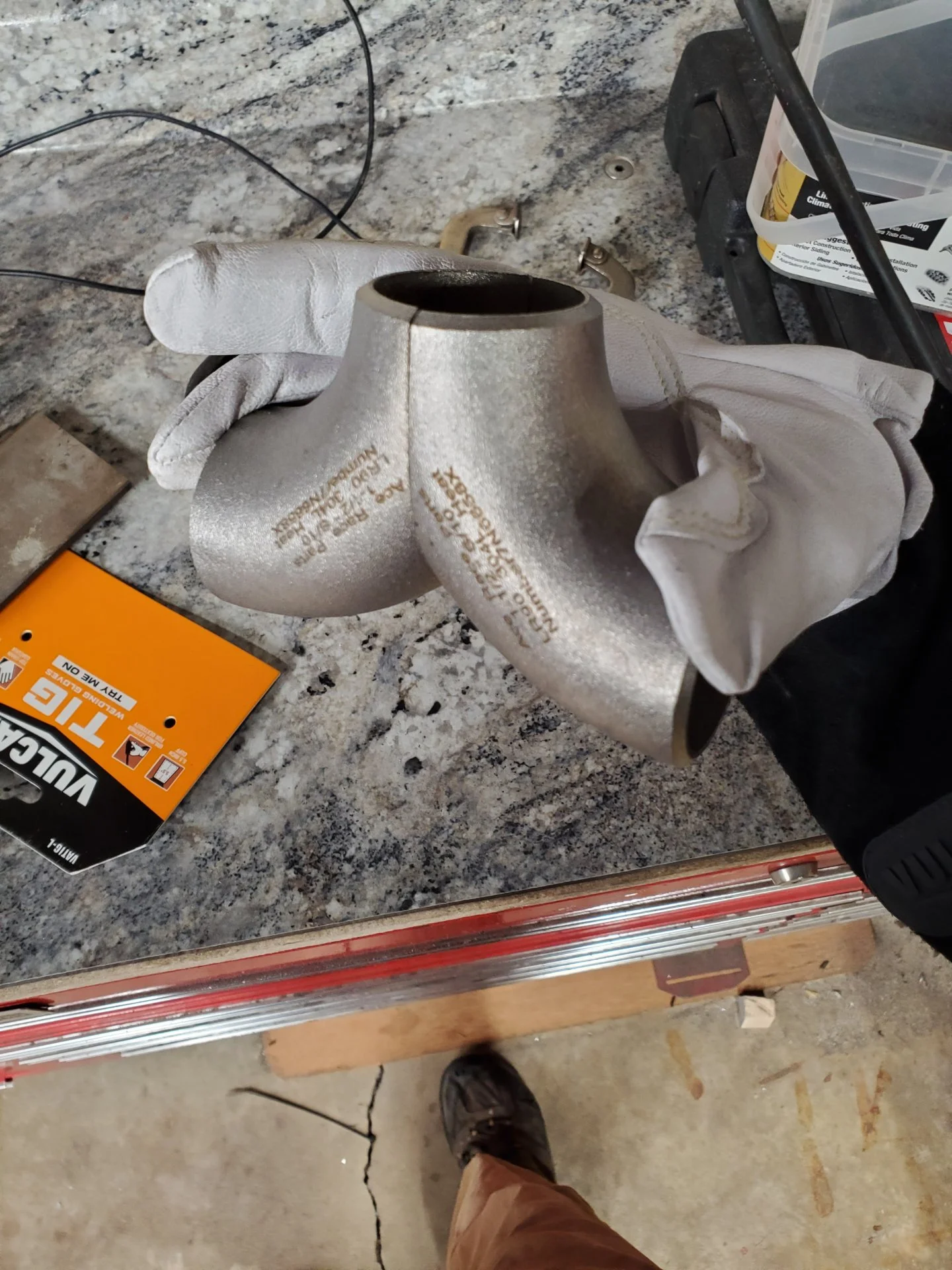

Round 2, I'm going to try a 90 transition instead. Chopped two elbows in half.

Chopped them in half again and looked at them thinking "wow, nice work Jeremiah. Think about how much easier it would have been to just cut the bottom off of a Tee fitting instead of this...

Oh well. I guess the hard way is good because I learned a few things along the way.

Big updates:

• my turbo will be here Monday
• I will be adding a stainless snorkel
• I have started designing an air filter box on cad and will print the prototype on my 3d printer. Damn thing is going to take 5 days to print



[oksohearmeout]

if it were me, i'd make that outlet on the manifold as big as possible and match the turbo flange (if that's the turbo you're using?). seems like a restriction imo, and feels like there's a lot of threads about high EGT 2H's.

your manifold looks amazing btw

You'll be happy to see I went this route.



[oksohearmeout]

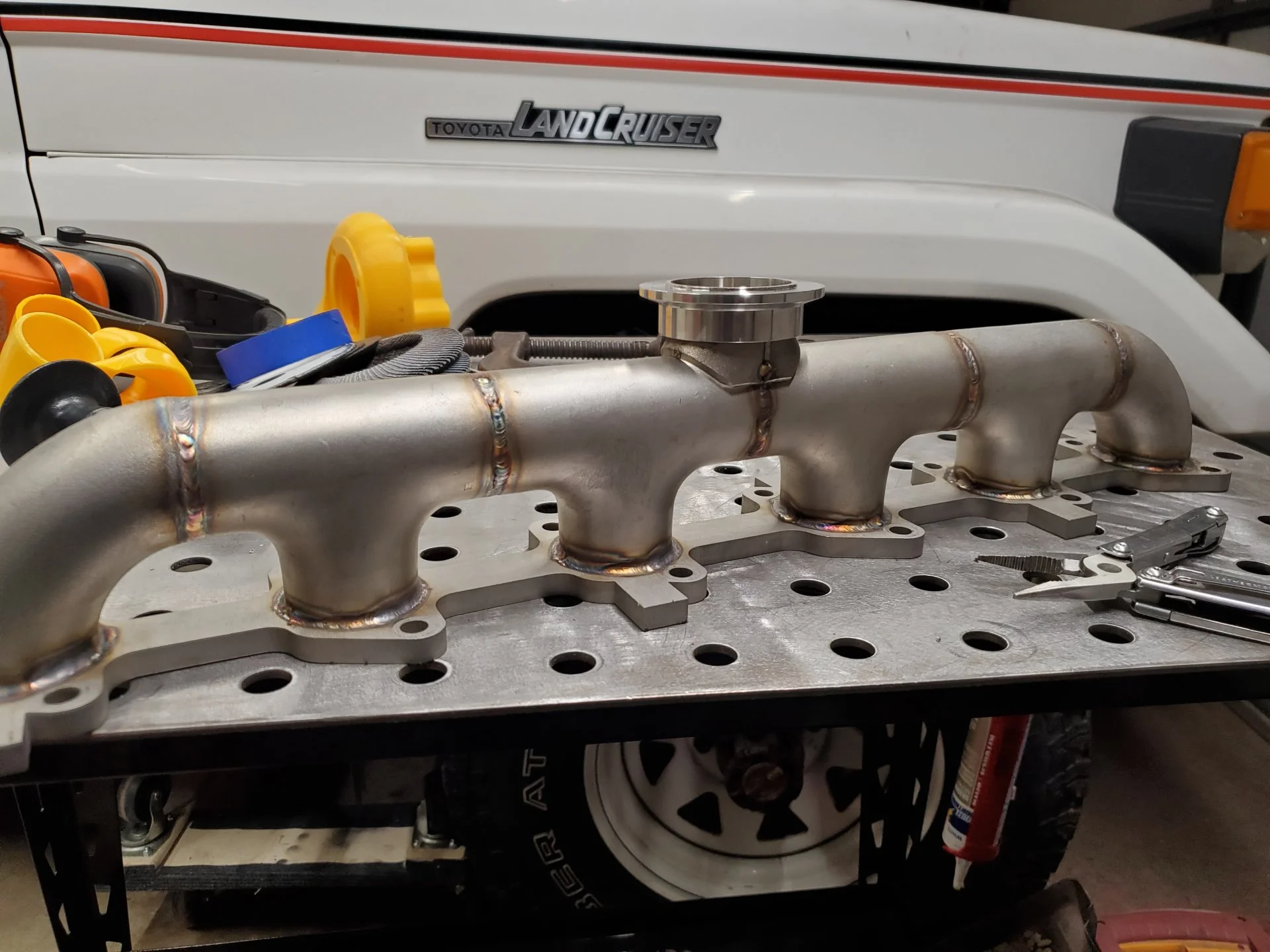

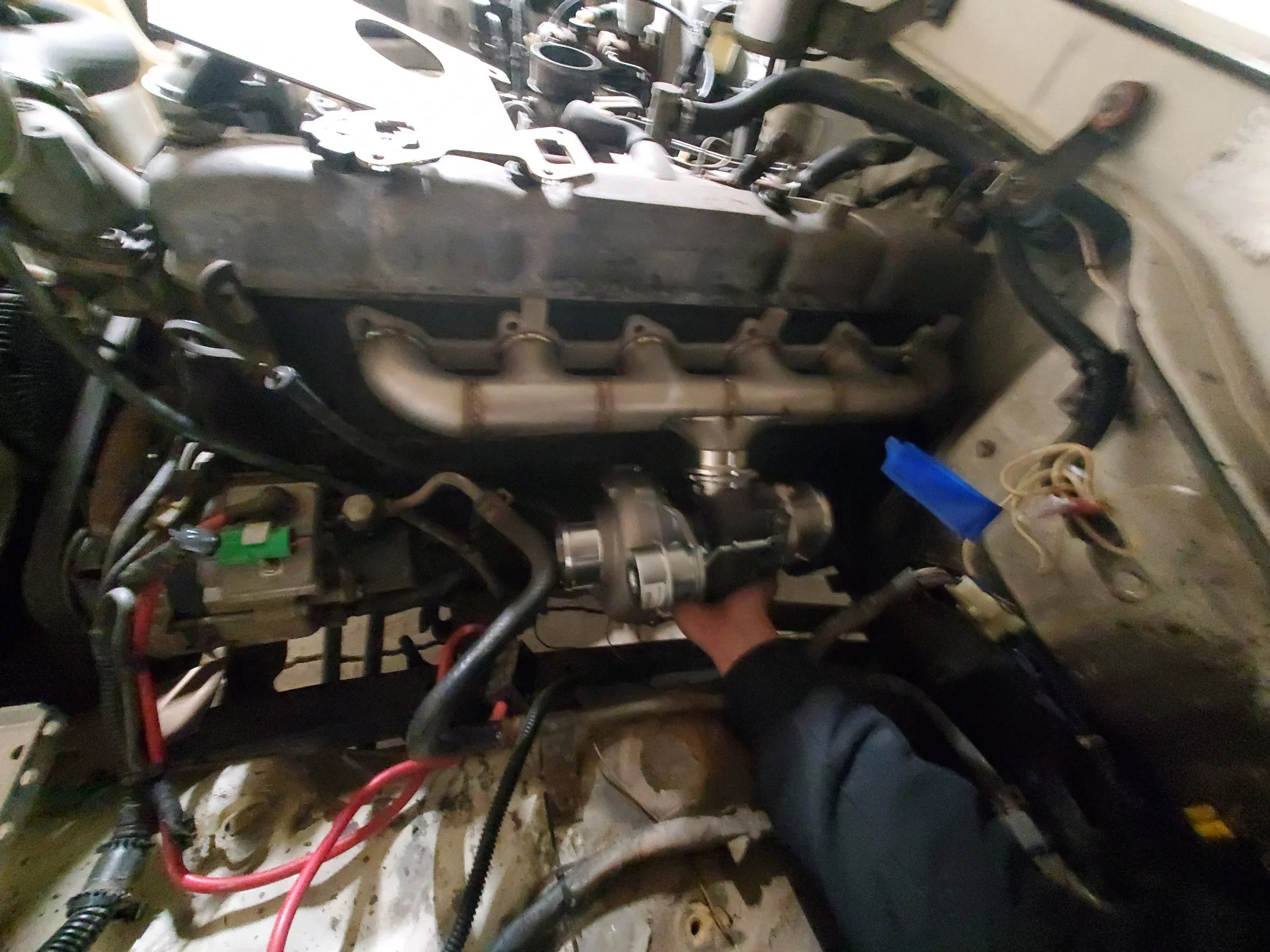

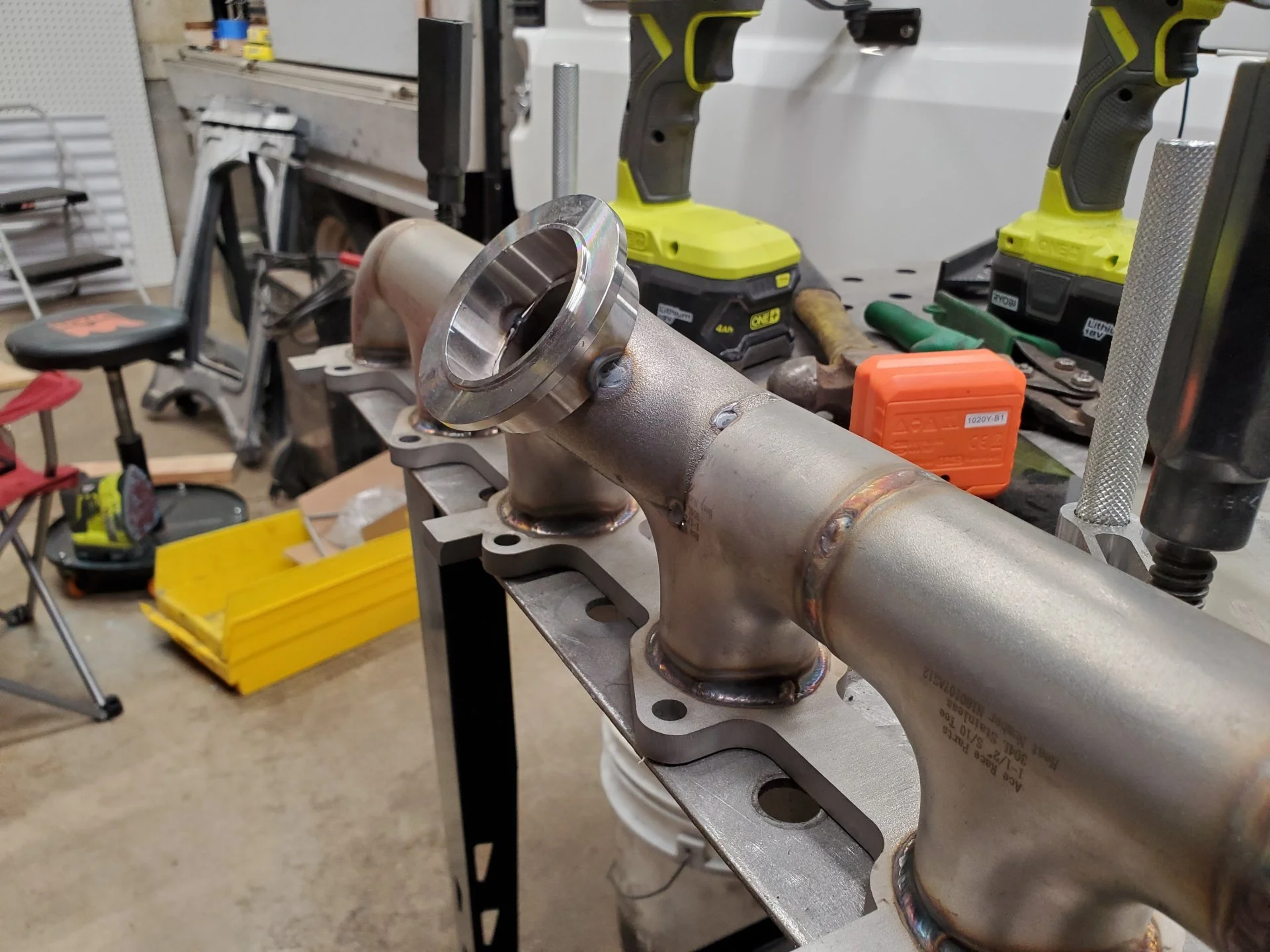

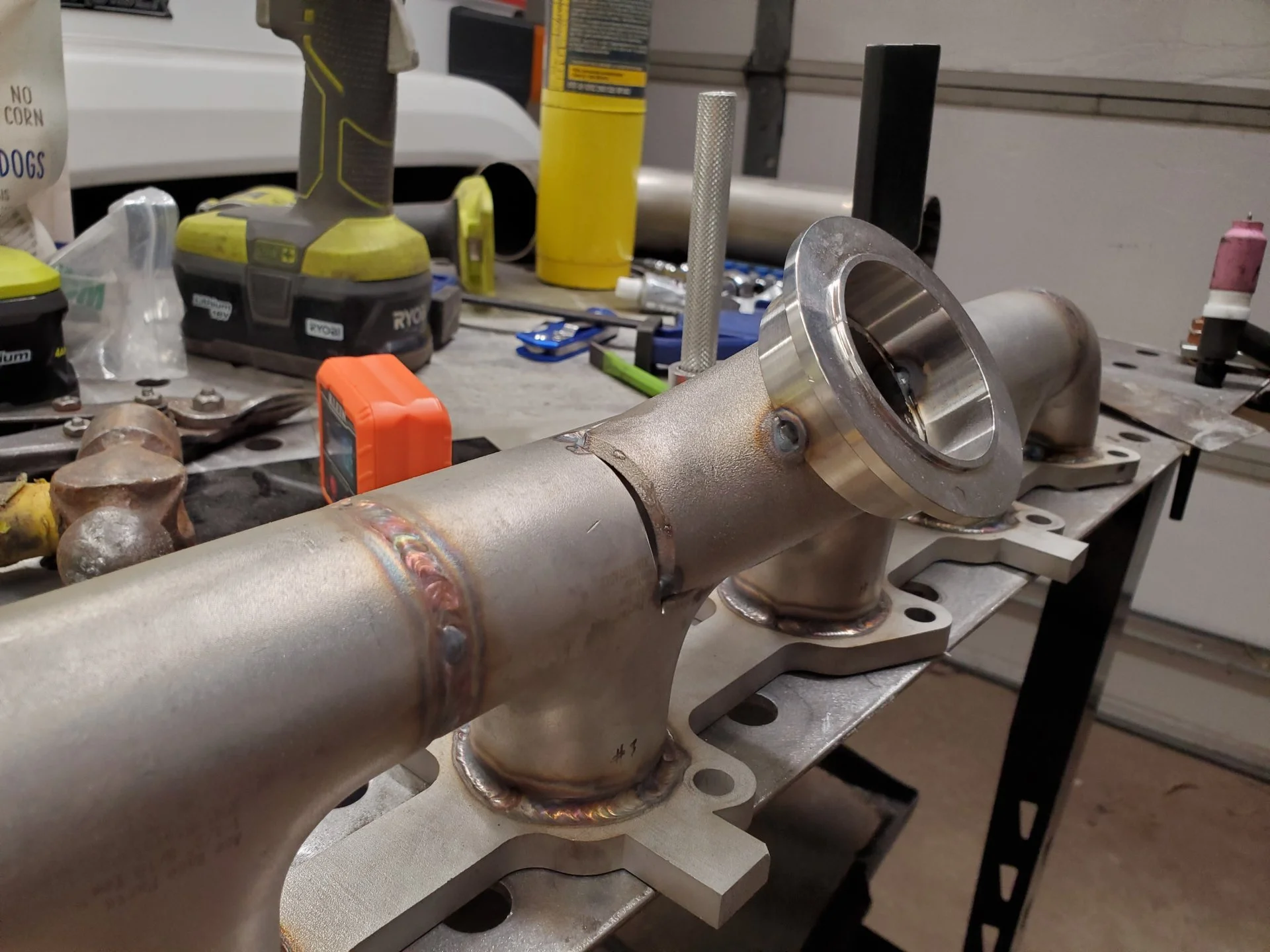

I finished up the mockery of my first turbo manifold. Learned alot. I hate how it turned out. I'll probably re-do it next winter if I'm that ambitious. Here it is.

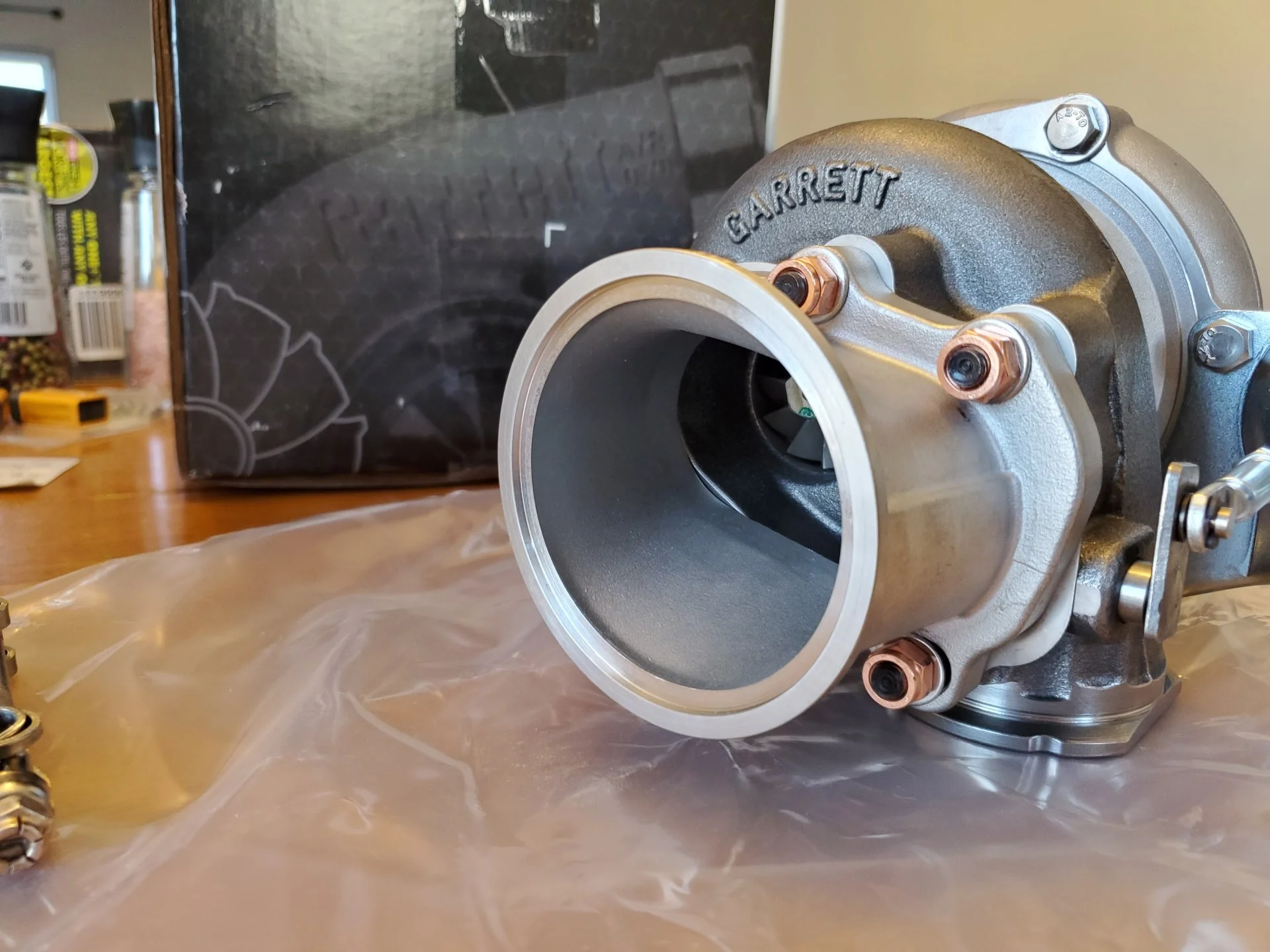

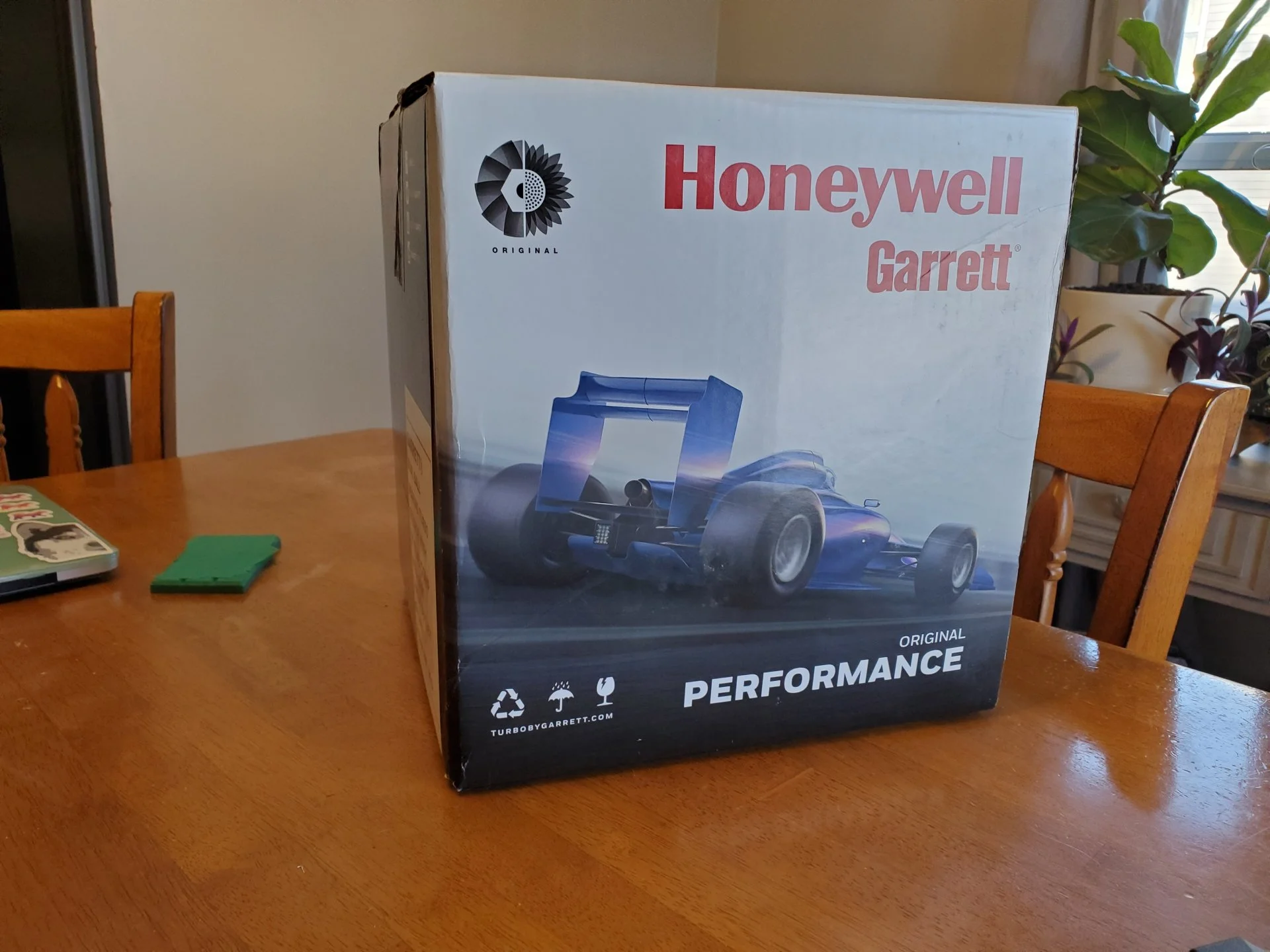

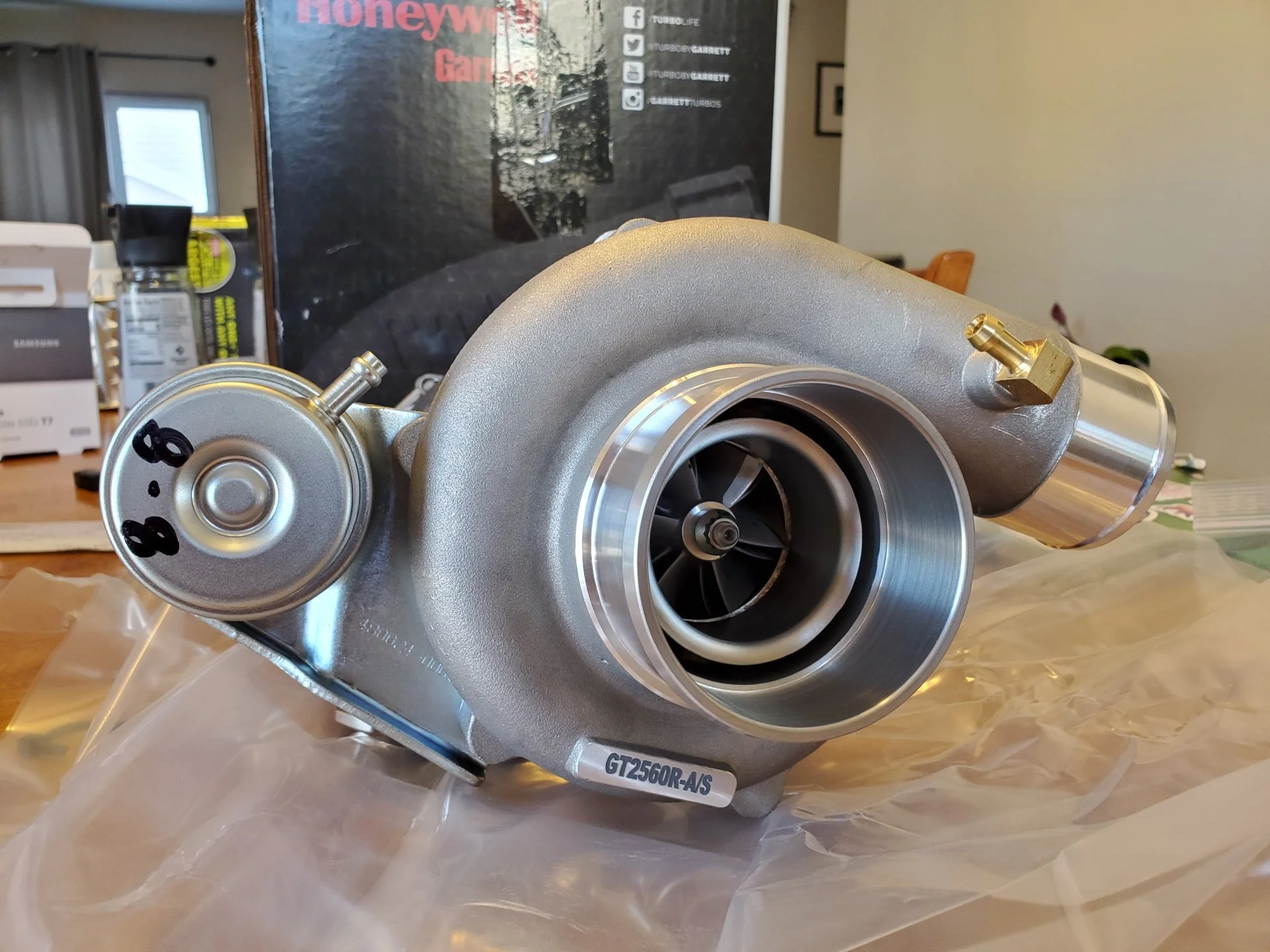

Did someone order a smart thermostat?! Honeywell delivered today

Of course I had to undress the ol girl for yall.

Custom compressor housing with a 3" TD04 inlet, 2" outlet

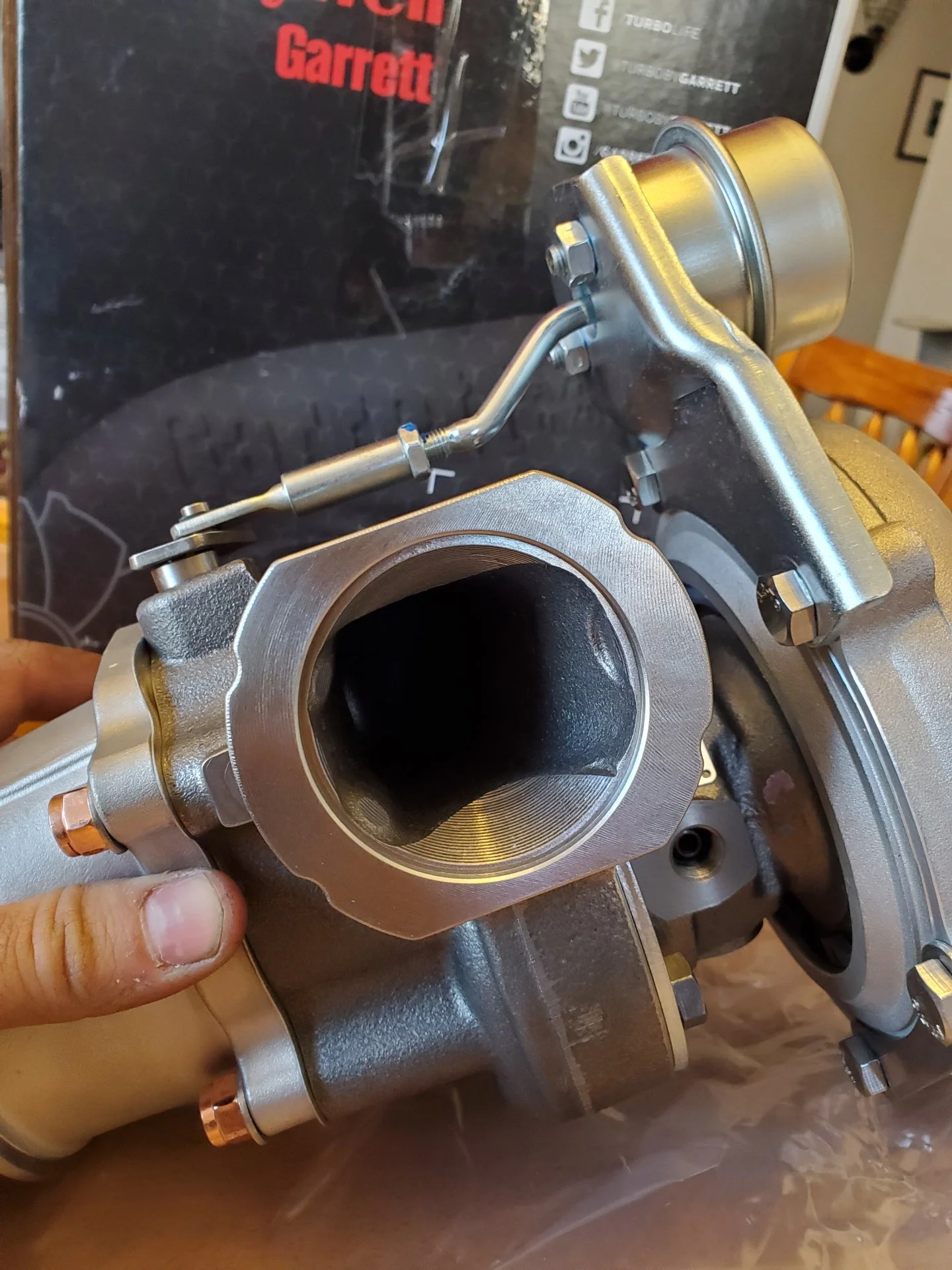

Custom turbine housing with a Vband inlet

And a simple bolt-on cast stainless 3" vband outlet.

Then I REALLY started to undress her.

I've been figuring out the best way to index the compressor housing. I really wish I could have gotten a turbo that spins the opposite direction, but here we are. I'll eat what I made.



[John Young]

I purchased the ol mate in Queensland February 2021 and received it in SLC August, 2021.

We opted to drive it the 1500 miles back home to Wisconsin because you know, that would be fun.

We had to stop and see Kurt at Cruiser Outfitters, as well as the museum.

View attachment 2792987

I think my son and I may have met you guys at the museum when we were picking up biscuit the RJ77! I know we met a young couple that was just picking up a 75 pickup and there can't have been that many of them...



[oksohearmeout]

That was definitely

I think my son and I may have met you guys at the museum when we were picking up biscuit the RJ77! I know we met a young couple that was just picking up a 75 pickup and there can't have been that many

I think my son and I may have met you guys at the museum when we were picking up biscuit the RJ77! I know we met a young couple that was just picking up a 75 pickup and there can't have been that many of them...

That was definitely us!



[John Young]

That was definitely us!

It is very nice to see the progress on what was a very nice truck when we saw it.

We had a few more days before we were able to pick up Biscuit and drive to Florida in it.



[oksohearmeout]

Alright, finally spent some time on the 75 again since winter is quickly coming to an end.

Exhaust time!

This was a pretty simple exhaust to build, a few bends and meters and about 2 half-ass days of work.

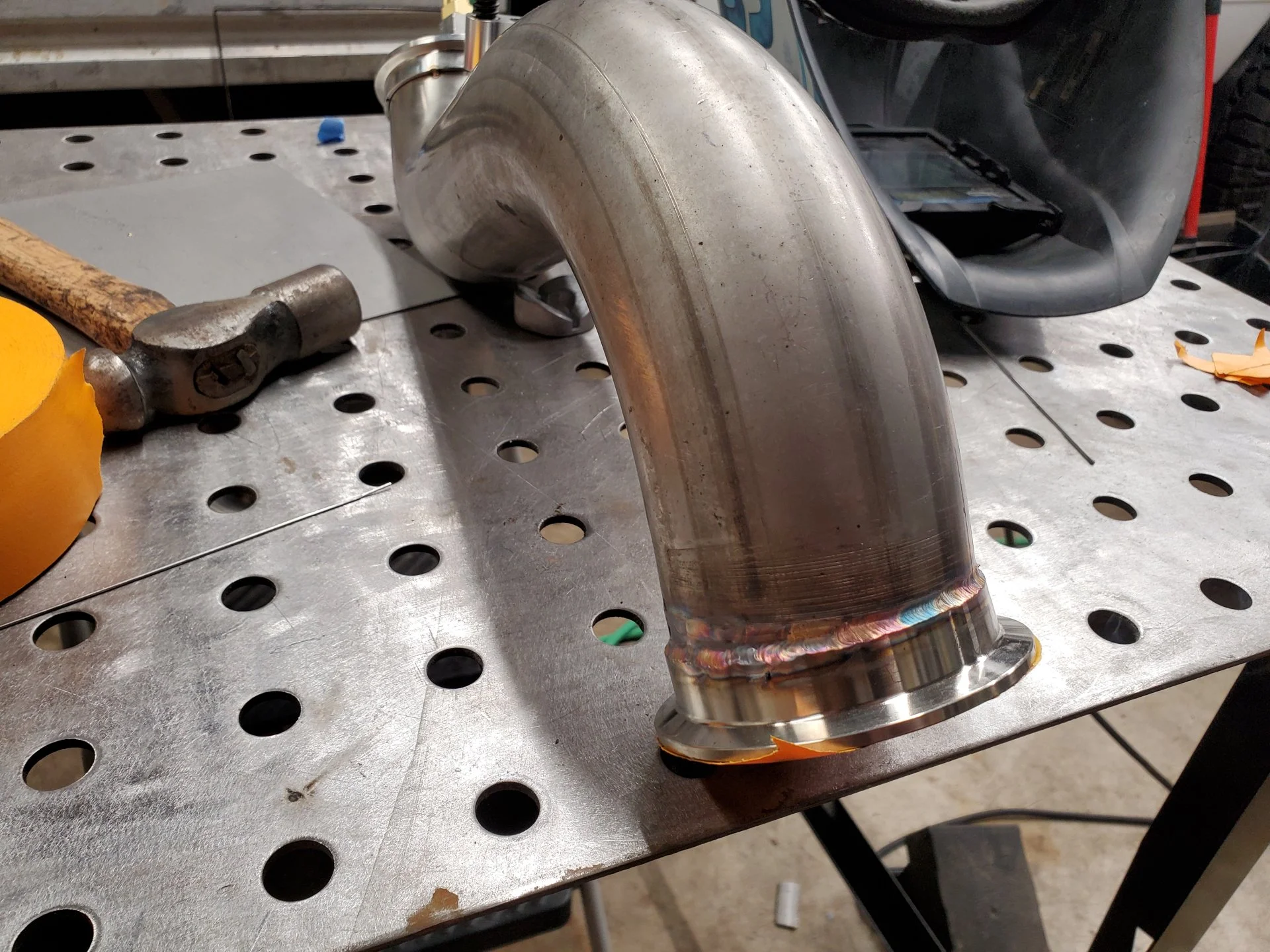

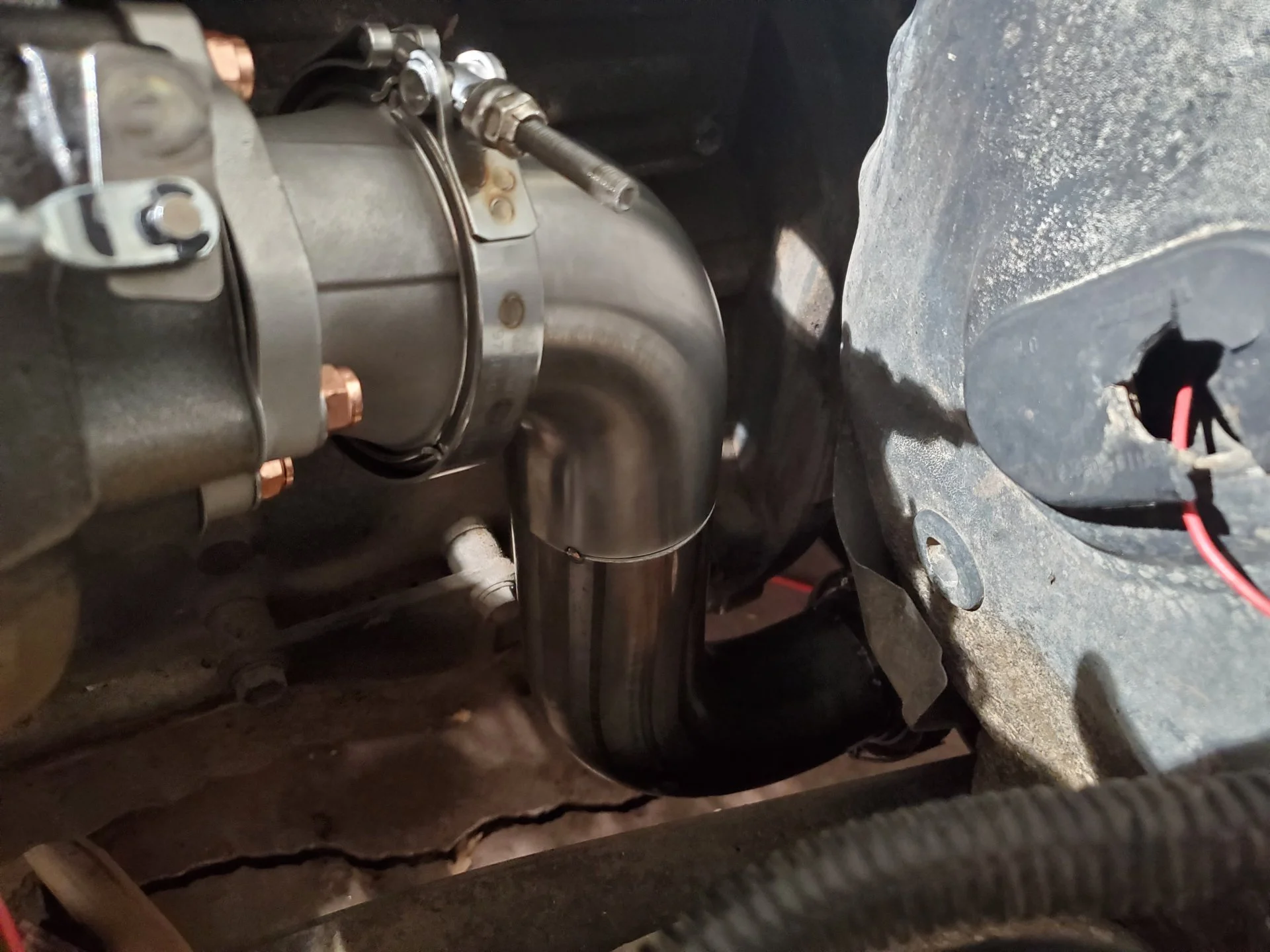

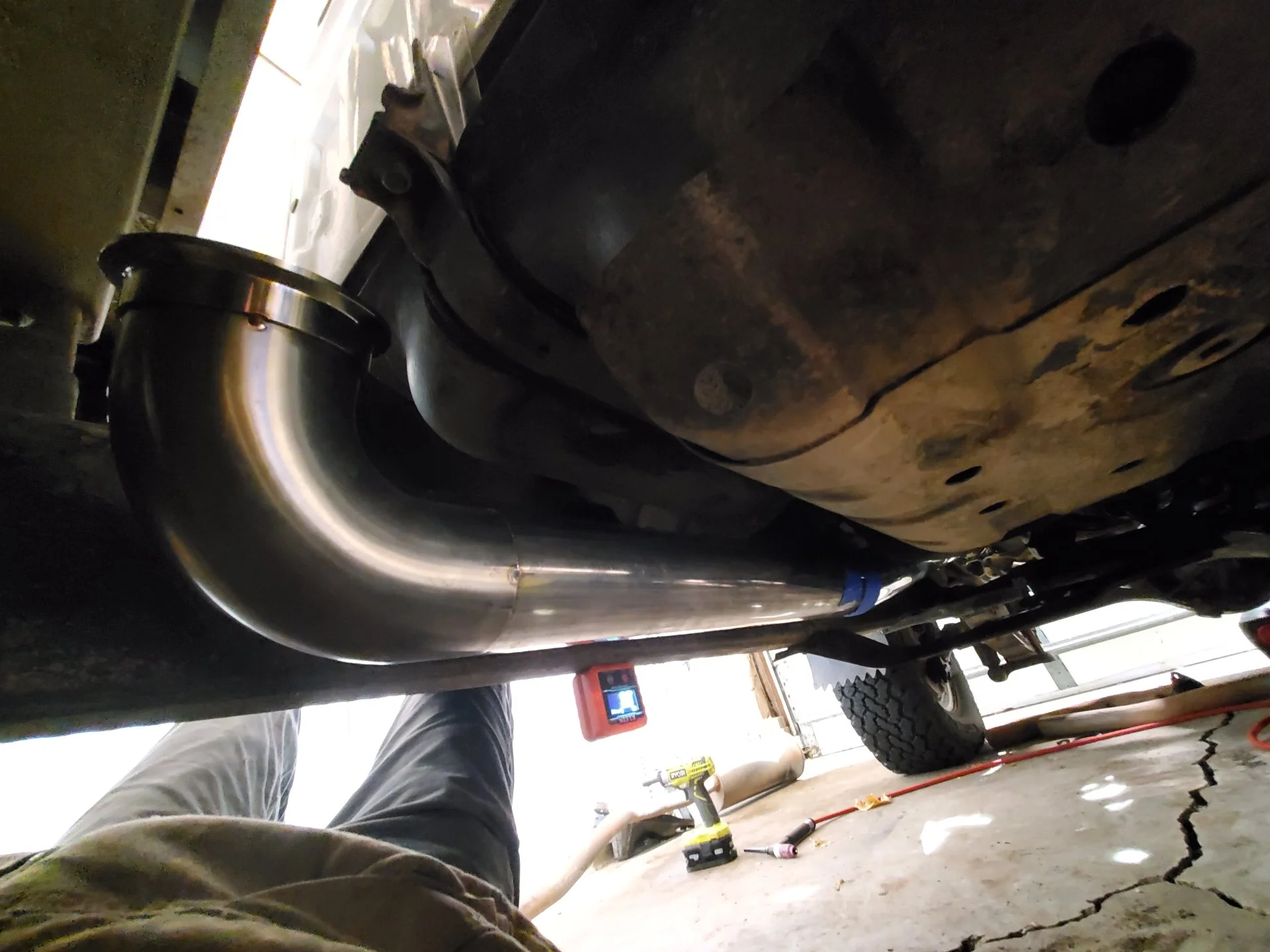

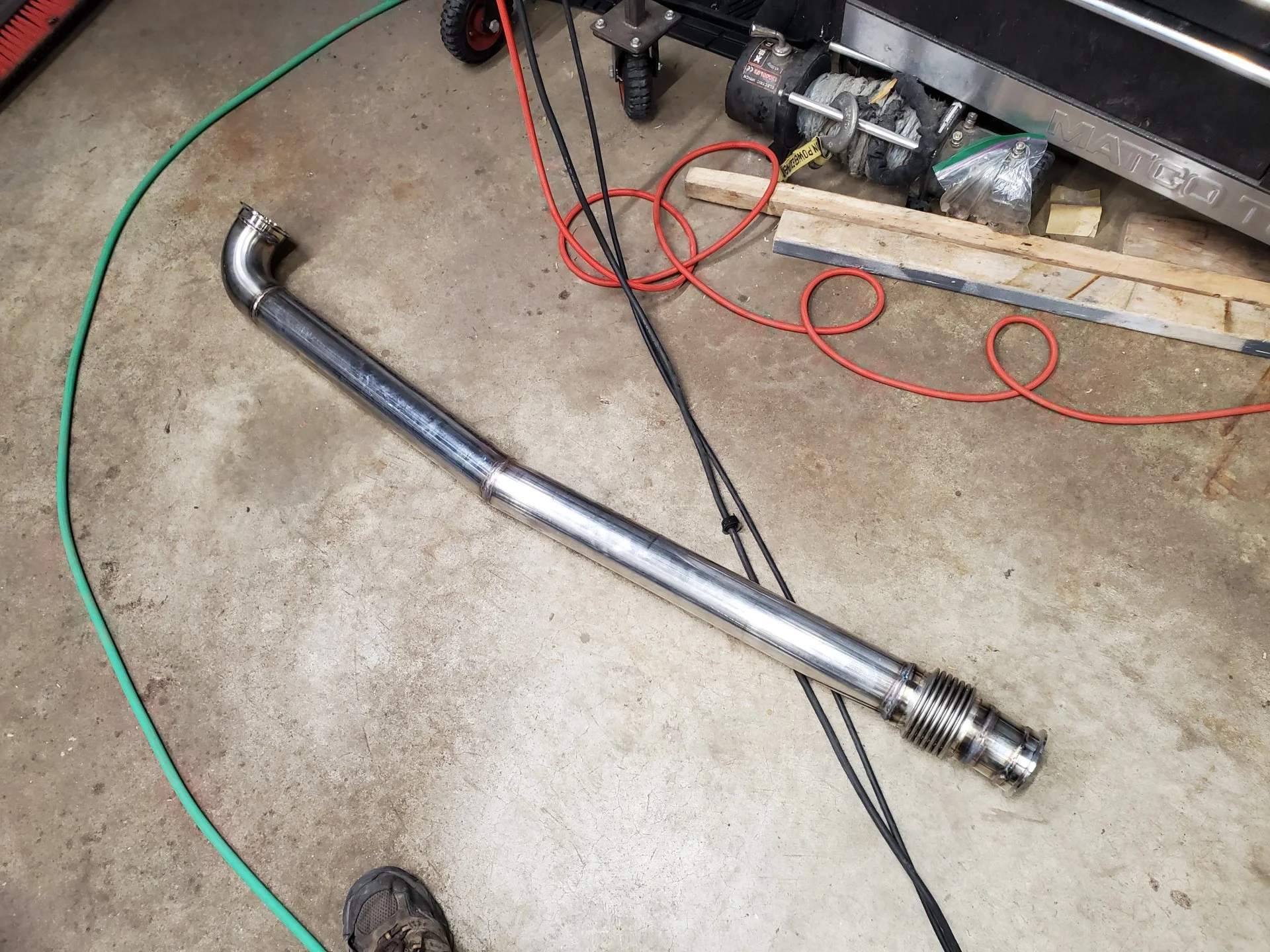

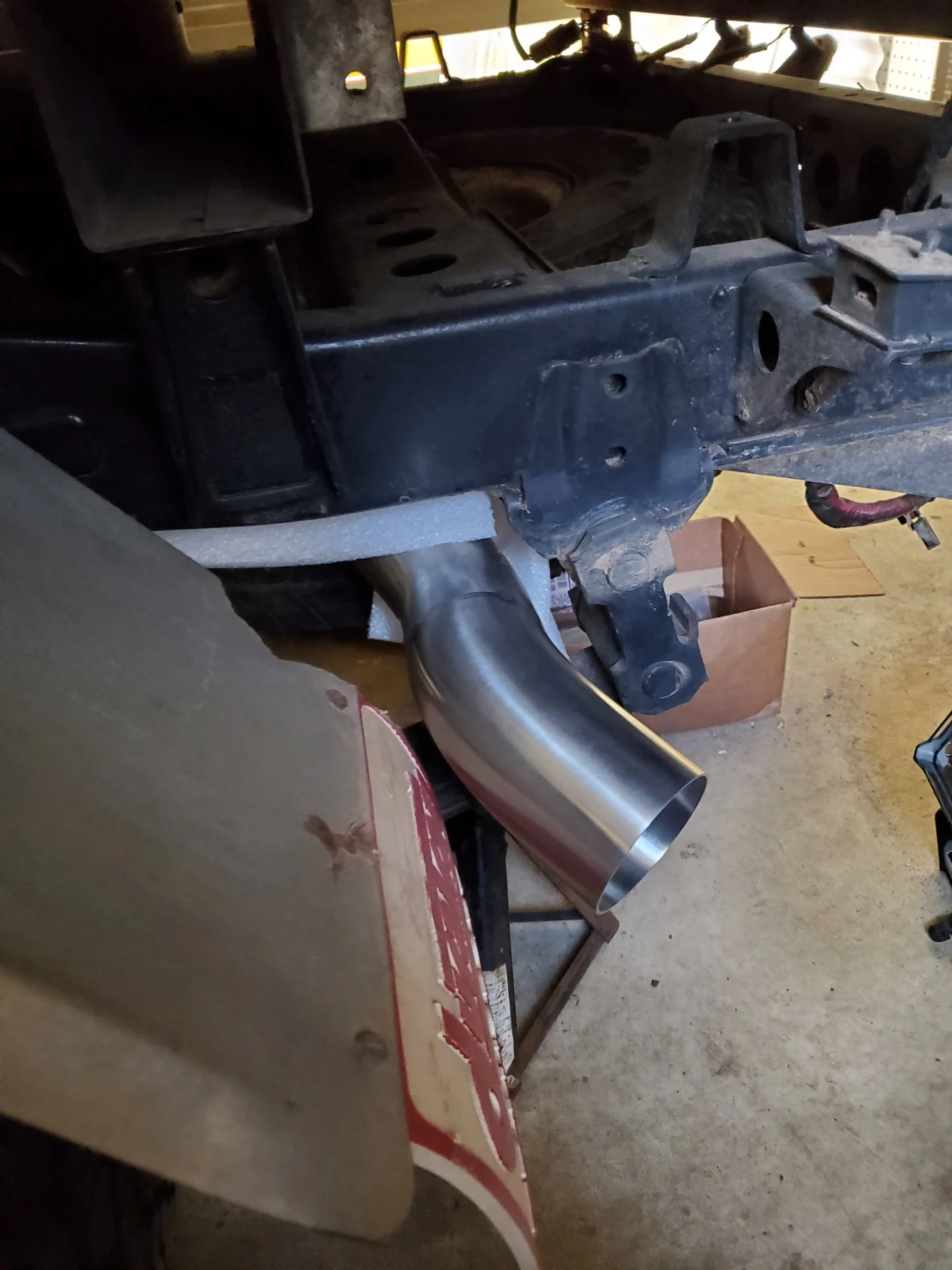

The downpipe off of the turbo.

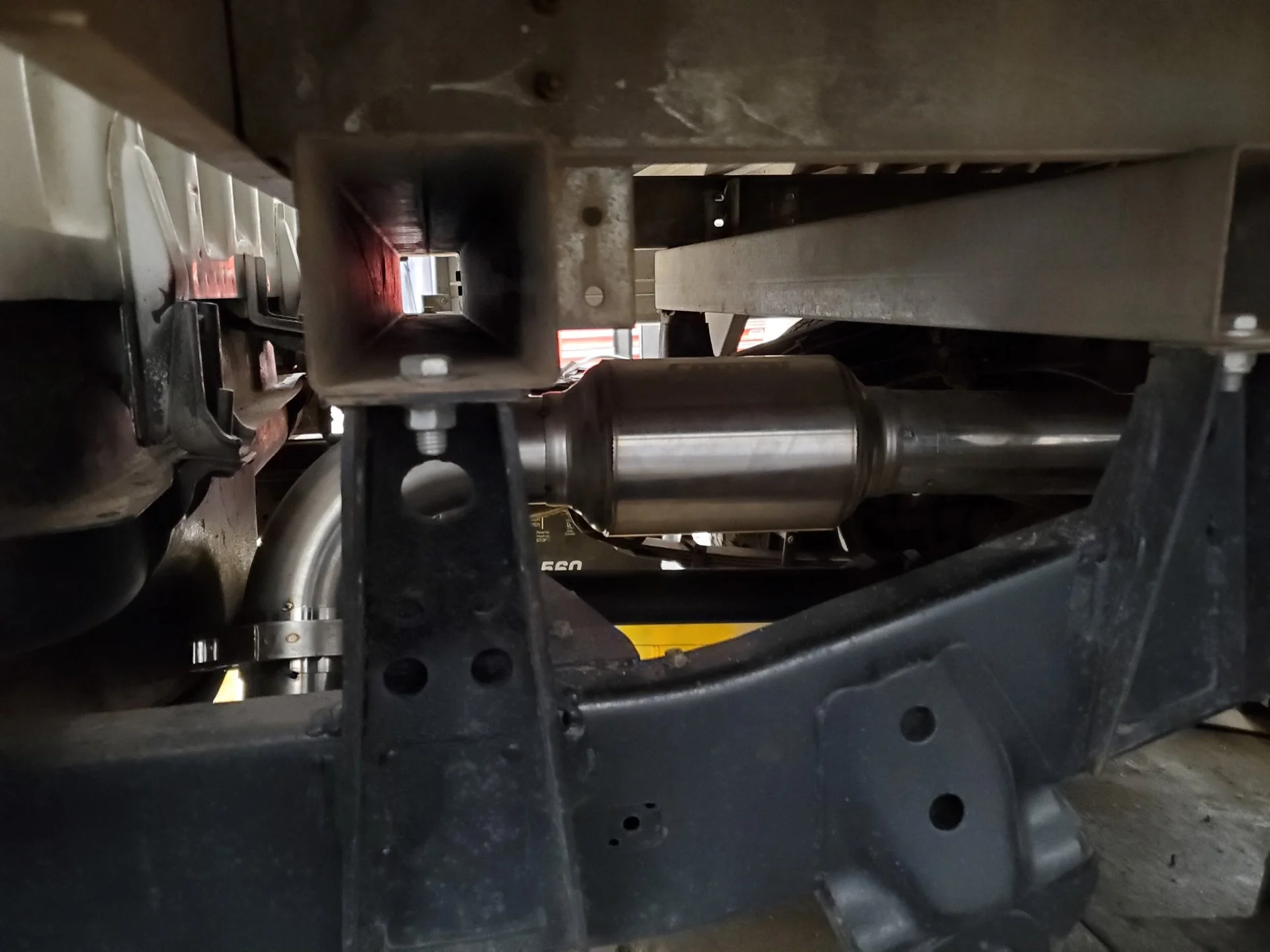

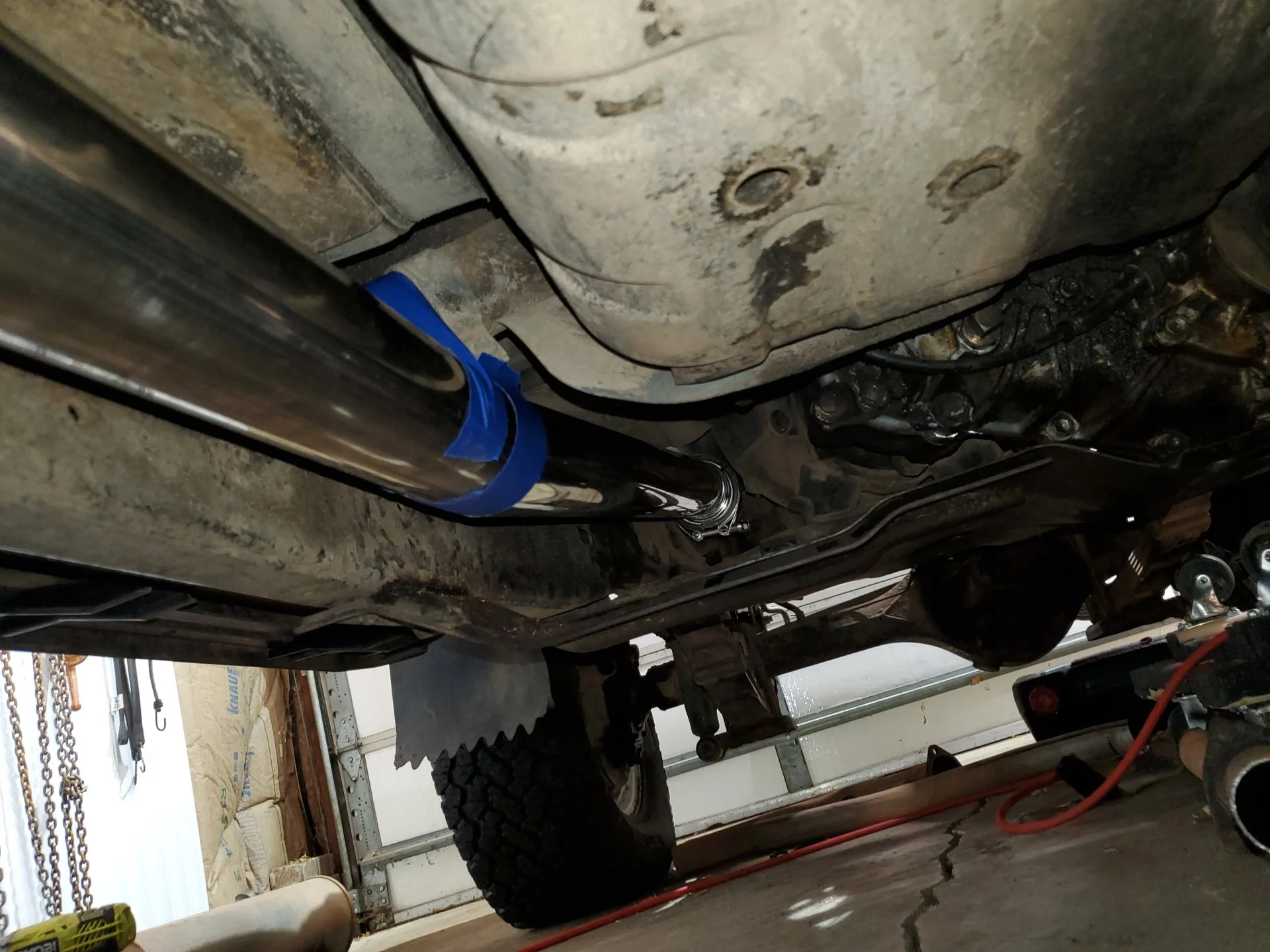

The mid-pipe from downpipe to the back of the cab.

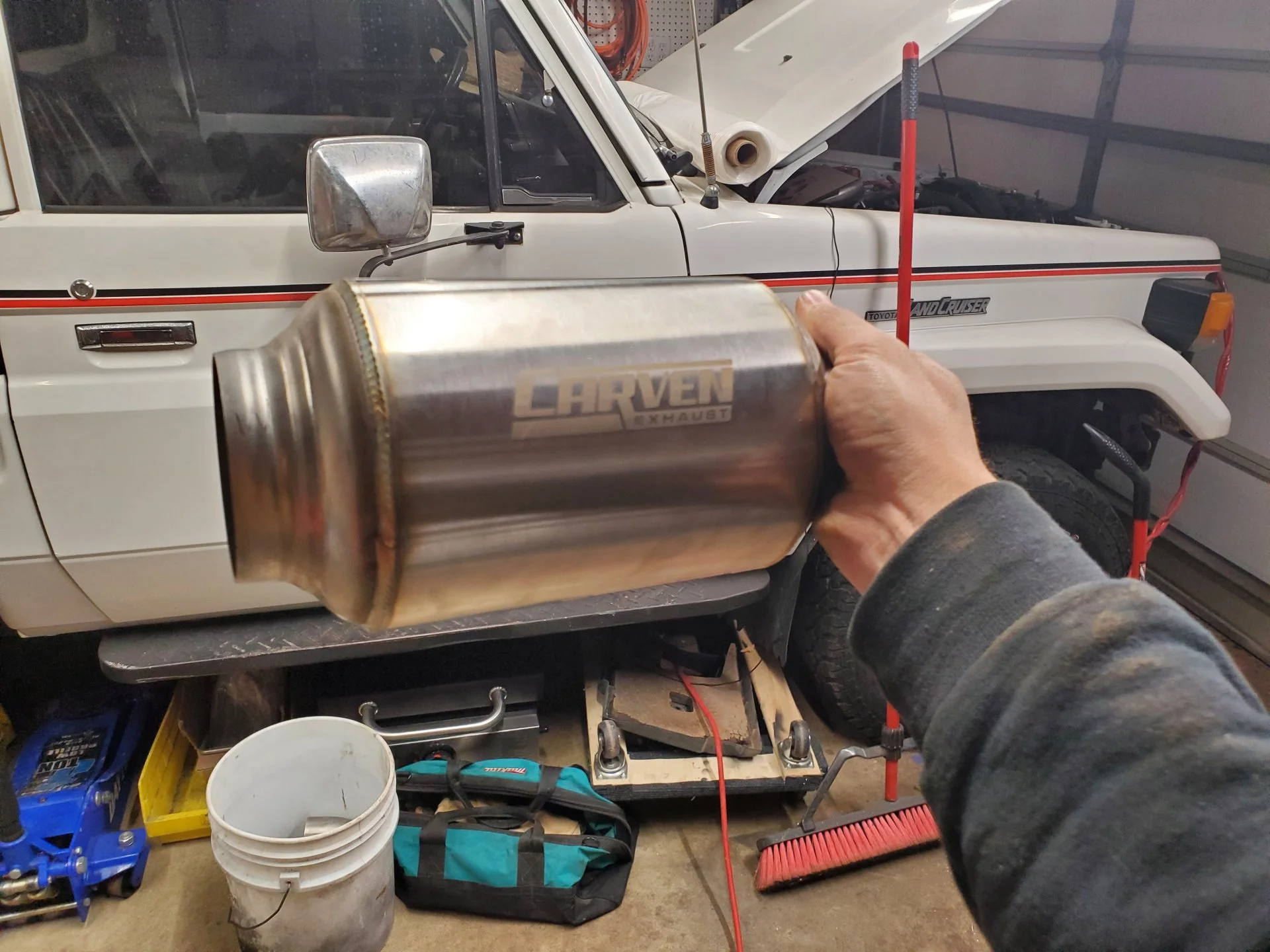

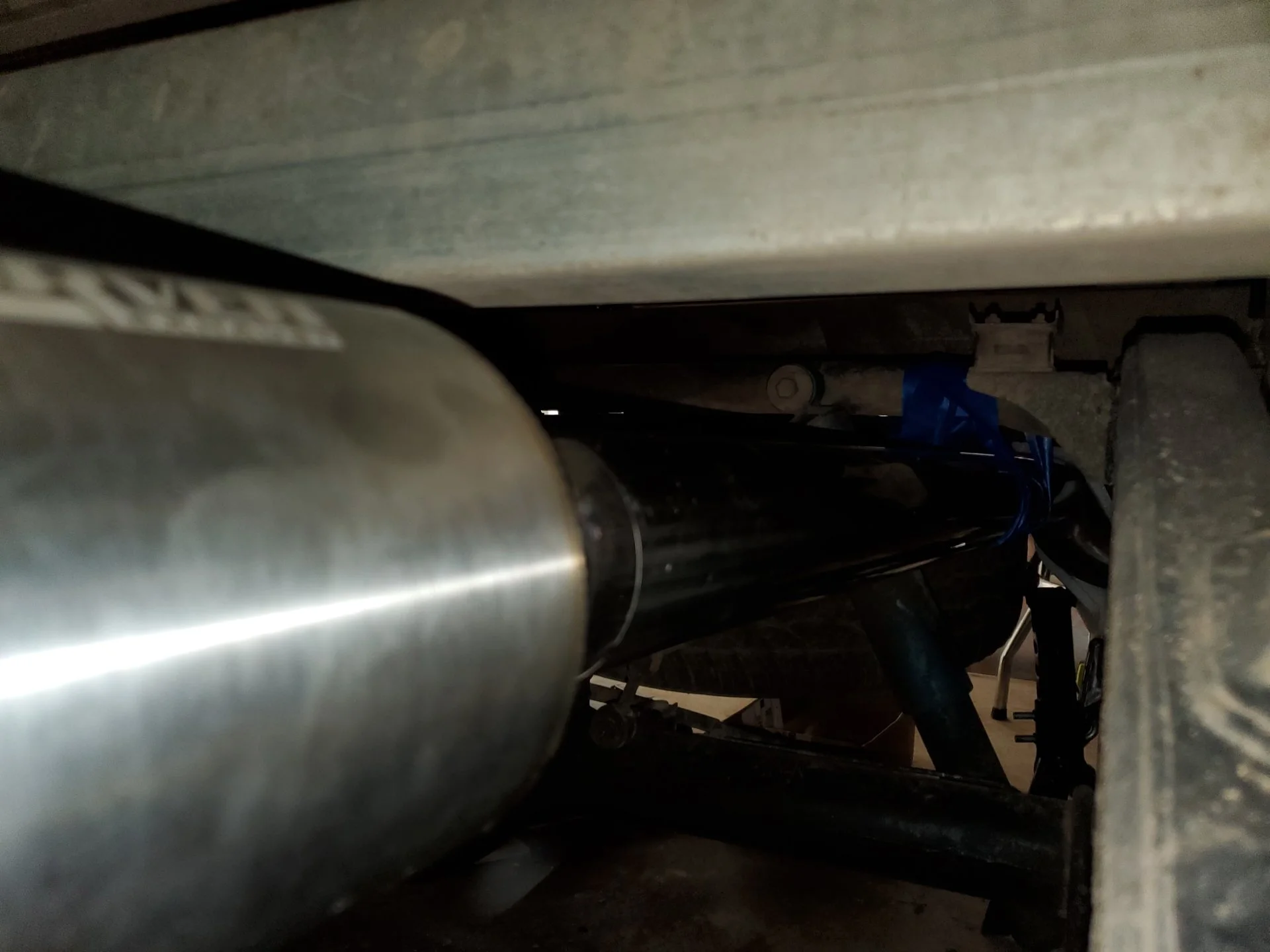

I got this "muffler" for next to nothing, so if I don't like it I'll scrap it and try something more substantial.



[oksohearmeout]



[oksohearmeout]

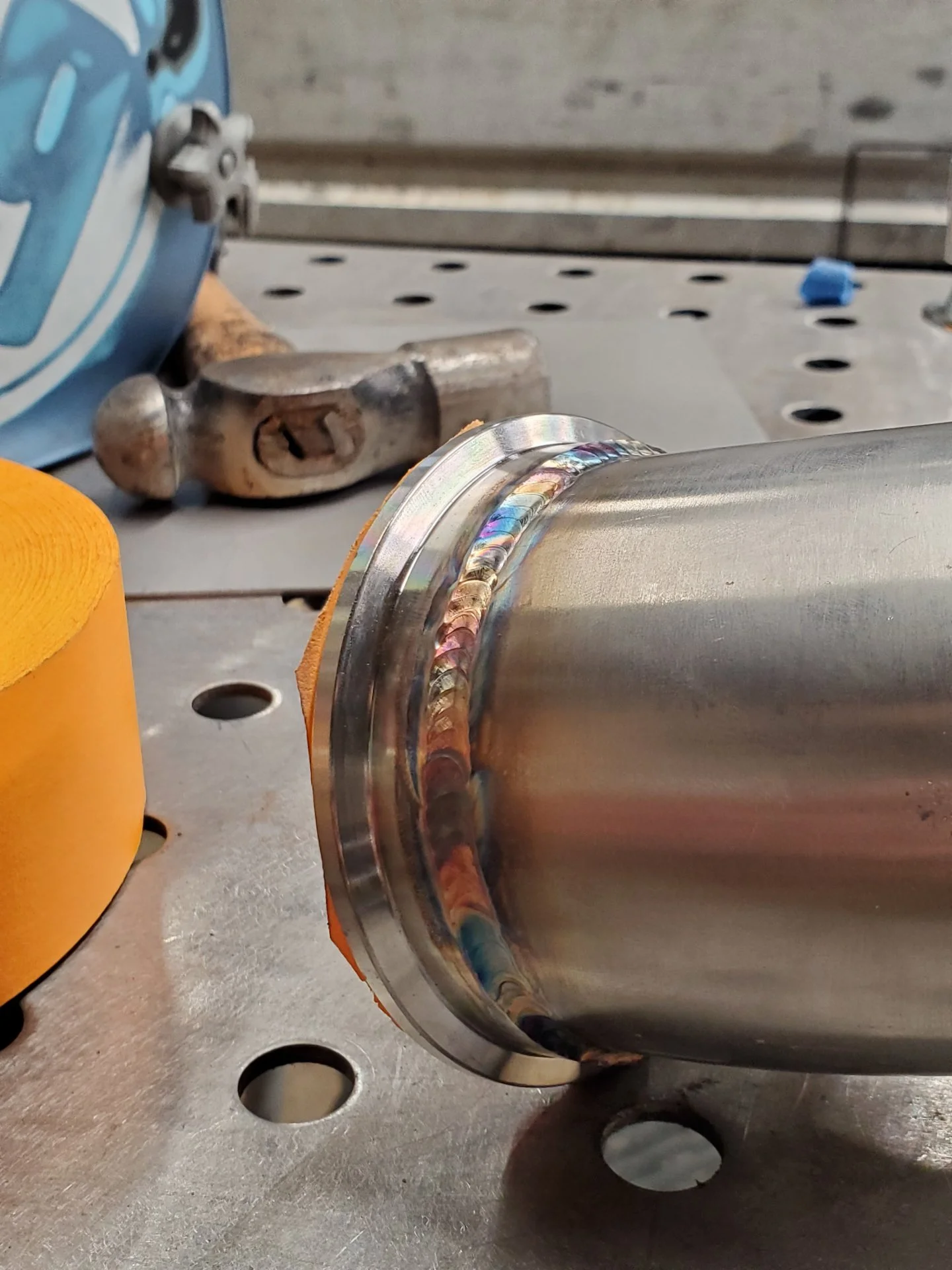

I removed the exhaust and welded it all up.

Everything was back purged per usual. No corners skipped here.

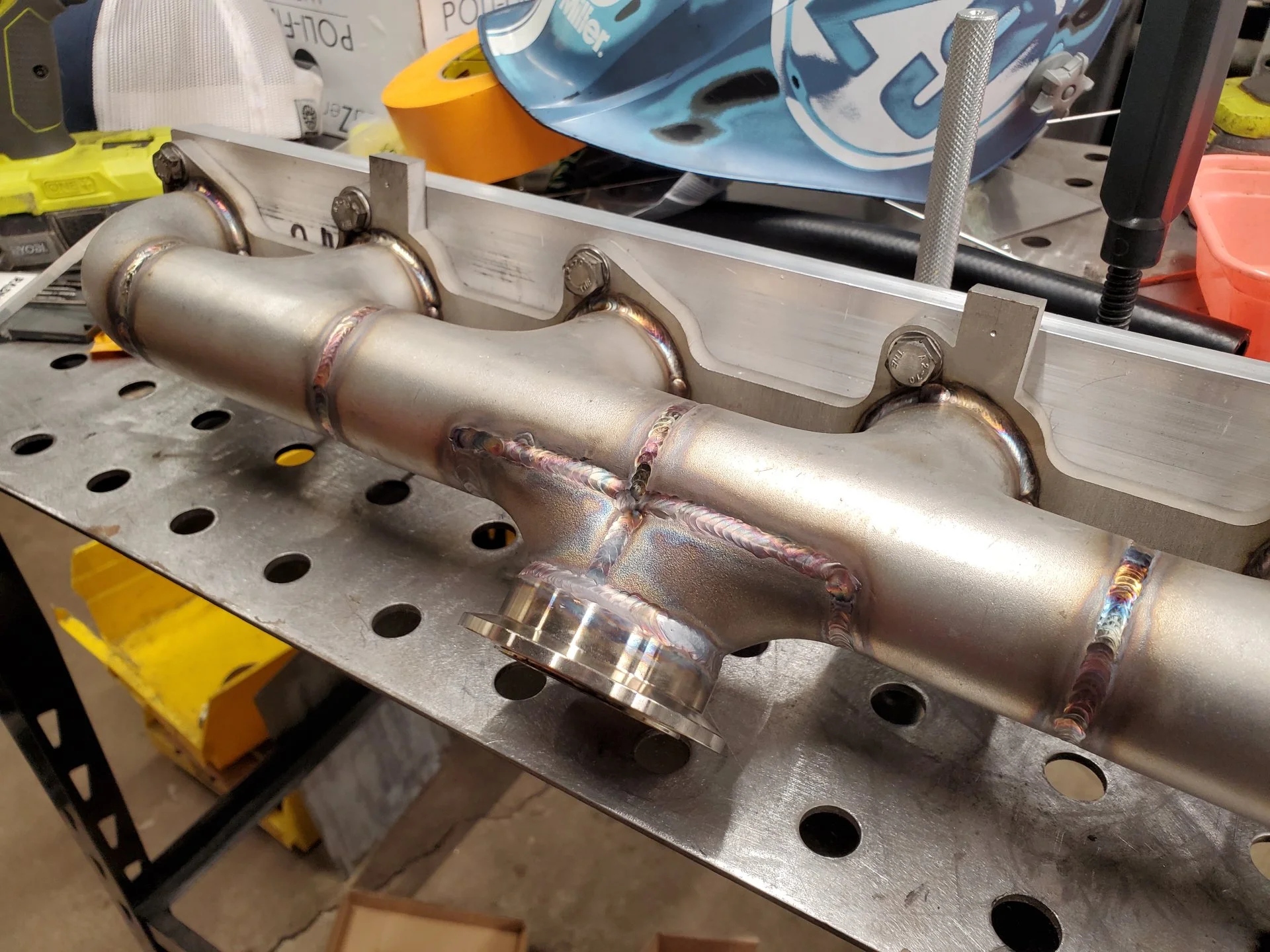

You'll see I finish welded my manifold as well.
