Rear Axle rebuild if locker won’t engage (1 Viewer)

smittycrusher

"Hey big guy, you a golfer" - Roger Dorn
SILVER Star
Joined
Aug 10, 2005
Messages
1,896
Location
ATL
Everything I read says that you are to lock the rear on the factory locked trucks if you are going to rebuild the axle.

Is this a best practice or a must do?

My rear won’t engage and I pulled the actuator off last night and disassembled. It actually looked great inside so I just cleaned the old grease, added new grease and put it back together. Still doesn’t work. I will pull it again and connect to the front actuator since it works very quickly. If it works, then I start figuring out electrical or ECU issues.

All that to say, do I have to wait until I get this sorted before I can rebuild the axle and install the RCV 300m that I just got from @cruiseroutfit ?

Last edited:

cruiseroutfit

Supporting Vendor
Moderator
Joined
Jan 9, 2003
Messages
10,394
Location
Utah
If you can get the actuator off, you should be able to pry the clutch over to engage, that way you can pull it out of the housing.

Are you planning to pull the diff or just swap shafts and rebuild the spindles/bearings?


smittycrusher

"Hey big guy, you a golfer" - Roger Dorn
SILVER Star
Joined
Aug 10, 2005
Messages
1,896
Location
ATL
So if I don’t plan on removing the third member, I don’t have to have it locked?

I plan to follow this write-up:

Joined
Nov 20, 2013
Messages
1,045
Location
PA
I R&R's the hubs once when the locker was inop. Didn't present any issues for me, but I was warned the collar can be forced off of the shift fork if the locker is not locked. YMMV...


landtank

Supporting Vendor
SILVER Star
Joined
Mar 27, 2003
Messages
20,040
Location
Groveland MA
It’s important that the rear is locked if you plan on removing the short side axle shaft. If it’s not locked and the shaft is removed the locking collar can drop out of position and you would then likely have to pull the third to reassemble everything


cruiseroutfit

Supporting Vendor
Moderator
Joined
Jan 9, 2003
Messages
10,394
Location
Utah
So if I don’t plan on removing the third member, I don’t have to have it locked?

I plan to follow this write-up:

No, you'll still want it locked, particularly if you're just sliding a shaft in an out. I was just curious how far you are going. It's easier to repair and test the locker actuator with the diff on a bench BUT it's not worth pulling the diff if you dont have to.


smittycrusher

"Hey big guy, you a golfer" - Roger Dorn
SILVER Star
Joined
Aug 10, 2005
Messages
1,896
Location
ATL
Thank you guys for all of your help. I will work on tracing the issue to the actuator, wiring or ecu. I am glad that I asked before I started pulling shafts.


mingles

GOLD Star
Joined
Nov 29, 2014
Messages
722
Location
Titusville, New Jersey

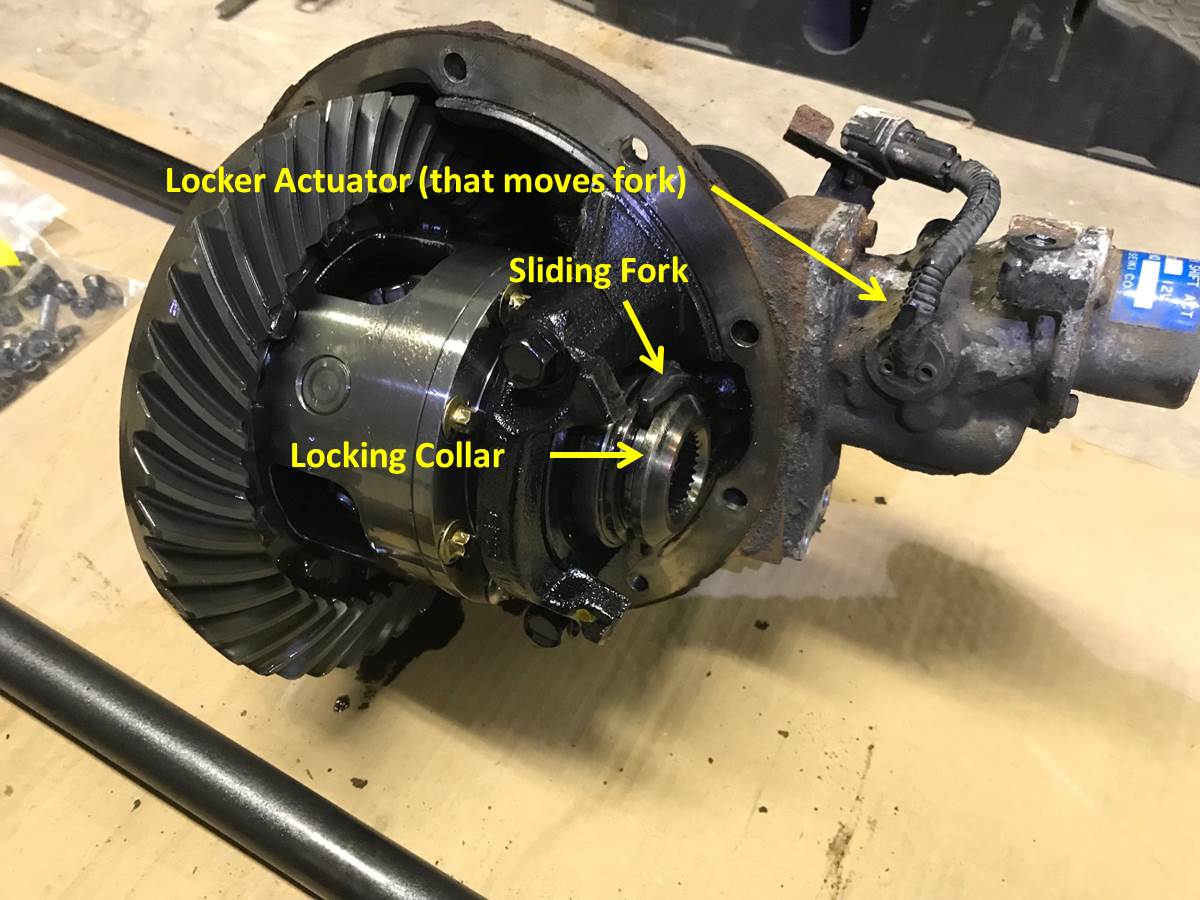

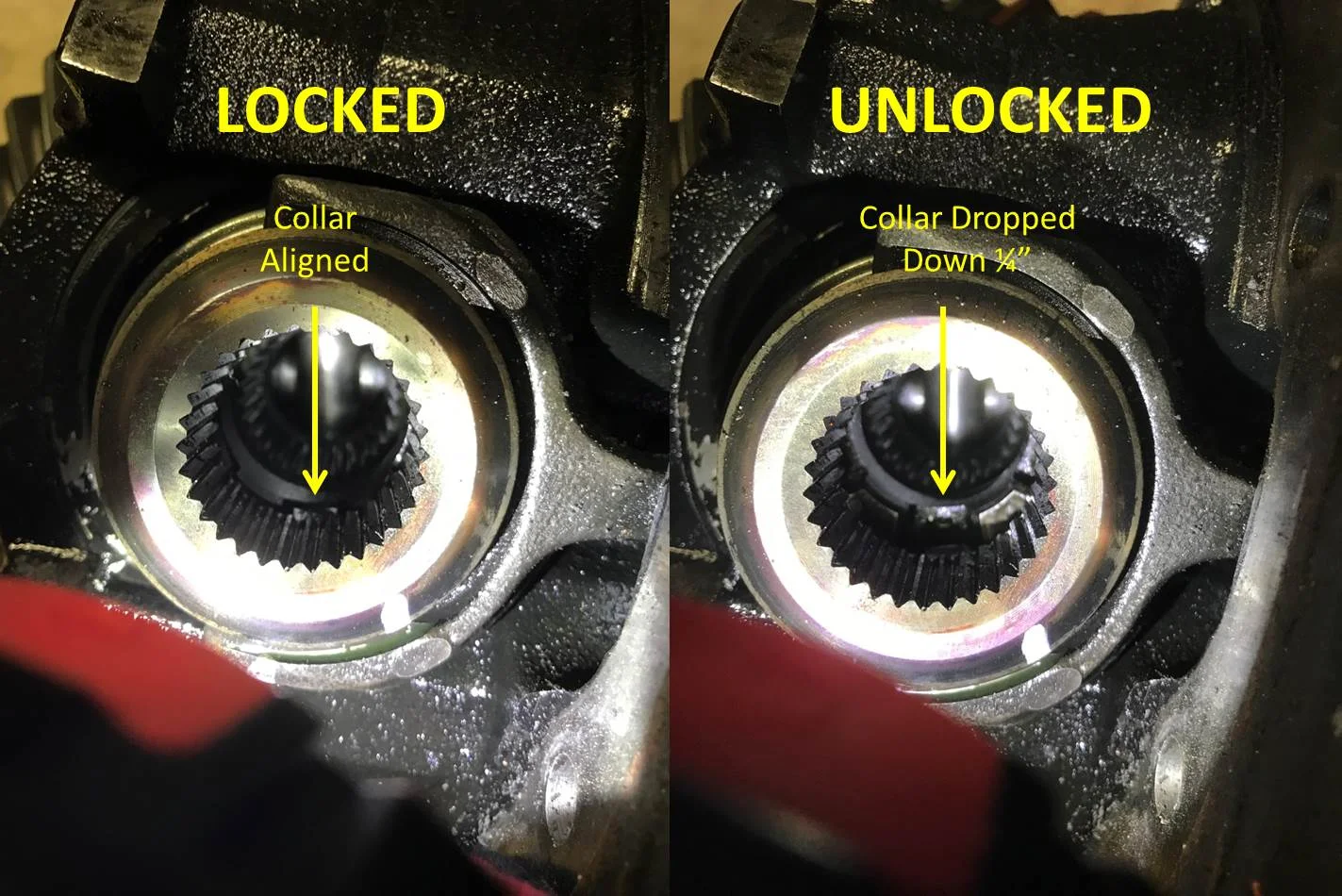

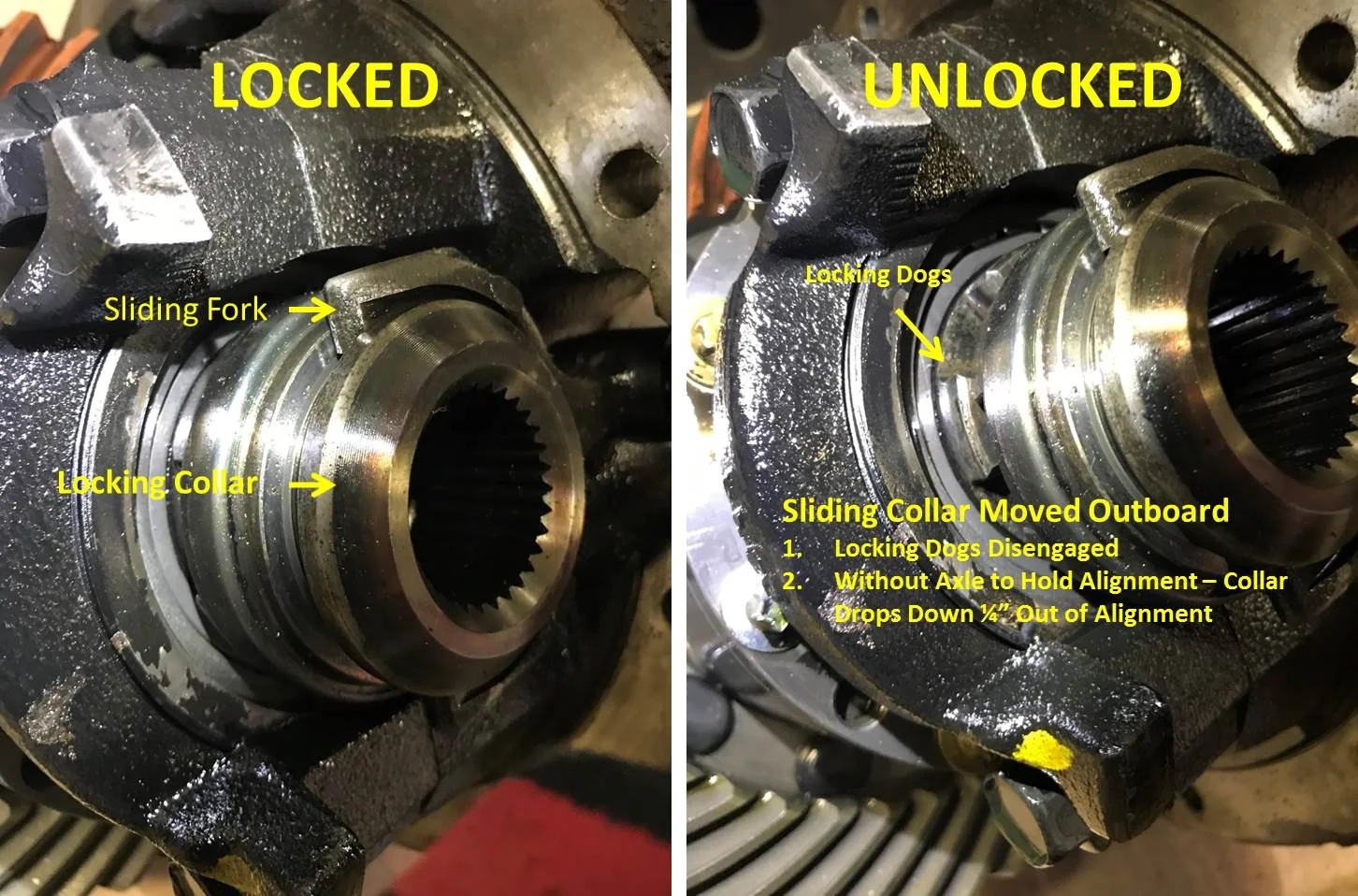

Visually this is why you should lock the actuator on the rear axle (manually or electrically) prior to pulling the short shaft.






Joined
Mar 21, 2015
Messages
359
Location
Parker, CO
What do you mean when you say that the rear wont lock? Are you judging this by the lights on the dash? or have you verified by other means (jacking up the rear and spinning the tires) that it's not working?


smittycrusher

"Hey big guy, you a golfer" - Roger Dorn
SILVER Star
Joined
Aug 10, 2005
Messages
1,896
Location
ATL
I just pulled the actuator and plugged it into the front, it works just fine. Verified the rear harness isn’t getting power with my multimeter. I guess I get to chase electrical gremlins now. I guess I should start with ECU???

btw...I was blow away with how clean and good the actuator looked when I tore it apart. I would definitely recommend making sure it is getting power before tearing the actuator apart. Rookie mistake on my end.

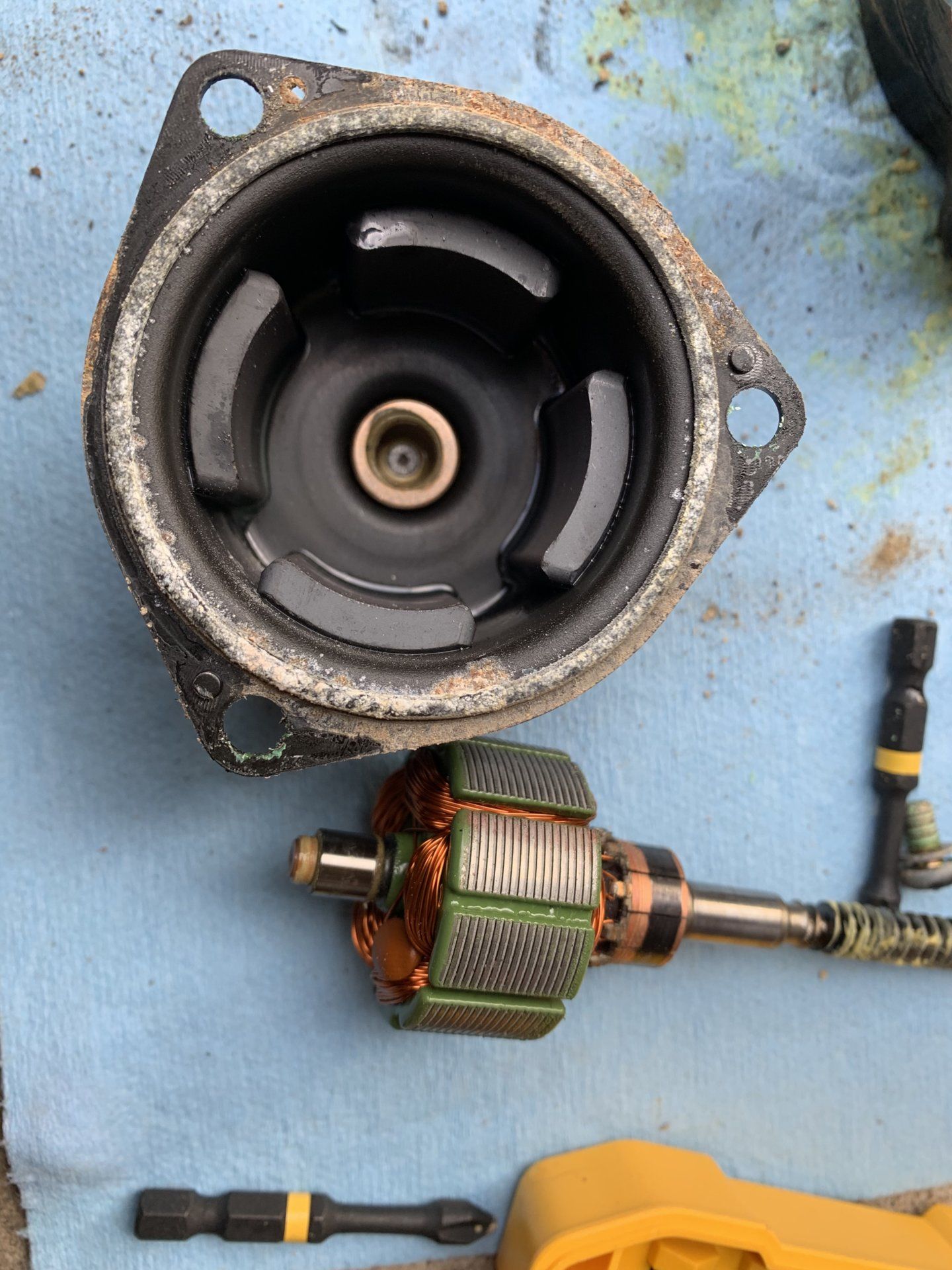

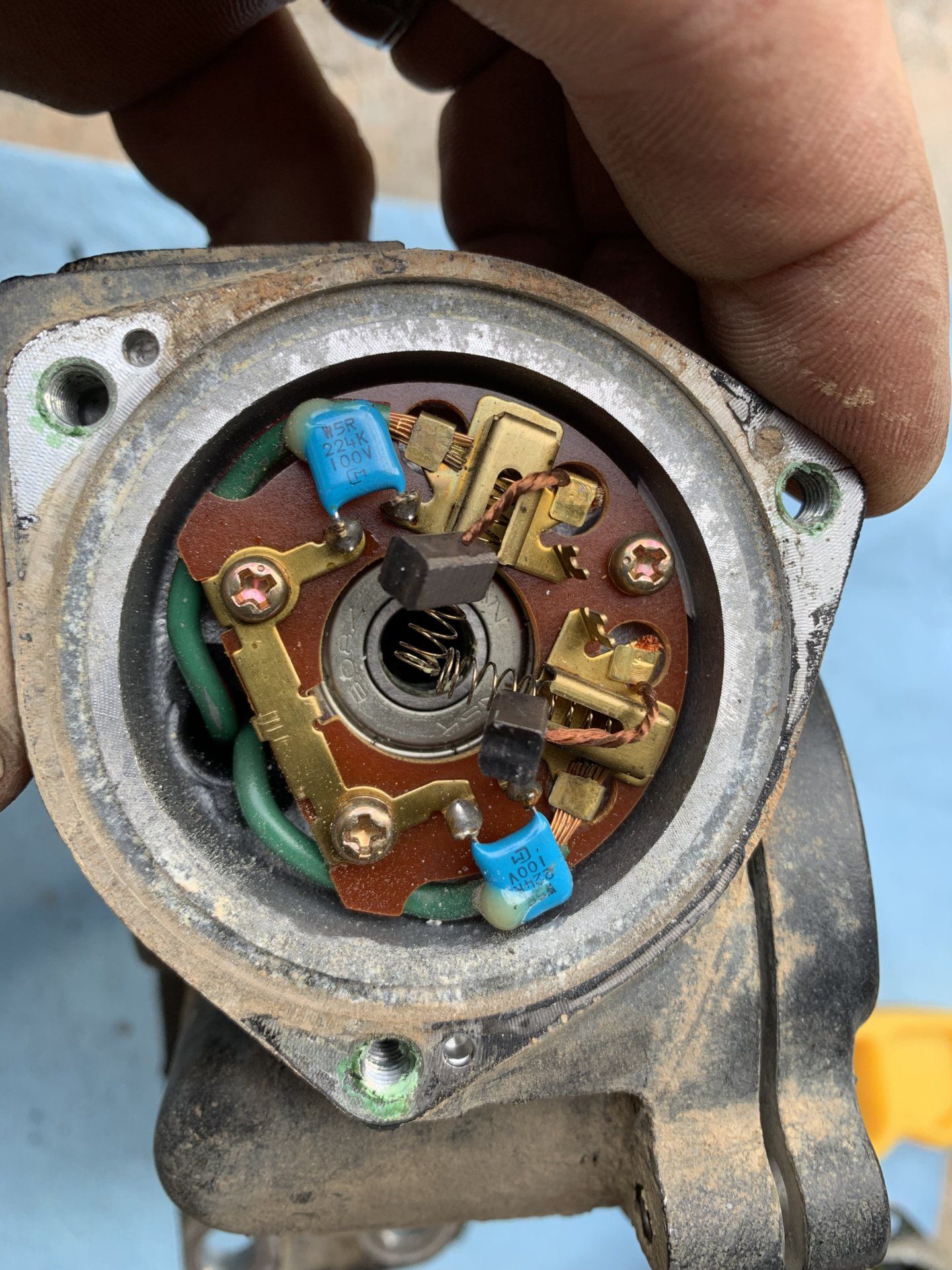

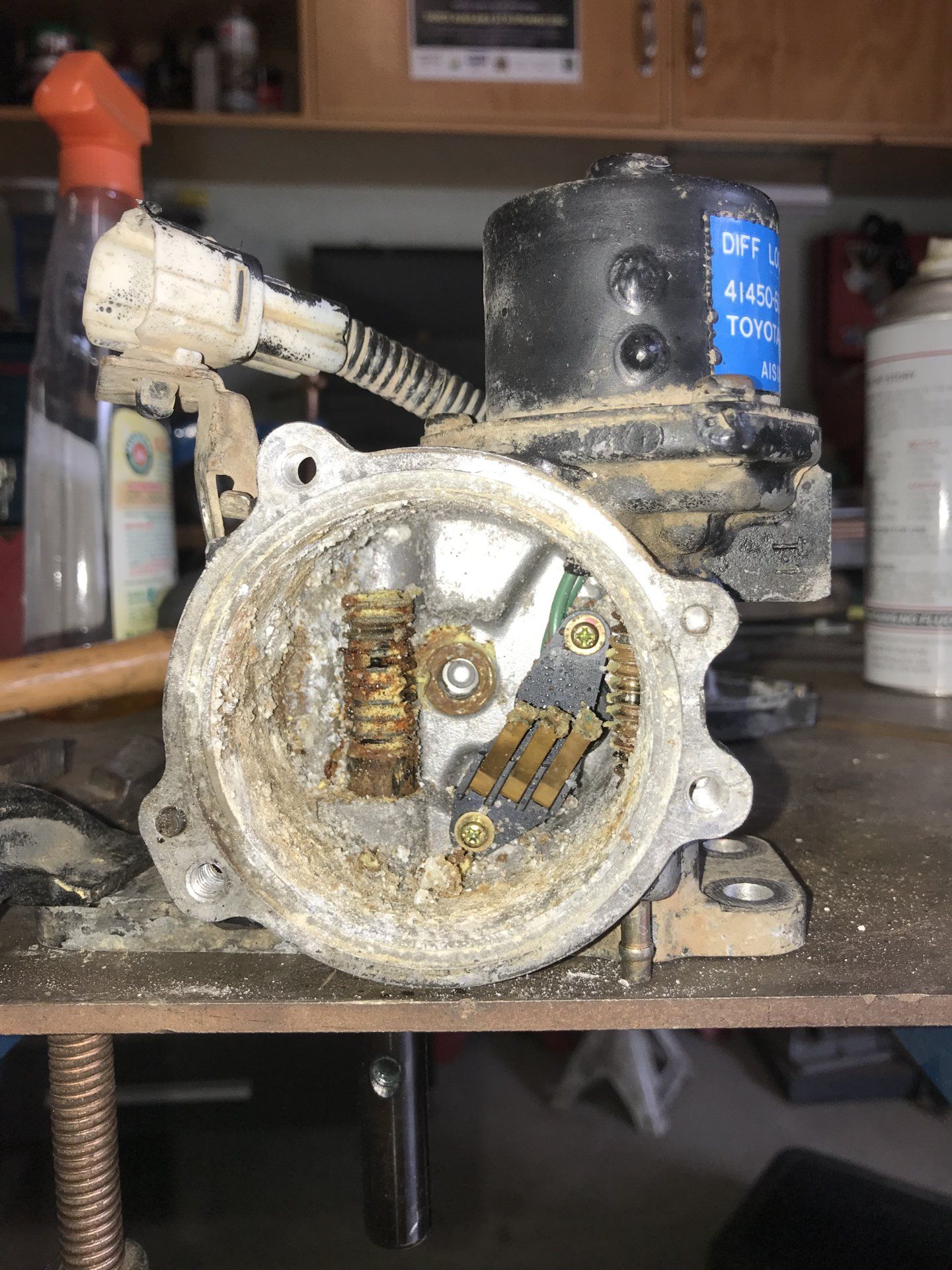

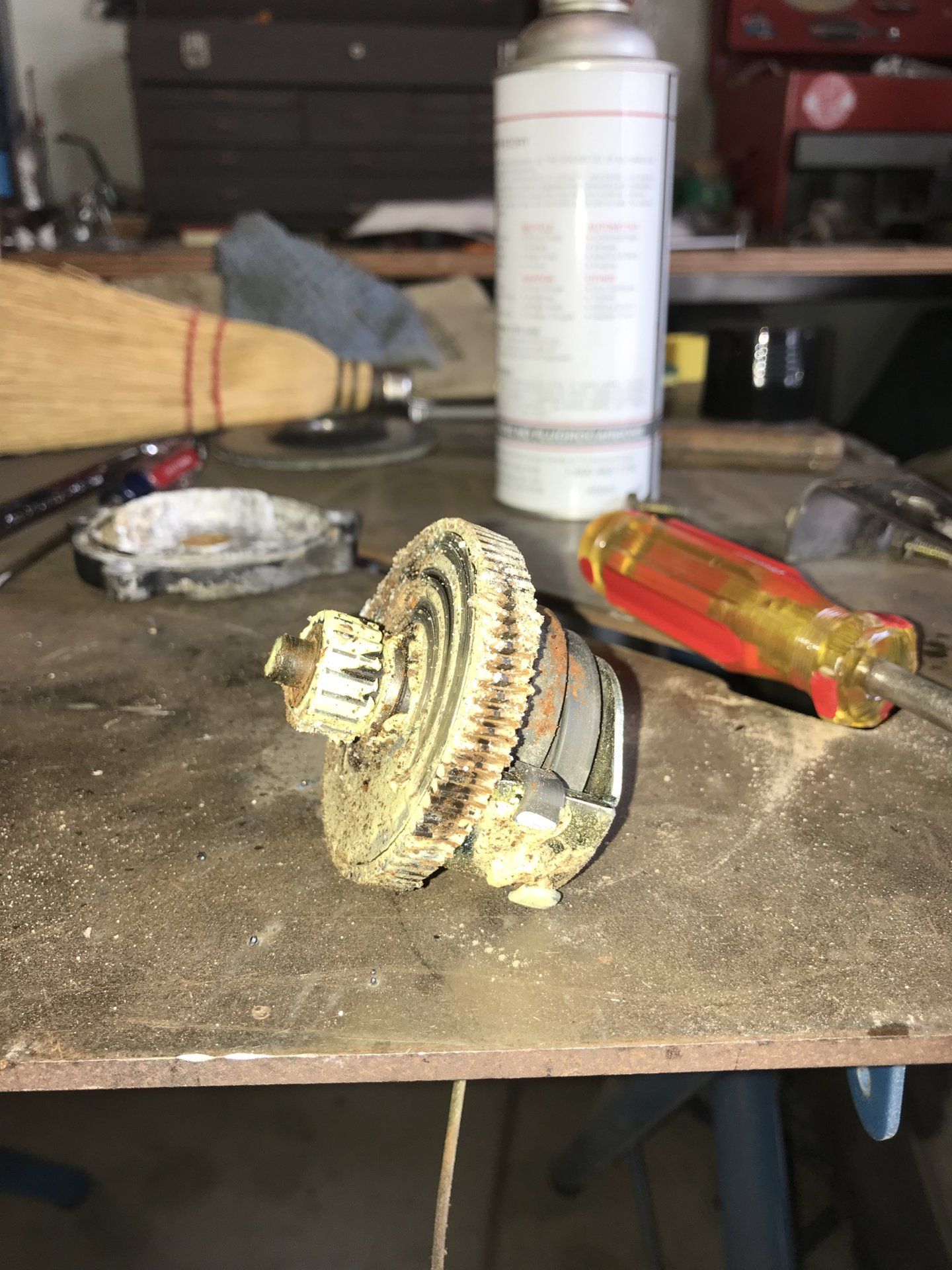

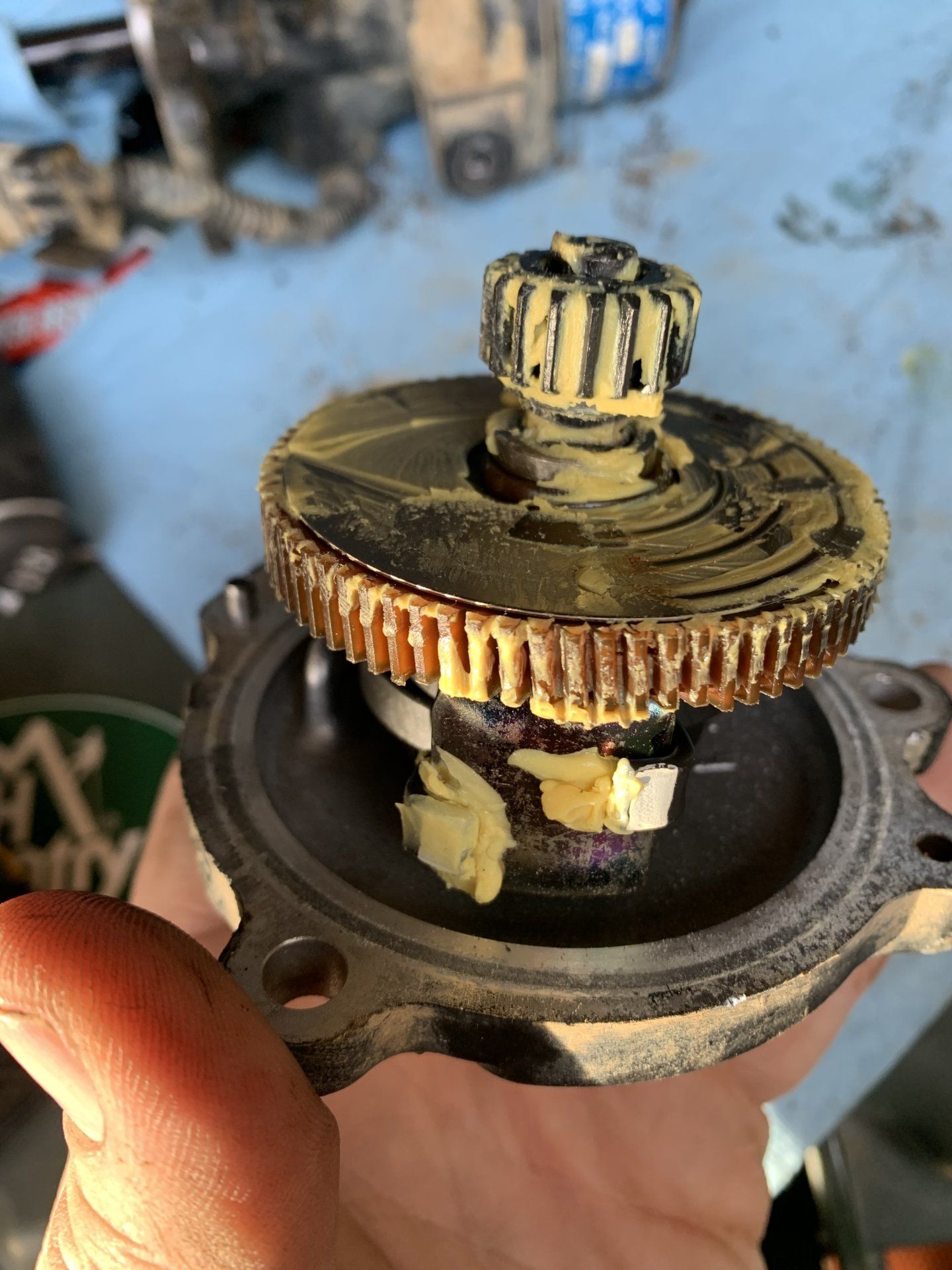

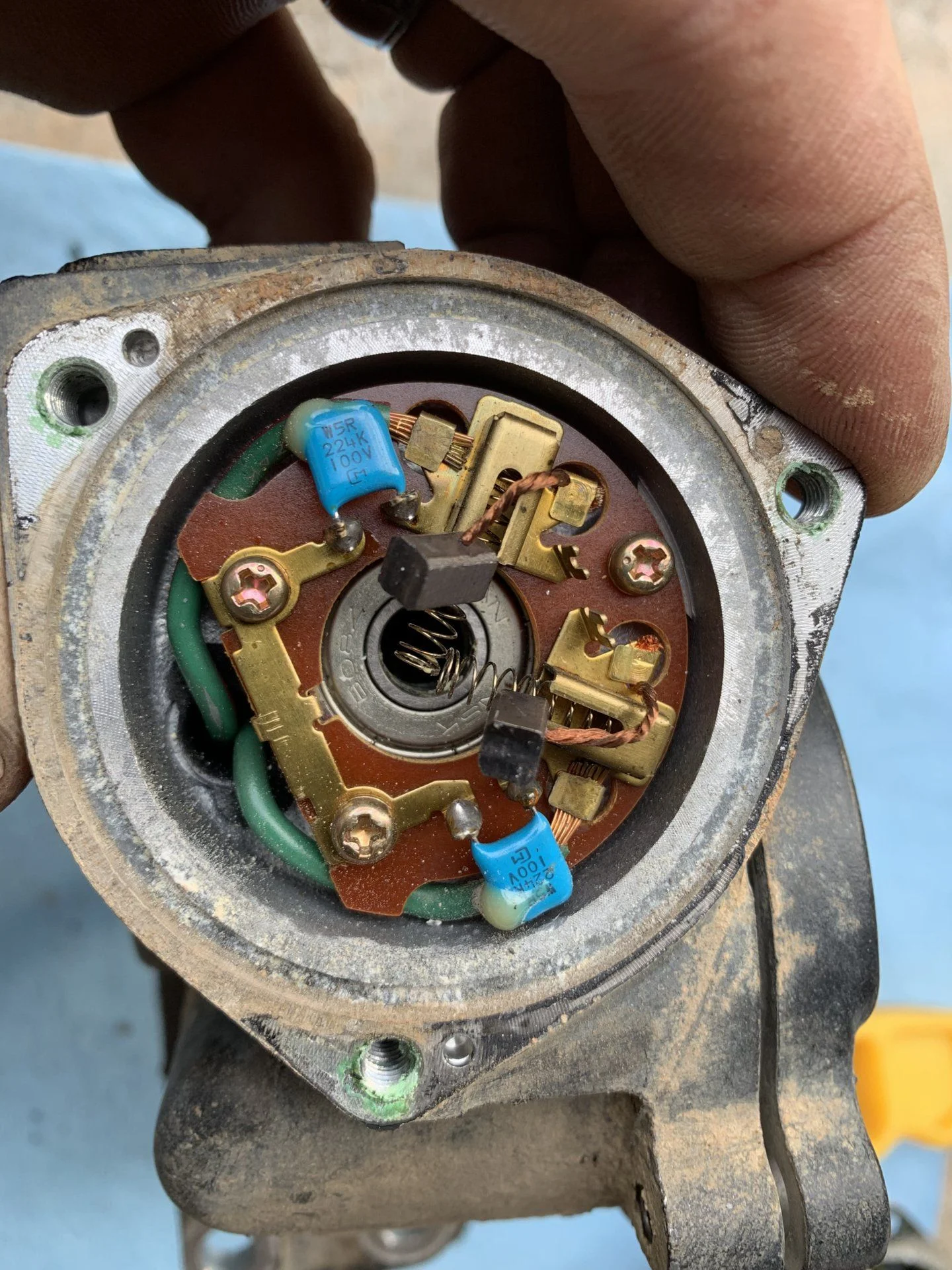

Here are photos of my internals. This truck has about 280k miles with over 20k off road. I have used this rear locker a good bit. I am very happy with how good it looks inside.







smittycrusher

"Hey big guy, you a golfer" - Roger Dorn
SILVER Star
Joined
Aug 10, 2005
Messages
1,896
Location
ATL
I assume the 99’ 100 series locker actuator is the exact same, right? I could always swap over from my 99’ just to verify the actuator is not the problem I guess. I really dread trying to find an electrical gremlin even though I am pretty confident that is what it is since the rear actuator worked just fine when I plugged it into the front.
