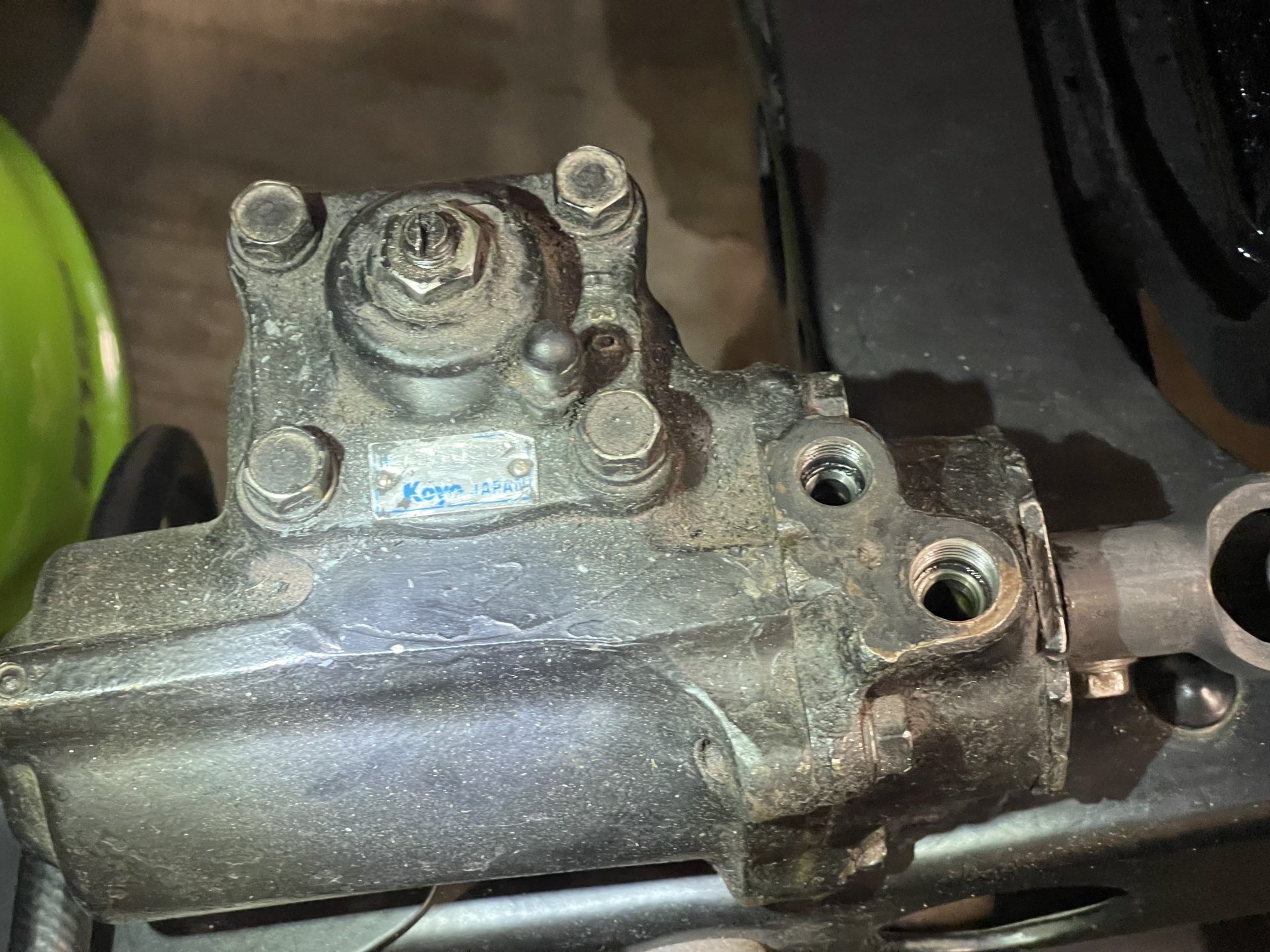

I need to get a new power steering high pressure hose made and I am looking for some assistance in identifying the high pressure port on the gearbox. The gearbox came with my ‘78 FJ40 truck when I bought it in Sep 2009.







78Cruzr

GOLD Star
Joined
Sep 30, 2009
Messages
401
Location
Evergreen, CO

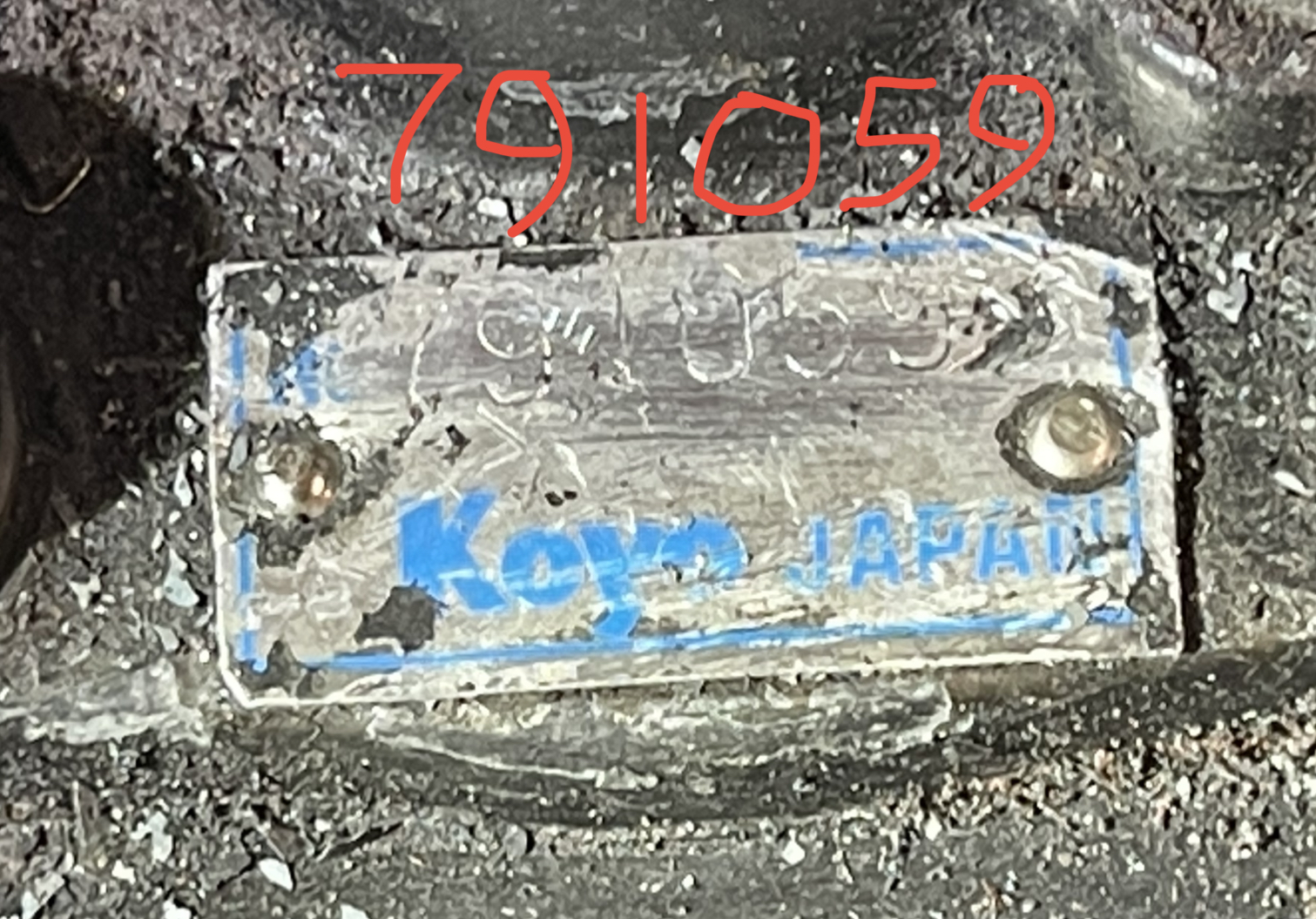

The only identifiable info on the gearbox are these markings…

791059
KOYO

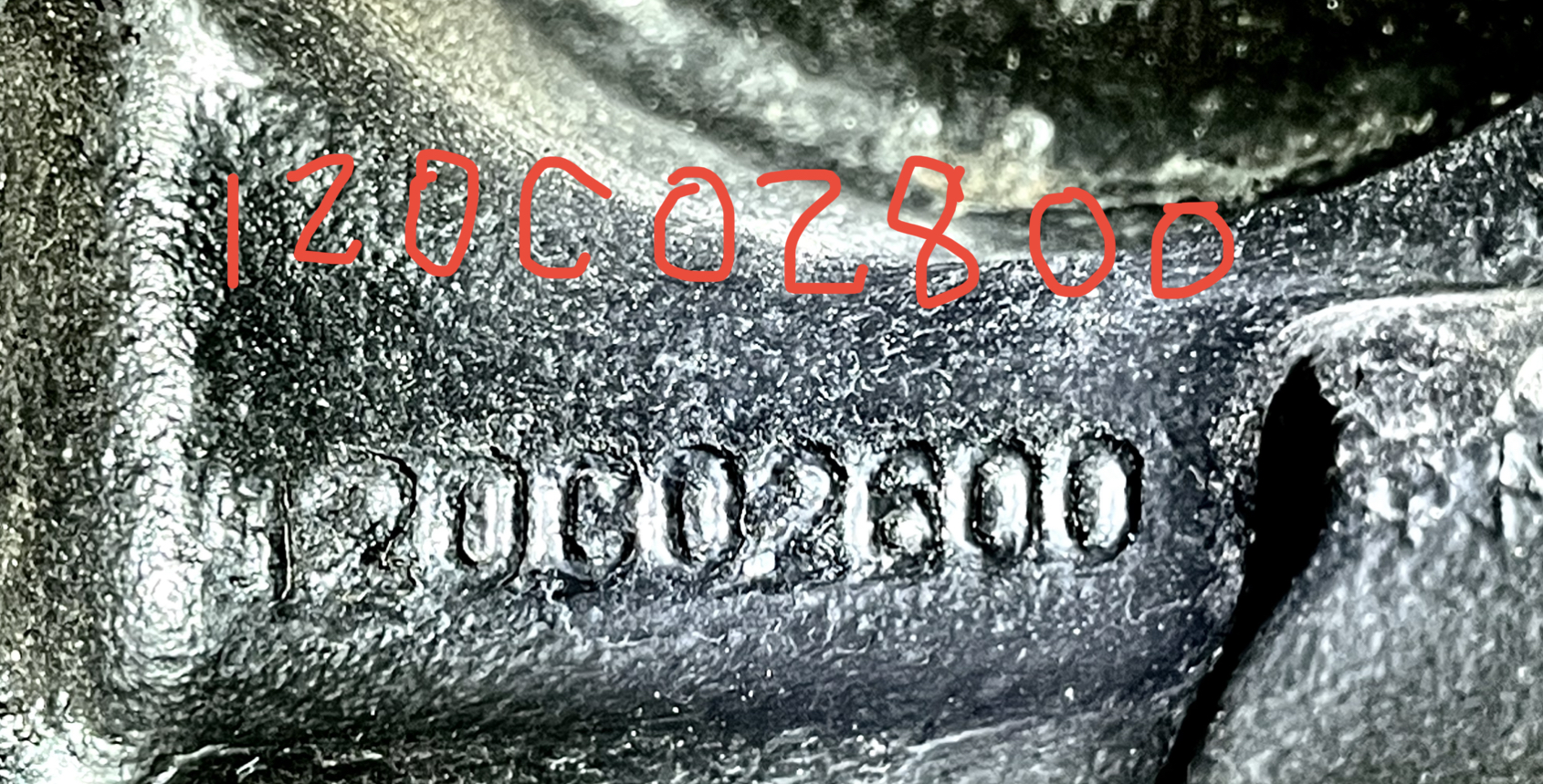

and a casted in number 120C02800 or 02600…



3_puppies

SILVER Star
Joined
Dec 2, 2002
Messages
16,635
Location
Helena MT
how many bolts hold the box to the frame?
plate doesn't look welded, looks more like a shim/spacer
are there sleeves thru the frame?
from the 2 pics, it looks sketchy


ceylonfj40nut

Waiting for Barn Time
SILVER Star
Joined
Jan 11, 2015
Messages
4,808
Location
TX
Same Qs. Needs to have sleeves between the plat and frame where the bolts go through and welded plate. Never seen a Toyota PS installed ahead of the cross member like that. Interesting concept.


78Cruzr

GOLD Star
Joined
Sep 30, 2009
Messages
401
Location
Evergreen, CO
Thank you for your interest and concerns… three bolts: two thru sleeves inside the frame. Third bolt thru a welded sleeve on the bottom of the frame. Plate does not appear to be welded to the frame.

Any insights on my original question?

I did find that on a Saginaw gearbox the low pressure port is the one closest to the input shaft and larger than the high port. On the gearbox above, the threaded portion of the two ports measure 16mm & 14 mm ID

Last edited:

78Cruzr

GOLD Star
Joined
Sep 30, 2009
Messages
401
Location
Evergreen, CO
The 16mm one should be the high pressure side. All of the times I've bought AN adapters that is the size needed for the high pressure side.
That was my original guess but subsequent research has lead me to think the high pressure or input port is the smaller, 14 mm one. Really wanted to see what others know.
