Builds POTM - March, 2014 - Javelina By Pablo Cruise

[xtiaan2000]

Wow!
What a peach!



[PabloCruise]

Here is what's happening next for Miss Javelina:



[PabloCruise]

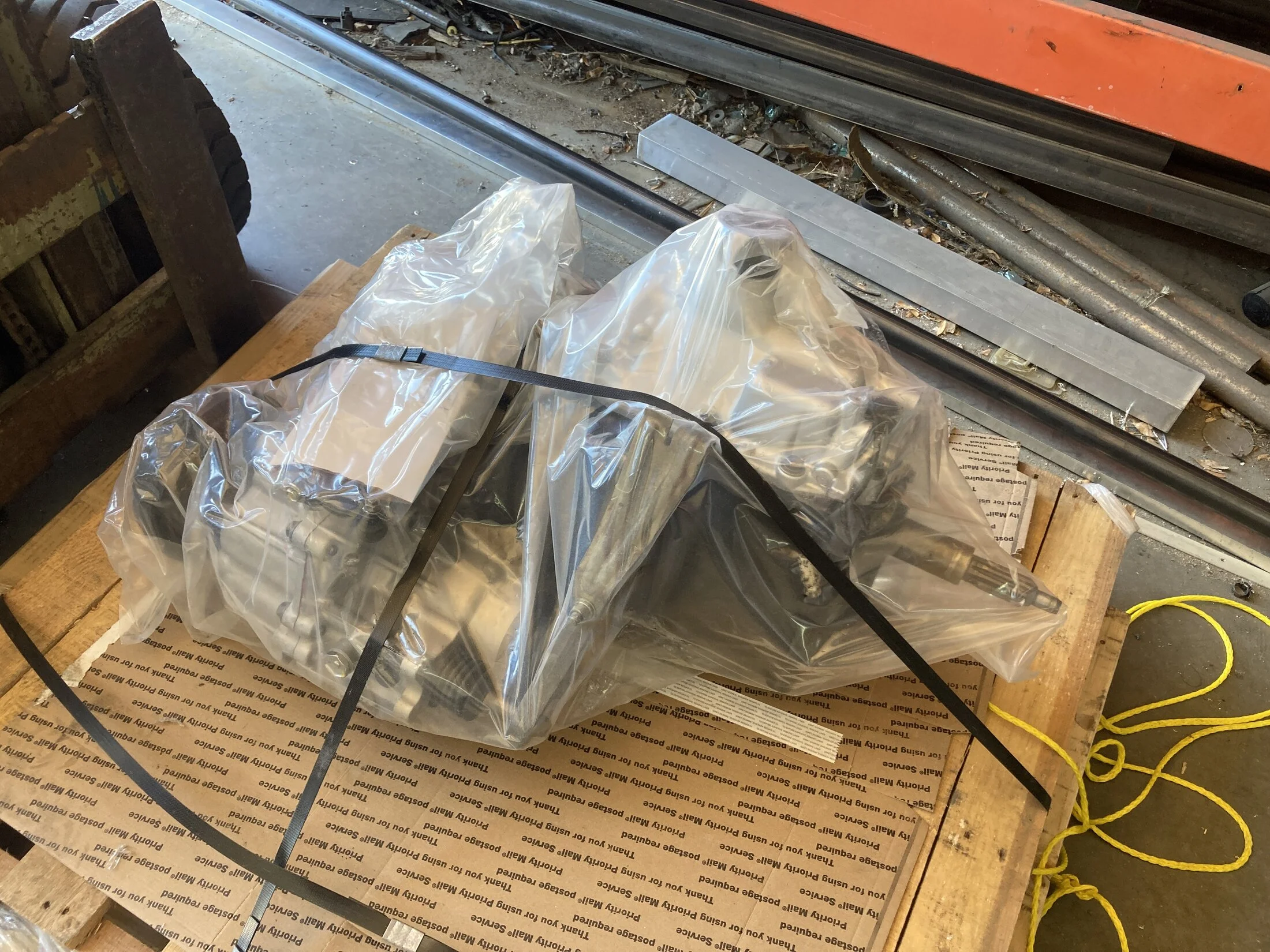

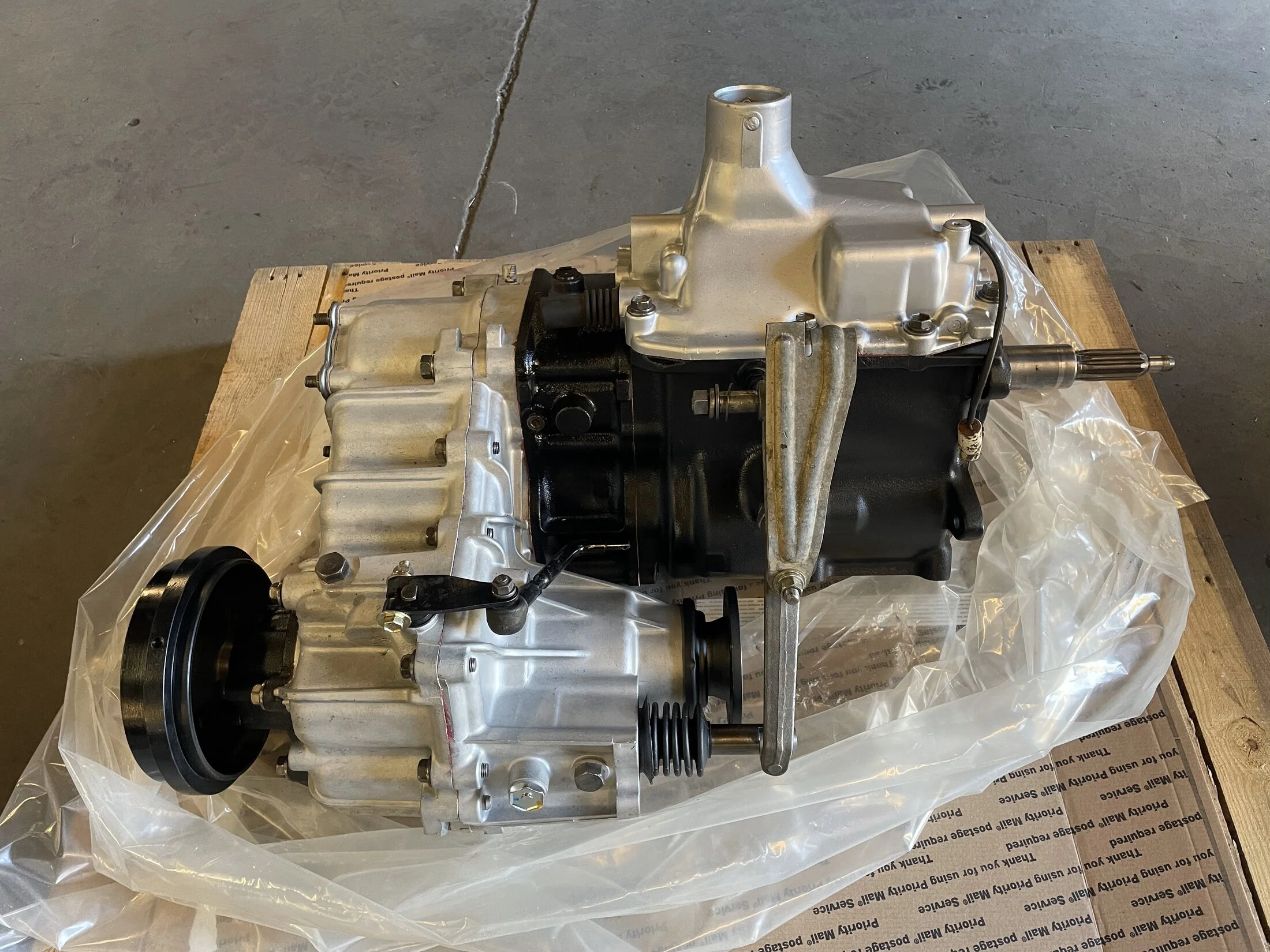

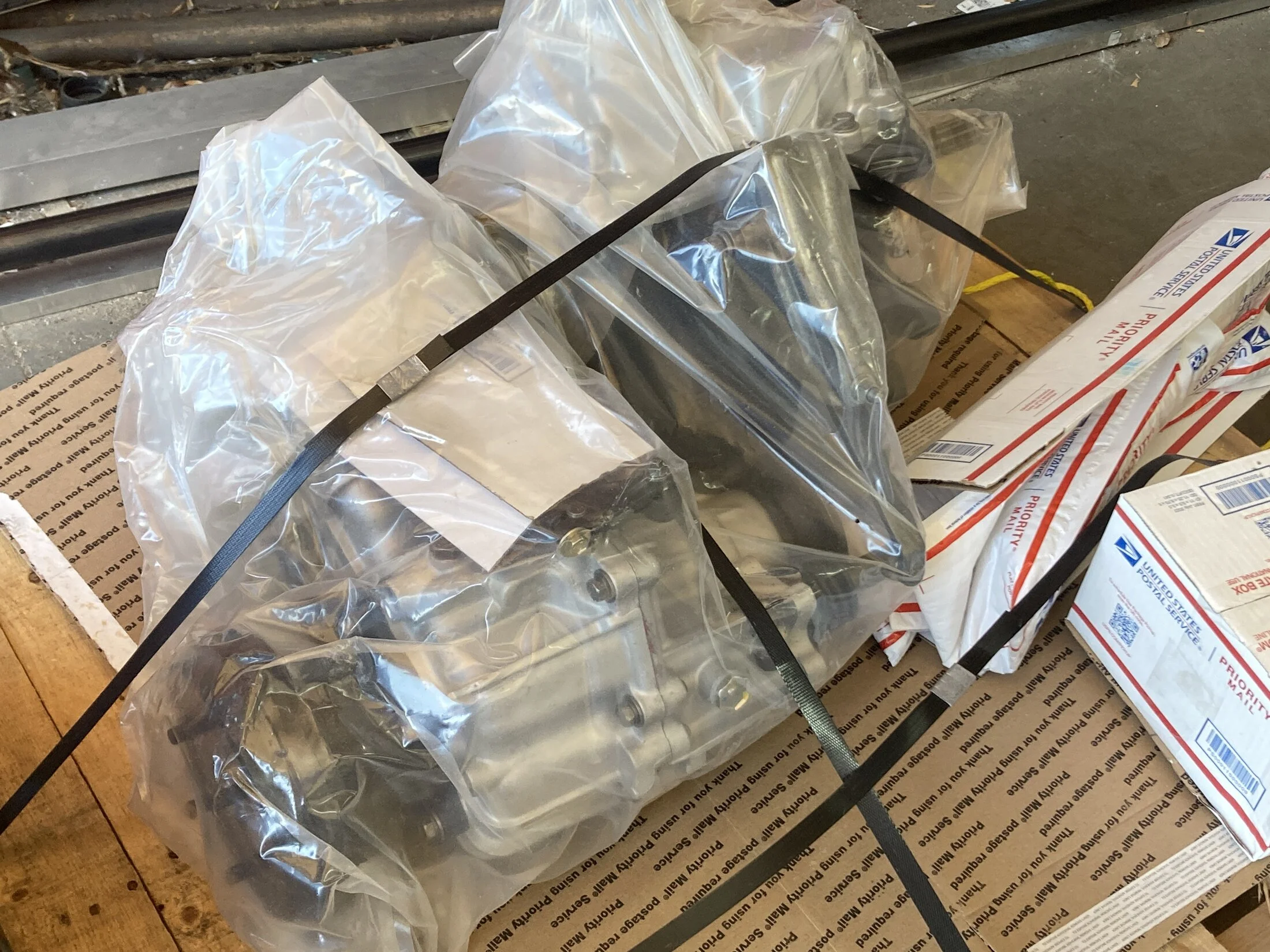

Some better pictures from before they wrapped it for shipping:



[scrapdaddy]

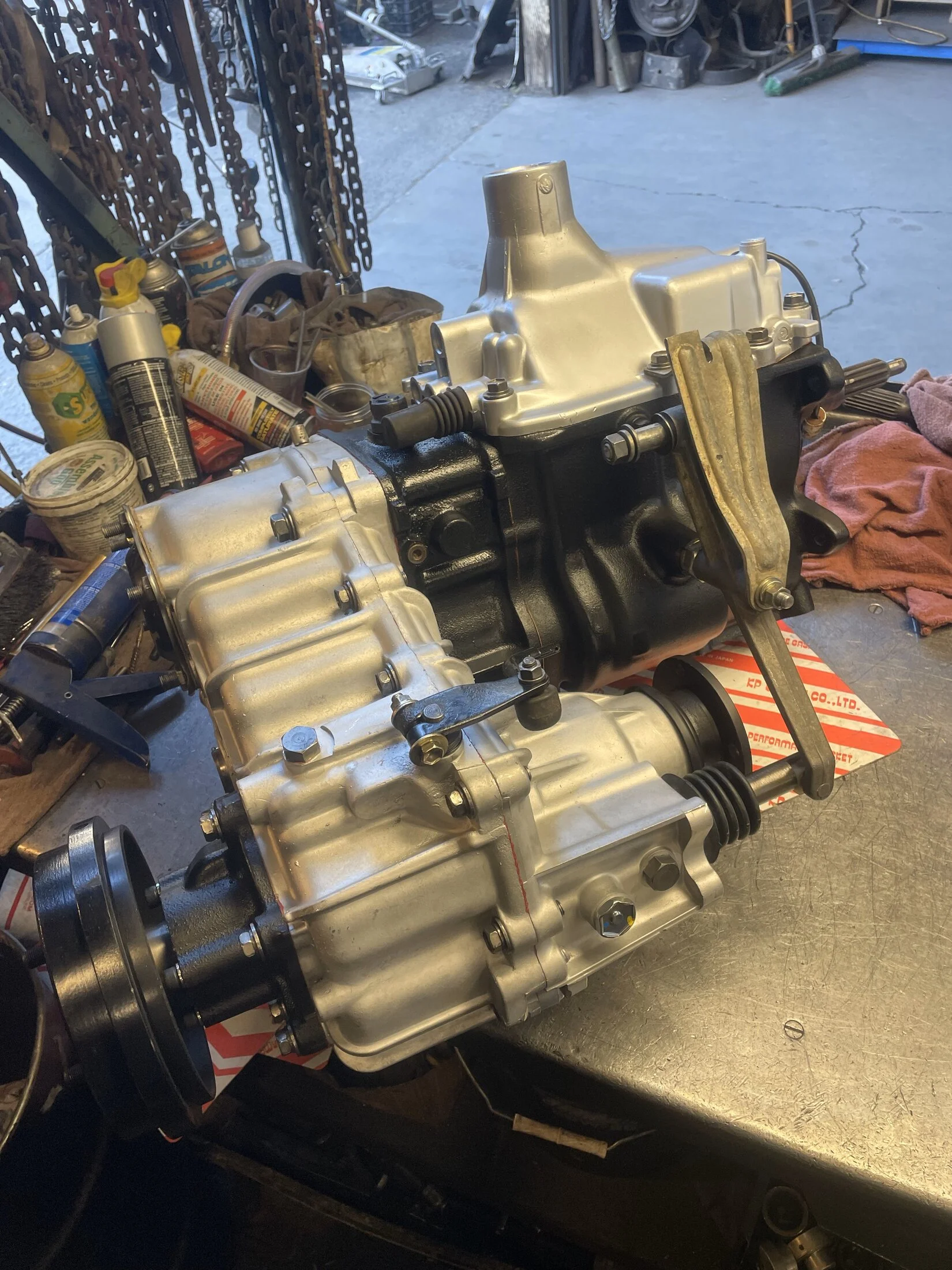

Five speed and split case, nice!



[PabloCruise]

Five speed and split case, nice!

Here we go!
See if I can finger this out...



[scrapdaddy]

Yeah, some small surgery to the Javelina, but hardly noticeable when healed. Project creep, new clutch, driveshafts, twin sticks, etc.



[PabloCruise]

Yeah, some small surgery to the Javelina, but hardly noticeable when healed. Project creep, new clutch, driveshafts, twin sticks, etc.

Definitely new clutch! That one that is in there is not very smooth. I don't like the feel when starting from a dead stop.

Driveshafts - yes. Once I get everything in I will measure twice and send the shafts out for alteration.



[PabloCruise]

Yeah, some small surgery to the Javelina, but hardly noticeable when healed. Project creep, new clutch, driveshafts, twin sticks, etc.

One thing I am wondering is if I can keep using the stock skid plate. When I dropped it I thought it would be nice to send it out for powder coat, but I think I better make sure everything fits first...



[PabloCruise]

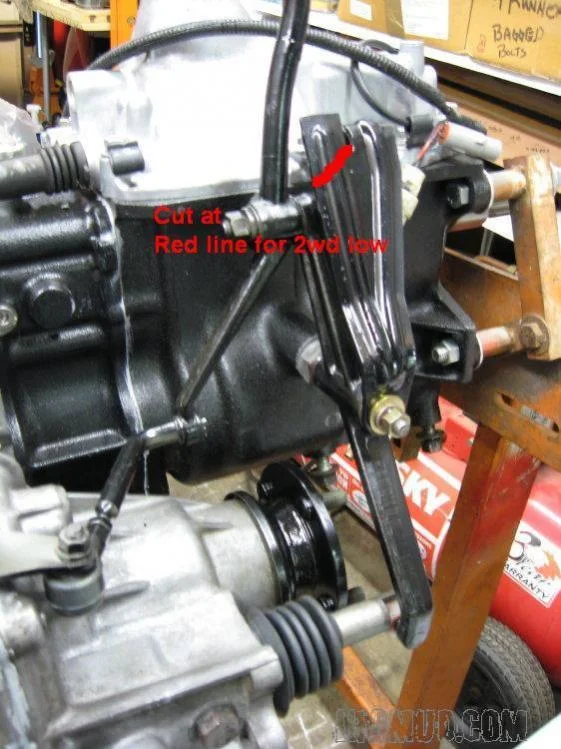

And happy to see that I can do the 2-Lo mod w/ the split case and factory linkage:

FJ60 2lo with stock transfer case EASY mod

ok well i decided to finally pull my transmission outta my truck yesterday and remembered reading something about 2lo on a stock transfer case... so before i worked on taking out my tranny i decided to make the 2 lo work. This is an EASY mod and can be done in about an hour and a half if your...

forum.ih8mud.com



[PabloCruise]

Here is some fun info on the split case t-case, courtesy of Kurt @cruiseroutfit

Land Cruiser Transfer Split-Case Transfer Case Information

"Split-Case" Transfer Cases came factory in 8/80' - 1/90' FJ40, FJ60 and FJ62 Land Cruisers. They derived the "split" name as they require being "split" to remove or install them on the vehicle unlike the earlier 1 piece cases. These cases came in at least 5 different configurations, most...

cruiserteq.com



[PabloCruise]

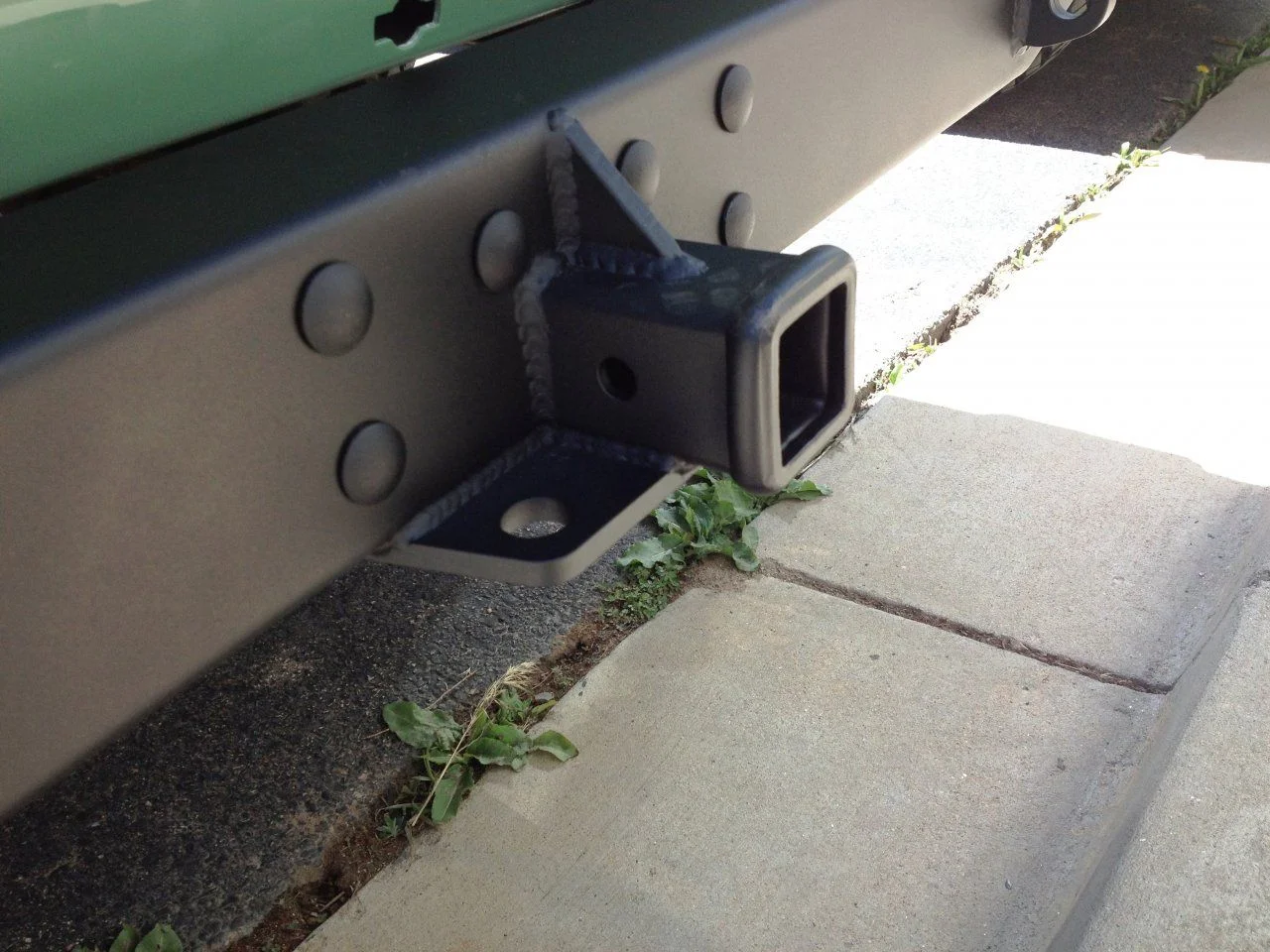

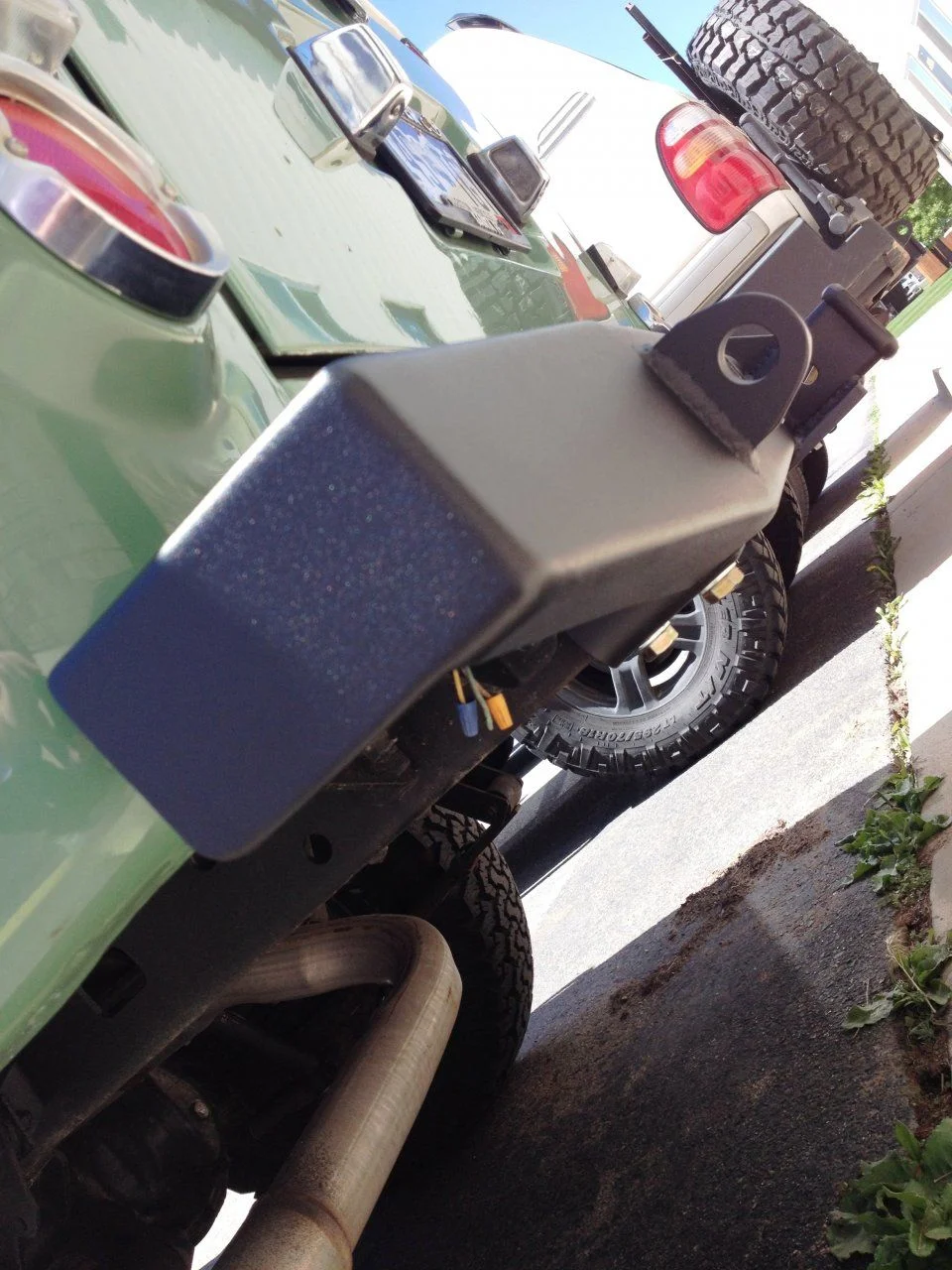

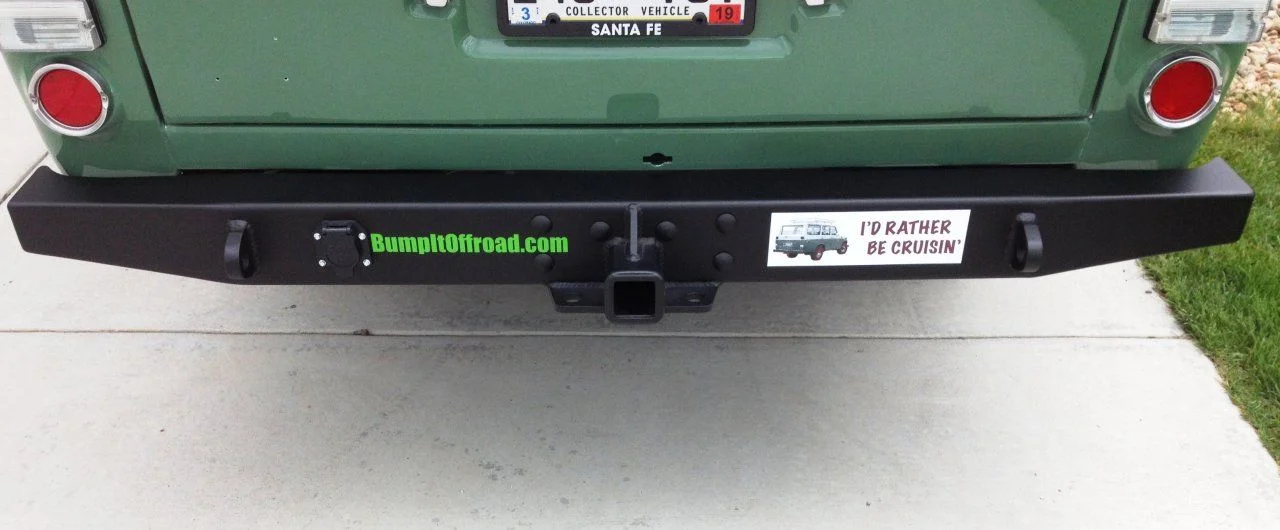

And the install at Bump It Offroad:

View attachment 935000 View attachment 935001 View attachment 935002 View attachment 935003

And wow - 10 years since the Bump It Offroad bumper for the Pig!!!

Is it me, or is time just completely different now?!?



[PabloCruise]

I found this awesome @Pigeaten post showing the PTO unit for a split case: How is everyone doing? - https://forum.ih8mud.com/threads/how-is-everyone-doing.1200097/page-105#post-15318615

Does anyone know if the output flange changed when they went to the split case? That flange looks awful close to my PTO unit that originally came on my Pig.

Split case PTO, from Don's post:



[PabloCruise]

This was the thread I was looking for!

Some details about H55F + split case into a 55.

Courtesy of @wngrog :

Pig drivetrain questions- 2F/H55/Splitcase

I have a 1977 FJ-55 with stock driveline that is going to be getting a 81 Mosley Motors 2F and Valley Hybrids H55/Split Case Questions for those that have swapped new drivelines into FJ55s On the engine. I would love to ditch the loud ass fixed plastic fan for one with a clutch but there...

forum.ih8mud.com



[PabloCruise]

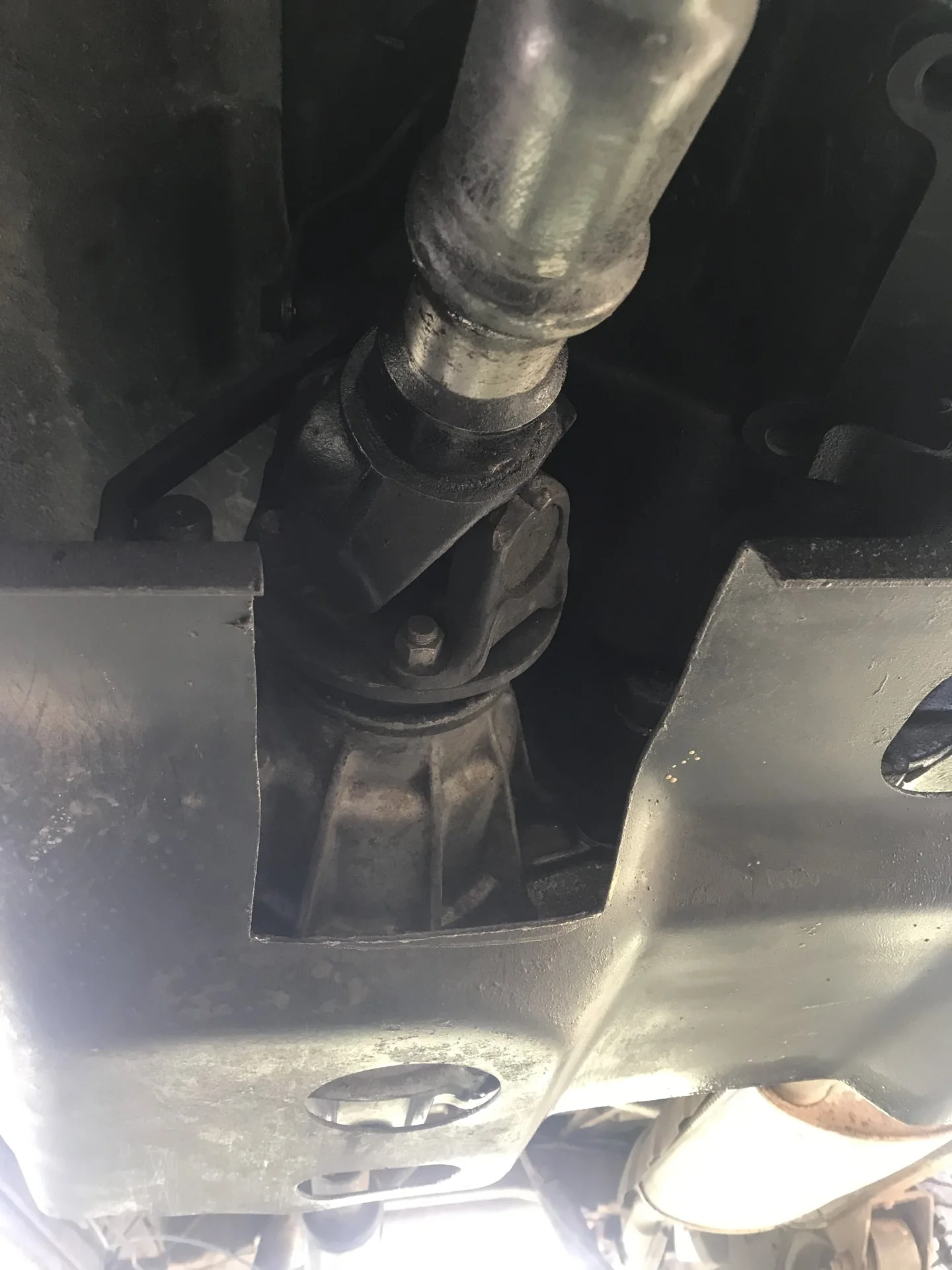

It looks like @Voodoocruisers notched the front of the skidplate, but also is running shackle reverse:

Pig drivetrain questions- 2F/H55/Splitcase

Cool thread. An H55 swap in my 76 is on the "maybe" list. Does the top cover that the H55 comes with work well on the piggie? I am co concerned about shifter placement. Thanks. Subscribed, thanks for sharing.

forum.ih8mud.com



[PabloCruise]

Great picture here @wngrog : Pig drivetrain questions- 2F/H55/Splitcase - https://forum.ih8mud.com/threads/pig-drivetrain-questions-2f-h55-splitcase.1110817/page-4#post-12243935

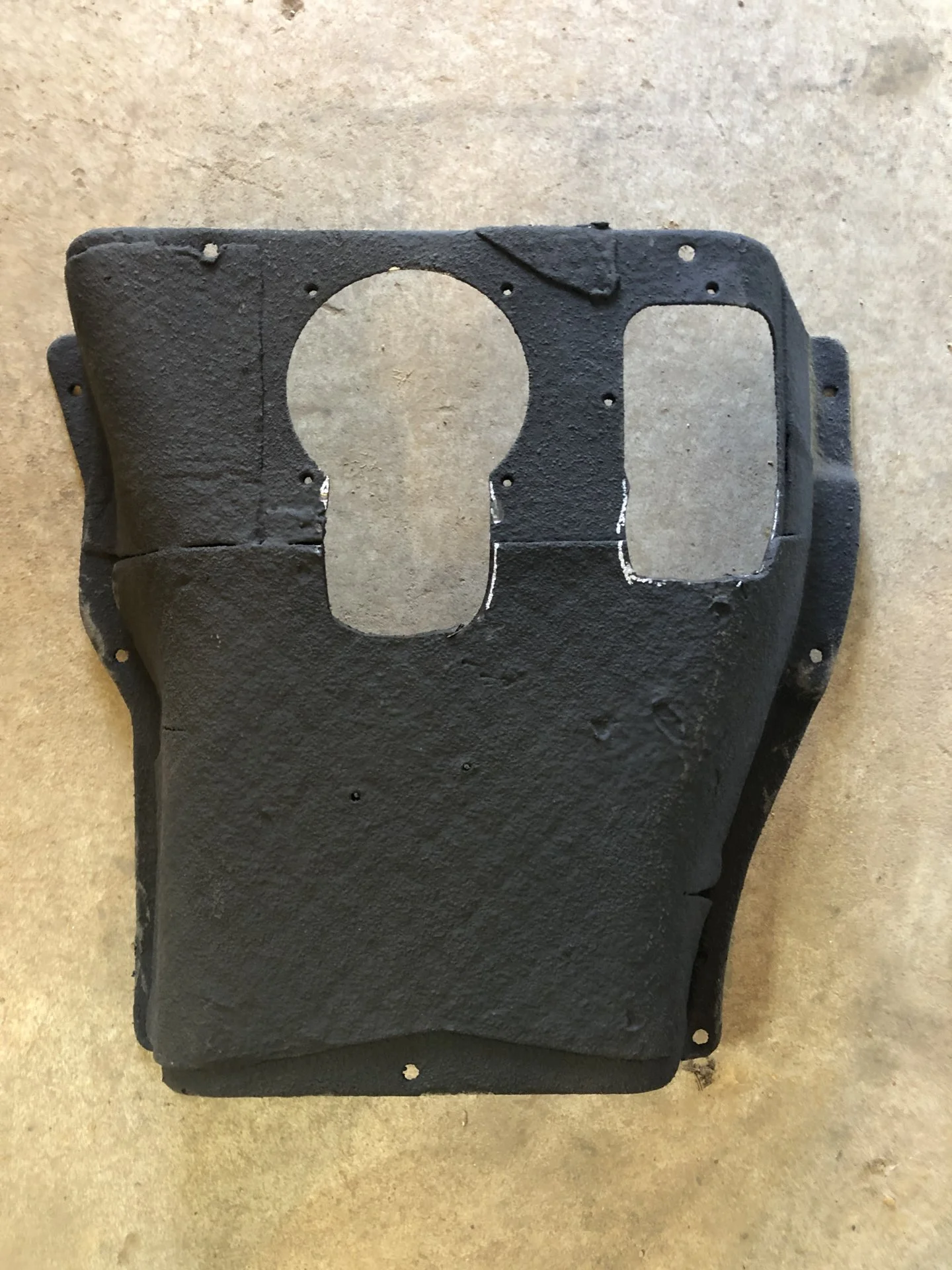

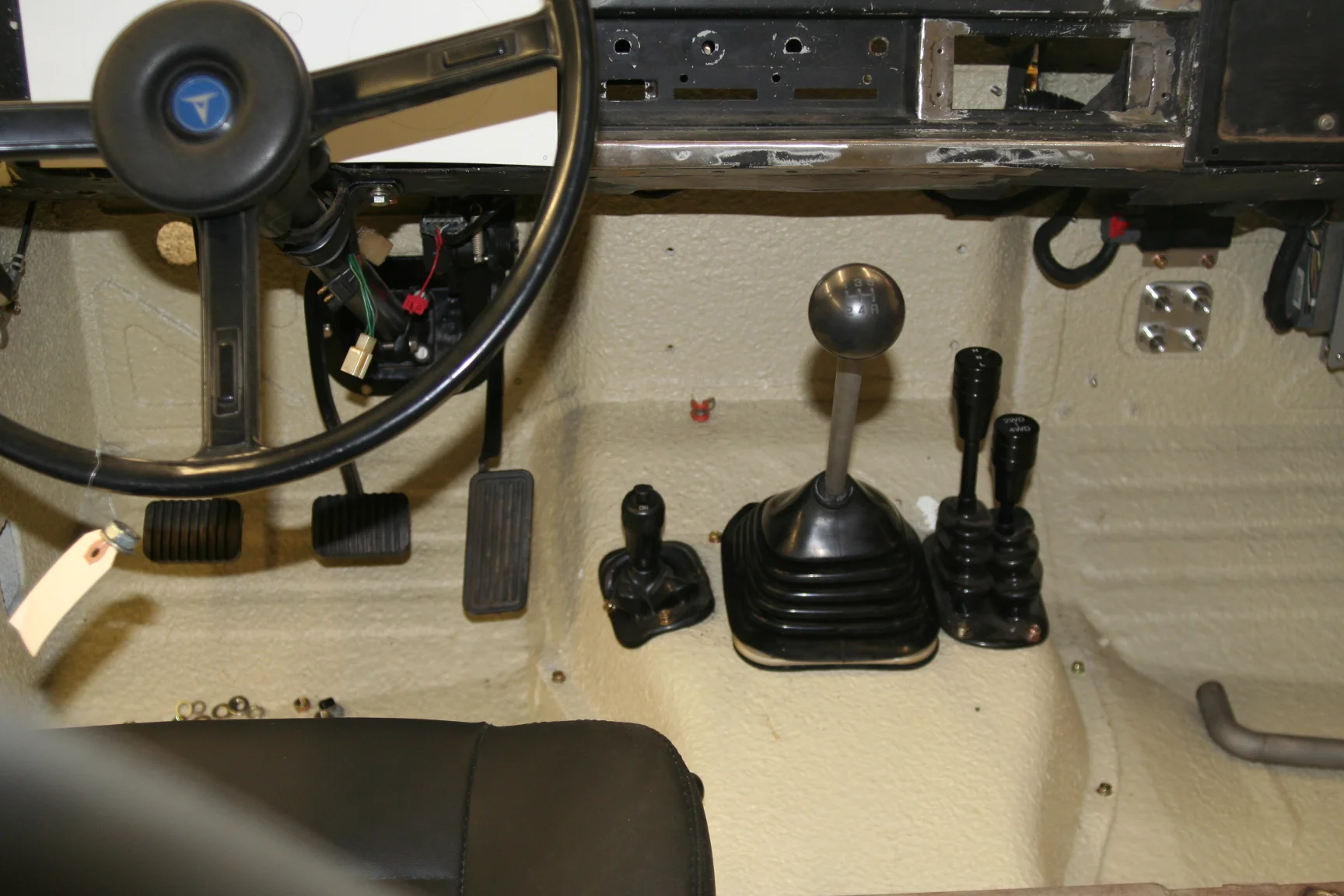

This shows the mods to the tranny tunnel for H55 and split case shifter:



[PabloCruise]

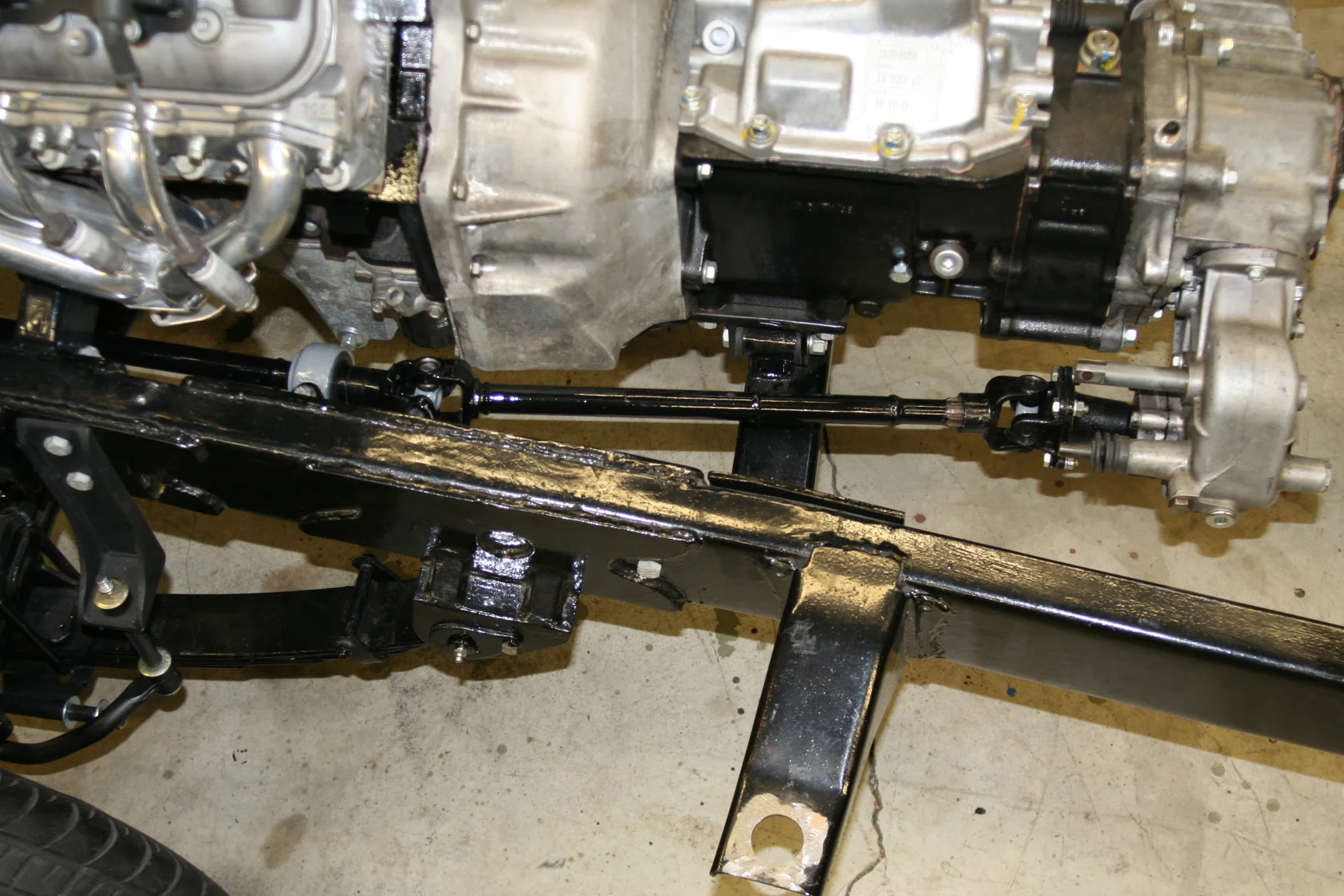

Another great pic, from the Warthog thread.

I am hoping the H55 shifter will clear the bench seat.



[scrapdaddy]

I am hoping the H55 shifter will clear the bench seat.

That 5 speed shifter sucks. It's bent over too far and gets into your leg and probably the seat. Make your own...

Cut off the short piece and weld on the long piece and make it straight...



[PabloCruise]

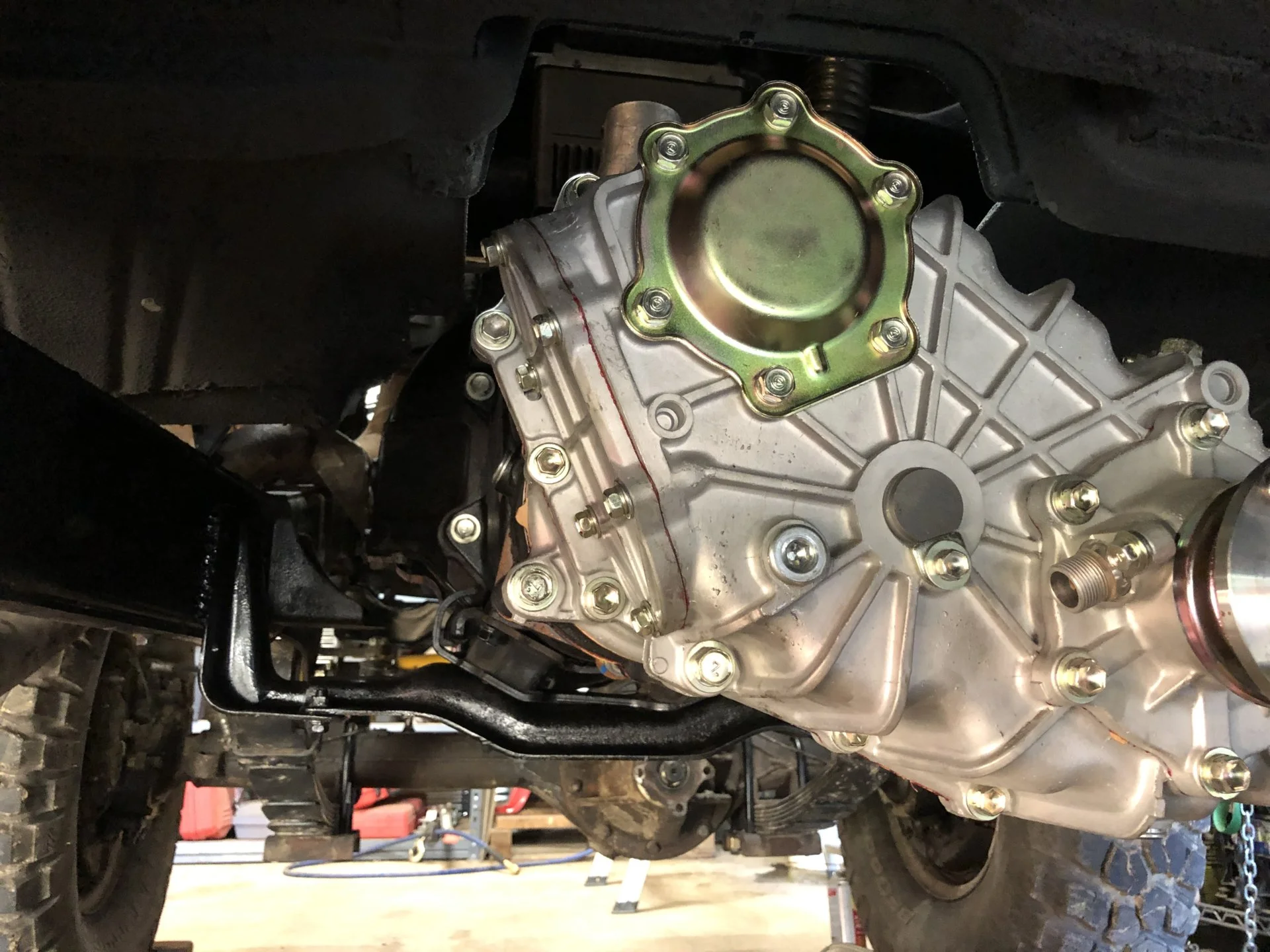

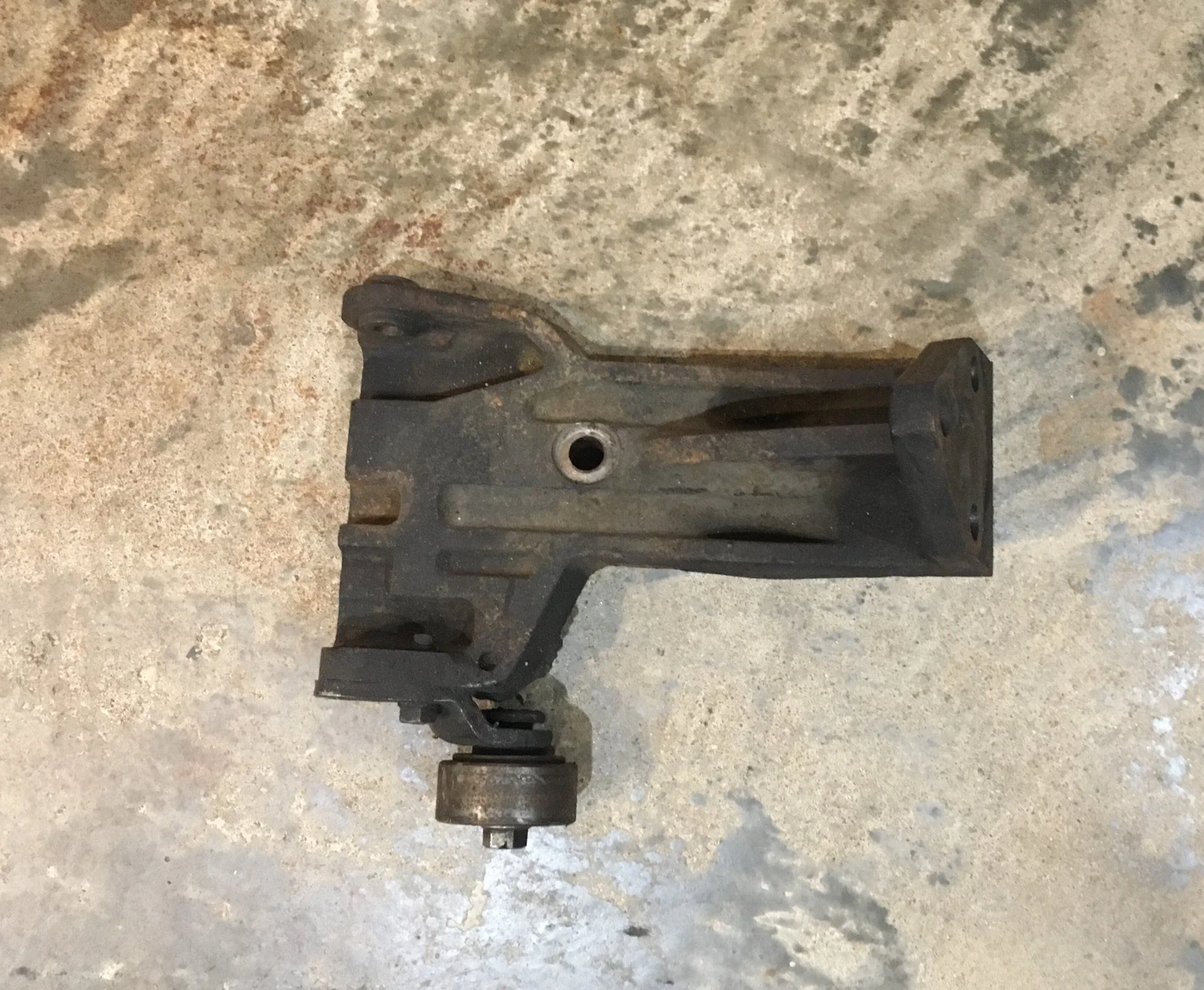

Here is some good detail about using 60 series thransmission mount/crossmember to secure the H55:

Builds - The Warthog v4.4

My shop floor is so uneven that there is no way to push the drivetrain up into the pig (easily) so we rolled the Pig to the drivetrain

forum.ih8mud.com



[PabloCruise]

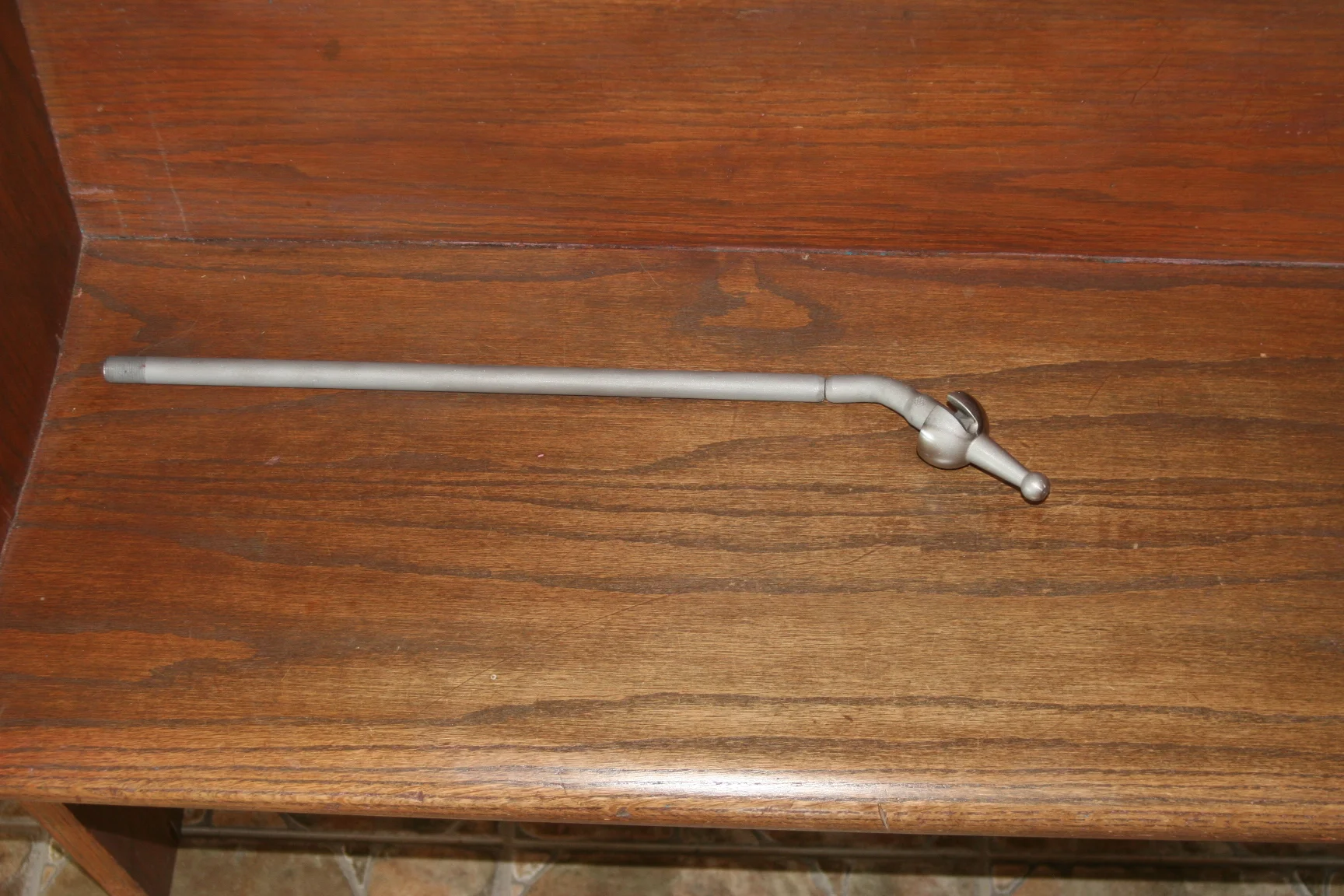

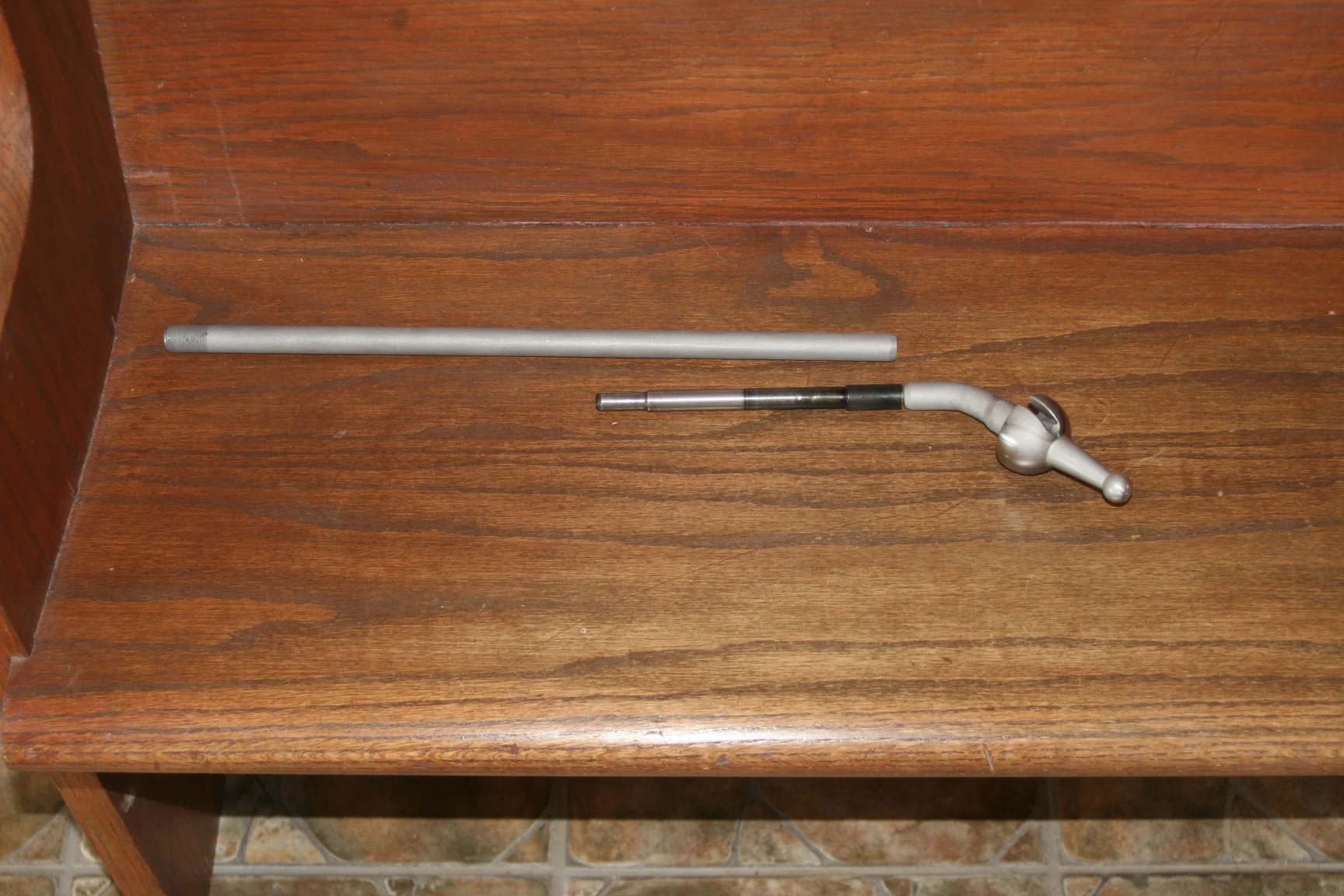

That 5 speed shifter sucks. It's bent over too far and gets into your leg and probably the seat. Make your own...

Cut off the short piece and weld on the long piece and make it straight...
View attachment 3705204

View attachment 3705205

View attachment 3705206

Thanks Ron!



[scrapdaddy]

You're going to have a fitment problem with the PTO linkage and exhaust right around that mount area. You might have to make your own mount in order to make room.
