Cool thread. An H55 swap in my 76 is on the "maybe" list. Does the top cover that the H55 comes with work well on the piggie? I am co concerned about shifter placement. Thanks.

Subscribed, thanks for sharing.



[wngrog]

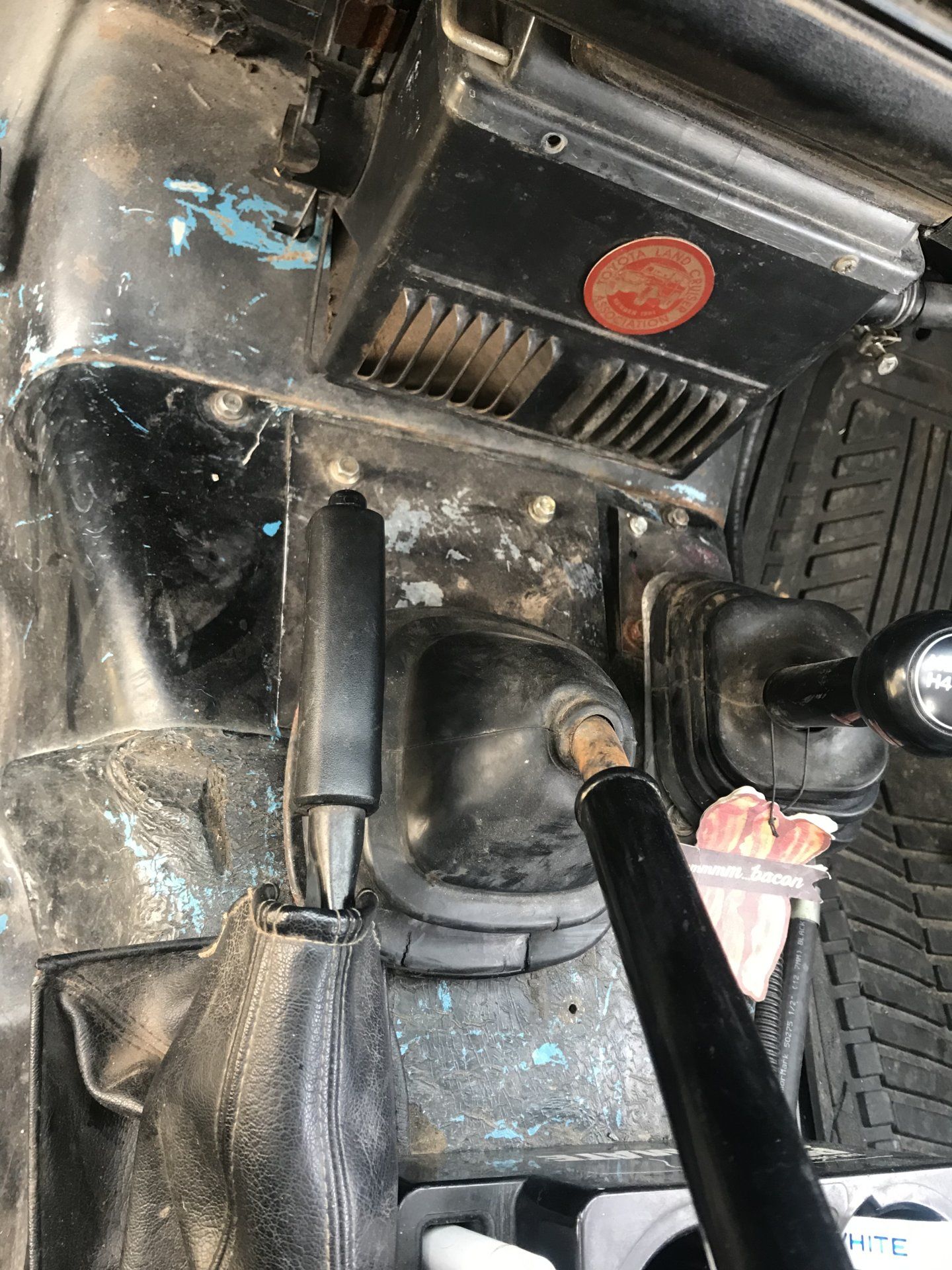

@Voodoocruisers has one. His shifter looked like he did a little trimming for the shifter



[dogfishlake]

@Voodoocruisers has one. His shifter looked like he did a little trimming for the shifter

I don't mind some fab work making the tunnel cover fit, as long as it looks and functions ok.

@Voodoocruisers , got a picture handy?



[Voodoocruisers]



[Voodoocruisers]

One day we will make it pretty, but for now we make it go!



[Voodoocruisers]



[Voodoocruisers]

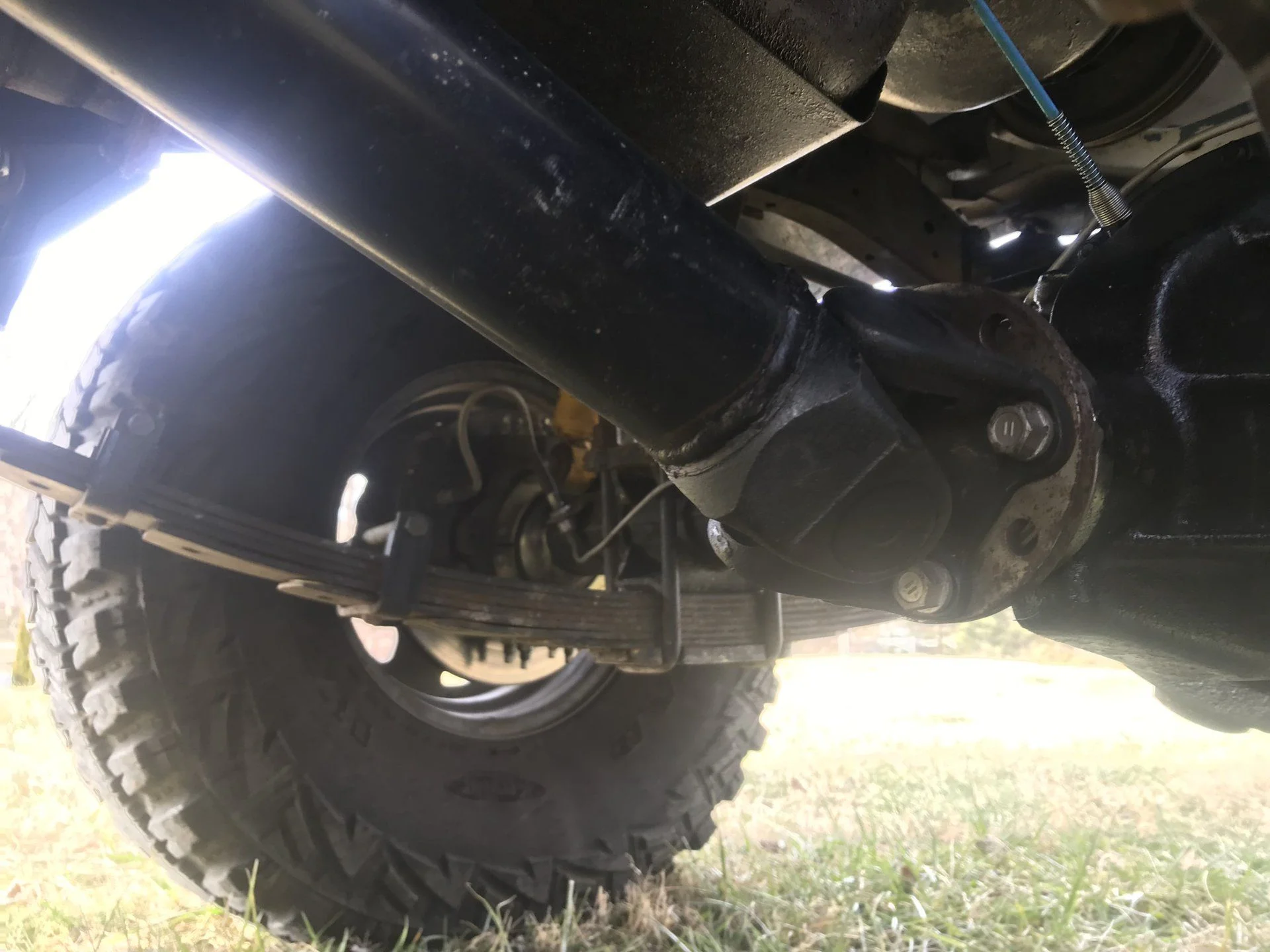

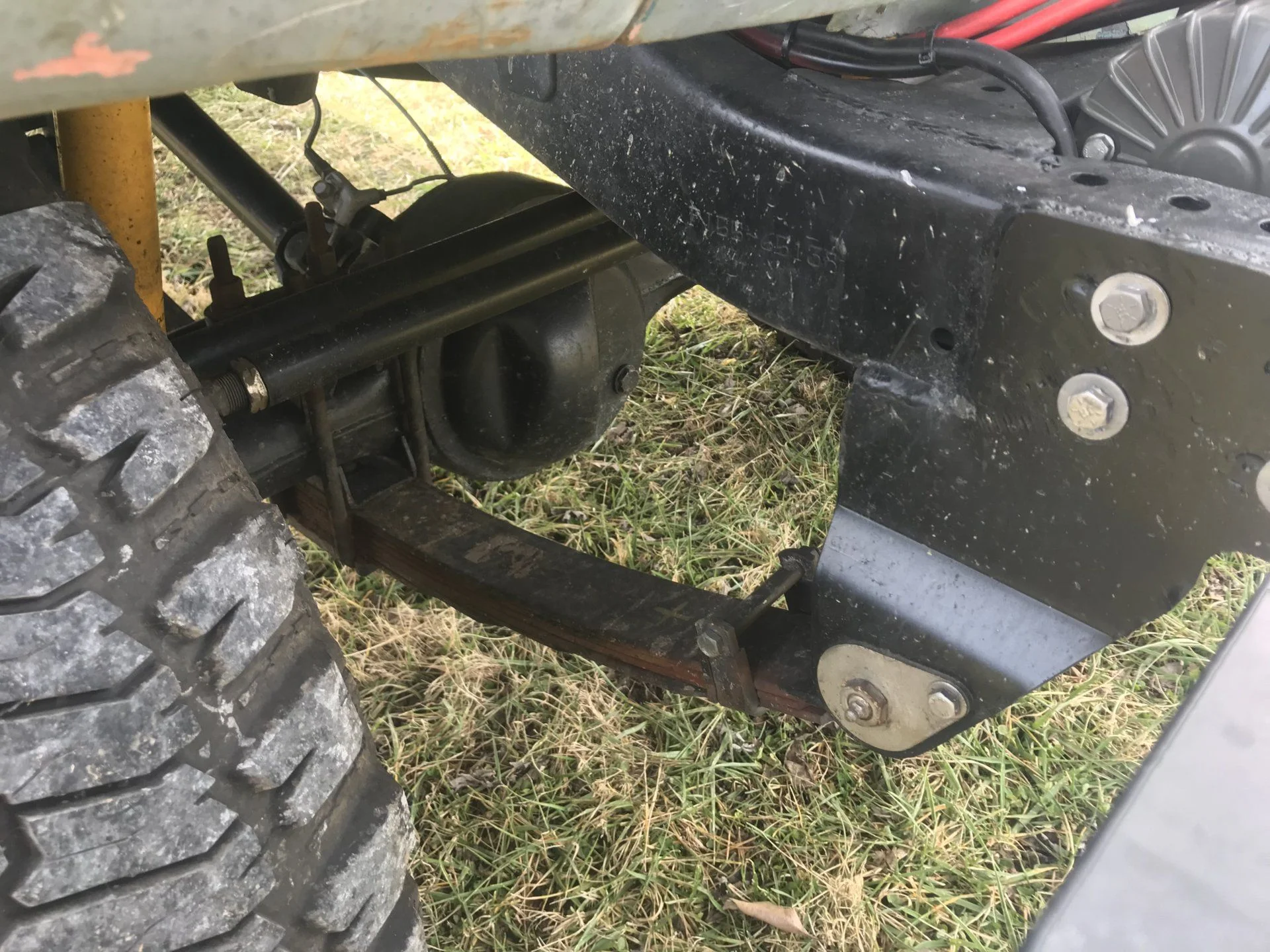

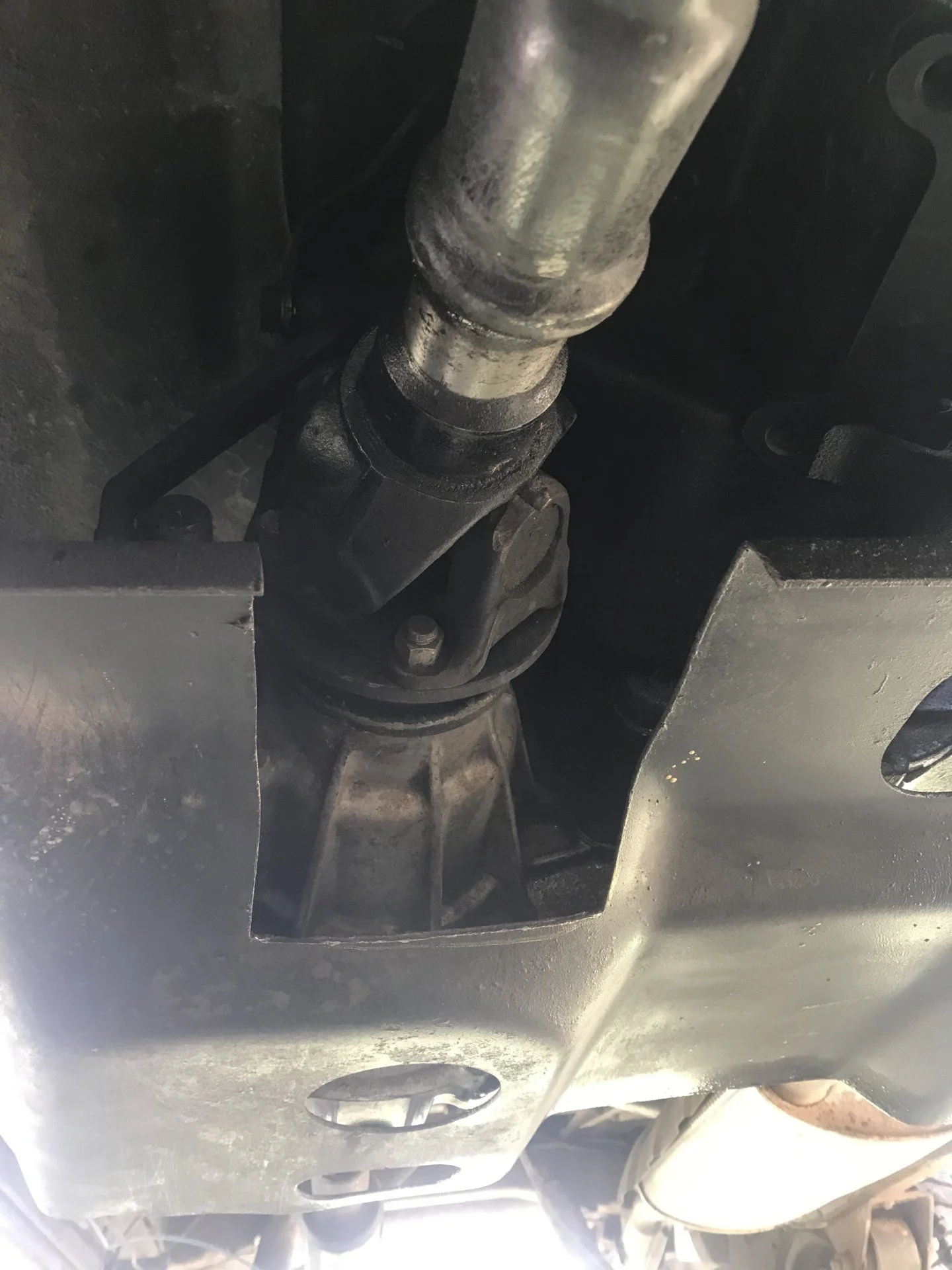

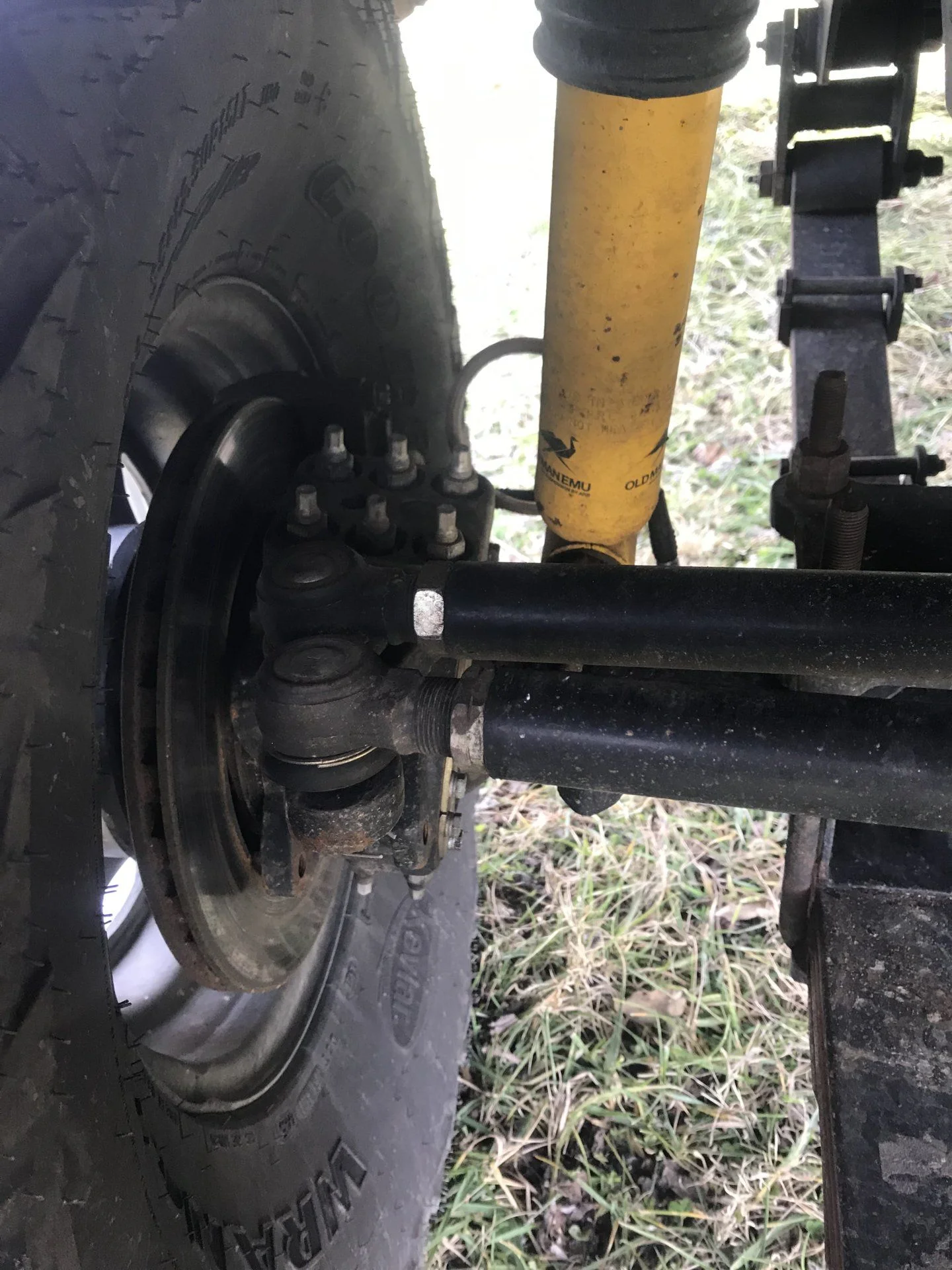

The driveshaft length is 28 3/4. That length will almost certainly be different than stock due to the way I installed the shackle reversal kit. I can’t wait to see how you figure out the fan clutch. I tried that too but didn’t retry when all the stuff I had didn’t fit. I used a Ron Davis 4 core radiator with a trans cooler. That may be wider too?



[wngrog]

To close the loop on this I got the motor and I have the fan clutch and fan and it’s dead on balls 8” head to tip of the fan.



[cruiseroutfit]

To close the loop on this I got the motor and I have the fan clutch and fan and it’s dead on balls 8” head to tip of the fan.

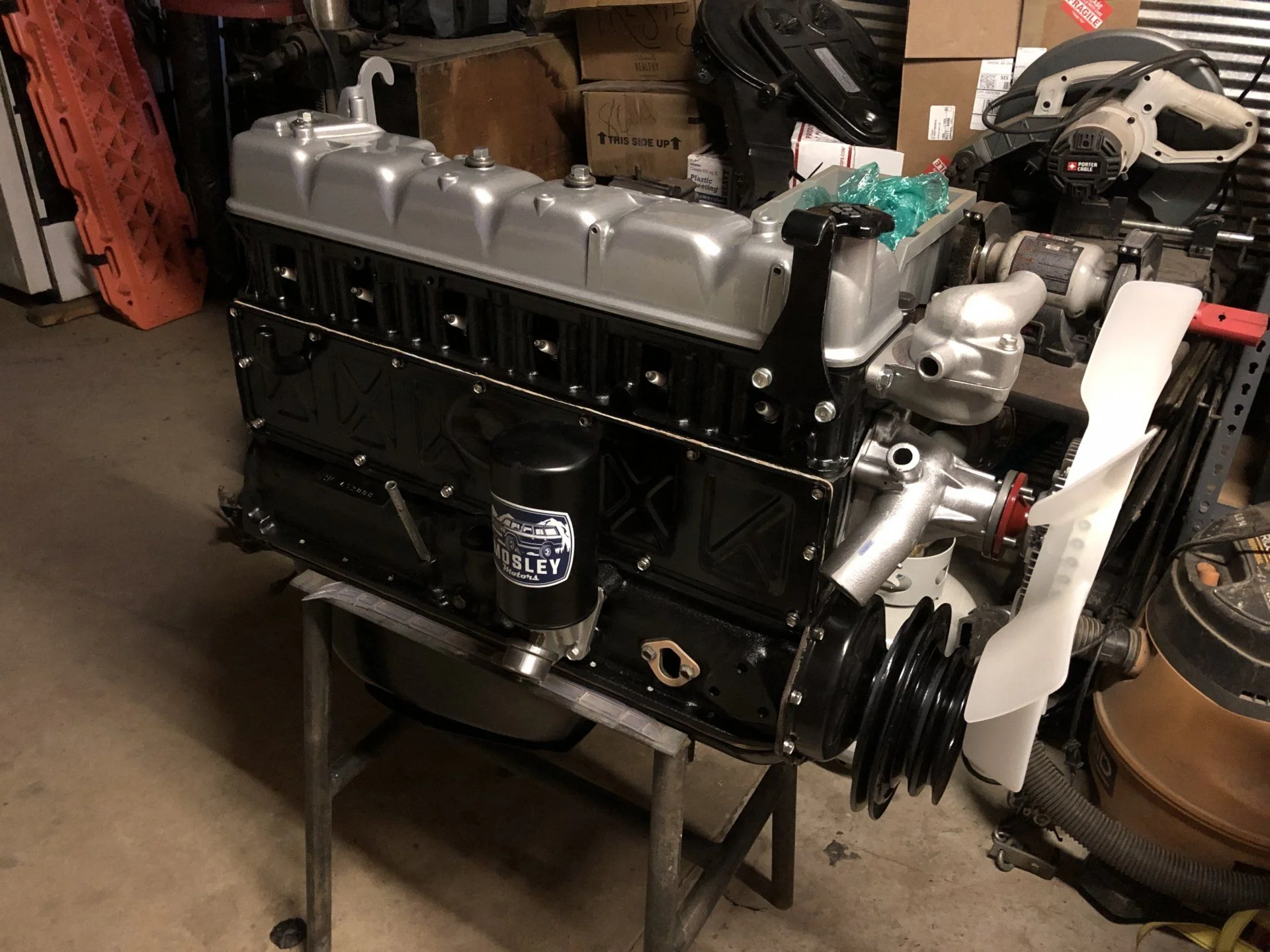

View attachment 1903320

Stellar! That gonna work for you?



[wngrog]

Stellar! That gonna work for you?

1” to spare.



[PabloCruise]

1” to spare.

Isn't that what @bobm said?



[PabloCruise]

View attachment 1866115View attachment 1866116

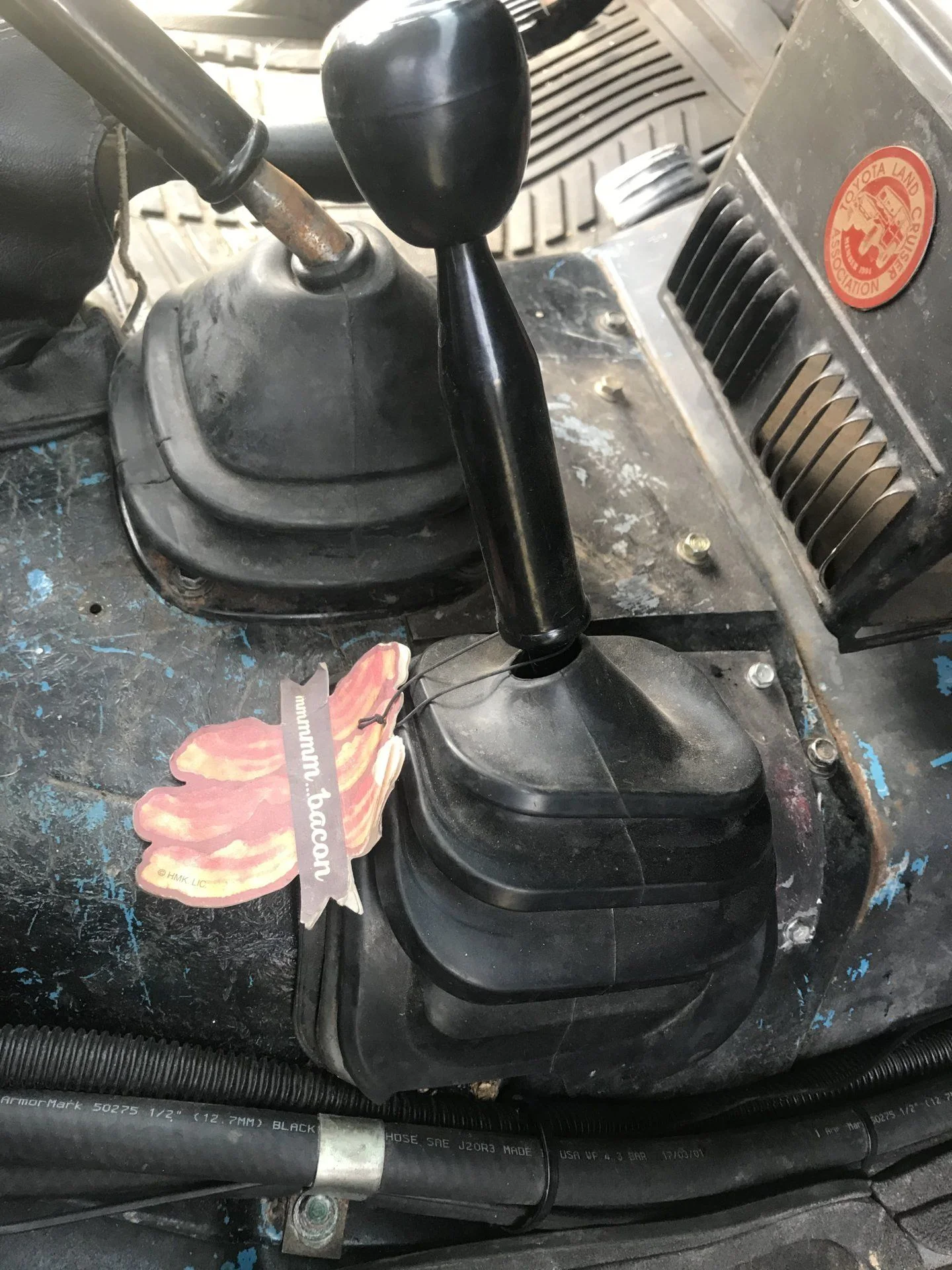

Did you get any props for that super-fly air freshener?



[cruiseroutfit]

1” to spare.

Right on, glad to hear



[wngrog]

Right on, glad to hear

I tagged you in the build thread.



[samc2447]

To close the loop on this I got the motor and I have the fan clutch and fan and it’s dead on balls 8” head to tip of the fan.

Would you post the Cruiser Outfitters part numbers on those. I need to do a fan clutch upgrade on one of my rigs and this length looks right



[wngrog]

Would you post the Cruiser Outfitters part numbers on those. I need to do a fan clutch upgrade on one of my rigs and this length looks right

Prada, Tundra 17" is FANB75020

Clutch needs to match your waterpump

I’m using a non-oil cooler waterpump from a FJ40

Part number is on page 1 of this thread



[cruiseroutfit]

Would you post the Cruiser Outfitters part numbers on those. I need to do a fan clutch upgrade on one of my rigs and this length looks right

Water Pump - EGW61070
Fan Clutch - FAN61120
Fan Blade - FANB75020



[wngrog]

Water Pump - EGW61070
Fan Clutch - FAN61120
Fan Blade - FANB75020

Is this fan clutch special in any way? As in shallower?

Is the early waterpump I’m using shallower than a 60 waterpump?



[cruiseroutfit]

Is this fan clutch special in any way? As in shallower?

Is the early waterpump I’m using shallower than a 60 waterpump?

The fan clutch is the standard height. The water pump is the same as the 60, just different config. The fan blade was really the key to the lower over-all-height.



[LAMBCRUSHER]

So a 60 series pump with oil cooler and this clutch and fan blade will have same dimensions as the without cooler pump? This is great work, guys. I had given up on a clutch option for the pig...
