Need 1997 seat foam parts numbers...FOUND THEM!

[TYM4FUN]

Anyone know? Also, are they still available?

Thanks, Paul



[baldilocks]

Don’t know your part numbers but I bought new seat bottom foams from Specter about 3 or 4 years ago for something like $160 each.



[TYM4FUN]

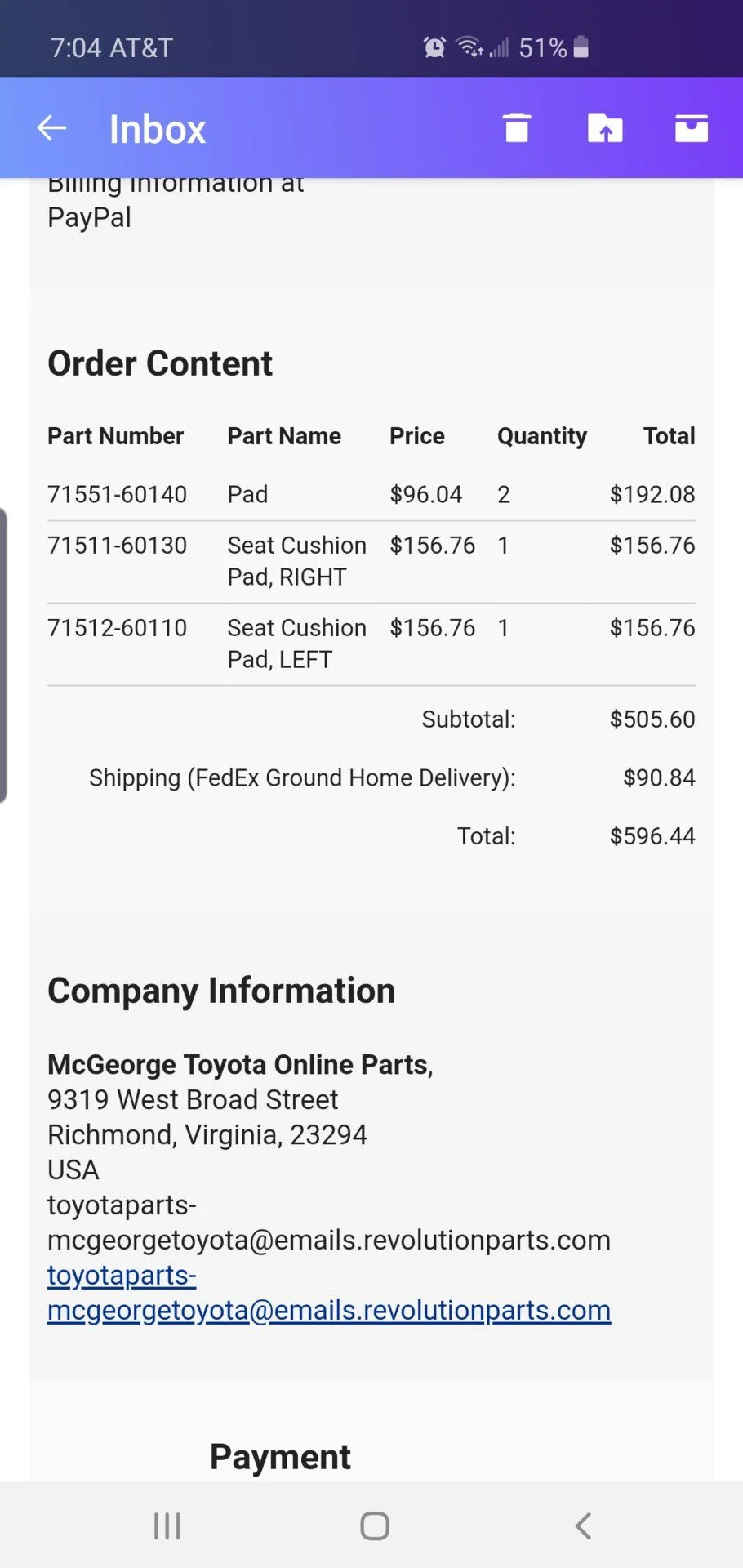

Found em..

​

71551-60140	Pad	$96.04	2	$192.08
71511-60130	Seat Cushion Pad, RIGHT	$156.76	1	$156.76
71512-60110	Seat Cushion Pad, LEFT	$156.76	1	$156.76

*These part numbers are for US 1997 Toyota LC with electric seats.



[baldilocks]

Found em..

​

71551-60140	Pad	$96.04	2	$192.08
71511-60130	Seat Cushion Pad, RIGHT	$156.76	1	$156.76
71512-60110	Seat Cushion Pad, LEFT	$156.76	1	$156.76

Specter??



[bicycleagent003]

Specter Off-road, Cruiser specialty shop. I'm pretty sure they have a website.



[nuclearlemon]

you'll pay a lot more from specter unless they have an aftermarket source, which will most likely be poorer quality



[on3i11s]

Not sure if this will work for your cruiser or if you found this thread already but I’m in the searching mood. As aztony states, “the part numbers I am showing is for a 1993 with manual controls and cloth interior”. Just posting this link here to combine info...nice tutorial here.

How to replace your seat bottom foam

This is the first time I have done this so there may be a better way, the following is just the way I did it. The part numbers I am showing is for a 1993 with manual controls and cloth interior. 71512-60020 is the driver seat and 71511-60040 is the passenger seat. You will also...

forum.ih8mud.com



[TYM4FUN]

Specter??

Toyota dealer. Just for full info, those are the part numbers for electric seats, manual seats have a different part numbers...



[Tedward]

Try PartSouq and Amayama. You'll need correct part numbers on those sites.
Other online sites have full part list numbers with diagrams with bolts and bits n bobs n everything. Many others don't show nearly as many parts, or search on mud as the numbers are buried in here somewhere.



[TYM4FUN]

Specter Off-road, Cruiser specialty shop. I'm pretty sure they have a website.

Not sure if this will work for your cruiser or if you found this thread already but I’m in the searching mood. As aztony states, “the part numbers I am showing is for a 1993 with manual controls and cloth interior”. Just posting this link here to combine info...nice tutorial here.

How to replace your seat bottom foam

This is the first time I have done this so there may be a better way, the following is just the way I did it. The part numbers I am showing is for a 1993 with manual controls and cloth interior. 71512-60020 is the driver seat and 71511-60040 is the passenger seat. You will also...

forum.ih8mud.com

Try PartSouq and Amayama. You'll need correct part numbers on those sites.
Other online sites have full part list numbers with diagrams with bolts and bits n bobs n everything. Many others don't show nearly as many parts, or search on mud as the numbers are buried in here somewhere.

See post 3. Thanks for the replies.



[CaptClose]

Don’t buy the Specter seat foam. It’s low density foam that does not include the internal rails required to hog ring the covers to the foam. Spend the money on OEM.



[BILT4ME]

Also be aware that the seat foams are different between Lexus and Toyota on the power seats.

Also the cloth seat foams are different as mentioned above.



[MoJ]

I’d really like to get my hands on a new OEM cushion to determine the exact density and firmness. It’s very likely these can be fabricated from a foam block. Uncovered, they won’t look as nice as the molded variety but once covered it’s doubtful you would notice the difference.



[AZ4ME]

Cheap seat foam



[Lumpskie]

Excuse the dumb question here...

What's the seat cushion pad versus the seat pad? (Is cushion pad the bottom and pad the back?)



[flintknapper]

Excuse the dumb question here...

What's the seat cushion pad versus the seat pad? (Is cushion pad the bottom and pad the back?)

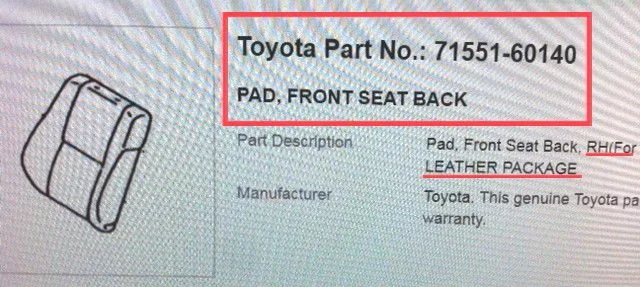

Yes...the 'pad' is the seat back (Left and Right are different part numbers).



[cruisersurf]

Are these the same part numbers for a 94?



[OGBeno]

Are these the same part numbers for a 94?

Do you have leather seats or do you have cloth seats?



[cruisersurf]

94 with cloth seats.



[Lumpskie]

Back from the dead...

Does anyone know a good place for me to find both the pad and cushion for the driver's seat? I think I read that the cushion is not longer being produced...
