Input needed on Axle setup for 96 Locked 80 (1 Viewer)

Joined
Aug 24, 2019
Messages
708
Location
Roseville, CA
I am just purchasing the last few items for my Gear/Axle set up on my Locked 96' 80 Series.

I want to make sure I have not missed anything. So far I have purchased-
Front and rear 300M axles from RCV.
4.88 Nitro Gears with installation kit.
New OEM front and rear locker actuator.
Rear Rebuild parts form this list - Rear Axle Rebuild Part #'s
Front rebuild parts from this list "A" - Front axle rebuild - OEM P/Ns here

I also purchased OEM pinion seals, wheel studs, and diff gaskets.

Is there any thing else I should be adding?

I am looking at getting the RCV 4340 Drive Flange set. Looks like a lot of guys run this with ARP front and rear axle studs.

Any other suggestions?

Thanks for the help!


SNLC

OCD
Supporting Vendor
Joined
Sep 9, 2004
Messages
7,401
Location
Boise - Idaho
I would not run the ARP studs.

If you want more strength there, drill and upgrade the studs to a larger diameter.

I would just rock the stock setup. Only thing I have ever busted in a Cruiser was a stock birfield.

Cheers


wagonteeth

Hippoblanco
SILVER Star
Joined
Nov 18, 2008
Messages
570
Location
North GA mtns
Are you doing the gear installs yourself? If so, I think nitro carries solid pinion spacers instead of the crush sleeves. These take shims to set up, but allows you into replace the pinion seal without further crushing of the crush sleeve.

To install them, you'll have to test the pattern and add spacers to get the right gear pattern.


Road Apple

SILVER Star
Joined
Nov 28, 2011
Messages
881
Location
Santa Cruz, CA

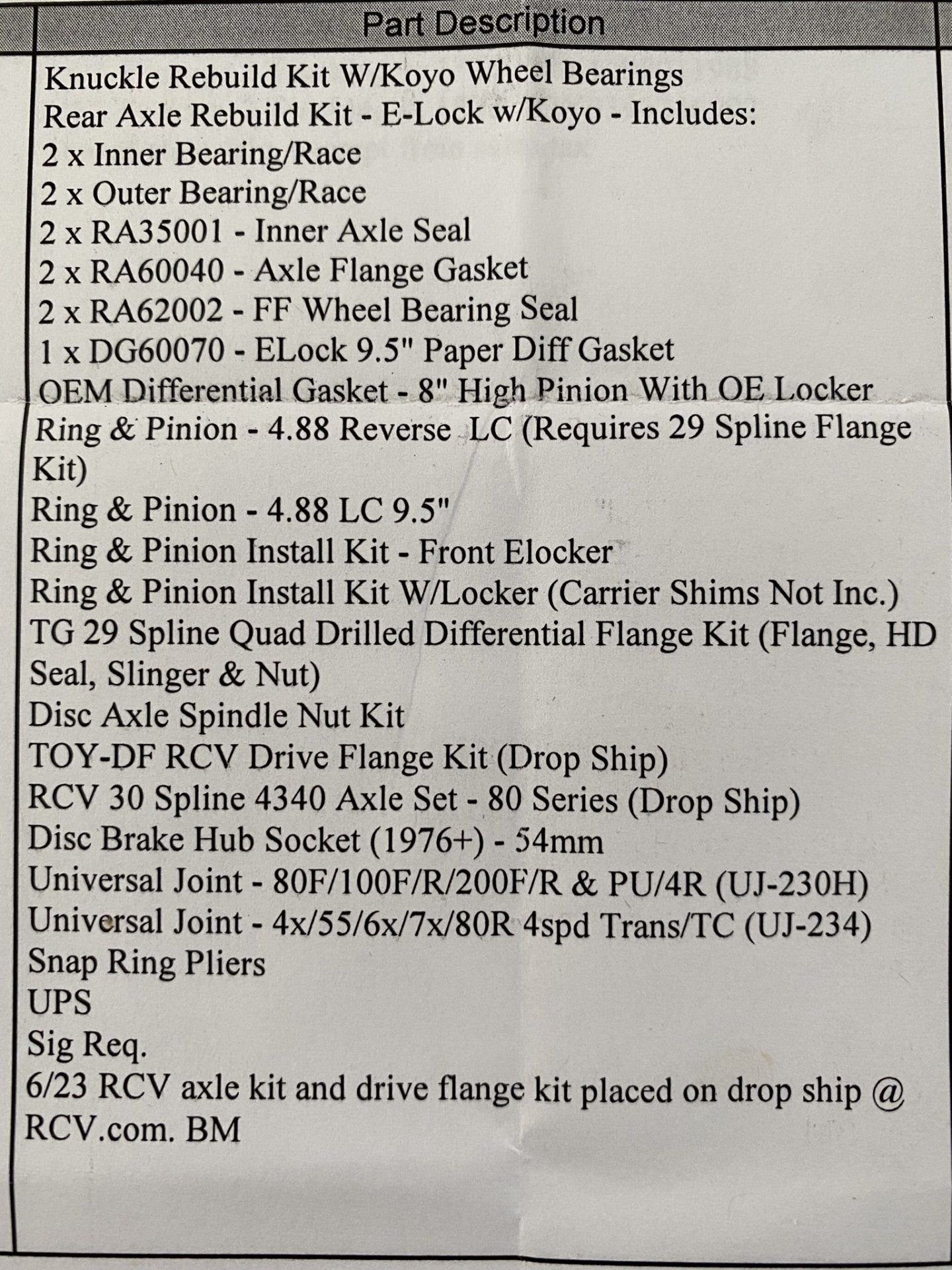

Here’s everything I ordered to install a RCV 4340 axle in the front, RCV drive flanges, re-gear to 4.88’s and rebuild the knuckles.

One item I didn’t think of...Cruiser Outfitters said I needed is a 29 spline diff flange flange kit, which includes a flange, seal, slinger and nut.

Joined
Aug 22, 2010
Messages
2,588
Location
Jersey, 07740
I would also get a tube of red fipg, if you tear a paper gasket you can wipe a little of the fipg over where the gasket is torn and youll be good to go no need to wait for another. and red fipg is prefered as it is designed to work with trans fluid and gear oil

Joined
Aug 24, 2019
Messages
708
Location
Roseville, CA
Did you include a knuckle rebuild kit?

Yes, I used the "A" list, link in original post.

90313-93003 $27.22 ea x2 Dust Seal
43436-60011 $ 1.14 ea x2 Inner Spindle Gasket
43435-60020 $ 1.03 ea x2 Outer Spindle Gasket
43204-60031 $27.35 ea x2 Dust Seal & wiper Kit
43422-60060 $ 1.51 ea x2 Hub Gasket

90311-62001 $12.02 ea x2 Grease seals for wheel
90310-35010 $ 6.26 ea x2 Inner axle oil seals
09607-60020-01 $32.95 ea x1 54mm hub socket, SST
90366-20003 $22.38 ea x4 Knuckle Bearings & races (Koyo: 30304AJR-2-N Hi cap)
90368-49084-77 $50.90 ea x2 Inner wheel bearings, Timken bearing #JLM104948, race #JLM104910
90368-45087-77 $43.85 ea x2 Outer wheel bearings, Timken bearing #LM102949 , race #LM102910
90215-42025 $ 2.81 ea x2 Tabbed Spindle Lock Washer

43236-60020 $ 1.39 ea x2 0.10mm Knuckle bearing shims for setting preload
43233-60030 $ 2.73 ea x2 0.20mm Knuckle bearing shims for setting preload
43234-60020 $ 3.01 ea x2 0.50mm Knuckle bearing shims for setting preload
43235-60020 $ 4.06 ea x2 1.00mm Knuckle bearing shims for setting preload

90521-34005 $ 2.69 ea x2 C-clip for inner axle to birfield (43411C in the diagram below)
90520-31007 $ 2.57 ea x2 Snap ring for outer axle
90126-12005 $ 1.57 ea x8 New style lower knuckle studs (added 13.May.2005

Joined
Aug 24, 2019
Messages
708
Location
Roseville, CA
Are you doing the gear installs yourself? If so, I think nitro carries solid pinion spacers instead of the crush sleeves. These take shims to set up, but allows you into replace the pinion seal without further crushing of the crush sleeve.

To install them, you'll have to test the pattern and add spacers to get the right gear pattern.

No Sir, I'm going to leave the install up to the pro's.
