GX470 Horn Circuit Question (1 Viewer)

Joined
Jan 1, 2016
Messages
30
Location
Boise ID/Layton UT
I was able to find the 10A Fuse for the horn in the engine fuse block, I then searched all over the vehicle and could not find a relay. All of my searches on here and elsewhere online provided no information. Does the Gx470 use a horn relay? If so, where would it be. Does anyone have a diagram of the horn circuit?

Joined
Apr 22, 2016
Messages
8
Location
Georgia

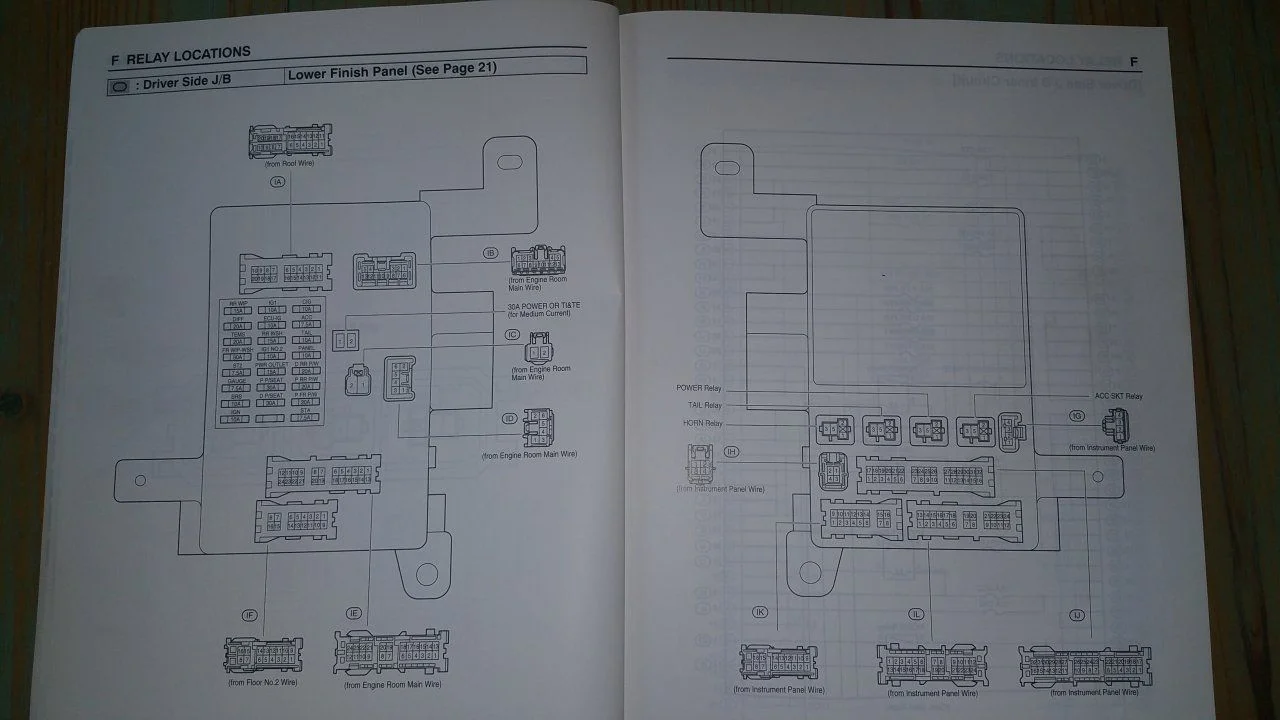

From what I can gleen from my 2005 wiring manual, it looks like it is located on, but behind the drivers side lower finish panel. So the back side of the fuse panel located at the drivers left knee. I looked at my 05 and it looks like you'll have to do some digging to get to it.

Joined
Apr 22, 2016
Messages
8
Location
Georgia
I guess the qustion that bothers me most is, How does this effect the electronics? Obviously you are disabling the rear airspring ride height and the ride control, What alerts do you get on the dash? Does it throw any ECU into a tizzy?
I've done a Fox/Total Chaos on a Tacoma the front is almost identical with rear leafs but no electronics at all.
DanKunz we live opposite sides of the Beast, I'm in Conyers.
I just purchased this 05 GX470 with 58,000 miles a few weeks ago and I want use it to pull an offroad teardrop or similar and discover the US, so it will see a lot of highway and a little overland.

Joined
Jan 1, 2016
Messages
30
Location
Boise ID/Layton UT
As DanKunz said, just pull the correct fuses and relays to disable the factory suspension components. Then do a zero point calibration on the steering angle for the VSC.

Joined
Oct 9, 2020
Messages
106
Location
Bay Area
how does someone access the back side of the fuse panel where the horn relay is located?

to answer my own question, I just did it by feel and used patient finger strength to extract the relay. the relay is the same as at least one under the hood, so if you need to test them, you can just swap.
