Wanted Early 100 series: In tank OEM Fuel pump wiring harness

[Bomar]

Vehicle Model

1. 100 Series
2. LX470

Location

Arkansas United States

It is a short harness that clips to fuel pump and then the fuel suction plate assembly.

My truck is a 1999



[3_puppies]

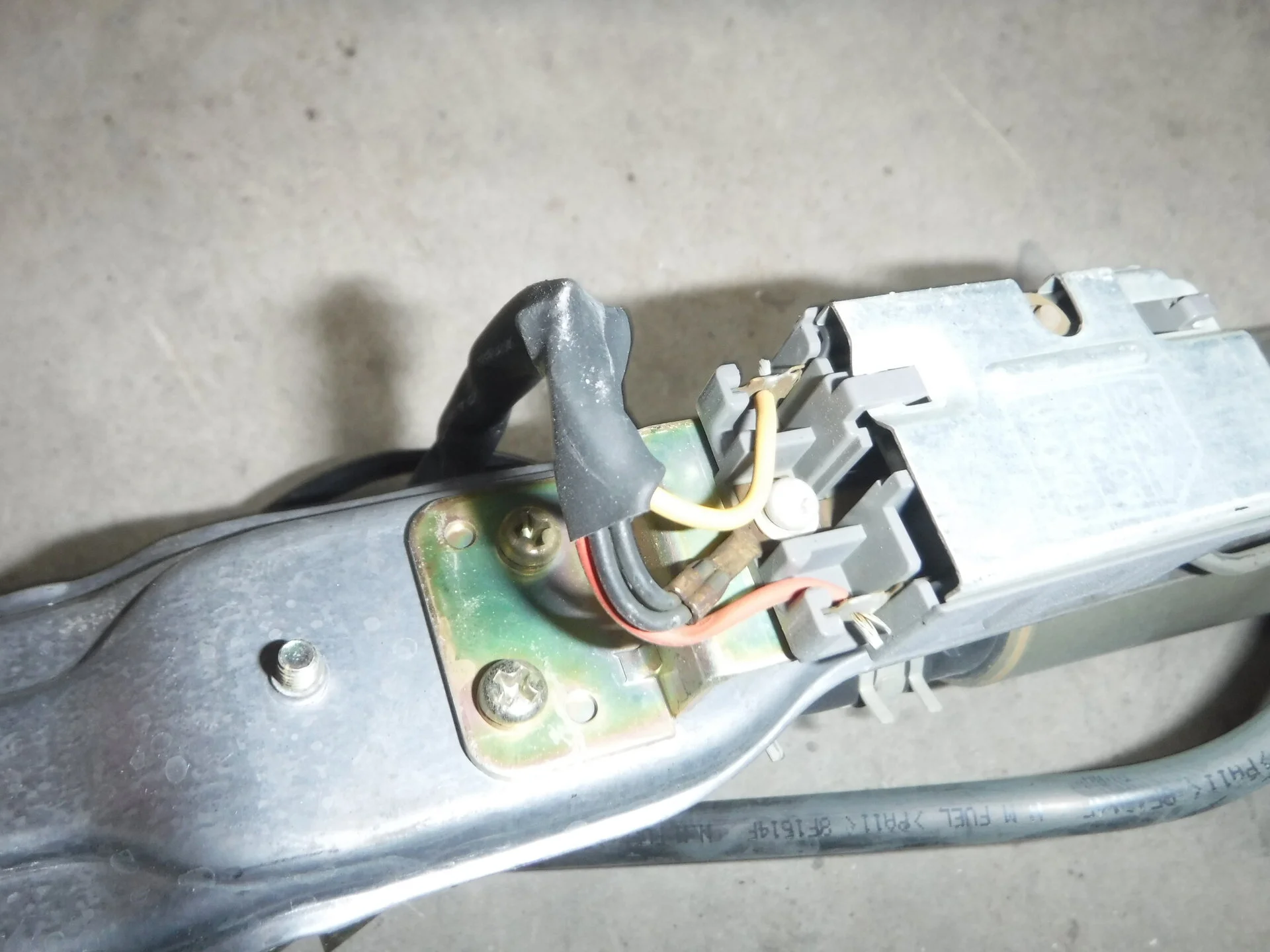

the float is wired in along with the harness, the wires are soldered to the sender from a 98 LX



[Bomar]

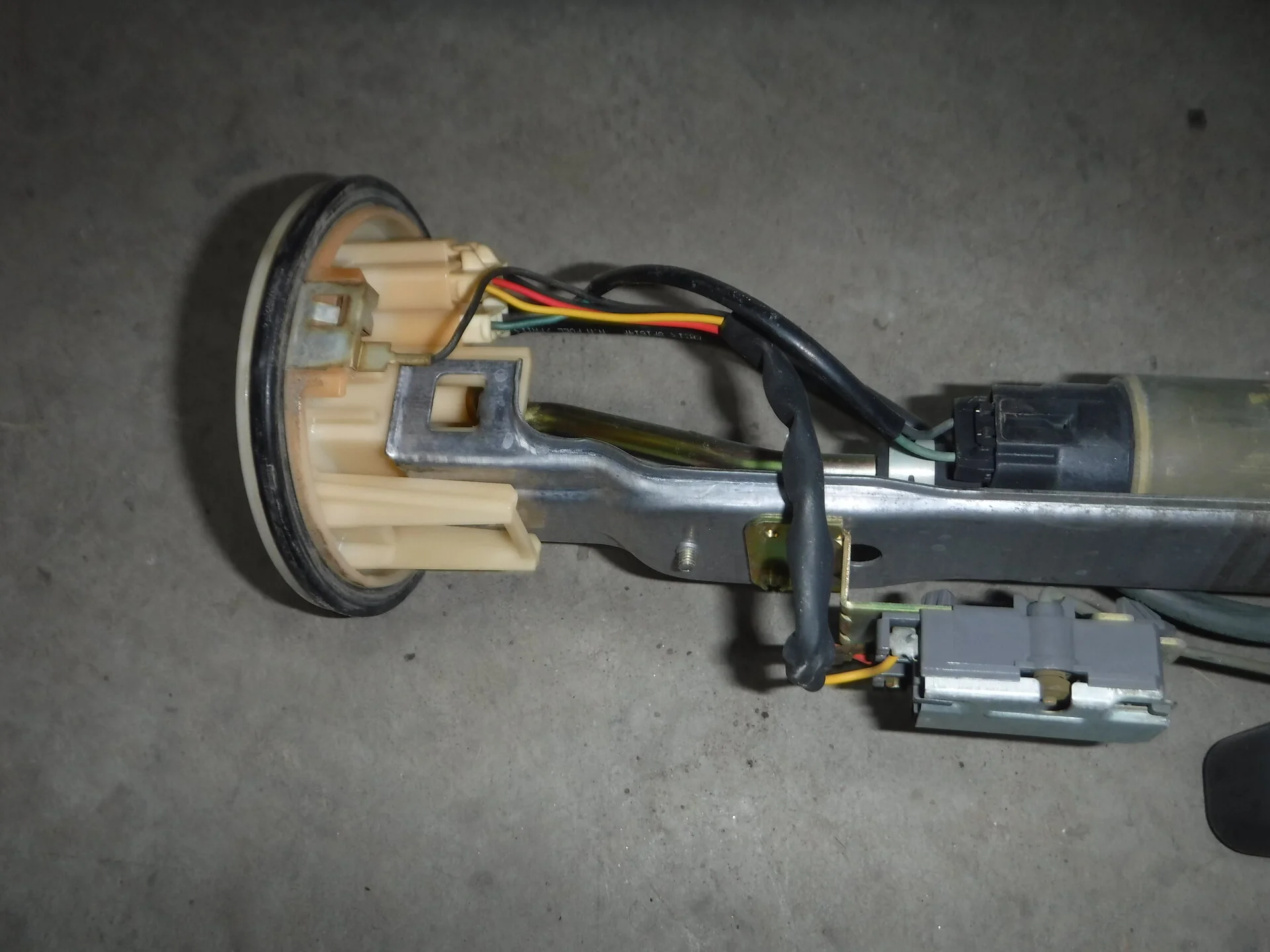

That third pic of you follow it up
It goes to the off white connector.

That is what I am looking for.



[3_puppies]

That third pic of you follow it up
It goes to the off white connector.

That is what I am looking for.View attachment 3387997View attachment 3387997

but the wires for the float also goes into that connector and the other end of the wires are soldered to the float assembly



[Bomar]

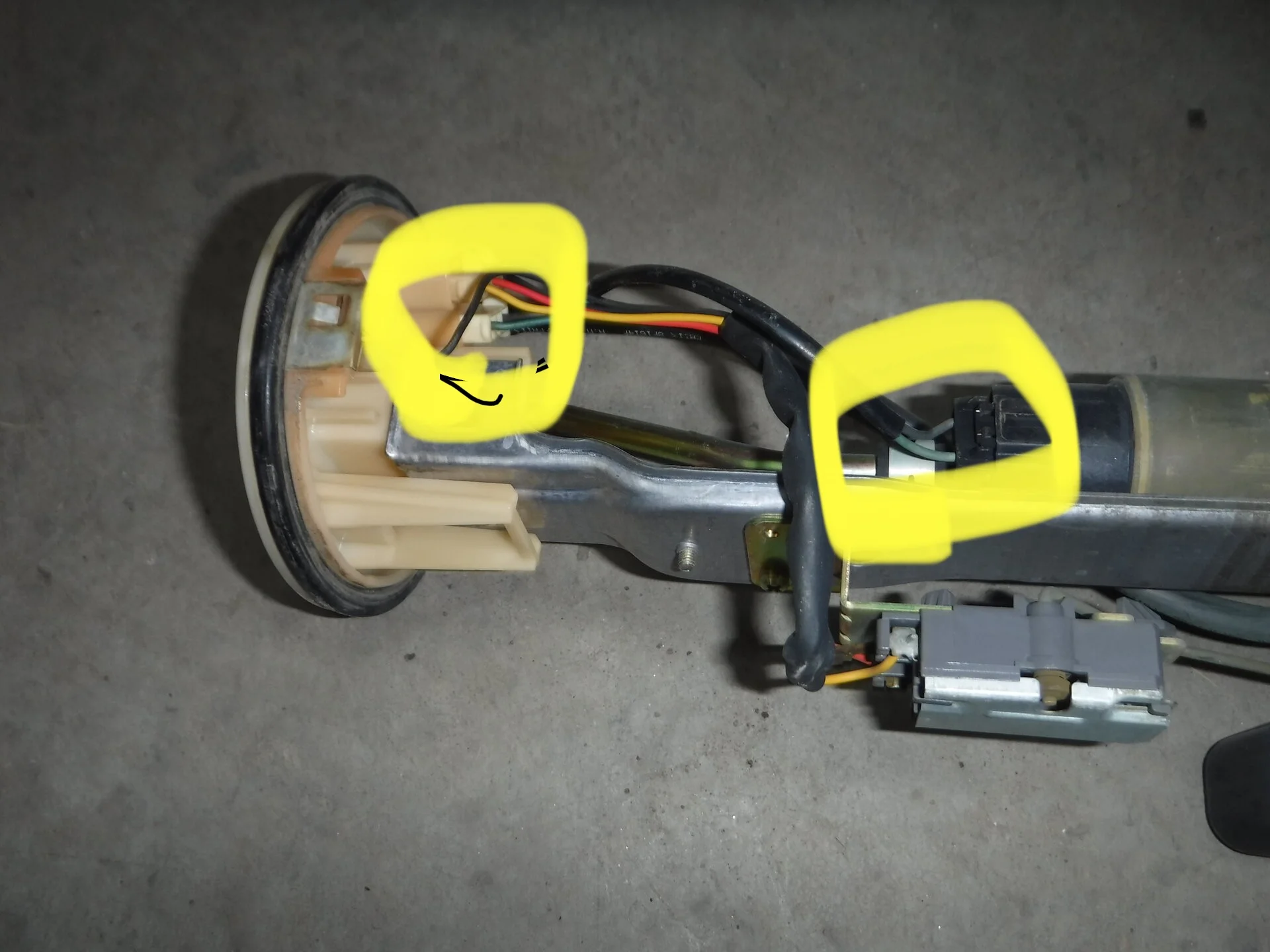

I am not sure we are talking about the same thing. I understand what you are saying but the wiring harness I need to replace is the short one I circled the ends too.


I need the 2 wire harness I circled because I had to cut it to put an after market fuel pump in.

They were odd colored wires.

I can’t find the part number anywhere.



[3_puppies]

I'll look at it again tonight when I get home



[Bomar]

@3_puppies just a reminder to look tonight for me please sir.



[3_puppies]

@3_puppies just a reminder to look tonight for me please sir.

I got stuck on a job last night and got home late. I should be home earlier tonight.



[Bomar]

Many thanks kind sir.



[3_puppies]

I was able to look at it last night.
I was wrong, I was thinking the plug in the top of the unit was a 5 wire plug, turns out it is a 3 wire plug and a 2 wire plug.
2 wire for the pump and 3 wire for the level guage

you just need the 2 wire from the top to the pump?



[Bomar]

Yes the 2 wire that has the white/off white clear plug at top and the black end to pump.

Shoot me a DM for what you want for it.

If you don’t want to split it up I understand.



[3_puppies]

$50 mailed to you for the harness
