Distributor cap vent VCV issue (1 Viewer)

land crusher

Morgen, morgen nur nicht heute...
Joined
Feb 14, 2006
Messages
578
Location
In the weeds
Just broke the tit off my dizzy cap vent VCV (the one for the line that goes to the distributor cap). I'm going hunting tomorrow and doubt I'm gonna be able to find a replacement VCV in time. Any suggestions on how to rig this? Leave it open or pinch it off? Anyone in North Portland have one?


Dynosoar

Slightly Disturbed
SILVER Star
Joined
Feb 3, 2006
Messages
4,040
Location
SoCal

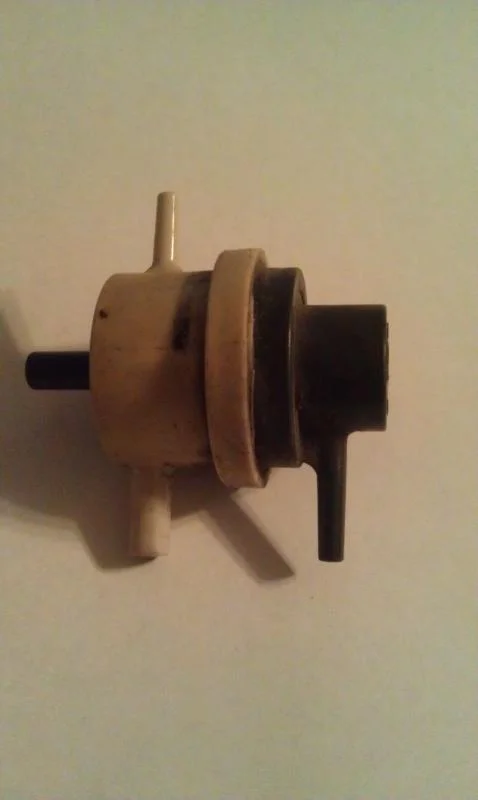

If this is the VCV you need its yours for $15 shipped to your door. PM me with your address if you are interested.

Dyno


EDIT: sorry I think this is the VCV for the EVAP not the dizzy! post a pic of the one you need I probably have it.


FJ40Jim

The Cruiser Whisperer
SILVER Star
Joined
Sep 26, 2003
Messages
11,030
Location
Lancaster, Ohio, USA
Dyno, that is the correct VCV. It's the same PN for the evap purge and the dissy vent systems.

FWIW, To test, apply suction to the black fitting that is pointing down in the pic. If you can suck on it, and it doesn't leak, then it's good.

Last edited:
Joined
May 25, 2007
Messages
291
Location
Portland, OR
Head over to Willamette Blvd Service station in NoPo by Fred Meyer. Those guys are helpful, and often have parts on hand.


Dynosoar

Slightly Disturbed
SILVER Star
Joined
Feb 3, 2006
Messages
4,040
Location
SoCal
Cool! If its the same its for sale then. I did test it and it is in working order. PM me if interested.

Dyno


land crusher

Morgen, morgen nur nicht heute...
Joined
Feb 14, 2006
Messages
578
Location
In the weeds
Thanks guys. I did end up routing it into the air cleaner temporarily.

I think Josh at Willamette Service Center has one for me locally, but if not I'll let you know, Dyno.


FishTacos

At the Muskielounge
Joined
Oct 24, 2012
Messages
1,079
Location
Dane County, Wisconsin
Pretty sure both of my VCV's are shot. Neither holds any vacuum at port S. Is it true that they are supposed to hold threshold vacuum @ 70 mmHg there when disconnected on the workbench?

Clearly these are both super important. I gather the passenger side prevents distribuplosion and the driver side is EVAP...I think.
I would like to find a new replacement part. Used at sor is $66?!? and cruiserparts.net is $15 where "aftermarket options may also be available"

Anyone know of other sources or options for scavenging and retrofitting from other makes/models? 15 bucks isn't bad but I would prefer a new part that will last....

Dyno, do you still have a good one? I'll pm you too if I can figgur that out.

Joined
Mar 31, 2014
Messages
4,468
Location
Gone
Ok,
Gunna revive this older thread with a doozy. Figured this was the best thread to put it since it can easily be found with Search. Here it goes......↓


The FJ60 distributor ventilation VCV, although a very important control valve, is no longer available new. 30 year old degraded used valves are still available from a few places & I have purchased a couple of used ones in the past too.

Since 30 year old used VCVs have an an accelerated End Of Life Expectancy and the their availability is drying up, a brand new VCV, if it could be purchased, would be a far better solution.

So I present… the venerable 90925-03192.



>>

The 90925-03192 is a brand new, cross-compatible Toyota VCV which is still available new from Toyota as of May, 2015. This VCV is used on the 1FE-FZ engine in the FZJ80 Land Cruiser for EVAP control. It can also be used as a direct replacement for the 2F EVAP VCV.

>>>

The only noteworthy difference between this newer FZJ80 VCV and the NLA FJ60 VCV is that pipe 'S' is oriented 180º on the other side of the valve. All the pipes on the VCV function in the exact same manner as the original FJ60 VCV and even have the same labels on them (X, Y, Z, S). The pipe O.D. is the same on each pipe as well. The two valves function identically. The FZJ80 VCV seems like it is actually a better valve and appears to be an engineering "upgrade" from the FJ60 valve.


The body of the FZJ80 VCV also has the same important dimensions as the FJ60 VCV as it snaps perfectly into both the stock distributor and EVAP spring VCV holders in the FJ60 engine compartment.


>>>>

Here are some thoughts....



The distributor VCV (I believe) fails due to the strong oxidizing properties of the ozone it transports out of the distributor. Ozone literally eats away the internal valve of a brand new VCV in less than a decade.

When the VCV is functioning correctly, vacuum applied to pipe 'S' when the engine is running, opens the passageway between pipe 'Y' and 'Z'. Ozone saturated air that is constantly being generated inside the distributor cap is then vented out via those two pipes. It is important to note that pipe 'S' on a good valve holds a vacuum and does not free flow. Pipe 'Y' leads up to the air cleaner and pipe 'Z' along with pipe 'X' lead down to the distributor cap.

One way that the VCV can malfunction is pipe 'S' will no longer will hold a vacuum and will create a continuous vacuum leak to the intake manifold. The failed valve can open a direct passageway to pipe 'Z' and 'X' from pipe 'S', yet pipe 'Y" (leading to the air cleaner) can remain closed.

• What does that mean?
It means that when the VCV fails this way, the engine will continuously pull air & a little bit of reactive ozone out of the distributor cap directly into the intake manifold, bypassing the air cleaner. This vacuum leak will be in essence an 'enhanced' vacuum leak due to the extra ozone the air contains.

My theory as to what is happening when you experience cabin farts (of the dissy kind) is that when the engine shuts down with a malfunctioning distributor VCV, hot unburned gasoline vapors in the intake are pushed up through the 'gas filter' on the intake manifold, through the vacuum piping, through the faulty valve via pipe 'S' on the VCV and down pipe 'Z' into the cooler distributor cap where they collect.

Then, when you start the engine the next time, those explosive vapors containing gasoline fumes and maybe a little ozone are ignited by the spark inside the distributor cap and explode in a mini (or not so mini) explosion and fart out through the dissy breather hose located in the cab.

• Why is this bad?
Of course flammable gasoline vapors are not a good thing to have sitting around inside the distributor cap, but water vapor, aka humidity, later on in the cooling cycle of the engine, can find it's way into the distributor cap as well when there is a bad VCV.

Since a bad VCV creates an un-sealed, open-air circuit between the dissy air filter in the cabin and the gas filter port on the intake manifold, any differences in temperatures between the two end points (cool cabin and hot manifold) will create a pressure difference. This means air & any moisture it contains will flow (albeit slowly) through the distributor venting plumbing.

• Why is this bad?
Ozone created inside the distributor cap when the high voltage spark jumps from the rotor to each terminal post combines with any moisture laden air in the cap and creates nitric acid. Nitric acid is very corrosive to iron containing metals… and it accelerates corrosion of the distributor innards.



OZONE:
[Excerpt]

Highly reactive, ozone concentrations above 15% can explode on contact with organic substances, especially strong reducing agents.

Ozone is a powerful oxidizing agent and oxidation with ozone evolves more heat and usually starts at a lower temperature than oxidation with oxygen. It reacts with non-saturated organic compounds to produce ozonides, which are unstable and may decompose with explosive violence. Ozone is an unstable gas which, at normal temperatures, decomposes to diatomic oxygen. At elevated temperatures and in the presence of certain catalysts such as hydrogen, iron, copper and chromium, this decomposition may be explosive.


Attachments

  • Pages from 1996 FZJ80 FSM.pdf
    167.2 KB · Views: 346
Last edited:

60Works

60 Series Iron Works
Joined
Sep 28, 2009
Messages
1,535
Location
NH
Good tech, Output.

Please riddle me this, if S is always pulling with the engine running, causing X and Y to pull from Z, why not plumb the dizzy straight to the air cleaner and throw away the VCV and all the extra spaghetti?

Joined
May 31, 2008
Messages
3,528
Location
the NJ word..
Ok,
Gunna revive this older thread with a doozy. Figured this was the best thread to put it since it can easily be found with Search. Here is goes......↓


The FJ60 distributor ventilation VCV is a very important control valve, yet (as noted) it is no longer available new. 30 year old degraded used valves are still available from a few places & I have purchased a couple of used ones in the past too.

Since 30 year old used VCVs have an an accelerated End Of Life Expectancy and the their availability is drying up, a brand new VCV, if it could be purchased, would be a far better solution.

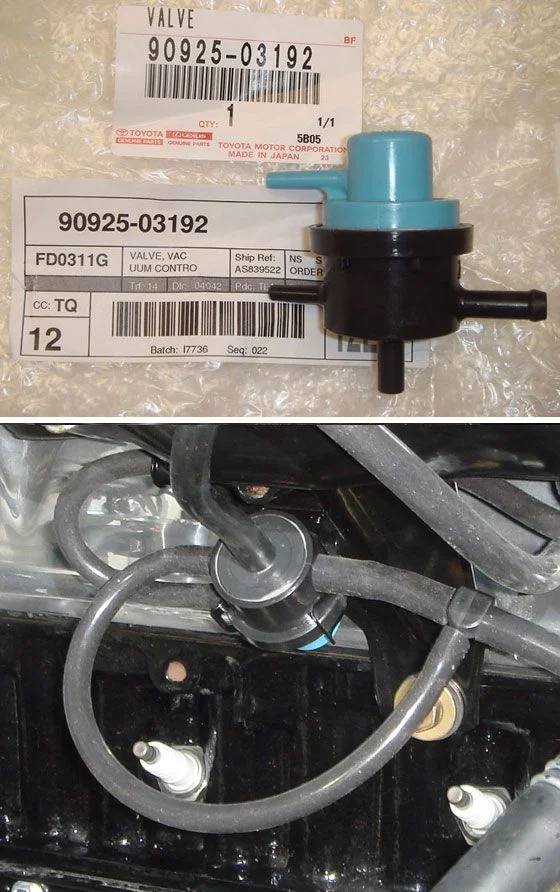

So may I humbly present… the venerable 90925-03192.

View attachment 1072764

>>

The 90925-03192 is a brand spankin new, cross-compatible Toyota VCV which is still available new from Toyota as of May, 2015. This VCV is used on the 1FE-FZ engine in the FZJ80 Land Cruiser for EVAP control. It can also be used as a direct replacement for the 2F EVAP VCV.

>>>

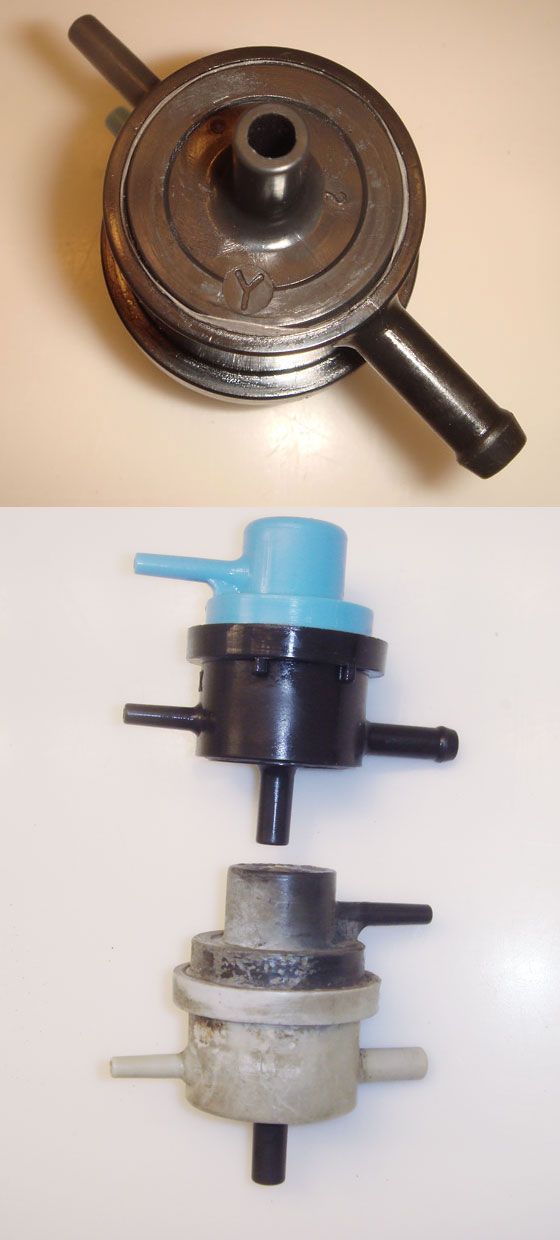

The only noteworthy difference between this newer FZJ80 VCV and the NLA FJ60 VCV is that pipe 'S' is oriented 180º on the other side of the valve. All the pipes on the VCV function in the exact same manner as the original FJ60 VCV and even have the same labels on them (X, Y, Z, S). The pipe O.D. is the same on each pipe as well. The two valves function identically. The FZJ80 VCV seems like it is actually a better valve and appears to be an engineering "upgrade" from the FJ60 valve.

View attachment 1072766

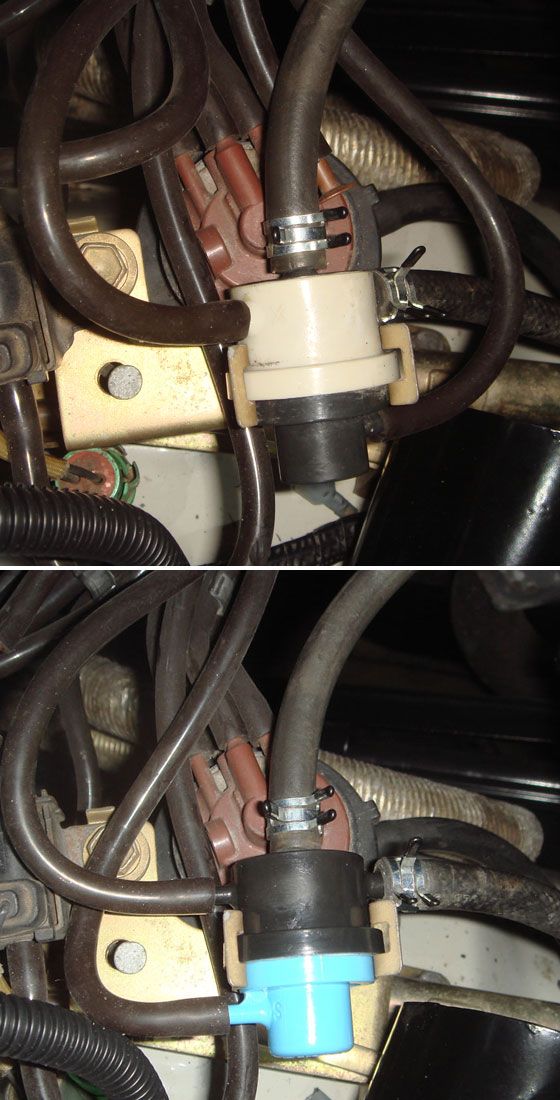

The body of the FZJ80 VCV also has the same important dimensions as the FJ60 VCV as it snaps perfectly into both the stock distributor and EVAP spring VCV holders in the FJ60 engine compartment.

View attachment 1072765

>>>>

Now it's time for...
<mytheory>
<mydigression>

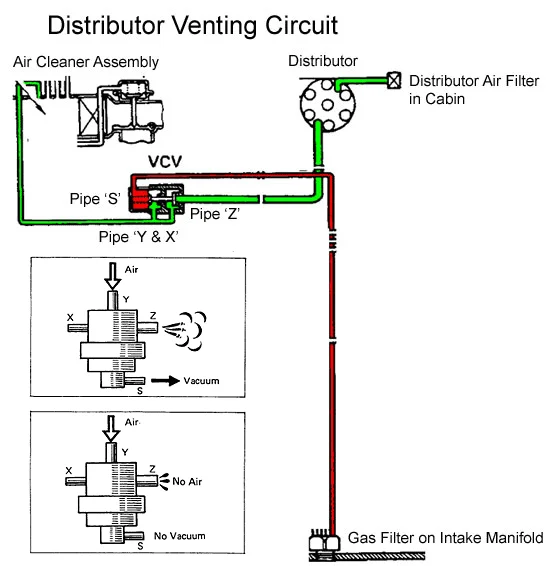

View attachment 1072768

The distributor VCV (I believe) fails due to the strong oxidizing properties of the ozone it transports out of the distributor. Ozone literally eats away the internal valve of a brand new VCV in less than a decade.

When the VCV is functioning correctly, vacuum applied to pipe 'S' when the engine is running, opens the passageway between pipe 'Y' and 'Z'. Ozone saturated air that is constantly being generated inside the distributor cap is then vented out via those two pipes. It is important to note that pipe 'S' on a good valve holds a vacuum and does not free flow. Pipe 'Y' leads up to the air cleaner and pipe 'Z' along with pipe 'X' lead down to the distributor cap.

When the VCV malfunctions, pipe 'S' no longer will hold a vacuum and will create a continuous vacuum leak to the intake manifold. The failed valve opens a direct passageway to pipe 'Z' and 'X' from pipe 'S' yet pipe 'Y" (leading to the air cleaner) will remain closed.

• What does that mean?
It means that when the VCV fails, the engine will continuously pull air & a little bit of highly reactive ozone out of the distributor cap directly into the intake manifold, bypassing the air cleaner. This vacuum leak will be in essence an 'enhanced' vacuum leak due to the extra ozone the air contains.

If you've ever heard strange 'popping or snapping noises' randomly emanating from around the intake manifold while the engine is idling, take a look the at the distributor VCV. If it's malfunctioning, it could be injecting an ozone enriched vacuum leak directly into the intake manifold.

If you've ever heard the small 'pop' or 'snapping' sound inside the cabin below the glove box when first starting up the engine, that is a sign that the distributor VCV has failed.

My theory as to what is happening when you experience cabin farts (of the dissy kind) is that when the engine shuts down with a malfunctioning distributor VCV, hot unburned gasoline vapors in the intake are pushed up through the 'gas filter' on the intake manifold, through the vacuum piping, through the faulty valve via pipe 'S' on the VCV and down pipe 'Z' into the cooler distributor cap where they collect.

Then, when you start the engine the next time, those explosive vapors containing gasoline and maybe a little ozone are ignited by the spark inside the distributor cap and explode in a mini explosion and fart out through the dissy breather hose located in the cab.

• Why is this bad?
Of course flammable gasoline vapors are not a good thing to have sitting around inside the distributor cap, but water vapor, aka humidity, later on in the cooling cycle of the engine, can find it's way into the distributor cap as well when there is a bad VCV.

Since a bad VCV creates an un-sealed, open-air circuit between the dissy air filter in the cabin and the gas filter port on the intake manifold, any differential in temperatures between the two end points (cool cabin and hot manifold) will create a pressure gradient. This means air & any moisture it contains will flow (albeit slowly) through the distributor venting plumbing.

• Why is this bad?
Ozone is created inside the distributor cap when the high voltage spark jumps from the rotor to each terminal post. When this highly reactive ozone mixes with any moisture laden air in the cap, it creates Nitric Acid. Nitric Acid is extremely corrosive to iron containing metals… and… well… it can corrode the hell out of the distributor innards.

That's why.


OZONE:
[Excerpt]

Highly reactive, ozone concentrations above 15% can explode on contact with organic substances, especially strong reducing agents.

Ozone is a powerful oxidizing agent and oxidation with ozone evolves more heat and usually starts at a lower temperature than oxidation with oxygen. It reacts with non-saturated organic compounds to produce ozonides, which are unstable and may decompose with explosive violence. Ozone is an unstable gas which, at normal temperatures, decomposes to diatomic oxygen. At elevated temperatures and in the presence of certain catalysts such as hydrogen, iron, copper and chromium, this decomposition may be explosive.


</mydigression>
</mytheory>

Bravo on that find!
Any idea of the pricing?


FJ40Jim

The Cruiser Whisperer
SILVER Star
Joined
Sep 26, 2003
Messages
11,030
Location
Lancaster, Ohio, USA
if S is always pulling with the engine running, causing X and Y to pull from Z, why not plumb the dizzy straight to the air cleaner and throw away the VCV and all the extra spaghetti?
If the dissy is plumbed straight to the air cleaner, then the gasoline vapor boiling out of the carb will get pushed to the dissy, run downhill into the dizzy, pool there (because the dizzy is lower than the carb and the cabin filter), where it will explode when the engine is restarted. This is bad for the dissy, causing the plastic parts inside to get mushy, and sometimes blowing up the cap.

The VCV prevent the flow of gasoline vapor to the dissy by connecting the dissy to aircleaner when engine is running (to pull clean, dry cabin air through dissy) and then isolating dissy from aircleaner when engine is shut off (to prevent backflow of gas vapor from aircleaner down to dissy).

Thanks Output for doing the research & finding the new VCV. This :beer: is for you.

The FZJ80 part, #90925-03192 is pricey-
Your Price:
$65.82
Retail Price:
$89.73
You Save:
$23.91

But there is a less expensive part for FJ80, #90925-03057
Your Price:
$64.29
Retail Price:
$87.66
You Save:
$23.37

Save $1 by using the earlier PN!


FJ40Jim

The Cruiser Whisperer
SILVER Star
Joined
Sep 26, 2003
Messages
11,030
Location
Lancaster, Ohio, USA
On shutdown, there is another vent line that connects carb bowl to canister through the electrically operated "outer vent control solenoid".

The VCV purge system pulls vapor out of canister when engine is running.
Solenoid system allows canister to absorb fuel vapor from boiling carb after shutdown.

At least, that's how it spoda work.


Onur

52122-60140
Moderator
GOLD Star
Joined
Aug 28, 2004
Messages
28,683
Location
Tabasco, NY
Update: the VCV for FJ62 & FJ80, 90925-03057, is also discontinued now.

The FZJ80 VCV, 90925-03192, is ordered from toyota and will be here in a few days. None at local parts depot, had to come from the other side of the country. Get 'em while you still can.


Confirmed information.
