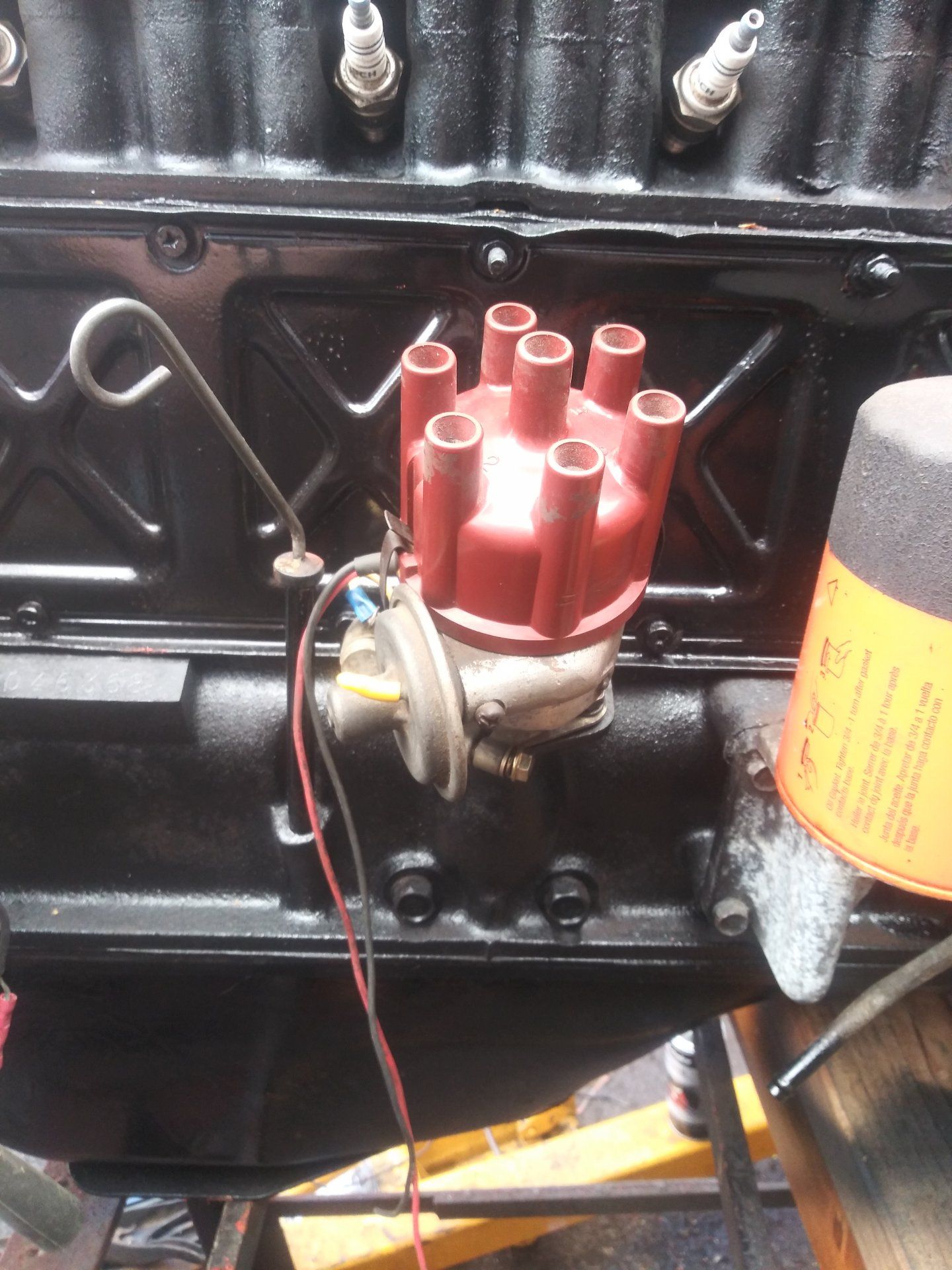

can anyone help me here with info on the distributor differences here? The one I installed has the vacuum diaphram coming out opposite of what I am used to seeing. The one not installed is like the others I have. These are both electronic pick ups, but does the installed one being opposite mean it's vacuum advance? Which one should I use? Usually I feel pretty knowledgeable, but not about distributor retard/advance stuff. This is a 2f that's been desmogged, going to run headers and an Aisin carb. Any info would be appreciated, thank you- Matt


spotcruiser

Geezer
SILVER Star
Joined
Jan 30, 2003
Messages
3,895
Location
Western WA

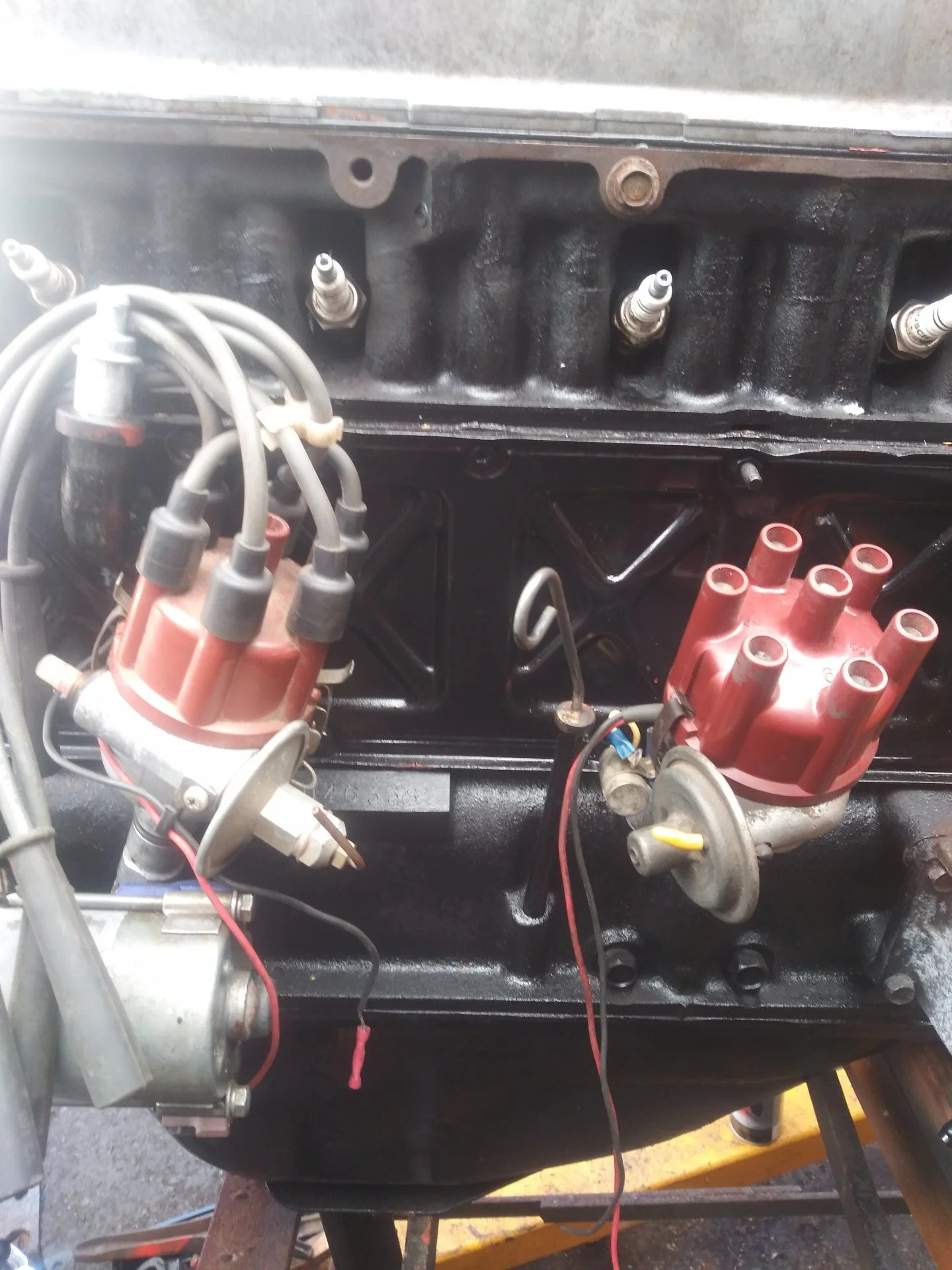

The second photo is a vacuum retard. The one on the left in the first photo is a vacuum advance.

The rotation of the distributor is CW (looking down at it). If the vacuum on the diaphragm pulls the contact plate CCW, it's advance. If the vacuum on the diaphragm pulls the contact plate CW, it's retard. In addition to a single advance or single retard diaphragm, some Toyota distributors have two (aiding) advance diaphragms, and some Toyota distributors have an advance and a retard diaphragm. It depends on the year and the market.

Obviously, you want vacuum advance, but the vacuum has to come from the correct location and be appropriate for the operating condition.

Last edited:

mattcamp

SILVER Star
Joined
Apr 27, 2009
Messages
1,367
Location
Portland/Vernonia Oregon
The second photo is a vacuum retard. The one on the left in the first photo is a vacuum advance.

The rotation of the distributor is CW (looking down at it). If the vacuum on the diaphragm pulls the contact plate CCW, it's advance. If the vacuum on the diaphragm pulls the contact plate CW, it's retard. In addition to a single advance or single retard diaphragm, some Toyota distributors have two (aiding) advance diaphragms, and some Toyota distributors have an advance and a retard diaphragm. It depends on the year and the market.

Obviously, you want vacuum advance, but the vacuum has to come from the correct location and be appropriate for the operating condition.
Thank you, much appreciated!


Dizzy

GOLD Star
Joined
Feb 5, 2018
Messages
2,021
Location
Santa Fe, New Mexico
A 2F that came with the rig had toasted centrifugal weight bushings. It is prone to rust internally; ozone is created by points. This distributor is probably a paperweight, or museum piece.

I doubt that the diaphragm on the vac advance unit is worth much with age. New diaphragms can probably be had.

I can't tell much difference not running the vacuum connection on a spark advance distributor.


4Cruisers

Supporting Vendor
SILVER Star
Joined
Apr 2, 2015
Messages
6,505
Some OEM carburetors have a vacuum advance port, or an EGR port that's suitable for distributor vacuum advance. Others do not, and have to be modified. If you want to run a vacuum advance distributor you'll need a carburetor with ported vacuum. Take a look here Dizzy FAQ for more distributor information. If your advancer is shot, I have a supply of new Toyota/NipponDenso advancers to fit many different Land Cruiser distributor applications.


tone33

SILVER Star
Joined
Jan 22, 2010
Messages
307
Location
Spring Hill, TN
Just had 4Cruiseres rebuild my dizzy with new vacuum advance and it is truly a work of art and professional in every way.
What is this you speak of? The vacuum advance on my 78 is plugged up. A new OEM dizzy is not cheap... And not sure I want to go with Cardone aftermarket.
