I have the exact same setup on mine, works flawlessly, mine disengages by spring tough
much better and much cheaper than the electric junk



[Devil Frog]

I have the exact same setup on mine, works flawlessly, mine disengages by spring tough
much better and much cheaper than the electric junk

Mind sharing? I am resistant to spend $700 on a replacement actuator. An aluminum casting is a poor design choice for this application. Seems like a common failure. I bet there would be a market for this.



[Kjartanbj]

I dont have a part number or anything, local guy makes them here in Iceland
but it's essentially the same design as OP has



[Devil Frog]

I dont have a part number or anything, local guy makes them here in Iceland
but it's essentially the same design as OP has

How much? Will he ship them to the US? I would be interested in 2 for my 40.



[Kjartanbj]

I think it would be cheaper to find someone that makes them locally , can be easily fabricated, there was someone here on mud that had found the parts needed and was going to make one like mine



[Devil Frog]

I think it would be cheaper to find someone that makes them locally , can be easily fabricated, there was someone here on mud that had found the parts needed and was going to make one like mine

That probably makes sense. So does anyone have a legible dimensioned drawing of the plate and shaft?



[Camino]

I want to buy one. I don't want to source the parts and fab one. I want to buy a turn key air accuator to replace my dead electric rear accuator. Anybody sell them? Thanx, L.B.



[Devil Frog]

I want to buy one. I don't want to source the parts and fab one. I want to buy a turn key air accuator to replace my dead electric rear accuator. Anybody sell them? Thanx, L.B.

Who is this guy in Ireland that makes em? Is he on the board? Maybe we can setup a group buy



[moorsman]

help in same boat need info regarding parts have no onboard air at present but thinking of using the air con compressor to fill a small tank for diff locks and tyres air con is not needed and i realise need for an oiler in system etc any help much apreciated as only centre diff lock at present
regards kev



[Camino]

does anyone have an email address for the mysterious Iceland Guy who might have the part numbers for these valves and cylinders? Thanx in advance, L.B.



[Devil Frog]

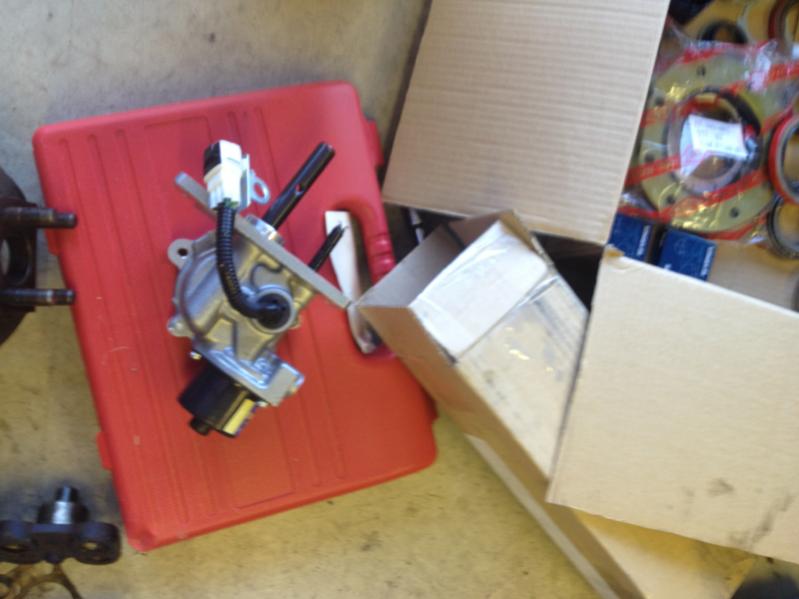

Finally gave up on this Ireland mystery man, and shelled out $700 for this:



[alia176]

does anyone have an email address for the mysterious Iceland Guy who might have the part numbers for these valves and cylinders? Thanx in advance, L.B.

Finally gave up on this Ireland mystery man, and shelled out $700 for this:

This appears to be a simple application. Any 12vdc solenoid valve should work for this application, just google it! Find a plate (alum/steel), cut it to size, drill holes and install the air cyl. If you want to really follow the KISS rule, use a pneumatic switch (found in most Semi truck parts house) to activate the air cylinder. They're used for many things in the OTR trucking industry. I used to use them to activate the air lockers on a previous rig.

The info on the air cylinder is in this thread:
https://forum.ih8mud.com/80-series-tech/708474-elocker-air-conversion-thread.html

http://www.automationdirect.com/adc...Cylinders_(A-Series)/3-z-4_inch_Bore/A12005SN



[Devil Frog]

Wow, you didn't try very hard I'm thinking!

It came down to a make vs buy decission. Honestly I needed somthing that was drop in PNP, I have so much other work to do getting this rig trail-worthy, that getting sucked into this actuator subproject would be a major setback. I would have considered buying one from the Ireland guy if there was solid contact info. I do not have access to a machine shop, and do not have the time or energy to be running drawings around to machine shops, chasing parts.... I may have put more effort into this air actuator idea if my entire rig was up and running, I did not have 2 jobs and 2 kids under 3 years old. In this case I had more money than time.



[alia176]

It came down to a make vs buy decission. Honestly I needed somthing that was drop in PNP, I have so much other work to do getting this rig trail-worthy, that getting sucked into this actuator subproject would be a major setback. I would have considered buying one from the Ireland guy if there was solid contact info. I do not have access to a machine shop, and do not have the time or energy to be running drawings around to machine shops, chasing parts.... I may have put more effort into this air actuator idea if my entire rig was up and running, I did not have 2 jobs and 2 kids under 3 years old. In this case I had more money than time.

Those are lame excuses coming from a smart engineer but I'll let you slither by. Drilling five holes in the plate doesn't sound that complicated but it's your $700. I'm guessing an hour worth of work with two different drill bits and a file to clean things up unless I"m missing something.

Heck, it'll take more time to come up with the logic/wiring/installation of the E-locker into an old 40 I'm thinking



[Devil Frog]

Those are lame excuses coming from a smart engineer but I'll let you slither by. Drilling five holes in the plate doesn't sound that complicated but it's your $700. I'm guessing an hour worth of work with two different drill bits and a file to clean things up unless I"m missing something.

Heck, it'll take more time to come up with the logic/wiring/installation of the E-locker into an old 40 I'm thinking

Being a mechanical engineer is what kept me from doing as you suggested. If you have a steady hand and good eye,might be able to hold a 1mm tolerance that way. Pretty sloppy. You really need mill and lathe to do this right. Again if I was tolerant of low quality I would have just bought a Jeep. Plus I already have a good elocker in the front axle, so I will need the harness and controller regardless.



[Manuel Matos]

Answers to questions:

The cylinder is double acting and is 32 mm diameter and 25 mm stroke. The system needs a 19 mm stroke. I installed a spring the cylinder to limit the stroke to 19 mm but if you keep 25 mm should not be a problem. The springs also make the system fail safe off in sense that if i have a problem with the solenoid valve, i can disconnect the hoses and it will return to off position and i will not have crawl under the truck at the wrong time (with my new suit and make my wife very mad).

This is my first post, i thougth i was able to post as many times 135 kB pictures but i realize that i can't post more than 135 kB total. Those intersted in having all the images can send me a message with your e-mail adrres and i will gladly forward you the autocad drawing of the plate and all pictures.

I also thought about a cable actuator but it would have been more difficult to have it sealed correctly and also you have to push in to actuate the diff lock, you would need rods and all sorts of things that will rust and seized.

I am pulling a 6000 lbs travel trailer with the truck and rear end was very low when i pull so i added air lift www.airliftcompany.com to raise it. I have a compressor connected to an air swith that maintains pressure to 30 psi (compressor starts at 30 and stops at 45psi). This pressure feeds the solenoid valve for the diff lock actuator and also a pressure regulator that feed the air lifti adjust to 25 psi when i pull the trailer and 5 psi when and i am not.

I found lot of interesting topics on that site and i read a lot but this time i will try to help a bit.

Hi Claude do you think that is possible to send me the designs to manuel.js.matos@gmail.com

REgards



[yj jeep]

Just wondering if you could give me any information about this. Would be much appreciated. I have a YJ Jeep using 80 series running gear. Having problems with diff lock and electric motor. My contact is leemeyer@slingshot.co.nz.



[JCruse]

Can I do this air fix for my center diff?



[plumb crazy]

My rear diff lock actuator was having extensive damage. It was full of rust inside, all gear, shafts everything heavily rusted and completely seized, the motor rotor was falling into pieces, i live in Canada where road salt in winter affects everything. I called dealer and i did not want to spend the 1500$ he wants for it so i designed a air actuated diff lock actuator. I did it two years ago and it worked perfectly since then. It cost me about 25$ to do it. I purchased a air cylinder and a solenoid valve on Ebay I have attached pictures of the dissambled and reassembled actuator. I installed a Oring in the groove on the cylinder head. The actuator rod is made with a 14 mm bolt. I drilled one hole at the end to attach it to the cylinder with a threaded rod and one hole on the side for the fork inside the differential. I also attached a autocad drawing of the mounting plate. If you access to a milling and a lathe with minimal knowledge than you save 1500$ in about 4 hours. I already had an air compressor in the truck for the air lift suspension. . It is working like the OEM one, with the switch on the left side of the steering column (i bypassed on wire at the diff lock controller behind the passenger side kick panel). I hooked the cylinder up to the 12 volts 4-way 5 ports solenoid valve at 30 psi. The only diffence between this and the OEM is that I can turn the diff lock on even if the center diff lock is not on.

View attachment 90834View attachment 90835View attachment 90836

Hi Claude would it be possible to email the cad ect to gsxrsumo@hotmail.co.uk. Many thanks dave
