bell housing pattern on the Toyota 2F engine (1 Viewer)

[knightrider85]

I'm working on a DIY 30kW natural gas generator using a Toyota 2F engine and need to determine the correct bell housing pattern to match it with an available SAE flange size (#2, #3, #4, or #5). From my research, SAE #3 or #4 seem to be the most common for medium-sized industrial engines, but I’m unsure which one would be the best fit.

Has anyone here worked with a similar setup or knows the exact SAE flange size that would match the Toyota 2F? Any guidance or recommendations would be greatly appreciated!



[mattressking]

None of them. 2F doesn't use SAE pattern as it mounts behind the flywheel.



[charliemeyer007]

I would use the bell housing, clutch and starter. Make an adapter plate to fit the bell housing with like recessed allen head bolts. 1/2" to 1" steel or aluminium plate ought to work. Then drill and tap holes to fit your generator pattern. Then make a shaft to connect the clutch splines to the generator input shaft with proper power rated flex coupling. It would handle any reasonable alignment issues.

Flexible Shaft Couplings | High Performance Couplings

www.zero-max.com

You should be able to rig a lever to disengage the clutch using the fork and throw out bearing.



[Pighead]

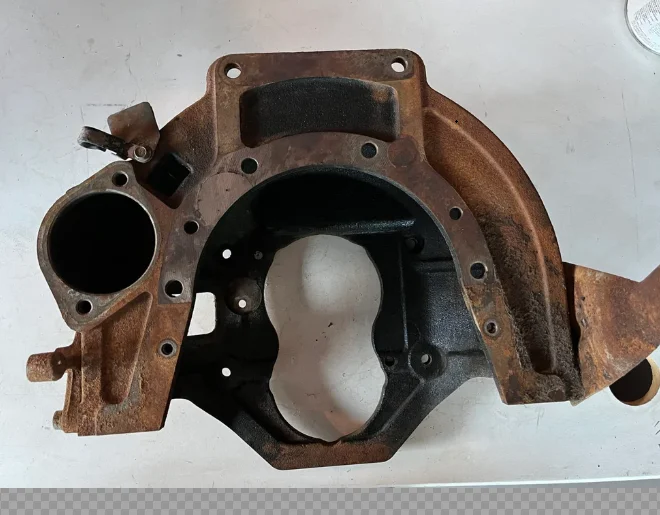

It might be easier to use a 3-speed bellhousing off an F engine...



[cruisermatt]

It might be easier to use a 3-speed bellhousing off an F engine...

He ignored that suggestion I made in his other thread where he asked the same question.



[knightrider85]

He ignored that suggestion I made in his other thread where he asked the same question.

no sir i didnt ignore it jus been busy with few other things, it aint this simple in pakistan i simply cant order online and get it delivered, ill have to find it in scrapyards
