Auto Up Window Mod

Discussion in '80-Series Tech' started by landtank, May 3, 2004.

  1. landtank

    landtank SILVER Star

    Messages:
    19,324
    Likes Received:
    1,630
    Joined:
    Mar 27, 2003
    Location:
    Groveland MA
    I received the dead switch assembly from RavenTai today. As promissed I dug in and modified the assembly for auto up ability. The Mod consists of 2 changes to the switch assembly for this function. I'll have to post another one for the second change and it's pic.

    1. You'll need to give the switch itself the range of motion so it can get that second click as it does in the down position. This is done by trimming the 2 tabs along the back side of the switch. I wasn't too careful here just took off about half the tab. To get the switch off you'll need to remove an E-clip and slid out the pivot pit. The switch then lifts off and you can easily trim it. The pic here shows the 2 tabs already trimmed.
    Auto up 02.jpg

    Last edited: Jun 26, 2004
    vegansbane likes this.
  2. landtank

    landtank SILVER Star

    Messages:
    19,324
    Likes Received:
    1,630
    Joined:
    Mar 27, 2003
    Location:
    Groveland MA

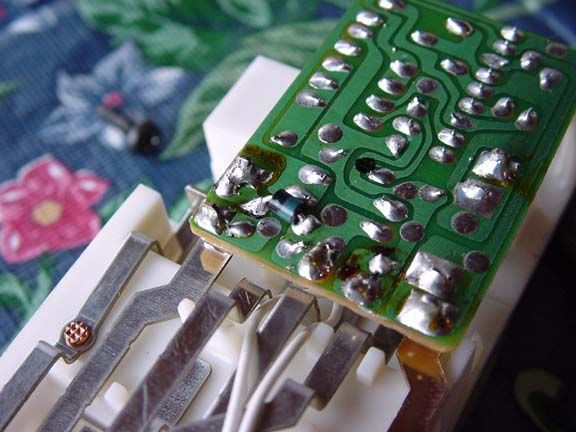

    Step 2. You'll need to add a Diode to the PCB to allow the holding solenoid to be activated in the up position. I used a diode from the provided switch assembly. The orientation of the diode is important. There is a stripe on one end and it has to be installed as pictured or it won't work.
    Auto up 01.jpg

    Last edited: Jun 26, 2004
    Bellzarr likes this.
  3. landtank

    landtank SILVER Star

    Messages:
    19,324
    Likes Received:
    1,630
    Joined:
    Mar 27, 2003
    Location:
    Groveland MA
    Hopefully someone can help here as I don't know how to provide the proper info so you'll get the correct diode for your truck. I could head down to RadioShack and see what they say but I'd thought I'd give someone here a chance to help since I'd trust that more.

    The circuit basically holds the switch in possition until the motor draws a max current for a few seconds and then releases the solenoid. I'd imagine that dirty tracks would cause the motor to hit that current threashold prematurely and not close the window properly but in my 3 or 4 tries it worked fine.

    There is no need to dissassemble the switch to do this mod but I'd suggest this as my contacts where very dirty and arching pretty bad during trials. I cleaned them with some PCB cleaner and then blew the assembly out.

    Post back questions as I suck at proceedures and tend to short change the instructions.

    Later

  4. Rich

    Rich

    Messages:
    1,805
    Likes Received:
    5
    Joined:
    Jun 16, 2003
    Good job on the swith mod. Try contacting george_tlc regarding the diode specification. He's got the background you are looking for.

  5. Beowulf

    Beowulf

    Messages:
    12,529
    Likes Received:
    58
    Joined:
    Mar 27, 2003
    Location:
    Somewhere in the foothills...
    Very nice job Rick. I had auto-up on a 79 280ZX and have wanted that feature many times on all the other vehicles I've owned in the past 25 years. I may do this one.

    -B-

  6. turbocruiser

    turbocruiser SILVER Star

    Messages:
    3,562
    Likes Received:
    28
    Joined:
    Dec 24, 2003
    Very cool mod, thanks for that! Can someone share the spec on that diode? Thanks again for that!

  7. RavenTai

    RavenTai

    Messages:
    6,048
    Likes Received:
    45
    Joined:
    Nov 16, 2003
    Location:
    Dixie co. Florida
    Nice work LT, I am glad you could put that dead switch to good use :)

    if I am reading the EWD right the diode only carries the current for the small holding solenoid in the switch, not sure how much current that is but cant be much? I would be very surprised it it was over .5 amp (500ma) and is likely much less, a larger rated diode than needed would be ok you would only run into troubles if the diode was to small for the load, it would be interesting to hook in an amp meter into the circuit to see how much current is being used?

    diodes are electrical check valves they all function the same the only spec are the load it can carry (.5a?) and the voltage it can withstand, 12 to 16 volts

  8. landtank

    landtank SILVER Star

    Messages:
    19,324
    Likes Received:
    1,630
    Joined:
    Mar 27, 2003
    Location:
    Groveland MA
    I'm heading down south for a service call today. There is a great electronic place along the way and these guys will be able to tell me what we need. So I'l post back trhnis evening with the diode specs.

    :cheers:

  9. Rookie2

    Rookie2

    Messages:
    3,036
    Likes Received:
    87
    Joined:
    Dec 15, 2003
    Location:
    Knoxville
    You da man, Rick.

    So is the holding solenoid only tied to the drivers side auto down feature, and therefore it's not really possible to do this mod on the passanger side and rears?

    Thanks,
    Rookie2

  10. xl715

    xl715

    Messages:
    128
    Likes Received:
    0
    Joined:
    Dec 19, 2003
    There has to be a way tie the passenger side and rears into the holding solenoid, how about more diodes?
    Great post this is happening to my rig this week!!!!!

  11. RavenTai

    RavenTai

    Messages:
    6,048
    Likes Received:
    45
    Joined:
    Nov 16, 2003
    Location:
    Dixie co. Florida
    [quote author=xl715 link=board=2;threadid=15744;start=msg150269#msg150269 date=1083684177]
    There has to be a way tie the passenger side and rears into the holding solenoid, how about more diodes?
    [/quote]

    nope, there is only one solenoid, the drivers window switch is completely diffrent form the other switches, even if you wired the other windows to all go down with the drivers switch it would probably trip the current sensing and release

    ralphy1997 likes this.
  12. e9999

    e9999 You want to do what...? Moderator

    Messages:
    16,633
    Likes Received:
    523
    Joined:
    Sep 21, 2003
    Location:
    US
    will this cut your head off if you happen to be sticking it outside at the time?
    E

  13. RavenTai

    RavenTai

    Messages:
    6,048
    Likes Received:
    45
    Joined:
    Nov 16, 2003
    Location:
    Dixie co. Florida
    ask the cat

    (right click, save target as)

  14. landtank

    landtank SILVER Star

    Messages:
    19,324
    Likes Received:
    1,630
    Joined:
    Mar 27, 2003
    Location:
    Groveland MA
    [quote author=e9999 link=board=2;threadid=15744;start=msg150367#msg150367 date=1083695306]
    will this cut your head off if you happen to be sticking it outside at the time?
    E
    [/quote]

    The way the circuit works is it monitors the amp draw of the motor. When the windows raeches it's limit wether up or down the amperage spikes. After a second of this condition the cicuit turns off the solenoid. If your head was out the window the motor would drive the glass into your head until it saw that amperage spike and then shut down. This is a far better circuit than limit switches as they wouldn't stop if there was an obstruction.

    For you Eric, considering the contents of your head it might well make it through ;)

    I did stop by the electronic shop and they indicated it was a blocking type diode so no real specs just a diode that can handle 12v and a small load.

    For anyone who might want this but isn't comfortable doing it, PM me, we can work something out provided you give me a good assembly.

    And since I cleaned my contacts the windows have been operating with greater speed. I used some cleaner found at radio shack that was aerosol witha brush attached.

  15. lovetoski

    lovetoski SILVER Star

    Messages:
    4,571
    Likes Received:
    244
    Joined:
    Jul 13, 2003
    Hi Rick,

    Cool mod. Question on cleaning the contacts, and the impact on speed...which contacts specifically did you clean...motor, switch, both?

    Thanks!

  16. landtank

    landtank SILVER Star

    Messages:
    19,324
    Likes Received:
    1,630
    Joined:
    Mar 27, 2003
    Location:
    Groveland MA
    Just cleaned the ones in the switch assembly. They were black and dusty. None were pitted but I think it was heading that way.

  17. Landpimp

    Landpimp GOLD Star

    Messages:
    15,955
    Media:
    1
    Likes Received:
    1,974
    Joined:
    Mar 14, 2003
    Location:
    Gig Harbor WA
    yes it will, not the safest mod I can think of, fine if your the only one using the cruiser, but if you have kids.........well just think about it 1st.

    100 series have this feature but it will stop the window from closing on your hand, head, or ?

    John

    [quote author=e9999 link=board=2;threadid=15744;start=msg150367#msg150367 date=1083695306]
    will this cut your head off if you happen to be sticking it outside at the time?
    E
    [/quote]

  18. e9999

    e9999 You want to do what...? Moderator

    Messages:
    16,633
    Likes Received:
    523
    Joined:
    Sep 21, 2003
    Location:
    US
    if you ever tried the 100's (I did on several), you'll see that it takes quite a bit of resistance to stop the thing. IIRC, my wife couldn't even do it with her hand. Would sure hurt a child...
    Fortunately, at least the switches are set up the safer way...
    E

  19. landtank

    landtank SILVER Star

    Messages:
    19,324
    Likes Received:
    1,630
    Joined:
    Mar 27, 2003
    Location:
    Groveland MA
    I'm not too concerned about the safty factor as I generally don't let kids sit in my vehicles in the drivers seat with the keys in the ignition and in the run position. If they have gotten that far into operating the vehicle the auto up on the window would not be at the top of my list of things to worry about.

    Back when I was a kid the neighbor's kids were playing around the car. Got it out of park and the thing rolled over another family's child. Luckily just some broken bones. Could have been a lot worse.

    94lc80series likes this.
  20. xl715

    xl715

    Messages:
    128
    Likes Received:
    0
    Joined:
    Dec 19, 2003
    Tried to do this mod, however the PCB on my '94 is slightly different then in the above pic. Anyone know where the diode should be soldered in on my year? I already clearenced the switch, and man did I have alot of black stuff on my conectors!! Any more info would be great I don't have a FSM or wiring diogram.
