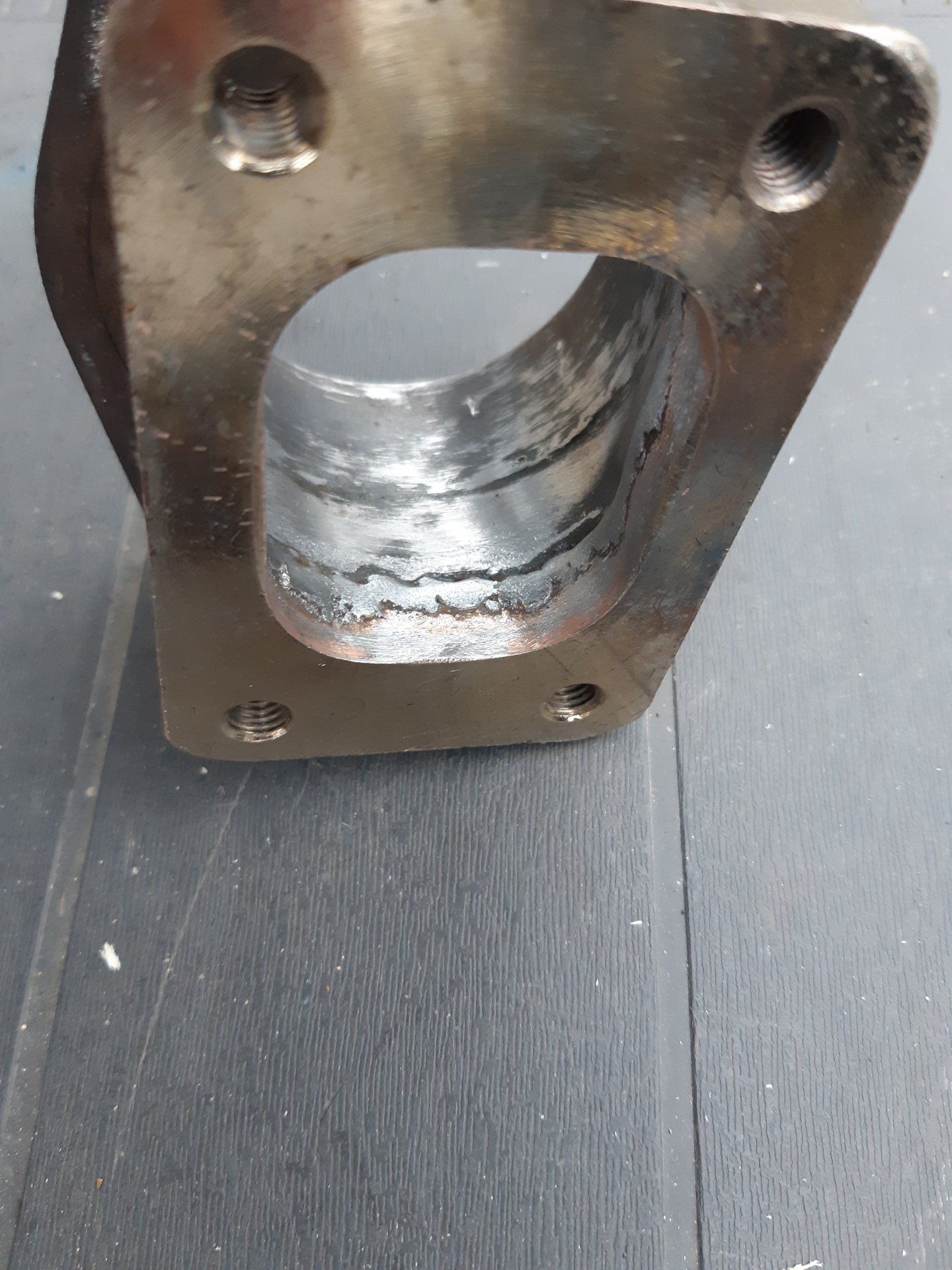

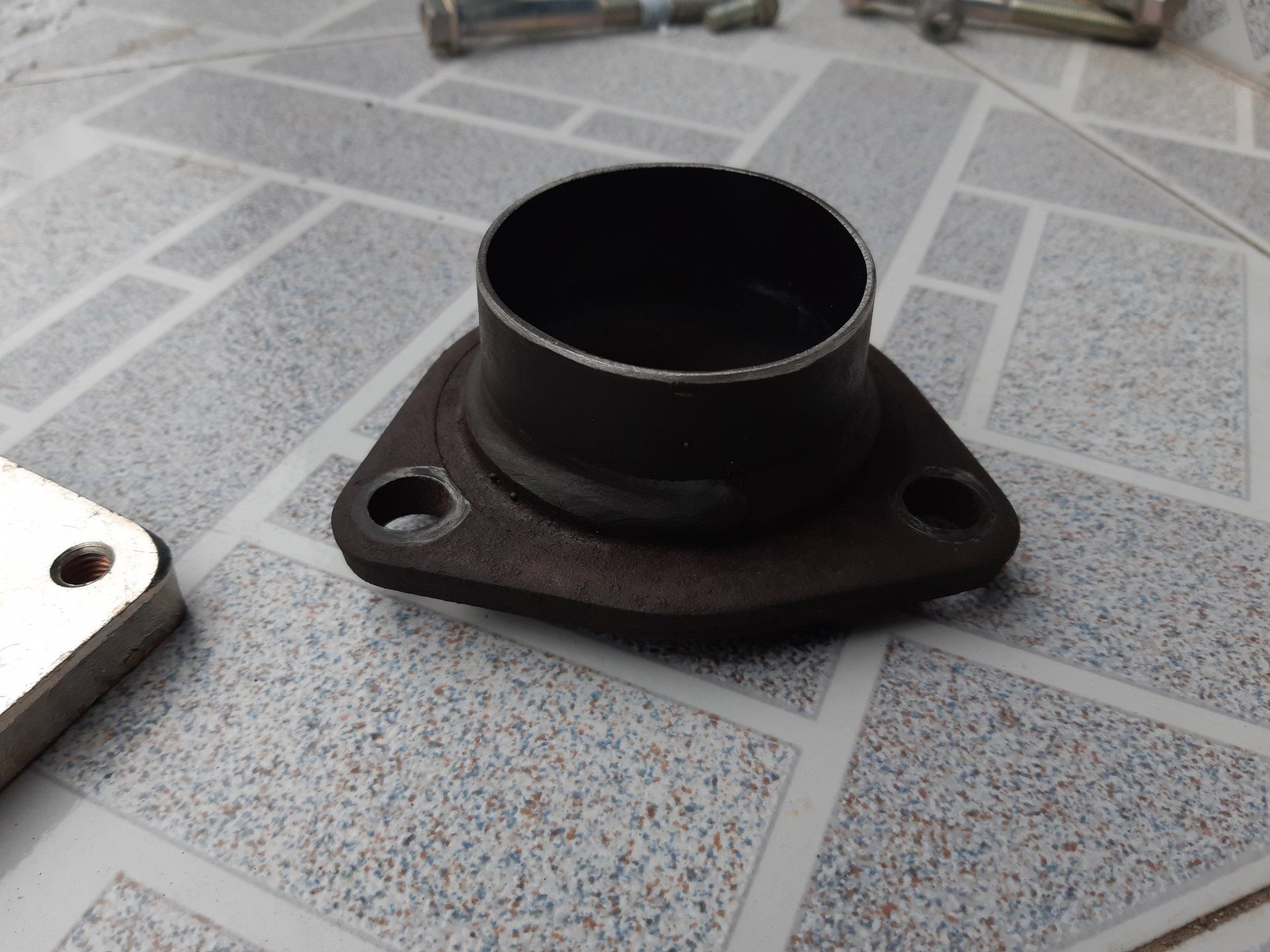

As I used my stock exhaust manifold I cut a pies of stock exhaust pipe and welded 1/2" turbo flange

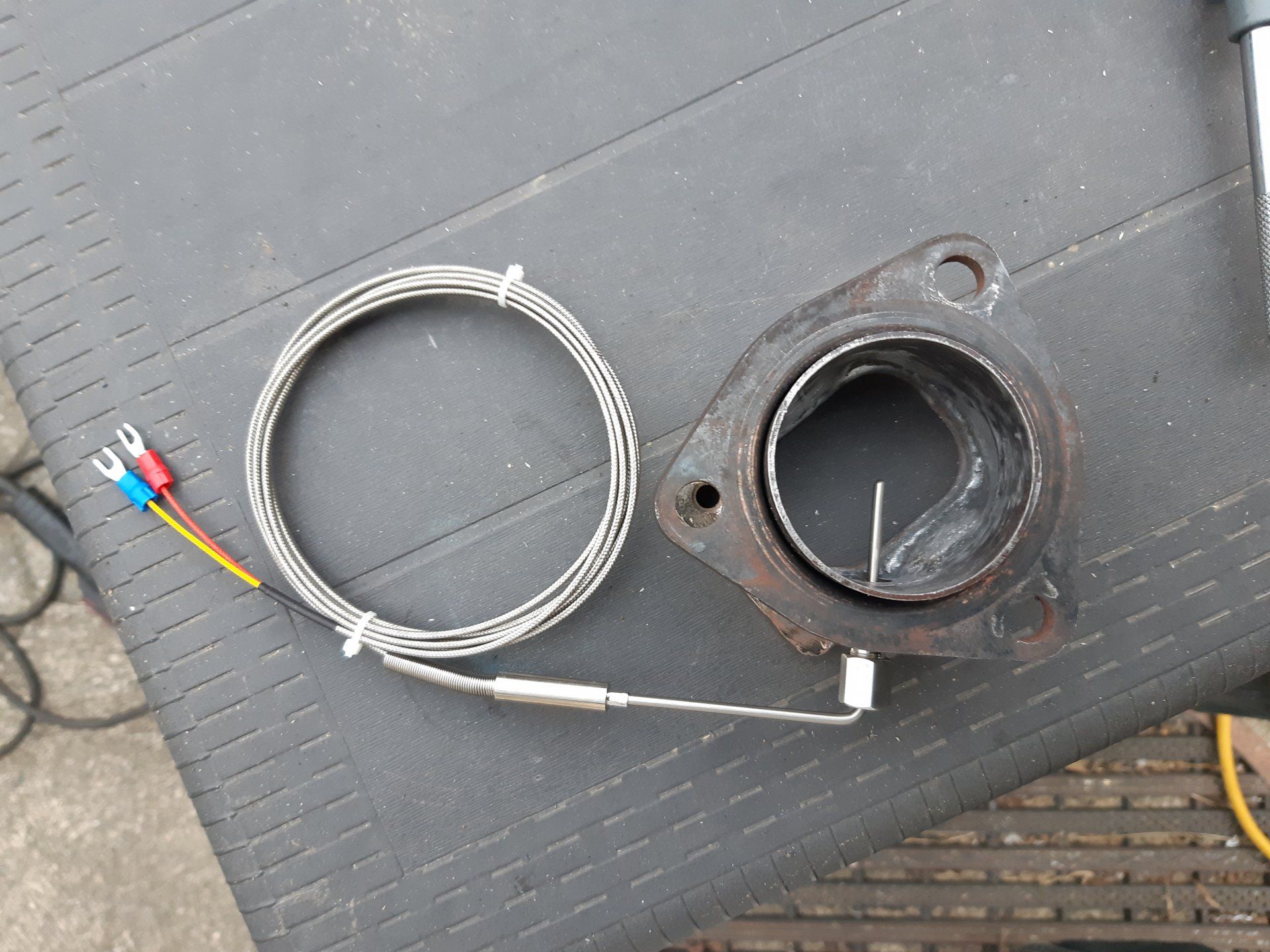

EGT probe:

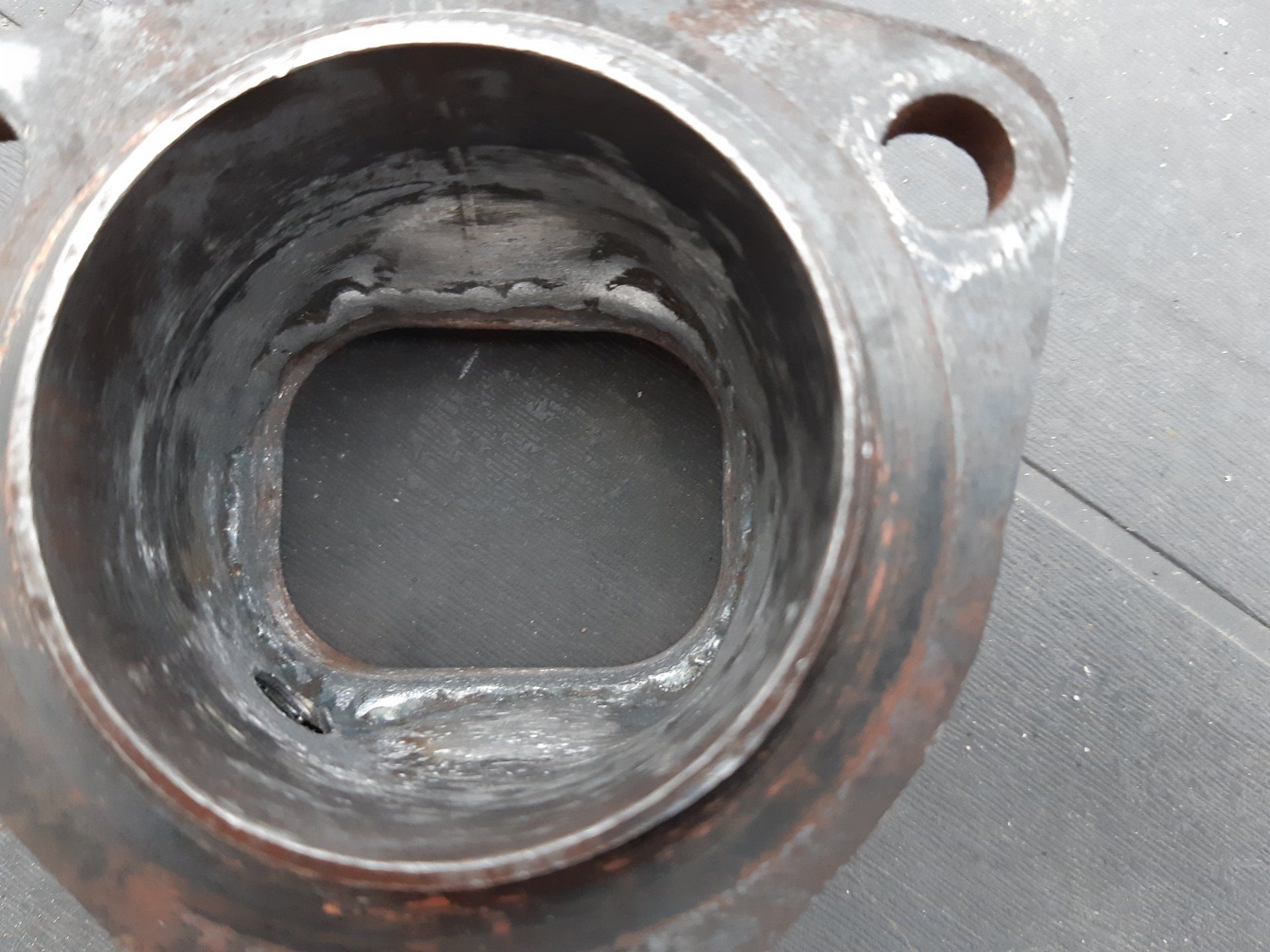

Before welding:

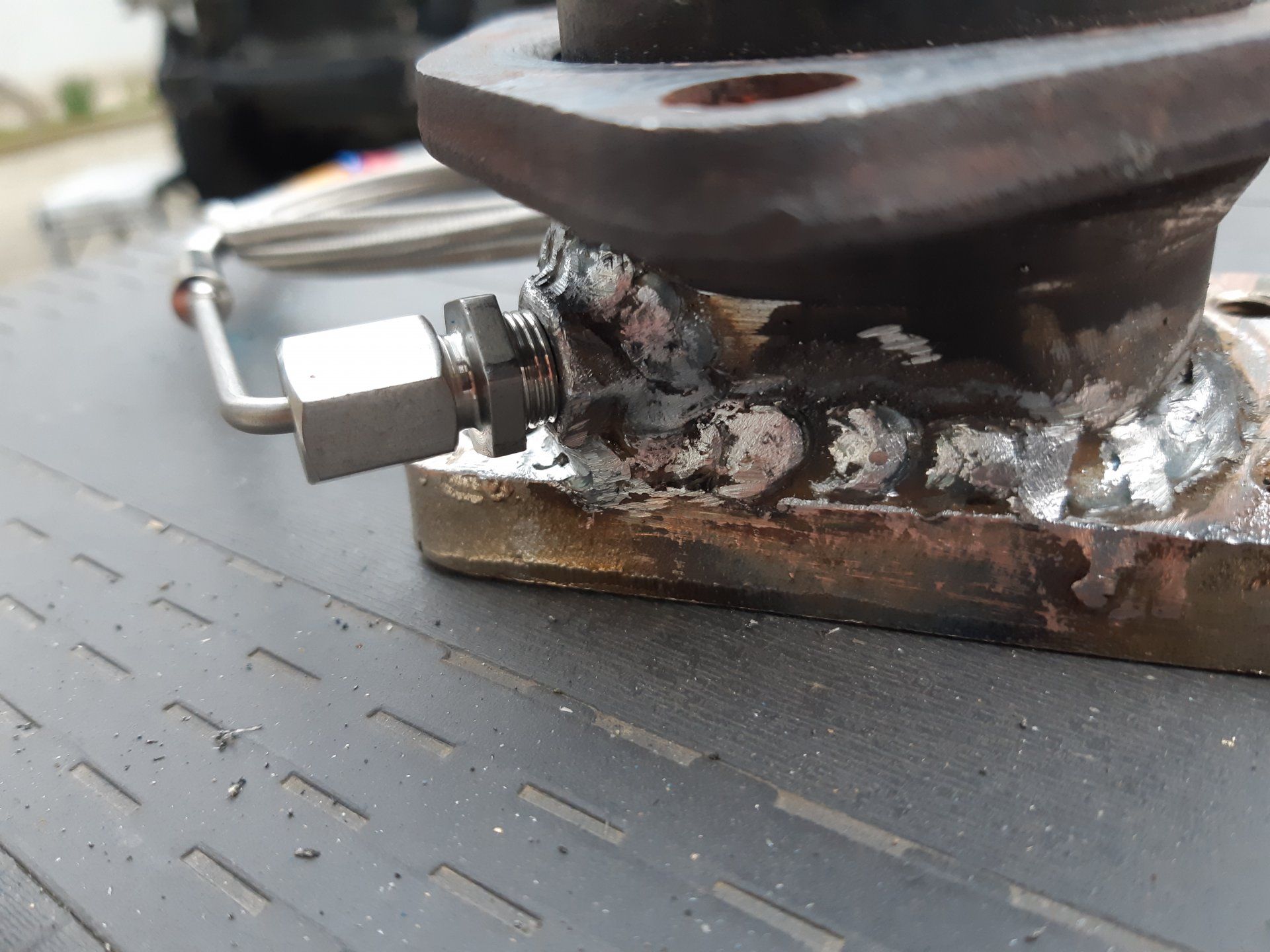

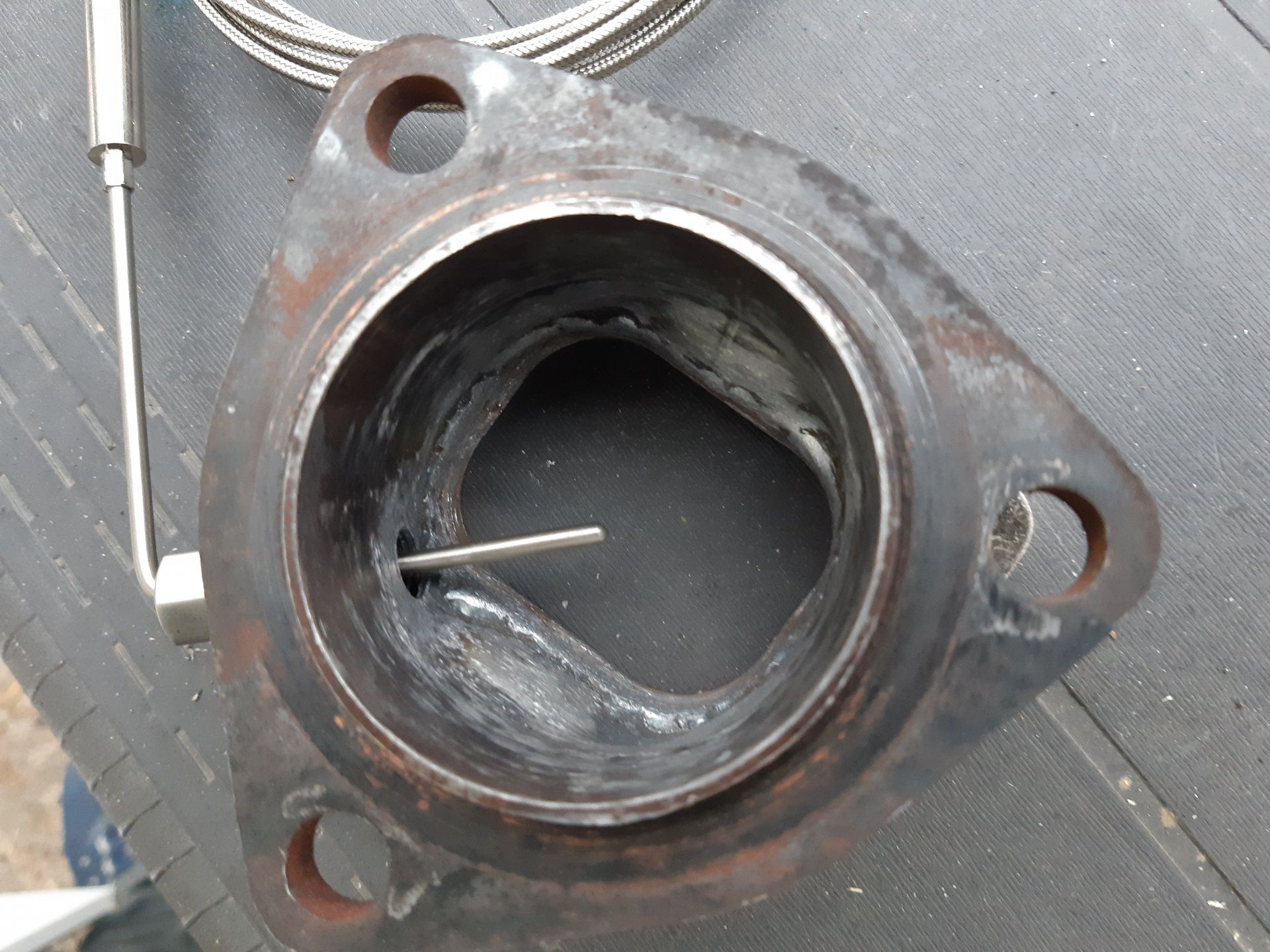

After welding:
Universal T2 Mild Steel Flange 4 Bolts fits Turbos T25 T28 GT25 GT28R GT2876R | eBay
Universal T2 Flange fits Turbos T25 T28 GT25 GT28R GT2876R. Mild Steel Flange 4 bolt. If a part was successfully installed, went into service, and then failed, it may be eligible for warranty repair.
www.ebay.com
EGT probe:
EGT Probe, Sealed Tip [TC-KEGTS] - $39.00 : Auber Instruments, Inc., Temperature control solutions for home and industry
Auber Instruments, Inc. EGT Probe, Sealed Tip [TC-KEGTS] - This EGT probe, being the most durable type we offer, is widely used for aircraft applications (popular in Europe) and air intake temperature measurements. It is made of K type grounded thermocouples with a thin and sealed tip that is...
www.auberins.com
Before welding:
After welding:
Last edited:
- Thread starter
- #26

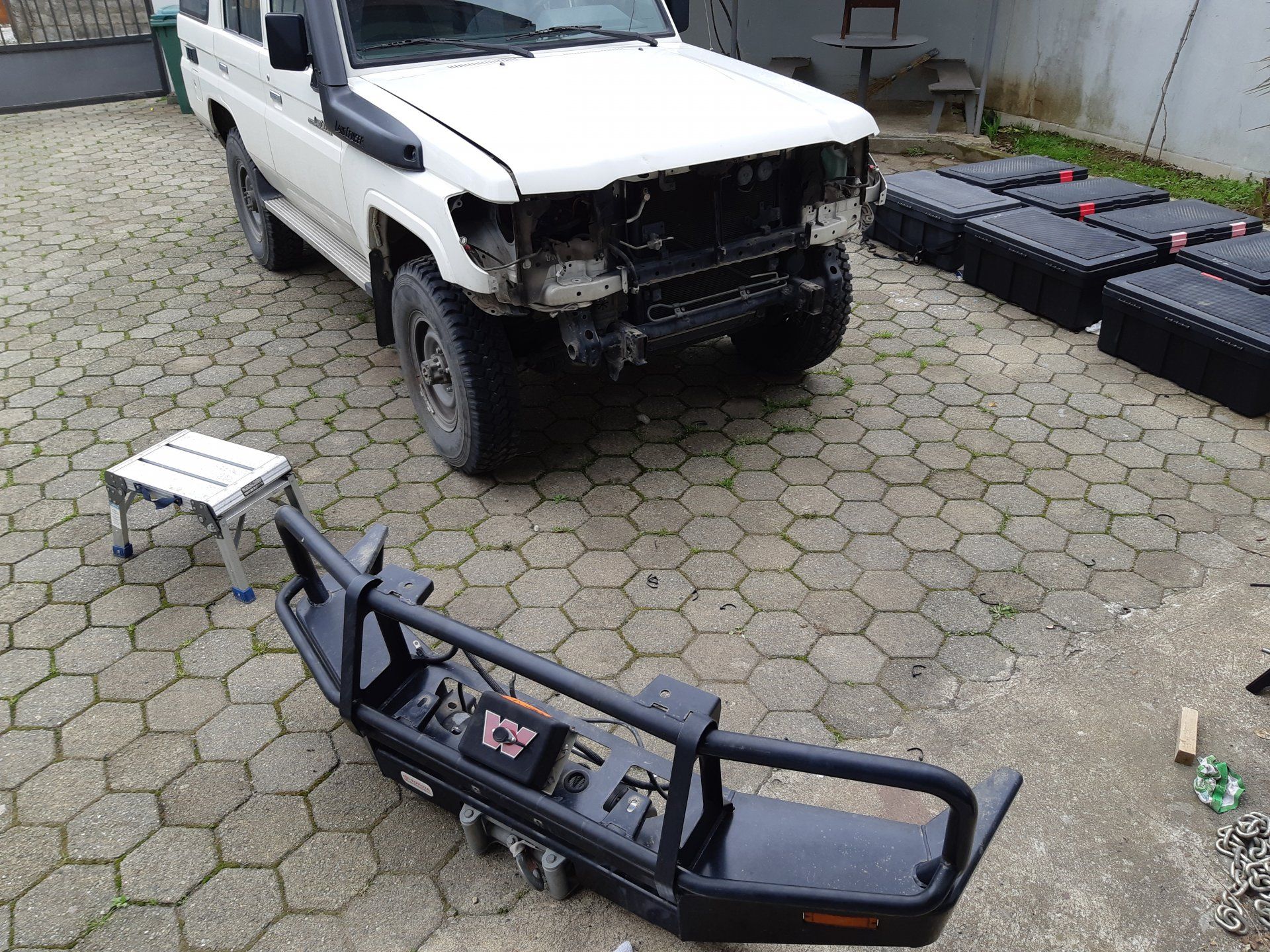

Here is my intercooler. First I added 2 iron angle pieces to support the intercooler and added 2 big nuts and washers to have some extra space but later I removed nuts and washers and placed intercooler directly on top of the angles. I had to do this because of the front grill.
The intercooler connections are 2.5" but my aluminum piping is 2". I used pipe stretching tool and tig welder to fix this.... Pipe stretching tool is super handy I always use it for exhaust etc applications. It works even with stainless pipes.
The intercooler connections are 2.5" but my aluminum piping is 2". I used pipe stretching tool and tig welder to fix this.... Pipe stretching tool is super handy I always use it for exhaust etc applications. It works even with stainless pipes.
Last edited:
- Thread starter
- #28
Here is what I used for intercooler:
2 x 9" inch Universal Slim Fan Push Pull Electric Radiator Cooling 12V Mount eBay sels them
28x9x2.5 2.5" Inlet & Outlet Universal Bar&Plate Front Mount Turbo Intercooler eBay
2" 51mm Universal 8PCS Turbo Intercooler Pipe Piping+ Silicone Hose T-Clamp Kit eBay
As I bought some items a few month ago eBay links don't work, but easy enough to find the same or close by description from above
2 x 9" inch Universal Slim Fan Push Pull Electric Radiator Cooling 12V Mount eBay sels them
28x9x2.5 2.5" Inlet & Outlet Universal Bar&Plate Front Mount Turbo Intercooler eBay
2" 51mm Universal 8PCS Turbo Intercooler Pipe Piping+ Silicone Hose T-Clamp Kit eBay
As I bought some items a few month ago eBay links don't work, but easy enough to find the same or close by description from above
Last edited:
- Thread starter
- #29

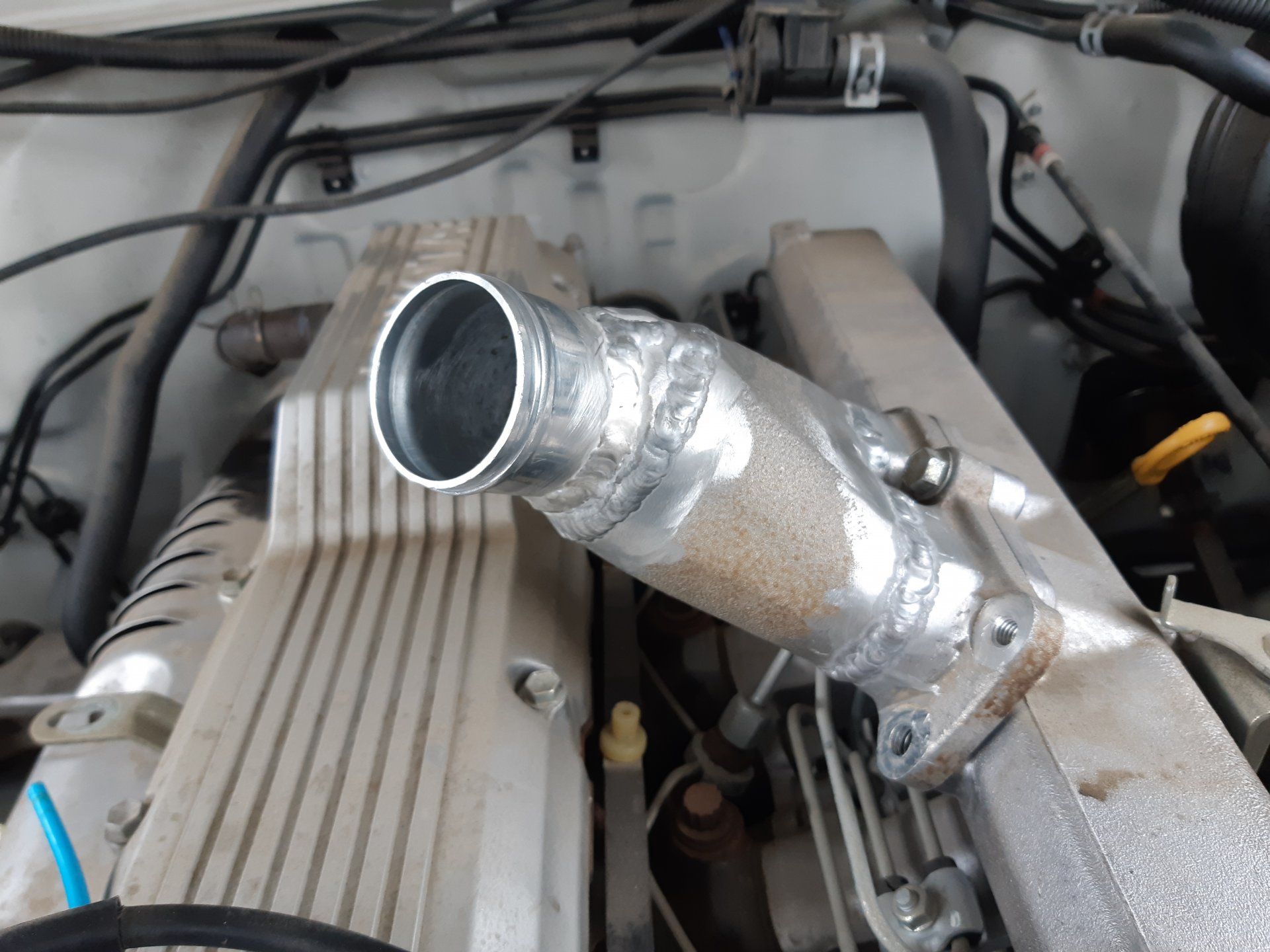

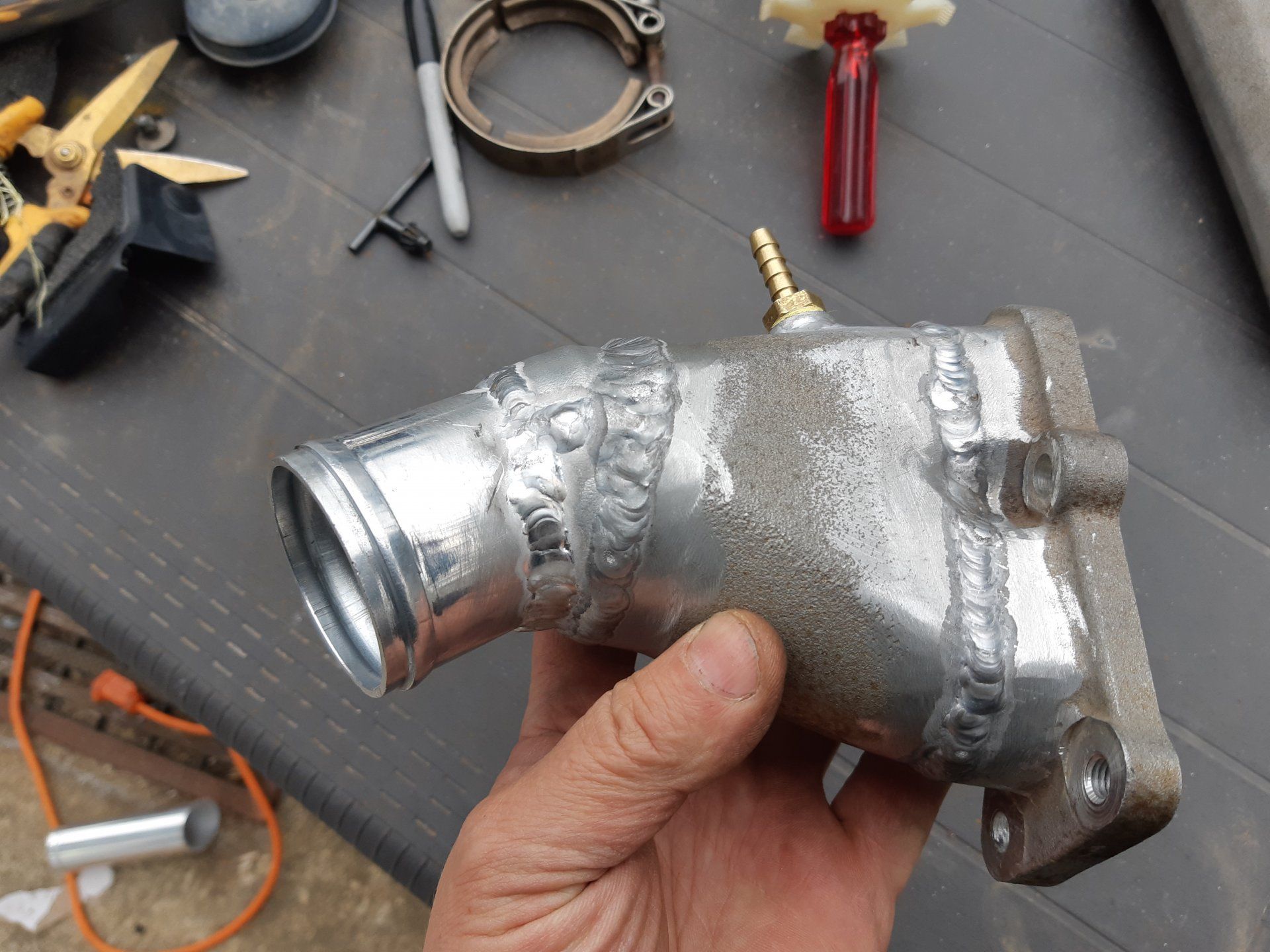

Here is what I did with air duct. I simply cut off the middle part and welded 2 ends and added a small piece of intercooler piping. It came out nicely and FREE....
The brass nipple is for my boost sensor.
Comments are welcome!
The brass nipple is for my boost sensor.
3 Bar, 48 PSI, Boost Sensor for Diesel Engine [AUBER-303] - $39.99 : Auber Instruments, Inc., Temperature control solutions for home and industry
Auber Instruments, Inc. 3 Bar, 48 PSI, Boost Sensor for Diesel Engine [AUBER-303] - This pressure sensor is for diesel engine boost pressure measurements from -0.33 to 3.30 bar (or -5.0 to 48.0 PSI). Unlike most of digital boost gauges on the market (and the other MAP sensor we offered), this...
www.auberins.com
Comments are welcome!
Last edited:
- Thread starter
- #30

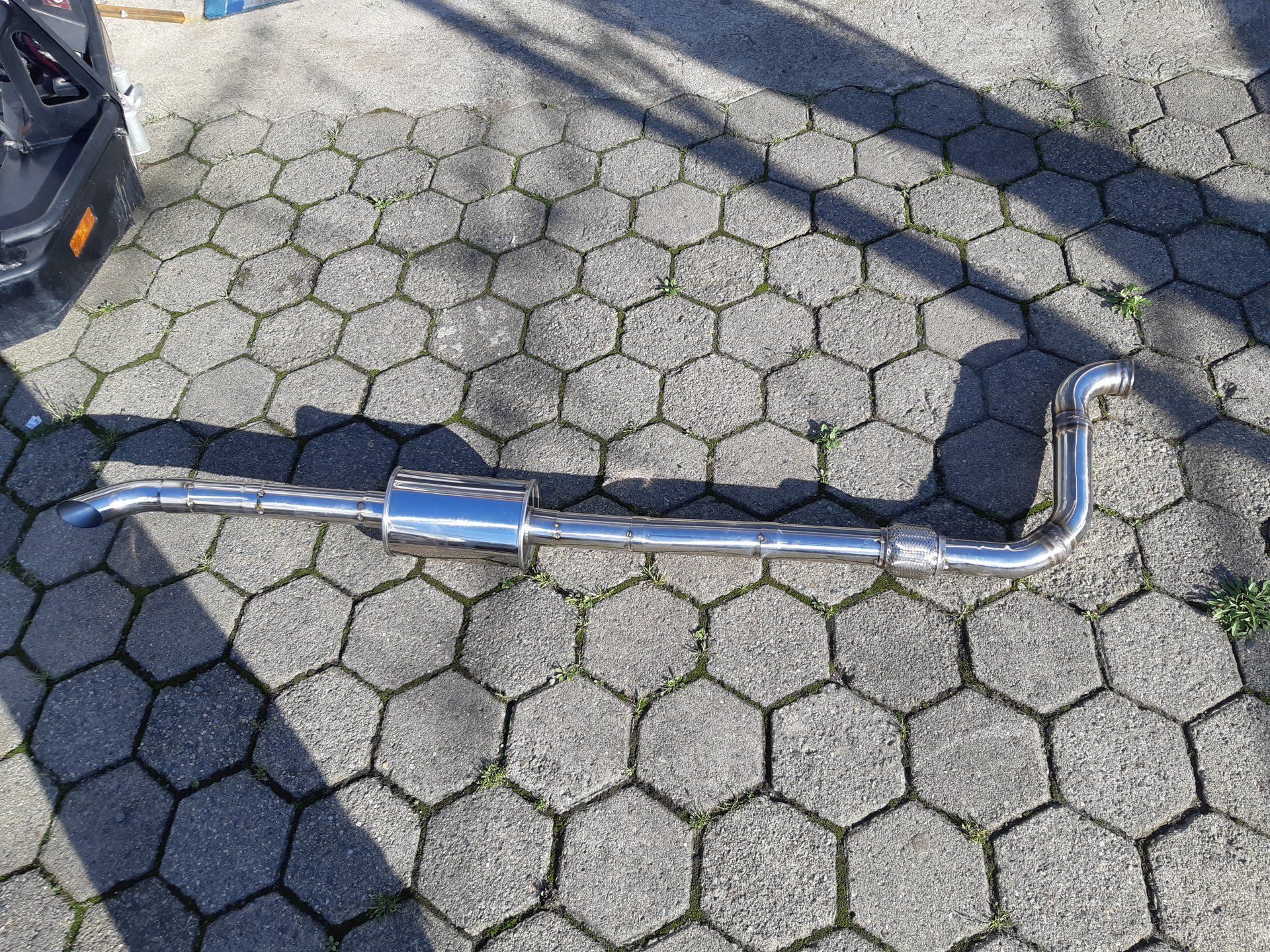

Here is my exhaust pipe. I used 2.5" 304 stainless pipe from eBay.
Exhaust flex. I added another one before second elbow from turbo later as I could still feel some engine vibrations. Originally there was not even 1 flex and the whole truck was shaking, now it is so much better.
I decided not to go over the rear end and used small resonator.
I wasn't sure about noise but as it came out there is less noise and almost no vibrations compare to the original exhaust system. It is really amazing how turbocharger "eats" all the exhaust noise.
Amazon product ASIN B0743BB2WP
Exhaust flex. I added another one before second elbow from turbo later as I could still feel some engine vibrations. Originally there was not even 1 flex and the whole truck was shaking, now it is so much better.
I decided not to go over the rear end and used small resonator.
I wasn't sure about noise but as it came out there is less noise and almost no vibrations compare to the original exhaust system. It is really amazing how turbocharger "eats" all the exhaust noise.
2.5" x 4" Exhaust Flex Pipe 304 Stainless Steel Interlocking Liner Coupler Turbo | eBay
Find many great new & used options and get the best deals for 2.5" x 4" Exhaust Flex Pipe 304 Stainless Steel Interlocking Liner Coupler Turbo at the best online prices at eBay! Free shipping for many products!
www.ebay.com
2.5" x 4" Exhaust Flex Pipe 304 Stainless Steel Interlocking Liner Coupler Turbo | eBay
Find many great new & used options and get the best deals for 2.5" x 4" Exhaust Flex Pipe 304 Stainless Steel Interlocking Liner Coupler Turbo at the best online prices at eBay! Free shipping for many products!
www.ebay.com
Amazon product ASIN B0743BB2WP
I like the adapter!!!
- Thread starter
- #33
- Thread starter
- #34
The oil return line.... I was reading and thinking and reading again and thinking again, but at the end I decided that the bigger oil return line the better and took oil pan off and just welded a piece of tube big enough. Also I had a chance to clean it all up. The biggest challenge for me was to find RTV as all parts stores were closed because of COID... I actually had to call somebody and ask him to open the store for me and sell it....
I build my own oil return adapter for turbo side:
I build my own oil return adapter for turbo side:
- Thread starter
- #35
Now probably the best part... turbo itself...
I bought HOLSET HE221W 3782369 3782376 CUMMINS Turbocharger 6.5 CM. The exhaust side on this turbos can be 5 CM or bigger one 6.5 CM.
I paid $ 265 for it and I think it was a good deal for a genuine Holset turbo. I decided to go with this one as it is not too big and I am not after BIG POWER. I made a few changes. First I had to clock it to have oil return straight down. Because of this I had to drill 2 extra holes for turbo actuator. It wasn't a big deal as the aluminum body is thick enough and I just drilled extra holes with no problems at all. Secondly I welded a piece of aluminum tube to discharge side as it was made for flange connection.

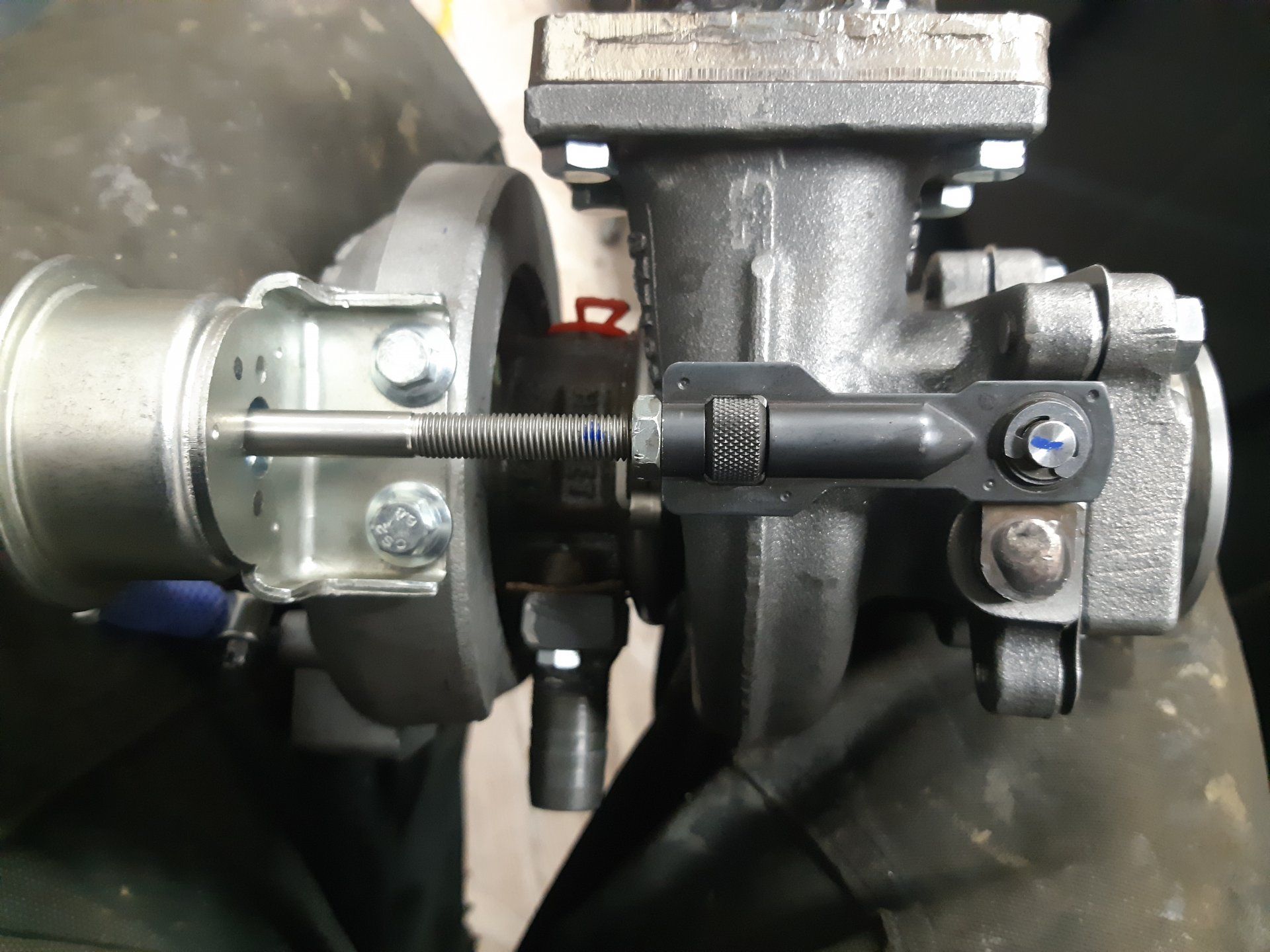

Here you can see turbo clocked and turbo actuator relocated:
I bought HOLSET HE221W 3782369 3782376 CUMMINS Turbocharger 6.5 CM. The exhaust side on this turbos can be 5 CM or bigger one 6.5 CM.
I paid $ 265 for it and I think it was a good deal for a genuine Holset turbo. I decided to go with this one as it is not too big and I am not after BIG POWER. I made a few changes. First I had to clock it to have oil return straight down. Because of this I had to drill 2 extra holes for turbo actuator. It wasn't a big deal as the aluminum body is thick enough and I just drilled extra holes with no problems at all. Secondly I welded a piece of aluminum tube to discharge side as it was made for flange connection.
Here you can see turbo clocked and turbo actuator relocated:
