So I don’t normally do product reviews and nobody sends me free stuff but I WILL weigh in on the brake brackets from Torq Motorsports
To say it simply, not impressed.
All these guys do is make brackets to run “big brakes” on various axles. These particular brackets allow you to use ‘09+ Dodge 3500 calipers and rotors on a GM kingpin D60. They claim that factory Dodge brakes will lock up a 40” caliper, HARD. With the brakes we’re installing, hopefully the truck won’t endo

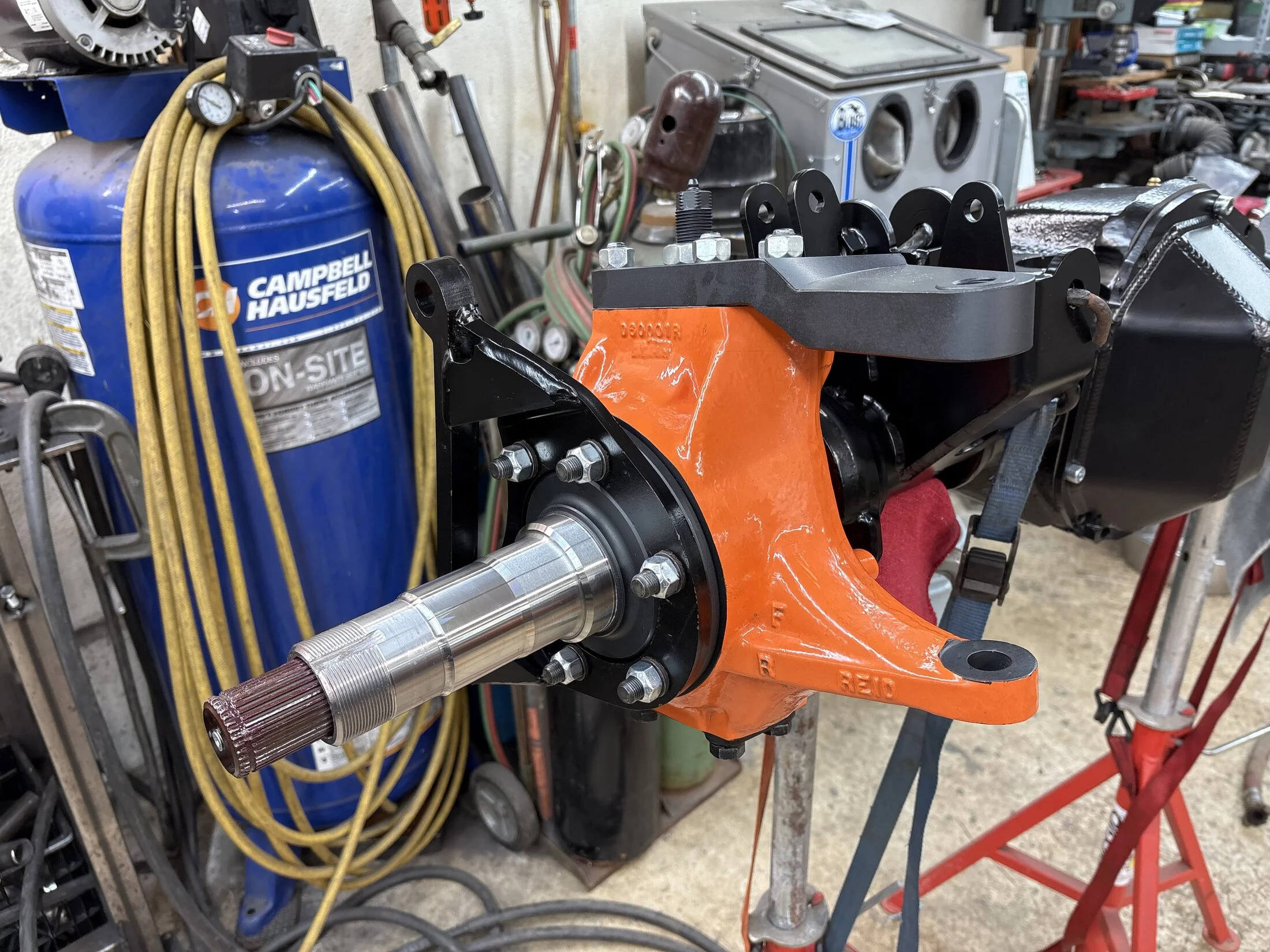

Unlike a standard GM setup where the rotor is held to the back of the wheel hub with the pressed in studs, this mounts the rotor in the front. They claim “easy rotor changes” and that’s garbage. (Yes, the bracket is on backwards here but it’s the best pic I could find of them)

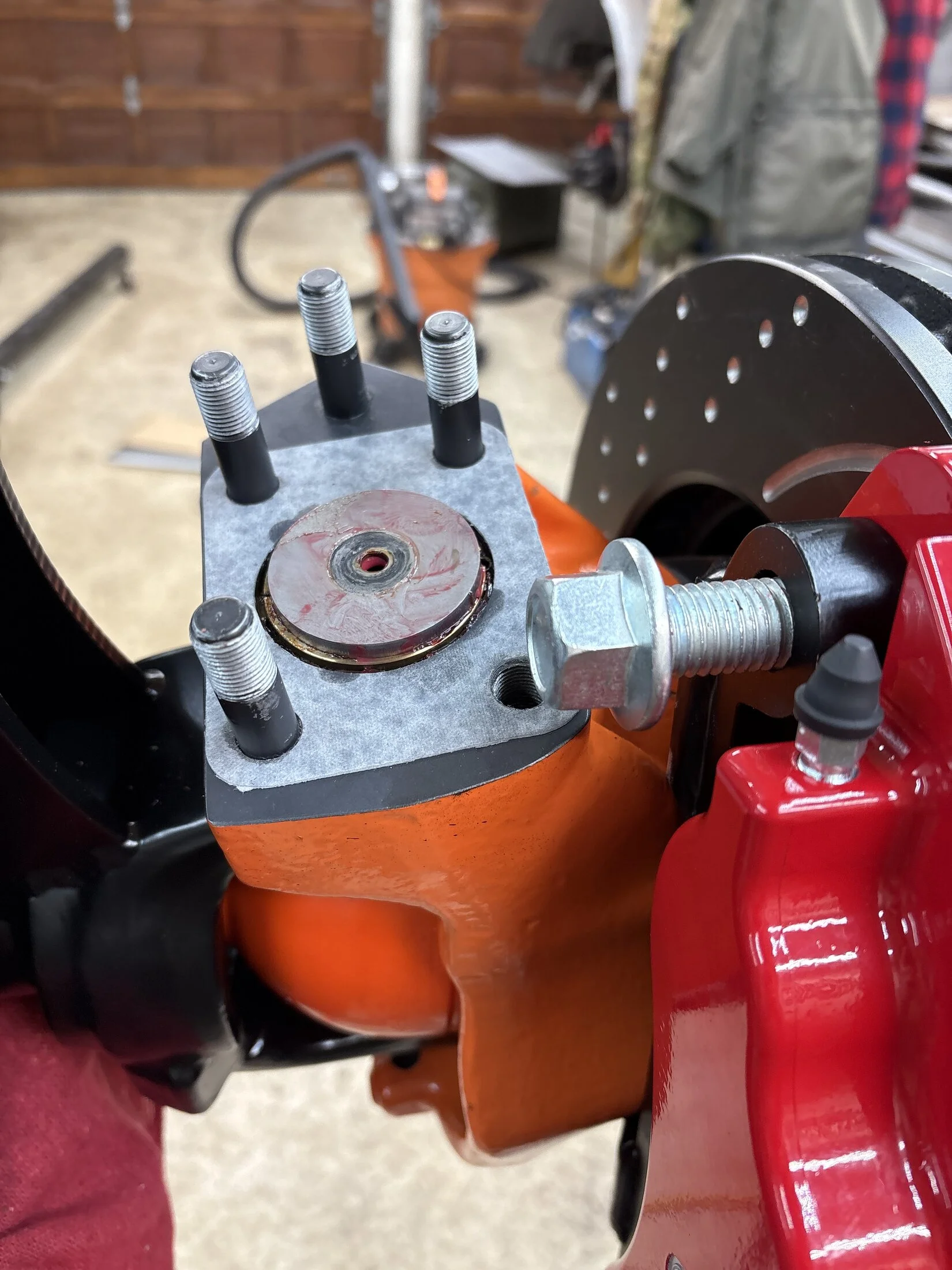

Once the bracket is bolted to the spindle, it’s impossible to get the upper mounting bolt in OR out without pulling the entire upper steering arm AND this stud

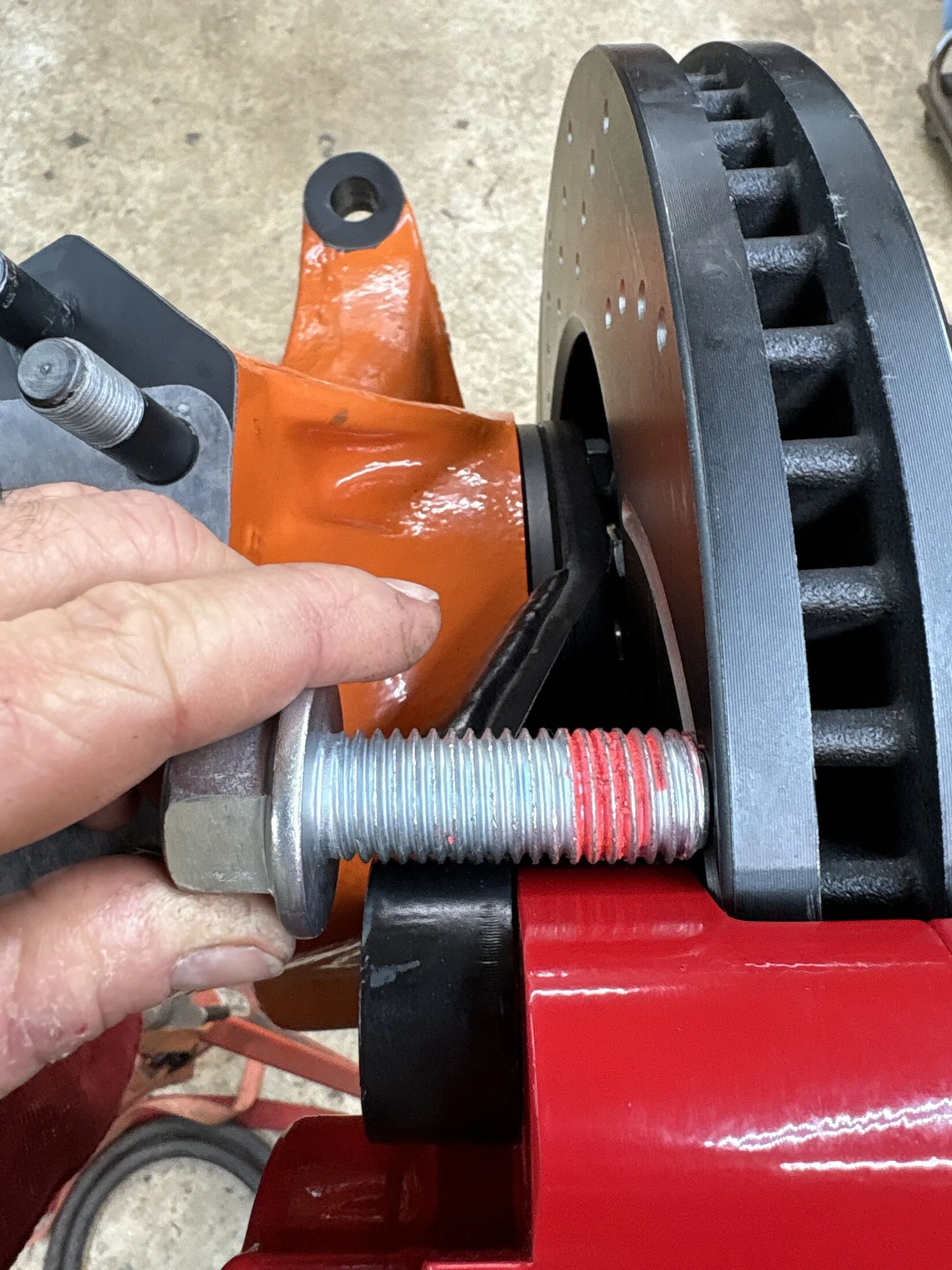

Not to mention that the rear offset on the bracket is wrong. Using OEM Dodge caliper bolts, they are about .25” long and would contact and damage the rotor if you just bolted them down. So I had to trim the bolts down
THEN we get to the rotors themselves. Being essentially loose on the lug studs, there is nothing to keep the rotor centered on the hub. So it has the ability to wobble and be out of round. AND, GM lug studs have a shoulder to lock the rotor in (when pressed in from the rear like normal) and the shoulder of the stud has zero chance of pressing into the wheel hub

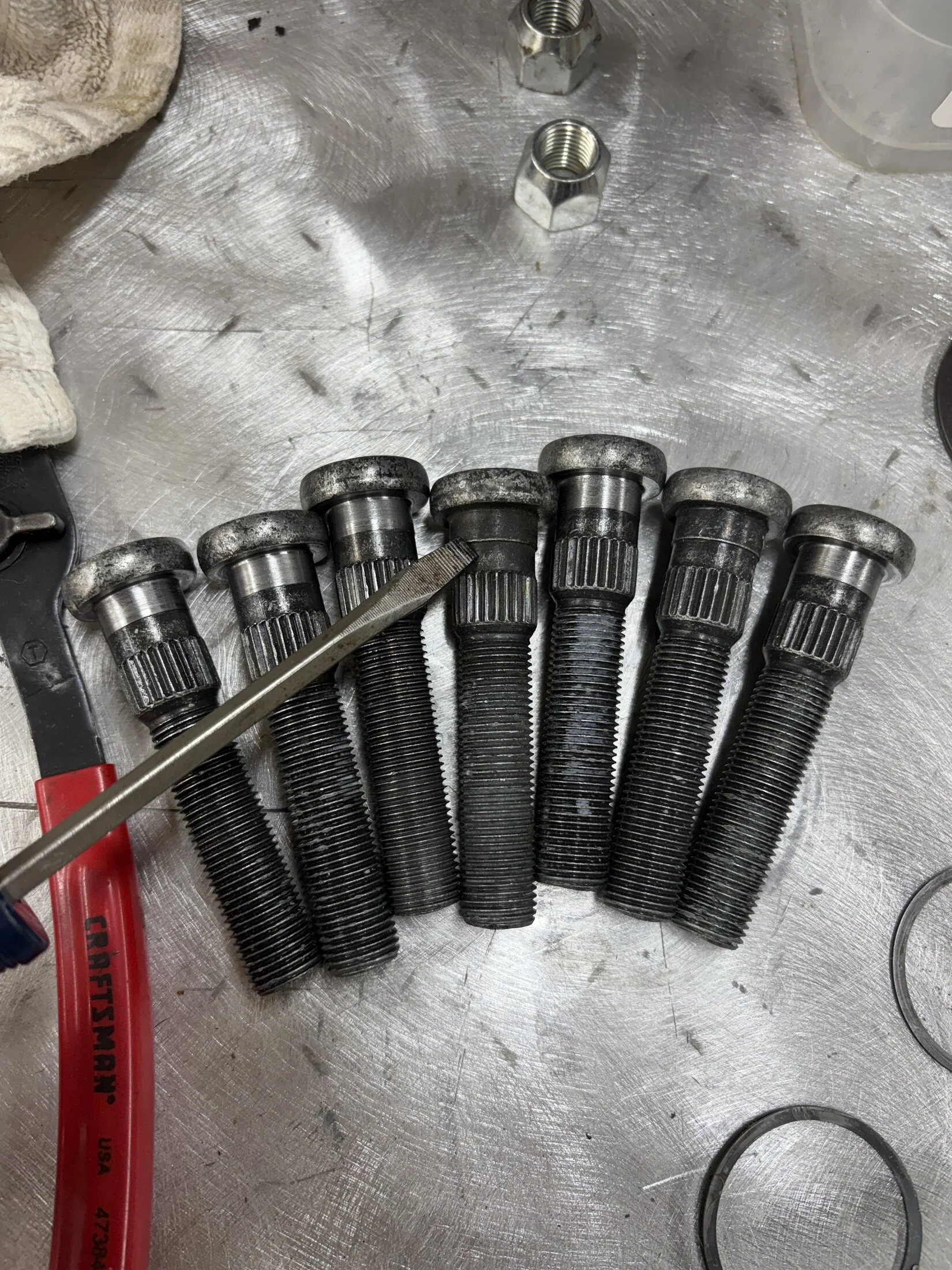

So…. All 16 studs had to have the shoulder machined off like this

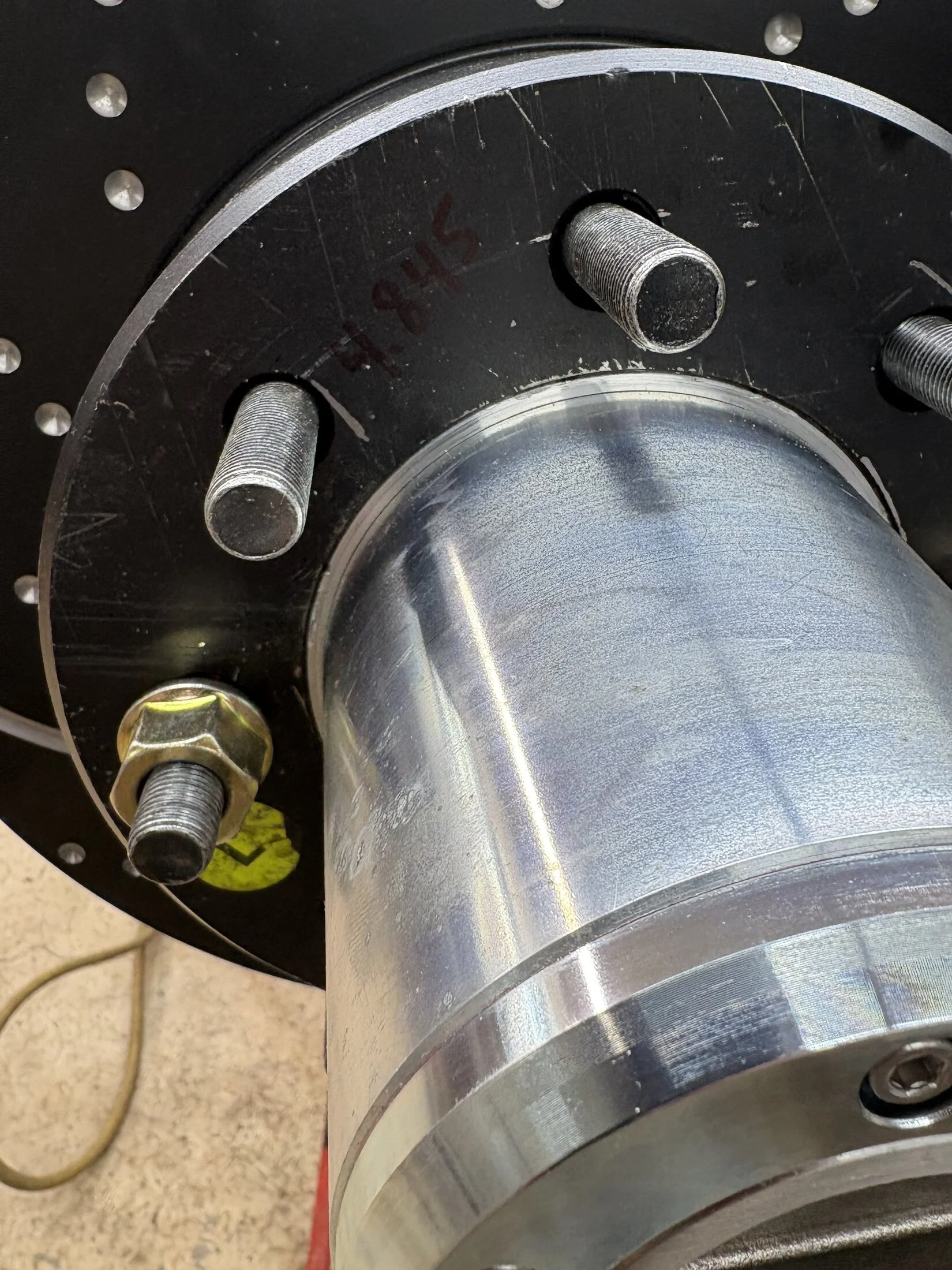

So on the front of the wheel hub, my machinist friend made up some press fit aluminum spacers to center the rotor to the hub. 2 thousandths press fit so I had to heat that rings in the oven and freeze the hubs to get them on. They DO perfectly center the rotors tho

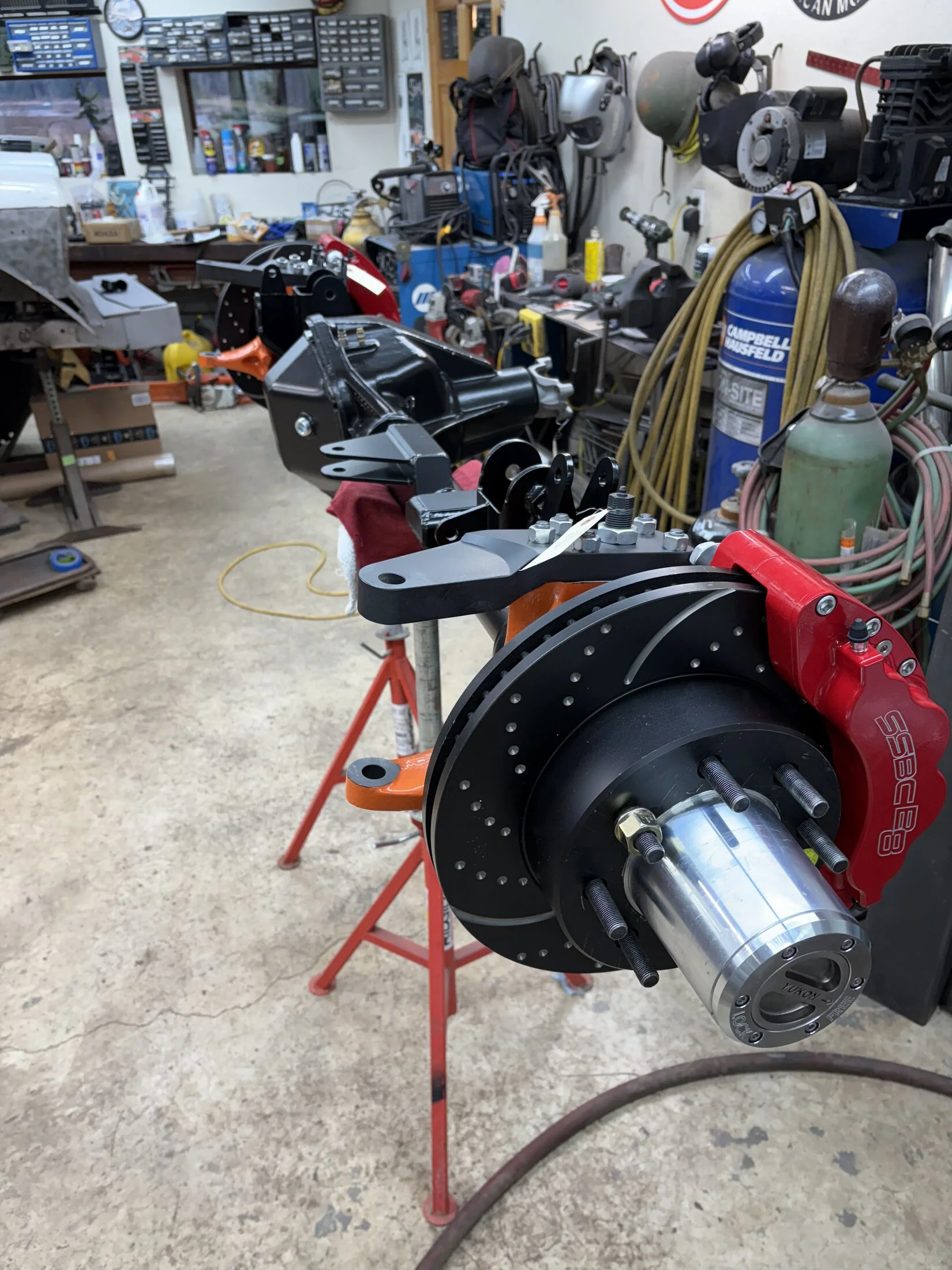

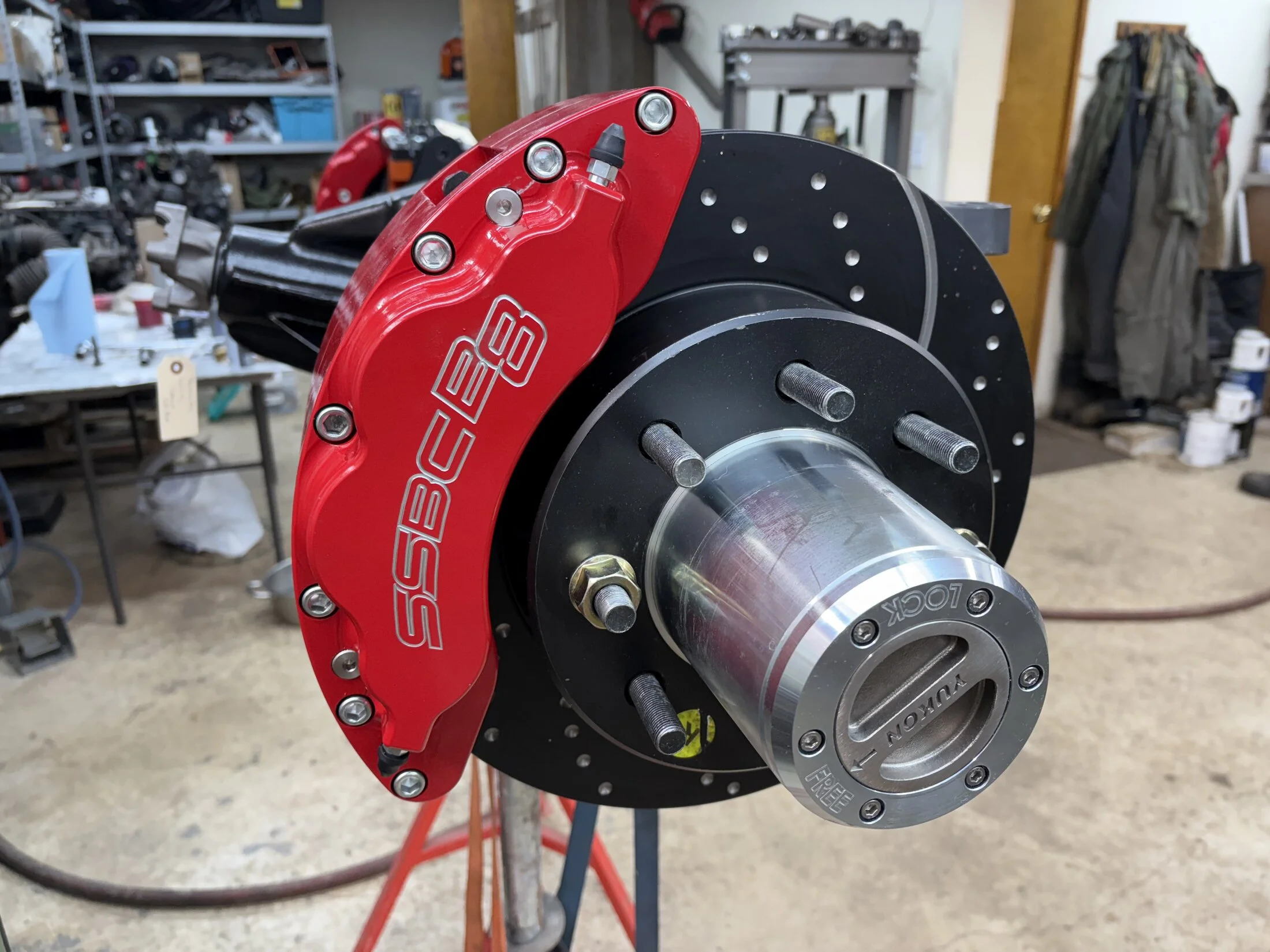

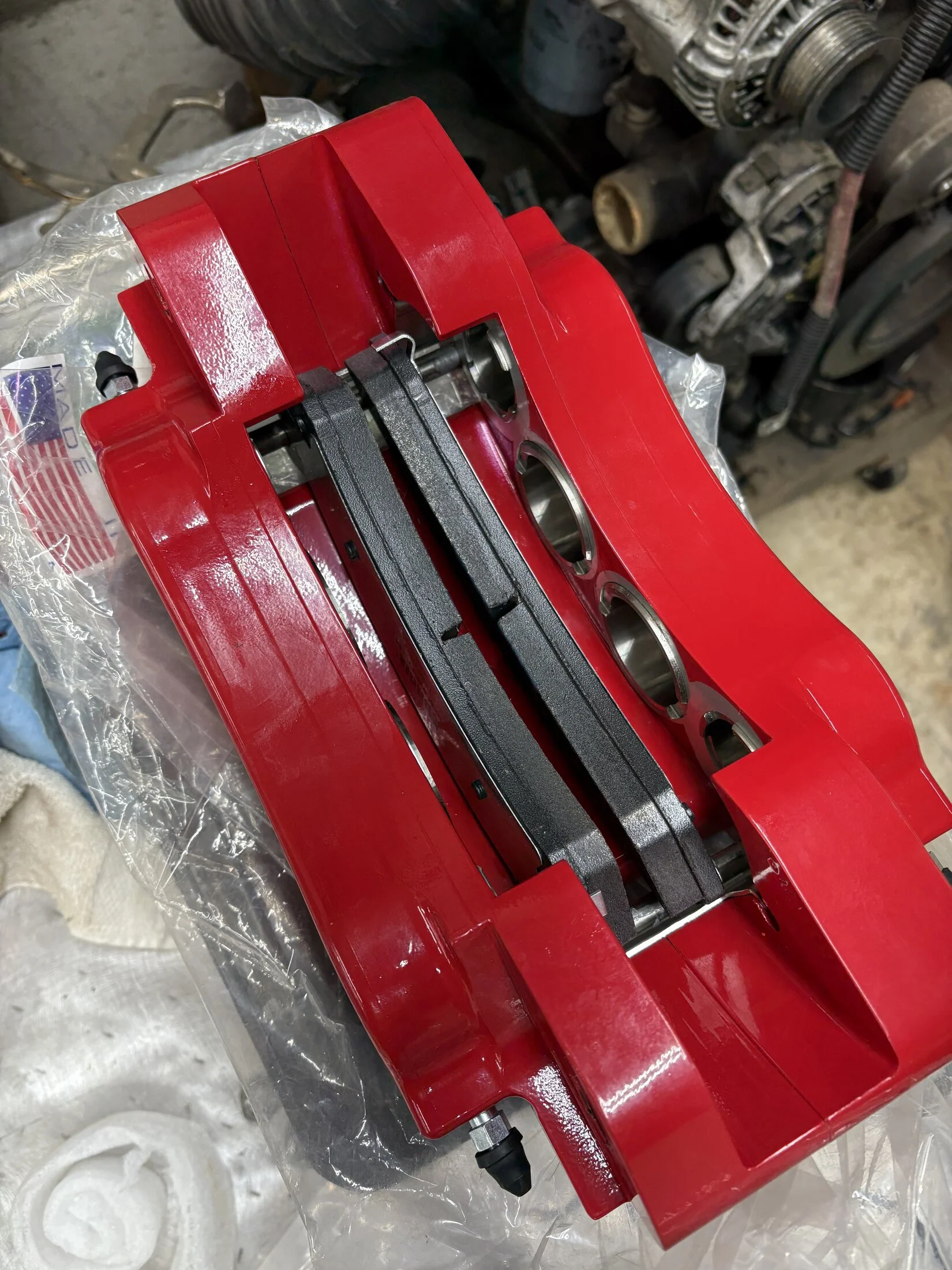

After all THAT, you can finally mount the calipers. These are SSBC Barbarian 8’s. Full race, 8 piston calipers for a Ram 3500. SSBC is proud of them to say the least
And the brakes and axle are done, just a ton of fiddling around for something that should have been pretty straightforward.
Would be nice if Torq Motorsports was a bit more forthcoming. None of this is addressed on their webpage or the non-existent instructions they provide on their $340 caliper brackets. What are disc brake caliper brackets for a 14B? About $60 from RuffStuff
I agree, I run 3/4 ton rotors and calipers on the D60 in my 40, have worked great for years. The idea here was just the biggest upgrade we could go to. Not sure what the truck will weight when done but if it’s sub 7k I’ll be shocked

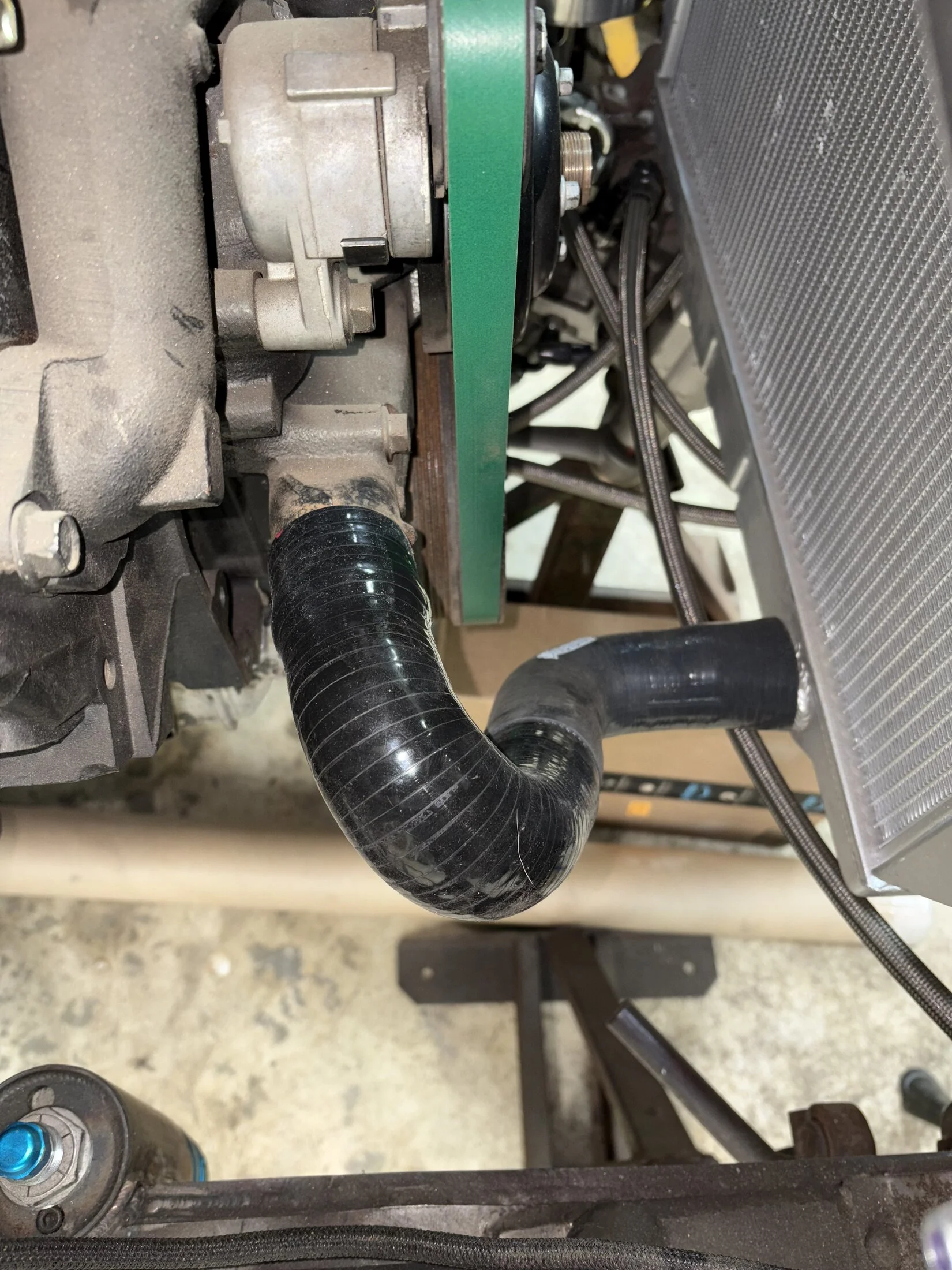

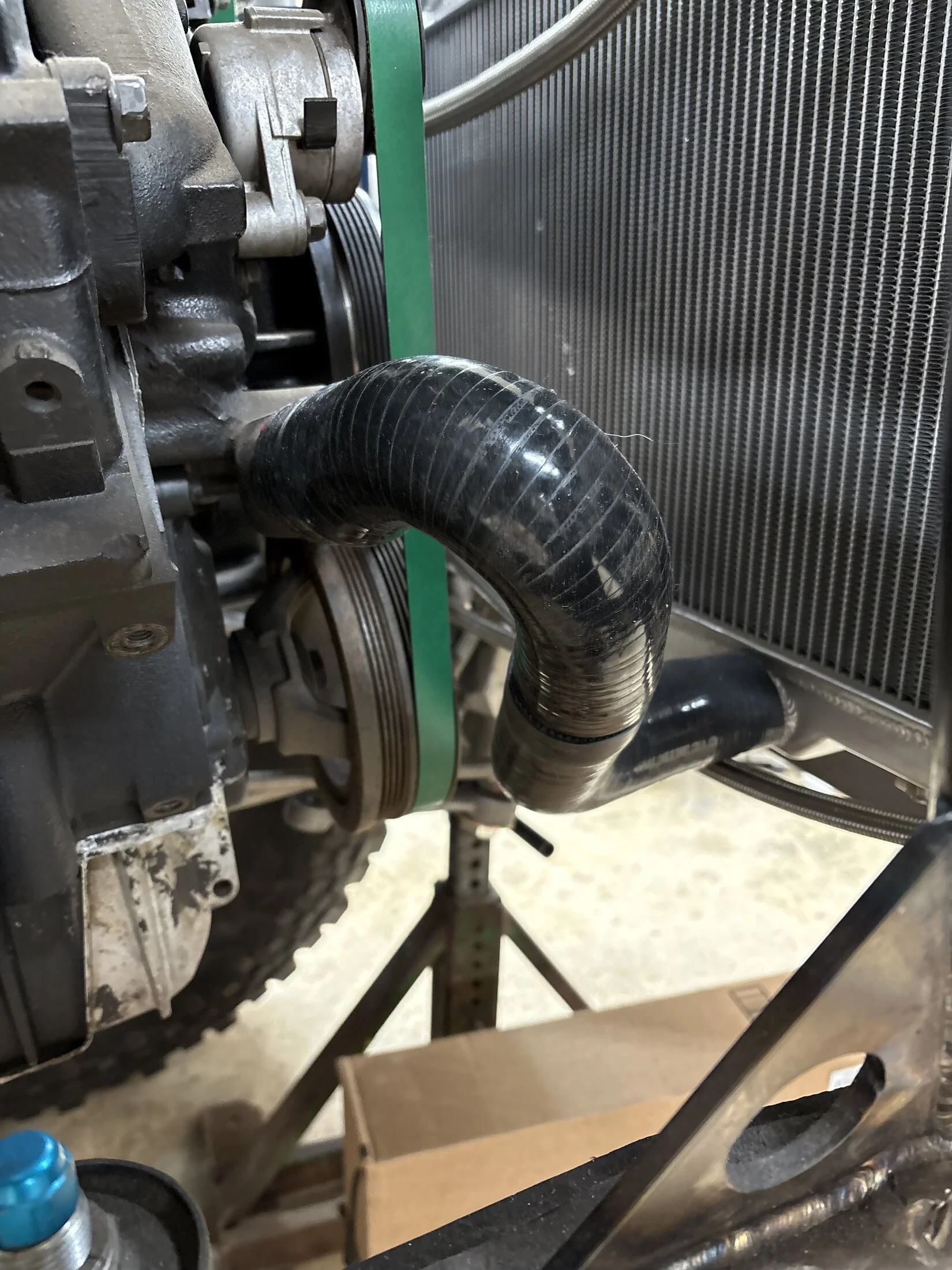

Making a small bit of progress. Finally got the lower radiator hose plumbed, the angles are challenging to say the least. Required a 130 degree bend off the water pump, then a hose splice followed by another 90 degree bend. Sheesh

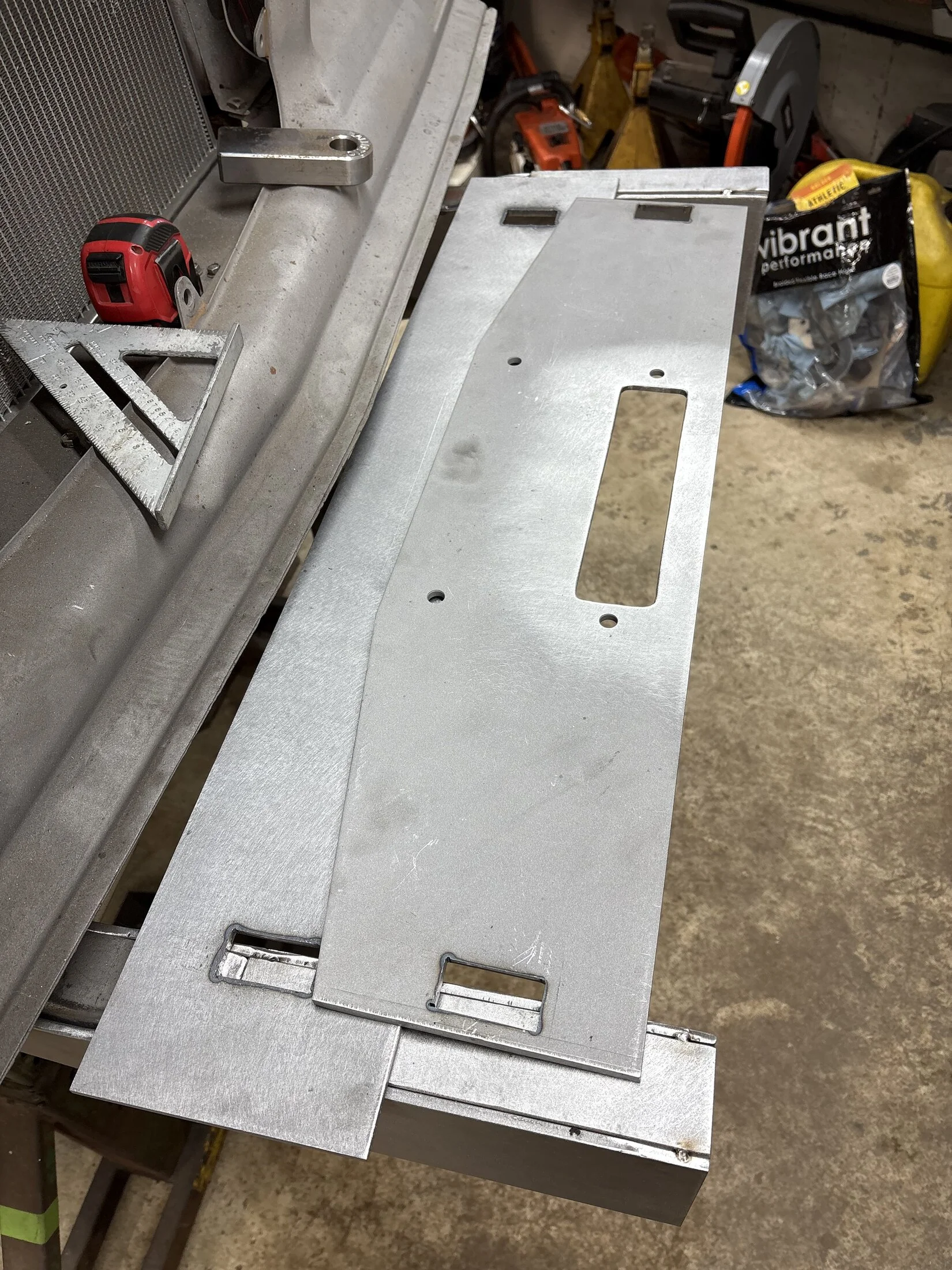

Got all the holes in the lower frame/winch plate in and sanded
Nearly done with the layout and cutting for the winch hawse and the ballistic shackle mounts

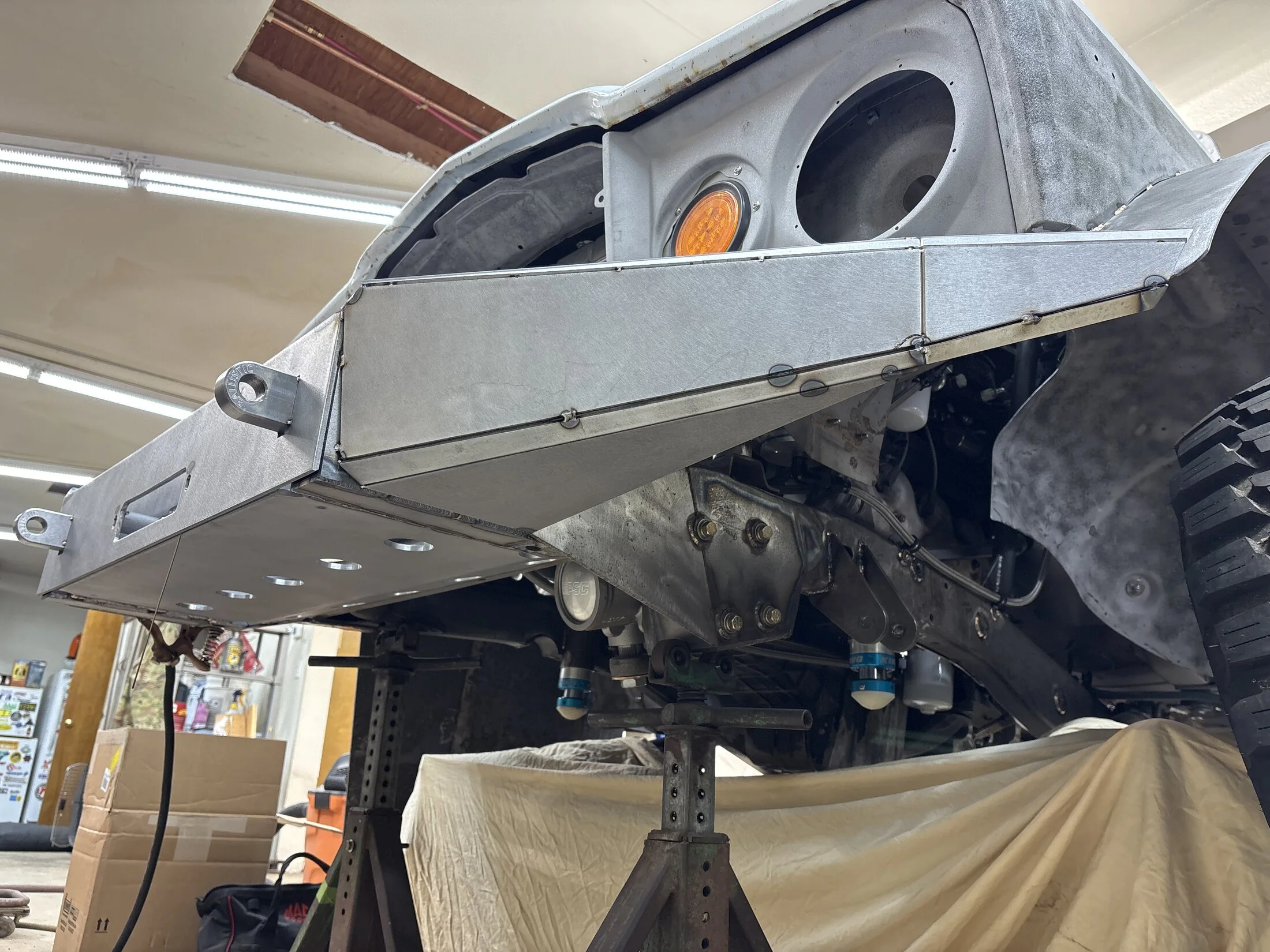

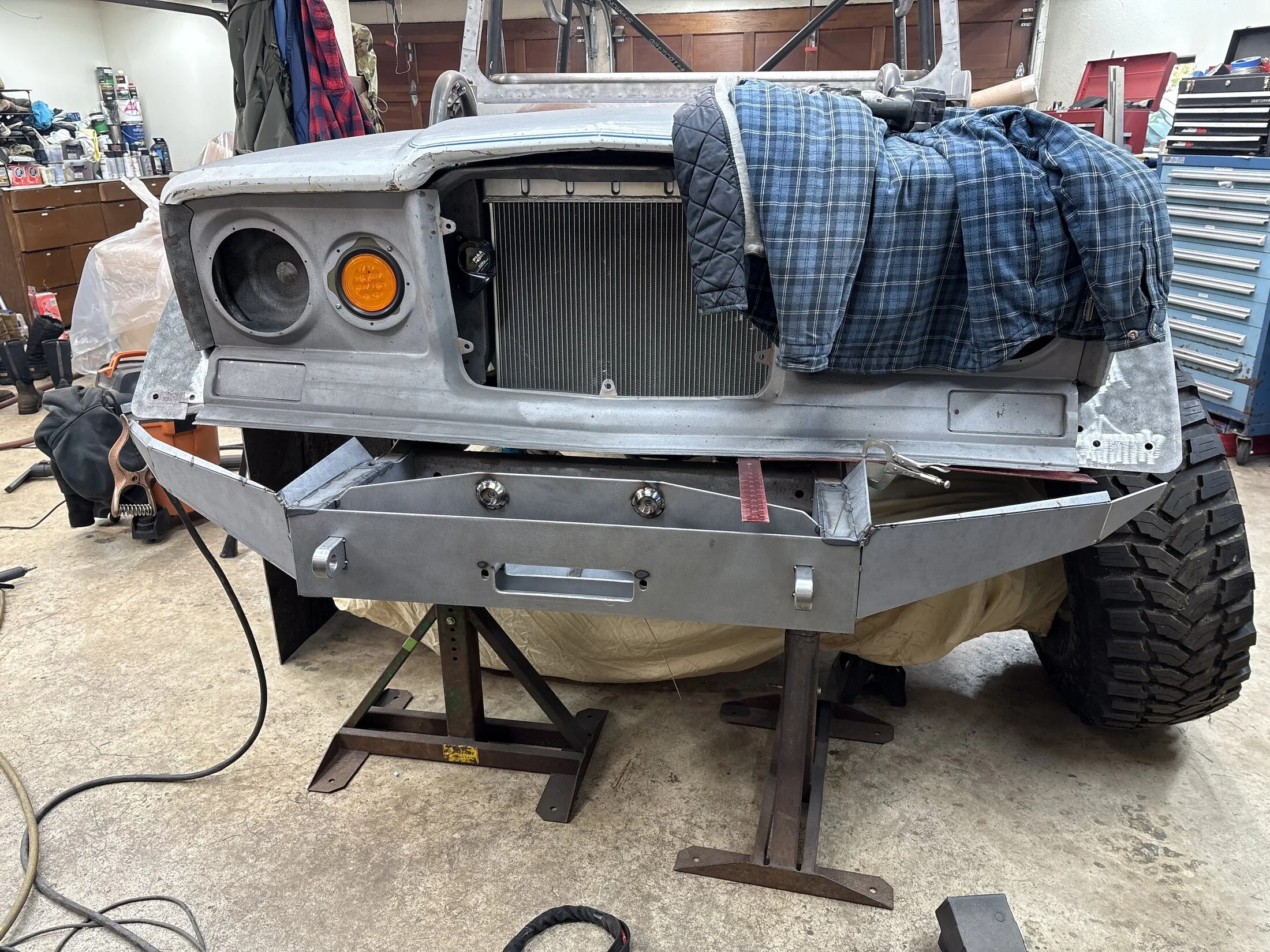

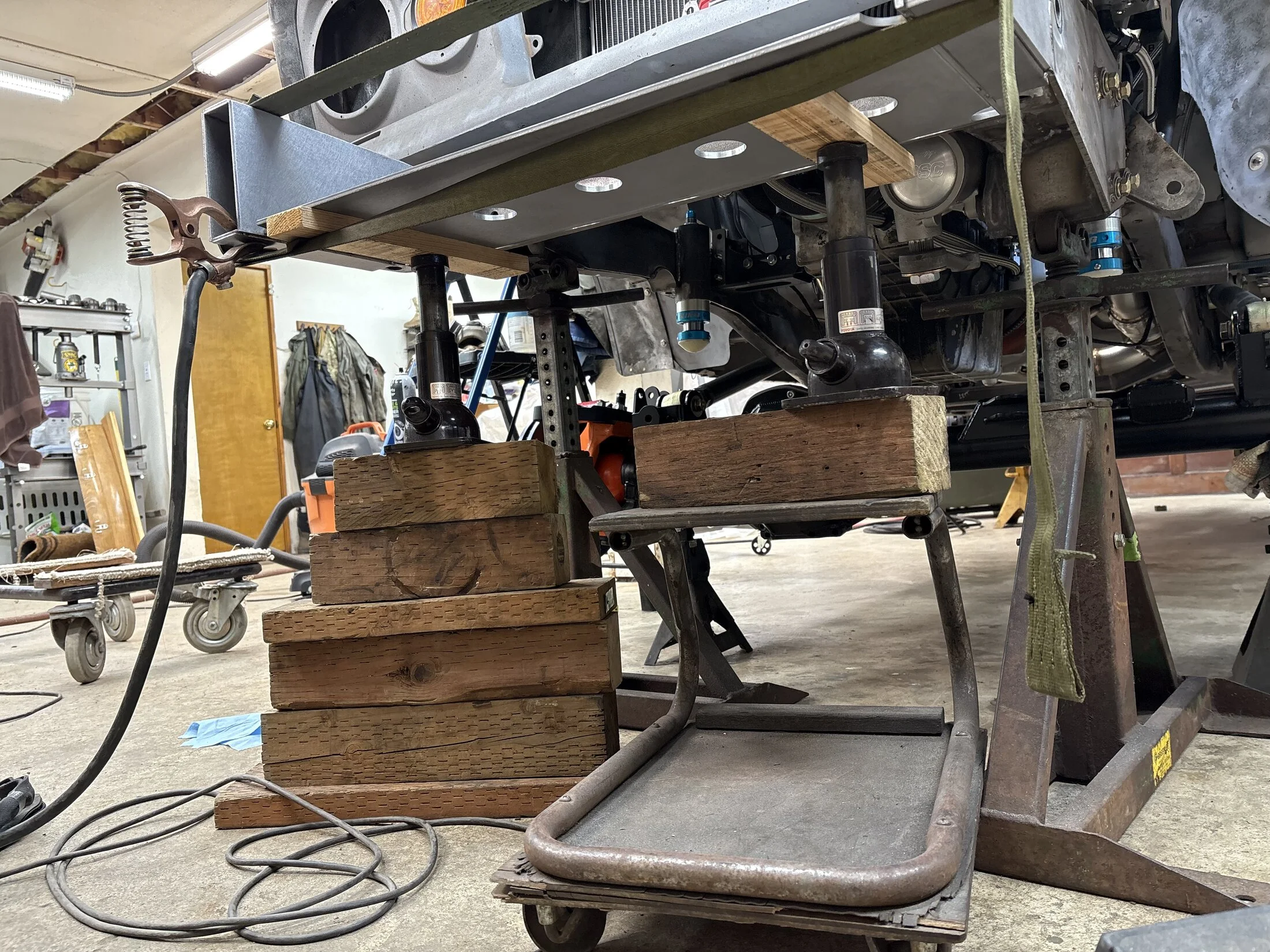

Front bumper and fun with Toyota mechanical jacks…

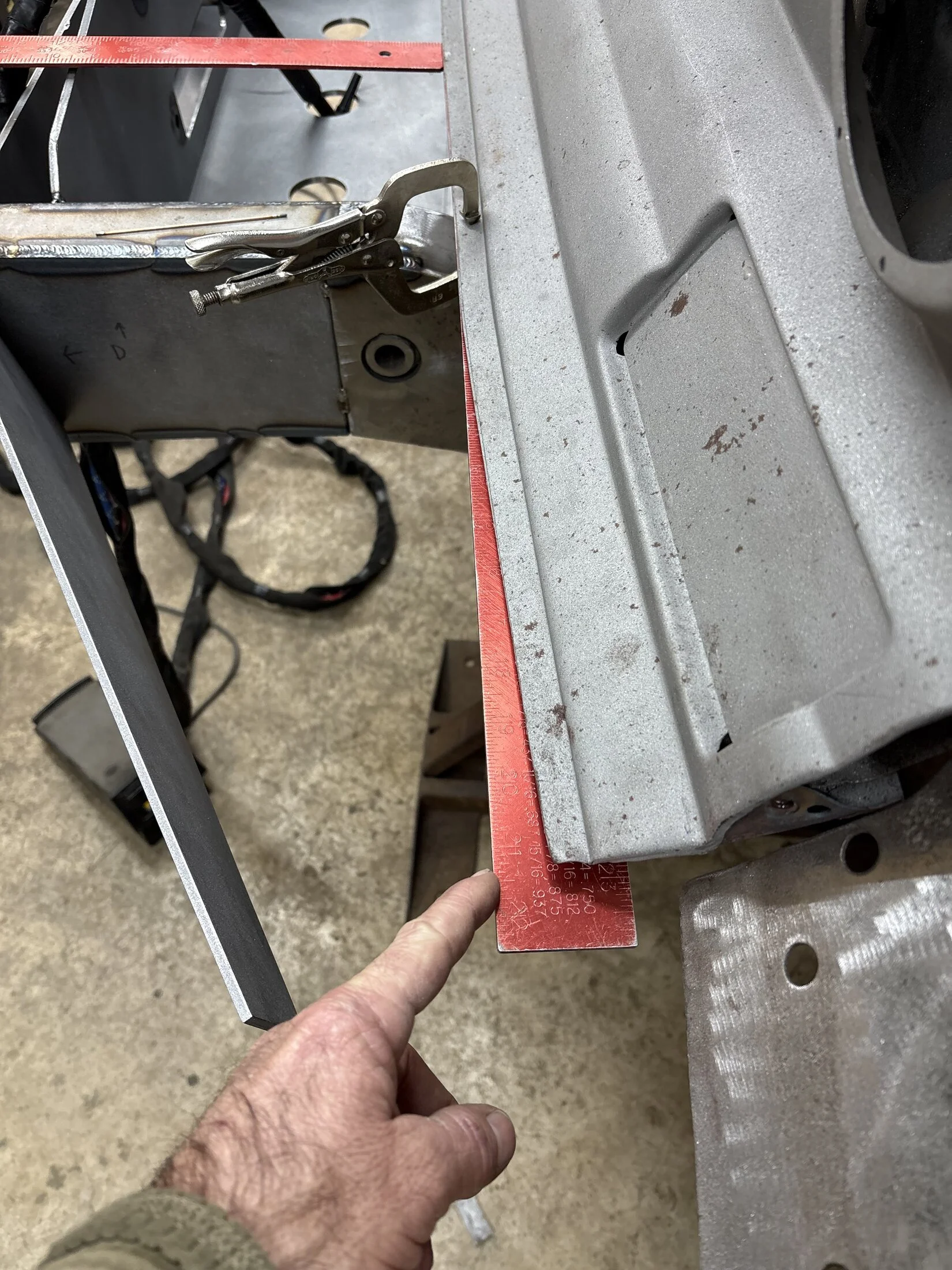

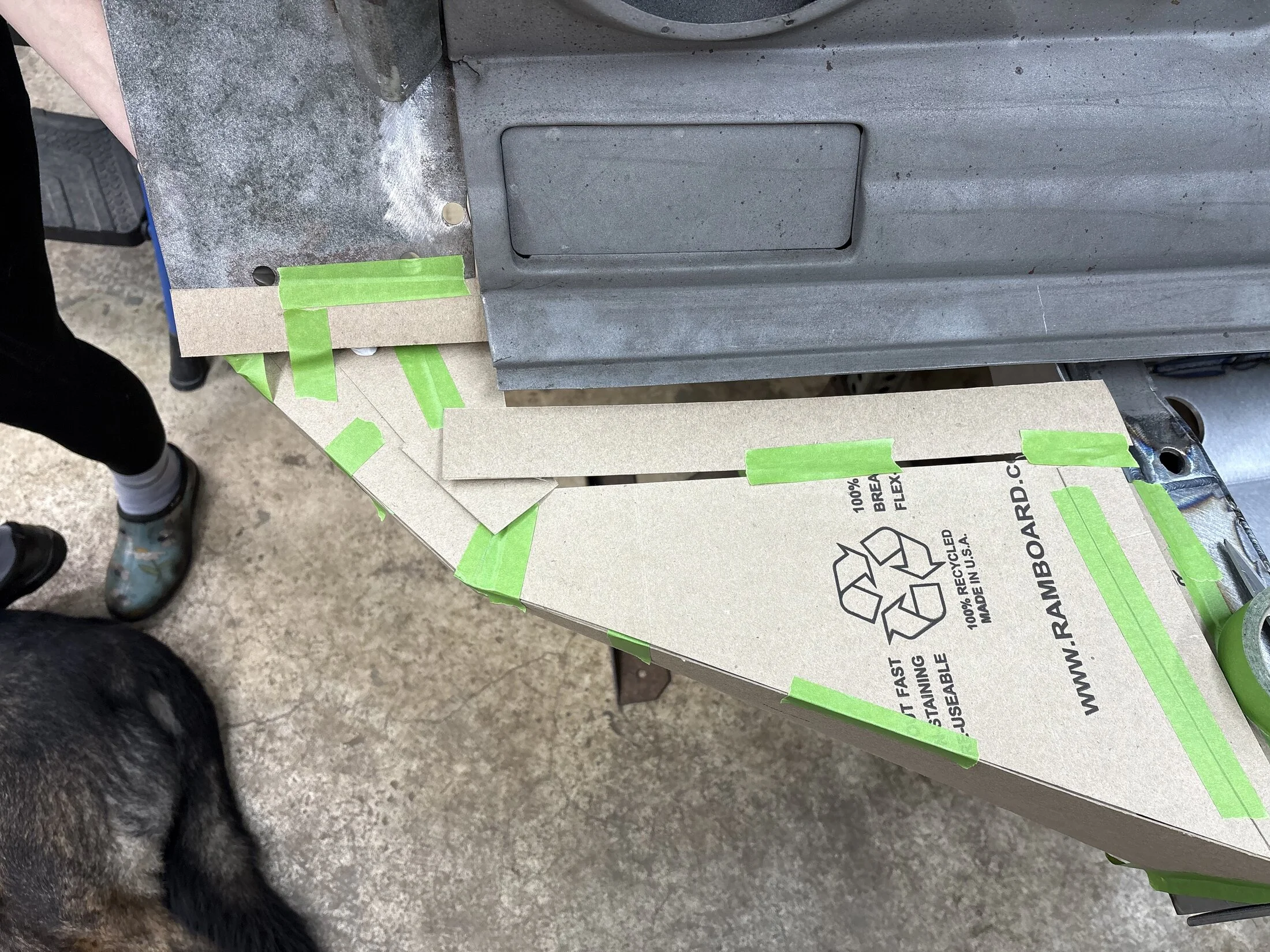

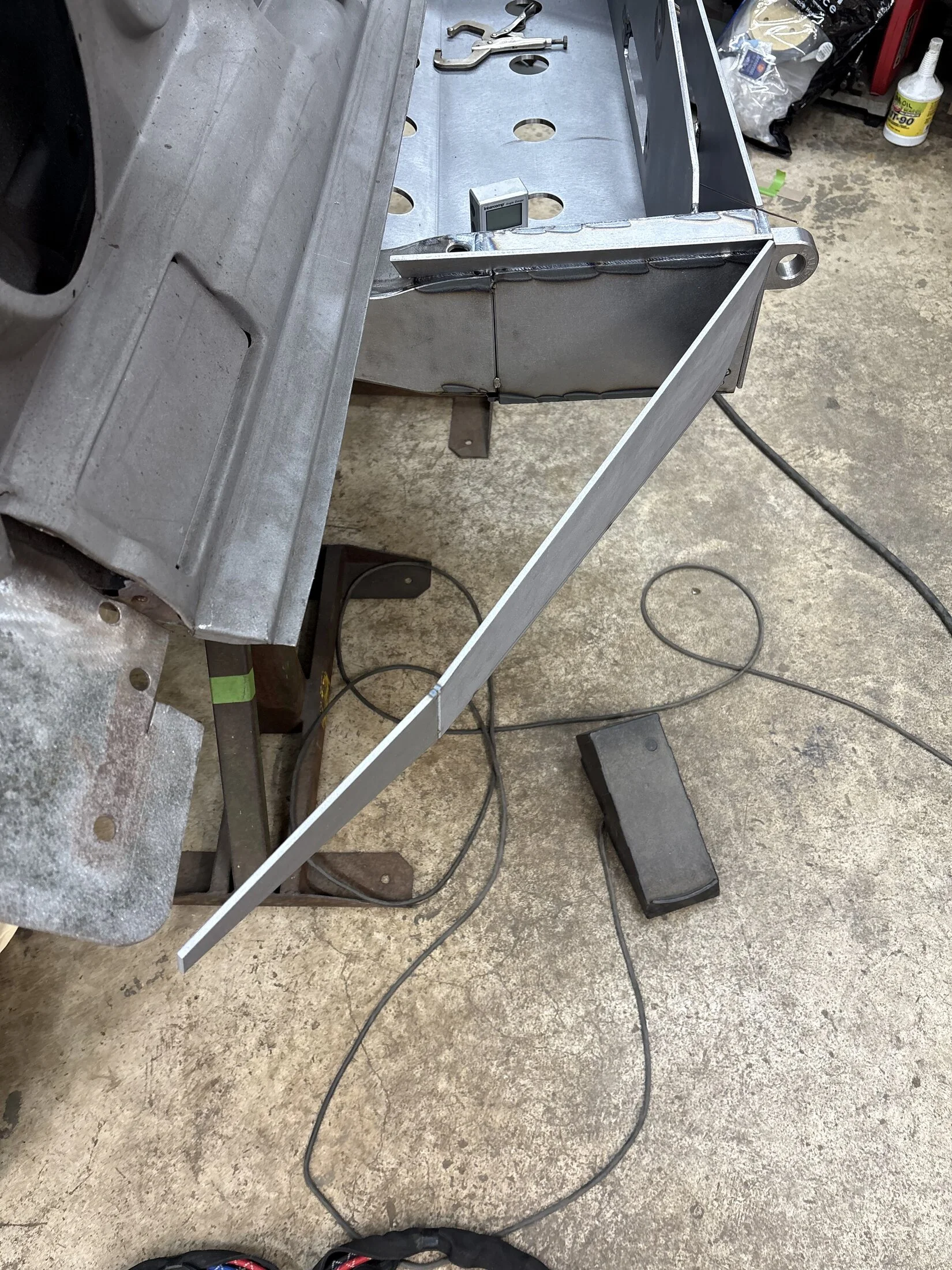

So the plate cut in the shear is completely square, outer frame rails not so much. REALLY had to squeeze it to make it square up

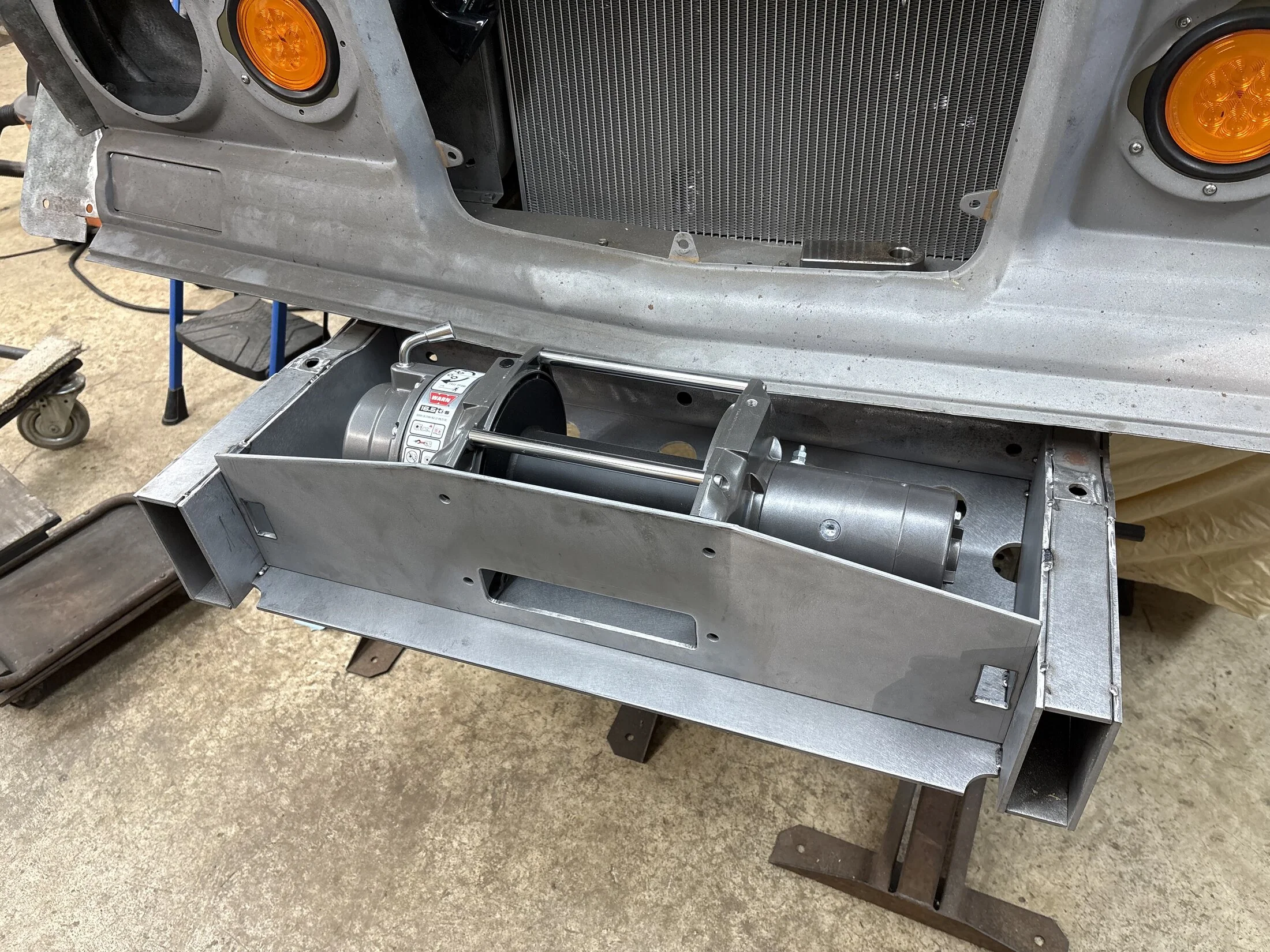

Warn 16.5 will sit like this behind the rear mounting plate. Just enough room to get it in there past the front clip
@boots4 asked for more TIG action, I think we’ll all have our fill during the front bumper construction. Have a LOT of welding to do before any of the winch plates go in

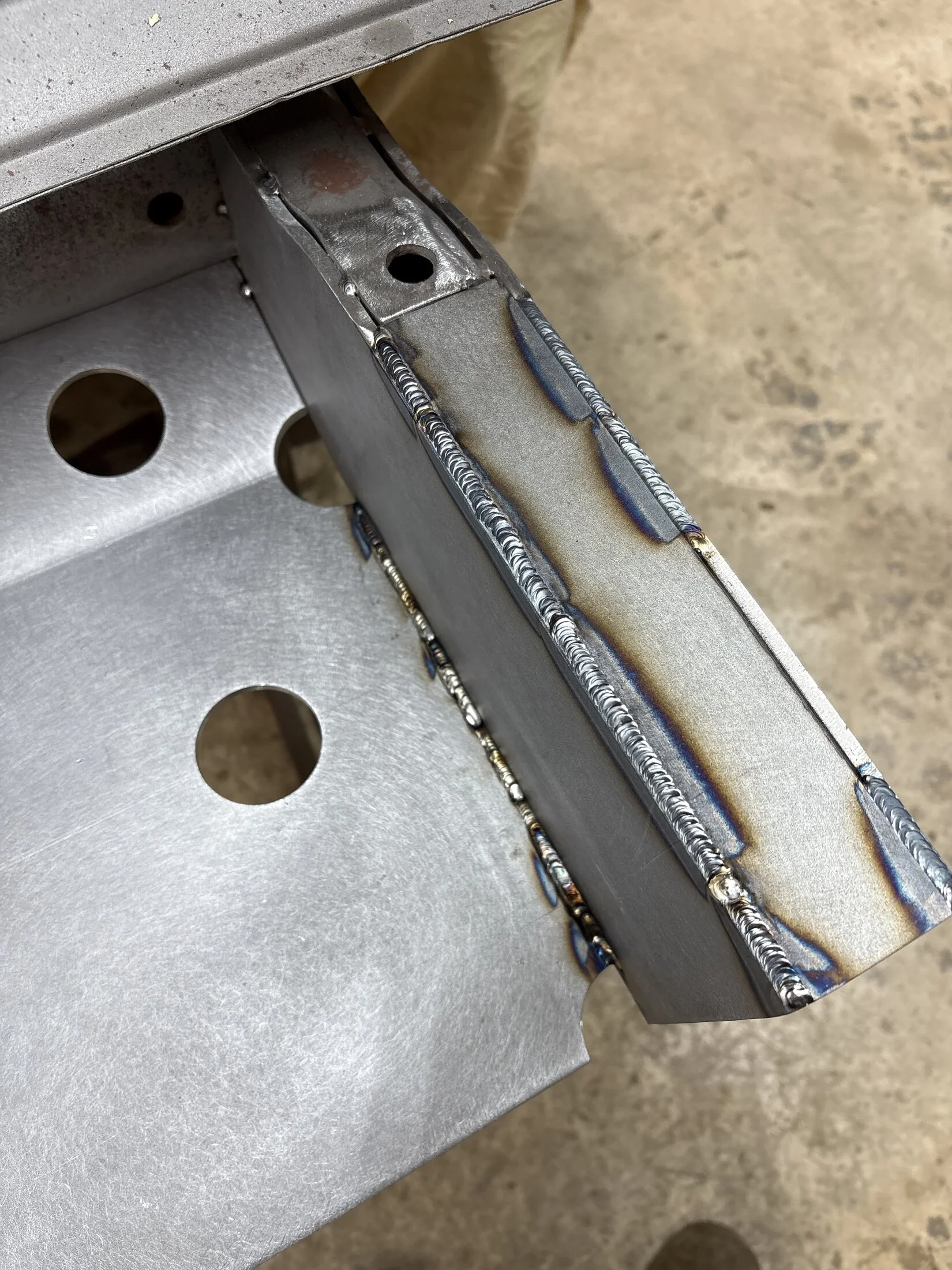

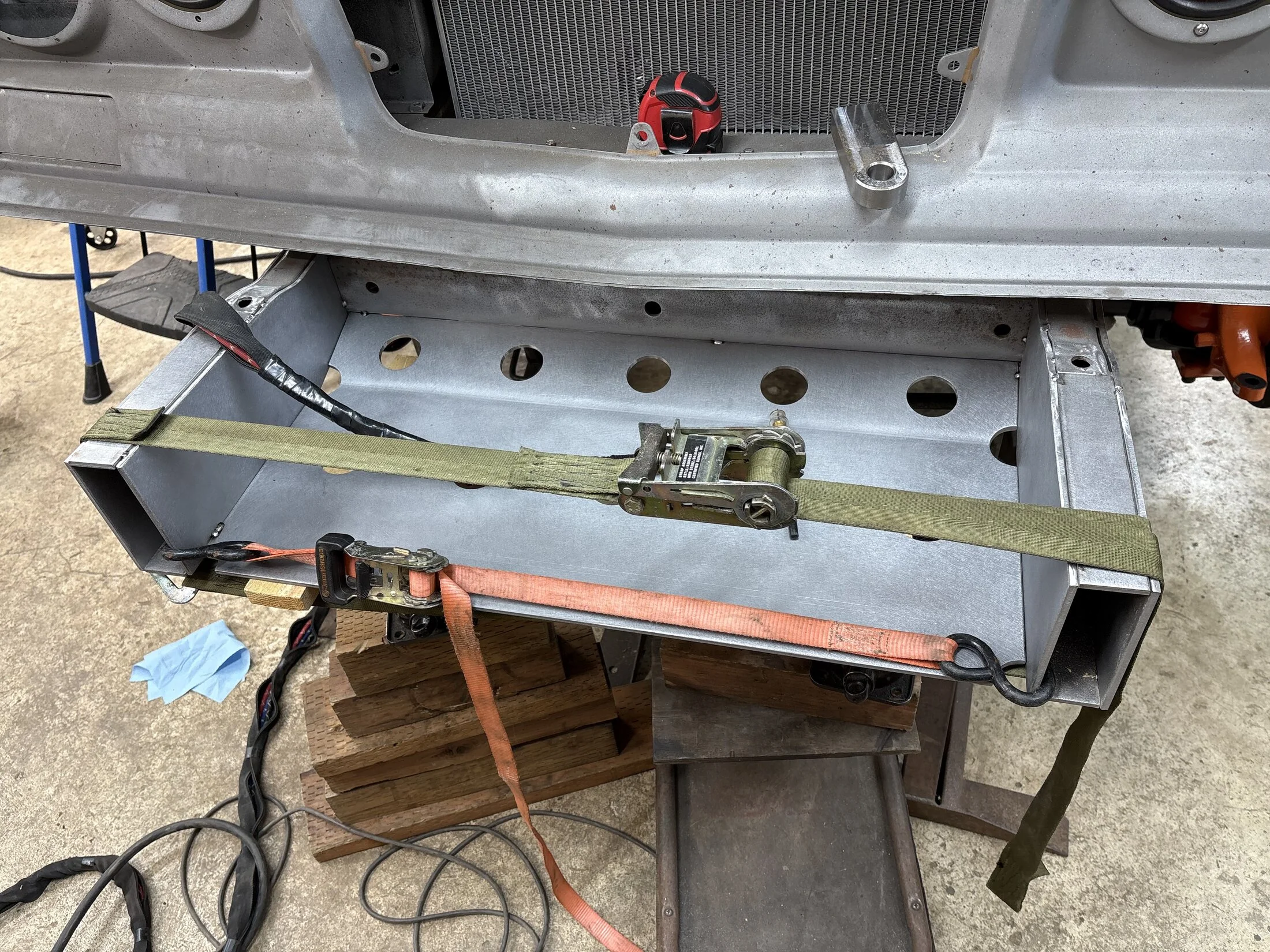

Ok…. So all the front frame rails and the lower plate are welded up. Haven’t had a pile of leftover TIG rod pieces on the floor in a long time

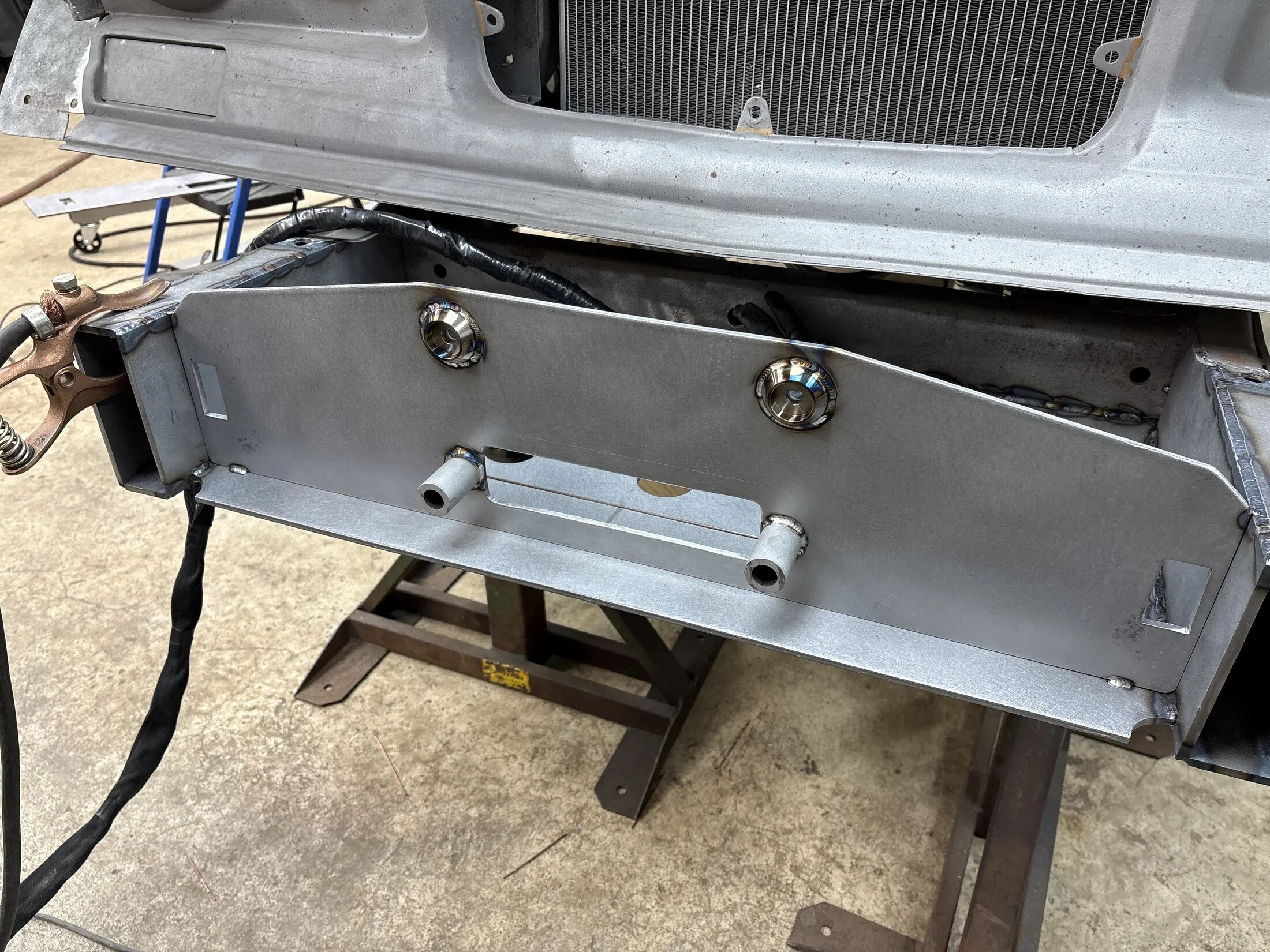

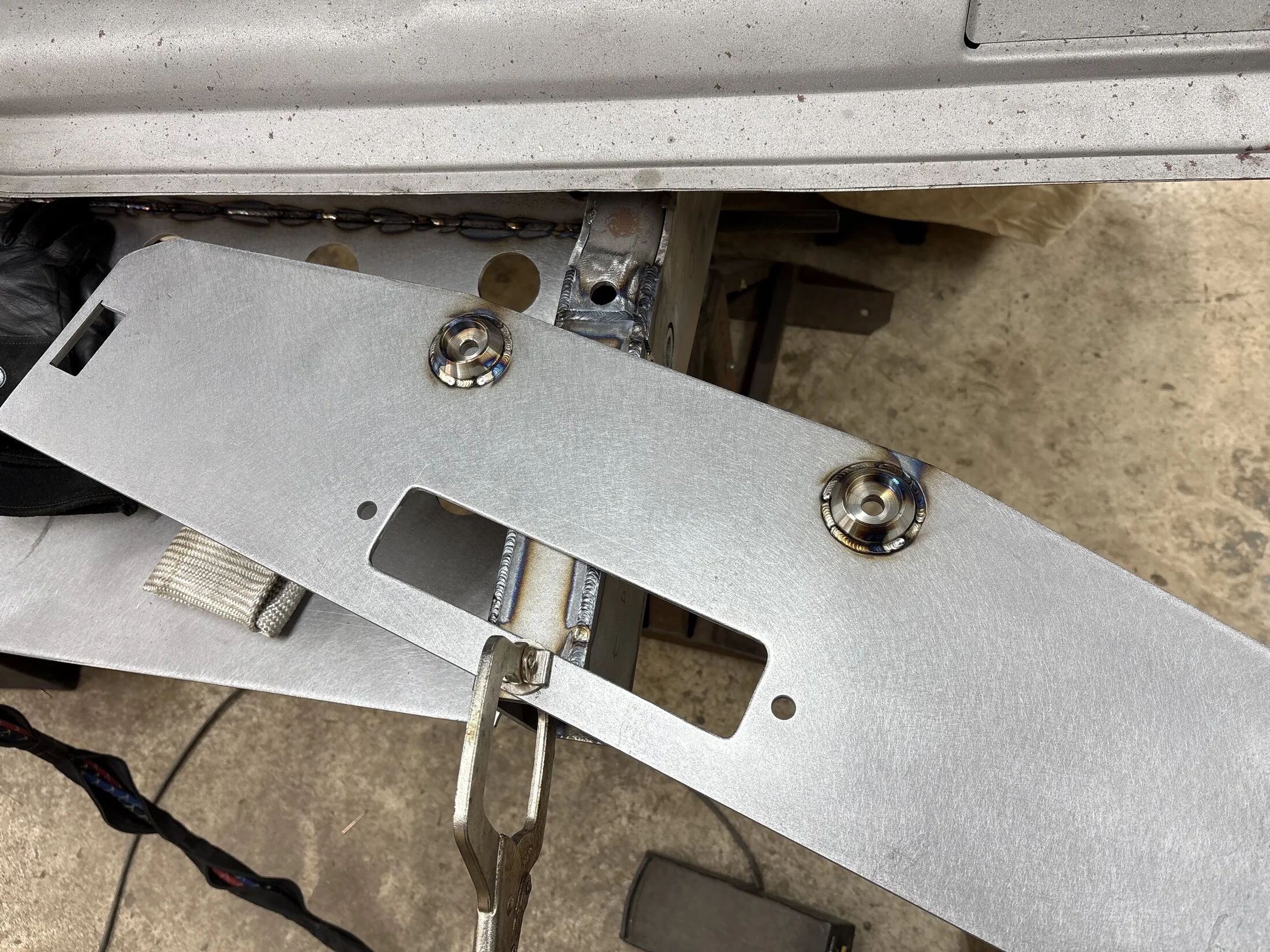

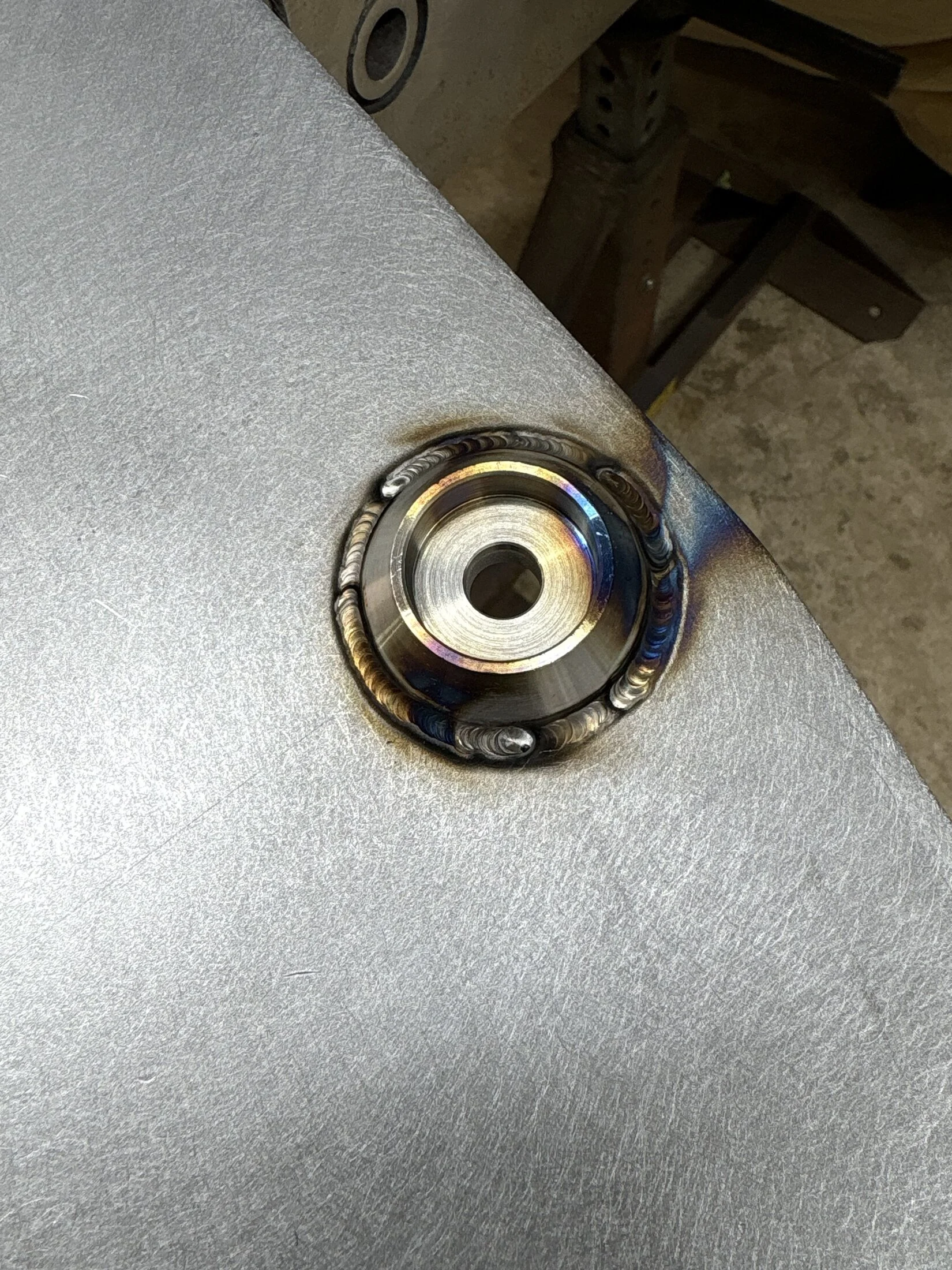

Welded bolt protection bits onto the main winch plate
Pretty neat machined pieces actually
Has some oddball 1.125” OD and .25” wall thickness DOM laying around, can’t remember what that was from Cut some up to act as spacers/crush protection on the lower winch mounting bolts.
Last thing will be capping the top with another piece of .25” so the bumper will be completely boxed at that point

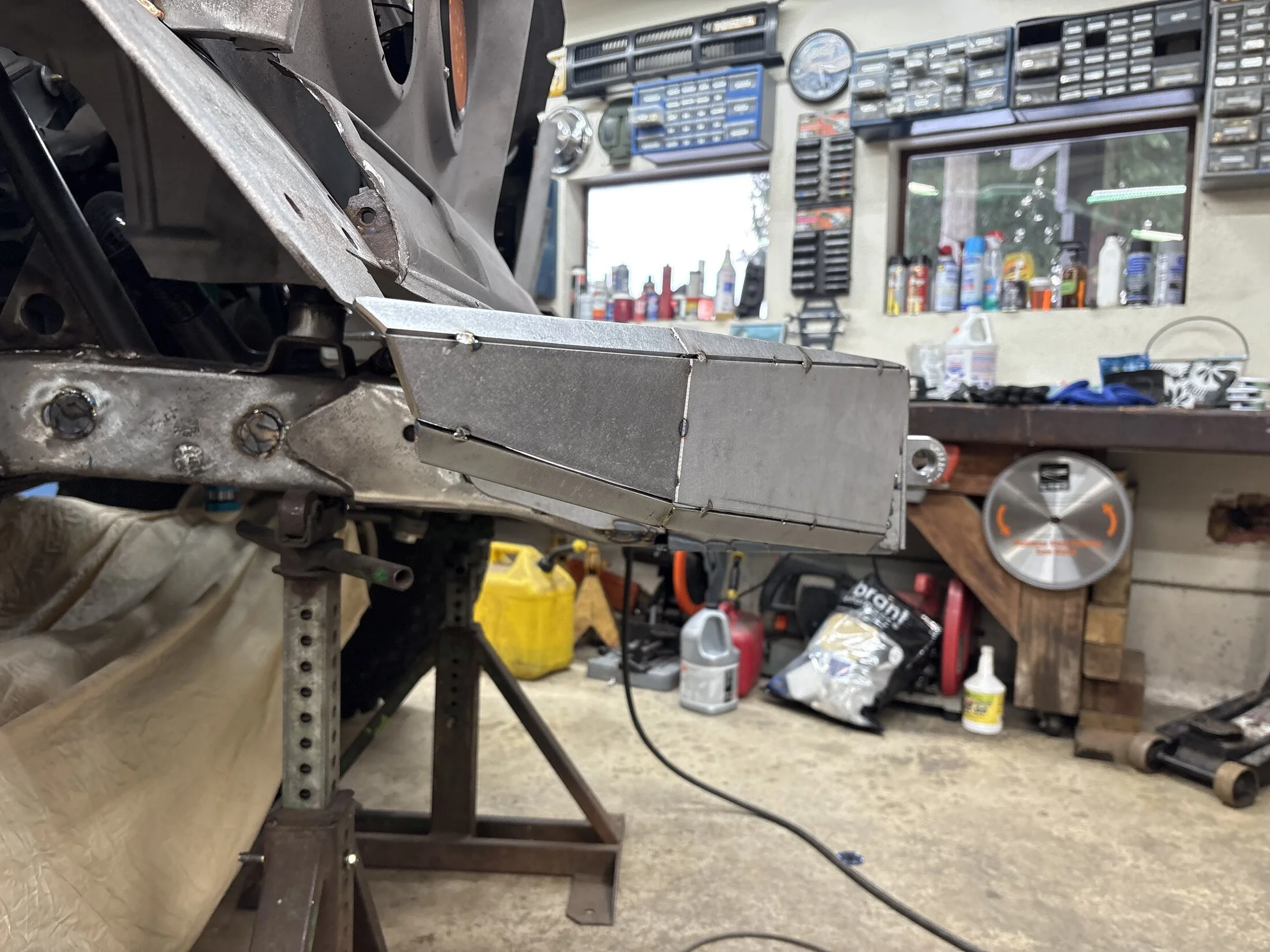

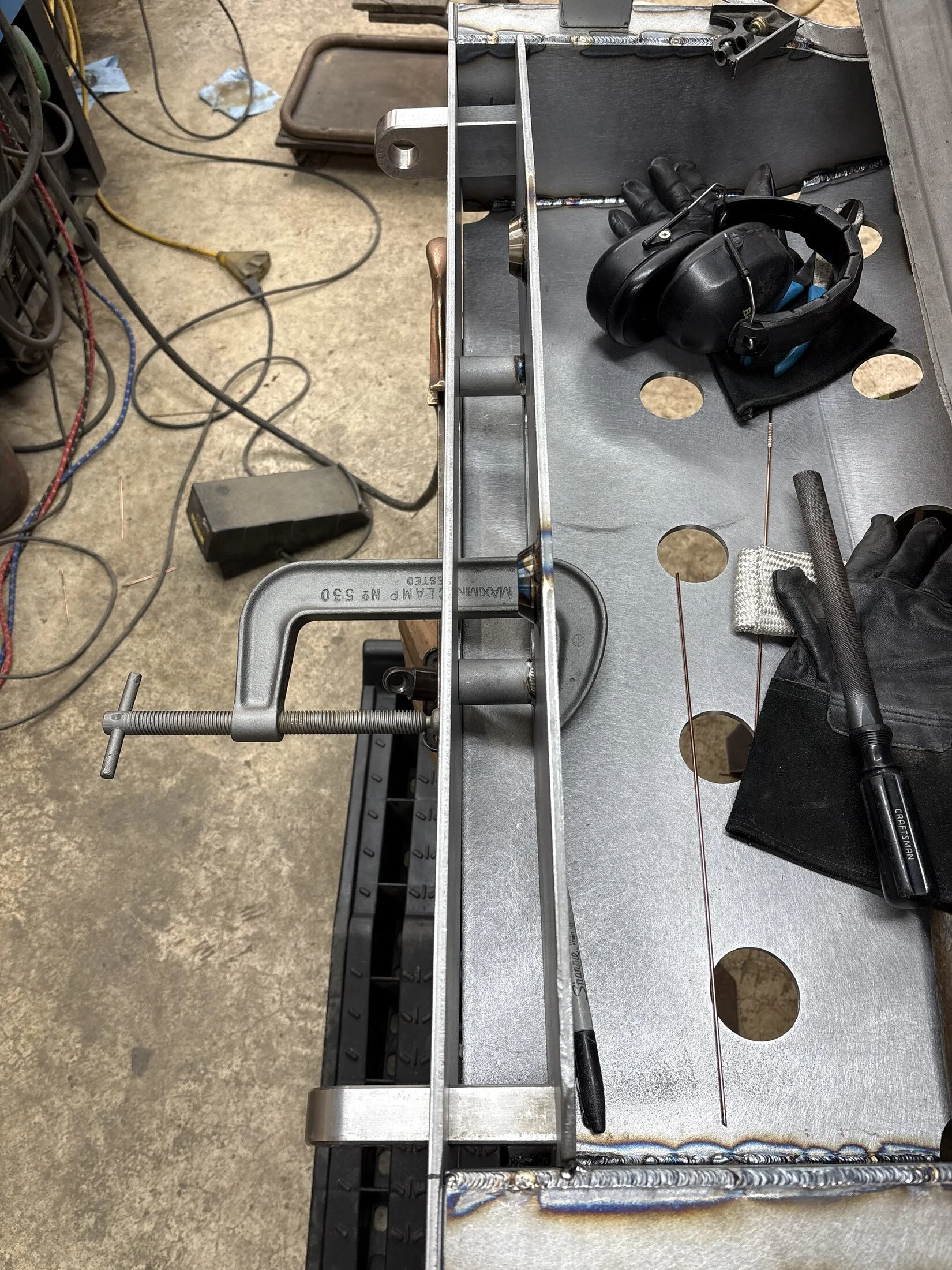

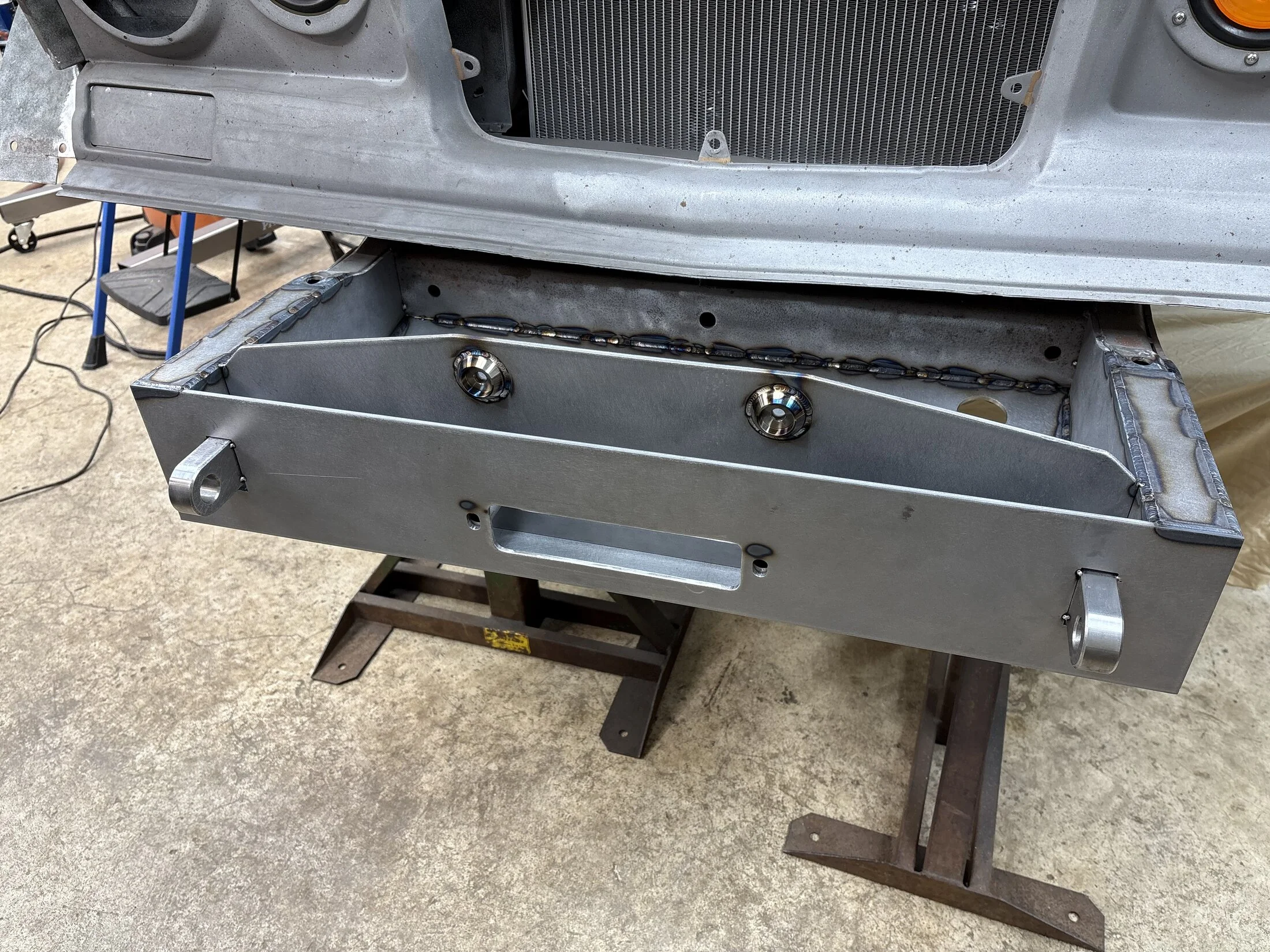

And got the Ballistic shackle mounts tacked in. Those mounts run through both inner/outer plates and will be welded on both ends. Again, helps keep everything very rigid

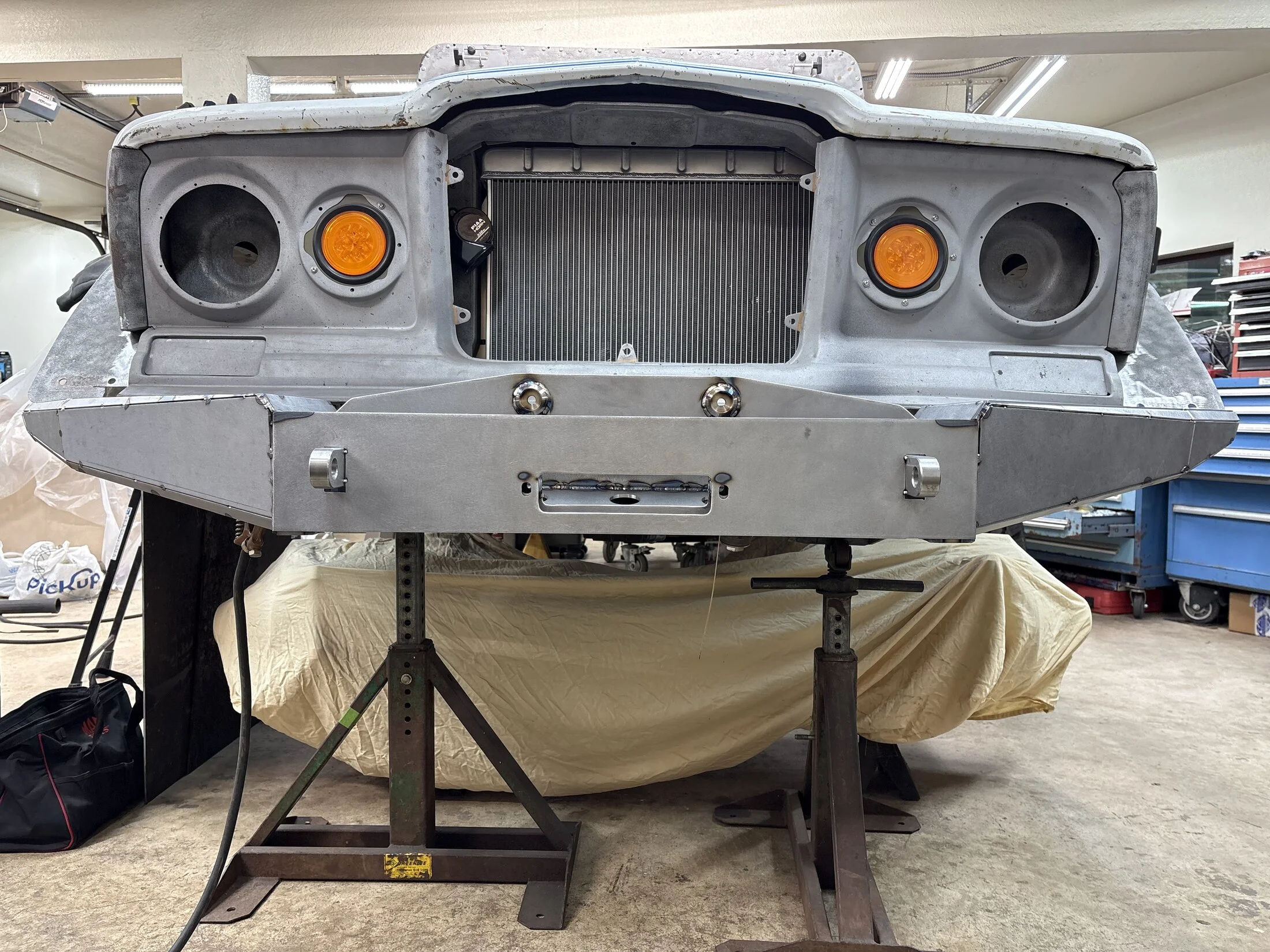

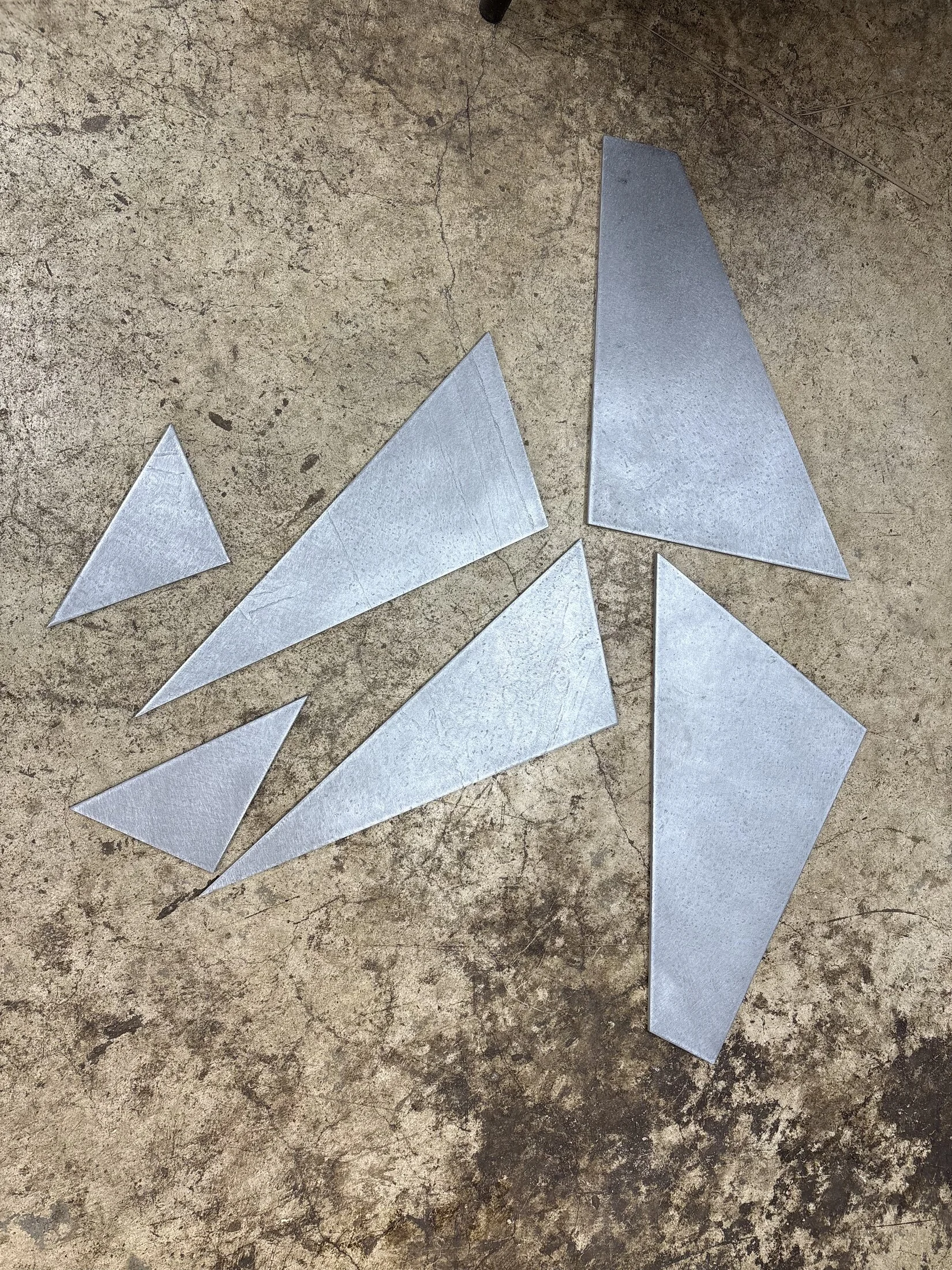

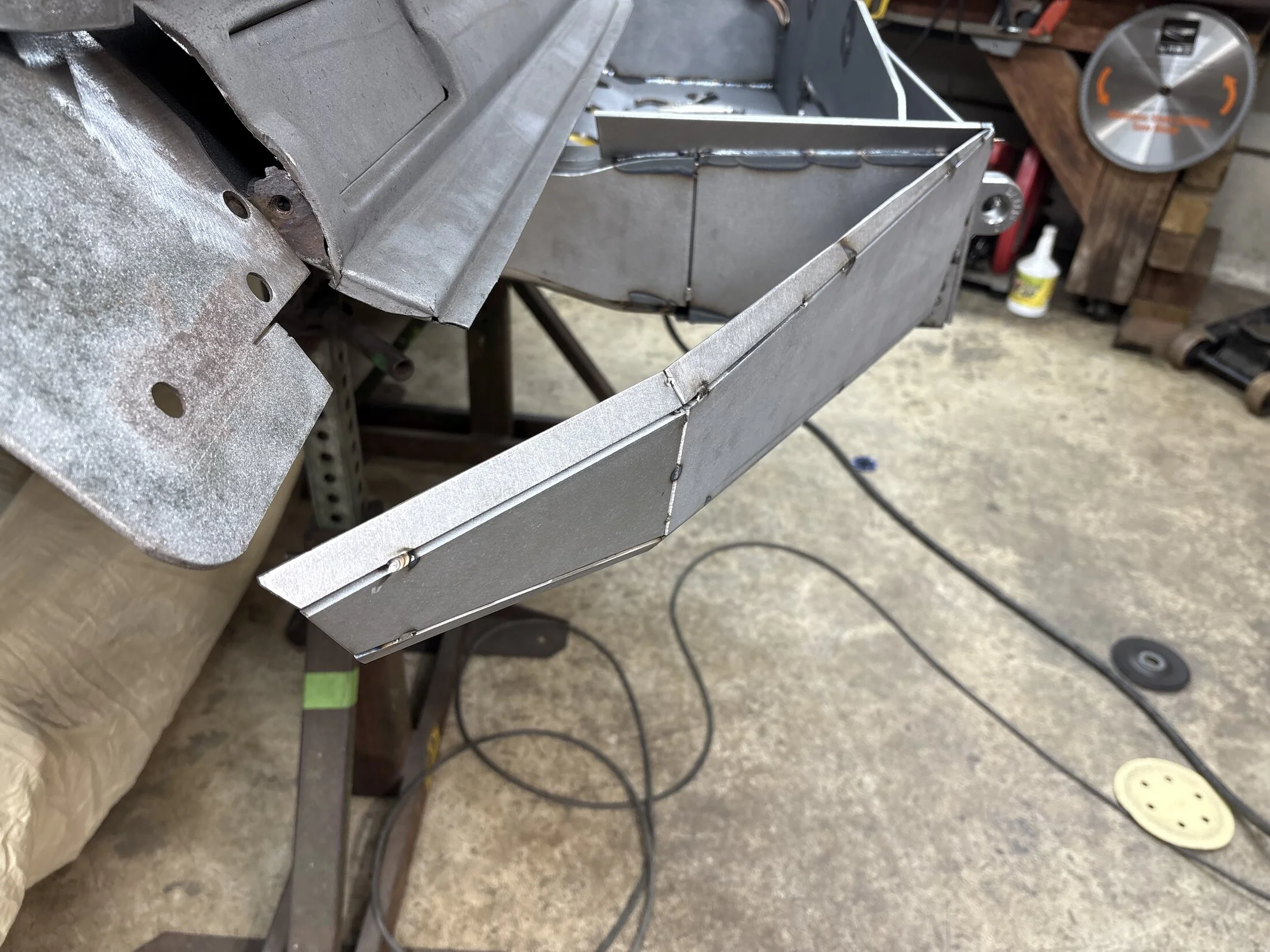

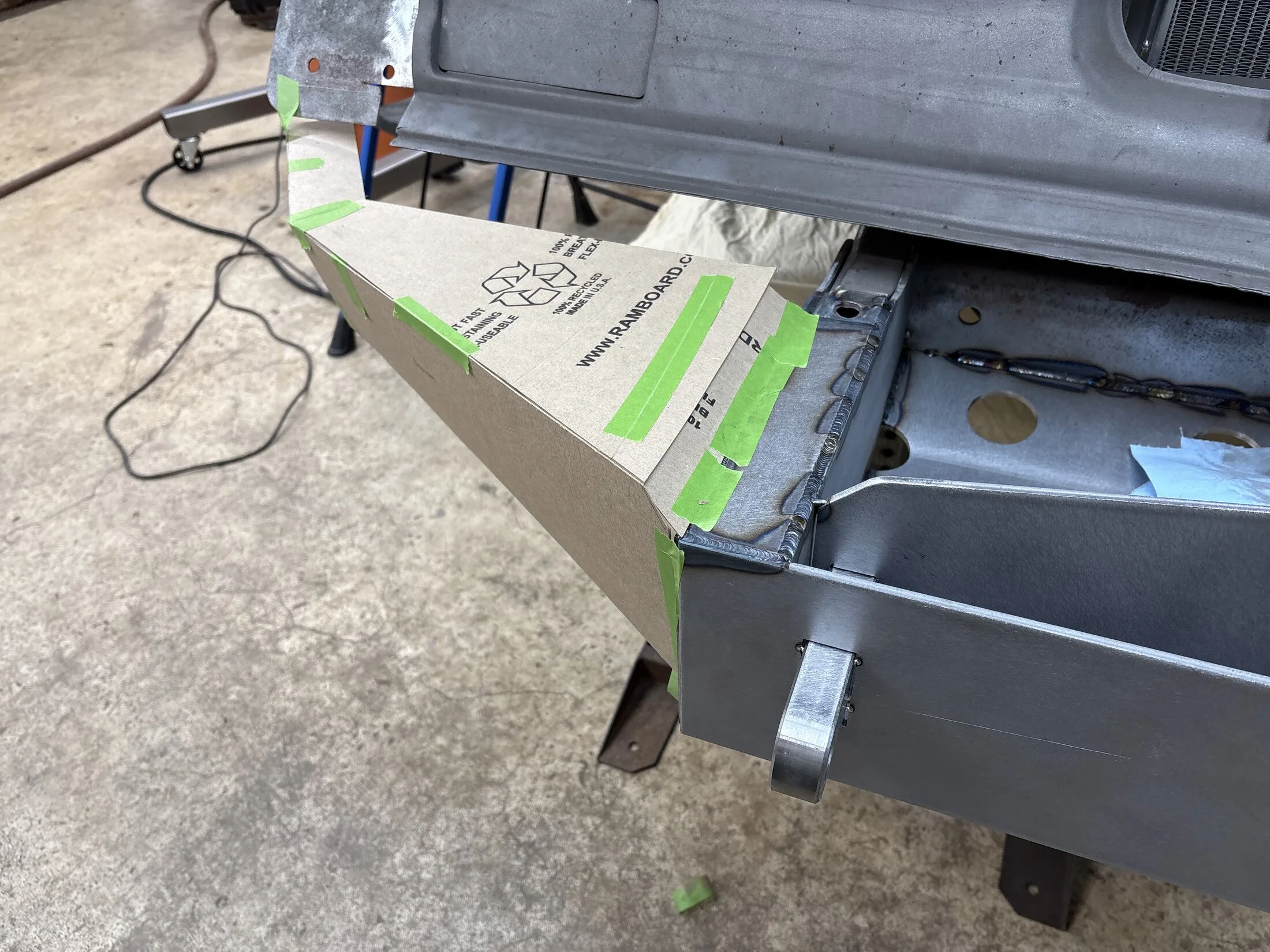

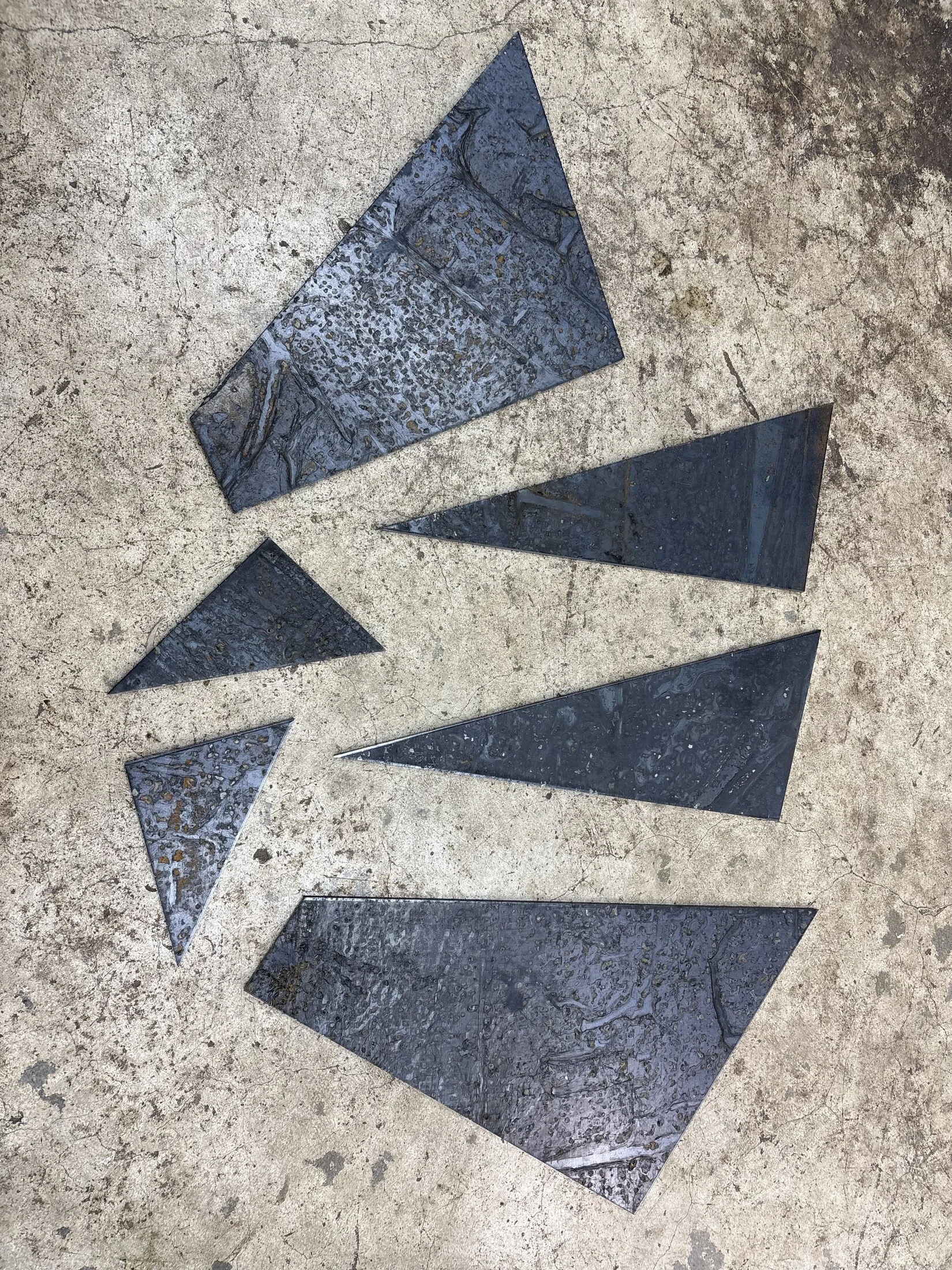

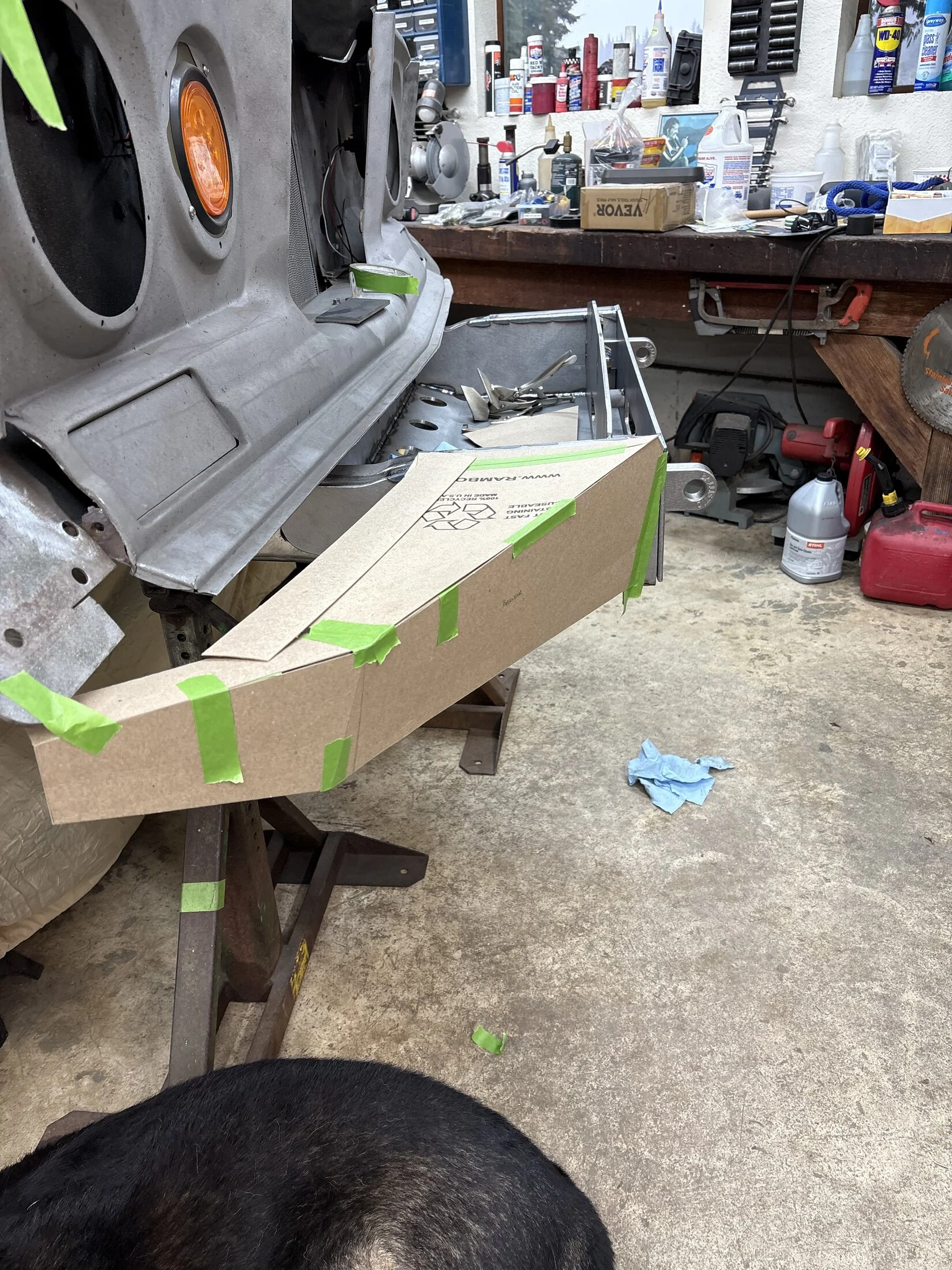

Think I’ll go with this for the main top plate. Radius the inside corners, follow the body lines as best as possible and call it good. Very hard to keep it “reasonable”

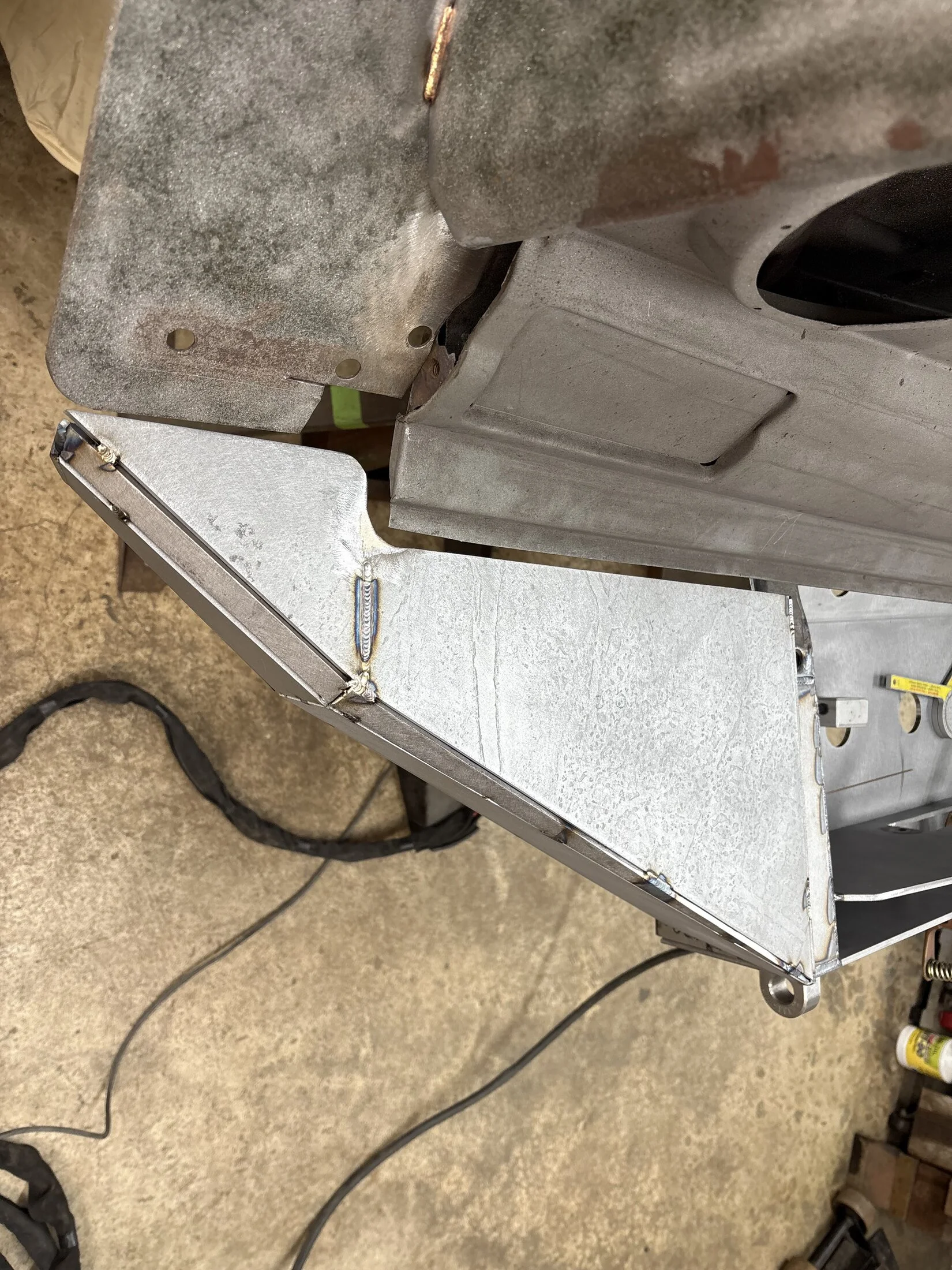

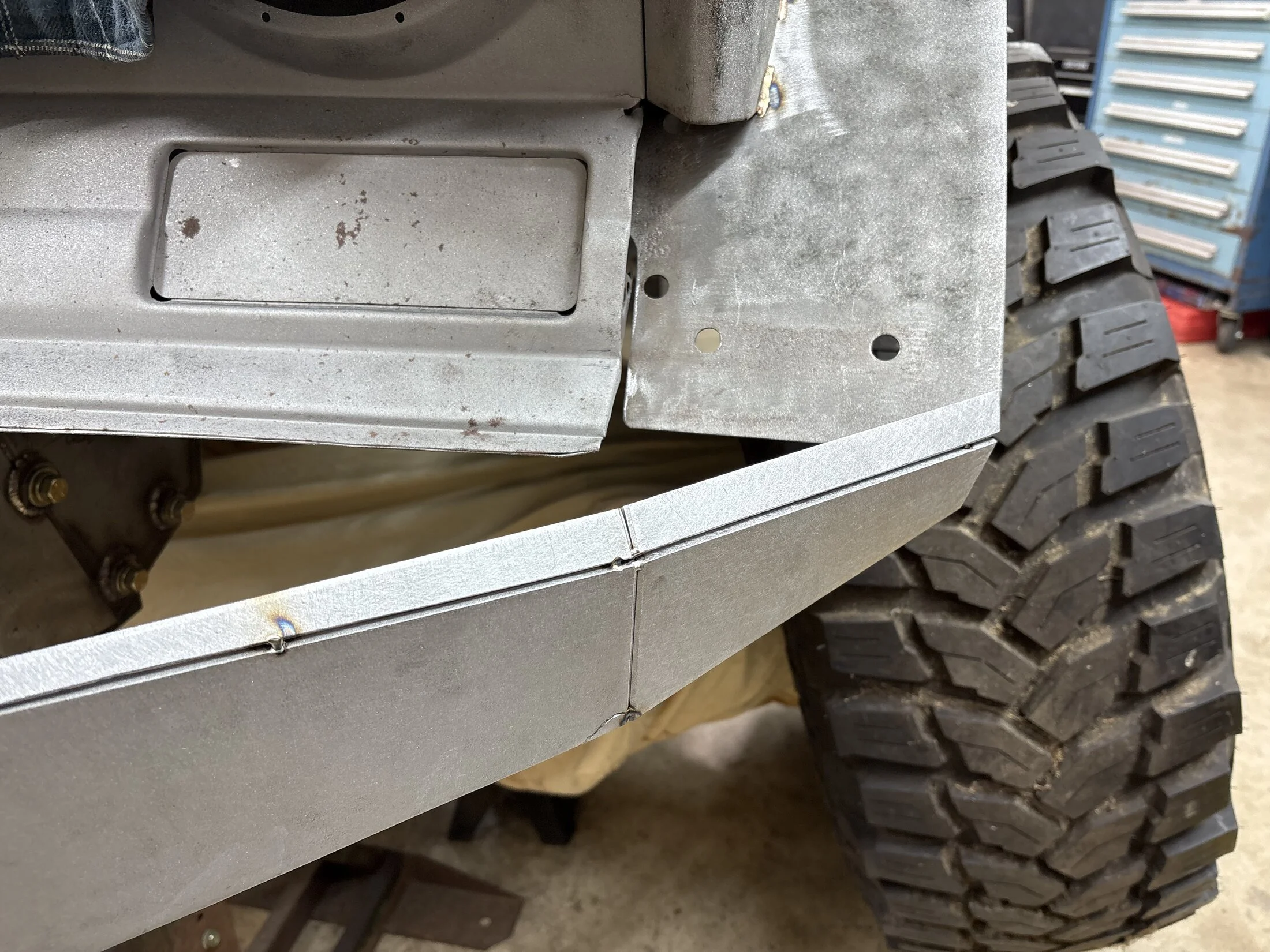

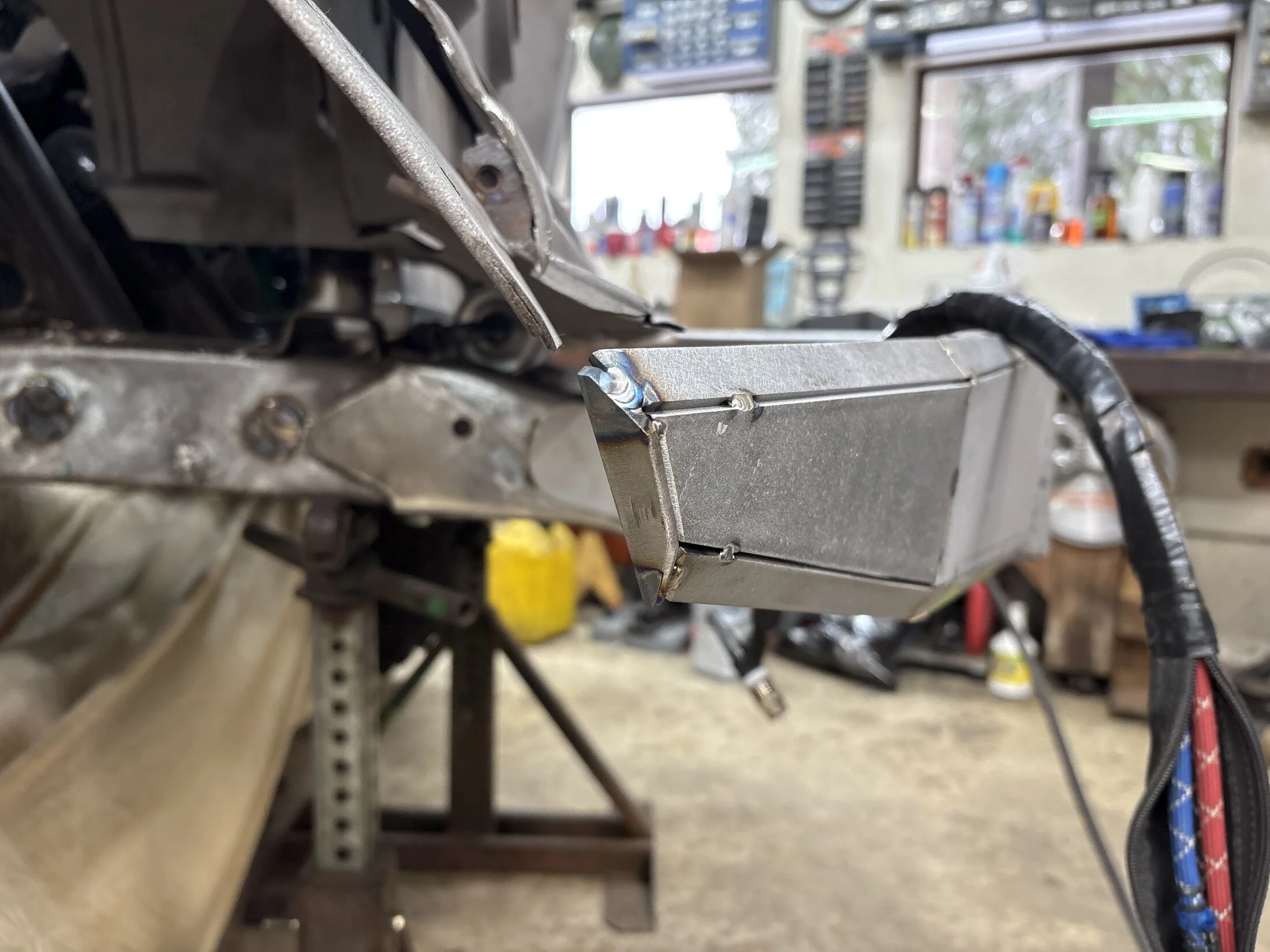

So the front clip on the drivers side is pretty darn bent up

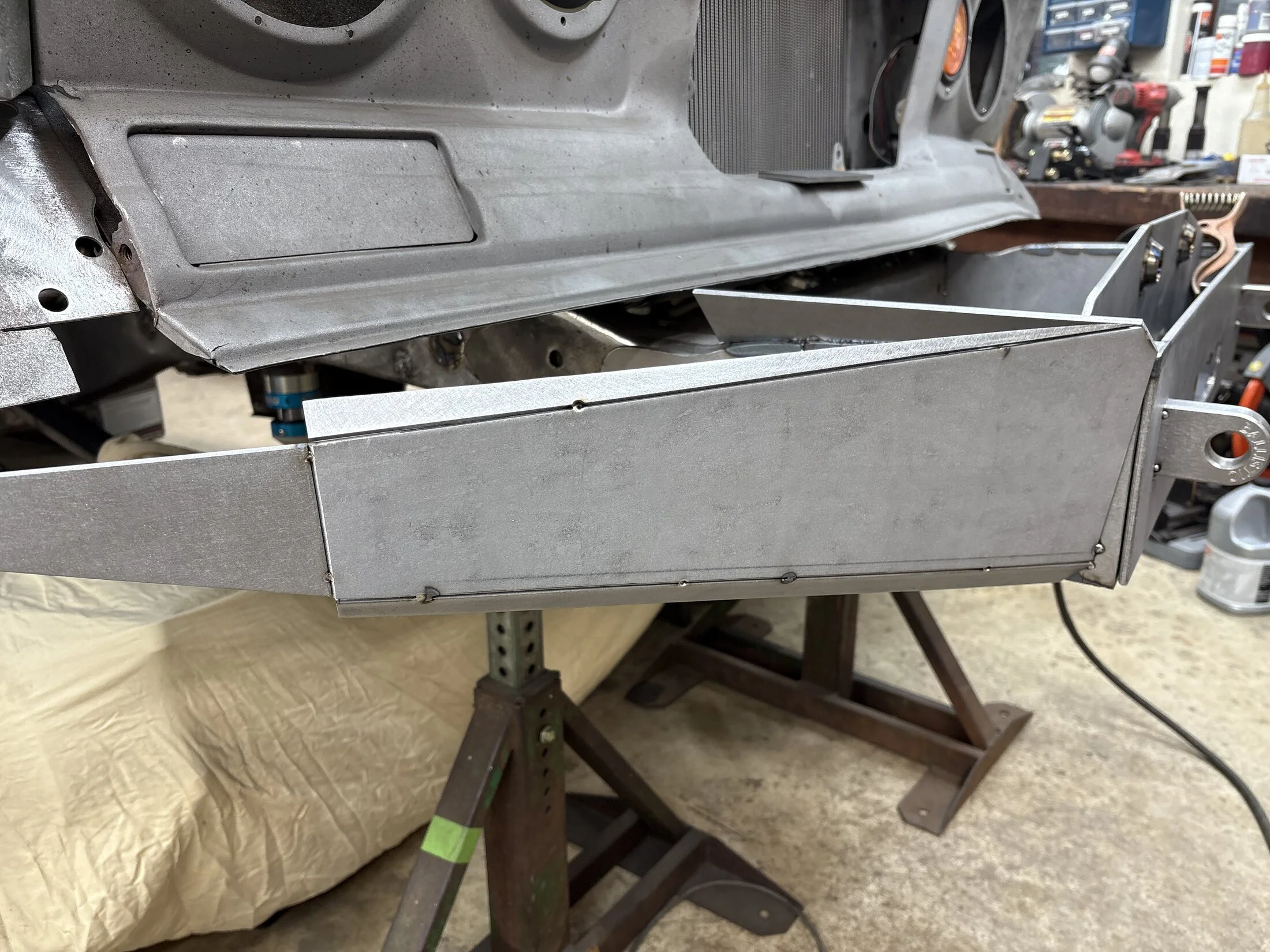

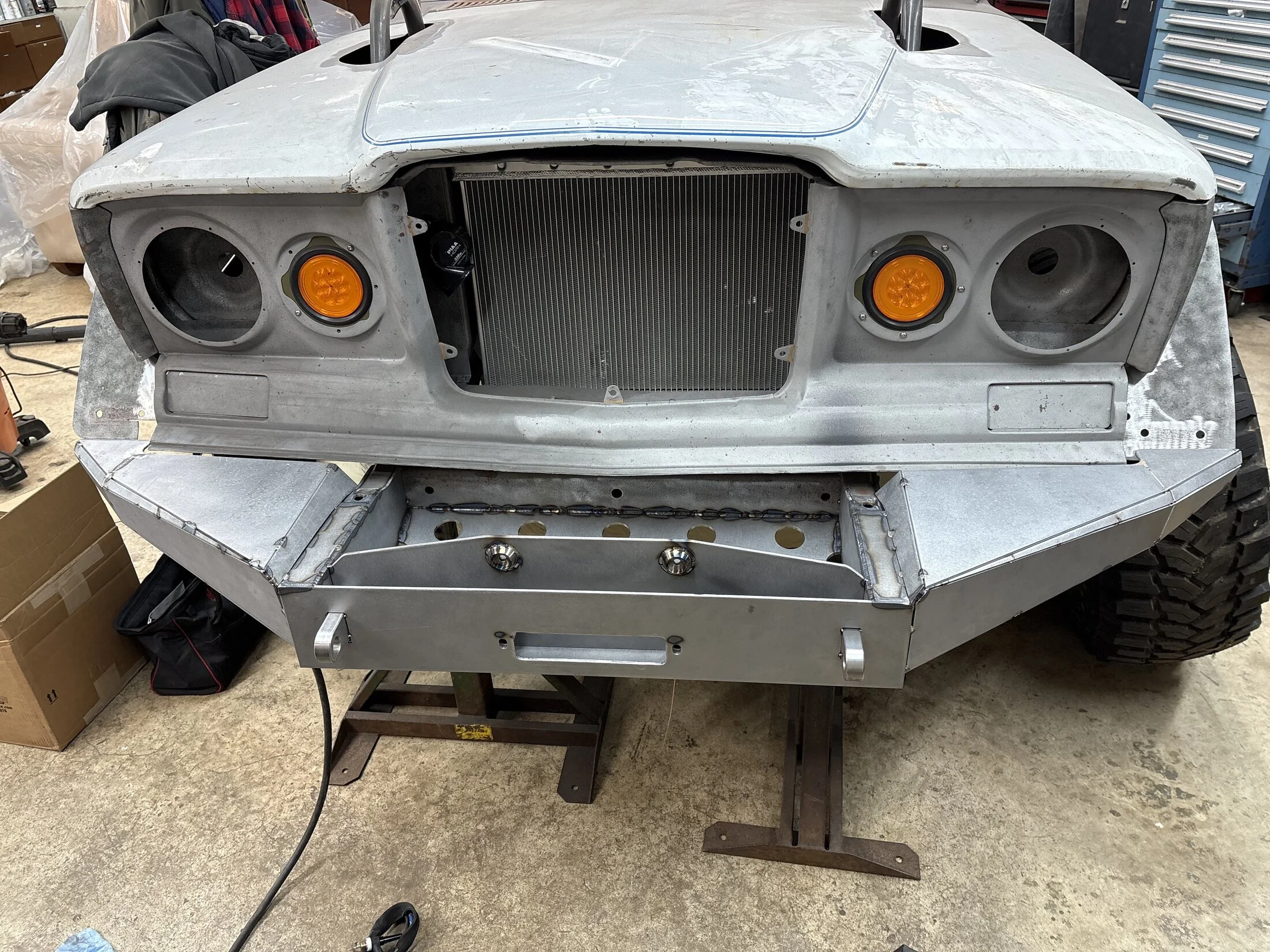

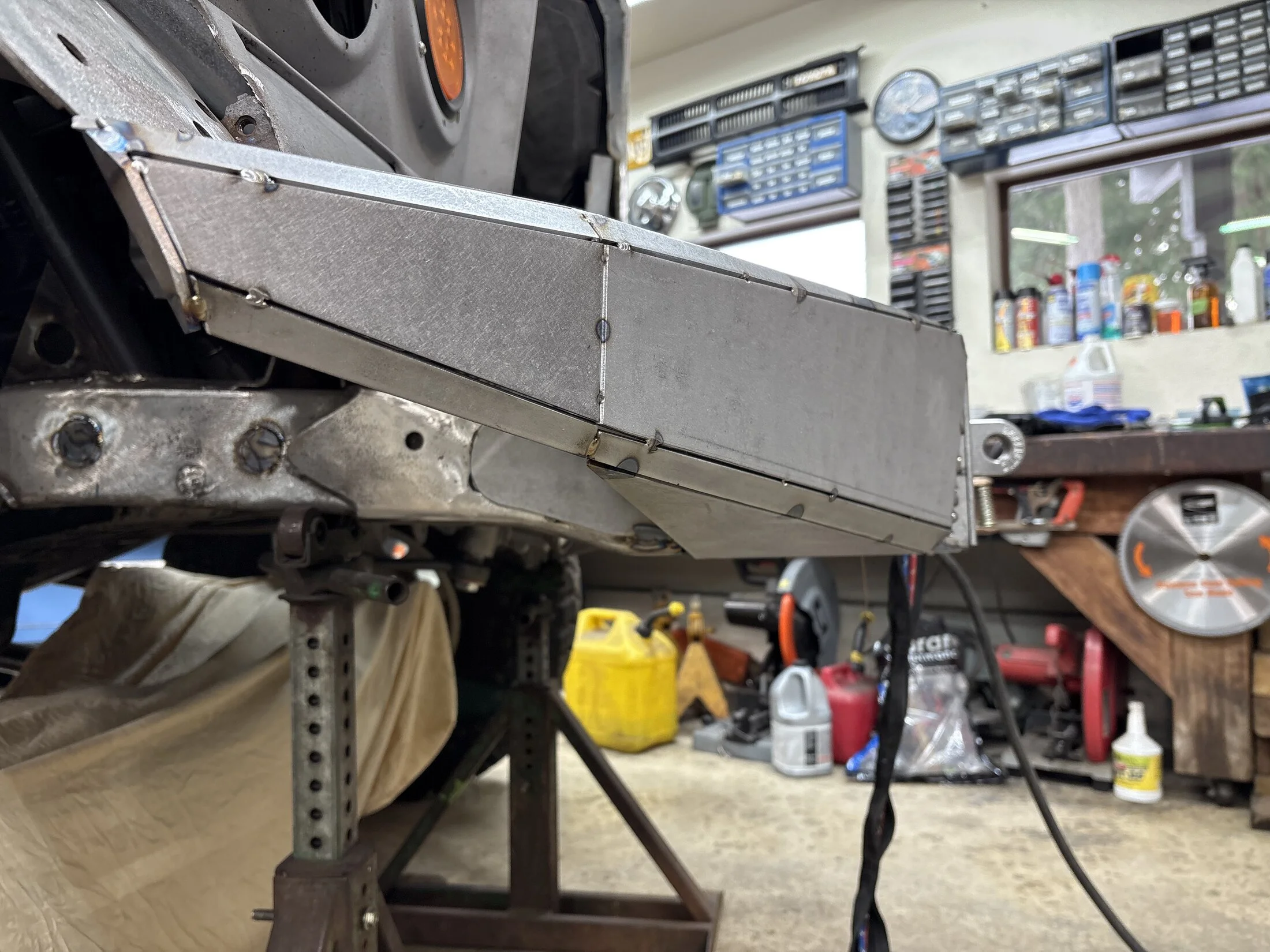

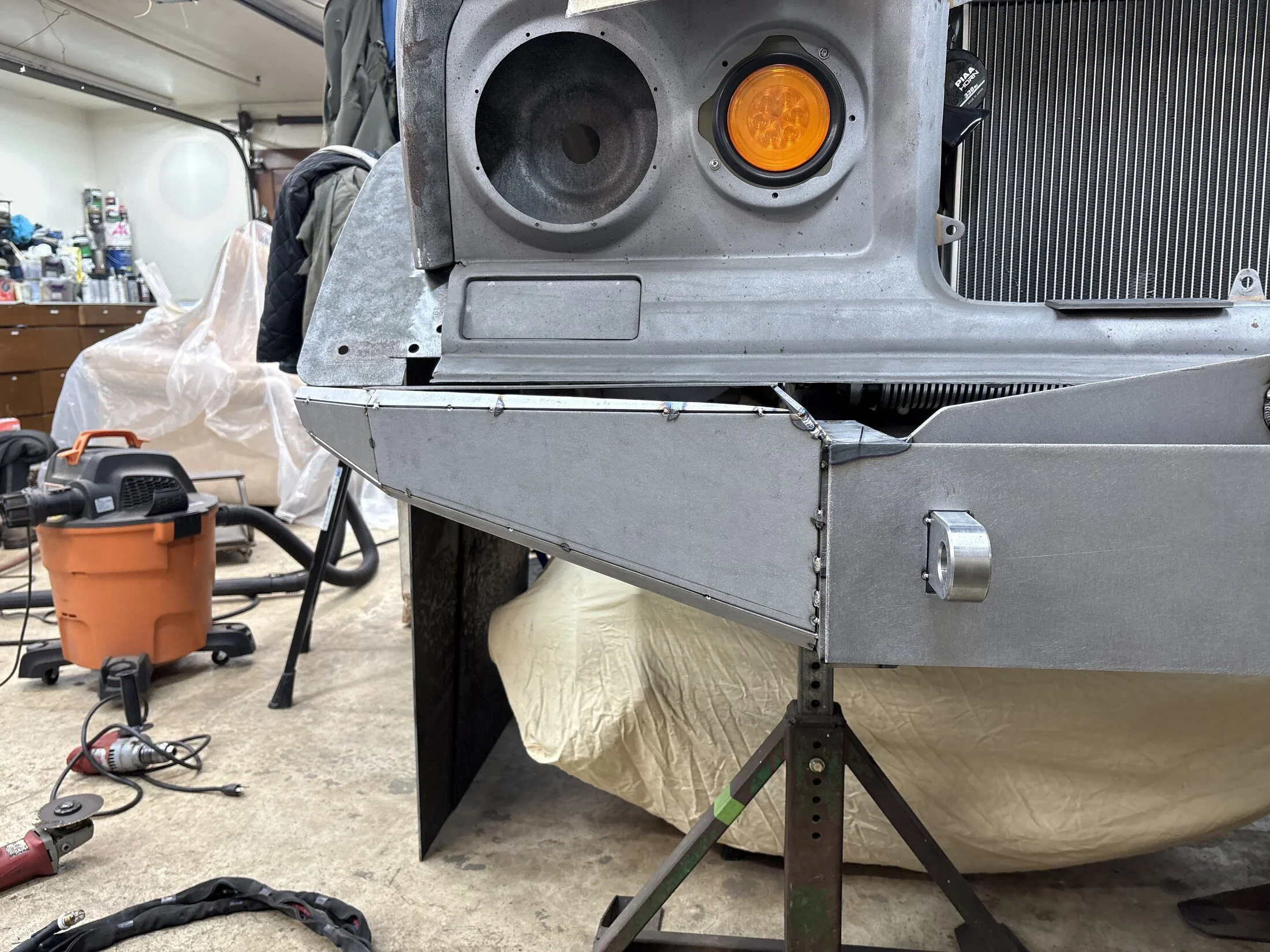

And with the body out of square, decided to build the bumper square/parallel/symmetrical both sides even tho it may look a bit out of whack. We can replace sheet metal down the road if need be, once the bumper is in tho, that’s a permanent fixture. So the drivers side is definitely going to land higher compared to the passenger side. Because the front clip is bent down and inwards
Thanks, much appreciated. Been going pretty slow with this. Have made lots of small changes along the way, really want it to be “right” when it’s finished

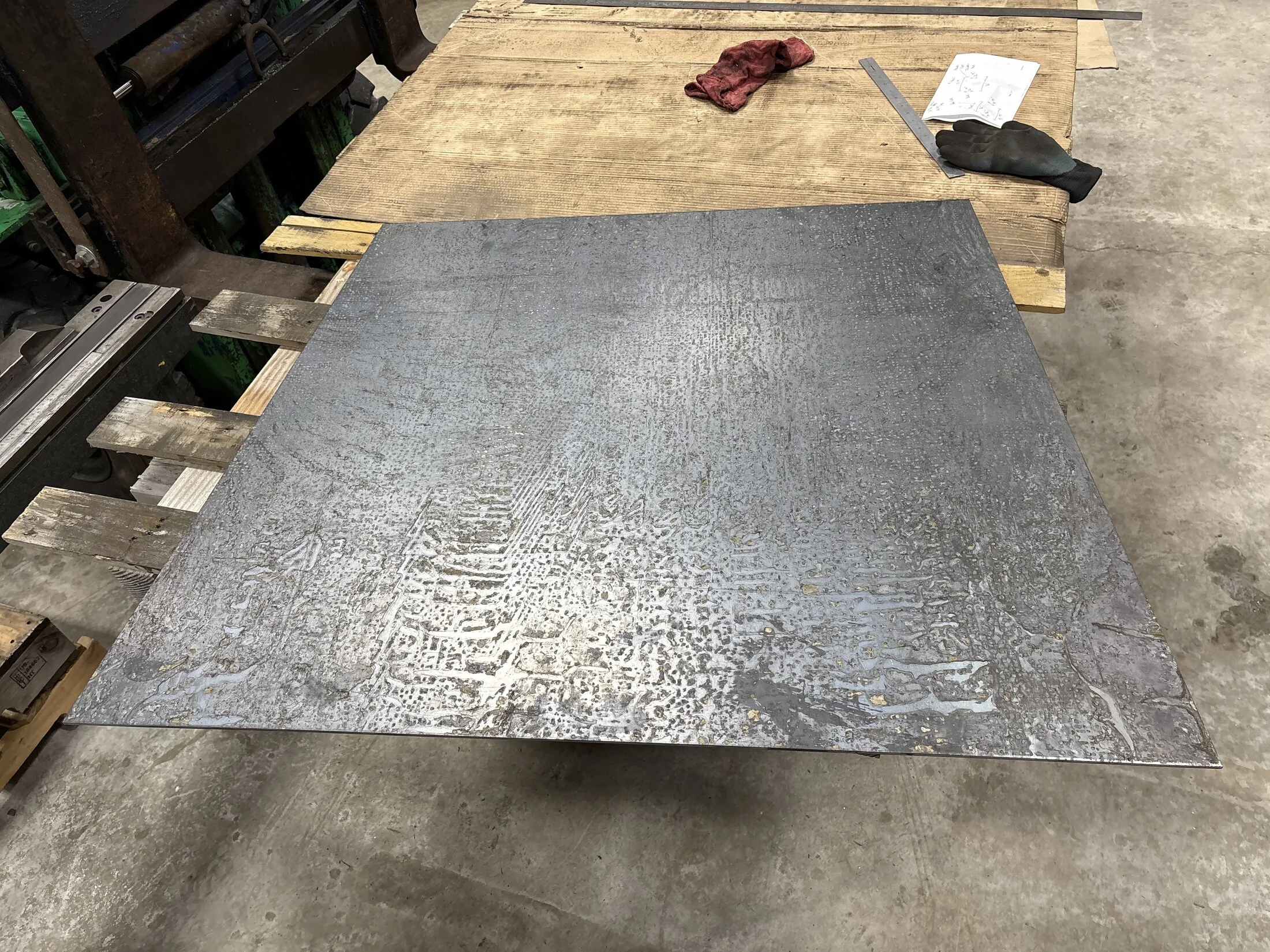

More filthy plates… Please, friends don’t let friends weld dirty on this stuff
Which are now clean and weldable

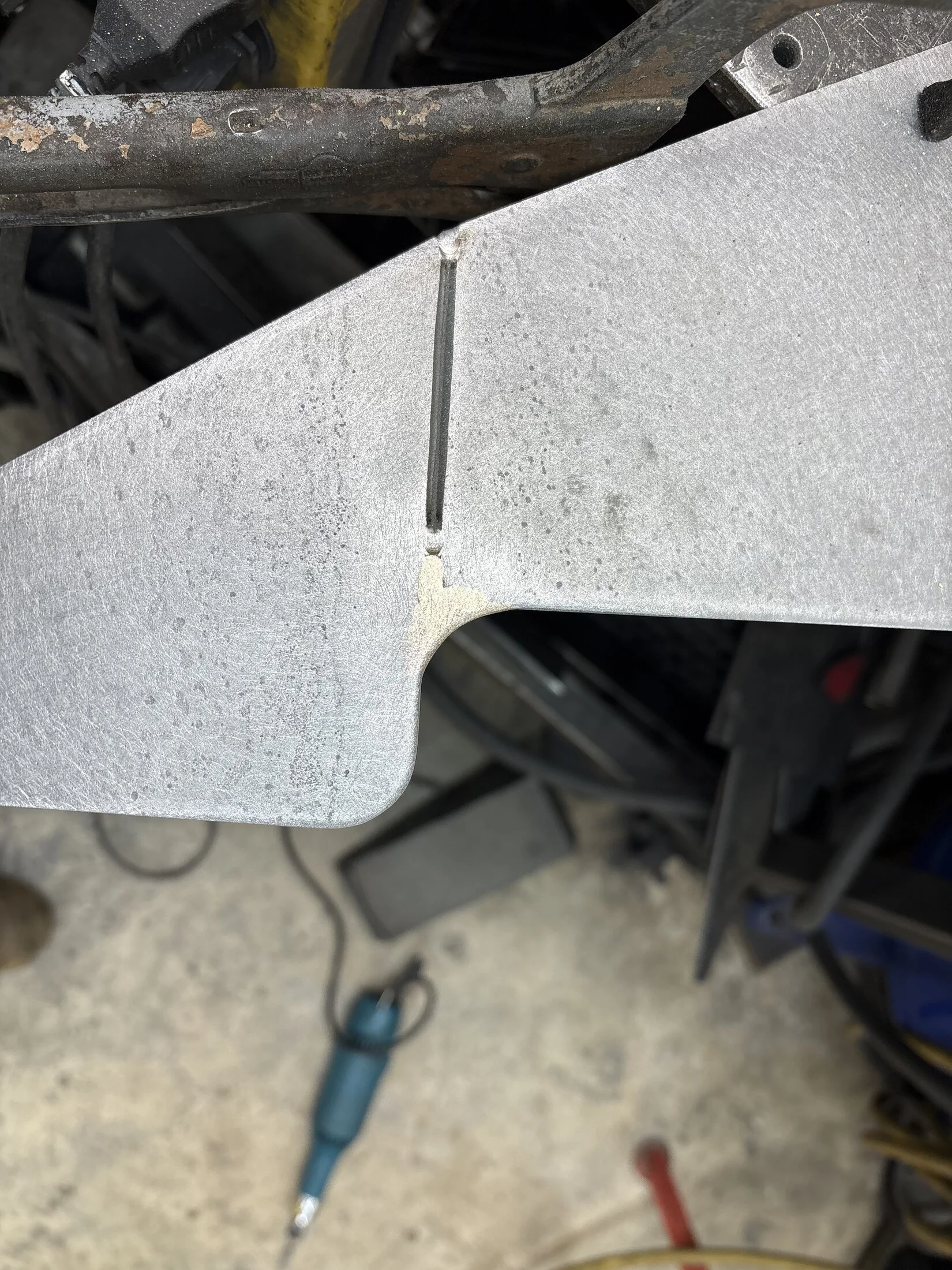

Realized that the 1.5” radius I wanted to do here slipped my mind when I was shearing everything out. Tacked the two main plates together, built up the corner with silicone bronze then sanded in the radius. Fixed
