68' M715, AKA "Smokey" (Can I post this Jeep on MUD?)

Discussion in 'HardCore Corner' started by Rock40, Mar 13, 2018.

  1. Rock40

    Rock40

    Messages:
    1,404
    Media:
    7
    Albums:
    3
    Likes Received:
    1,029
    Joined:
    Feb 21, 2012
    Location:
    Snohomish, WA
    Go ahead, flame me if you wish. After completing a very original frame off chassis restoration on a 66' FJ40 for a customer in California, it's time for a little something different. Yes, it's a Jeep. Let's be realistic though, the only "Jeep" part left is the frame and sheet metal bits....this could be any longer wheelbase Toyota. Owned by my longtime friend Mark, this'll prove to be an interesting build.

    Specs:

    1968 M715 1.25 ton truck. Bone stock, 40K, spent it's entire life in interior Alaska (think Fairbanks)
    2001 Tilden Motorsports 8.1 liter Vortec
    Ranger OD
    GM SM465
    Off Road Design Magnum Box
    NP205

    Front Axle:
    Dynatrac ProRock 60, RCV 300M shafts, ARB, Reid Knuckles, 35 spine hubs, etc

    Rear Axle:
    GM Dana 70 HD, stock shafts (until they twist and break), ARB, disc brake conversion

    The end plan is to run a full linked and coiled suspension on at least 40's. Why the nickname "Smokey" you ask? Because the 8.1 liter is going to turn good rubber into white smoke. Simple, stay tuned.

    Last edited: Mar 14, 2018
    Tank5 likes this.
  2. Rock40

    Rock40

    Messages:
    1,404
    Media:
    7
    Albums:
    3
    Likes Received:
    1,029
    Joined:
    Feb 21, 2012
    Location:
    Snohomish, WA

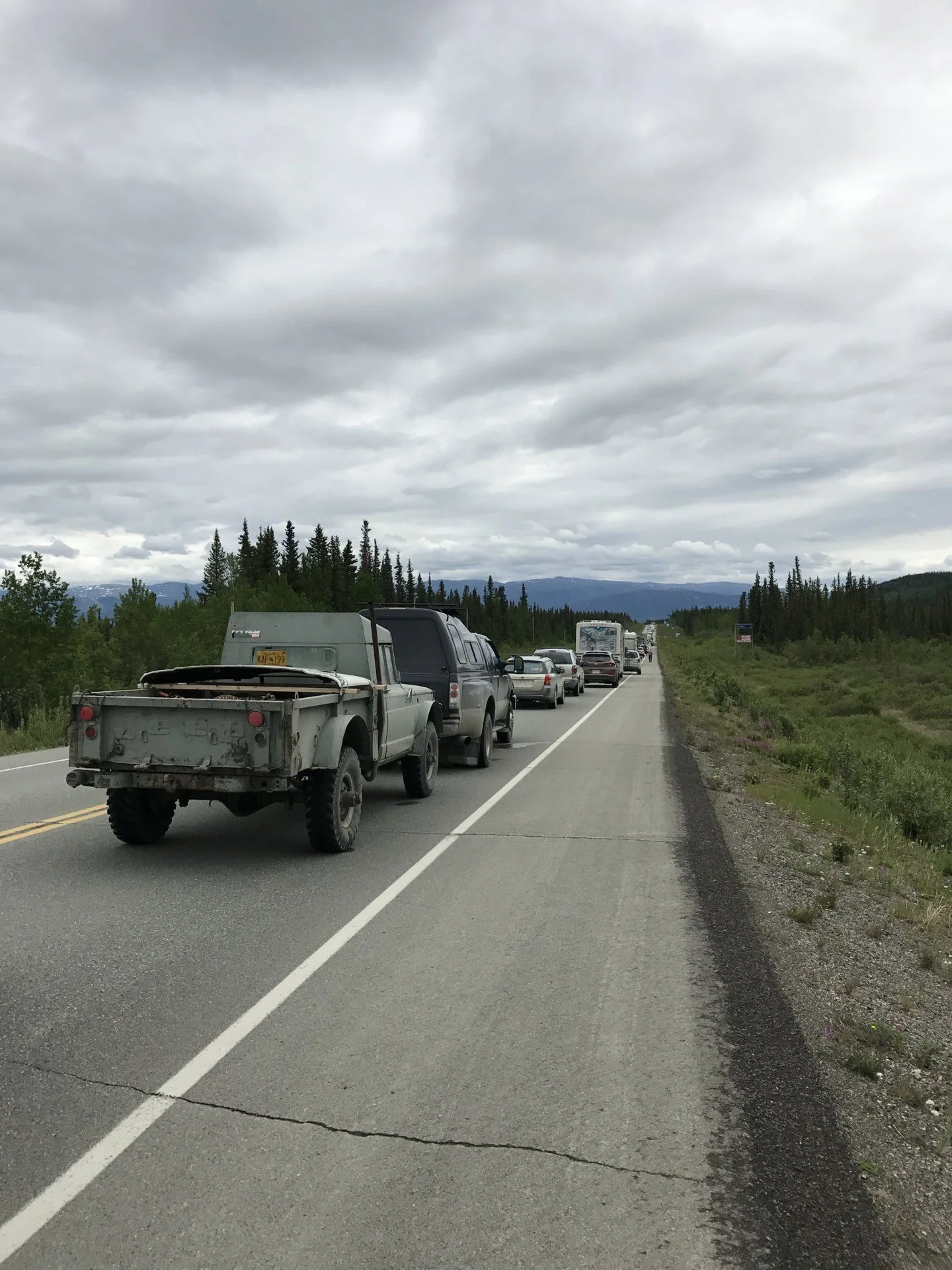

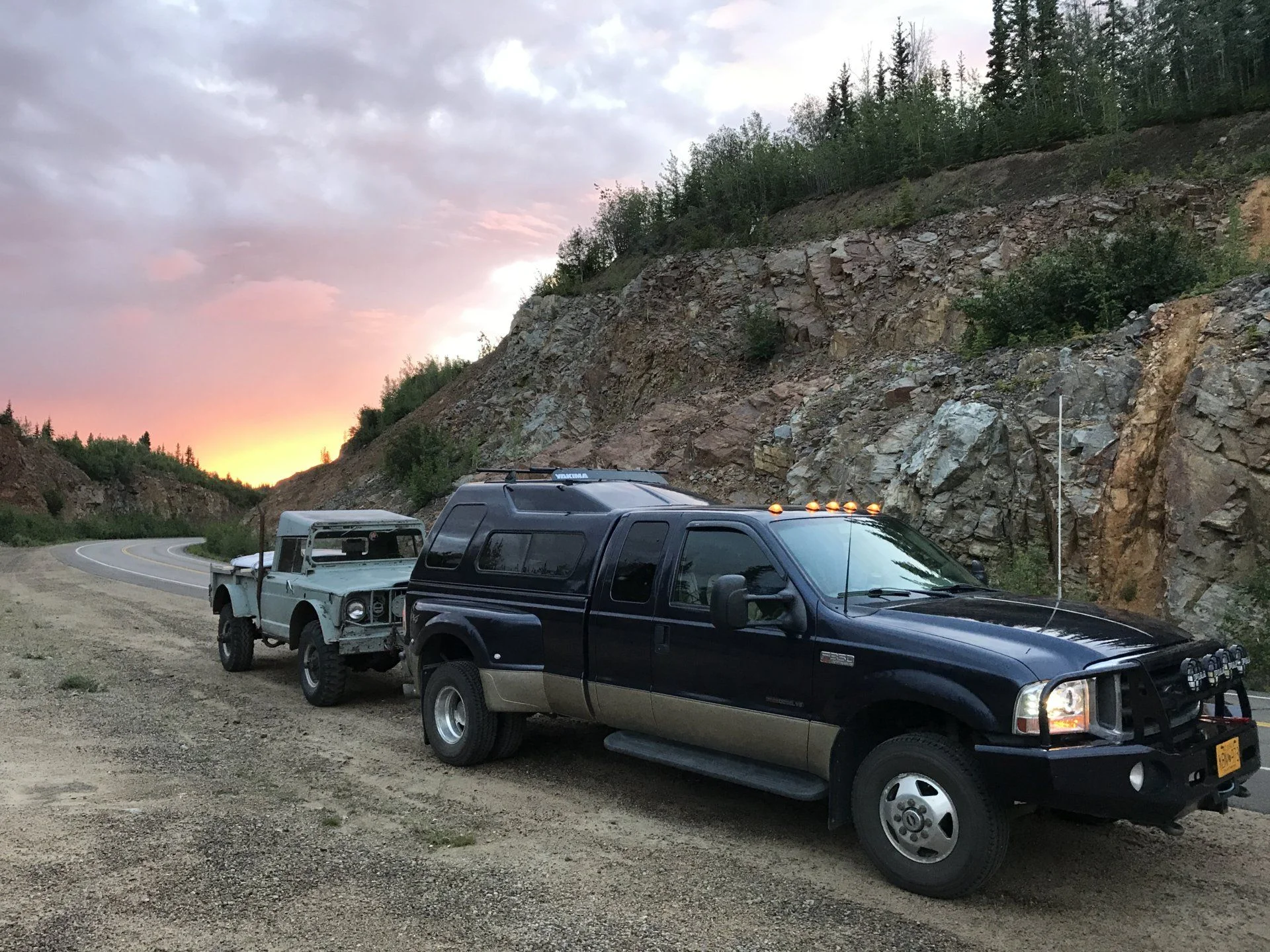

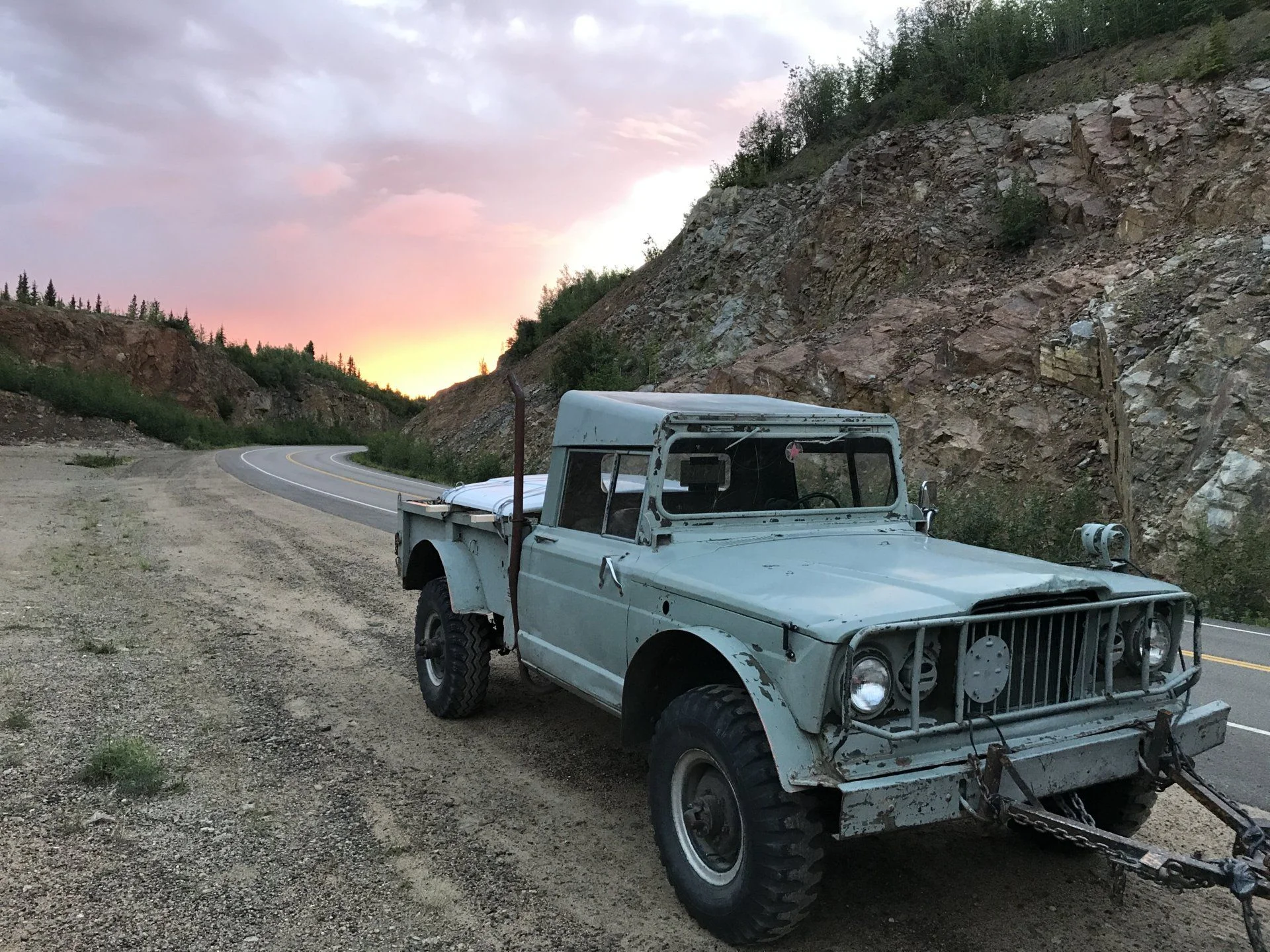

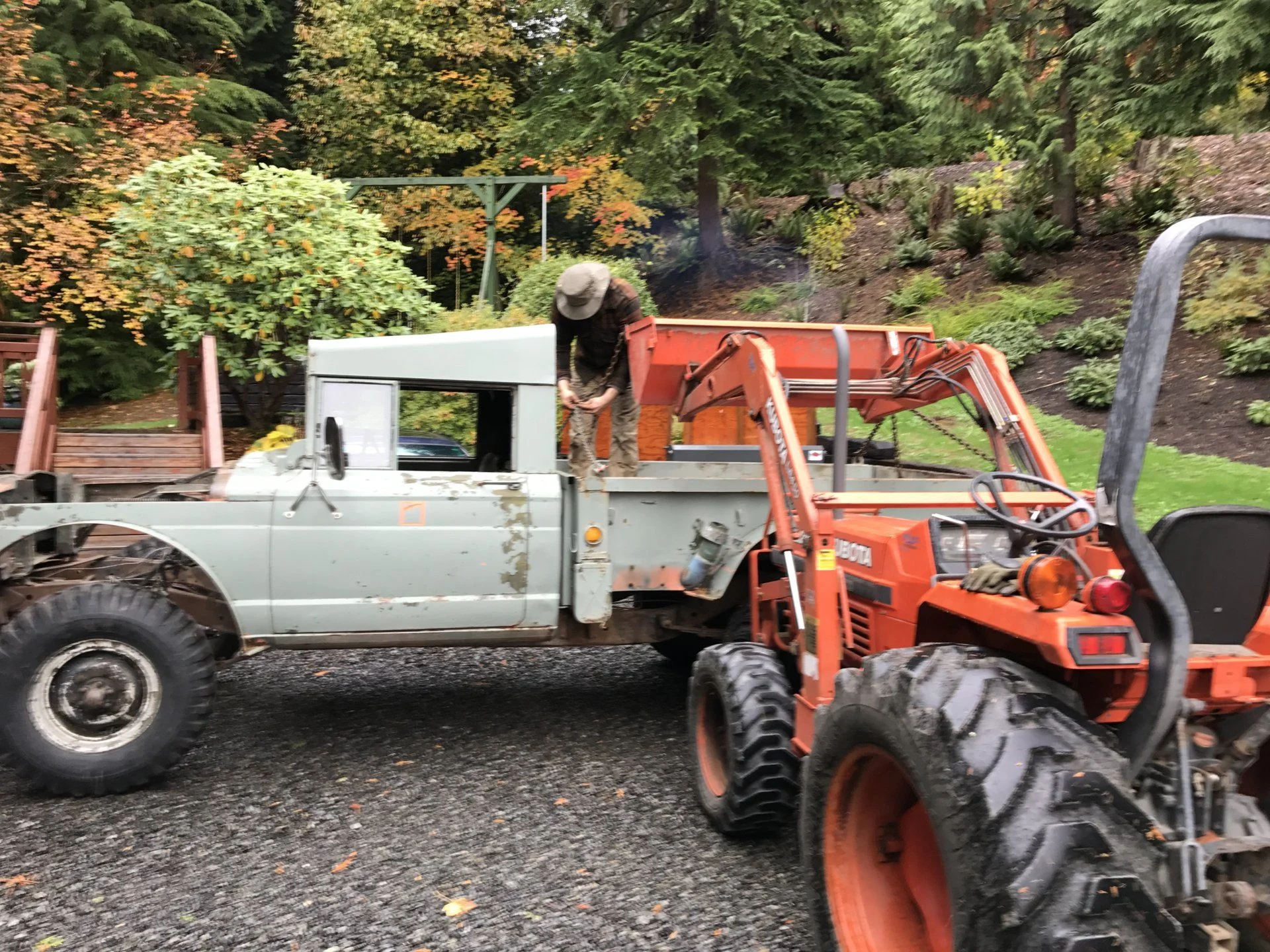

    Towing it back from AK. This was taken at 11:30 pm last solstice. If you haven’t experienced AK at that time of year you certainly should


    Taken outside Tok, AK


    Stuck in traffic for 5 hours outside Whitehorse, Yukon

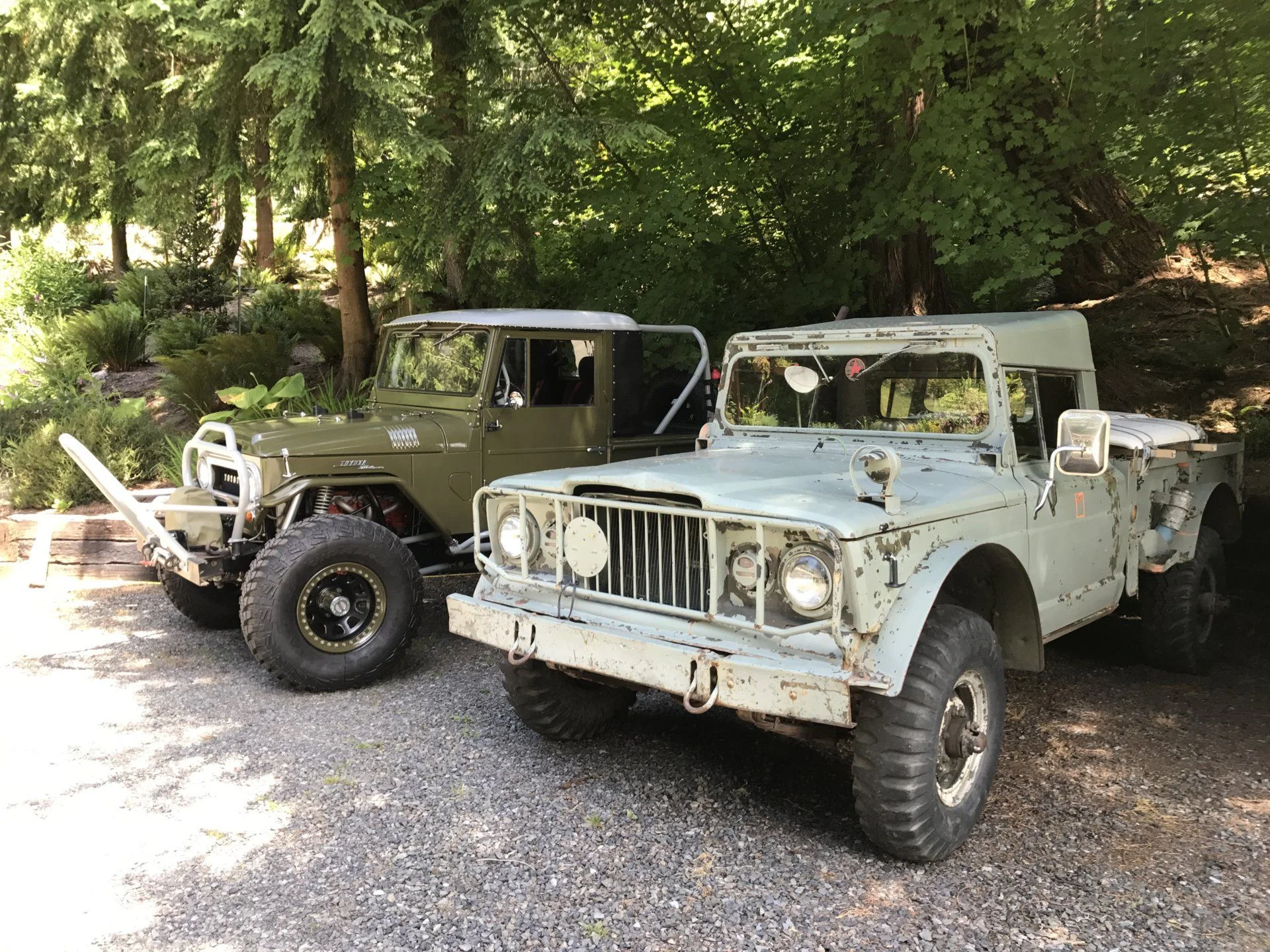

    Making friends with my 69' FJ40

    Last edited: Mar 13, 2018
    GLTHFJ60 and RAGINGMATT like this.
  3. Rock40

    Rock40

    Messages:
    1,404
    Media:
    7
    Albums:
    3
    Likes Received:
    1,029
    Joined:
    Feb 21, 2012
    Location:
    Snohomish, WA

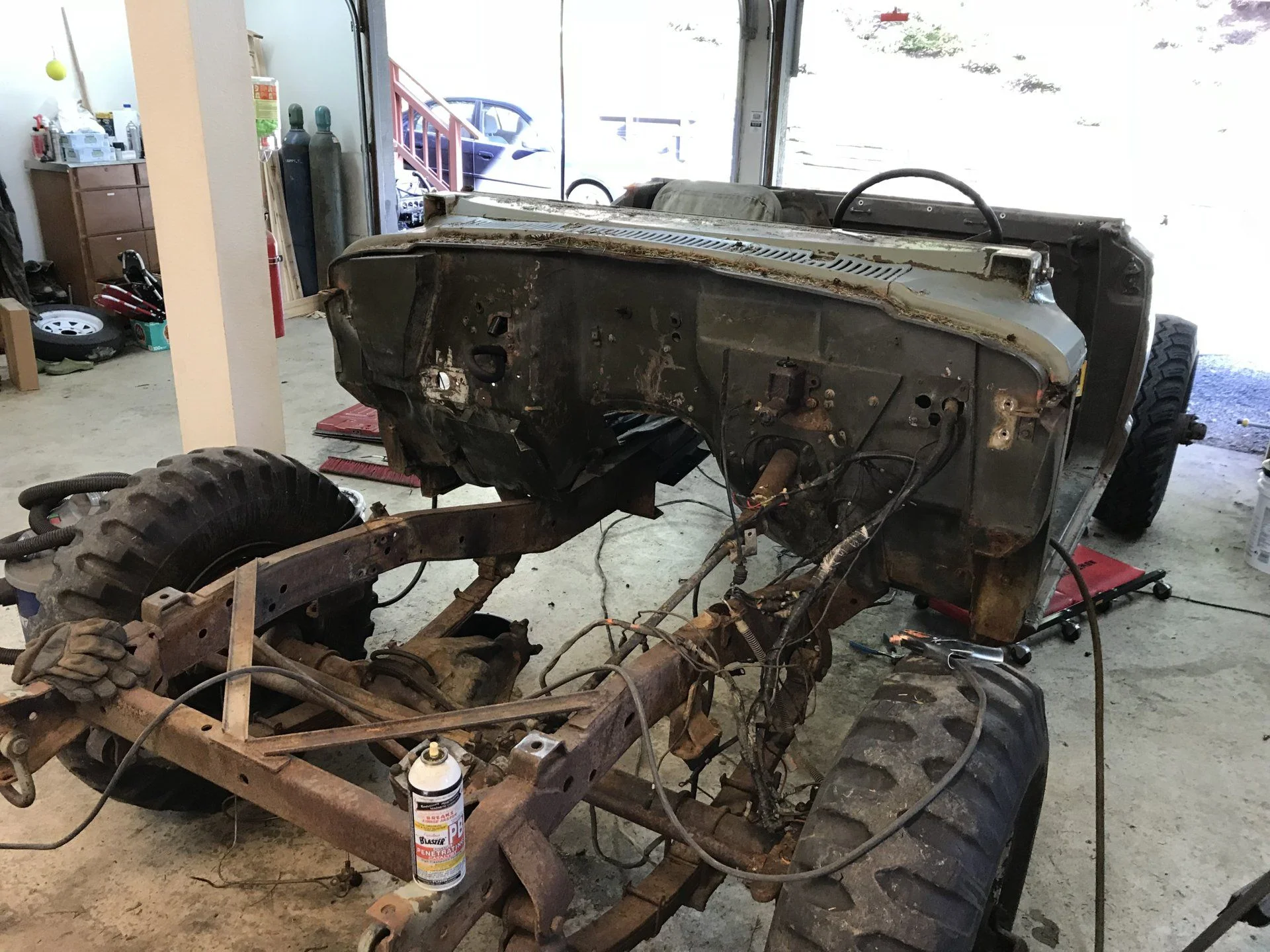

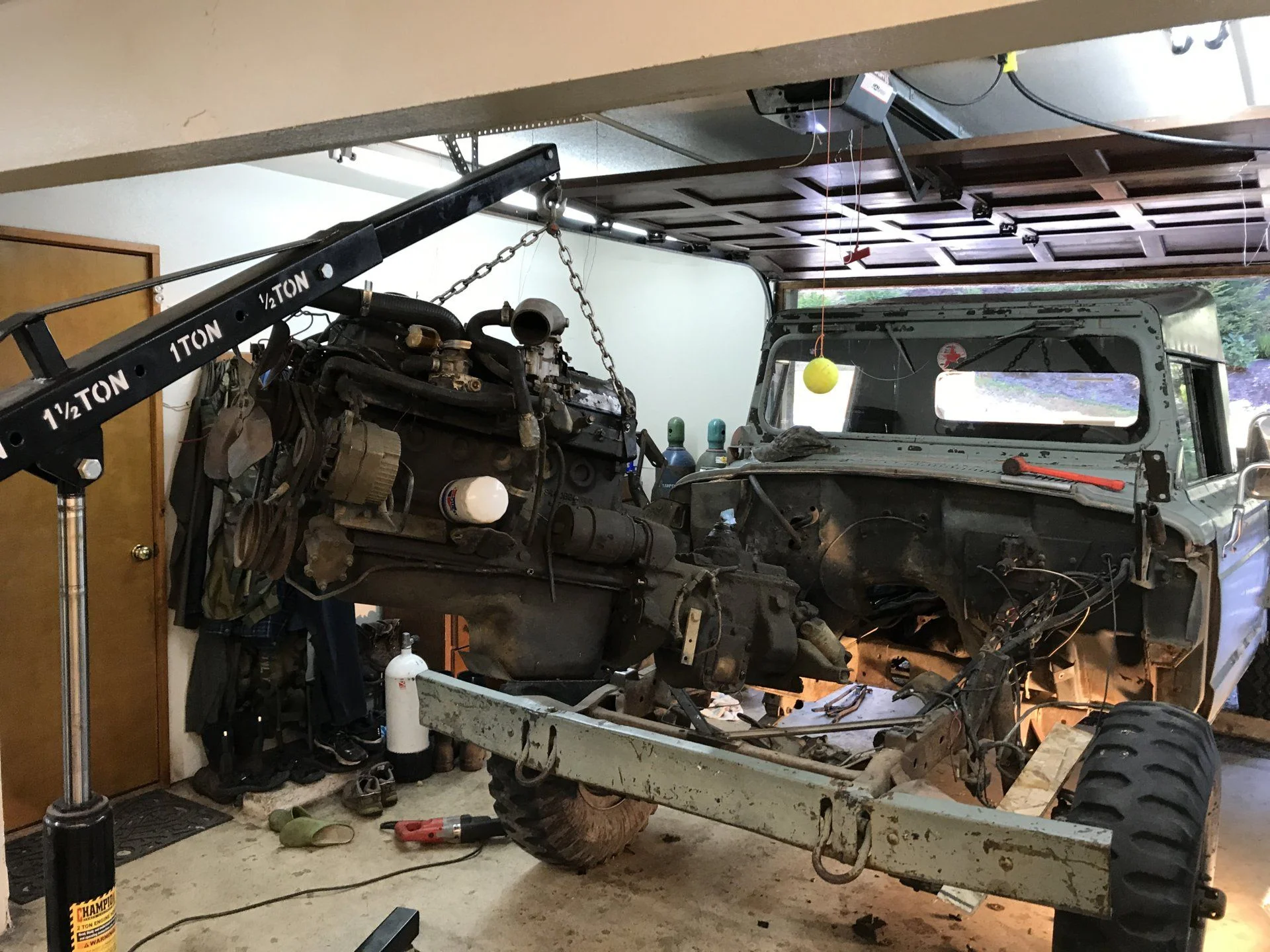

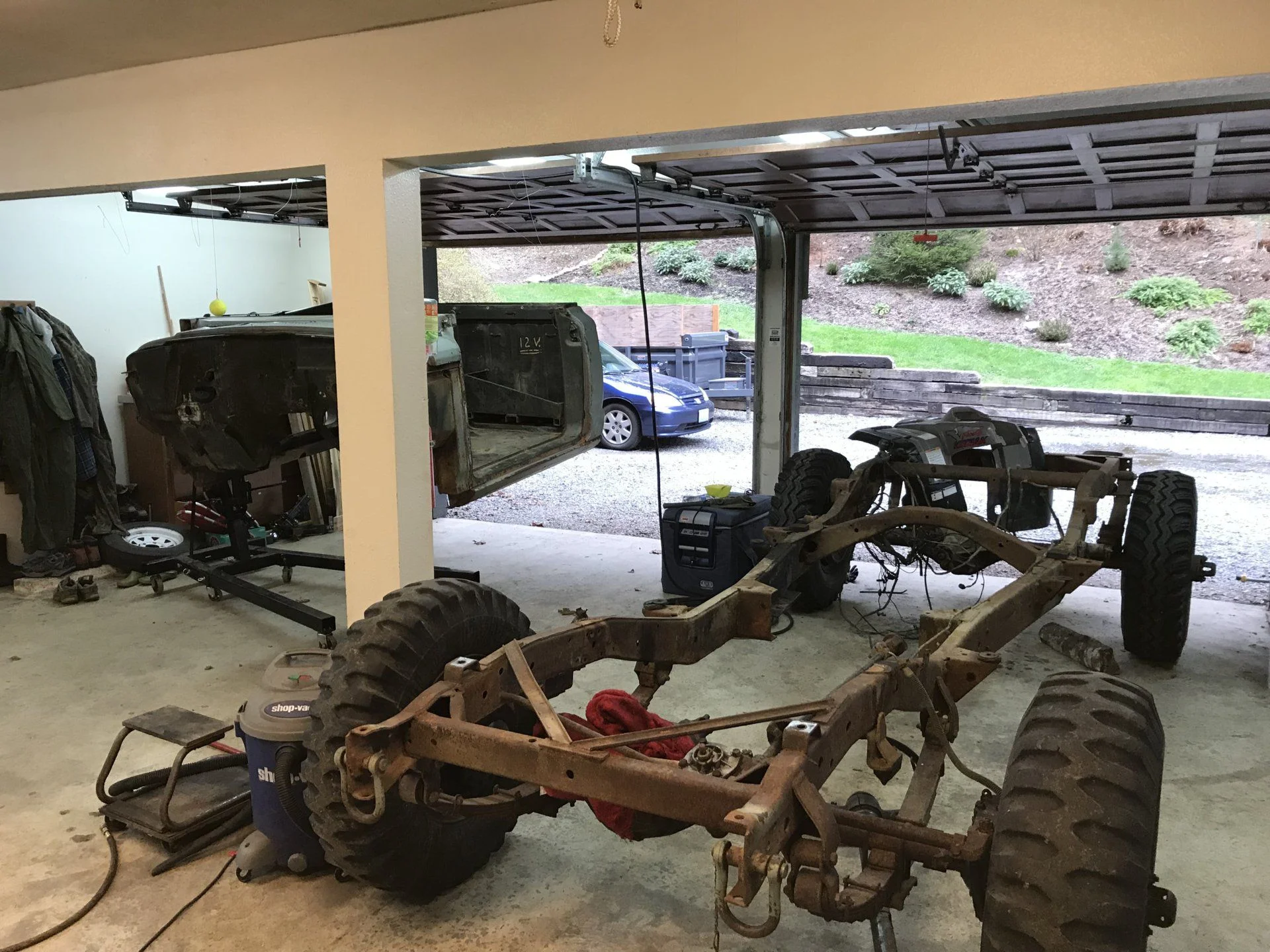

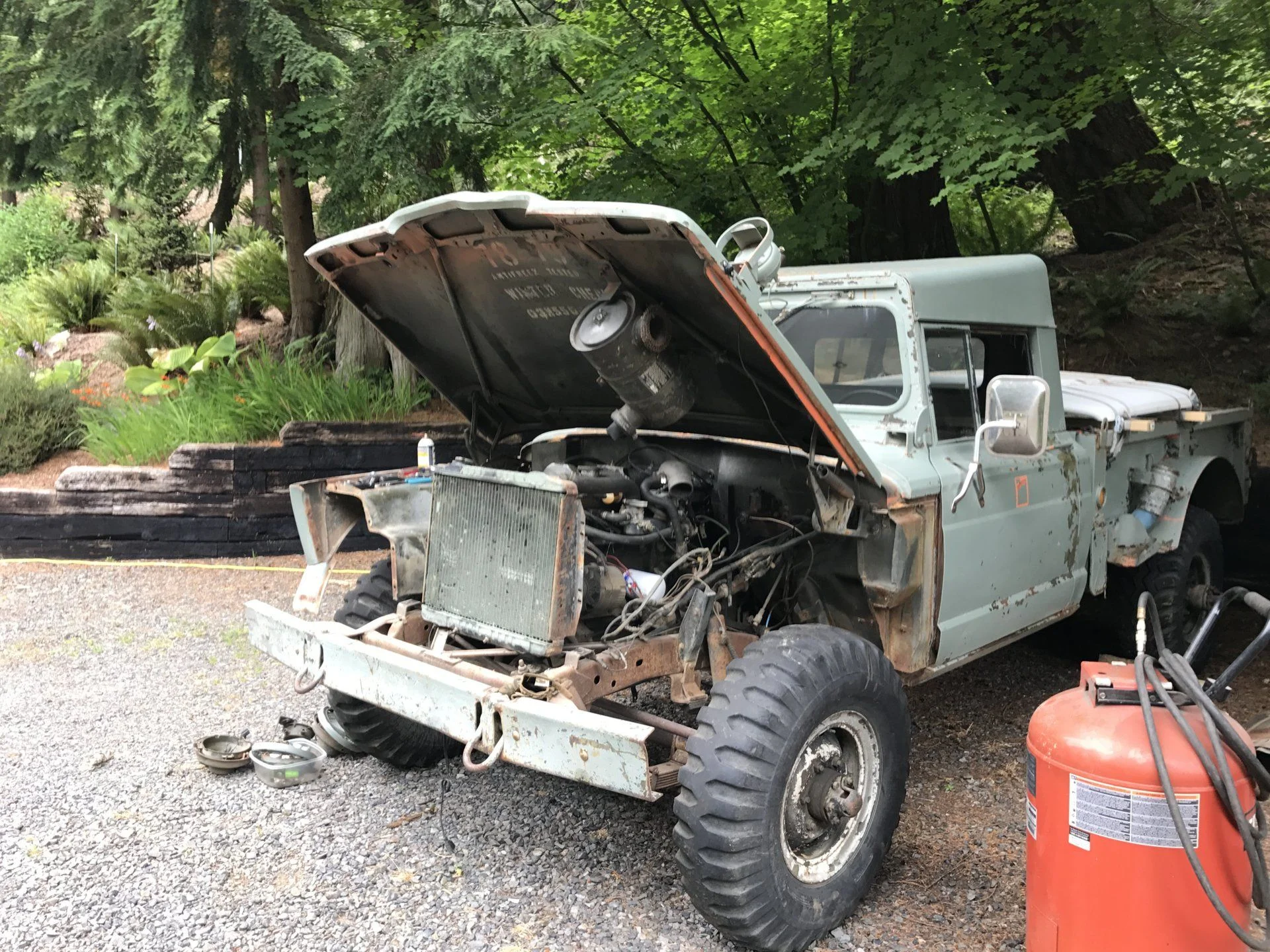

    Prepping to pull the stock drivetrain

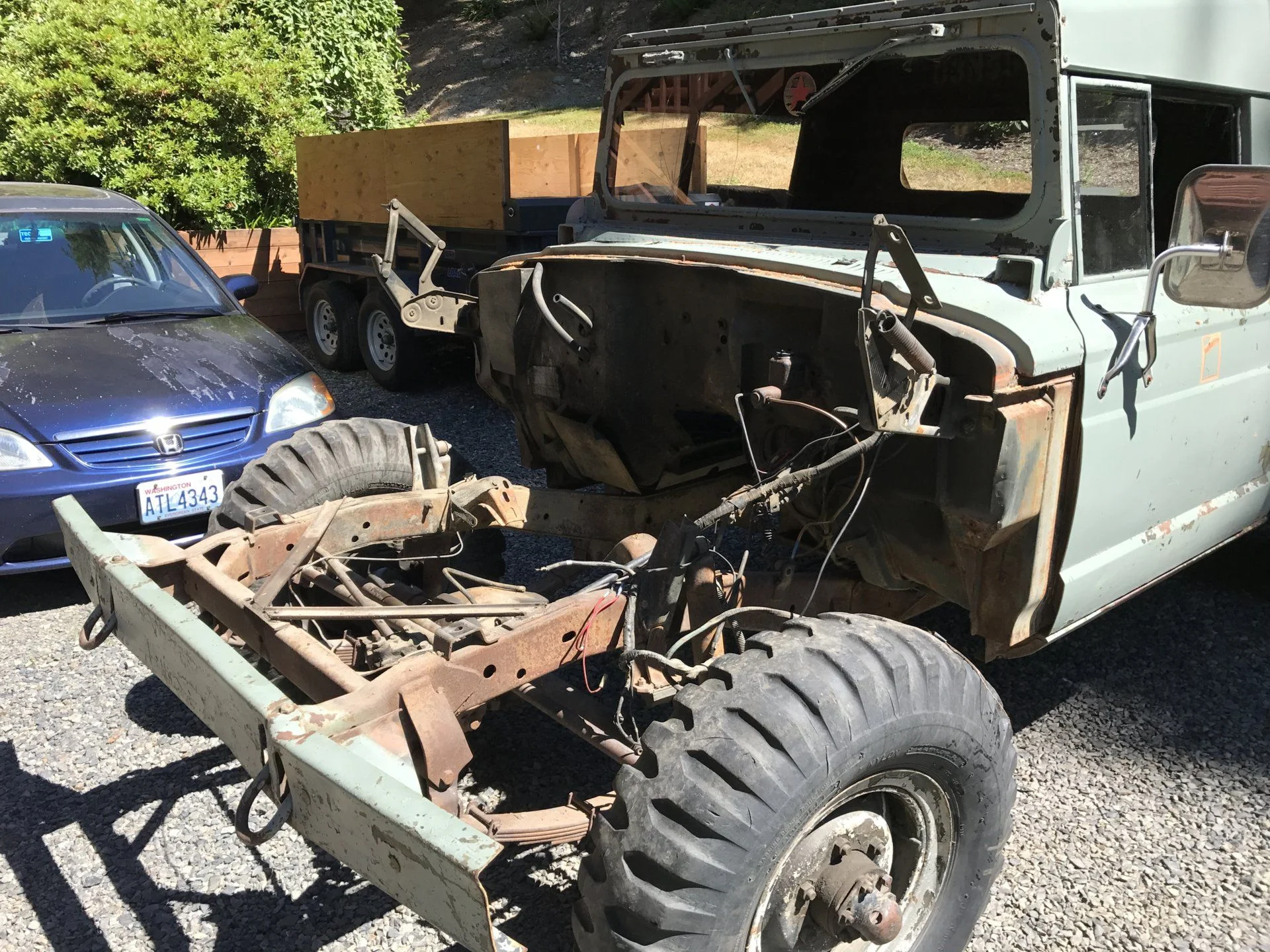

    Out with the old "Hurricane" inline 6 cylinder


    Cleaned up and washed

    Last edited: Mar 13, 2018
    GLTHFJ60 and Tank5 like this.
  4. Rock40

    Rock40

    Messages:
    1,404
    Media:
    7
    Albums:
    3
    Likes Received:
    1,029
    Joined:
    Feb 21, 2012
    Location:
    Snohomish, WA
    Quite a bit of time elapsed while waiting on other projects however now the M715 is up. Here's Mark and I next to his diesel (International HS 2.8 liter) FJ60


    Last edited: Mar 13, 2018
    Jason Reed, GLTHFJ60 and RAGINGMATT like this.
  5. Rock40

    Rock40

    Messages:
    1,404
    Media:
    7
    Albums:
    3
    Likes Received:
    1,029
    Joined:
    Feb 21, 2012
    Location:
    Snohomish, WA

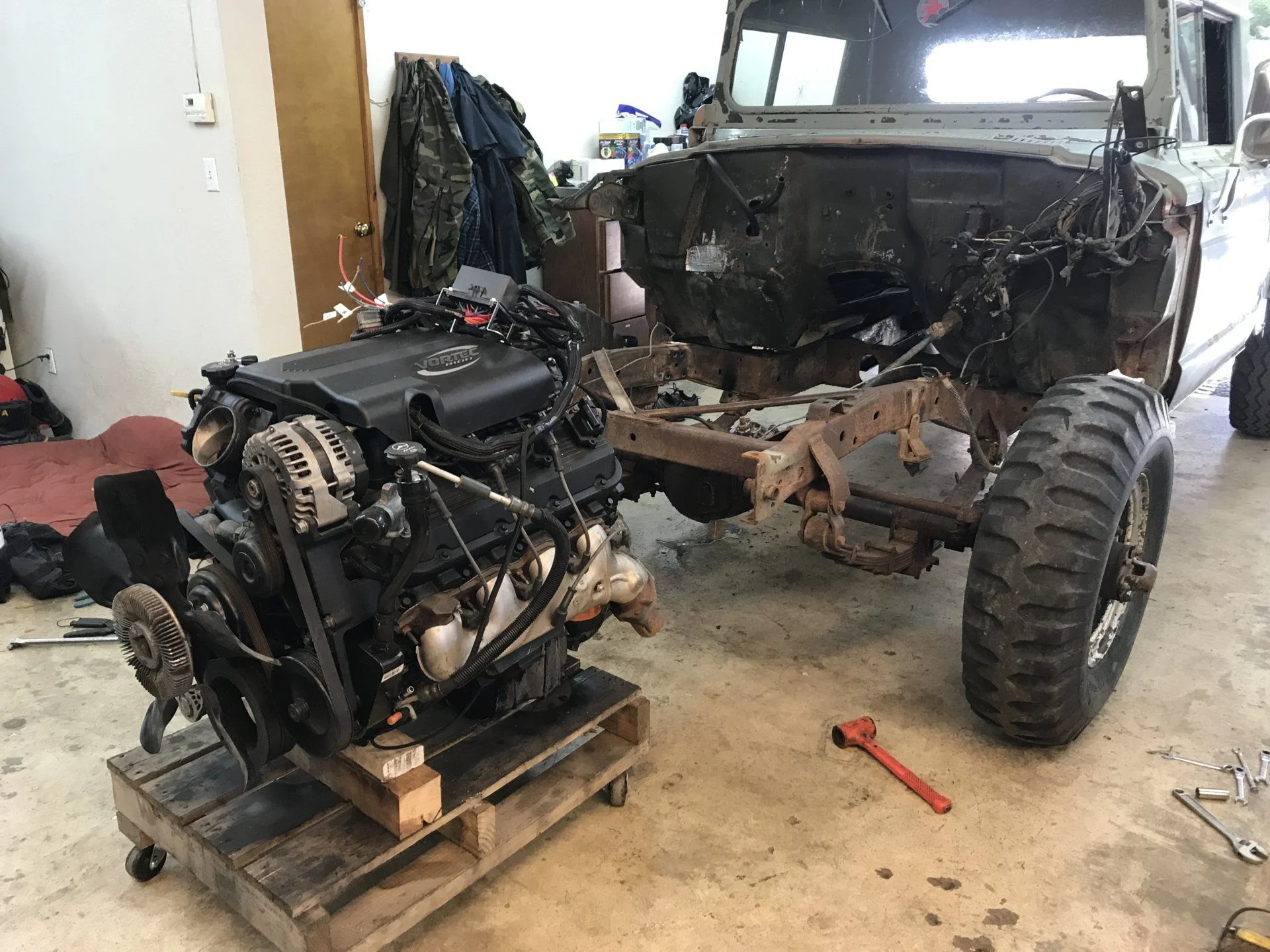

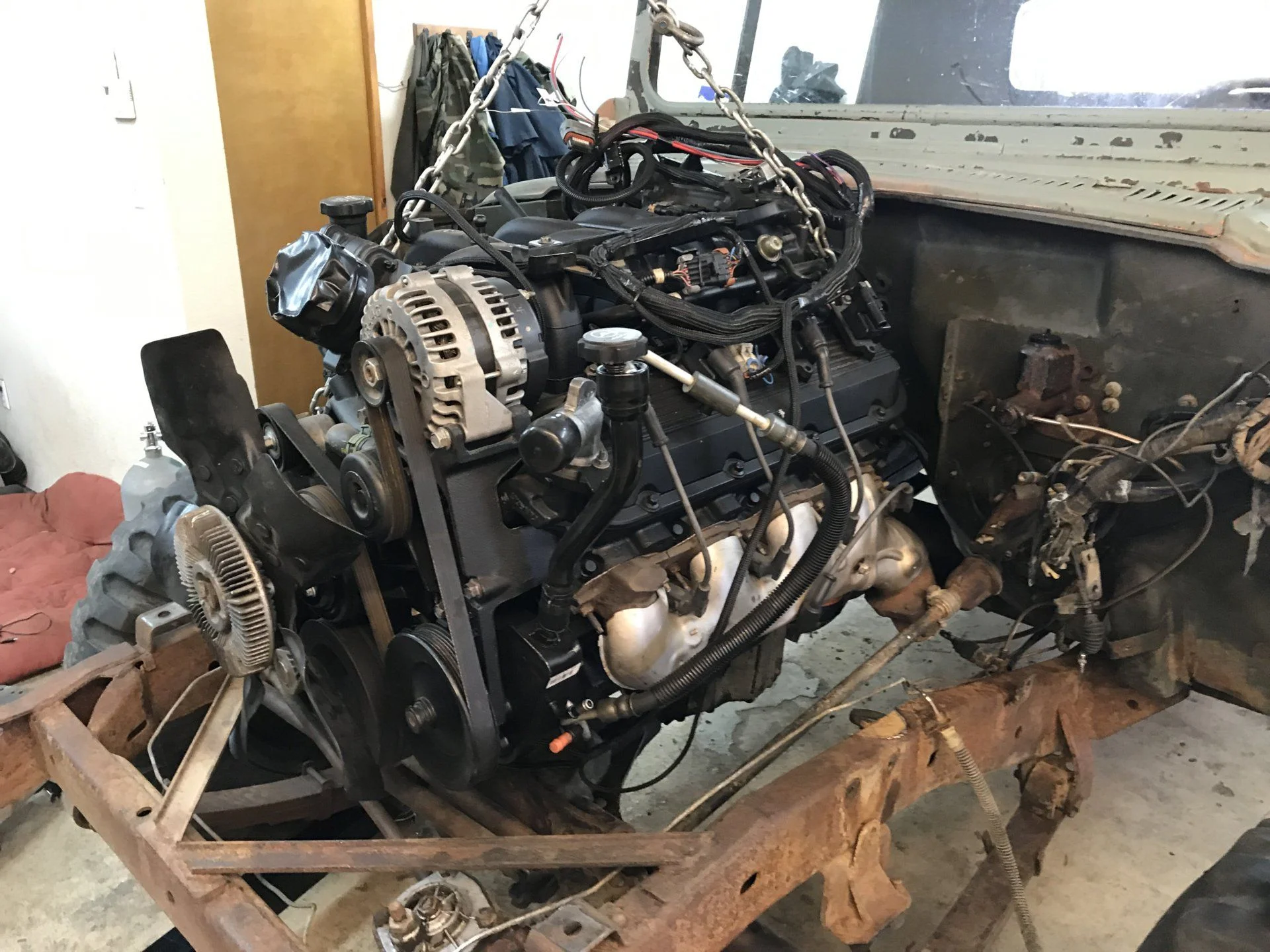

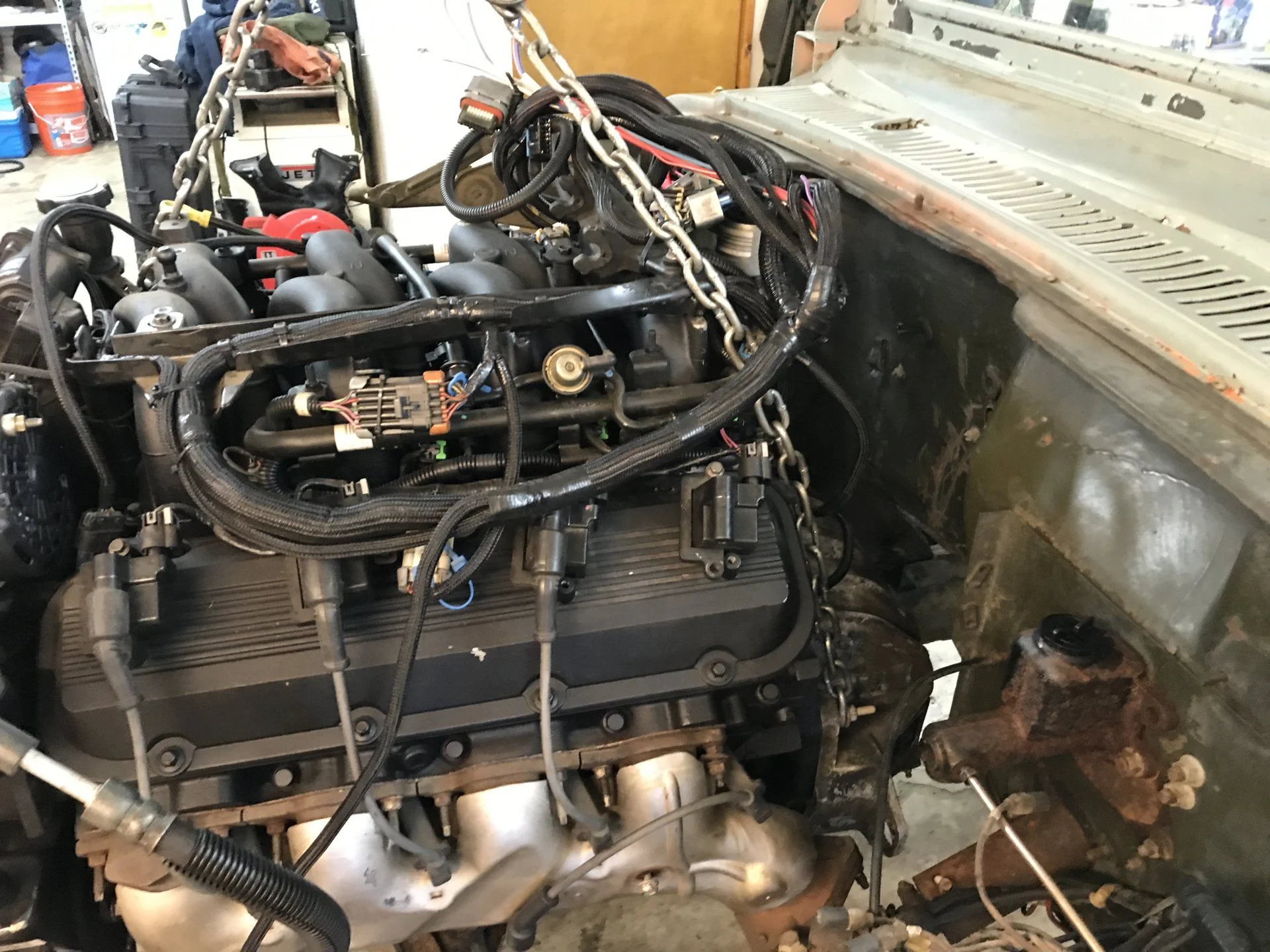

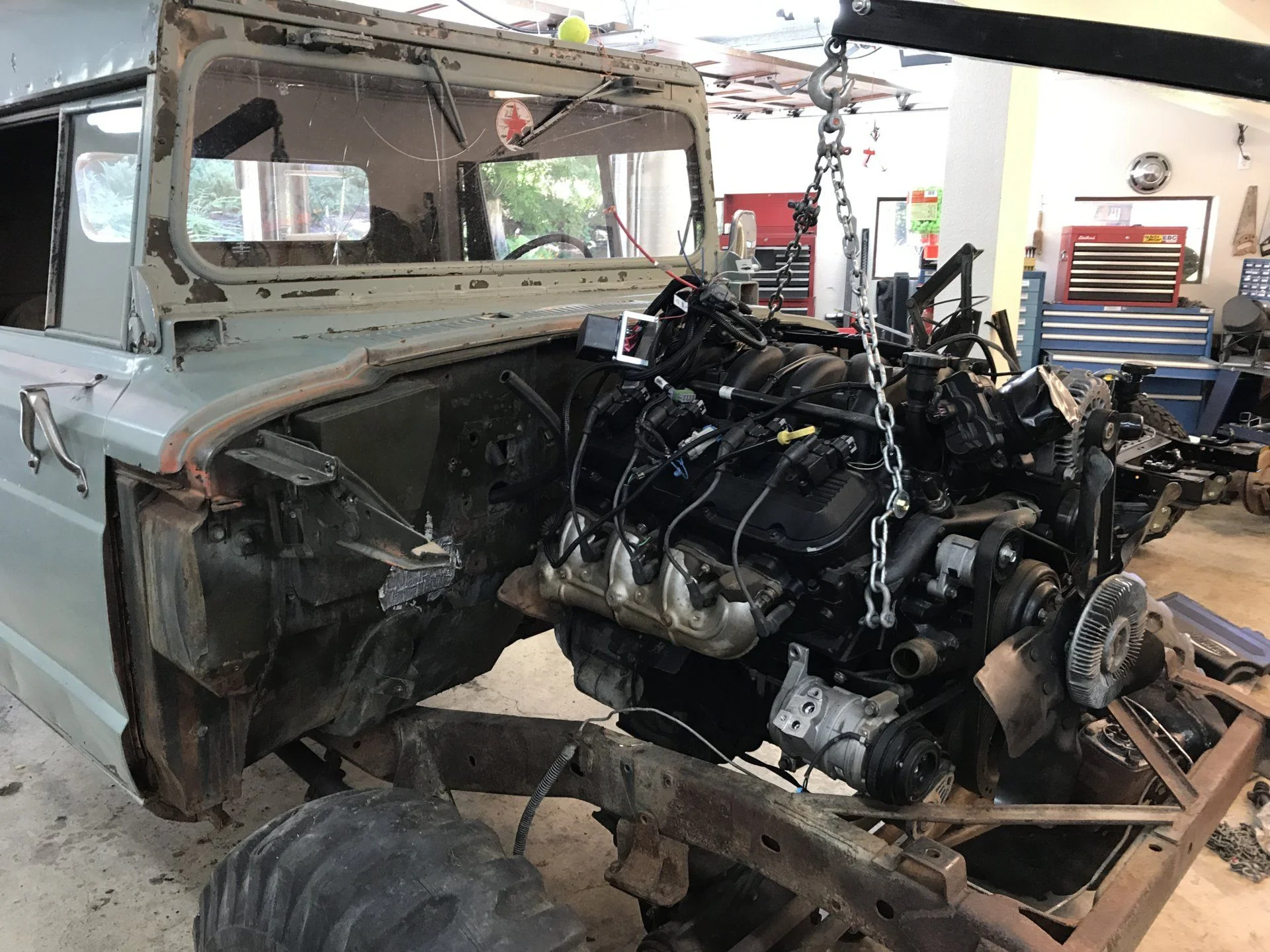

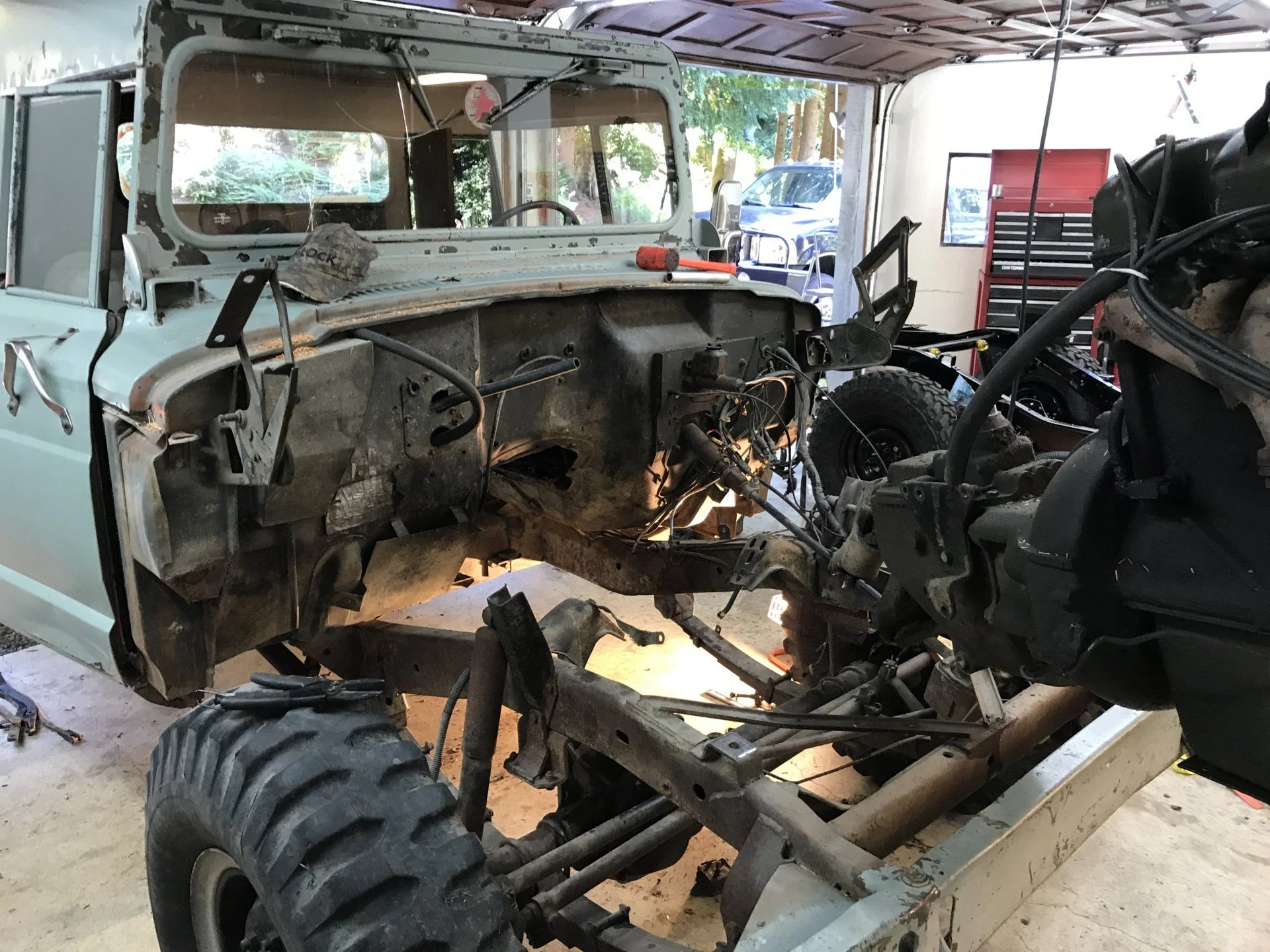

    Checking fitment on the 8.1 liter




    Last edited: Mar 13, 2018
    2fpower, S4Cruiser and Tank5 like this.
  6. Rock40

    Rock40

    Messages:
    1,404
    Media:
    7
    Albums:
    3
    Likes Received:
    1,029
    Joined:
    Feb 21, 2012
    Location:
    Snohomish, WA

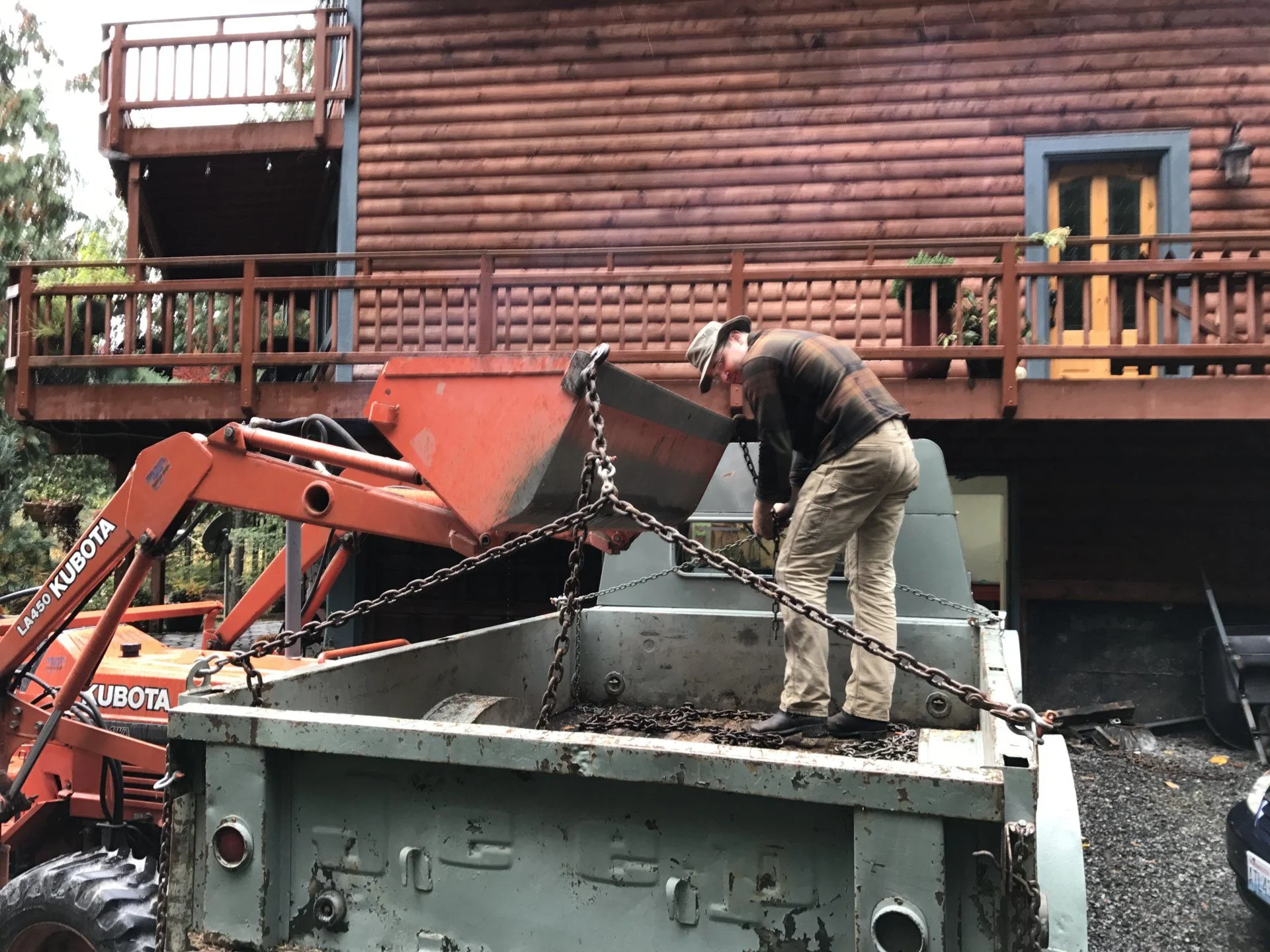

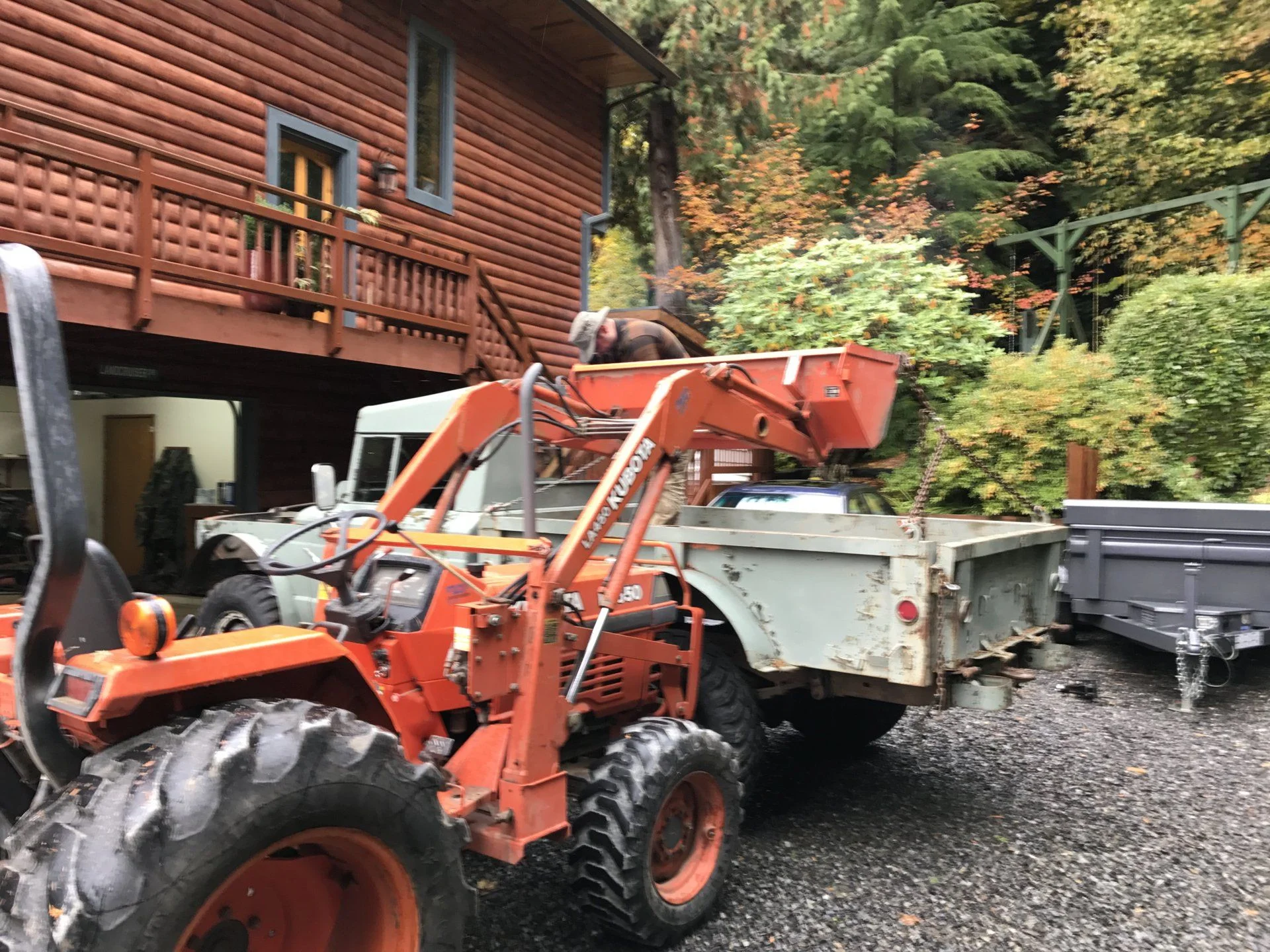

    Pulling the bed, it easily weighs 500lbs

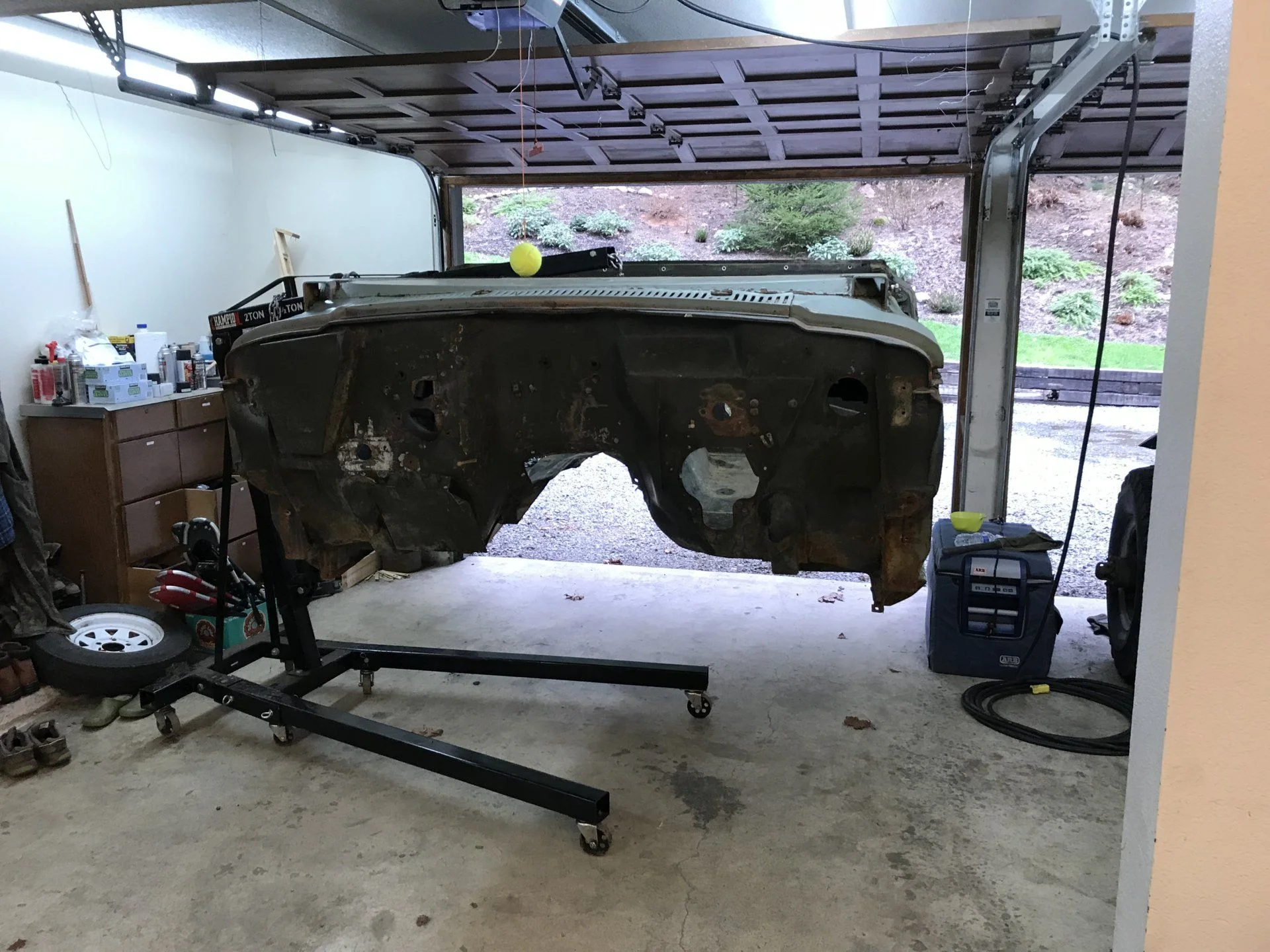

    Full tear down now...

    Last edited: Mar 13, 2018
    89GASHOG likes this.
  7. Rock40

    Rock40

    Messages:
    1,404
    Media:
    7
    Albums:
    3
    Likes Received:
    1,029
    Joined:
    Feb 21, 2012
    Location:
    Snohomish, WA

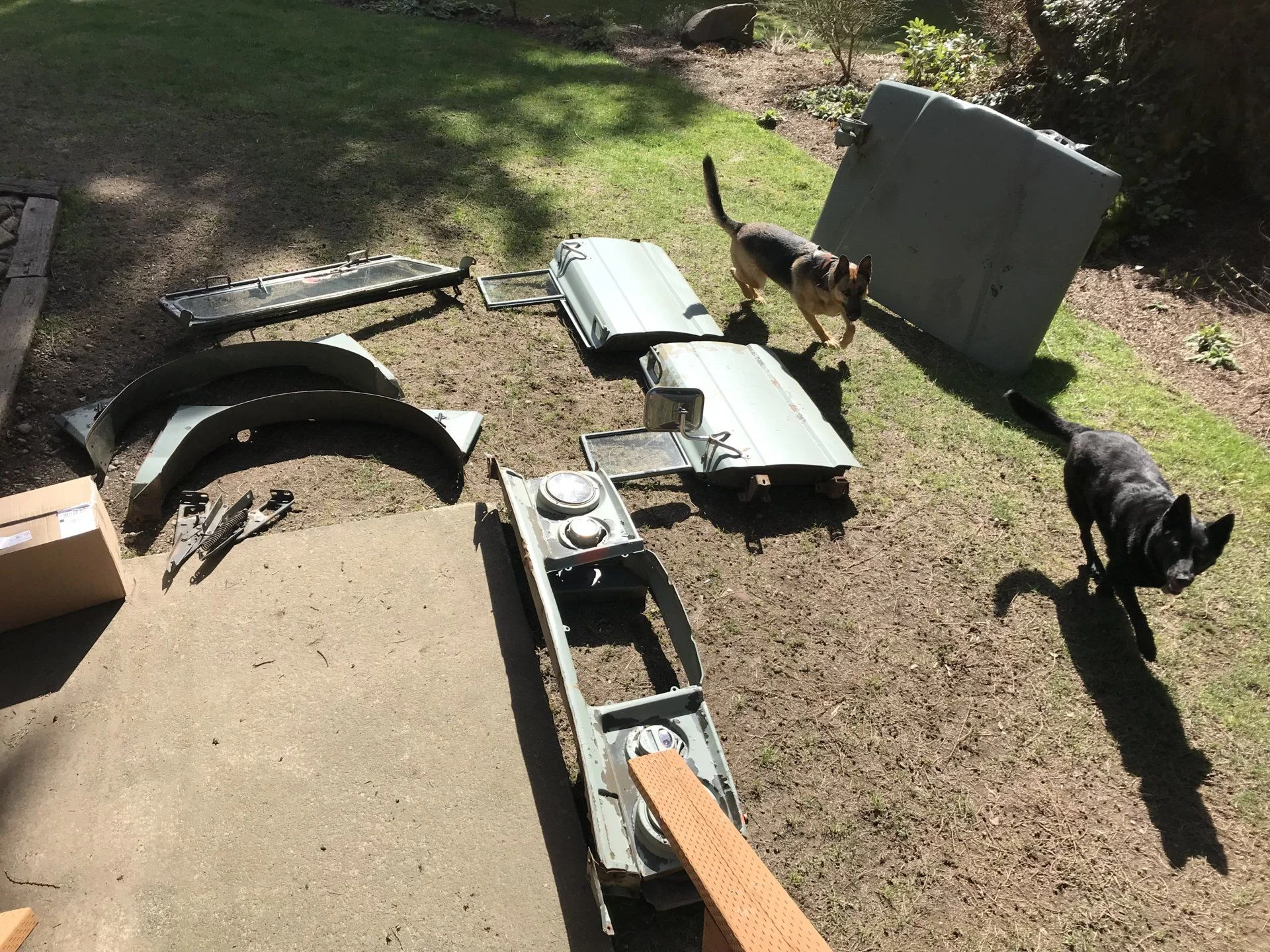

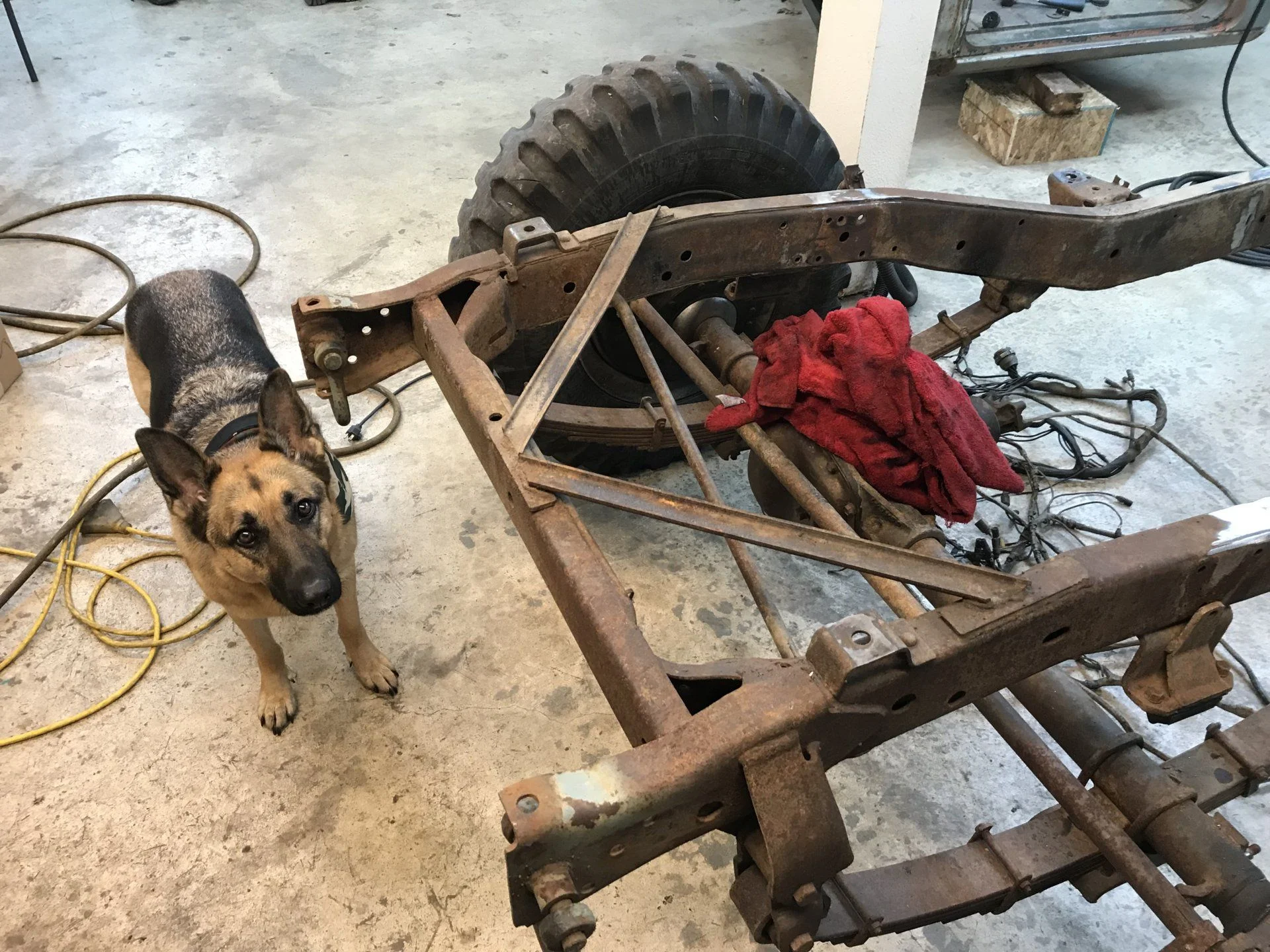

    Mix and match Jeep parts, plus two naughty Shepherds!!

  8. Rock40

    Rock40

    Messages:
    1,404
    Media:
    7
    Albums:
    3
    Likes Received:
    1,029
    Joined:
    Feb 21, 2012
    Location:
    Snohomish, WA

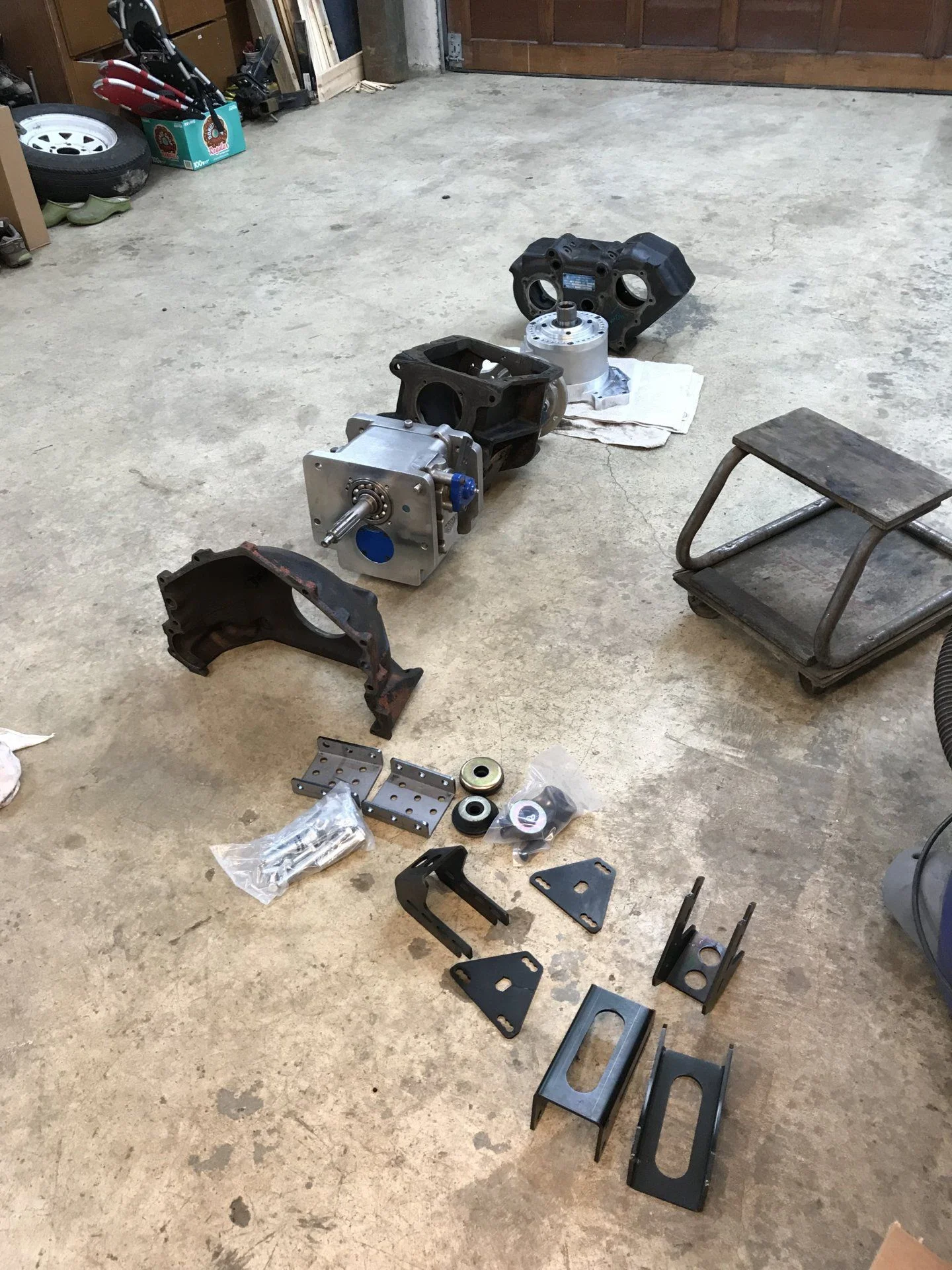

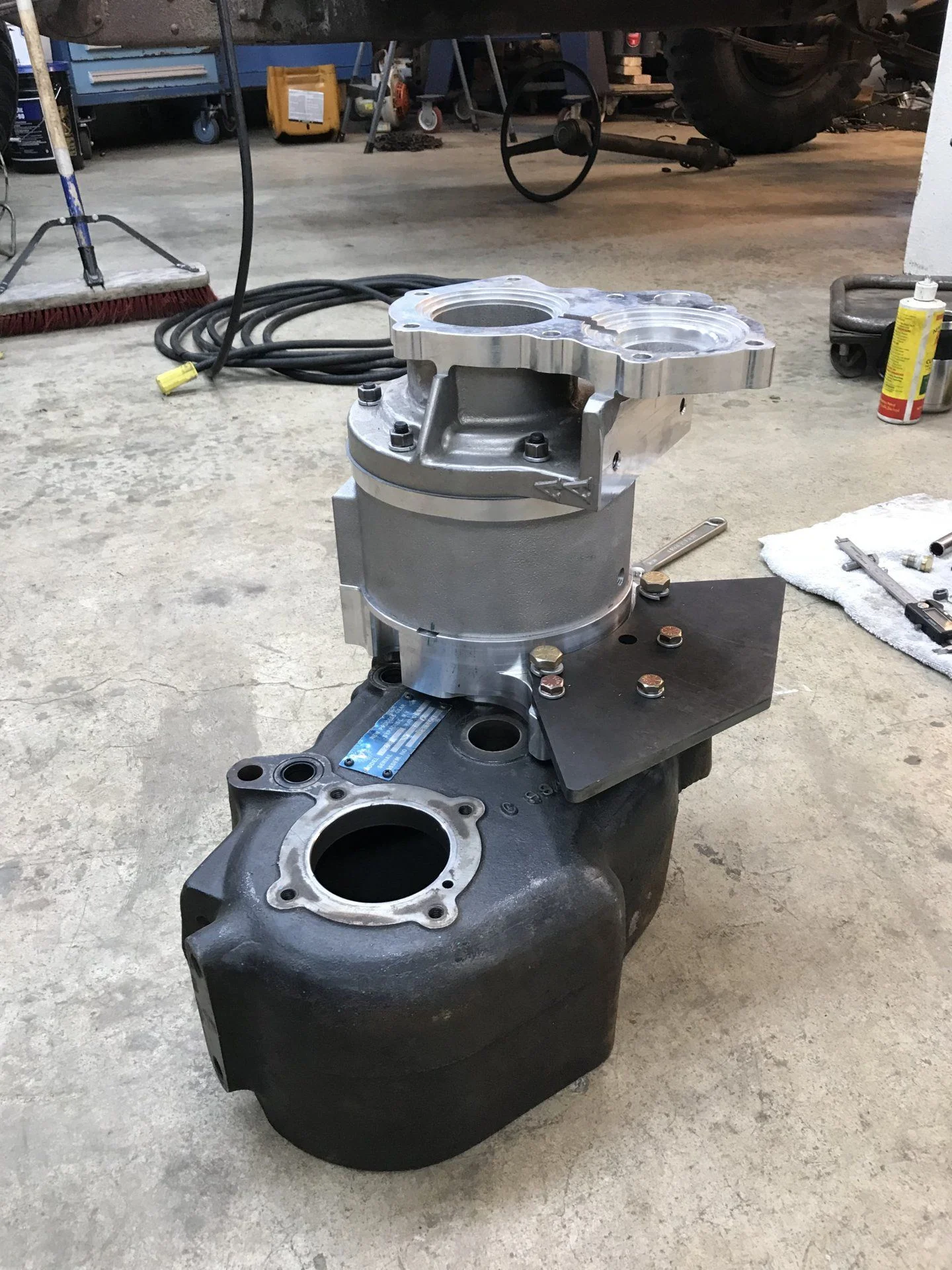

    Drivetrain mock-up. I'm using empty cases (SM465/NP205) to save on weight



    dirtyboots, GLTHFJ60 and deliverance like this.
  9. Rock40

    Rock40

    Messages:
    1,404
    Media:
    7
    Albums:
    3
    Likes Received:
    1,029
    Joined:
    Feb 21, 2012
    Location:
    Snohomish, WA

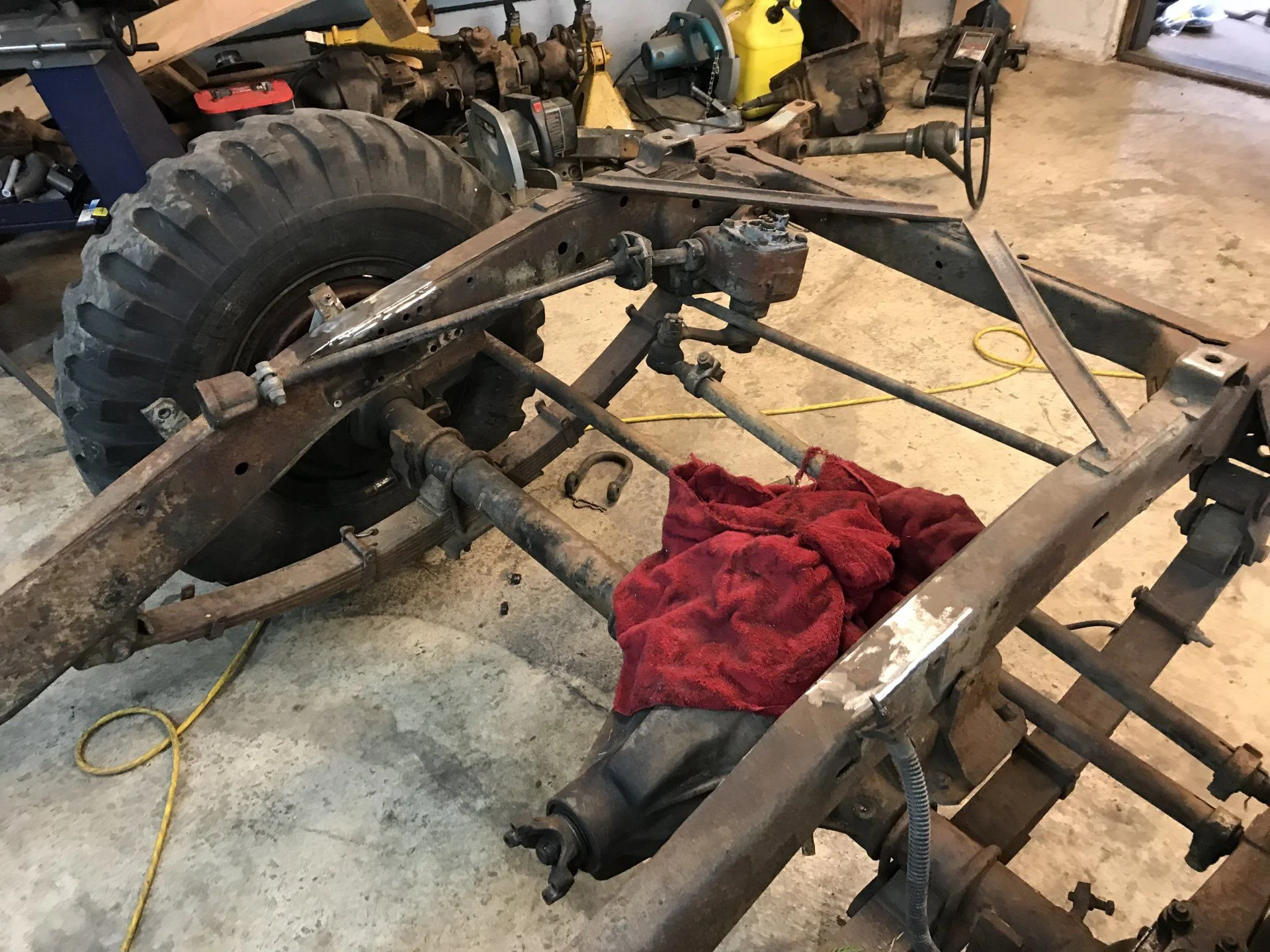

    Cleaning the frame of all the old brackets



  10. 74fj40

    74fj40

    Messages:
    2,686
    Likes Received:
    474
    Joined:
    Mar 12, 2005
    Location:
    Littleton, Colorado
    This is really awesome. Assuming you’ve seen the “j-tank” build by The Flop Shop?

    Looking forward to this build. The 8.1 is such a great motor, my dad has used and abused his 2500 suburban with that motor and everything around the motor has failed but not the motor itself. Keep up the good work!

    Rock40 likes this.
  11. WesternCruiser

    WesternCruiser

    Messages:
    8
    Likes Received:
    1
    Joined:
    May 2, 2008
    Location:
    Biloxi, Mississippi
    Looking great, Ross! My profile picture is terrible and I have done tons more reading/taking--over the years--on MUD than giving, but it's good to see you contributing and showing us the progress! I'm sorry I can't work on this stuff with you, being so far away, but now at least I won't be in many pictures so people won't notice that I ALWAYS wear that brown shirt...it works out.

    Jason Reed likes this.
  12. RAGINGMATT

    RAGINGMATT Factory Focus-Point Mind-Set Approch..... Supporting Vendor

    Messages:
    2,525
    Media:
    21
    Likes Received:
    1,334
    Joined:
    Aug 12, 2007
    Location:
    East Coast
  13. GLTHFJ60

    GLTHFJ60 Rum Runnin' SILVER Star

    Messages:
    23,227
    Likes Received:
    7,501
    Joined:
    Apr 18, 2005
    Location:
    Durham, NC
    Going to love this build!

    Can't believe there's traffic in Alaska, and 5 hours worth to boot, holy crap.

    Rock40 likes this.
  14. Rock40

    Rock40

    Messages:
    1,404
    Media:
    7
    Albums:
    3
    Likes Received:
    1,029
    Joined:
    Feb 21, 2012
    Location:
    Snohomish, WA
    Hmmm, I haven't seen that build but I'll look it up now, thanks!

  15. Rock40

    Rock40

    Messages:
    1,404
    Media:
    7
    Albums:
    3
    Likes Received:
    1,029
    Joined:
    Feb 21, 2012
    Location:
    Snohomish, WA
    Yeah, I think it was something really bad, like a fatality. When that happens up there (I got the feeling from the locals also stuck in traffic) that the road just completely closes until they are ready to re-open. There's no bypasses, so you just wait.

    GLTHFJ60 likes this.
  16. Rock40

    Rock40

    Messages:
    1,404
    Media:
    7
    Albums:
    3
    Likes Received:
    1,029
    Joined:
    Feb 21, 2012
    Location:
    Snohomish, WA

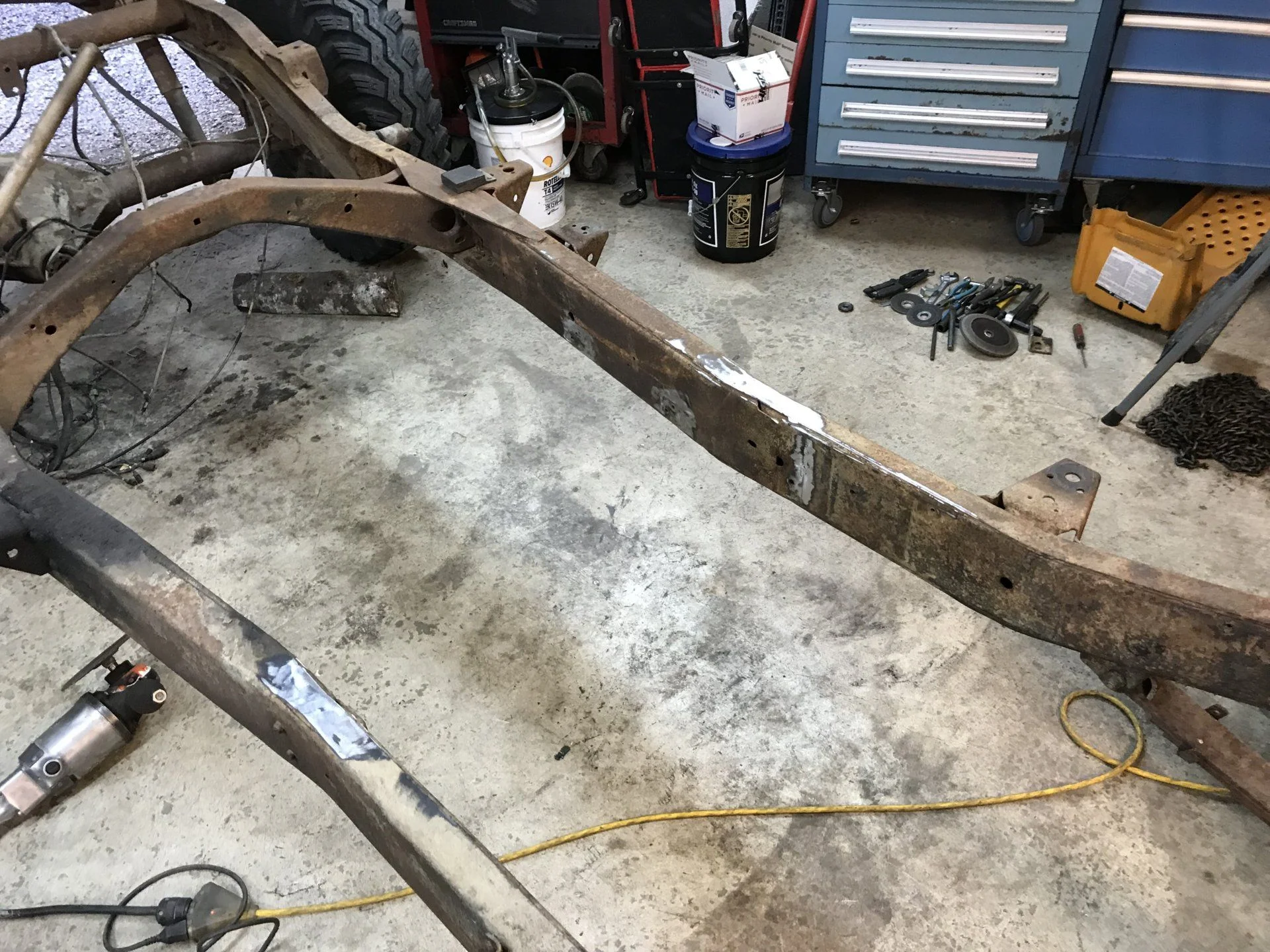

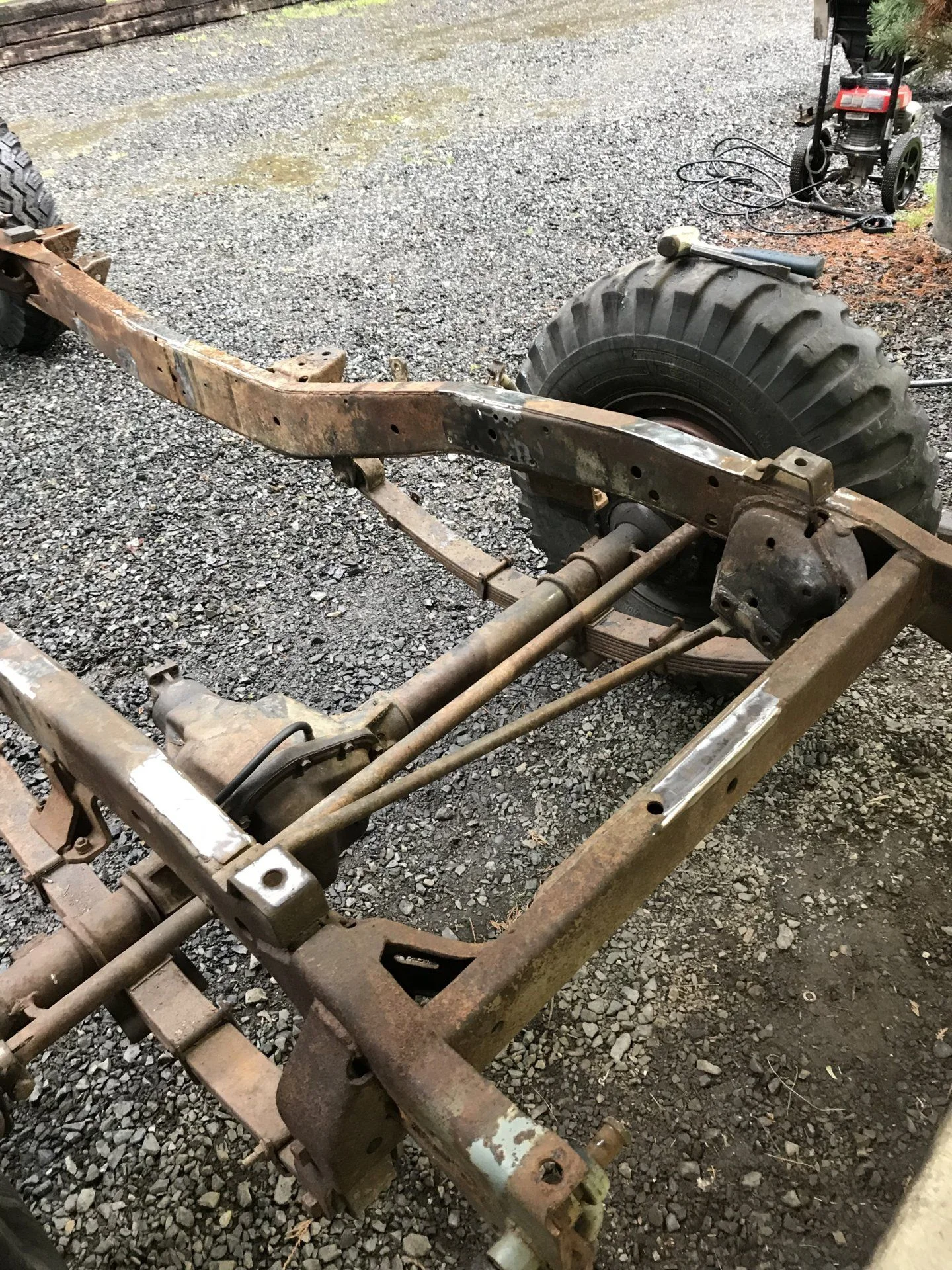

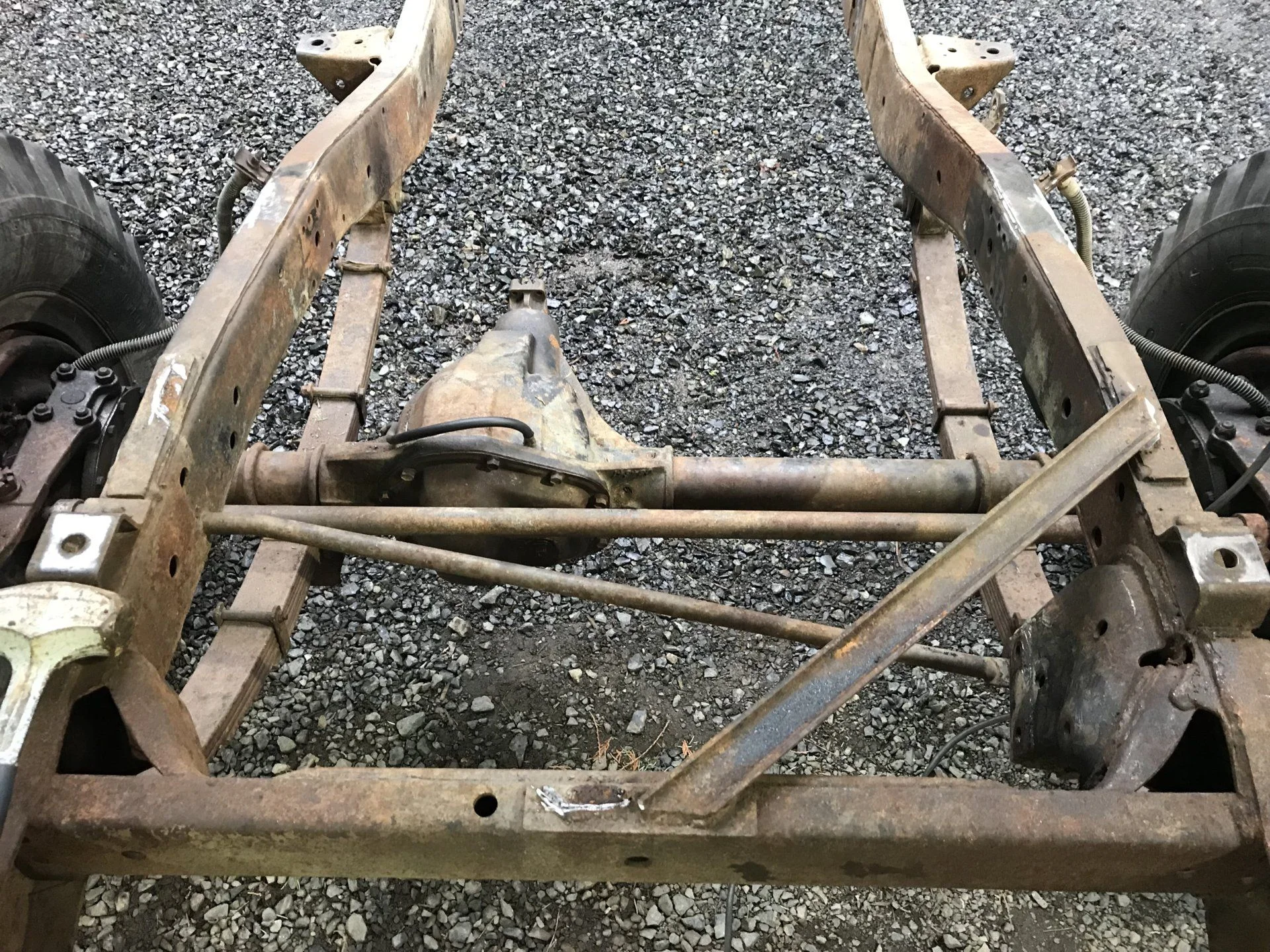

    Spent the morning cutting off the wonky front frame braces. I think they must have been an "M715 Only" thing as they clearly looked added on to the frame. By the look of them, they added very little in terms of structural support. I'll likely used DOM tubing later once I know how the engine is going to sit.


    Without knowing it, I nearly cut off the frame VIN. It was hiding under a bunch of surface rust on the passenger side frame gusset. It's obviously hand stamped and no where near straight, adorable. Wiki says 33,000 M715's were produced which makes this one a very late production model.

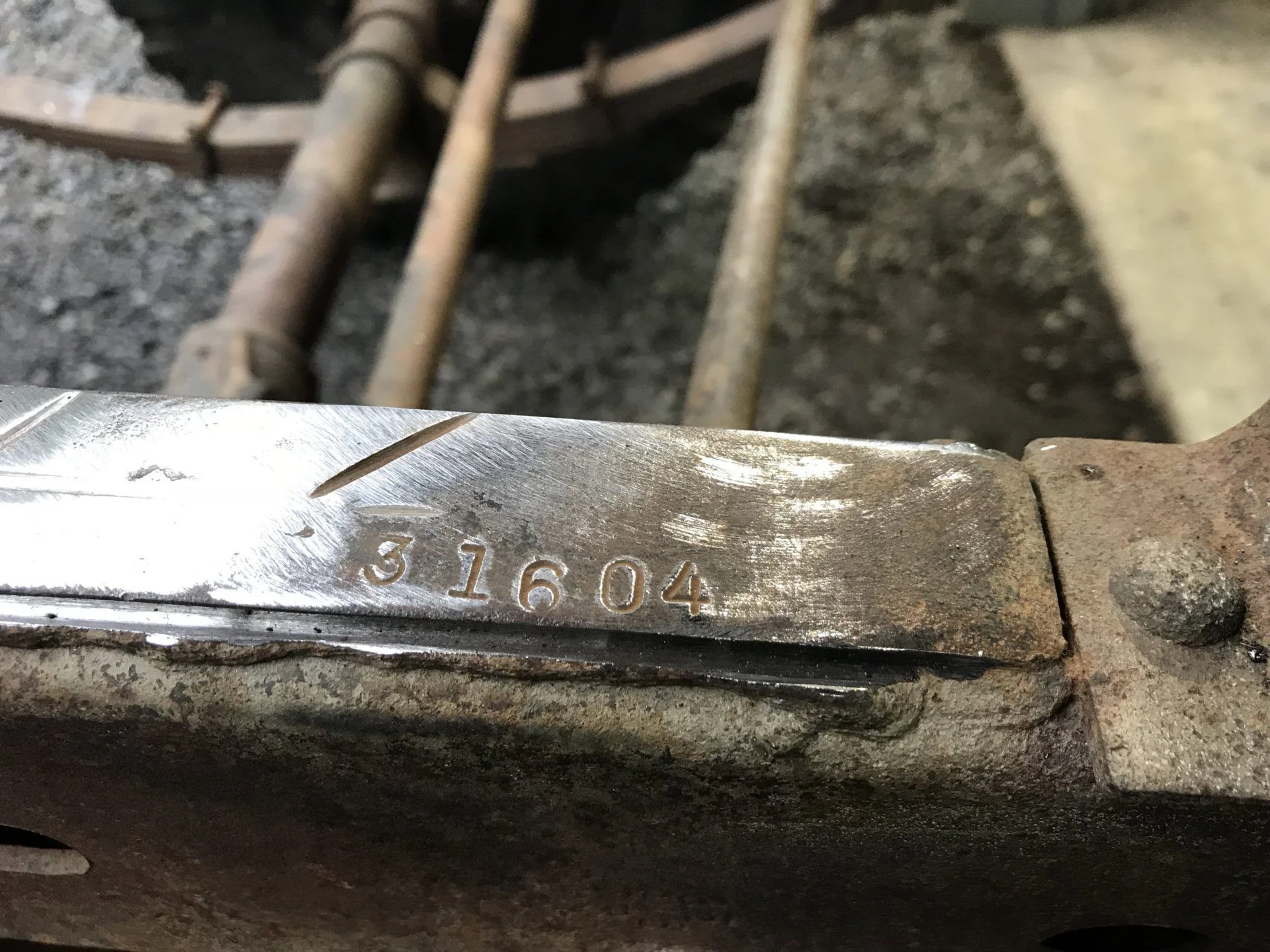

    Since I wasn't planning on keeping the welded on tab, (but I am now) I'll TIG the grinder marks to fill them in and then sand them smooth at a later date. Hopefully this Friday, I'll be able to tow the whole chassis into a media blaster so that all the welding/fabrication work can be done on a clean slate.

    Last edited: Mar 14, 2018
    2fpower likes this.
  17. Jason Reed

    Jason Reed

    Messages:
    393
    Likes Received:
    450
    Joined:
    Sep 27, 2016
    Location:
    Bakersfield, Ca
    Excellent Ross. Kind of cool to now get to watch someone else's build. Marks M715 is going to be awesome to watch the progress.

    Jason-

    Rock40 likes this.
  18. Rock40

    Rock40

    Messages:
    1,404
    Media:
    7
    Albums:
    3
    Likes Received:
    1,029
    Joined:
    Feb 21, 2012
    Location:
    Snohomish, WA
    Yeah, it's going to be fun. Totally different direction on this build. The frame is scheduled for blasting at 7am this Friday, after that, let the fabrication begin

  19. Casey E

    Casey E SILVER Star

    Messages:
    810
    Likes Received:
    163
    Joined:
    Jul 11, 2013
    Location:
    California
    Awesome build. We have a bunch of old vehicles in are family and a few are very old power wagons. I want to build one of them into a modern tow vehicle. Keep this going man. Love it.

    Rock40 likes this.
  20. Rock40

    Rock40

    Messages:
    1,404
    Media:
    7
    Albums:
    3
    Likes Received:
    1,029
    Joined:
    Feb 21, 2012
    Location:
    Snohomish, WA
    Goodbye crusty chassis....



    2fpower and A10Driver like this.
