Wanted 3FE harness plug needed (1 Viewer)

[Tank5]

Vehicle Model

1. 80 Series

Location

New Mexico United States

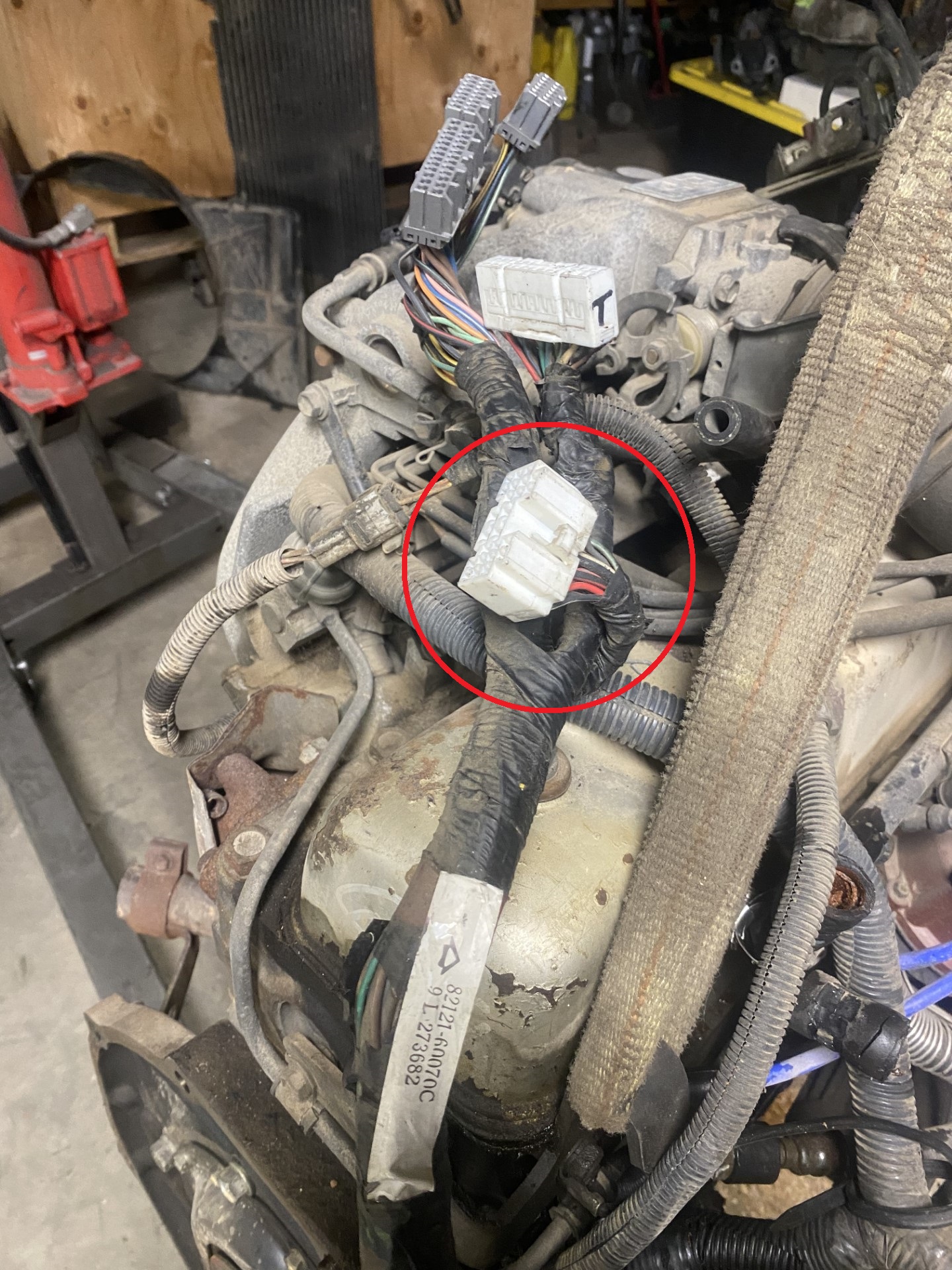

I am looking for a harness plug from a 91-92 80 Series. The plug I need is the female side from the engine harness that plugs into the dash harness near the ecu. I have attached a picture of what I am looking for with a red circle around the plug needed. I would like to have at least 6 inches of pig tail with it if you have an old harness that you don't mind cutting it out of.

Please send me a pm if you have one.



[orangefj45]

@Deathvalleypaul might be able to help

Georg @ Valley Hybrids @ Cruiser Brothers



[Tank5]

@Deathvalleypaul might be able to help

Georg @ Valley Hybrids @ Cruiser Brothers

Thanks Georg, I checked with Paul before I posted this. He didn’t have one at that time.



[orangefj45]

Thanks Georg, I checked with Paul before I posted this. He didn’t have one at that time.

Send a text to Alex (916) 705-5315 tell him I referred you.

Good luck bud!

Georg @ Valley Hybrids @ Cruiser Brothers



[Tank5]

I’m still looking. I have one option but the seller wants $100 for the plug.

I hoping to find someone who has a junk harness to cut it out of, so they don’t have to sacrifice a good harness in hopes this plug with a pigtail can be bought for a bit less.



[bottombracket]

if you can, send me a detailed picture looking at it from the front. Might still be available new from Japan. I can look it up in my wiring harness repair guide for you.



[orangefj45]

Or text me a pic and I’ll look at my stash ….

Georg @ Valley Hybrids @ Cruiser Brothers



[orangefj45]

Maybe @Deathvalleypaul has one?!



[cruisermatt]

if you can, send me a detailed picture looking at it from the front. Might still be available new from Japan. I can look it up in my wiring harness repair guide for you.

I tried already



[ToyotaMatt]

I’m still looking. I have one option but the seller wants $100 for the plug.

I hoping to find someone who has a junk harness to cut it out of, so they don’t have to sacrifice a good harness in hopes this plug with a pigtail can be bought for a bit less.

Maybe @Deathvalleypaul has one?!

I tried already


- i need a TOTAL pin count please / ALL terminal bays both occupied and vacant

- this is eazy peezy ,,,


-

Face pic of the FEMALE connector in the red circle ..

- a bay count

- then we let Nature take ifs course in the below paper print media ..

-



[Tank5]

Still looking for the plug



[Cruiser Cult]

Still looking for the plug

Have you looked through the wiring repair manual? Scroll to the bottom of the page to the general repair section and look at the wiring harness repair manual. ook through to see if you find the connector and terminal part numbers:

Land Cruiser Factory Service Manuals (FSMs)

Factory service manuals (FSMs) for your Toyota Land Cruiser ! From the 1950s to the present!

www.cruisercult.com



[ginericLC]

I probably have one. I just need a photo of the end.



[Tank5]

I probably have one. I just need a photo of the end.

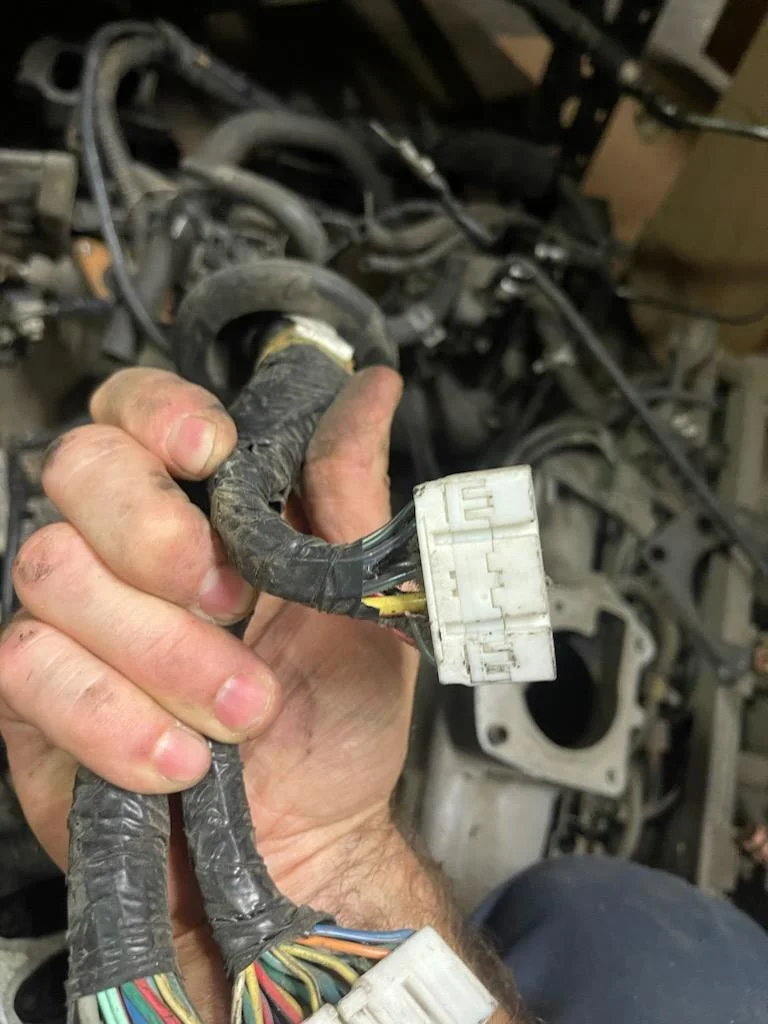

This is a photo of the plug I need. They were taken by another forum member.



[Tank5]

I appreciate everyone's help in trying to locate this plug. @cruisermatt was able to locate a new plug with terminals. I believe I have what I need on the way.

Thanks again to the community for the help.
