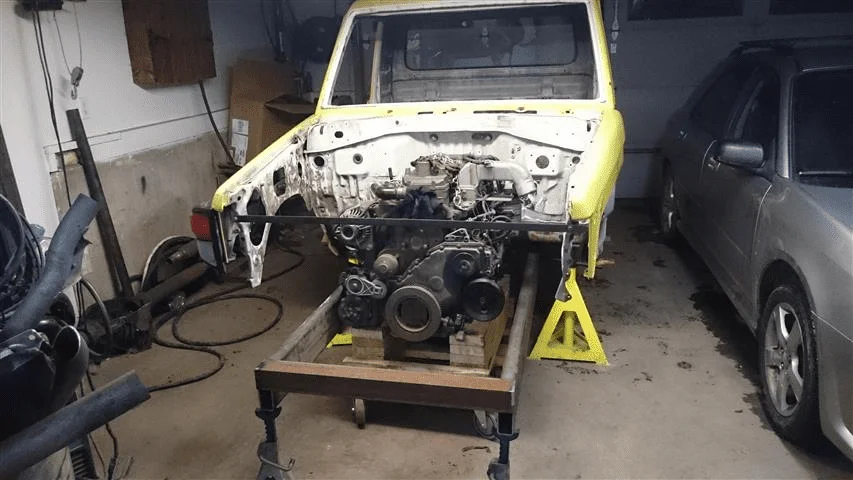

I want to have a Truck that is good at off-roading, and tolerable at on-roading. Super strong driveline so I can hit obstacles hard with low risk of breakage. I want it to have an inside, for winter & rainy wheeling, where I can store gear inside. I want it to have functional doors, and not be a buggy that has to be entered through the windows. I want it to still be recognizable as a 74 series. I want to be able to drive it up to 4 hours on the highway to get to the local off-roading areas/events.
Pro's of sticking with the factory frame... serial numbers match, and it 'feels' more legit as a registered on road vehicle.
It has all 60% of the body mounts mounted 1.5" too low. Only 40% of the body mounts are in the way.
The engine mounts are great.
I may be cutting off the front of the frame to fit the front axle, as I won't need frame for steering box, or suspension. It will just need some ligthweight structure to hold the winch, tow points, body mounts and front clip. The rear frame rails are too wide to accommodate coil overs and will definitely be getting cut to be narrowed, or notched. But I also won't be mounting a spare tire on the back, and will just need light weight structure behind the coilover mounts to body mounts and rear tow points.
However, to Mano's and CruiserMatt's point, two hunks of 2x6 tube that are ~76" long and 24" apart is basically all the heavy duty frame I need. I am just 2 engine mounts and 6 body mounts away from that. But, am I just building a buggy at that point? This is not a buggy build project.
I have a few days to decide while I am getting the driveline assembled. I will need a frame to start mounting the driveline in by this coming weekend though. I may have talked myself back into sticking with the frame. Damn all of your and your ideas and suggestions. You know how gullible I am.
- Thread starter
- #30
I was dark for a while working on a secret part of the project. But, it looks like it's going to work, so I am ready to unveil it. I believe this may be the worlds first 13B-T : ZF S5-42 : Atlas 4 speed drive train!

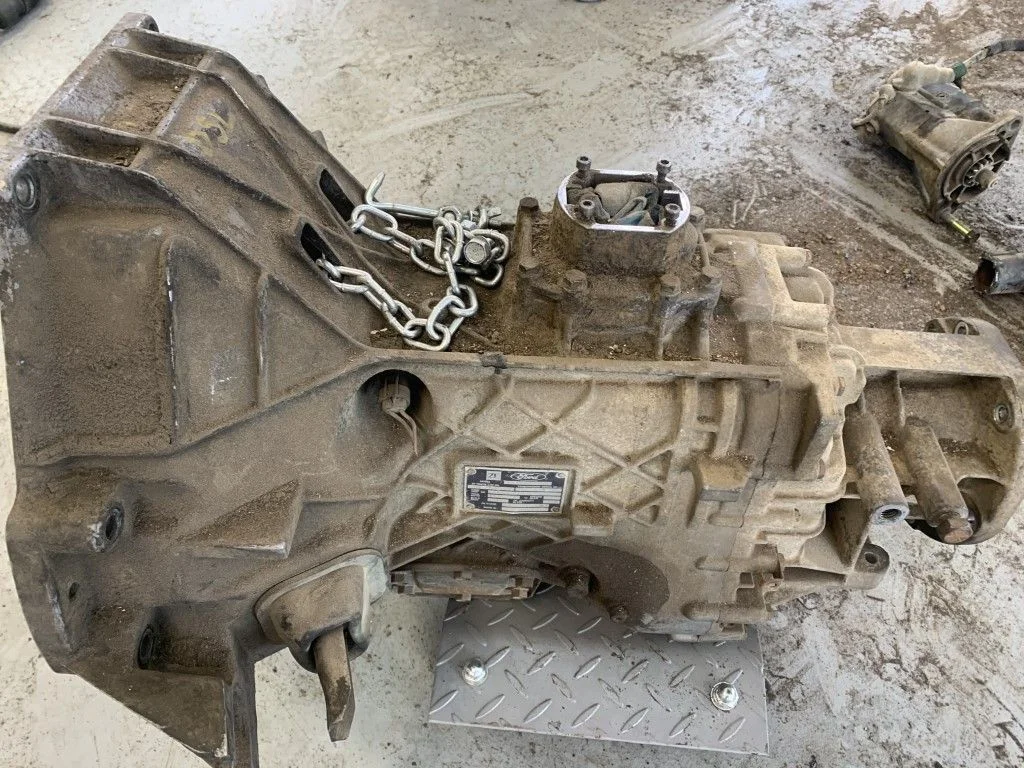

This is the transmission. It's out of a 1988 F-somethine with the 7.3 diesel. 4.14:1 1st 0.76 OD. Aluminum case with integrated bell housing. I was going to use it on my long forgotten 'Expo' project.

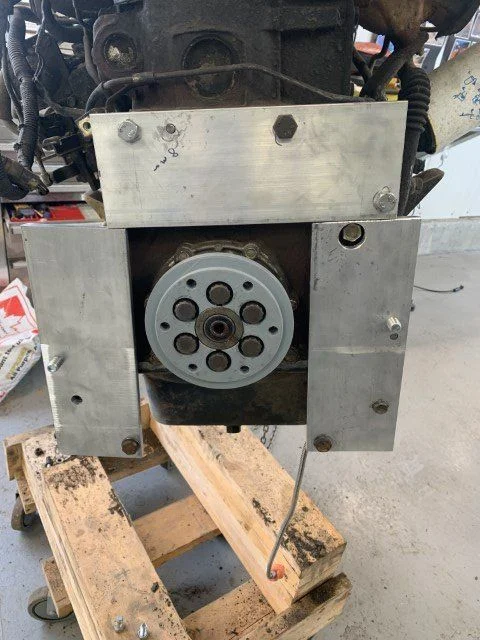

First I had to see if this was even possible. Some plexi glass was used to template the engine and transmission, to make sure I did not have any collisions between mounting holes. With the ZF, the starter moves to the starboard side. Some of the mounting flange on the block and two mounting holes interfere where the new starter needs to go. I decided I could trim the flange on the block, abandon one hole, and I could move down the upper hole on the lower bell housing brace. I decided that was acceptable and to proceed to the next stage.
Plan A was to use the stock flywheel, a 2F clutch disk (with a 10 spline input, like the ZF), and stock 13BT pressure plate. I had a tester 2F clutch disk, but alas, the ZF input is a much larger 10 spline.
Plan B: I had this transmission mounted to a 2005 Cummins 5.9 ISB engine for my expo project. I bought a custom South Bend clutch and flywheel to mount the transmission, as well as a 'Destroked' adapter plate. I took measurements off that, and came up with a plan.
-Use the southbend clutch and flywheel.
-Build an adapter out of 1.25" aluminum plate.
-Build a custom crank adapter to mate the cummins flywheel to the 13BT clutch.

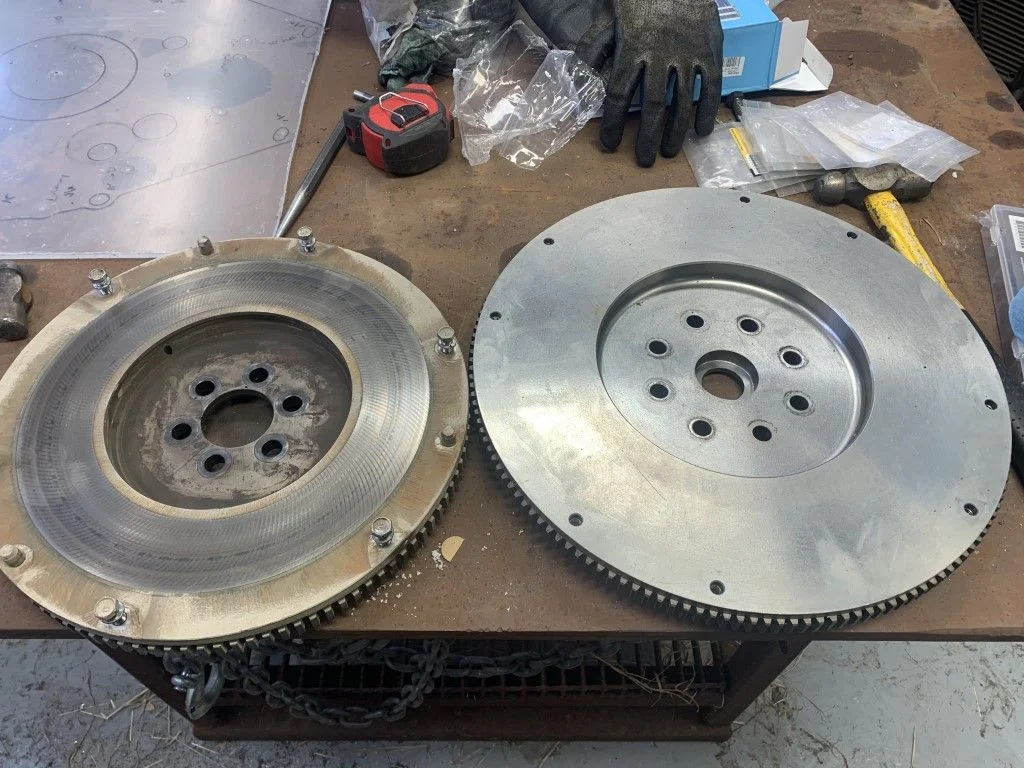

This gets me to a 15" clutch disk, up from the 13" 13BT clutch.
Next problem. It's not possible to buy 1.25" aluminum plate in Calgary. Two places volunteered to 'Bring some in' 2 weeks out for 5-$600. I paid $795 for the destroked adapter, and it's already build for the ZF side. I checked it against the plexiglass, and no conflict between any of the Cummins holes and the 13BT holes!. It will work.
Plan C... Since I already owned it, and I have already used the tranny clutch flywheel and starter, I may as well use that adapter plate too! I took it to a machine shop, and had the Cummins side of the shaved off. (My hobby-scale mill is not up to that task).

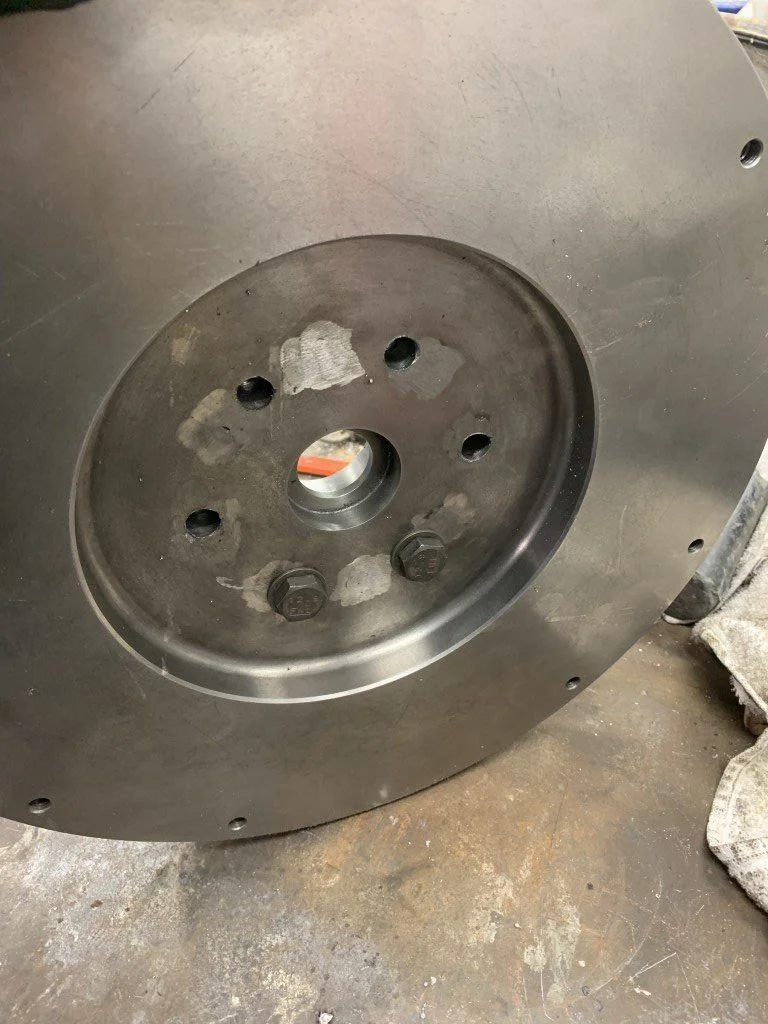

Then I pieced together the parts for the 13BT side out of 3/8 plate. <Note the 3D printed Crank/Flywheel adapter prototype>
This is the transmission. It's out of a 1988 F-somethine with the 7.3 diesel. 4.14:1 1st 0.76 OD. Aluminum case with integrated bell housing. I was going to use it on my long forgotten 'Expo' project.
First I had to see if this was even possible. Some plexi glass was used to template the engine and transmission, to make sure I did not have any collisions between mounting holes. With the ZF, the starter moves to the starboard side. Some of the mounting flange on the block and two mounting holes interfere where the new starter needs to go. I decided I could trim the flange on the block, abandon one hole, and I could move down the upper hole on the lower bell housing brace. I decided that was acceptable and to proceed to the next stage.
Plan A was to use the stock flywheel, a 2F clutch disk (with a 10 spline input, like the ZF), and stock 13BT pressure plate. I had a tester 2F clutch disk, but alas, the ZF input is a much larger 10 spline.
Plan B: I had this transmission mounted to a 2005 Cummins 5.9 ISB engine for my expo project. I bought a custom South Bend clutch and flywheel to mount the transmission, as well as a 'Destroked' adapter plate. I took measurements off that, and came up with a plan.
-Use the southbend clutch and flywheel.
-Build an adapter out of 1.25" aluminum plate.
-Build a custom crank adapter to mate the cummins flywheel to the 13BT clutch.
This gets me to a 15" clutch disk, up from the 13" 13BT clutch.
Next problem. It's not possible to buy 1.25" aluminum plate in Calgary. Two places volunteered to 'Bring some in' 2 weeks out for 5-$600. I paid $795 for the destroked adapter, and it's already build for the ZF side. I checked it against the plexiglass, and no conflict between any of the Cummins holes and the 13BT holes!. It will work.
Plan C... Since I already owned it, and I have already used the tranny clutch flywheel and starter, I may as well use that adapter plate too! I took it to a machine shop, and had the Cummins side of the shaved off. (My hobby-scale mill is not up to that task).
Then I pieced together the parts for the 13BT side out of 3/8 plate. <Note the 3D printed Crank/Flywheel adapter prototype>
- Thread starter
- #31
In the mean time, I did some 3D modelling in Fusion 360, and discovered that there was no way the 8 hole on the Cummins flywheel would miss the 6 holes on the 13BT crank adapter. So I had to weld up the 8 old holes, and re-drill 6 new holes to match the new crank adapter. This caused a lot of drama. 2 of the new holes had to be re-drilled through parts of the welded up holes. It was VERY difficult drilling through a combination of cast iron/weld. ARG. after trying all the options... I eventually put a carbide burr bit into the drill press. If I didn't already have that flywheel, I would recommend just getting a custom one made!
@shaker 3D printed a test version of the Crank adapter, as well as a jig to align the ZF adapter plate to the crank of the 13BT.
With the 3D jig holding the two halves concentric, I welded the two parts of the adapters together into 1 adapter. Note the countersunk holes on the back fo the adapter... those are where the Destroked adapter would normally have mounted to the Cummins. I filled in some of the holes with Weld to keep outside debris out.

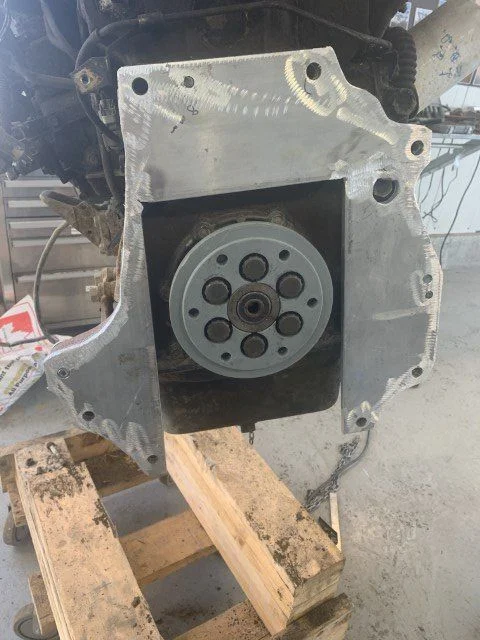

This is the 13BT side of the adapter. After welding, but before I finished through drilling the 13BT mounting holes.
Moving on.... I machined the crank adapter on my lathe out of hot rolled steel. I have it acurately modelled, I will probably have one professionally made out of 4140 chromolly. But this will be good to get the project moving and even for a few test runs. Because it's hot rolled stock, I quickly stripped the threads in one hole, so I have put helicoil inserts into all the threaded holes. It's probably stong enough, but I still think I should get a proper one made.
I also had to machine away part of the block, loosing one mounting hole where the new starter goes. I also had to modify the starboard side lower bell housing brace to move the upper mounting hole down to clear the starter. Note, I later welded in some flat bar to fill in the hole where I trimmed the flange on the block. You can also see how cut out and lowered the upper mounting hole on the bell housing brace. Starter fits in there just fine. Note, the starter is from a 6.0L Ford Powerstroke.
@shaker 3D printed a test version of the Crank adapter, as well as a jig to align the ZF adapter plate to the crank of the 13BT.
With the 3D jig holding the two halves concentric, I welded the two parts of the adapters together into 1 adapter. Note the countersunk holes on the back fo the adapter... those are where the Destroked adapter would normally have mounted to the Cummins. I filled in some of the holes with Weld to keep outside debris out.
This is the 13BT side of the adapter. After welding, but before I finished through drilling the 13BT mounting holes.
Moving on.... I machined the crank adapter on my lathe out of hot rolled steel. I have it acurately modelled, I will probably have one professionally made out of 4140 chromolly. But this will be good to get the project moving and even for a few test runs. Because it's hot rolled stock, I quickly stripped the threads in one hole, so I have put helicoil inserts into all the threaded holes. It's probably stong enough, but I still think I should get a proper one made.
I also had to machine away part of the block, loosing one mounting hole where the new starter goes. I also had to modify the starboard side lower bell housing brace to move the upper mounting hole down to clear the starter. Note, I later welded in some flat bar to fill in the hole where I trimmed the flange on the block. You can also see how cut out and lowered the upper mounting hole on the bell housing brace. Starter fits in there just fine. Note, the starter is from a 6.0L Ford Powerstroke.
Last edited:
- Thread starter
- #32

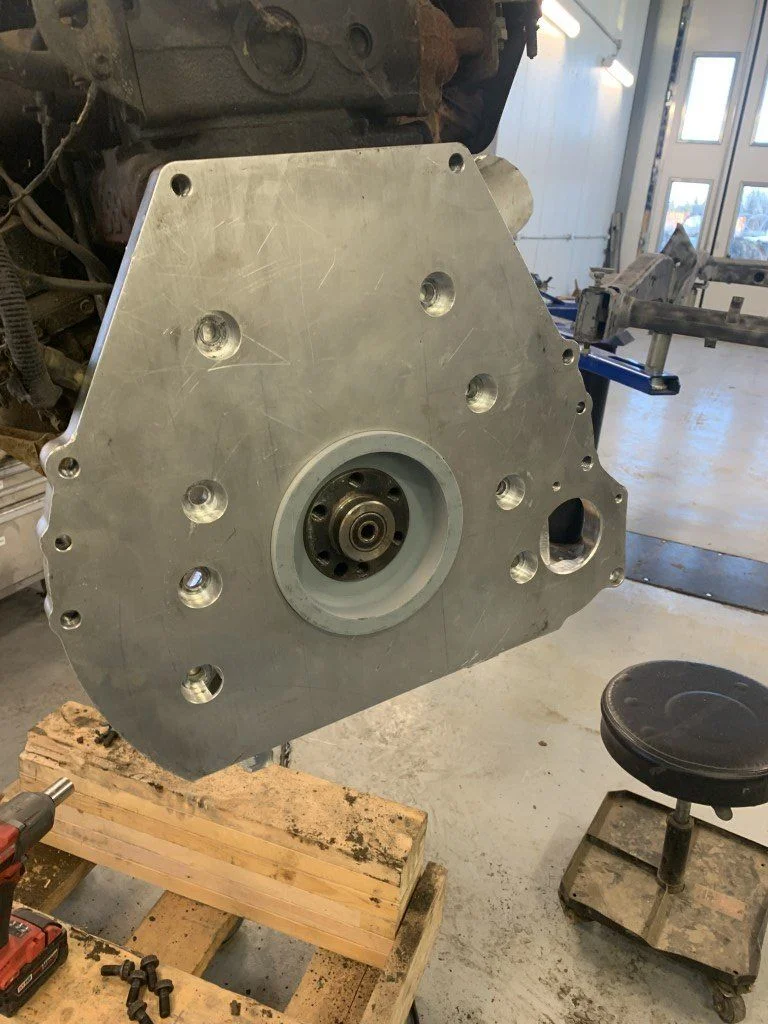

Final Starter Alignment (Before welding the plates together)
Boring counter sink holes so I can mount the plate to the block with grade 12.9 socket head cap screws.

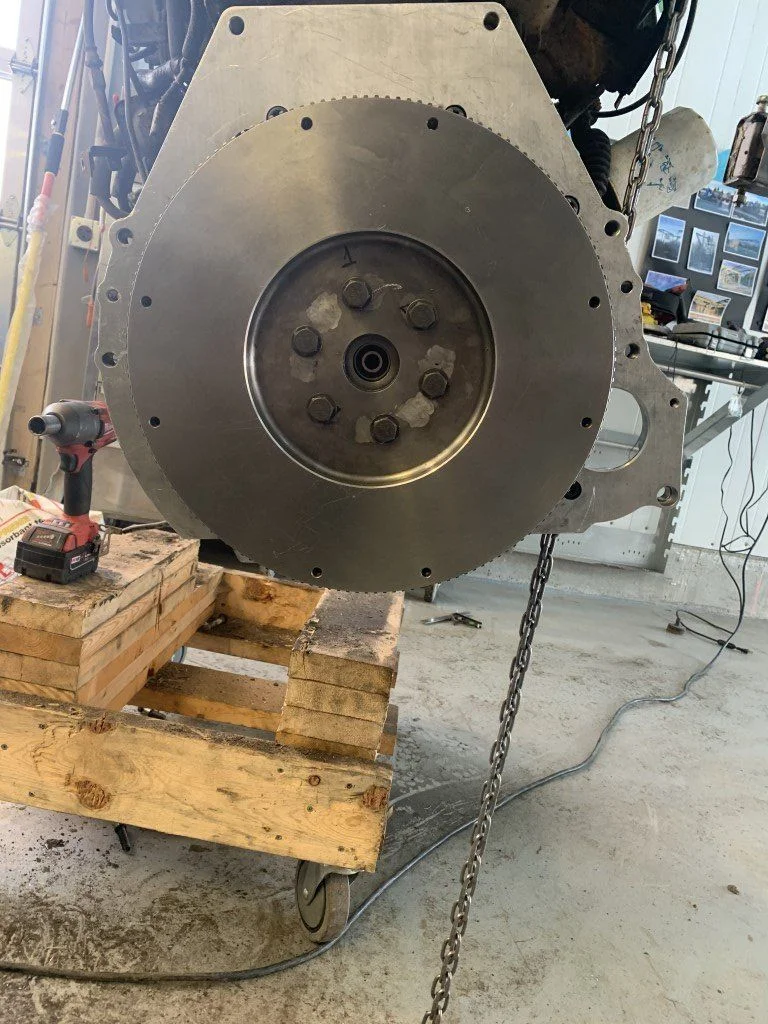

Then put it all together. Checked the clywheel for concenticity (0.04mm That's great) and Run out (0.25mm meh... not great, was hoping for 1/2 that - we will see how this works out; another reason to get the crank to flywheel adapter professionally made).

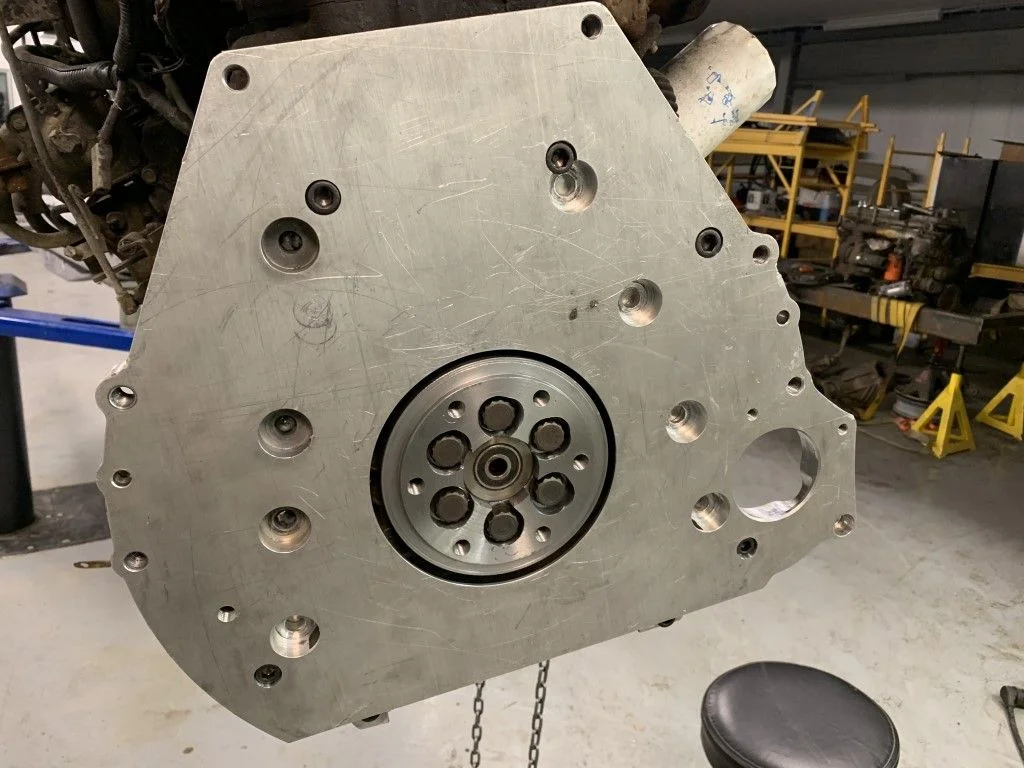

Welded up and mounted, with crank to flywheel adapter. Ready for flywheel.

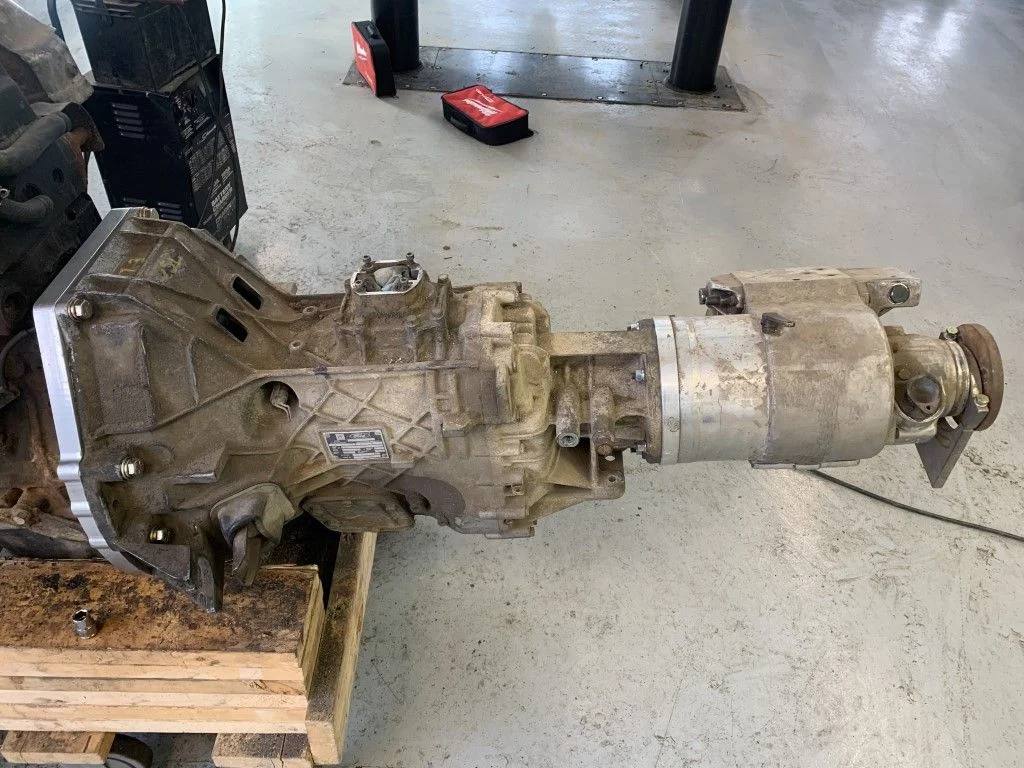

Is this the first ever ZF-S5 42 mounted to a 13BT?
Boring counter sink holes so I can mount the plate to the block with grade 12.9 socket head cap screws.
Then put it all together. Checked the clywheel for concenticity (0.04mm That's great) and Run out (0.25mm meh... not great, was hoping for 1/2 that - we will see how this works out; another reason to get the crank to flywheel adapter professionally made).
Welded up and mounted, with crank to flywheel adapter. Ready for flywheel.
Is this the first ever ZF-S5 42 mounted to a 13BT?
Last edited:
- Thread starter
- #33
Did a full dress rehersal, Including the starter. Several problems:
-The starter was too deep, and hitting the flywheel.
- It was also to close to the flywheel and would not engage/retract properly.
- The whole contraption bound up and I could not turn the engine when the transmission was bolted on.
I had to do some fine tuning. I decided to abandon the factory dowel pins on the 13BT side, oval out the mounting holes so I could shimmy the starter further away from the flywheel. Total move was about 0.8mm and that was enough to fix the gear engagment. With the new setting set, I drilled new dowel pins into the 13BT block to fix the position.
I also had to shim the starter forwards , so I welded in some aluminim flat bar, then milled it down to the right thickness on my mill. That fixed the starter, but it consumed most of 2 weeks with problem solving, deep thought and fiddling.
The clutch was pressed into a reinforcing rib inside the bell housing of the transmission, so I had to trim that.
<It was a frustrating time with little progress... I did not take photo's in my time of despair>

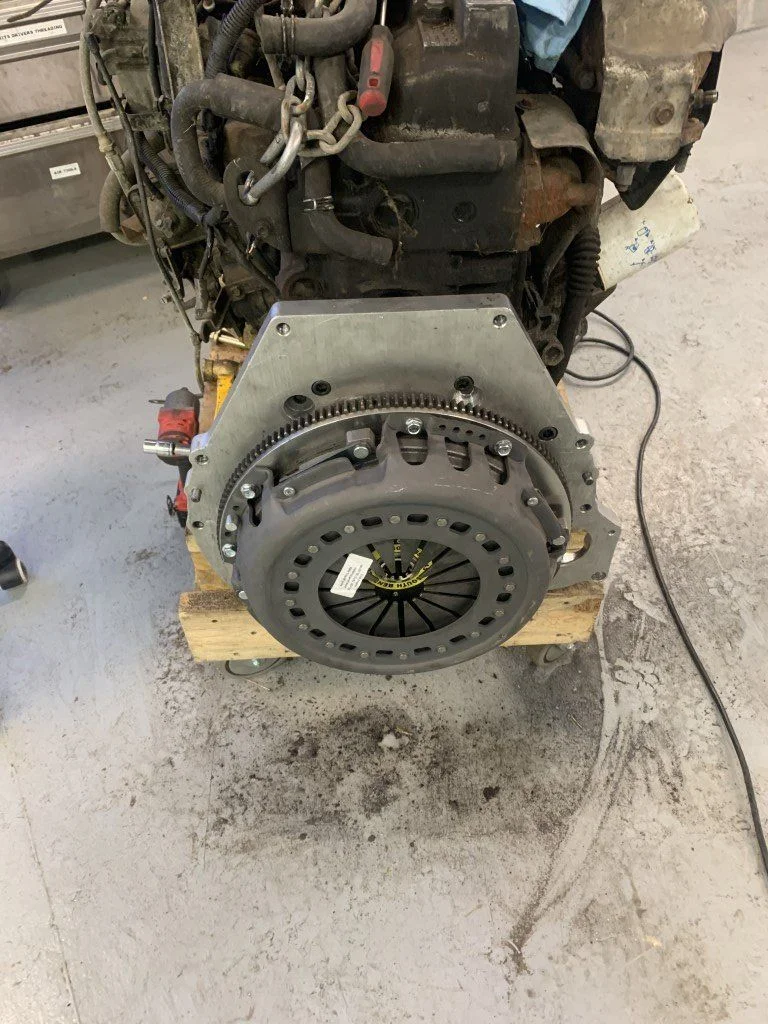

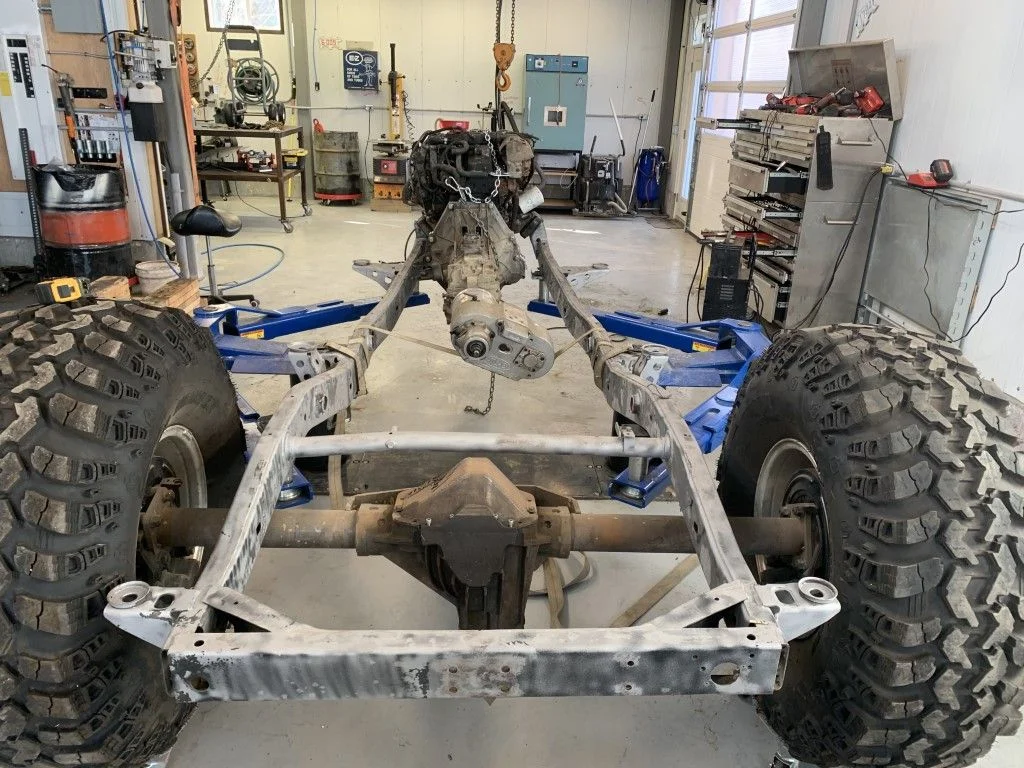

After all the fiddling, with full dress rehersal with clutch in and starter on, the engine finally turns over smoothly by hand, and the starter engages and runs smoothly. Hurray. Put that Atlas on, and drop it in the frame. Success!
-The starter was too deep, and hitting the flywheel.
- It was also to close to the flywheel and would not engage/retract properly.
- The whole contraption bound up and I could not turn the engine when the transmission was bolted on.
I had to do some fine tuning. I decided to abandon the factory dowel pins on the 13BT side, oval out the mounting holes so I could shimmy the starter further away from the flywheel. Total move was about 0.8mm and that was enough to fix the gear engagment. With the new setting set, I drilled new dowel pins into the 13BT block to fix the position.
I also had to shim the starter forwards , so I welded in some aluminim flat bar, then milled it down to the right thickness on my mill. That fixed the starter, but it consumed most of 2 weeks with problem solving, deep thought and fiddling.
The clutch was pressed into a reinforcing rib inside the bell housing of the transmission, so I had to trim that.
<It was a frustrating time with little progress... I did not take photo's in my time of despair>
After all the fiddling, with full dress rehersal with clutch in and starter on, the engine finally turns over smoothly by hand, and the starter engages and runs smoothly. Hurray. Put that Atlas on, and drop it in the frame. Success!
