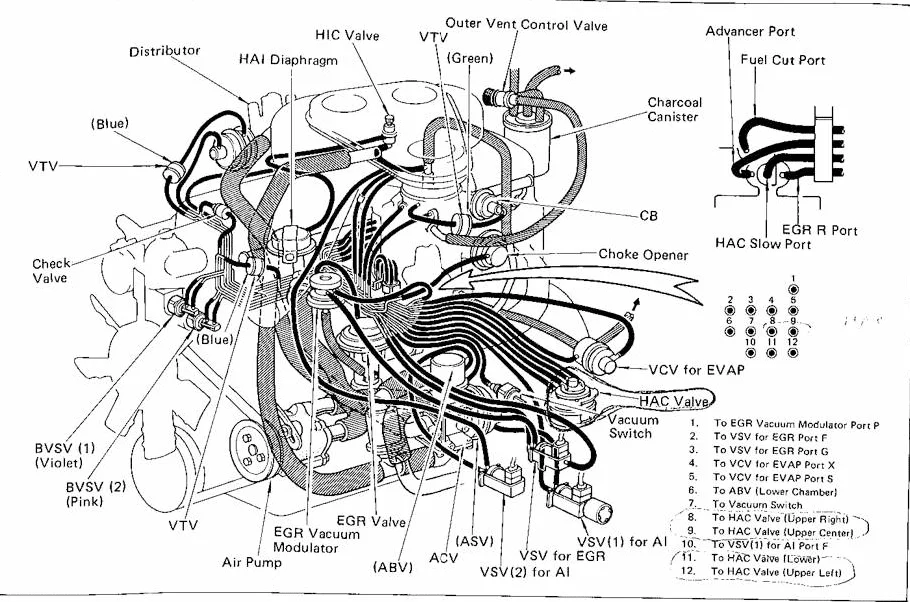

This hasn't been posted in quite a while, and I think it's the best and easiest diagram to follow:

(does take a little staring at it a while, though)


it helped me to understand this image is the vacuum lines as attached to the passenger side of the carb



and that this is all the little piping that faces the driver's fender:



but really how hard is it to not get this:



and this:

@Rigger
@Mace

Subtle :D Hint: There's nothing with this info in the 60-Series FAQ.

Also, maybe others can post FJ62 (3FE) Vacuum Hose Routing ?

Cheers.

Done

The 3FE vacuum routing isn't hard once you procure the diagram off the micro fiche. The quick way to do it is to go to partsouq and nab the fiche image for what you are working on.
