Top Rad Support Bushing (1 Viewer)

[Tapage]

Hello all you guys ..

In the process of electric fans for Tencha I ran into non existing support bushings .. I was able to source the lower ones ( thanks Sam ) and was ubber nice fit ( as expected ) but dunno why I didn't realize the uppers were in the same condition ..

So here I am looking for those ones which appears to be only available with the rad per EPC ..

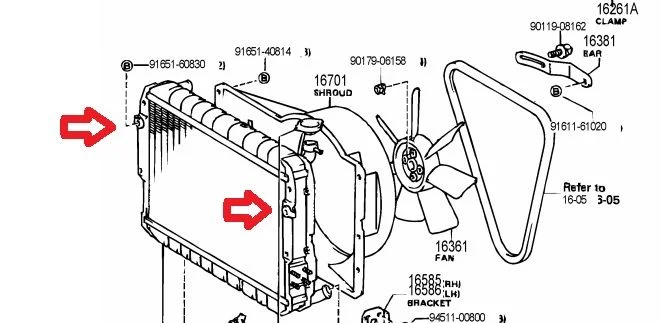

here is the pic to help .. ( courtesy of Sam )

for 80 series 16584-61030 seems to be the piece I'm looking for just not sure if would work for 60 series too .. comments and ideas are appreciated ..

thanks !

David



[GLTHFJ60]

I've tried to find that bushing, but the numbers I've come up with turn up the wrong parts at the dealer.



[gregnash]

Just did a little digging on ToyoDIY.com and this is what I came up with but not sure.. 16584‑61010 Insulator, Radiator Mounting. Might be worth a shot.



[Tapage]

I've tried to find that bushing, but the numbers I've come up with turn up the wrong parts at the dealer.

and what you end using there .?

Just did a little digging on ToyoDIY.com and this is what I came up with but not sure.. 16584‑61010 Insulator, Radiator Mounting. Might be worth a shot.

that's the lower one .. I have it ( kinda expensive but well worth the money ) it's a sweet ( like OEM is ) tight fit in there .. trying to the same for top ones ..



[GLTHFJ60]

This post:
https://forum.ih8mud.com/showpost.php?p=8016690&postcount=132

Then this post:
https://forum.ih8mud.com/showpost.php?p=8022016&postcount=133



[Tapage]

I look into ToyoDiy and 91651‑60830 appear to be a bolt .. weird uh .!



[GLTHFJ60]

I look into ToyoDiy and 91651‑60830 appear to be a bolt .. weird uh .!

Yeah, and from what I remember, that's the only P/N in that area of the diagram.

Might be time to make a trip to the dealer to find out!



[FJ40Jim]

91651-60830 is an M8x30mm bolt. In addition to retaining the radiator,it is used for the PTO cover on the T-case.

The radiator bushings have been spotted on the fiche before, but they are in a weird place, like under headlights or hood or AC condensor or...



[Tapage]

Looking on the AC section found standard part

94110-40600 but not sure if it's the bushing or if are the same used in the radiator ...

For 80 series I was able to locate 16584-61030 not sure tho if are the same .. or can work at 60 radiator ..



[langsen]

Just looked at mine, and the AC condenser bushings are a bit smaller in diameter than the upper radiator bushing. Also, the upper radiator bushing looks like it folds over the edge of the radiator. It's shaped like o-o so after you fold it there is one circle of rubber on each side of the radiator.



[Tapage]

Just looked at mine, and the AC condenser bushings are a bit smaller in diameter than the upper radiator bushing. Also, the upper radiator bushing looks like it folds over the edge of the radiator. It's shaped like o-o so after you fold it there is one circle of rubber on each side of the radiator.

figure it is like the lower ones .. only smaller .. well I went ahead and order those for 80 series will report back if they work or not ..



[Joe_E]

Yes, they do come on a new radiator like someone mentioned.
I got one a couple years ago.

hey bidda bidda here



[GLTHFJ60]

Yes, they do come on a new radiator like someone mentioned.
I got one a couple years ago.

hey bidda bidda here

Showoff



[dbleon]

Hmm call me Mexican, but I used some 1/4" rubber scraps I had laying around... cut to fit.. works great.



[Tapage]

Yes, they do come on a new radiator like someone mentioned.
I got one a couple years ago.

hey bidda bidda here

thanks Joe at least now I know how they should look like ..



[elishab]

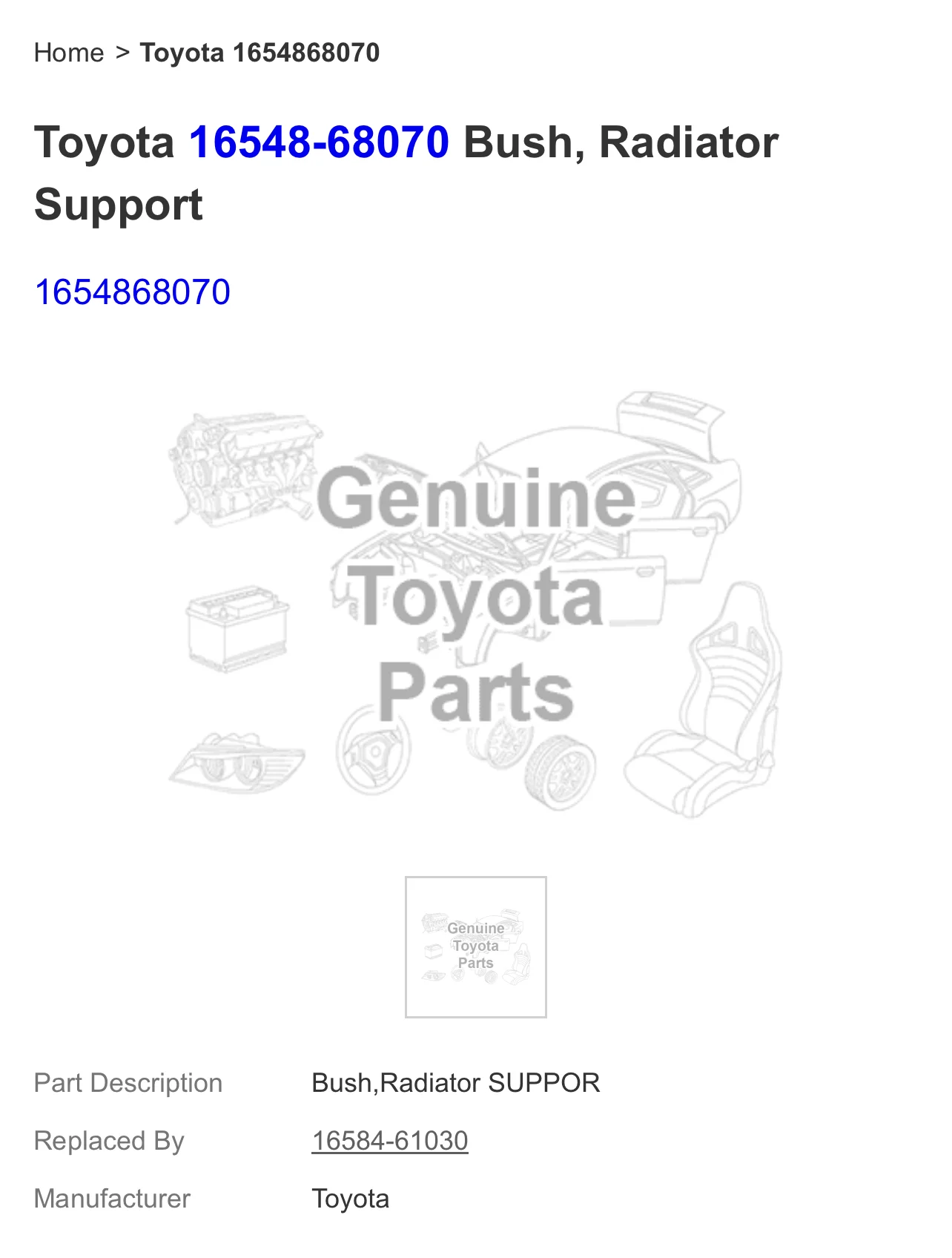

16548-68070 Cushion Radiator Front Mount​



[S.CarolinaFZJ80]

Replaced by 16584-61030
