Side-view mirror control connector / pins - Anyone know the sizes? (1 Viewer)

Joined
Jun 18, 2014
Messages
484
Location
AZ
Hello all - weird question here so not entirely sure how to phrase it - and I do not have much experience wiring things, so excuse any incorrect terminology I use.

I found this broken wire going to the pin for the side-view mirror connector while putting back together my dash. The wire is beat and theres not enough room to crimp it anyway, so I want to replace this pin - but I have no idea how to find out what size or type of pin it is.

Any help/ideas?

As always - thanks for any help.






Eyedaho

SILVER Star
Joined
Sep 24, 2019
Messages
743
Location
Boise, Idaho
Hello all - weird question here so not entirely sure how to phrase it - and I do not have much experience wiring things, so excuse any incorrect terminology I use.

I found this broken wire going to the pin for the side-view mirror connector while putting back together my dash. The wire is beat and theres not enough room to crimp it anyway, so I want to replace this pin - but I have no idea how to find out what size or type of pin it is.

Any help/ideas?

As always - thanks for any help.




@BenCC might know.


Ayune

SILVER Star
Joined
Feb 12, 2017
Messages
1,682
Location
Portland, OR
Hello all - weird question here so not entirely sure how to phrase it - and I do not have much experience wiring things, so excuse any incorrect terminology I use.

I found this broken wire going to the pin for the side-view mirror connector while putting back together my dash. The wire is beat and theres not enough room to crimp it anyway, so I want to replace this pin - but I have no idea how to find out what size or type of pin it is.

Any help/ideas?

As always - thanks for any help.




You can remove the pin from the plastic housing and solder a new wire to it.

First pry up the white plastic piece a little bit, then use a metal pick to move the lock tab inside the pin’s hole at face of the connector. It’ll be a small black plastic tab. That should release the pin so it will slide out.

Joined
Jun 18, 2014
Messages
484
Location
AZ
You can remove the pin from the plastic housing and solder a new wire to it.

First pry up the white plastic piece a little bit, then use a metal pick to move the lock tab inside the pin’s hole at face of the connector. It’ll be a small black plastic tab. That should release the pin so it will slide out.

Thanks @Ayune. I wasnt sure if I could reuse it or not, but was planning to try that it all else failed.

I actually bought some pin release tools to attempt to do it the "correct" way, as I have previously pulled these pins using a pick just like you mentioned, haha.

Joined
Jun 18, 2014
Messages
484
Location
AZ
Wow I am having zero luck. What a PITA.

@Ayune where is the lock tab inside the pins hole at the face of the connector?

They looked to me to be molex type connectors that have the two locking tabs on the pin itself, but I cant get it out by attempting to press tabs on the pin together... and I dont see a lock tab inside the pins hole.


Ayune

SILVER Star
Joined
Feb 12, 2017
Messages
1,682
Location
Portland, OR
Wow I am having zero luck. What a PITA.

@Ayune where is the lock tab inside the pins hole at the face of the connector?

They looked to me to be molex type connectors that have the two locking tabs on the pin itself, but I cant get it out by attempting to press tabs on the pin together... and I dont see a lock tab inside the pins hole.

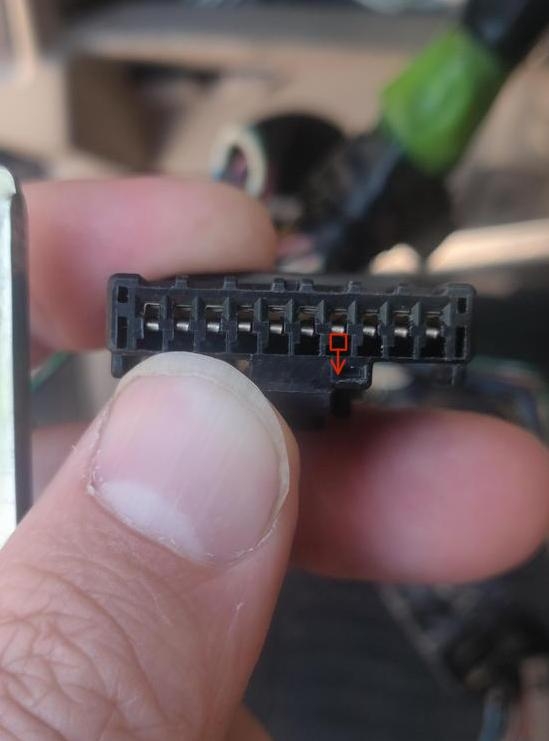

Looking at your pic I would guess there’s a plastic finger inside the wire-side hole where the red square is in the pic below. If there is, try to use a metal pick to move it in the direction of the arrow.
