Wanted SD40 Site Glass and Aisin Plate

[63cruiser]

I know I am probably out of luck but never hurts to ask. Looking for a SD40 site glass. Also need the Aisin plate. Would prefer Blue Plate but would be willing to take a gray plate if you had one.



[daniel.watters]

I thought someone at one time talked of reproducing these... no? I know I saw a thread on reproducing the glass.



[3_puppies]

I know I am probably out of luck but never hurts to ask. Looking for a SD40 site glass. Also need the Aisin plate. Would prefer Blue Plate but would be willing to take a gray plate if you had one.

good luck with the search

I thought someone at one time talked of reproducing these... no? I know I saw a thread on reproducing the glass.

IIRCC it was in the 25 section, he had some demos but just didn't work out, not sure where he is with it now.



[Krondor]

I haven't really had time to revisit this project. I have the molds created but couldn't get the tempering to work. I would produce a molded glass only to have it shatter out of nowhere. Glass is a fickle object.

If anyone knows of a glass company who could take the project on, I would gladly supply the molds to them. I can also make more molds pretty easily.



[whitey45]

A funny story, went to look at an fj45 years ago and it had a big window sd40. Guy broke the glass, so he made one out of plexi glass..... and it had been working for a few years! Defeats the whole cool factor, but maybe an option for those without one?



[63cruiser]

i spent quite a bit of time trying to move this project forward and @Krondor helped with a CAD file but i seemed to strike out at just about every turn. I did find a company willing to make the mold and provide the finished product but it was $6000 for 100 pieces. The 60 bucks a piece isn't bad but i don't have that kind of money to shell out upfront and hope i find 100 buyers. I had one other specialy glass manufacturer in Cambridge Ohio that seemed interested in trying to make it work. Unfortunately he is 3.5 hours away and isn't open on weekends so i have not found the time. Also working with @BenCC to 3d print one but he had not yet found a translucent media that would stand up to the gasoline/ethanol. Last option may be to just use 5 mm thick glass and run with it. Just would like to find a better solution.



[middlecalf]

Is the Aisin embossed on or engraved in the glass?



[63cruiser]

The aisin name is on the blue or gray plate not the glass.



[middlecalf]

Just a thought. One could engrave the backside of the glass with Aisin and paint the back of the carb chamber blue or gray with fuel resistant paint/chemical.



[daniel.watters]

With the stated above casting; couldn’t you do a thick clear plastic that’s sturdy and resilient enough to stand the test of time? Someone smarter than I should know what plastics might work.



[3_puppies]

I loaned out a back plate to a member years ago to try and reproduce it and he had no luck or way much minimum order to justify it.



[Krondor]

With the stated above casting; couldn’t you do a thick clear plastic that’s sturdy and resilient enough to stand the test of time? Someone smarter than I should know what plastics might work.

With regards to plastic. I contacted a number of plastic companies to see if they could suggest a polymer that was gasoline proof/resistant. Most came back with no suggestion and the few that did were not transparent.



[65swb45]

I am thinking I will be getting a visit from @Land Cruiser Junky soon. He has worked with glass his whole life. I will ask him about cutting some flat glass to spec so at least we can get a few dead carbs back on road.



[63cruiser]

Any help would be appreciated. Pm me or @kondor for the CAD file



[Land Cruiser Junky]

I am thinking I will be getting a visit from @Land Cruiser Junky soon. He has worked with glass his whole life. I will ask him about cutting some flat glass to spec so at least we can get a few dead carbs back on road.

I'll try to get by sometime next week Mark.



[Land Cruiser Junky]

Hey guys, as long as Mark can provide me with a sample for the shape and thickness I can knock these out for you. It can't be any harder than cutting new glass for the cluster and I just did that for my LV a few weeks ago. PM me if you need one. Someone post up a pic of one with a quarter next to it.

BTW, for the most part you can't beat glass verses plastics or lexan. Even with the heat the engine produces I don't think this glass would have to be tempered.



[Land Cruiser Junky]

I just received info on this glass and see it's cast glass. Now I understand why it's so expensive to reproduce. I'll check out an original at Mark's Off Road but it looks like I will probably make these out of 1/8" clear flat glass.



[Archie 1962 FJ25]

Gene, please check your PM.

I have recently acquired a parts Aisan DW35 carb that has similar size sight window but surprisingly Toyota decided to make that in plastic. That carb is on the way to me. Once I get that I will make few inquiries on reproduction at my end as well.

Below is picture of it - Courtesy our fellow mud member who owns it in OZ.



[KT40]

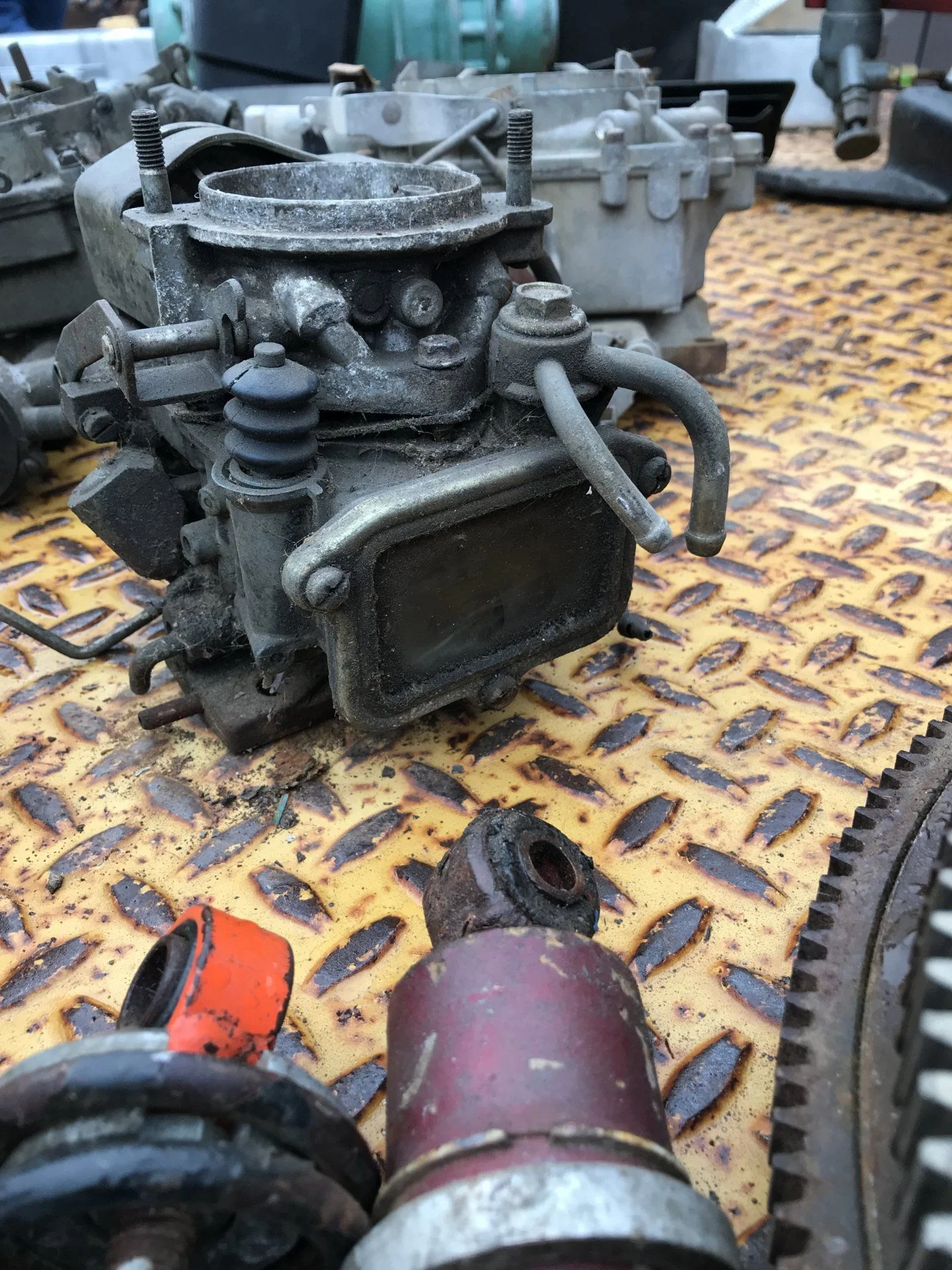

I saw this at a swap meet a couple weeks ago. It’s a Nissan. Wonder if the glass might crossover. Didn’t buy it and didn’t ask how much.



[Archie 1962 FJ25]

I saw this at a swap meet a couple weeks ago. It’s a Nissan. Wonder if the glass might crossover. Didn’t buy it and didn’t ask how much. View attachment 2209630

I think glass size is a cross over but it has “Nikki“ written on it.
