Request opinion on one-off 2F heat shield for throttle body fuel injection

[R50 K1200GT]

Hi all.

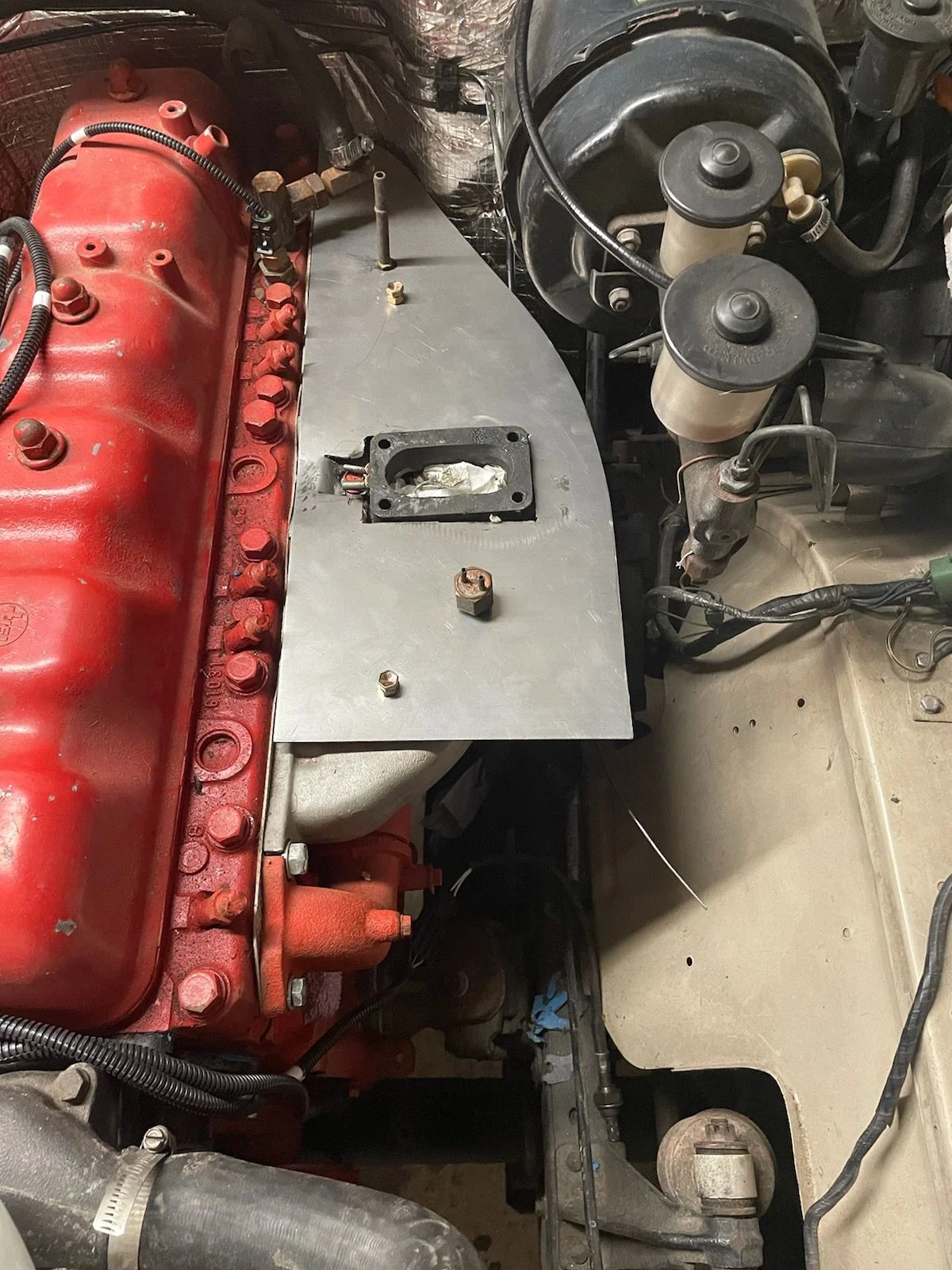

Putting throttle body fuel injection on 2F. Didn't want to spend bunch of money on the little metal exhaust manifold cover by the firwall so got some 16 gauge sheet metal with a verticle piece curled around by the firewall. Do any experts out there see any problems with this?



[BIG RENO AL]

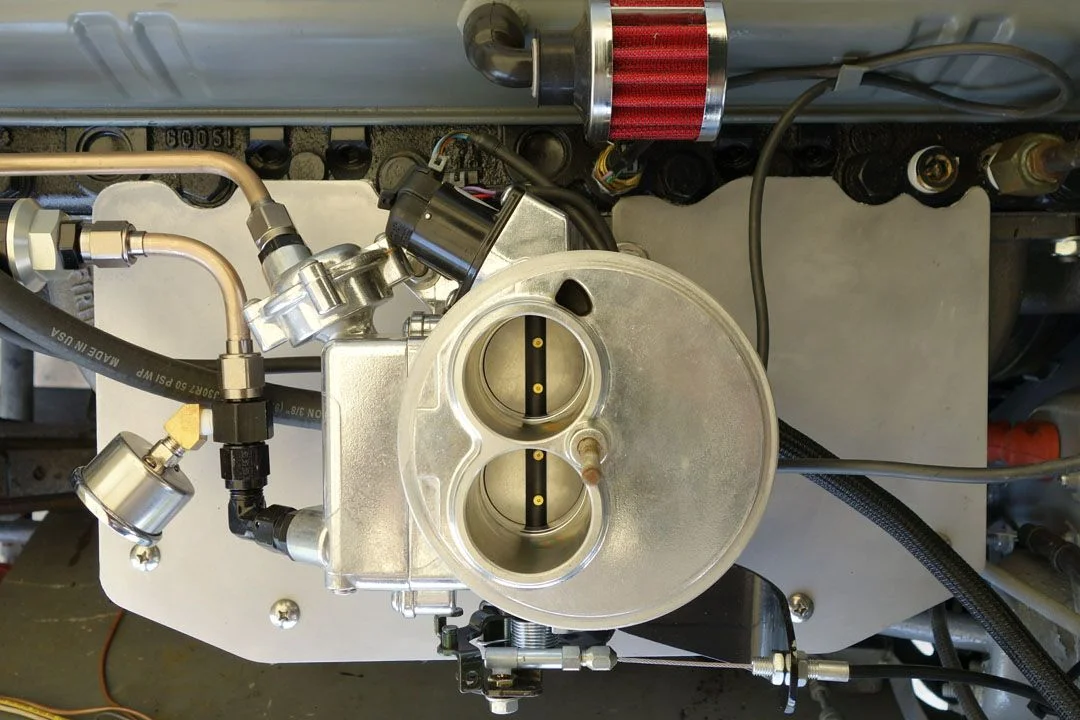

I did the same thing. Want to keep heat from the Sniper. Figured something was better than nothing.



[Jdc1]

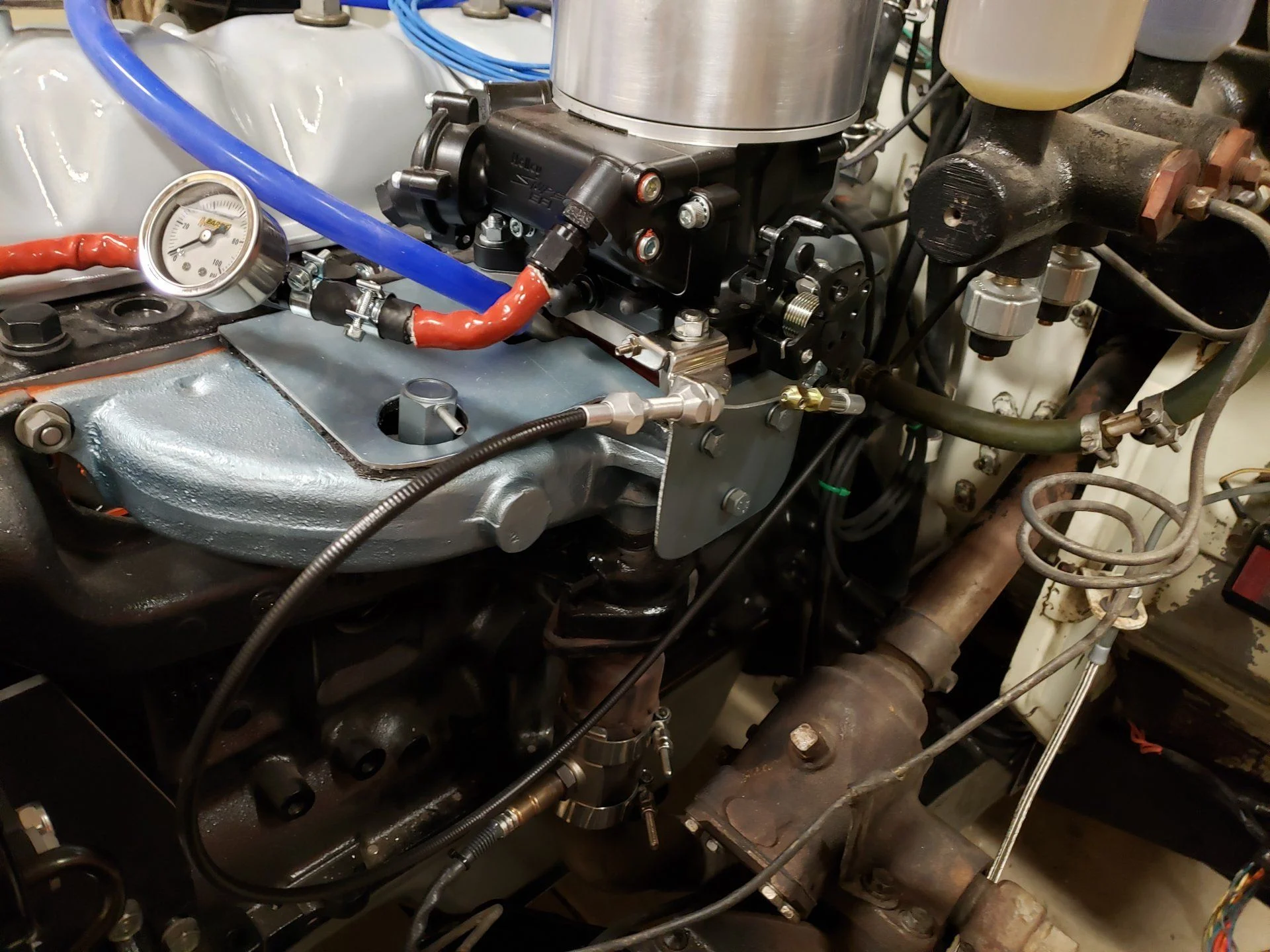

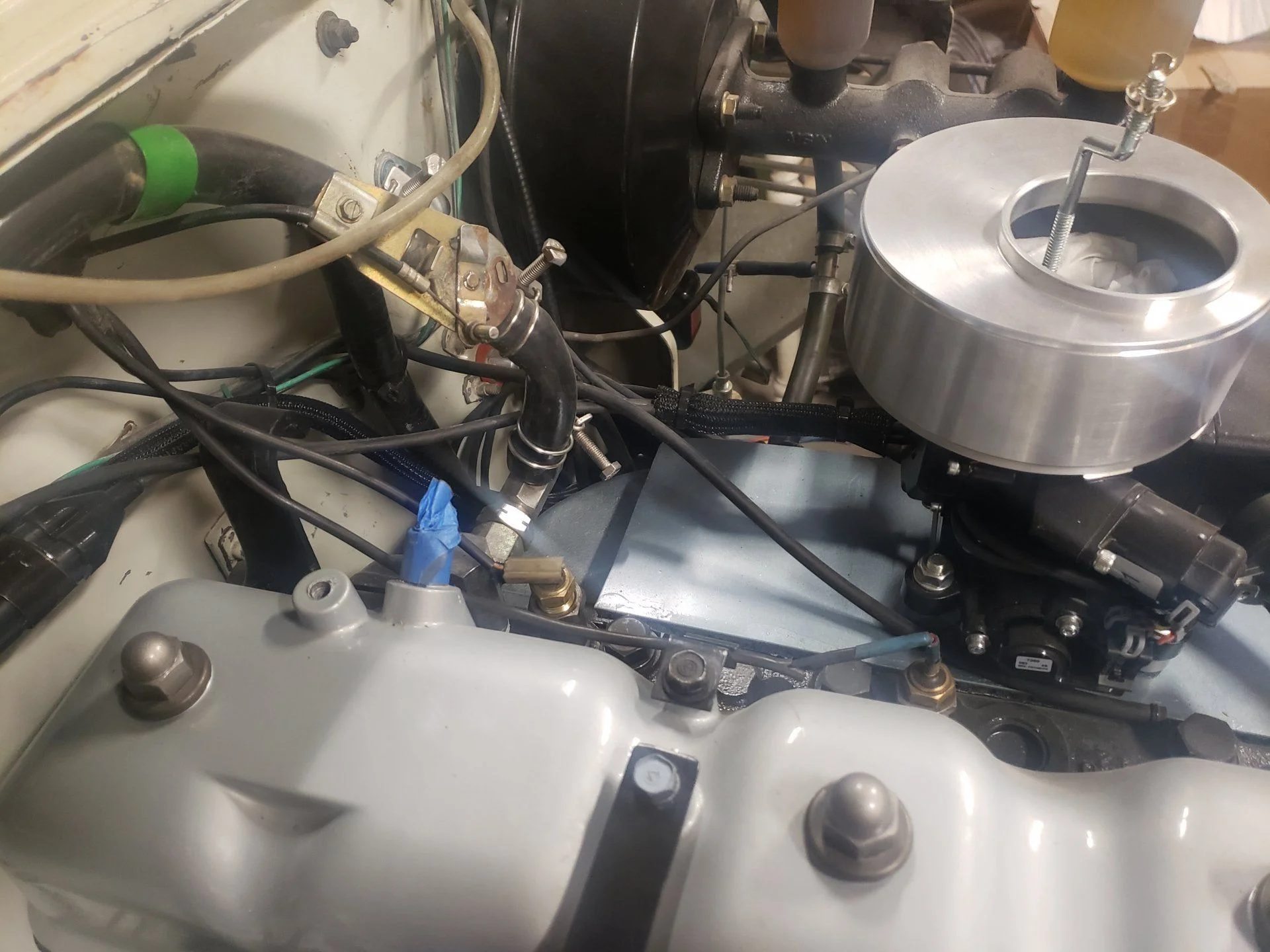

I did the same thing. Want to keep heat from the Sniper. Figured something was better than nothing.View attachment 2578611View attachment 2578612

Al, where did you get the air cleaner adaptor? Looks great.



[Steamer]

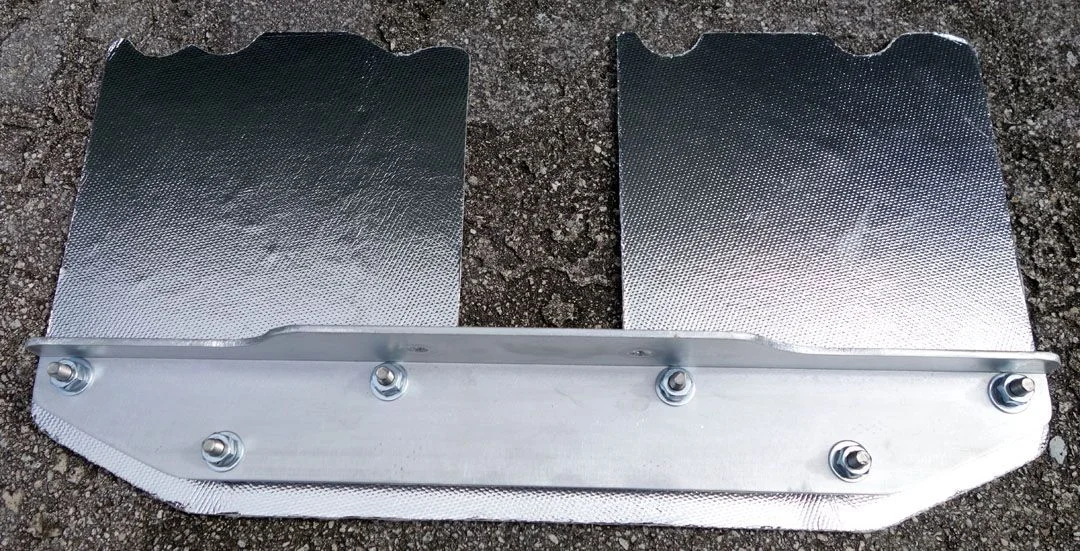

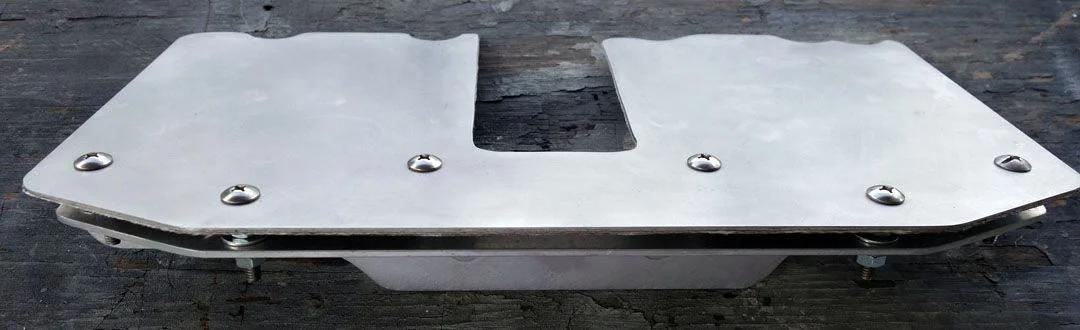

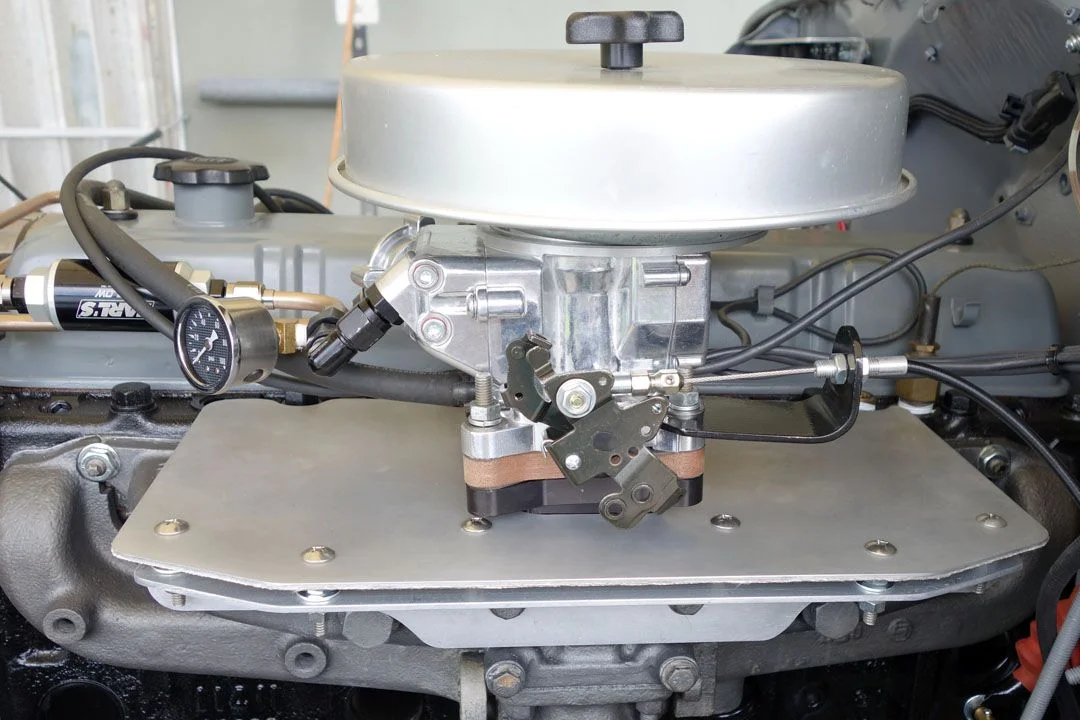

Did mine with aluminum I had laying around and put some high temp stick-on insuIating/raidiant barrier on the bottom. I also added a phenolic spacer under the Sniper. Does it help? I dunno, I guess. After a few hours it gets plenty hot just like everything else under the hood. I figure it can't hurt.



[BIG RENO AL]

Al, where did you get the air cleaner adaptor? Looks great.

The air cleaner adapter came with the Sniper kit I bought from Mosley Motors.



[Downey]

Steamer, I would think your black cable mounting bracket should be bent downward since travel on the throttle body linkage arm is rearward and downward, this would make the throttle cable feed into the cable housing a lot smoother.



[Steamer]

Steamer, I would think your black cable mounting bracket should be bent downward since travel on the throttle body linkage arm is rearward and downward, this would make the throttle cable feed into the cable housing a lot smoother.

Jim, although the angle of the pic exaggerates it some, you are right. Also, it’s an old pic. I kept count and I’ve made 10 brackets so far and I’m still not done. Right now, it’s sporting two cables for hand throttle control which works fairly well but a bit two sensitive for my liking. I to need raise the air filter for the next setup. BTW, that custom length cable assembly you made for me is working great!



[MOTOV8R]

Did mine with aluminum I had laying around and put some high temp stick-on insuIating/raidiant barrier on the bottom. I also added a phenolic spacer under the Sniper. Does it help? I dunno, I guess. After a few hours it gets plenty hot just like everything else under the hood. I figure it can't hurt.

View attachment 2578710

View attachment 2578711

View attachment 2578712


View attachment 2578713

Man, nice work on those fuel lines that is clean.



[John Smith]

Hi all.
Putting throttle body fuel injection on 2F. Didn't want to spend bunch of money on the little metal exhaust manifold cover by the firwall so got some 16 gauge sheet metal with a verticle piece curled around by the firewall. Do any experts out there see any problems with this?

View attachment 2577756

Do you happen to have a link for the heat shield material on your firewall,?



[R50 K1200GT]

Do you happen to have a link for the heat shield material on your firewall,?

Hi John. I can't recall where I got it. There are many websites such as Automotive Heat Barrier | Heat Shield Barrier | Heatshield Products - https://www.heatshieldproducts.com/high-heat-insulation/hd-heatshield-barriers. Thank you. Mike
