Rear bumper design/build

Discussion in '80-Series Tech' started by tim.korn.99, May 16, 2012.

  1. tim.korn.99

    tim.korn.99

    Messages:
    758
    Likes Received:
    28
    Joined:
    Mar 29, 2007
    Location:
    Northwest Arkansas
    Plans:

    Dual Swingouts
    Cooler/Fuel can Rack
    Tire Carrier

    Rear winch (Will be on next unit)



    Pretty simple plans, but my overthinking the project has lead to something a little more than "simple".



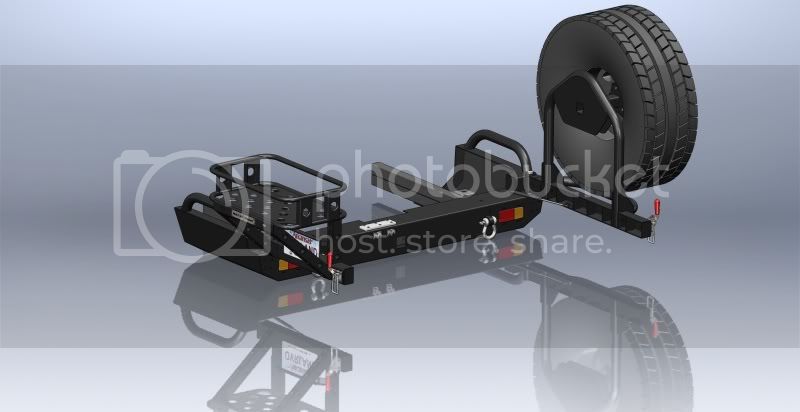

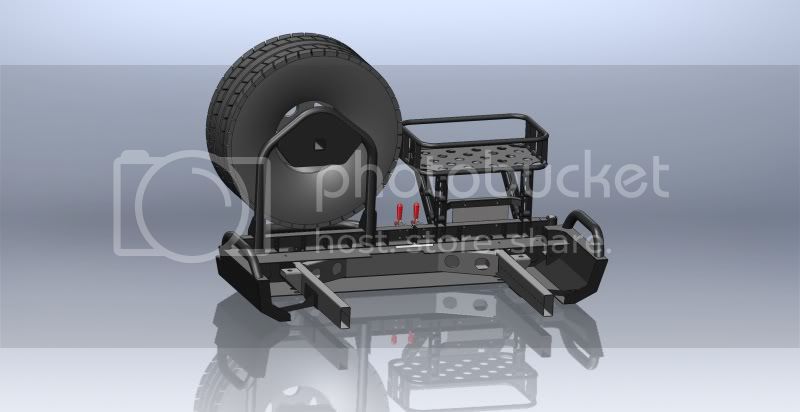

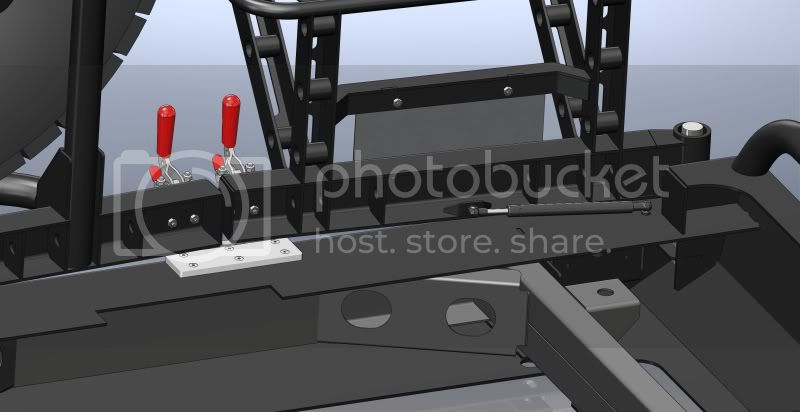

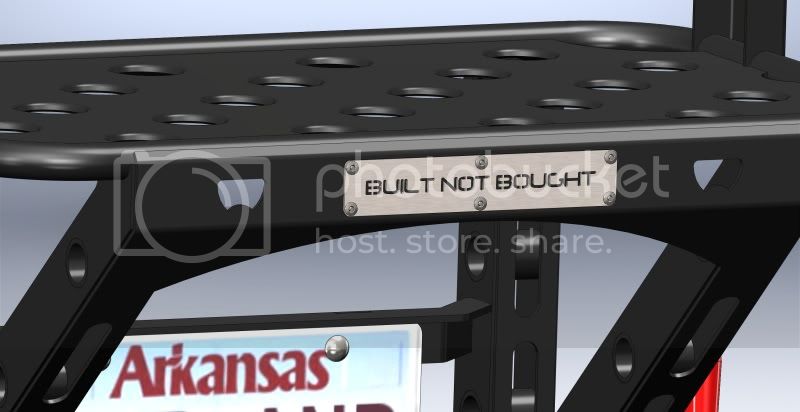

    Design:

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    ^^^ Bottle opener detail. :D

    stock likes this.
  2. mickeyt

    mickeyt

    Messages:
    2,316
    Likes Received:
    31
    Joined:
    Mar 2, 2011
    Location:
    Providence Rhode Island
    THAT IS BAD ASS! What will you charge for this for others?

  3. tim.korn.99

    tim.korn.99

    Messages:
    758
    Likes Received:
    28
    Joined:
    Mar 29, 2007
    Location:
    Northwest Arkansas
    Fabrication:


    First proto - Overall width of this prototype was a bit too narrow for my liking, since we are both still running fender flares. This one would be PERFECT for someone with a flare-less 80 series!


    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    khm3rgtr likes this.
  4. tim.korn.99

    tim.korn.99

    Messages:
    758
    Likes Received:
    28
    Joined:
    Mar 29, 2007
    Location:
    Northwest Arkansas

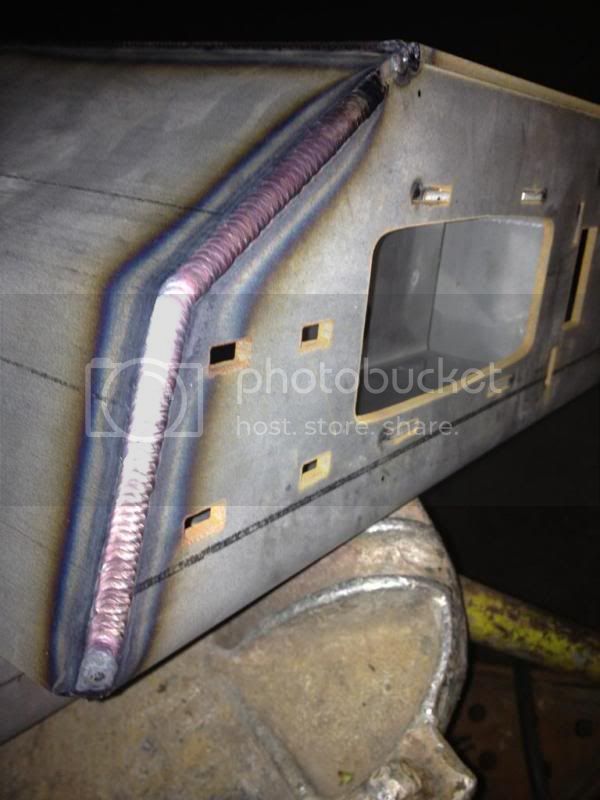

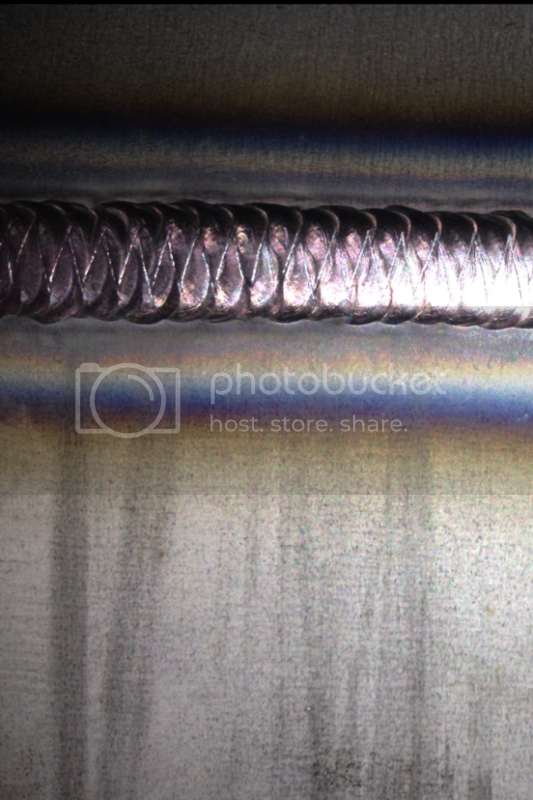

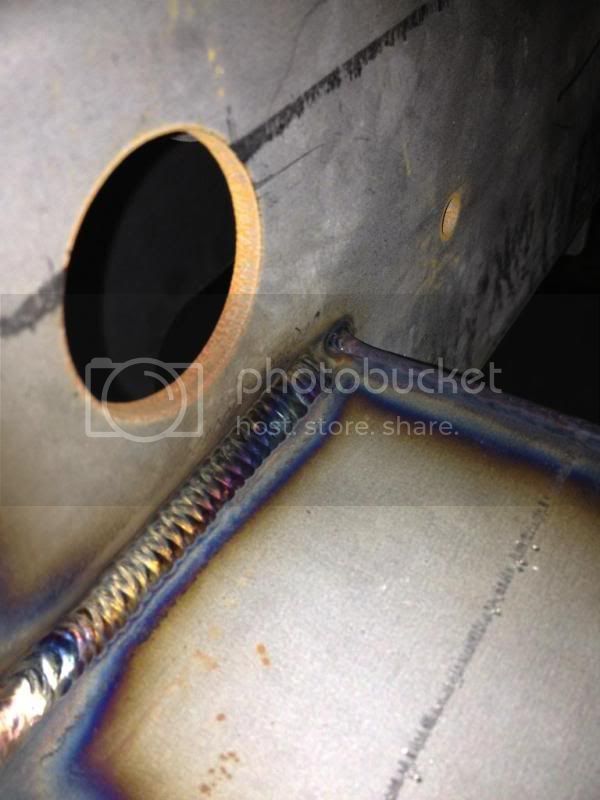

    These bumpers will be fully TIG welded.


    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Jgunner, dcx13, pengfinn and 2 others like this.
  5. tim.korn.99

    tim.korn.99

    Messages:
    758
    Likes Received:
    28
    Joined:
    Mar 29, 2007
    Location:
    Northwest Arkansas
    Tail lights showed up. These are made by Hella. I believe they are the same (or similar) to the ones used on the older Kaymar bumpers.


    [​IMG]

  6. 2 E L O

    2 E L O SILVER Star

    Messages:
    990
    Likes Received:
    223
    Joined:
    Aug 4, 2011
    Location:
    Western Nebraska
    Wow! Craftsmanship looks top notch.

    Pretty tight on that LX cladding!

  7. tim.korn.99

    tim.korn.99

    Messages:
    758
    Likes Received:
    28
    Joined:
    Mar 29, 2007
    Location:
    Northwest Arkansas
    Yeah, that's the bumper that is going to be for flare-less 80s.

    Thanks!

    Sent from my C771 using IH8MUD

  8. sweet trav

    sweet trav

    Messages:
    477
    Likes Received:
    12
    Joined:
    Sep 22, 2010
    Location:
    ...where the redwoods meet the ocean...
  9. busmup808

    busmup808

    Messages:
    2,051
    Likes Received:
    20
    Joined:
    Mar 30, 2009
    Location:
    HI 2 WA
    Bad. Truly bad. I have a flareless 80. How much?

  10. cody c

    cody c

    Messages:
    4,718
    Likes Received:
    67
    Joined:
    Feb 20, 2006
    Location:
    calgary
    as per above, bad ass CAD, bad ass tig work and nice design.

  11. Razorbackcruiser

    Razorbackcruiser

    Messages:
    422
    Media:
    2
    Albums:
    1
    Likes Received:
    189
    Joined:
    Mar 20, 2010
    Location:
    North Little Rock, AR
    Hey Tim! Please tell me God has answered my prayers and you are building these for the public? I just so happen to live in AR and would love to drive up to pick up my brand new bumper!!

    In all seriousness, if you are going to end up selling these please put me in line whether it's first second third I don't care. Just the cost I'd save on shipping would be more than worth it.

    BTW, I really like the design. I really like the beefiness to it. Bigger is always better.

    Thanks in advance.

  12. davegonz

    davegonz Keeping it Weird SILVER Star

    Messages:
    7,381
    Media:
    17
    Albums:
    3
    Likes Received:
    1,328
    Joined:
    Sep 15, 2004
    Location:
    Austin, TX
    Nice. Love the TIG welds.

  13. Uncle Grumpy

    Uncle Grumpy

    Messages:
    700
    Likes Received:
    1
    Joined:
    Sep 16, 2008
    Location:
    Granola Land
    Impressive fab skills, great fit and welds. Looking forward to more. :popcorn:

  14. Braknstuf

    Braknstuf

    Messages:
    72
    Likes Received:
    0
    Joined:
    Apr 21, 2010
    Location:
    Queen Creek, AZ
    I like the look but have to ask why the tire is on the right side instead of the left - I had always thought to put it behind the driver so that it give better visibility. Just wondered if thier was a reason.
    Thanks

  15. Dgurley2000

    Dgurley2000

    Messages:
    186
    Likes Received:
    1
    Joined:
    Jan 31, 2011
    Location:
    DFW
    Looking nice! Are you using a stopper for the swing-outs? What is the thickness of the plate? What is the advantage of the way you're constructing the swing-out arms (looks like channel with gussets?) vs square tubing?

  16. tim.korn.99

    tim.korn.99

    Messages:
    758
    Likes Received:
    28
    Joined:
    Mar 29, 2007
    Location:
    Northwest Arkansas

    Well, if we decide to make a few (maybe 5 total?) they would be pretty expensive to say the least. On par with a Kaymar or Slee bumper.
    Very high quality, and hand made using only the best materials/hardware:

    Cold rolled P&O American steel
    Fully TIG welded
    Stainless hardware
    Stainless gas struts made especially for this app by Suspa
    Monster spindles - 4130 Chromo
    CNC waterjet cut/formed pieces


    I'm still working on the swingarm designs. The tire carrier will be fully adjustable when I'm done with it.

  17. ERG80

    ERG80

    Messages:
    3,155
    Media:
    16
    Albums:
    1
    Likes Received:
    135
    Joined:
    Dec 20, 2006
    Location:
    TN
    Jerry cans are on the gas tank side so you can siphon the fuel without taking them out of the holder.

  18. tim.korn.99

    tim.korn.99

    Messages:
    758
    Likes Received:
    28
    Joined:
    Mar 29, 2007
    Location:
    Northwest Arkansas
    Good eye, Dave! I am using a low profile stopper for the swing-outs to keep them from hitting the tailgate. It happened to be supressed in the model when I pulled those renderings.

    Material thickness is 90% 3/16" and 10% 1/8". Very beefy.

    Advantage to the channel. Though the channel is stronger (when gusseted like that), the main reason I went with that is 100% CNC control over their cutting/forming.
    This allows me to "tab" all of the pieces so that they fit together exactly the same each time, and doesn't require a jig for welding.

    Last edited: May 16, 2012
  19. tim.korn.99

    tim.korn.99

    Messages:
    758
    Likes Received:
    28
    Joined:
    Mar 29, 2007
    Location:
    Northwest Arkansas

    Shoot me a PM and we'll discuss the options!

  20. tim.korn.99

    tim.korn.99

    Messages:
    758
    Likes Received:
    28
    Joined:
    Mar 29, 2007
    Location:
    Northwest Arkansas

    Exactly. That, and the weight of the spare will help offset the slight lean that all cruisers seem to have to the driver side.
