Trying to create a thread specific to one ton swaps.

There is a few owners with heavier axles swapped into their 80's, and it’s about finicky to hunt for info related to swaps and there are some common questions and issues.

If those who have swapped in heavier axles could post some pics of their axles swapped in, what obstacles they had to navigate, components (i.e. truss, rod ends, steering parts etc) that would be great.

Also the WMS widths and issues or clearance with rub that would be great. I also need to know more about swapping passenger/driver tube on the 14 bolt for clearance, if its necessary or just desirable.

Im actually resurrecting my progress due to a friend who has time, is a professional welder, and wants my 60 series axles and other parts in trade. So this thread could be a resource for others and a bit of a build thread to any who want to add to this one.. If you've posted in your own threads elsewhere don't be shy to post the same pictures and links to your build threads. Ill be adding my own info on the way.

Mine starts with a SD dana 60 off a 2005 Ford F-250, and a 14 bolt off a 2005 GM. The front unit bearing and brake disc have been redrilled to match the chey pattern. The unit bearing was also put on the lathe as the center bore is larger on the ford slightly.

basic plan is high steer arms, swap driver and passenger side to work with Toyota tcase. Reuse radius arms but replace bracket on frame to move bolt down 2” and forward 2-3”

rear will be getting the artec truss, lengthened lower links, upper replaced with wishbone link to center of truss/axle. Rear to be moved back 2.5” approximately.

going to 42” iroks on widened beadlocked 17’s.
All components have been purchased, some budget still towards machine work

Last edited:
Joined
Feb 20, 2006
Messages
5,643
Location
calgary
Axle: 2005-2010 D60

***

Axle Specs

-Tubes: 3.75" OD, 1/2" wall

-WMS to WMS: 72"

-3 degrees caster factory, users recommend 3.5-3.7 ideal



-Ring Gear: 9.75" (a 10" can be sourced from Ford in limited ratios)

-Lug Pattern: 8x170

-Wheel Studs: M14x1.50

-Axle shafts: 35 spline

-U-joints: 1450



14 Bolt

WMS 68”



80 series

WMS is 62.25 inches front axle



WMS is 62.2 rear axle





D60 parts info



Part numbers for axle parts (not an inclusive list)

Ball Joint Upper

-Moog/XRF - K80026

-Ford - 5C3Z-3049-AB (MCSOE-67) + Nut - F2TZ-3A049-A



Ball Joint Lower

-Moog/XRF - K8607T

-Ford - 8C3Z-3050-C (MCSOE-51) + Nut - F2TZ-3A050-A + Snap Ring - EOTZ-3K050-B



Updated Dust Shield

-Ford - AC3Z-1S175-A (BRS-170)

-Spicer - SS 53877



Axle Seal

-Ford - 5C3Z-3254-AA

-Spicer - SS 2017426 (55474 old#)



AutoLock Hub O-Ring kit (not needed since vacuum system won't be used)

-Ford - 5C3Z-1K106-AB (complete kit with 2 o-rings, gasket, screws)



Yellow Hub/Knuckle O-ring

-Ford - 5C3Z-4A322-AA

-Dana/Spicer - 54983



U-Joint

Spicer - SPL55-3X

Spicer Greaseable - SPL55-4X








Joined
Feb 20, 2006
Messages
5,643
Location
calgary
So, these things really are a few bucks to get together, I think I spent over $1500 this past week and that doesn’t include any labour costs. The thing is you quickly get “scope creep” on projects like this. For example, you might as well go with high steer when you do the swap. If you do high steer, your pulling the knuckles, if your pulling knuckles you gotta pull axles shafts (which you remove anyway for a passenger/driver side swap) then you might as well do U joints while they’re out. And axle seals, and ball joints since you need to press out the upper ball joints to mill the knuckles might as well replace those... Next thing you know your replacing brake components, cleaning up old rusted knuckles and using a durable paint or powder coating. I’m reusing front radius arms and lower arms so might as well replace all bushings as well.

anyway, point is, i see that if you really wanna keep the costs minimal, you have to ignore the maintenance that should be done till after the swap is complete and you’ve driven it a short bit. The costs of new wheels and tires, axle truss, and metal for brackets, brake lines etc already adds up quick.

Anyone wanting to do this in a budget will have to get in the habit of ignoring worn parts till they have budget, scope creep is significant with this type of project...

cleaned up knuckles with wire wheel, then muriatic acid, cut off steering arm as I’m going to high steer.

found someone local to mill knuckles and broach (respline) long side axle shaft. Will post links to everything later.

could definitely use some info though, anyone use a disc brake 14 bolt axle and have any feedback about driveshaft angle for the basically centered pinion???




Joined
Feb 20, 2006
Messages
5,643
Location
calgary
17” wheels, they are actually dodge wheels which use a slightly bigger hub bore. Had aluminum rings ordered so wheel bore sits against them.

I believe they are 35 metric bolts, wheels were widened 2”, I drew up the beadlocks design and gotta buddy to burn them together, he is a professional welder and has access to some pretty cool machines to burn them. Ordered 3/8 aluminum outlets today.

Something really cool about widening wheels, I’m some sort of elitist now, hah. Put a unit bearing in the vise to spin the wheel on, use a dial indicator to get alignment right, then tack weld and add the next piece. Gonna get them run on a wheel balancer and try and balance them by welding a bit to them before powder coat. I believe the beadlocks were about 10 thousands or less within true. We will see how they work.


superduty calipers next to V6 4Runner calipers, you cant really tell from the pictures but the Ford calipers just seem huge in comparison. Should help with the heavier wheels and 42” iroks.


brake calipers, knuckles and wheels are getting powder coated




u joint saddles were ground down and lathed flat, I have flanges off a cruiser flange that was cut up to act as a middle adapter (the pinion nut can’t come off otherwise as the center bore is too small) and drilled them again for the cruiser driveshaft bolts.

14B takes 5/16-24 bolts, D60 takes M7 x 1.0 bolts on pinion saddle/flange

Last edited:

cruisermatt

Un-manufacturable
Supporting Vendor
SILVER Star
Joined
Jul 22, 2012
Messages
9,759
Location
Orlando Florida
so you are leaving the 14B full width? You're still running the FJ60 splitcase, right?
I still really like the way you machined the yokes to work with Toyota shafts. That is a neat idea

Joined
Dec 26, 2009
Messages
2,595
Location
808
so i am going to go ahead and just post this so we can get it out of the way, flame me all you want.

if you have a 6BT, 1 ton axles and a manual trans................... why didnt you just buy a dodge truck to start with ??

So you can look cool as hell in a land cruiser.


leonard_nemoy

SILVER Star
Joined
Jan 19, 2005
Messages
2,230
Location
South west utah
so i am going to go ahead and just post this so we can get it out of the way, flame me all you want.

if you have a 6BT, 1 ton axles and a manual trans................... why didnt you just buy a dodge truck to start with ??

Sounds to me like he is taking everything good off a dodge truck and leaving the rest for the junkyard. Dodge diesel trucks are the most reliable unreliable diesel trucks. They can go for 300,000 + miles on the original drivetrain but the window motors, door locks, and basically any other non drivetrain parts will have to be replaced 4 times. In my neck of the woods diesel pickup trucks are big business. The ultimate diesel truck out here is the Fodge. A dodge drivetrain transplanted into a Ford truck.

Joined
Feb 20, 2006
Messages
5,643
Location
calgary
so i am going to go ahead and just post this so we can get it out of the way, flame me all you want.

if you have a 6BT, 1 ton axles and a manual trans................... why didnt you just buy a dodge truck to start with ??

Fair question. Easy answer is “because 3FE” haha.

I bought the cruiser with the 6BT, previously I had a 3FE in another one and it was nothing but poor mileage and maintenance.

The 80 in stock form is a capable beast, but with the extra weight and oversized tires gets hard on the driveline. When I had 35’s it was non issue, but 35’s are a gateway tire. They were followed by 37” nittos and then 38” geolanders. After a couple broken pinions and some birfs at inopportune times, I realized the axles just aren’t reliable enough for winter wheeling (-25 and 2 hour drive from beaten paths) or hunting trips in somewhat remote terrain.

There is a cross roads where you either replace worn parts like a bandaid, or fix the issue more permanently. I’m going to 42’s now, even with a 1FZ the stock axles or even chromoly parts are kind of beyond capacity at that point and in the realm of stronger axles regardless.

No flaming necessary, it’s a reasonable question, but moderation has not really been my card.

Edit: also the wheeling in the NW tends to be narrow trails through either Muskegy mud or rocky slopes, with many bumpy long rocky river beds roads that’ll shake your teeth out.

A cummins truck is too rigid, too long too wide. In my opinion something like a mini truck or 4Runner with soft suspension built to handle very long rough roads at speed is better for trails. The airbags on mine have been quite nice for riverbed rocks.

Last edited:
Joined
Feb 20, 2006
Messages
5,643
Location
calgary
so you are leaving the 14B full width? You're still running the FJ60 splitcase, right?
I still really like the way you machined the yokes to work with Toyota shafts. That is a neat idea

Yes to full width. Getting rid of the split case for a full time case. The trans needs a rebuild anyways and have the jonesy’s parts coming. Willing to sell split case and AA adapter later if intrested.

Full width 14 bolt yes. The dodge wheels have more backspacing. The width should be more when finished, but the distance between the inside of tires only an inch or two more (wider wheels and tires, 62.2 WMS in back with 2” spacers 4.5” BS wheels compared to 68” WMS with 6” BS wheels). I may even need 1/2” spacers in the back if my numbers aren’t out to lunch too much.

Last edited:
Joined
Jun 6, 2016
Messages
812
Location
Magna, UT
Maybe dumb question....but do your wheels fit on the front axle? I'm asking because I have 18" rims on my 100, and they just barely clear the steering arm/tie rod end of my 99-04 Super Duty knuckles with fairly deep backspaced wheels. I couldn't fit 17's if they had the same offset.

Joined
Feb 20, 2006
Messages
5,643
Location
calgary
Maybe dumb question....but do your wheels fit on the front axle? I'm asking because I have 18" rims on my 100, and they just barely clear the steering arm/tie rod end of my 99-04 Super Duty knuckles with fairly deep backspaced wheels. I couldn't fit 17's if they had the same offset.
I don’t have the high steer arms yet, I guess I’ll find out!

The tires I have came off a superduty with 17” alloy wheels.


Joined
Jun 6, 2016
Messages
812
Location
Magna, UT
I don't have high steer arms either...but you don't appear to have any steering arm at all. Where are they on the '05+ knuckle?

This is the close spot I was thinking of:

Joined
Feb 20, 2006
Messages
5,643
Location
calgary
Already ground the one off. They might be ok, if not I might get away with something like 1/2” or 3/4” wheel spacers if they make them. I believe mine are off a 2005. Your arms are in a different location





Also the tie rod hangs off the bottom side of these knuckles, the drag link runs to the top side of the passenger link, one long stud that passes through as part of the drag link and the tie rod shares the stud and slides upwards to attach to it


Joined
Feb 20, 2006
Messages
5,643
Location
calgary

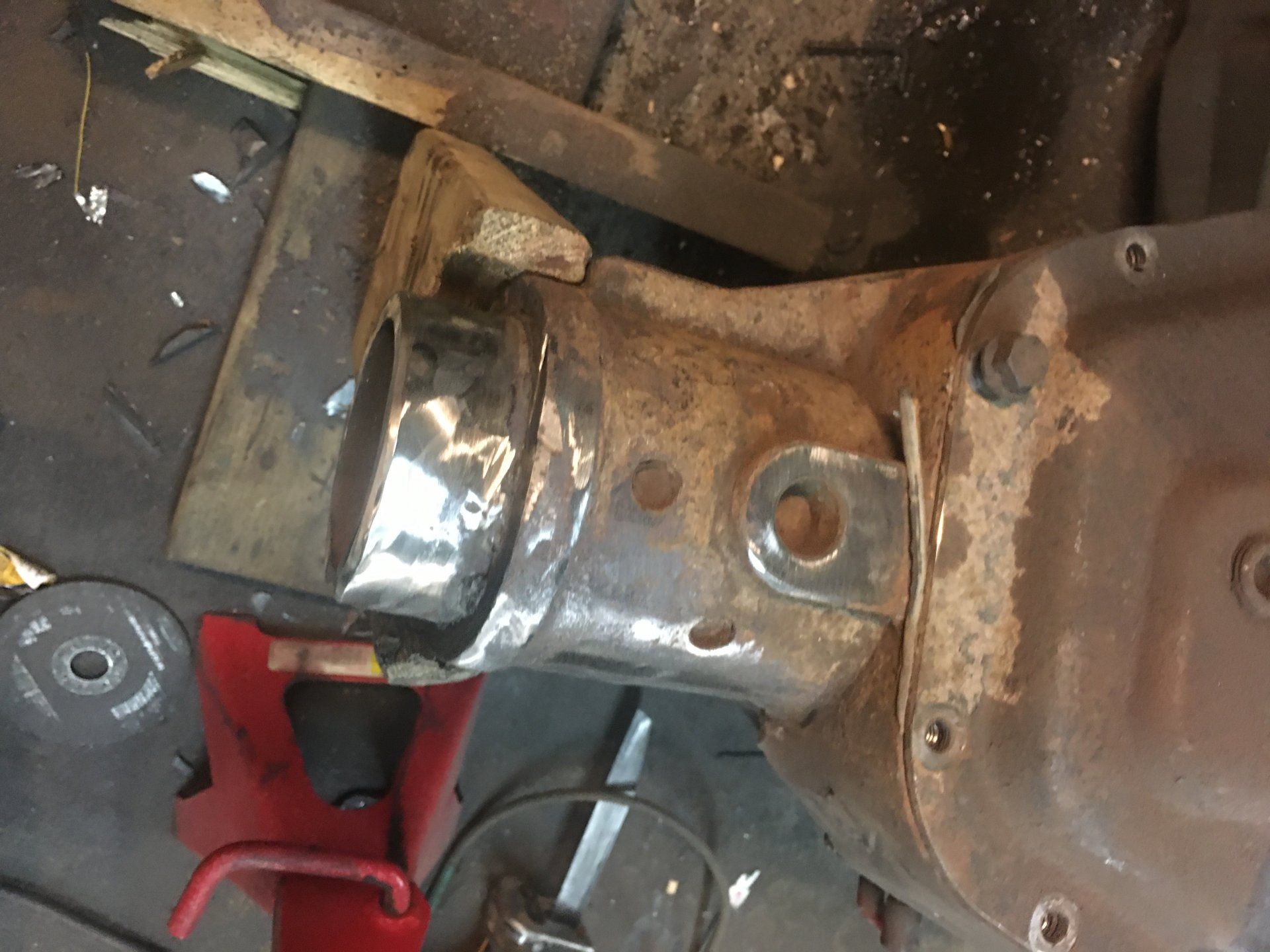

Lopped off the inner knuckle on the short side, cleaned up the tube and marked /started cutting tube off for the new short side.

The axle tube is pressed in the inner knuckle, I couldn’t press it out with my 20 ton press so I have to cut some slots in it to press it out, ran out of sawzall blades and hard to cut with a grinder, but I should be able to get it out today.

I will probably have to take some metal off the new short side so be able to press/hammer the inner C on before welding. Long side will get an piece of pipe on the inside to span the two pieces of pipe to strengthen it, the fella welding has access to an alignment jig, which is a long piece of chromoly shaft and two discs which clamp in the diff saddles so the rod can see that things are straight before final welding.








The bottom side of the diff housing, I smoothed it up a bit with the grinder, this has taken a lot of time with a grinder already, I kind of wonder if Im mad for doing this but its getting close to sending off to Corey the welders place for him to put things back together.


I made this "axle saddle stand" out of some left over treated 2x6 or 2x8 lumber. I would recommend taking the time to do this if you ever build an axle. You end up rolling or turning it so many times, and it didnt spin so easily on jack stands. Once you have round tube it rolls pretty well.


Edit: picked up the 3/8” aluminum outers today:


Last edited:
Joined
Feb 20, 2006
Messages
5,643
Location
calgary
Was just going to edit and add pictures but it says a max 5 pics per post.

Drilled to countersink the beadlocks, need to take a router and round the inner edge for tire bead. Also got the pipe out of the inner knuckle, it was in there good








Joined
Jul 2, 2014
Messages
524
Location
Edmonton, AB
so you are swapping a driver drop dana 60 to a passenger drop? Curious how that works out. Have you figured out what driveshafts you are going to do? Dirt Lifestyle on you tube did that swap on a Rover and seemed ok.

Joined
Feb 20, 2006
Messages
5,643
Location
calgary
Yes, driver to passenger swap. I’ll have more details on the exact process but essentially that’s what’s going here.

So for driveshafts, I’ve taken a grinder to the pinion flanges, then put them on a lathe to spin them flat. I’ve taken Toyota pinion flanges and cut the flanges off. These will use the Toyota flanges as an adapter.

For those not in the know, the Toyota pinion flange has a center hole that is used to align the Toyota driveshaft which has a round cylinder to align the shaft within the pinion. The opening on the Toyota flange is too small to get a socket through for the one ton pinion nuts, so they kinda have to be two piece to both align the Toyota shaft and to be able to bolt the pinion flange on.

I’ve been on the fence about using DC shafts, because I have airbags my ride is a bit more inconsistent and I think a non DC shaft is probably better front and back. I’m not 100% on best pinion angle, but I’m thinking just a couple degrees up or close to match the output on the t-case. Been trying to get more first hand info but I haven’t found any good resources to that end.

Edit, going stock shaft in the back, DC in the front..

Also, I’m going to have the frame bracket for the radius arms moved forward and down a couple inches, because of the longer pinions on the heavier axles the DS length may be acceptable without modification, but a bit early to know for sure. I don’t have any binding issues with driveline know at full height,

New TRE’s in the mail for the ford stuff, beefy! Makes the 80 TRE’s look like kiddy toys. It’s an added benefit to the upgrades for sure. I find it interesting the upgrades in strength also go with braking, and steering as well as lug studs etc, if you compare just the project value for strength to a heavily upgraded set of 80 axles with chromoly parts, trusses, internals etc, the costs may not be that far off of one ton swap. Not including wheels or tires or labor I’ll be into these for I think $3k give or take for the set of axles with almost all new parts on the front axle, truss on the rear etc.


Last edited:
