Project: Rebuilding a busted CV

[ClassyJalopy]

Last month my brand new Toyota OEM CV axle had it's splines grinded off because of a really bad install. Read all about that fun stuff here: A Harrowing Tale of Incompetence - How I destroyed a steering knuckle

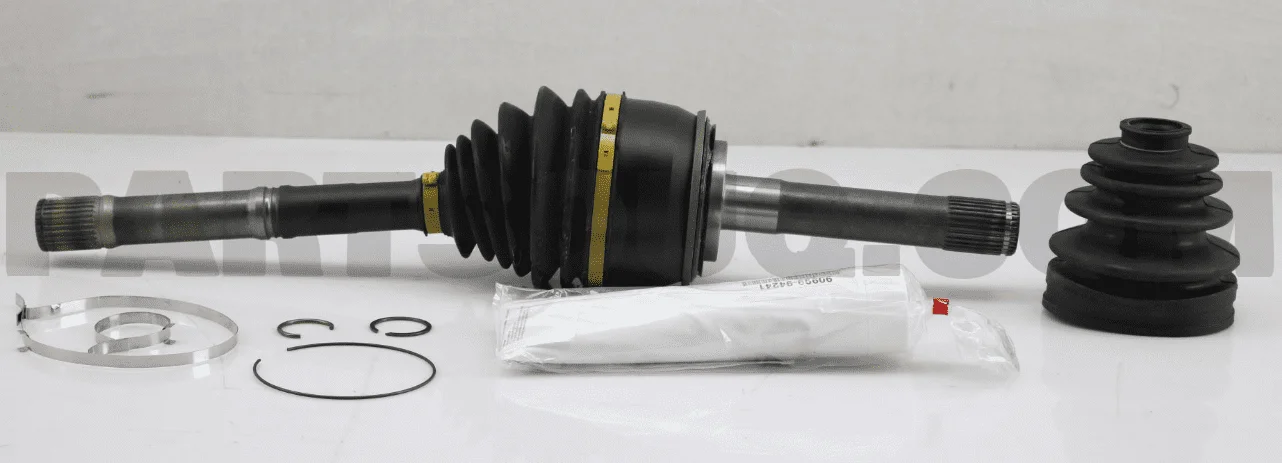

Now I am rebuilding the CV axle by replacing the out board shaft. Toyota sells the outboard shaft in a neat package with all parts including boot, clips and even grease. This is my attempt to document the process.

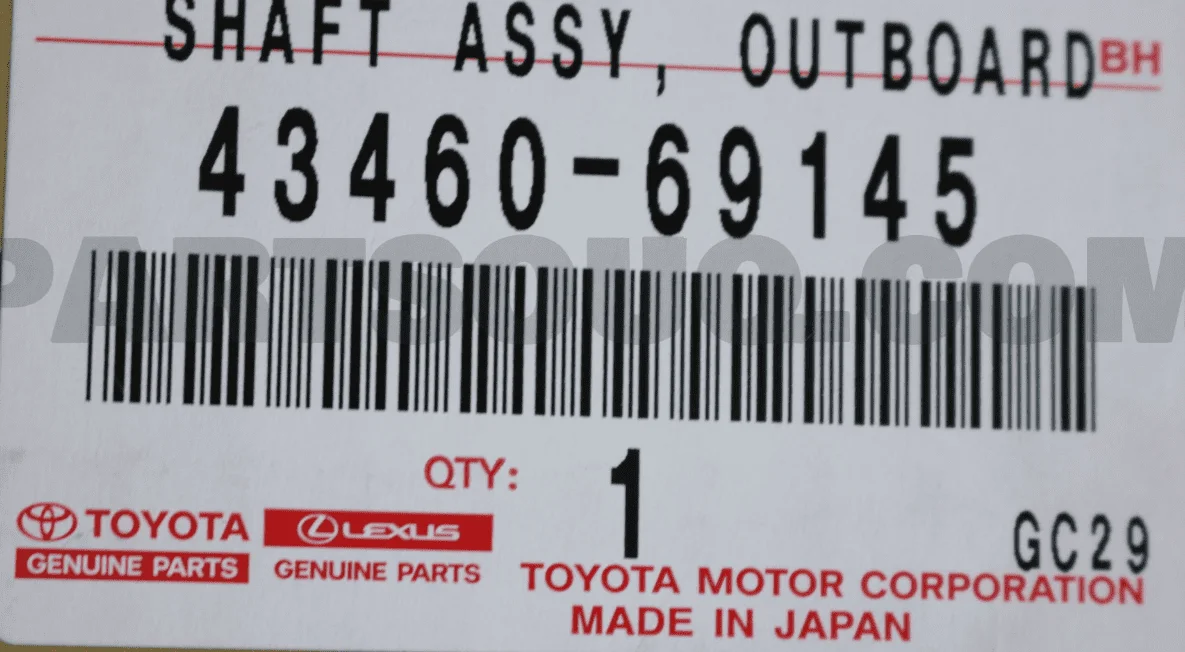

Part number: 43460-69145 $200 at the local dealership



[ClassyJalopy]

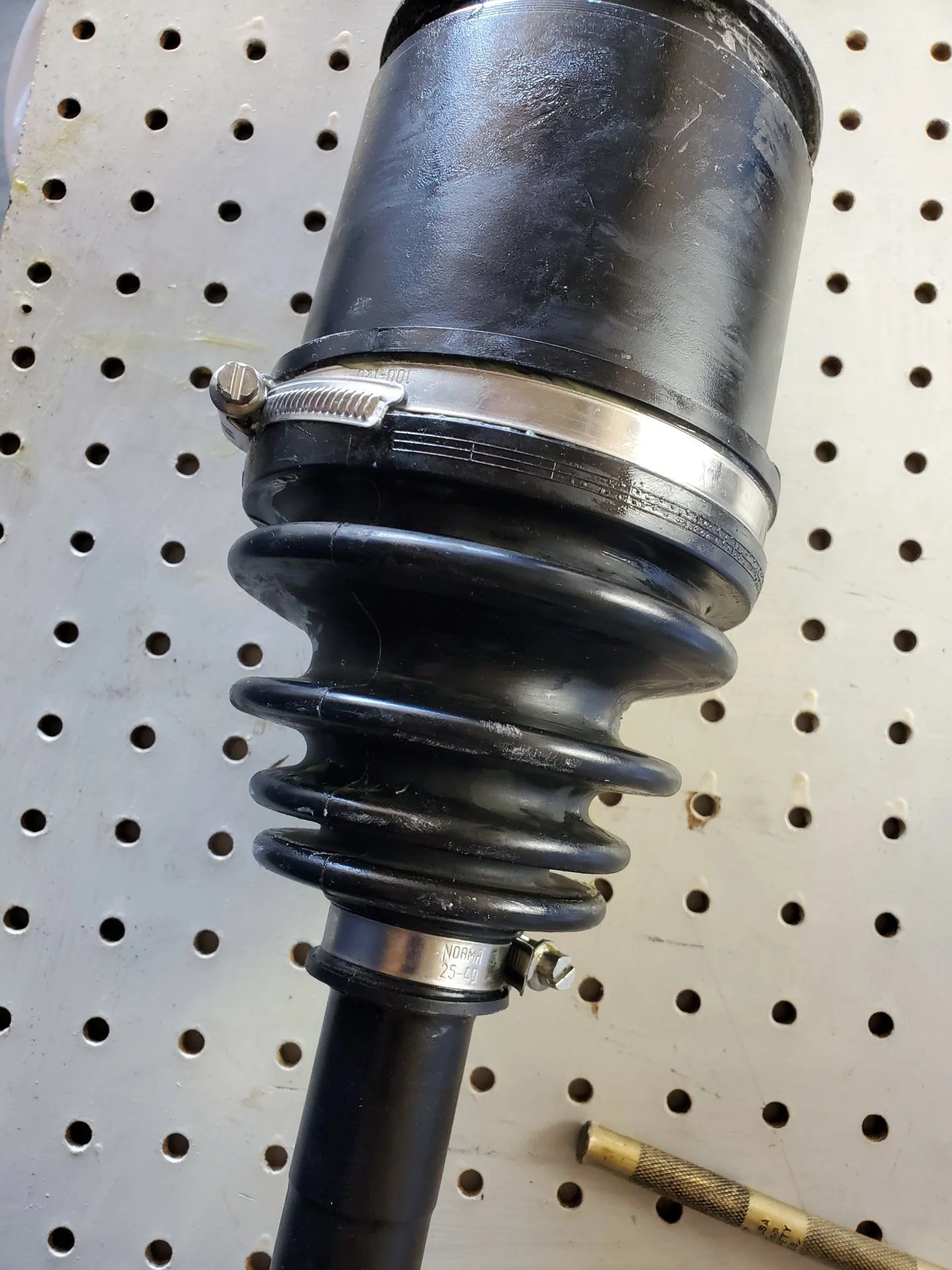

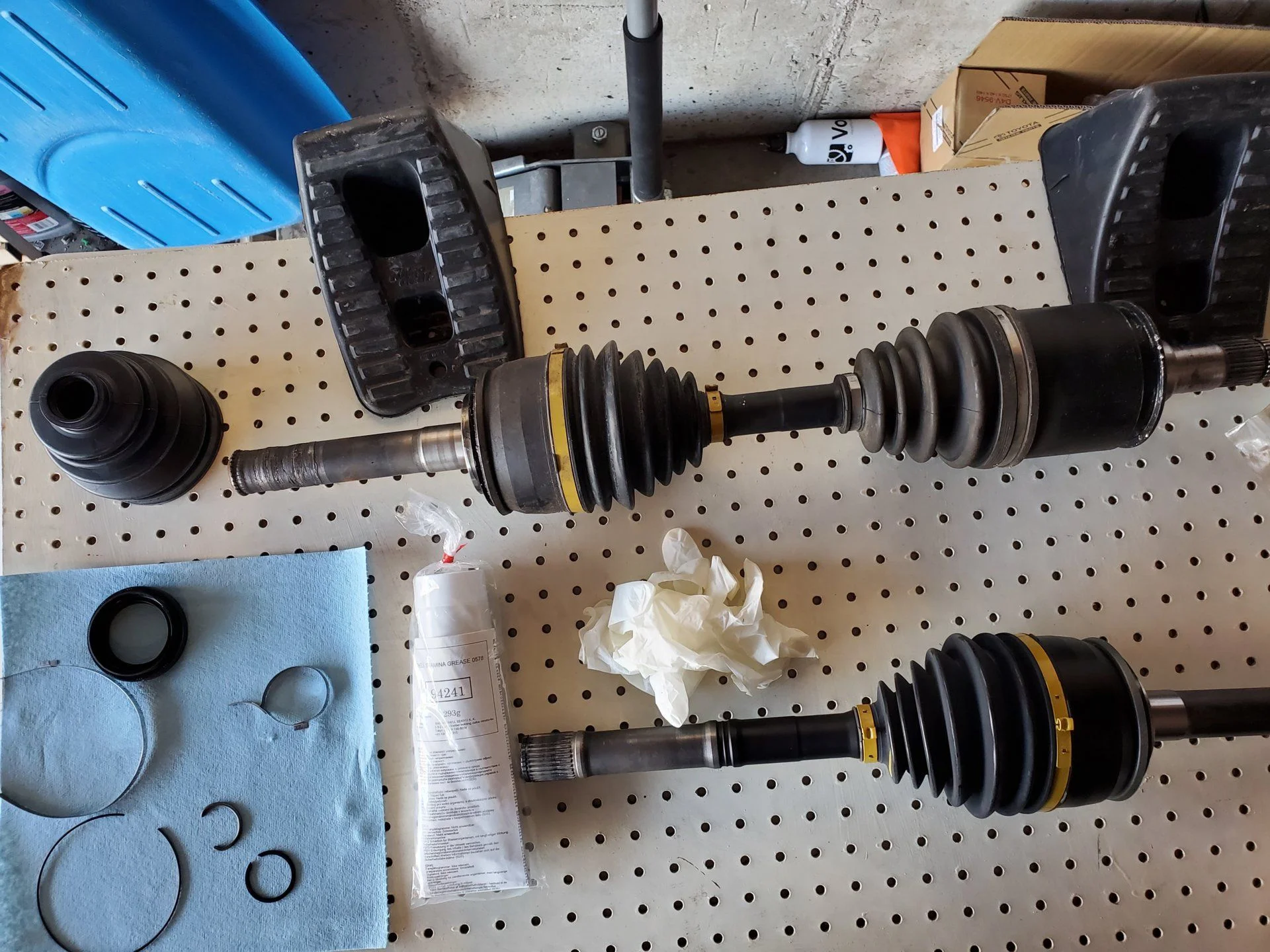

Note: The yellow clamps (larger/longer boot) is the outboard (closer to wheel) and we are NOT going to mess with it at all. All the action is on the inboard join (smaller boot).

Step 1: pop the tabs on the boot clamps and pull them off. Then slide the boot down on the shaft away from the joint.

Step 2: Clean the grease off as much as you can. There is a large diameter c clip that is sitting on the inner lip of the tulip. It pulls out easily with a small screwdriver. Take it off and discard. You can now slide off the tulip of the join.

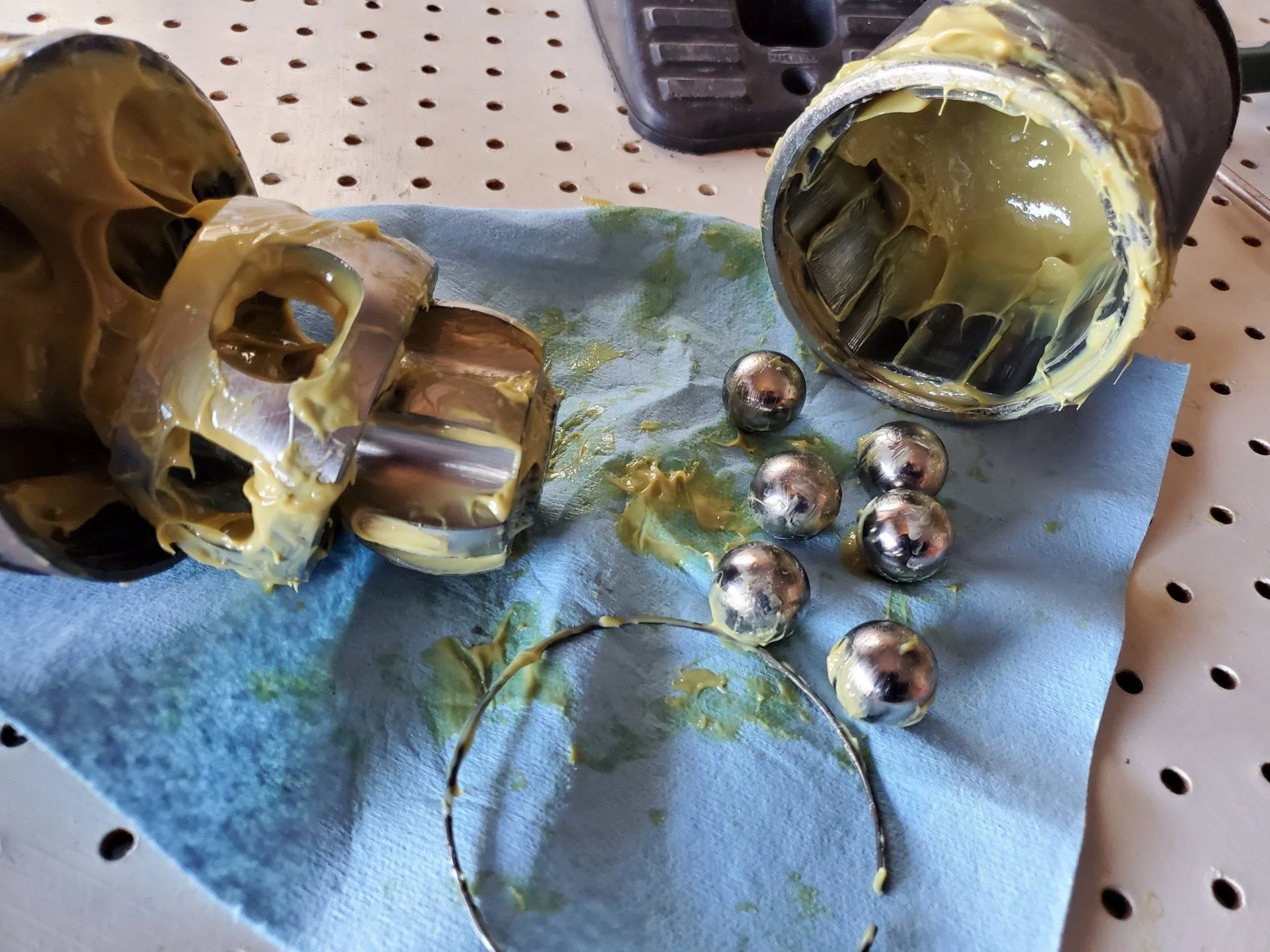

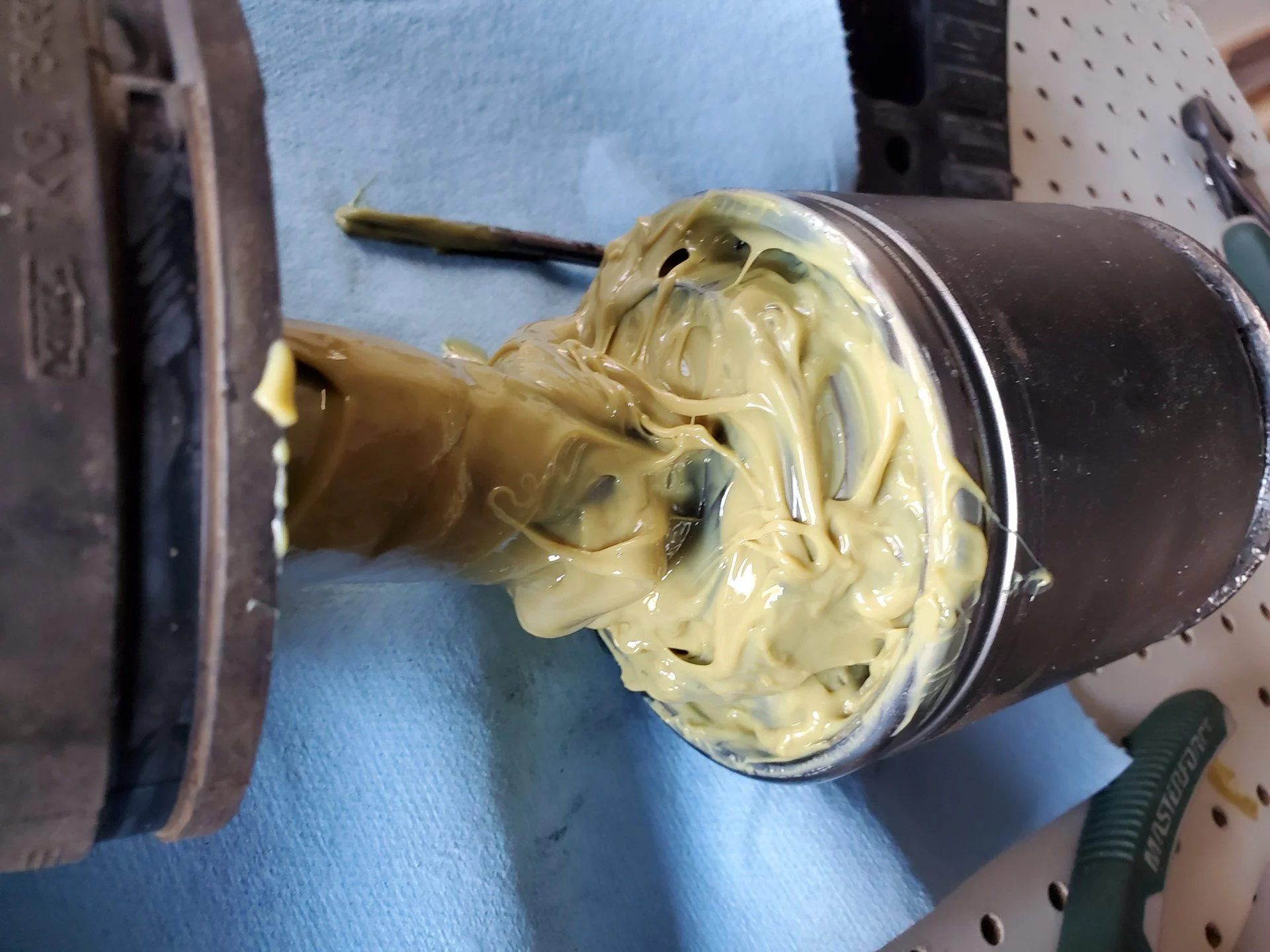

Caution: 6 heavy ball will want to fall out. Carefully clean them - they will be reused in reassembly later.

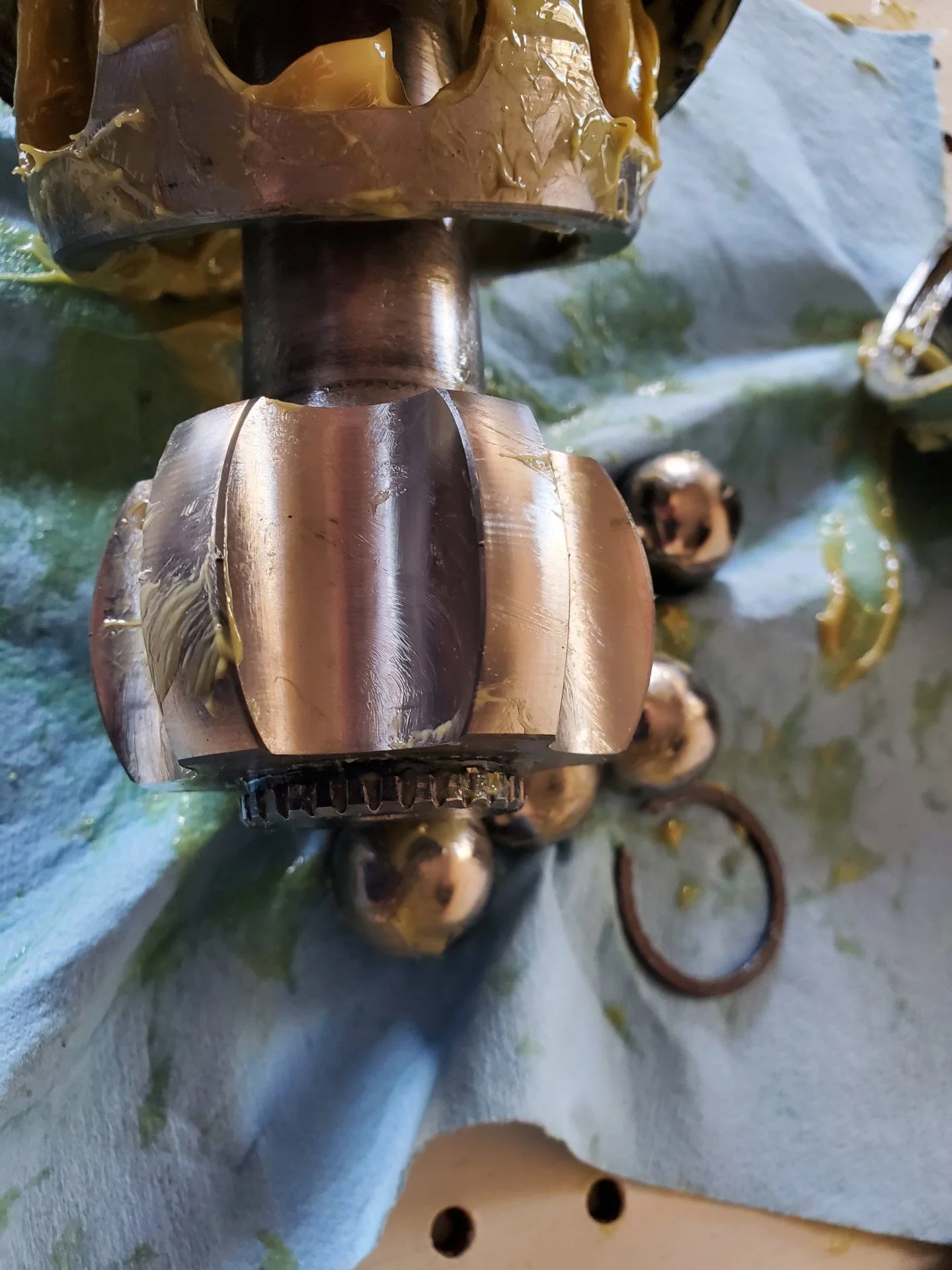

Step 3: The inner race the hold the ball bearings is held in place by a small diameter C-Clip. Take it off and discard - we already got replacement ones



[ClassyJalopy]

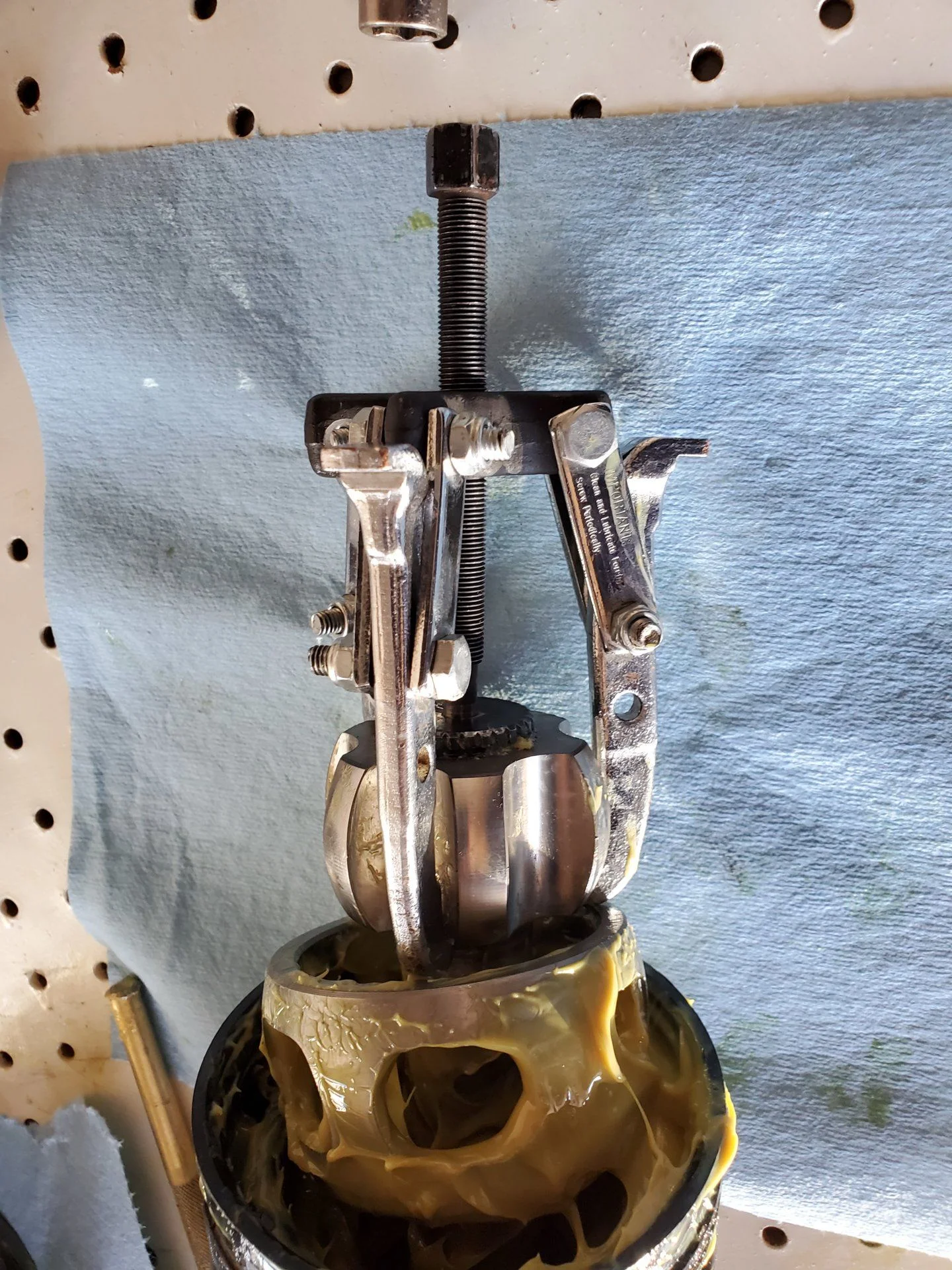

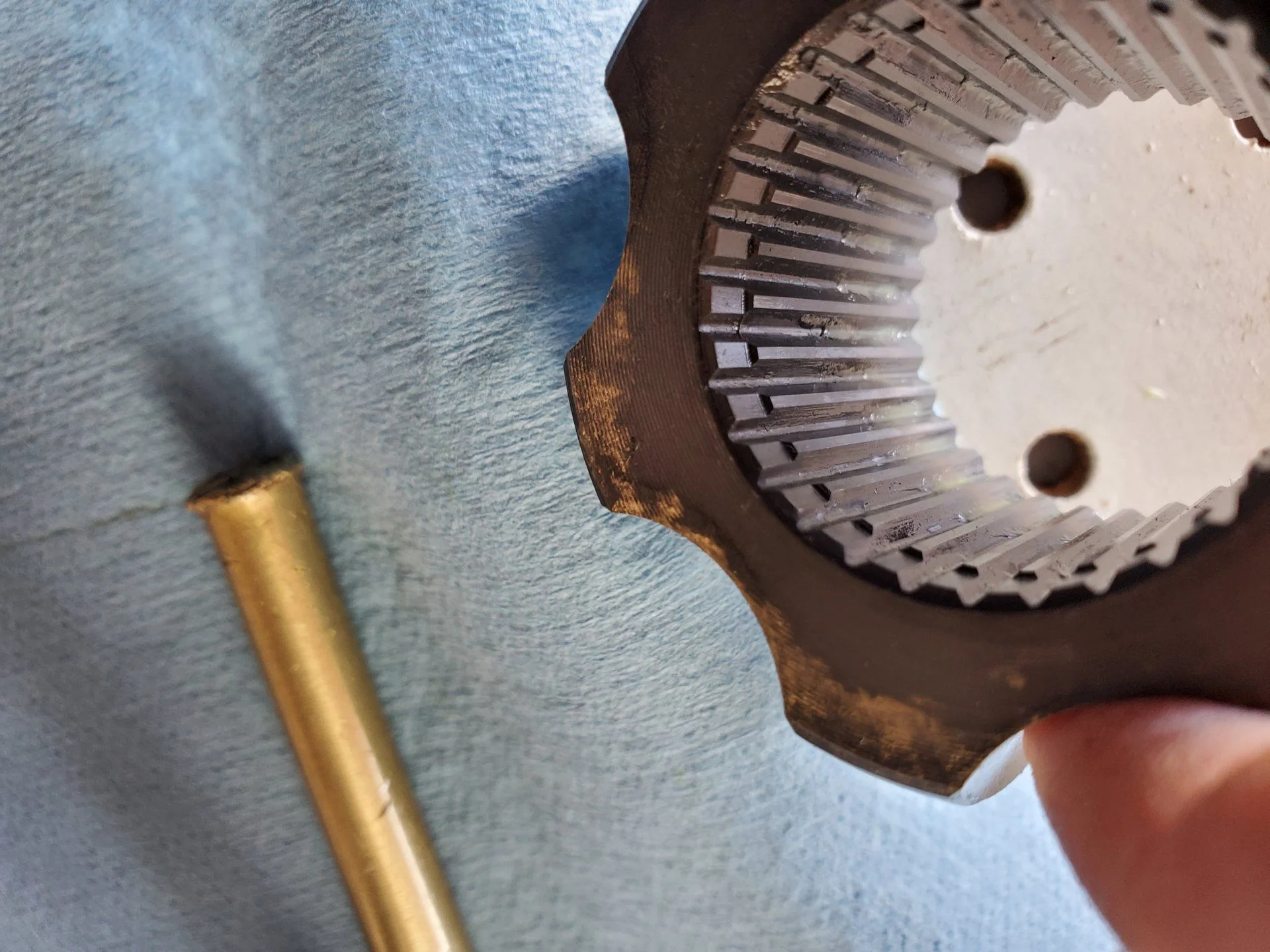

Step 4: Use a (rented) jaw puller to pull off the bearing carrier/inner race. Now, you can slide out the bearing holder/outer race and the boot will also easily slide off. The old outboard shaft can now be discarded (or sold to another mud member - you never know!)

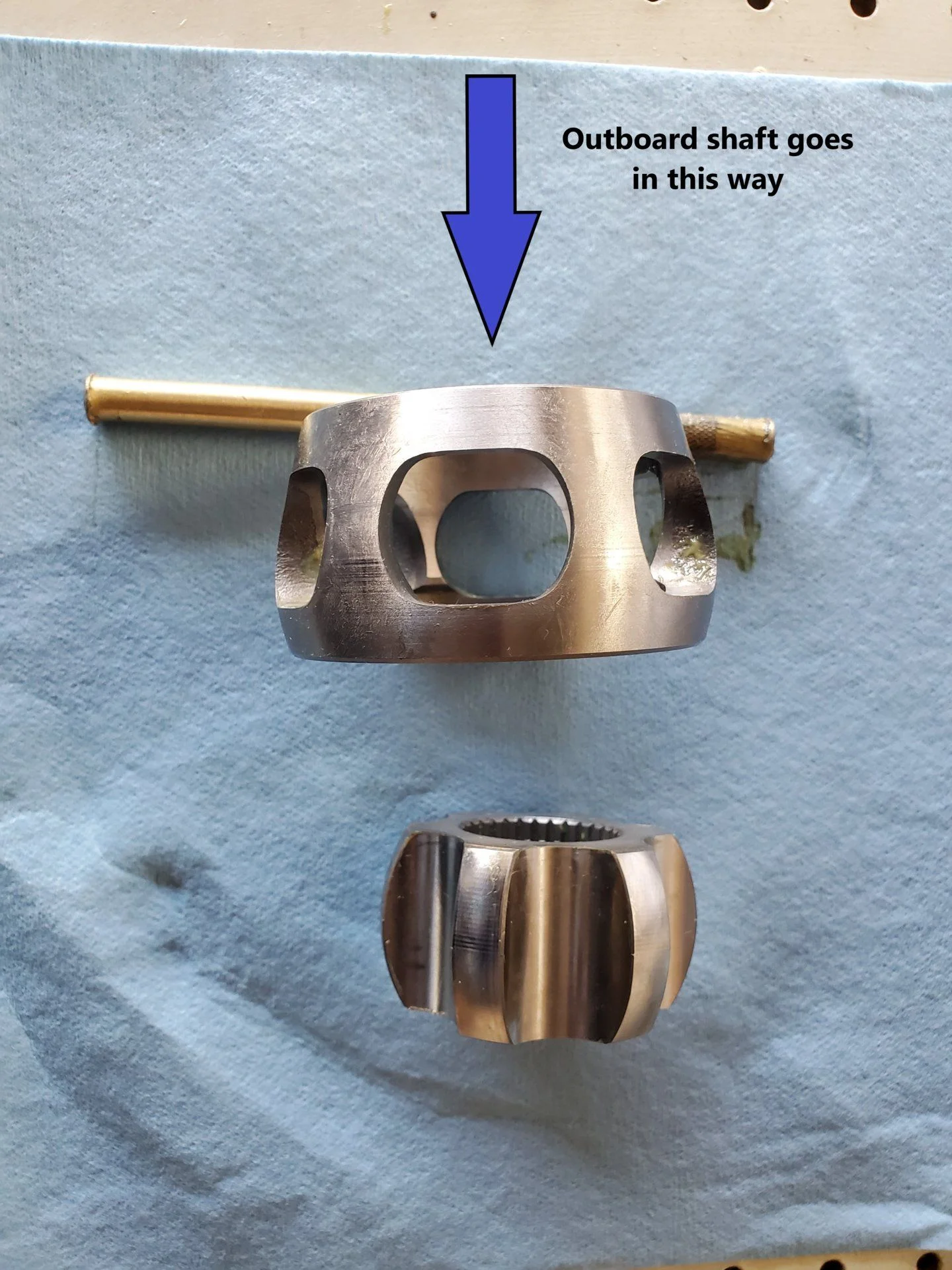

Note: Please note the the orientation of the bearing races going back in. Also, notice the inner race has slightly tapered/lowered splines on one end to make it easier to get it started on the new shaft.



[ClassyJalopy]

Step 5: Slide your new small boot clamp onto the new outboard shaft, then slide the boot on and then the outer bearing race/cage.
Step 6: Slide on the inner bearing race starting from the tapered side. Use a brass bar to knock it evenly on all side to get it all the way in.
Step 7: Put the new small c-clip on the outboard shaft to keep the bearing race from sliding out
Step 8: Put some grease on the outer cage and slide onto the inner race and then dip your balls in the mustard grease and put them in the cage.
Step 9: Slide the tulip back on. Install the larger C clamp on the inner lip of the tulip to stop it from sliding out.

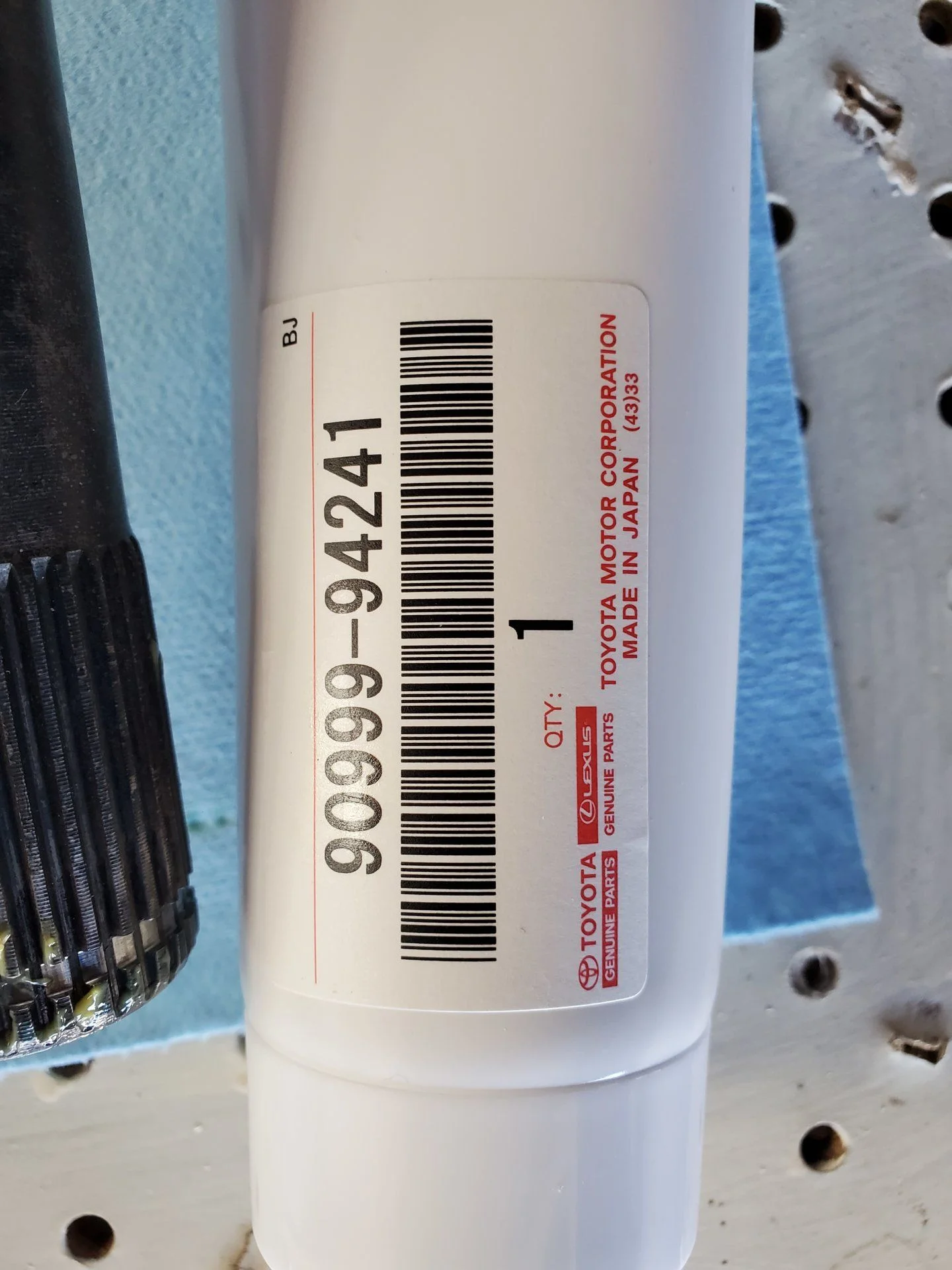

Step 10: get all the grease from the provided grease tube into the boot and tulip.
Step 11: Slide boot onto the tulip and install the large clamp
Step 12: slide the smaller end of the boot towards the outboard joint until it seats on its groove. Install the clamp
Step 13: clean up and rejoice.

I used the pFran clamps since they don't require any special tools.



[gatormark91]

You can whack the bearing carrier/race with a brass hammer and it will come off. Never needed to rent anything.



[gatormark91]

and, BTW - "dip your balls in the mustard grease and put them in the cage" sounds like a really horrible thing, taken out of context.



[MongooseGA]

Awesome post. I didn't know they could be rebuilt this way. Thanks for documenting it. How long did everything take?

and, BTW - "dip your balls in the mustard grease and put them in the cage" sounds like a really horrible thing, taken out of context.

Yeah well that's just like, your opinion, man.



[ClassyJalopy]

Awesome post. I didn't know they could be rebuilt this way. Thanks for documenting it. How long did everything take?

ABout half hour for the whole thing. I now have a new spare CV if I ever need one!
