SOLD New England: FJ40 Vacuum Hose to Fuel Hard Line Clips 90468-05025 Or Substitute

[Ackcruisers]

Vehicle Model

1. 40 Series

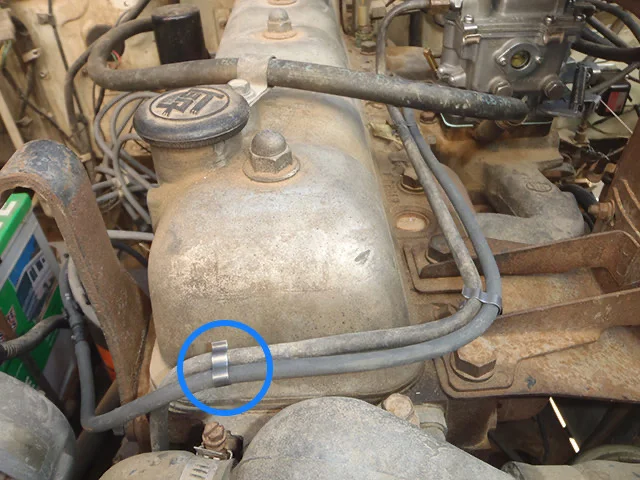

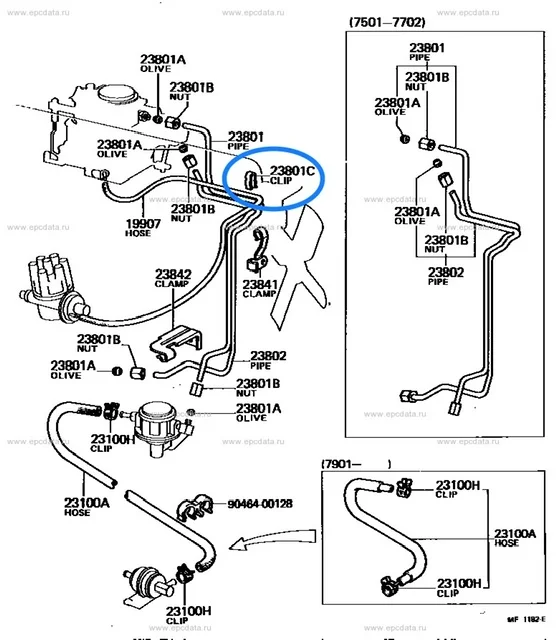

Just realized I routed my vacuum advance hose from distributor to carburetor incorrectly. Looking for QTY (3) 90468-05025 clips that attach the vacuum hose to fuel hard line as shown.

Has anyone found an alternate Toyota clip part number that is still available?



[mattressking]

Oh that’s easy, double or triple vac line clamp.

90464-00082 - double clamp
90464-00074 - triple



[65swb45]

Nate, are those plastic?



[mattressking]

Nate, are those plastic?

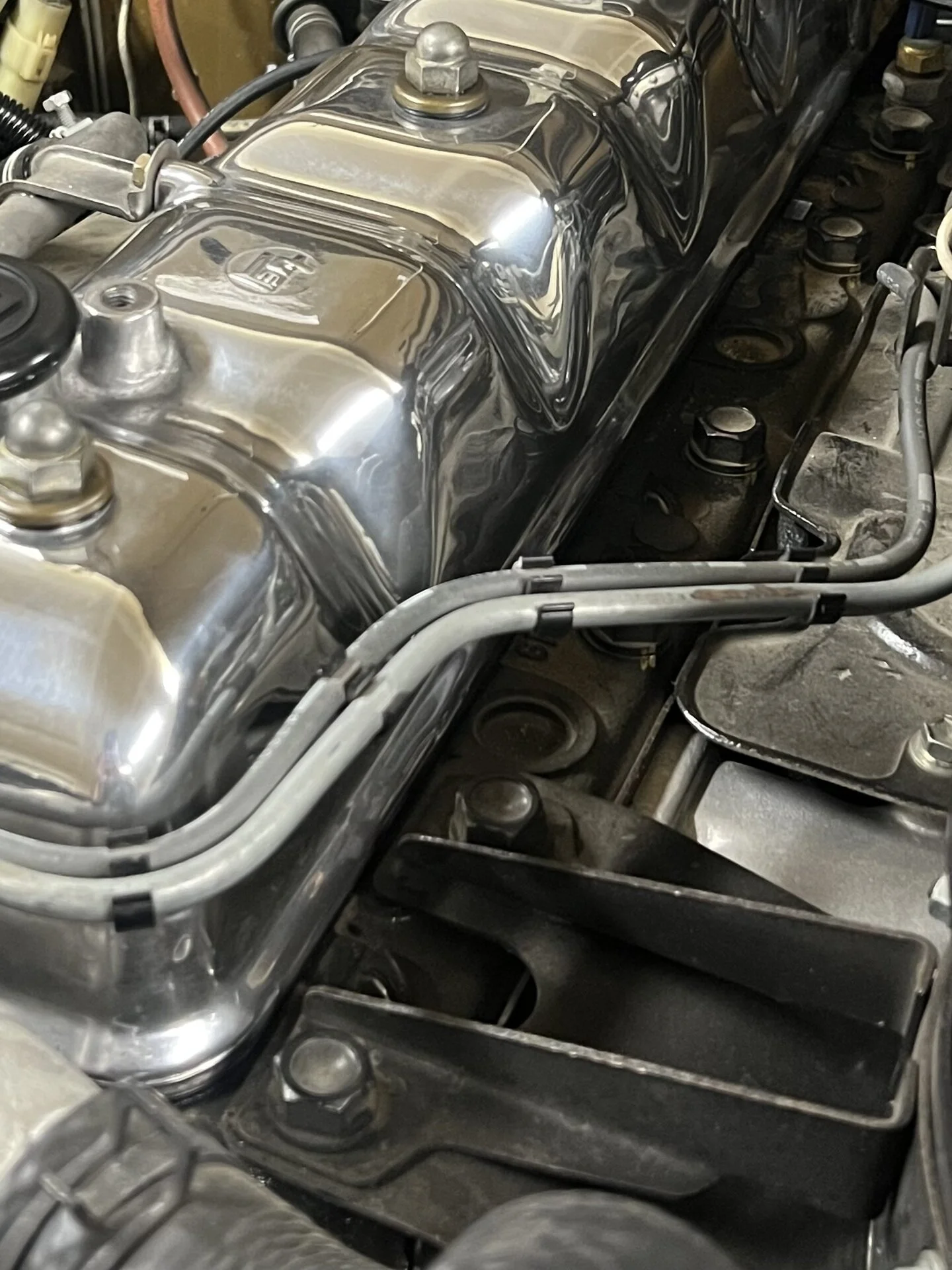

Correct, no more metal all of the vacuum hose clamp options are plastic.



[Ackcruisers]

Thanks, Nate @mattressking... I appreciate those who have the sourcing expertise to cross reference or find new updated part numbers. Above all, I like it when the info is shared.



[777sam]

Just realized I routed my vacuum advance hose from distributor to carburetor incorrectly. Looking for QTY (3) 90468-05025 clips that attach the vacuum hose to fuel hard line as shown.

Has anyone found an alternate Toyota clip part number that is still available?

View attachment 3529548
View attachment 3529549

Just realized I routed my vacuum advance hose from distributor to carburetor incorrectly. Looking for QTY (3) 90468-05025 clips that attach the vacuum hose to fuel hard line as shown.

Has anyone found an alternate Toyota clip part number that is still available?

View attachment 3529548
View attachment 3529549

Any luck finding metal vacuum line clips? Im interested if you find a source.



[Ackcruisers]

They’re NLA new. The plastic ones work great.



[65swb45]

I have a few dozen used metal ones. As always, happy to part with a few at a time with package deal orders.



[ToyotaMatt]

Just realized I routed my vacuum advance hose from distributor to carburetor incorrectly. Looking for QTY (3) 90468-05025 clips that attach the vacuum hose to fuel hard line as shown.

Has anyone found an alternate Toyota clip part number that is still available?

View attachment 3529548
View attachment 3529549

Nate, are those plastic?
