Need pictures of OEM/Pakistan bows

[74fj40]

HI- Looking for as many pictures of your OEM stlye bows with out the soft top on as possible trying to reporduce some of the peices for my soft top but not 100% sure how the go together.


Specifically I'm looking for some pictures from the inside facing the rear of the truck.



Thanks, Max!



[JohnnyC]

https://forum.ih8mud.com/40-55-series-tech/159334-****canvas-maintenance-****-oem-soft-tops.html

https://forum.ih8mud.com/40-55-series-tech/247086-post-pics-your-oem-reproduction-top-fj4xs.html

https://forum.ih8mud.com/40-55-seri...t-top-possibility-version-2-east-coast-5.html

https://forum.ih8mud.com/40-55-seri...t3728250.html?highlight=make+bows#post3728250



[JohnnyC]

FrontBow



[JohnnyC]

you have oem bows....what pieces are you missing?

more:
http://www.crushersrule.com/top/index.html



[JohnnyC]

this thread is also very good ...alot of measurements also:
https://forum.ih8mud.com/40-55-series-tech/235858-softtop-bows-drawing.html



[Living in the Past]

If you need anymore pictures let me know. I see what I can do.



[cruiserbrett]

If you need anymore pictures let me know. I see what I can do.

Man, you go and post pics of three sets. No I feel insecure with the two full sets I have...



[74fj40]

Hi- Does anyone have any pictures of the windshield channel?



[nuclearlemon]

i've got a spare weld on w/s channel. i used an old rope style bikini channel instead.



[nuclearlemon]

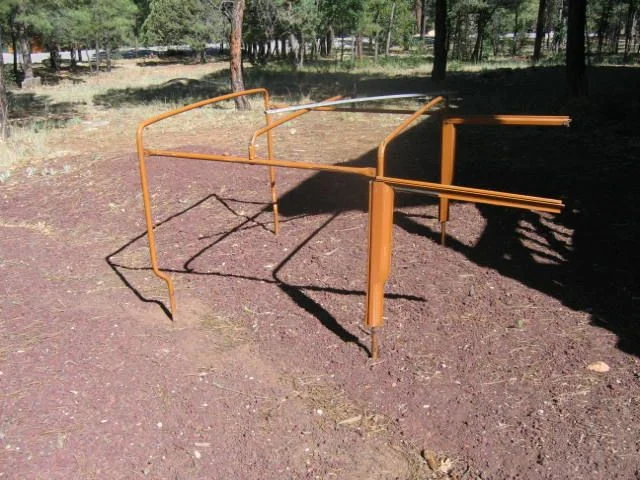

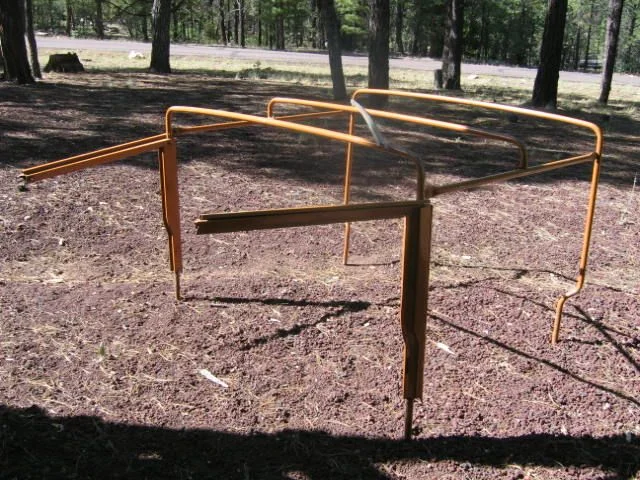

eshan bows sans top
