Need Help With Missing FJ-55 Piece (1 Viewer)

[amos715]

i am putting together a pig that i got two years ago, it was in pieces then and seems to be mostly complete.

i can not find this part, i have a good idea of what it should look like, and after going through two barrels of parts twice i can not find it.

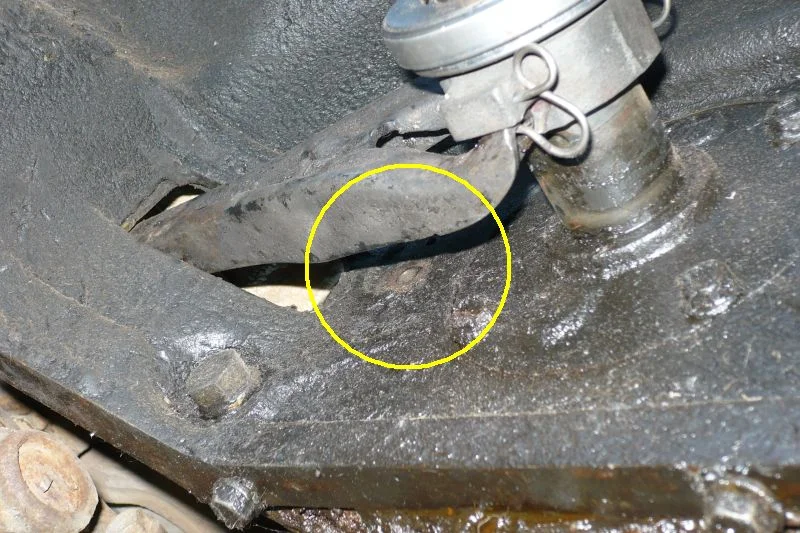

behind the shifting fork thingy (yeah i'm iliterate on part names)



[nuclearlemon]

you need the pivot ball for the clutch fork.



[amos715]

you need the pivot ball for the clutch fork.

you got a part number?



[Poser]

you need the pivot ball for the clutch fork.

Stamped steel fork pivot, used with a three-finger clutch, which is taller than the cast fork pivot found with the diaphragm clutch.



[Poser]

you got a part number?

#15 and #77 in this picture below from SOR <---- this is a link



[Poser]

The piece you are looking for is not in the flywheel housing on the opposite side, is it?



[amos715]

The piece you are looking for is not in the flywheel housing on the opposite side, is it?

no - ithink your pic above is right. part #15 and #77

thanks a million



[amos715]

thanks again i just got parts 15, 77, 13, 45, 76, 75, 12
