My scratch built 40 series trailer.

[croozy]

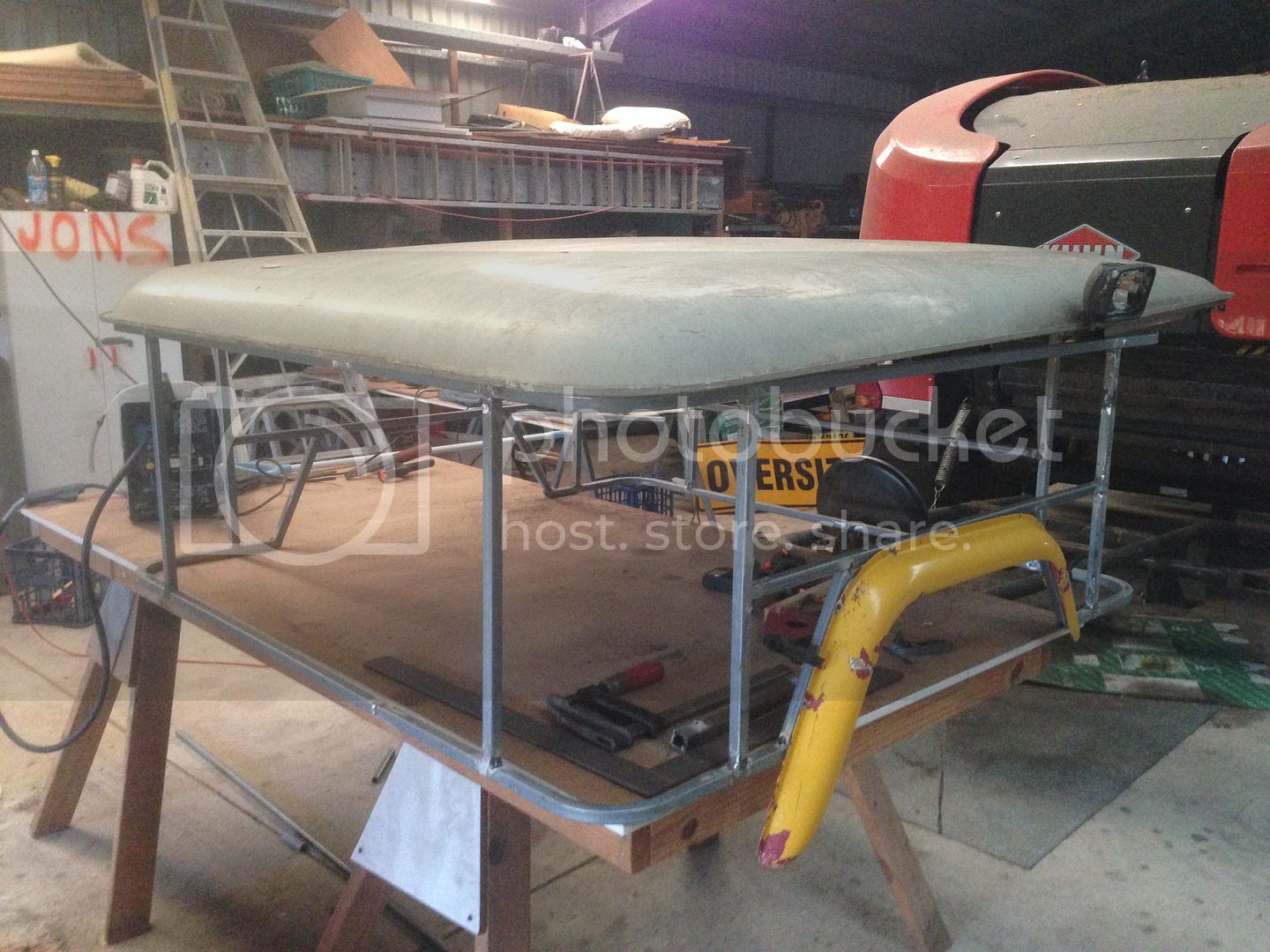

I've wanting to build a trailer for a while now & I finally got around to starting it today.

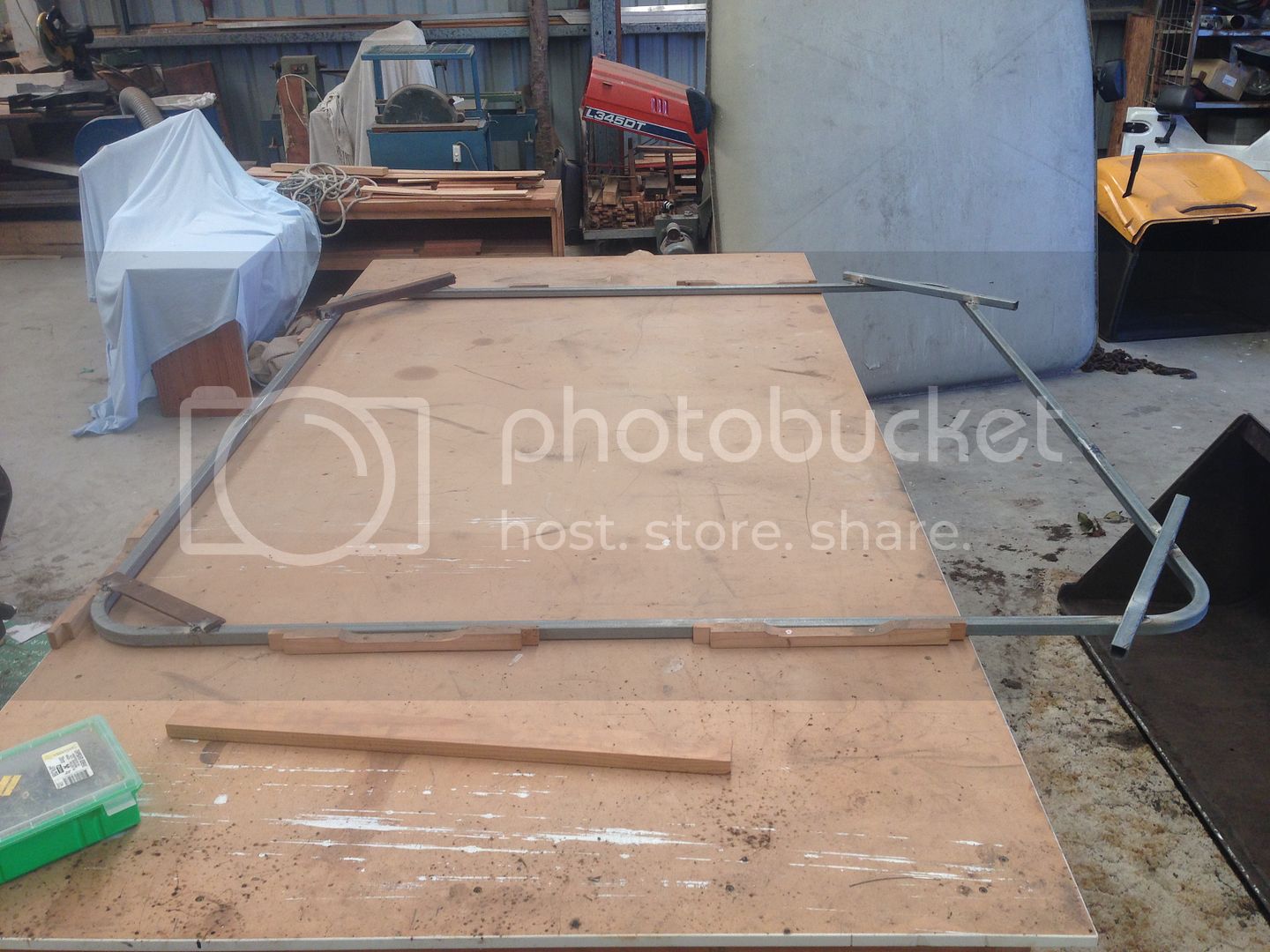

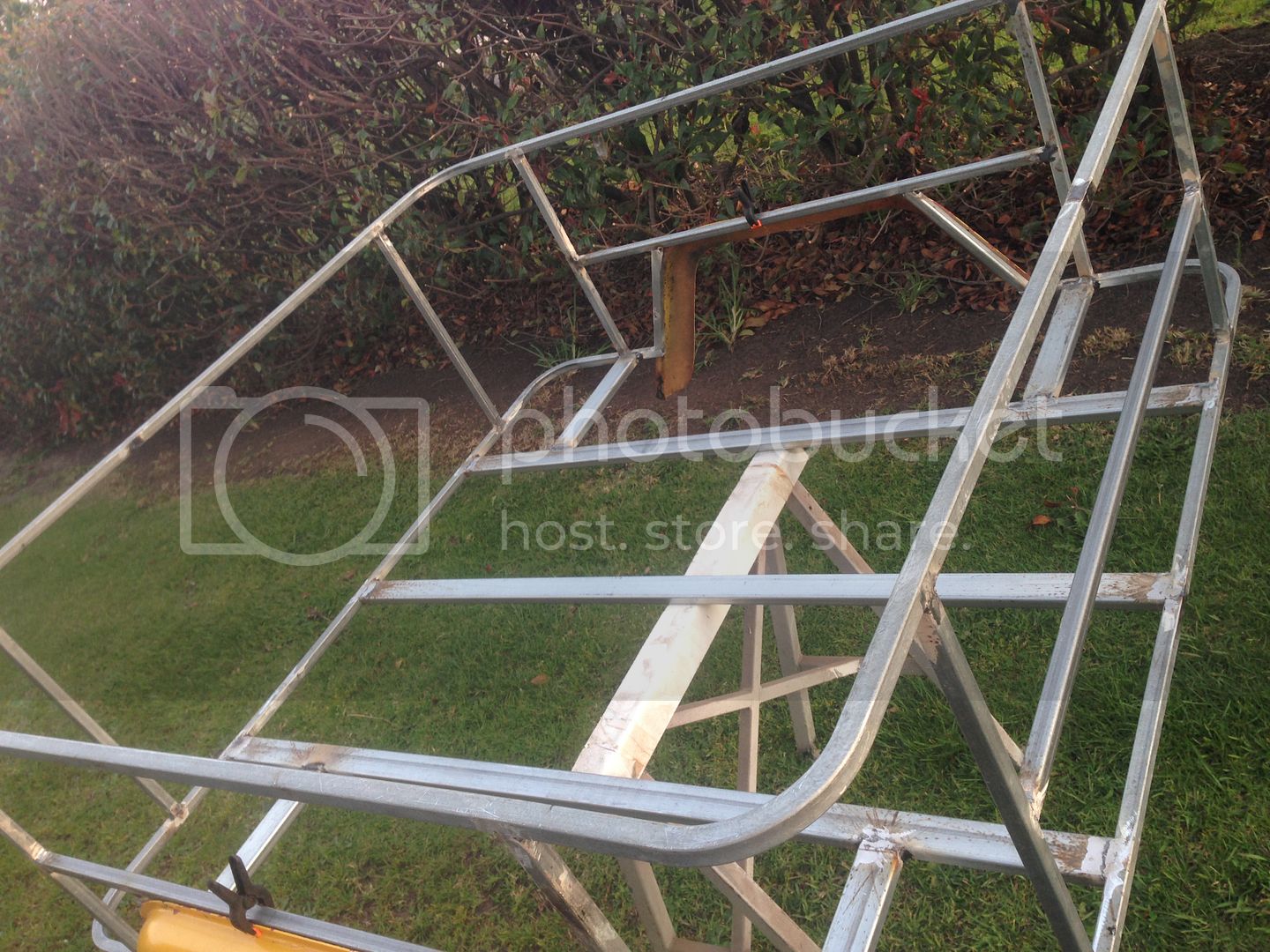

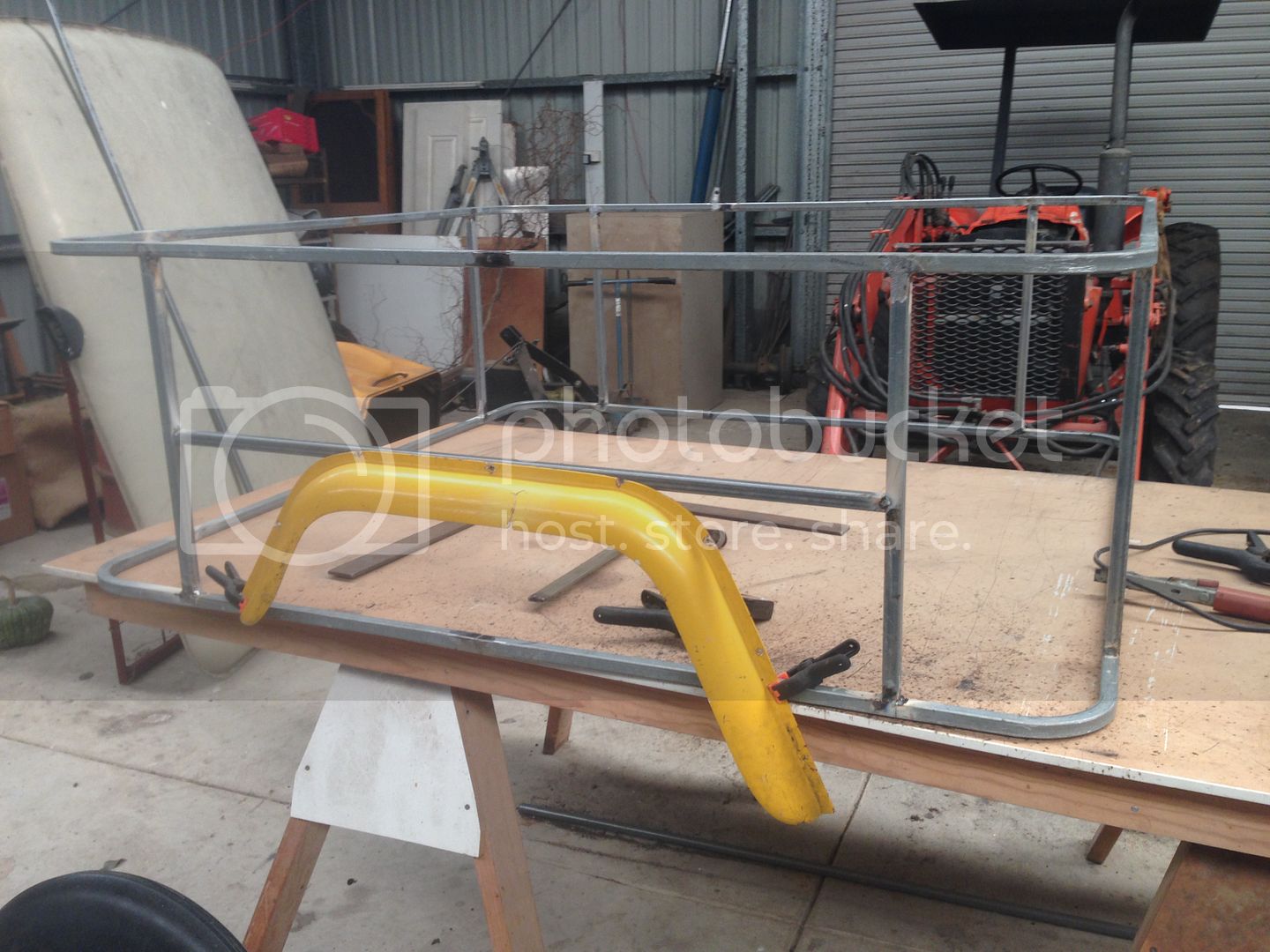

I had to make a table to work on & then a jig to make sure the bends were at right angles. I used 20mm x 20mm x 2mm square section for the frame. I will use some 20x 40 in the floor section to give me something extra to be able to fix it to the chassis when I make it up.

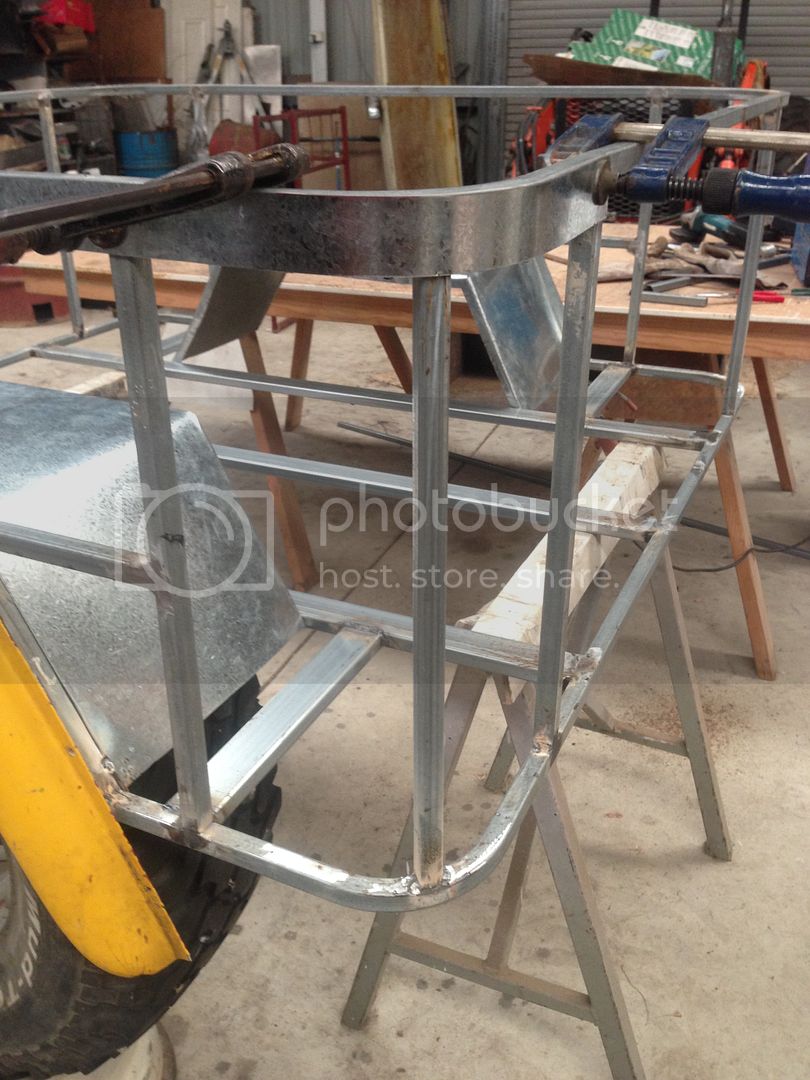

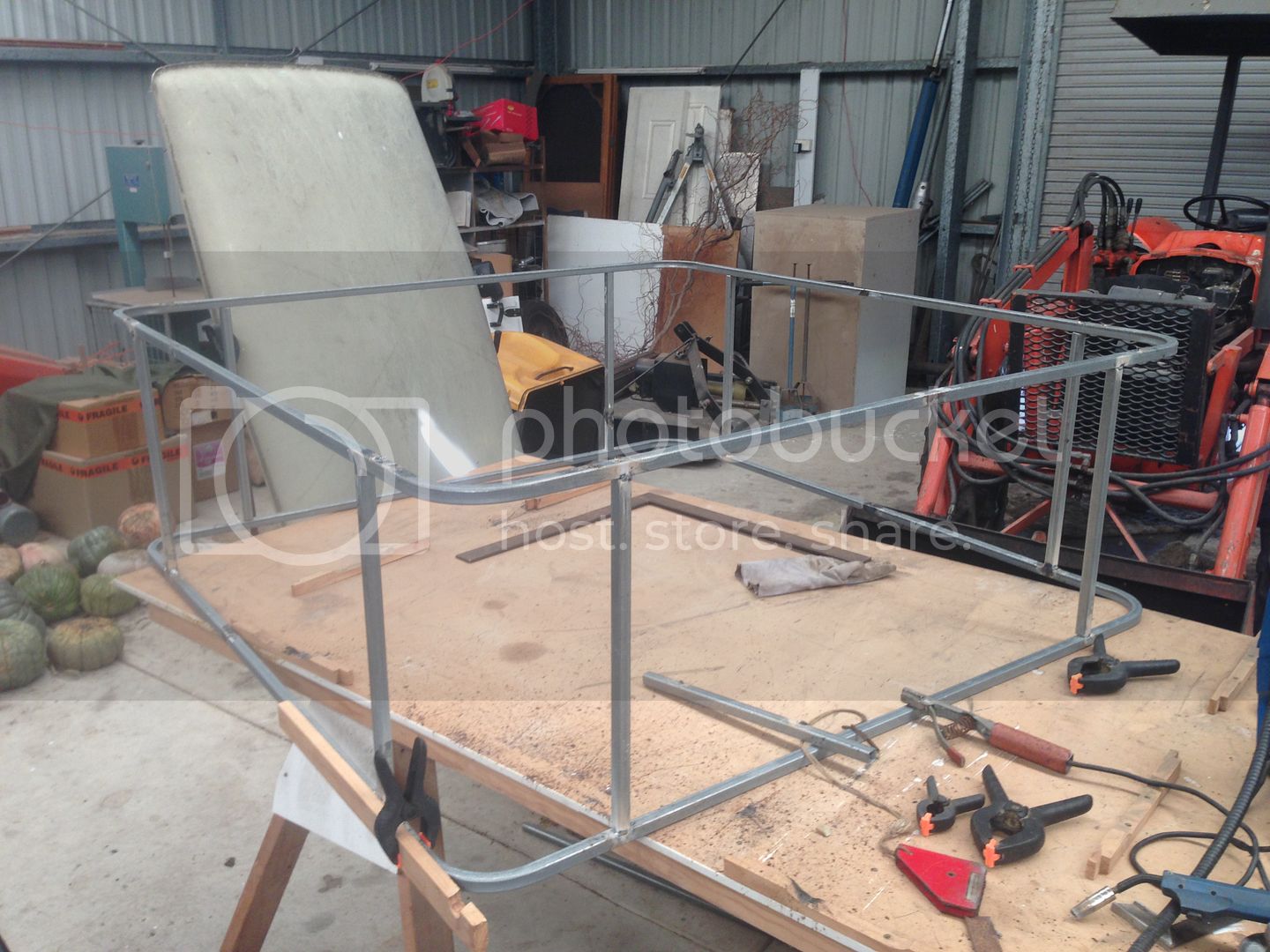

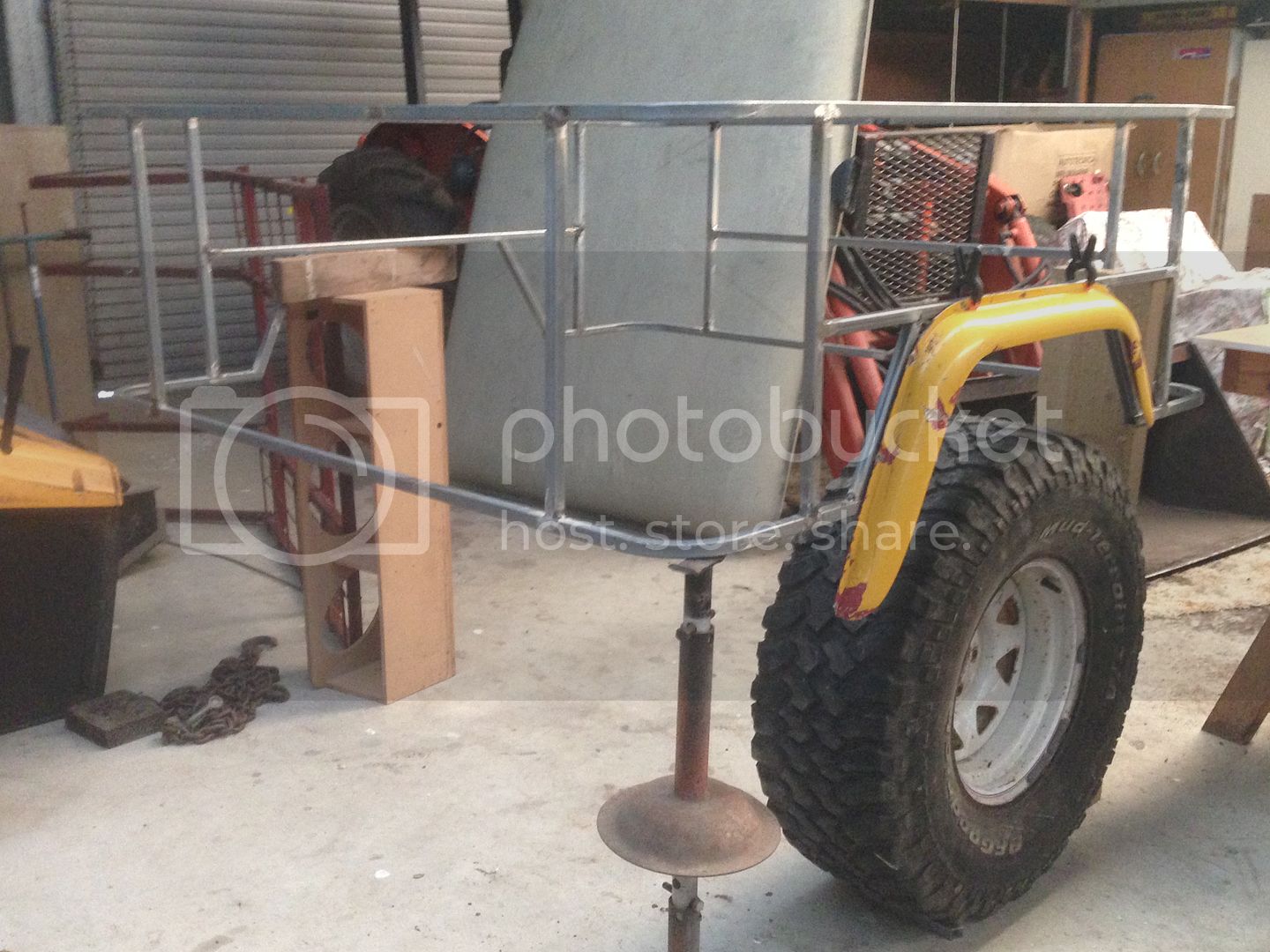

Here's a few pics of what I got done. I need more materials now.
http://s219.photobucket.com/user/pistnbroke2/media/Trailer build/photo16_zpsf984995b.jpg.html

http://s219.photobucket.com/user/pistnbroke2/media/Trailer build/photo26_zpsc3b1d82d.jpg.html

http://s219.photobucket.com/user/pistnbroke2/media/Trailer build/photo34_zps8578c9bd.jpg.html

http://s219.photobucket.com/user/pistnbroke2/media/Trailer build/photo44_zps63aa8ea7.jpg.html

http://s219.photobucket.com/user/pistnbroke2/media/Trailer build/photo27_zpsd24ff78a.jpg.html

http://s219.photobucket.com/user/pistnbroke2/media/Trailer build/photo35_zpsd3d24550.jpg.html

http://s219.photobucket.com/user/pistnbroke2/media/Trailer build/photo18_zps4e5aab7a.jpg.html

http://s219.photobucket.com/user/pistnbroke2/media/Trailer build/photo28_zpsf436147e.jpg.html

Thanks for looking.



[hairy_apple]

Awesome. I like what you are doing so far!



[croozy]

Thanks, I had to make it deeper then I wanted because it will need to fit a fridge in it.



[croozy]

I had a couple of hours spare after work so I welded in the floor braces today.



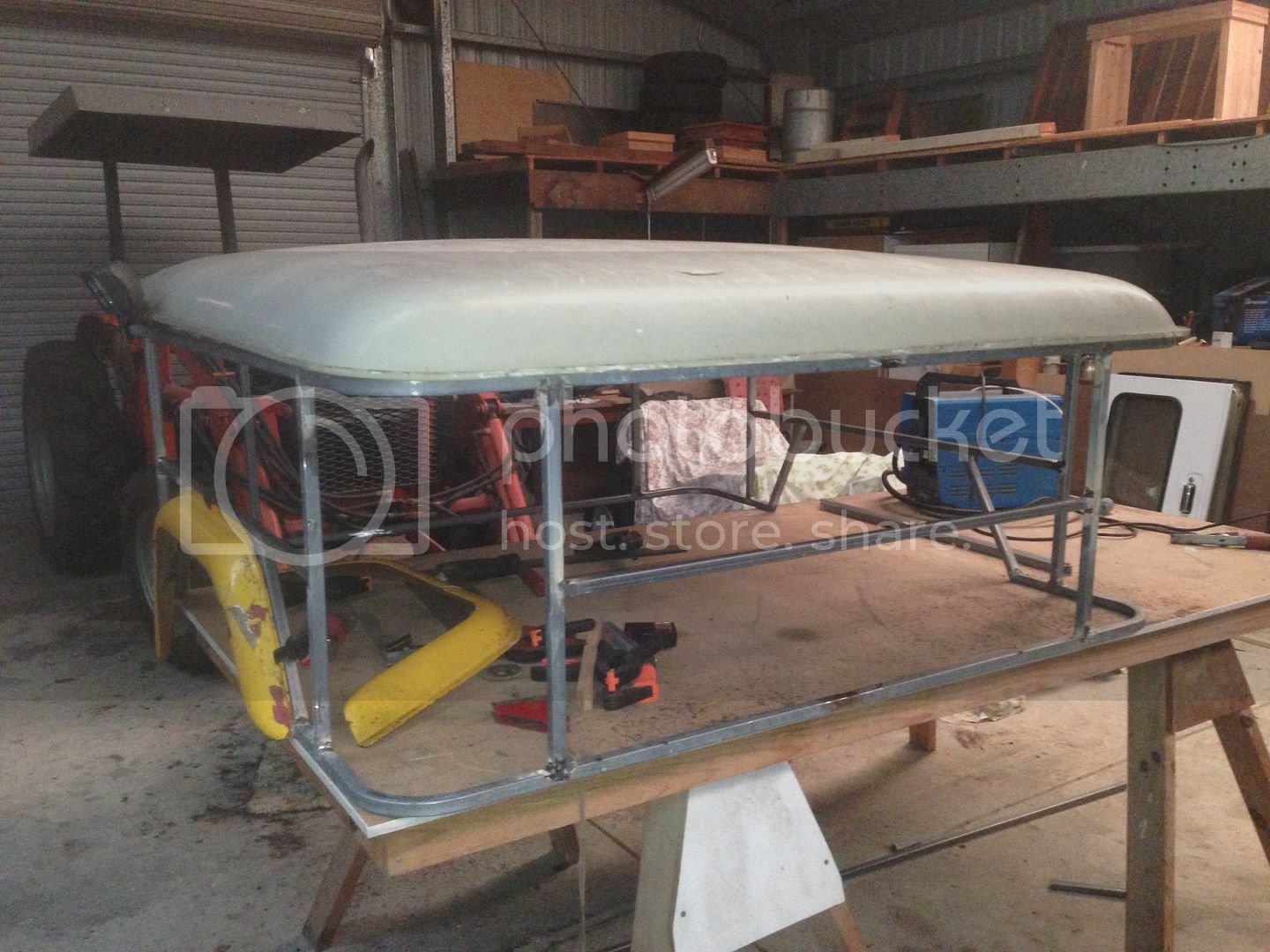

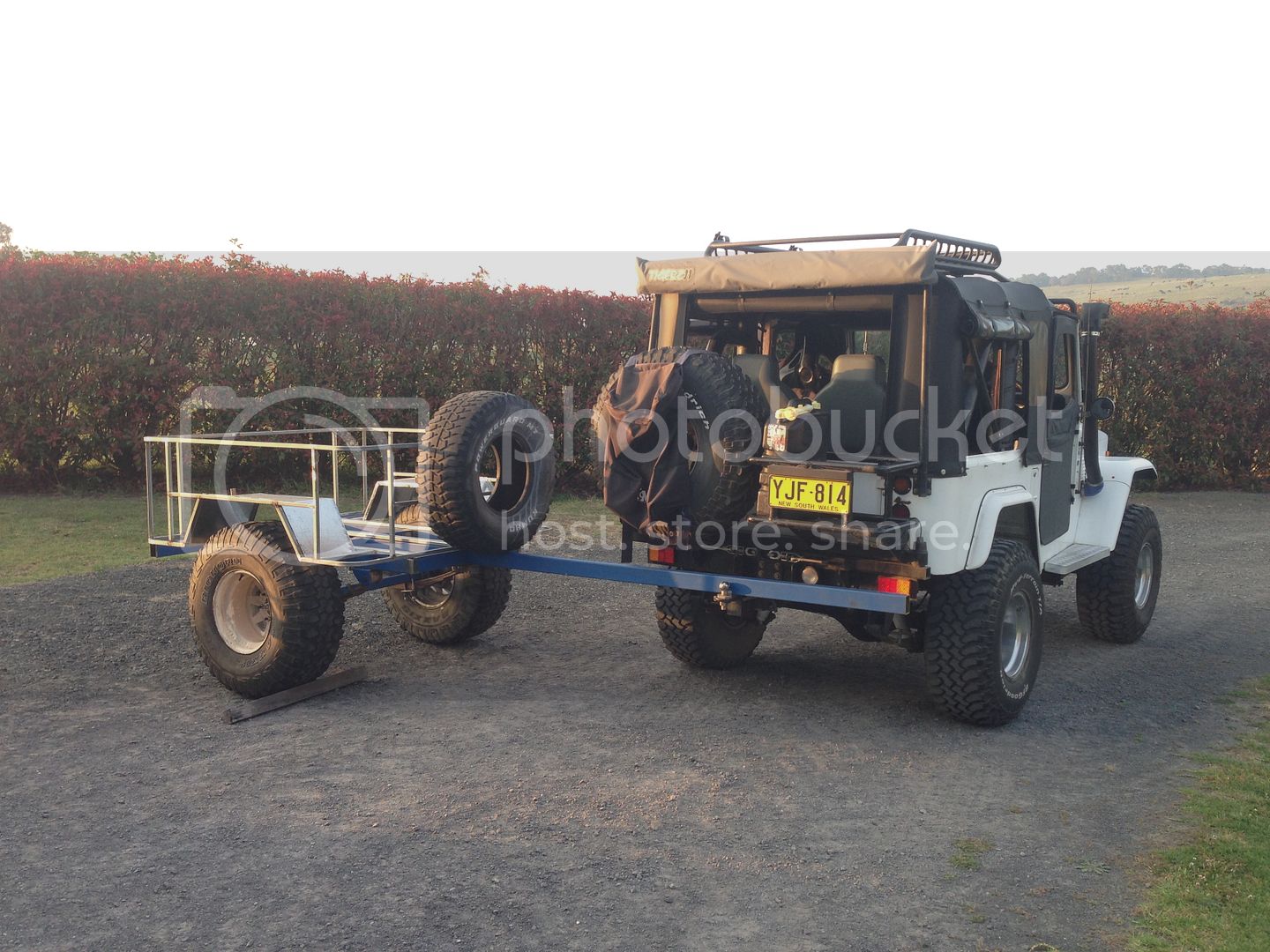

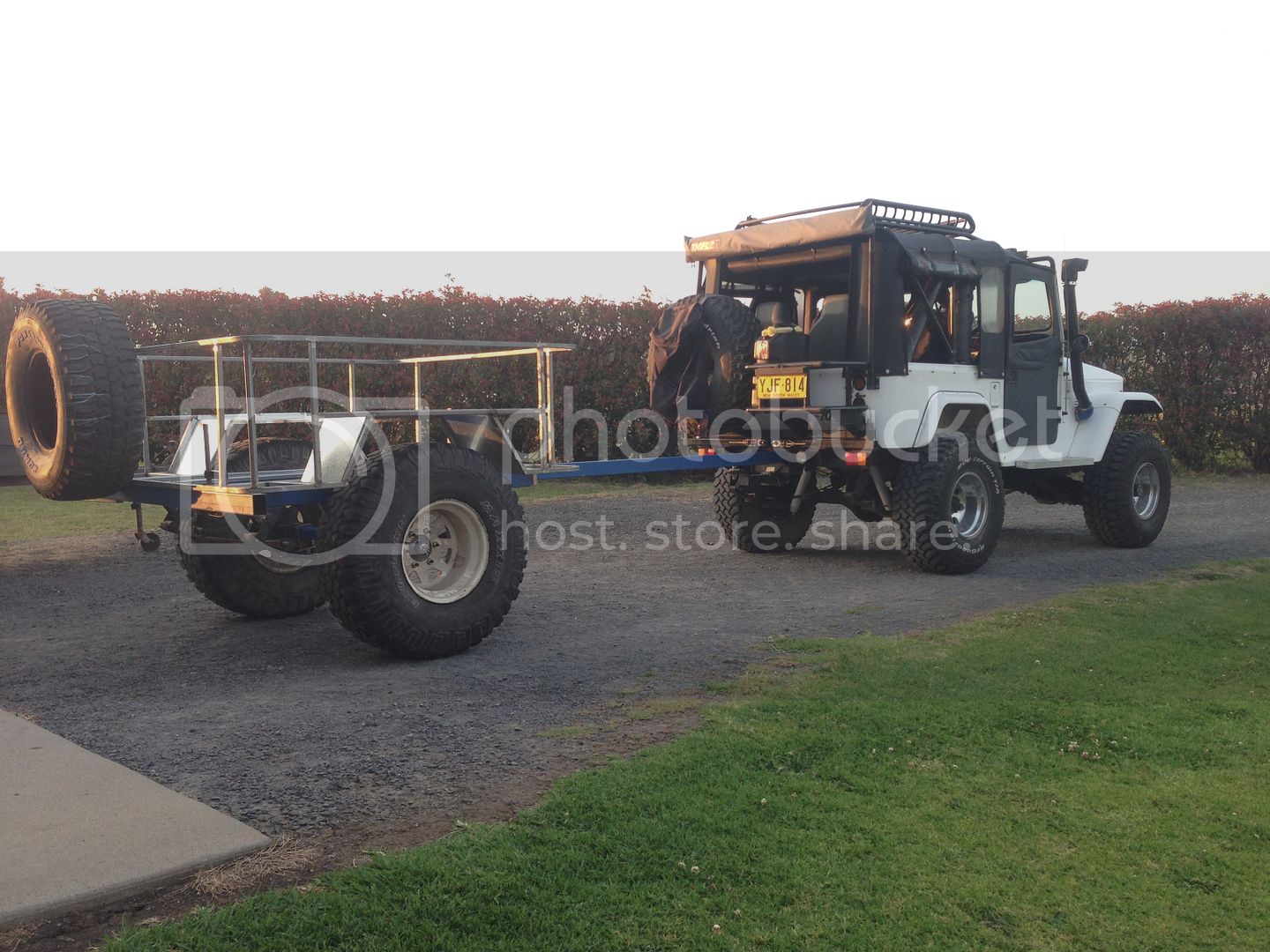

Here's a bit of a mock up with it sitting behind the shorty.



[Mark Harley]

Love it! The taller tub will be a benefit.
Will you be using a Toyota tailgate too?
Looking forward to more of this build.



[croozy]

Thanks. I'll be making my own tailgate up because the tub is a bit deeper then I wanted. I made the one on my car with a flat skin so I will probably make it to match that.



[TRAIL TAILOR]

I'm all over this thread.. Great start.



J



[croozy]

Thanks reevesci, I'm trying to get it done as quick as I can because work is starting to get busier for me & come December I'll be working pretty much 7 days a week until the start of february.



[henry morgan]

can we get an update on this build? like what i see so far.
what type of bender did you use?



[croozy]

The frame I had bent at an engineering shop henry.

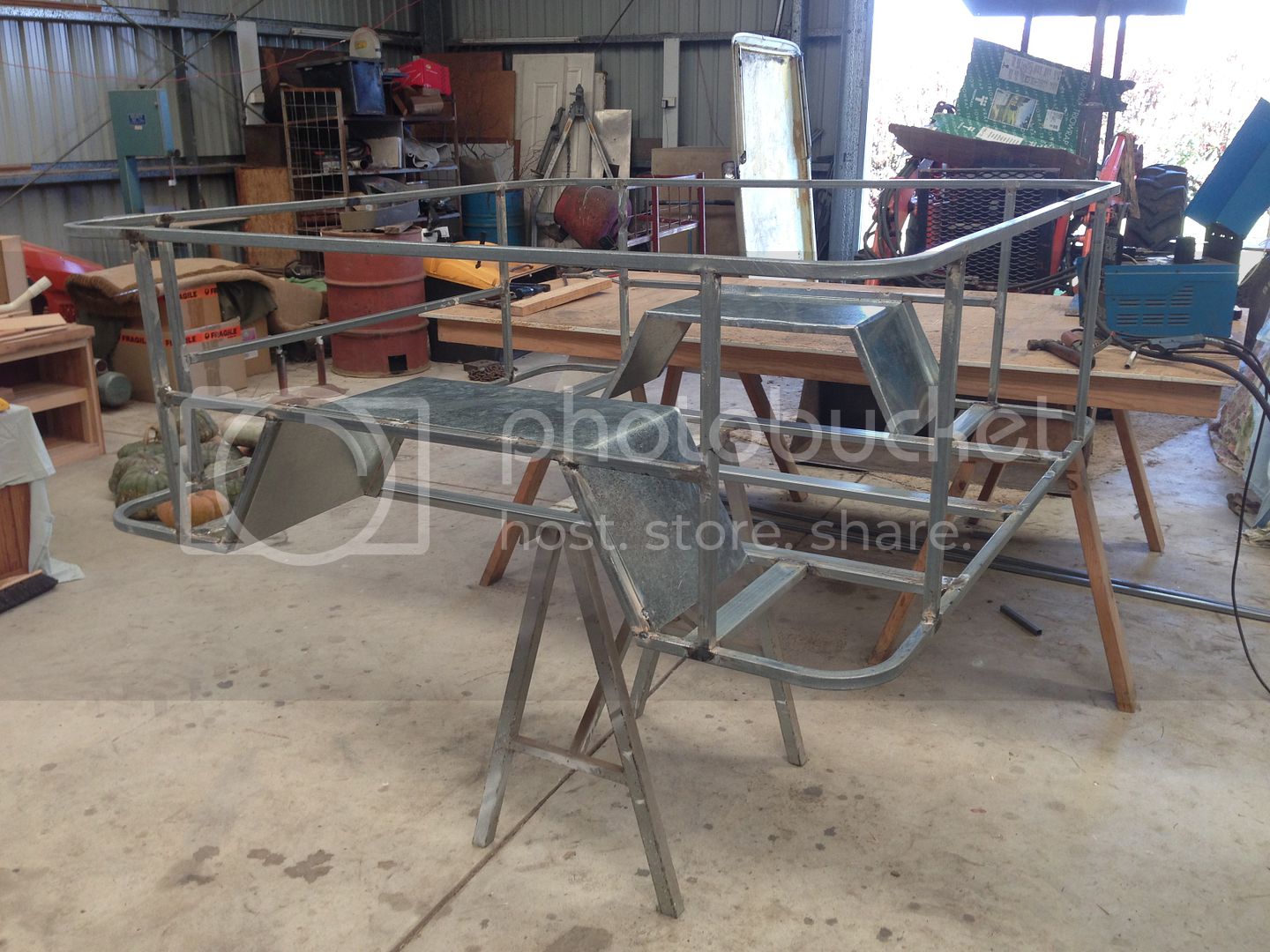

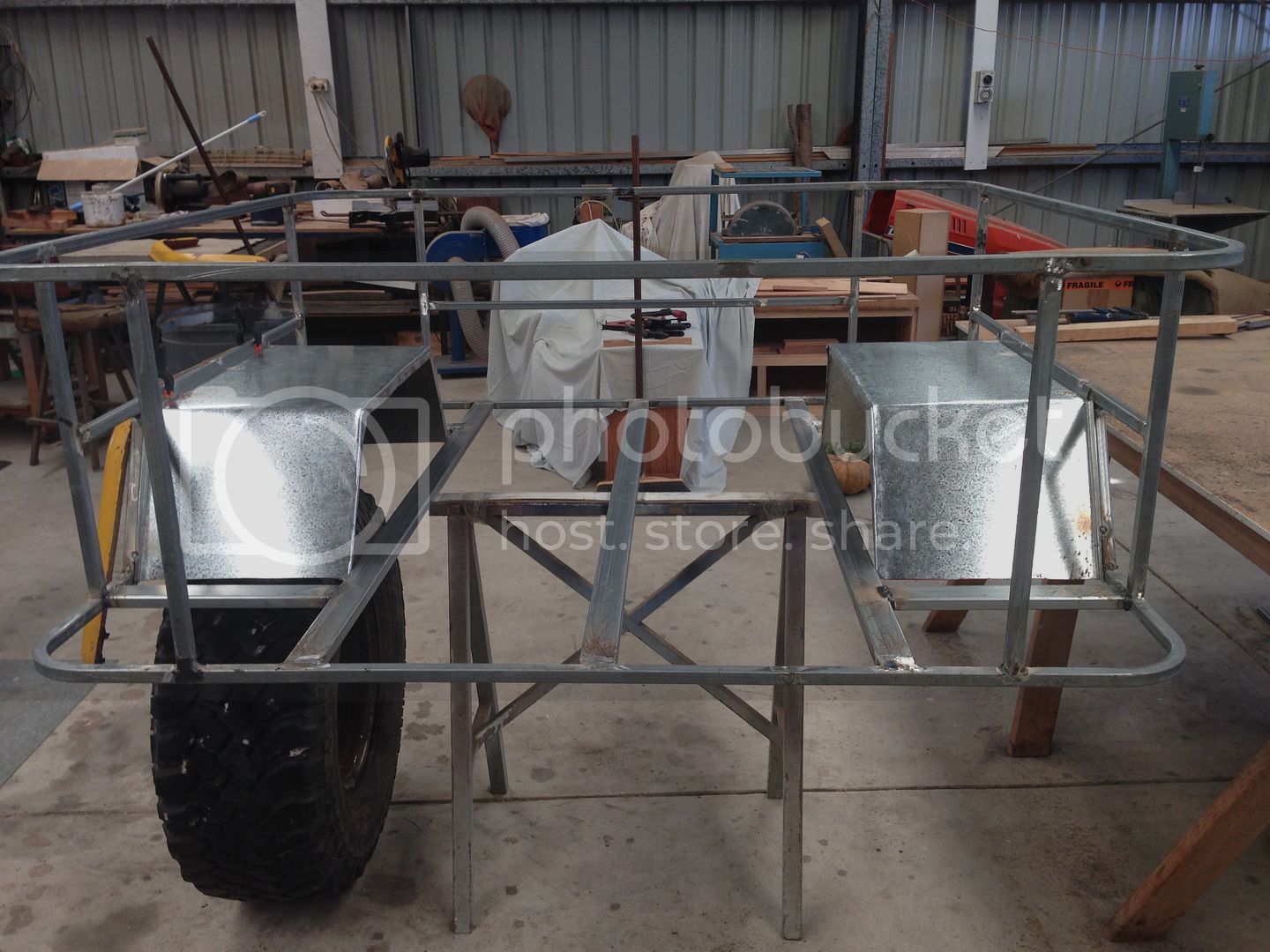

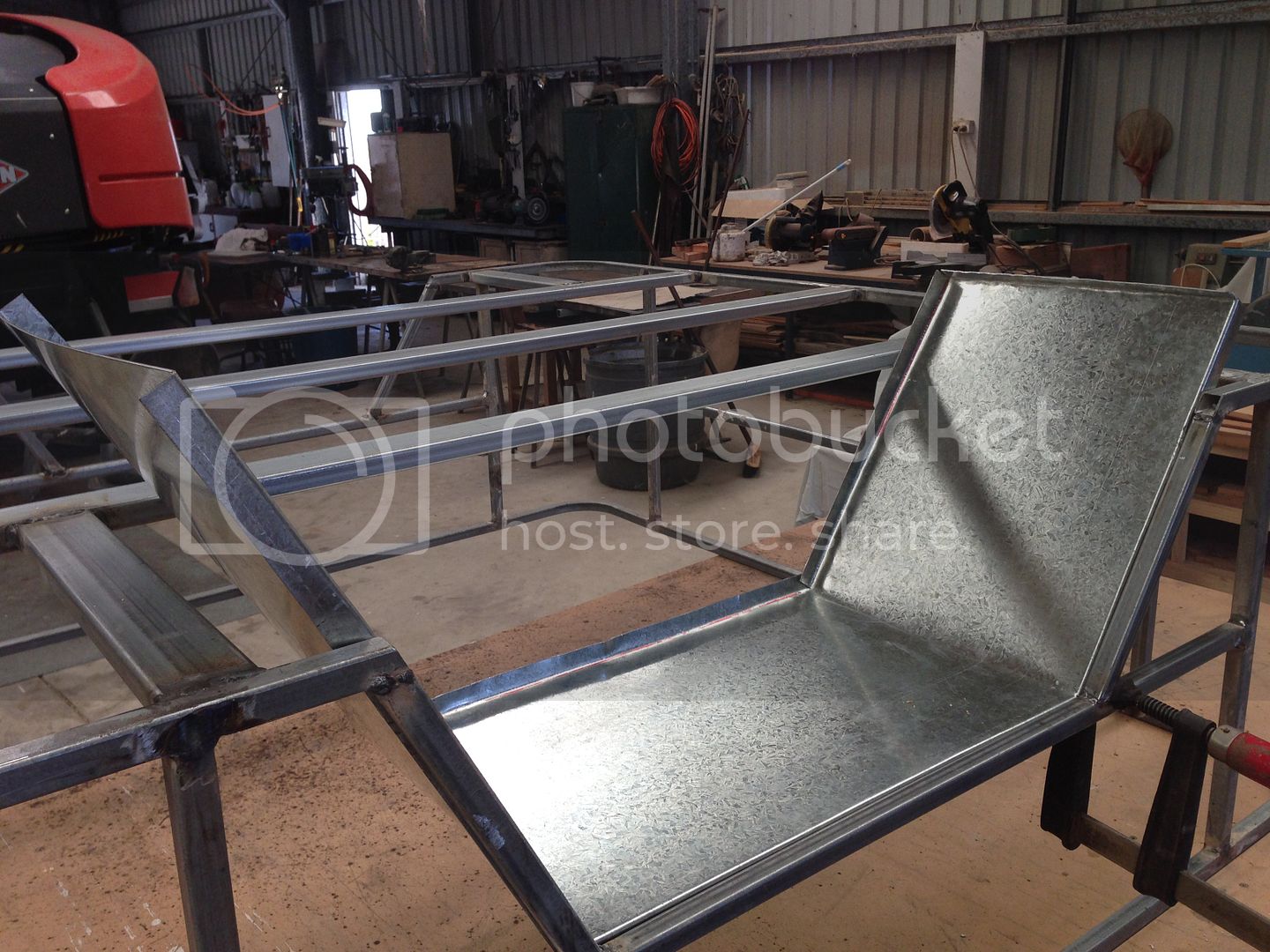

OK update time. Work has kept me tied up latley but I was able to get some time on it today so I made the mudguards for it.

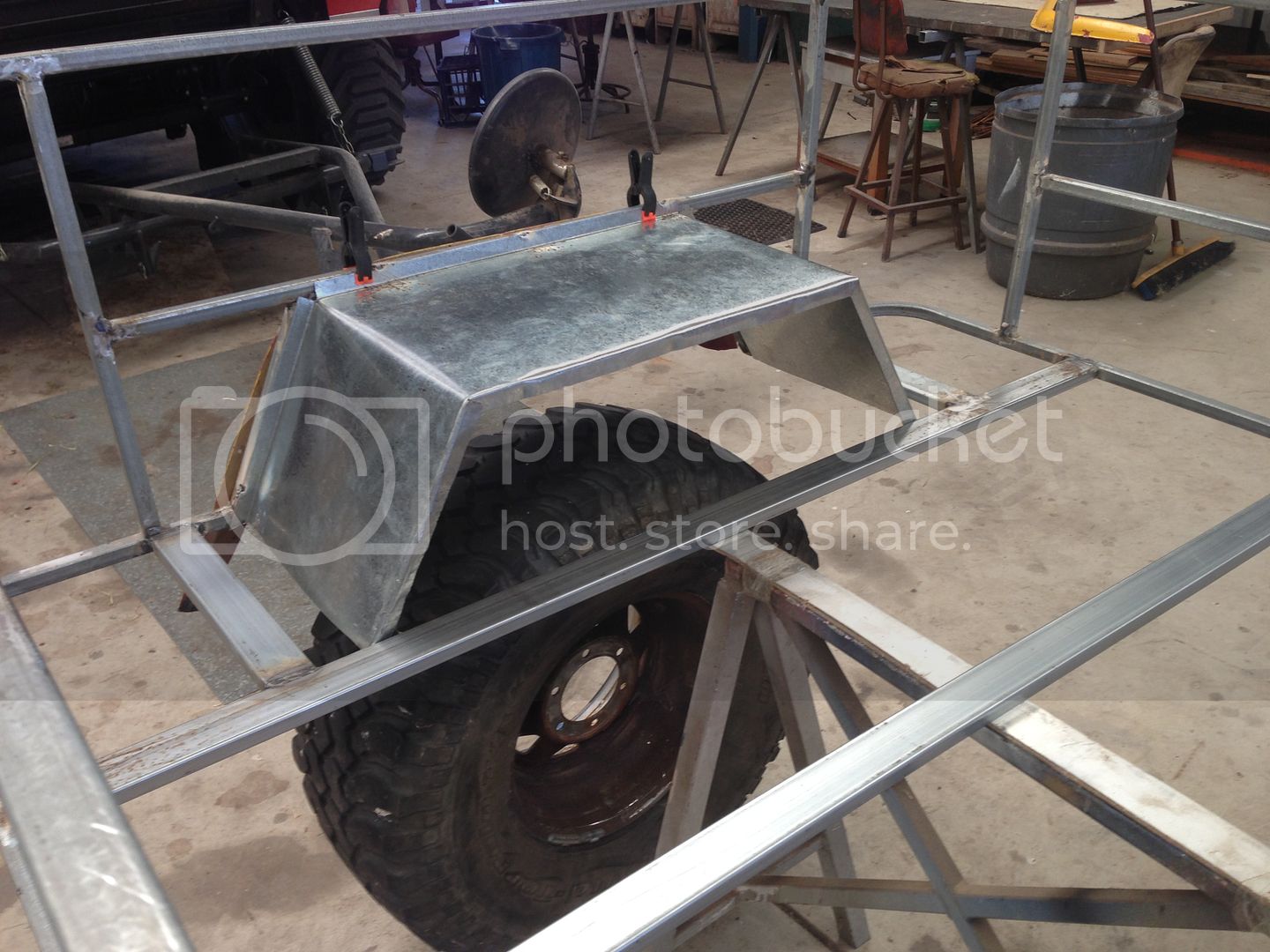

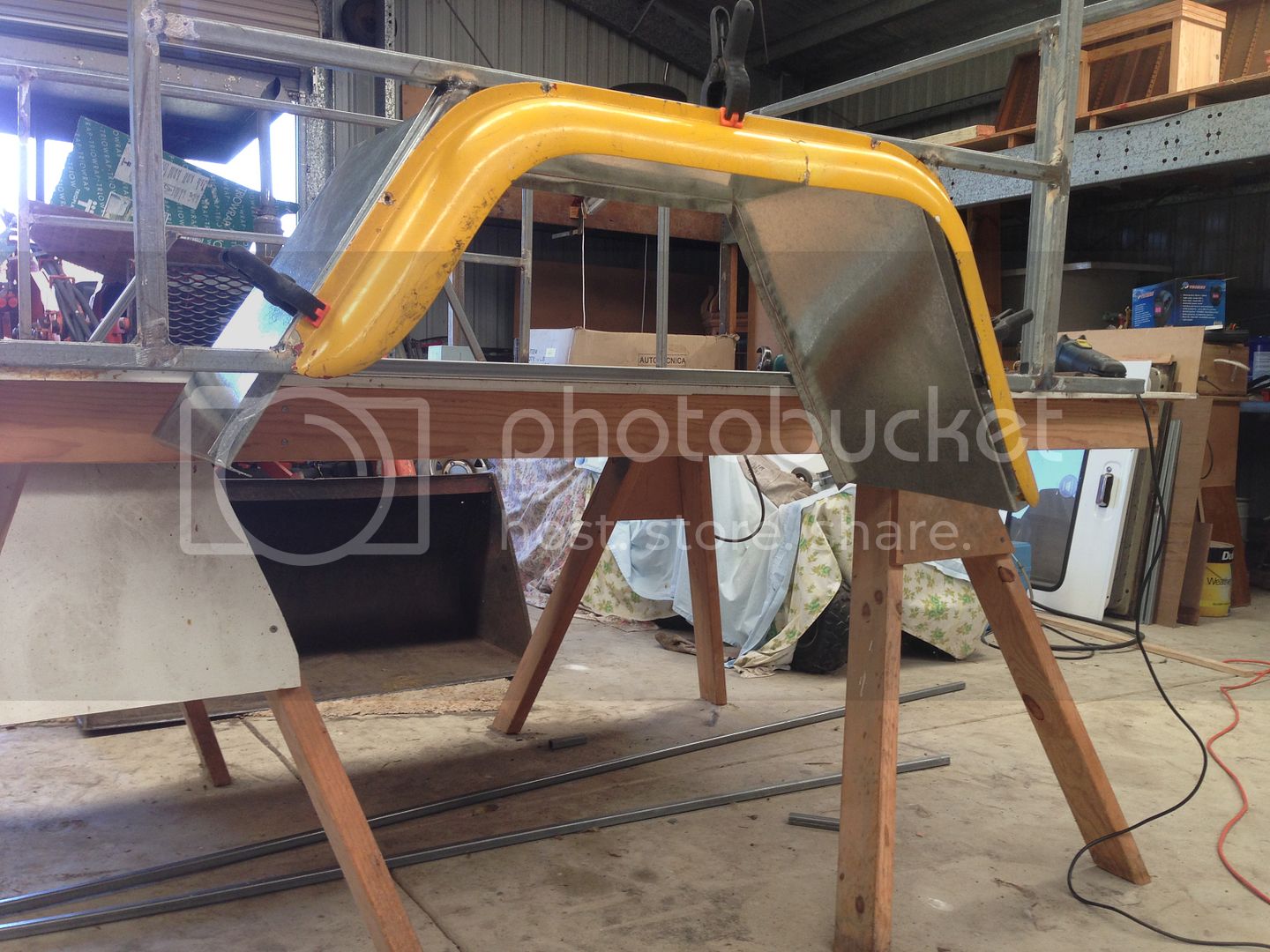

I had to make them from scratch because there is only one engineering shop where I live & they aren't open on weekends. I had some gal sheet metal so I cut it to size & set about folding each long edge in opposite directions. I did this by marking the section to be folded up & them puting it in a bench vice & bending it & beating it with a hammer. I then cut the folded section so I could bend the guards into shape & fit them into the trailer. It took a while but I finally got them done.


Here what I got done.














Thanks for looking.
Cheers croozy



[croozy]

That's alright mate. I got the idea from someone else.

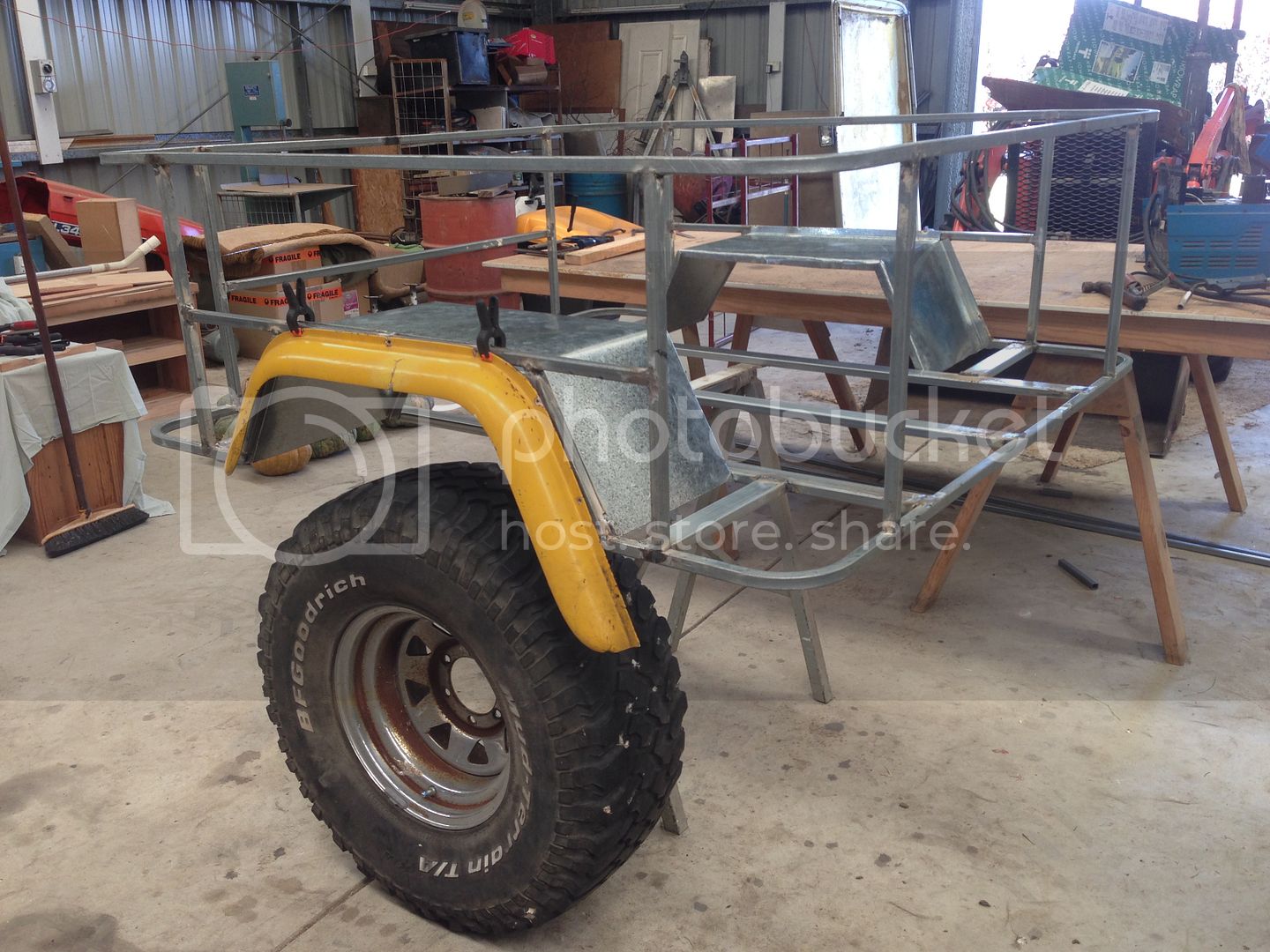

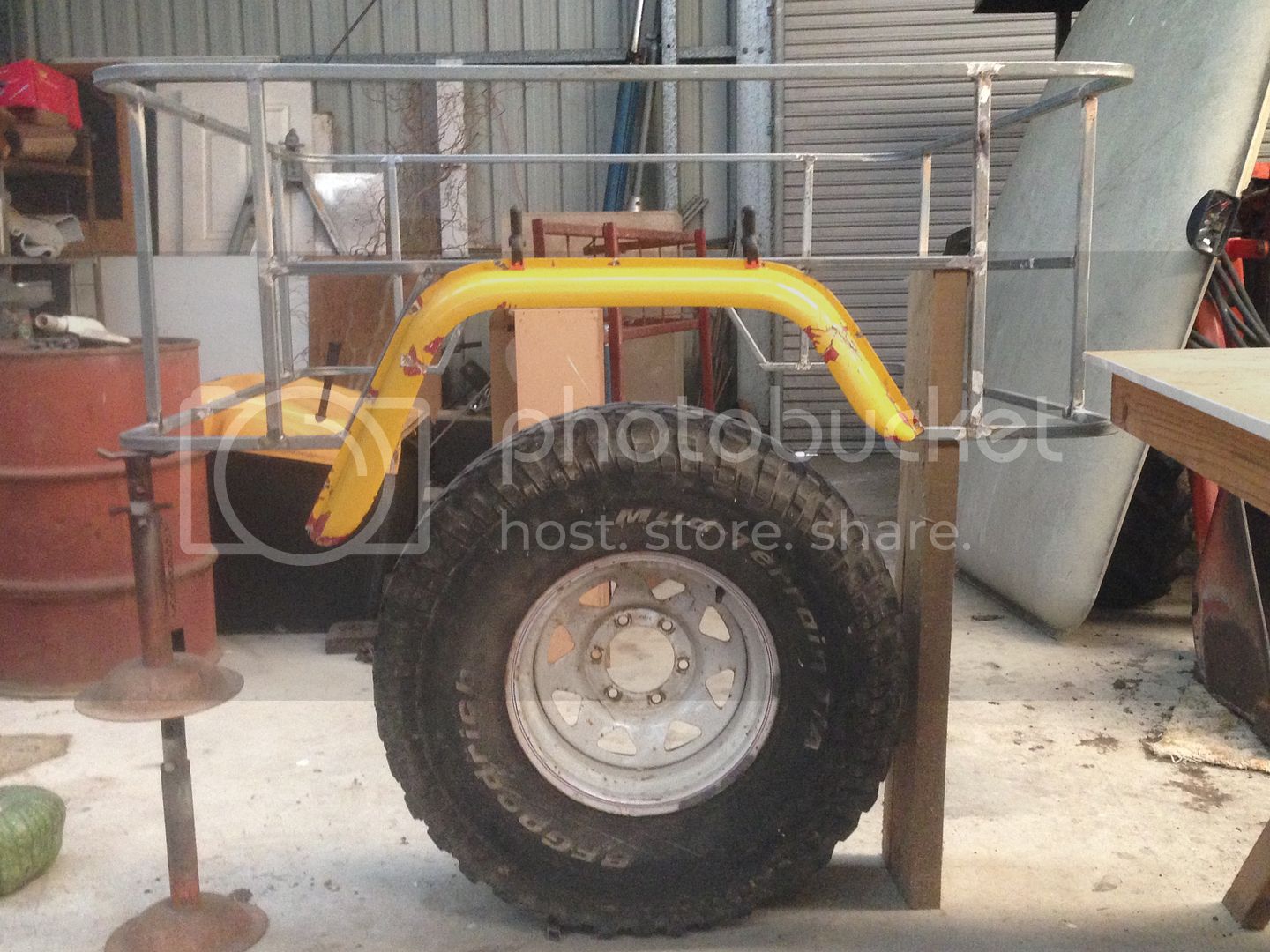

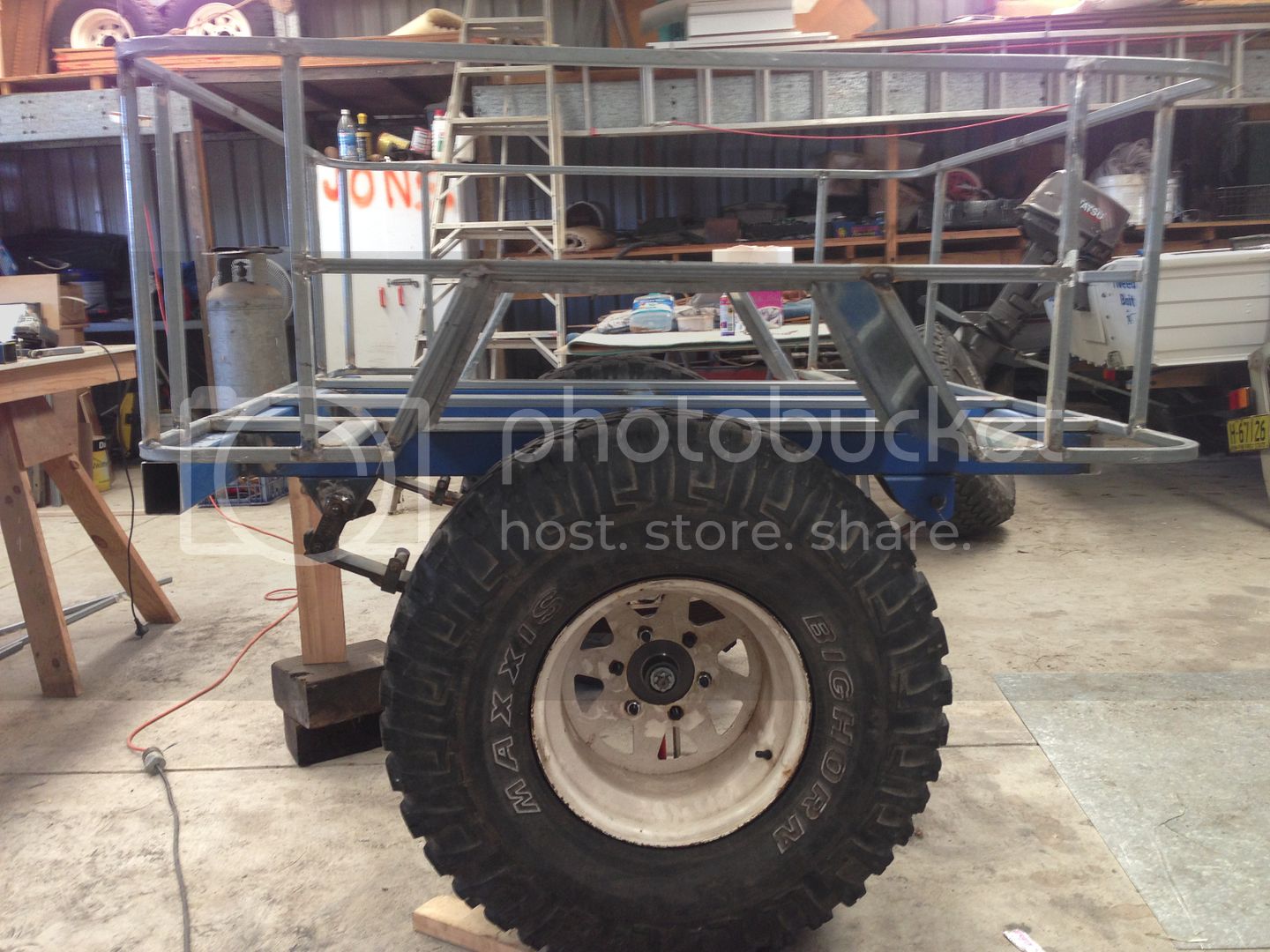

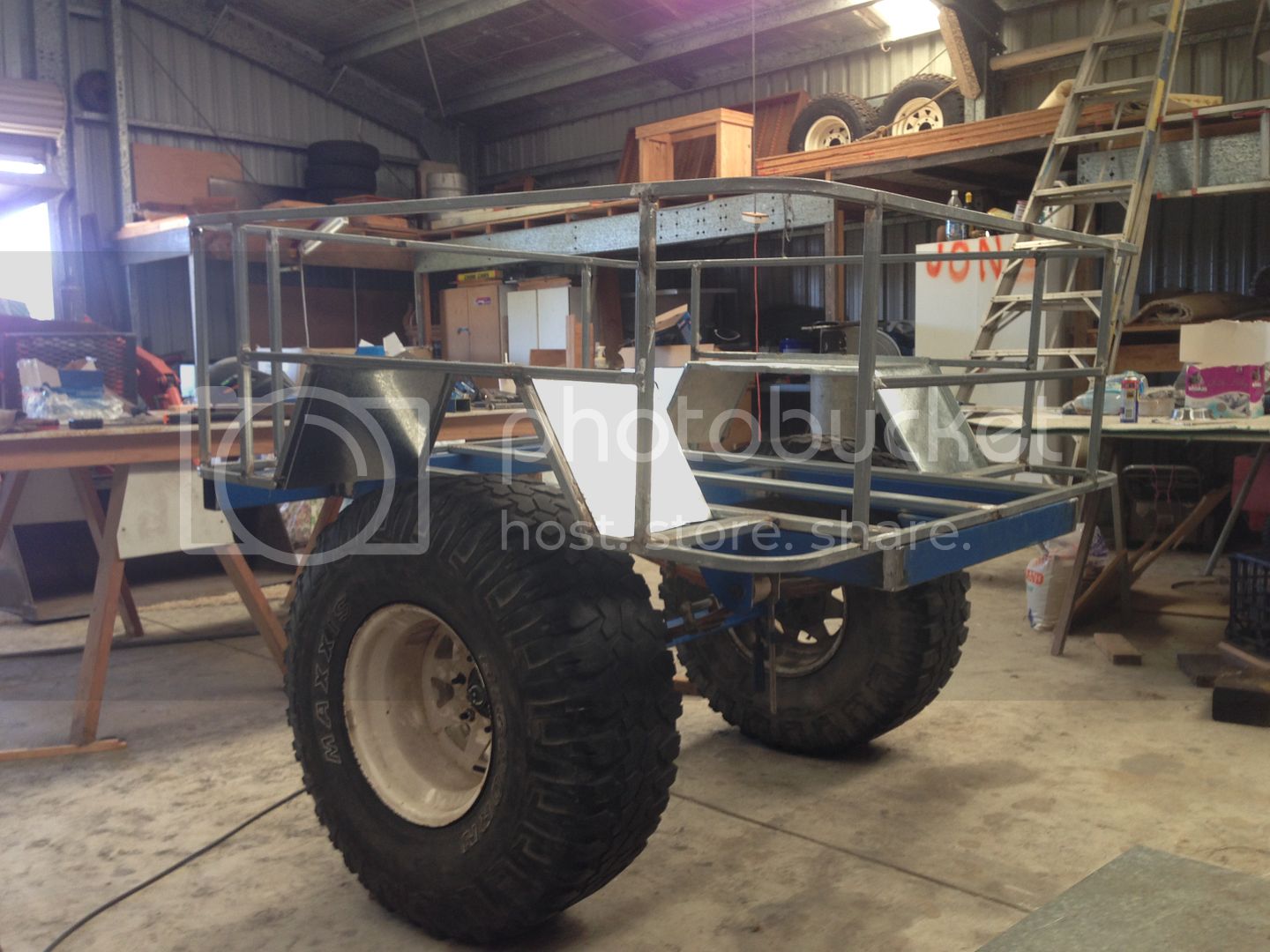

Meanwhile I went out to do a bit more today on it. I decided to have a bit of a play to work out my wheel travel.
Where it sit now it will have 9" of up travel. I originaly wanted it to sit the same height as the rear of the shorty & it is still 2" lower then the rear of the car. But I will see if it needs to go higher or not.


Then I had a crack at puting more work into the body. I welded some more panel supports in until my mig went on the fritz & wouldn't work. So I spent the rest of the arvo fixing the bloody welder.



[croozy]

I had the day off work today so what better way to spend it then doing more on the trailer.

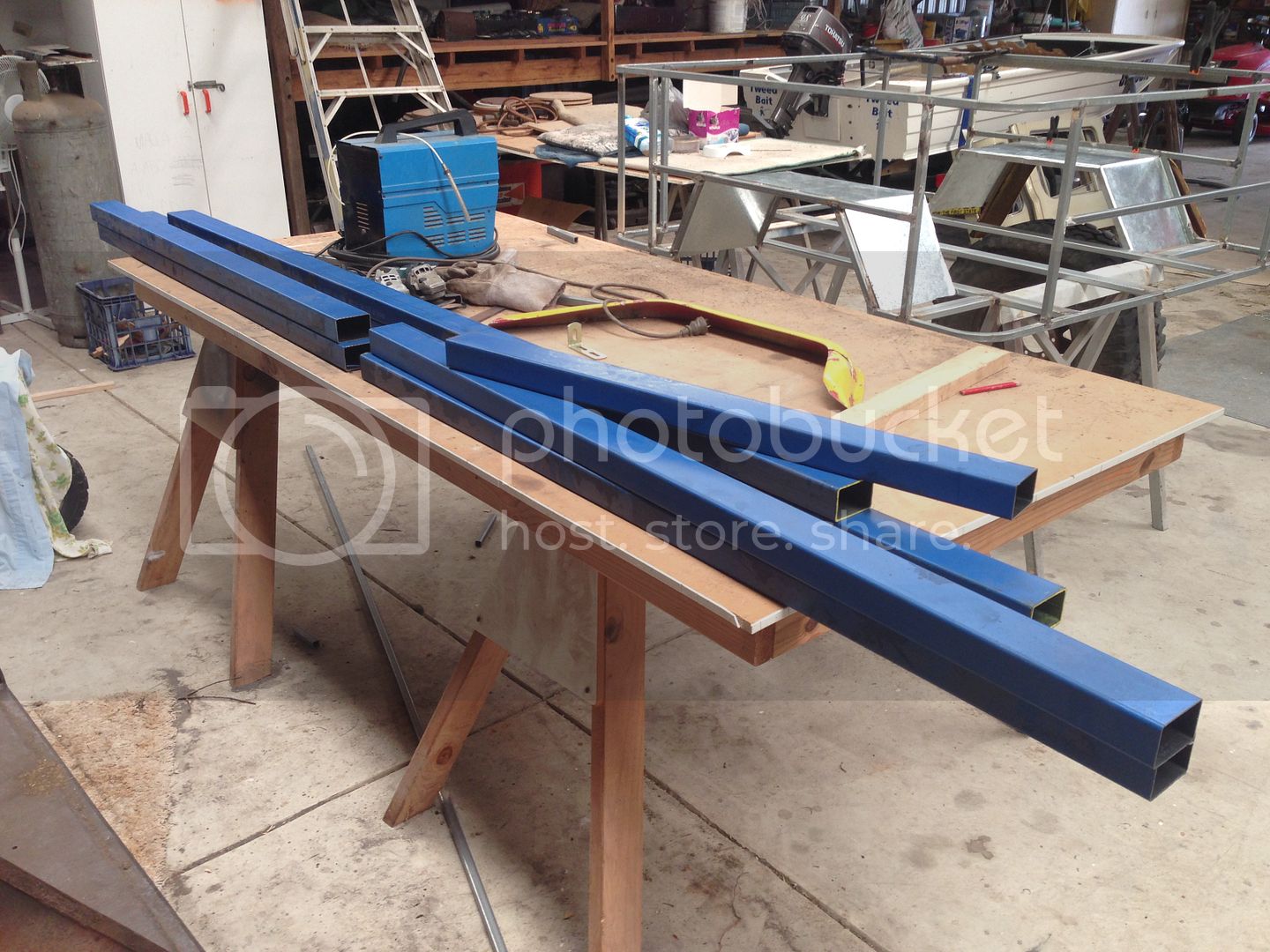

I got some steel delivered & started measuring & cutting up the pieces for the chassis.

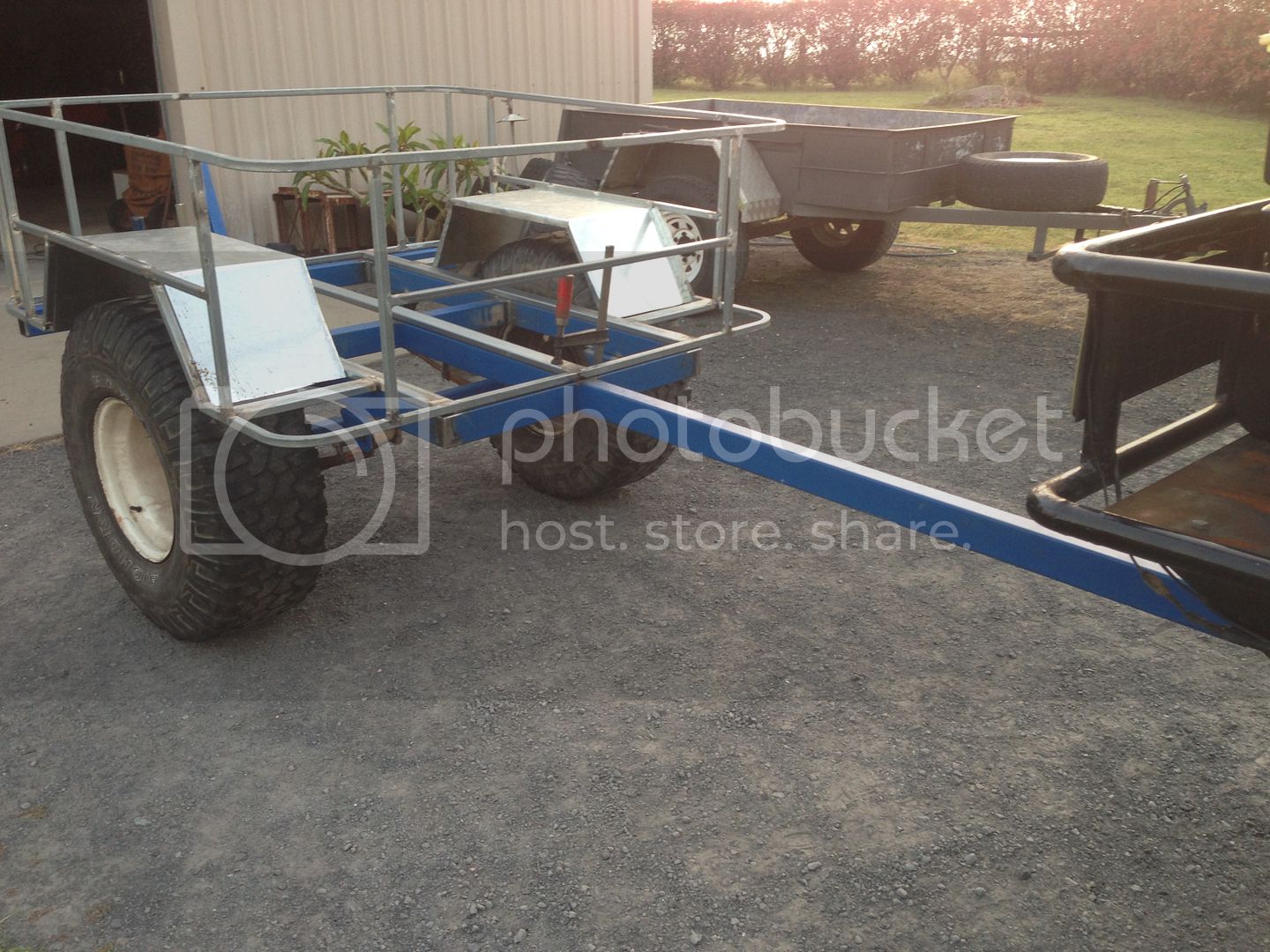

I got most of the chassis welded up & just need to fit the drawbar in.

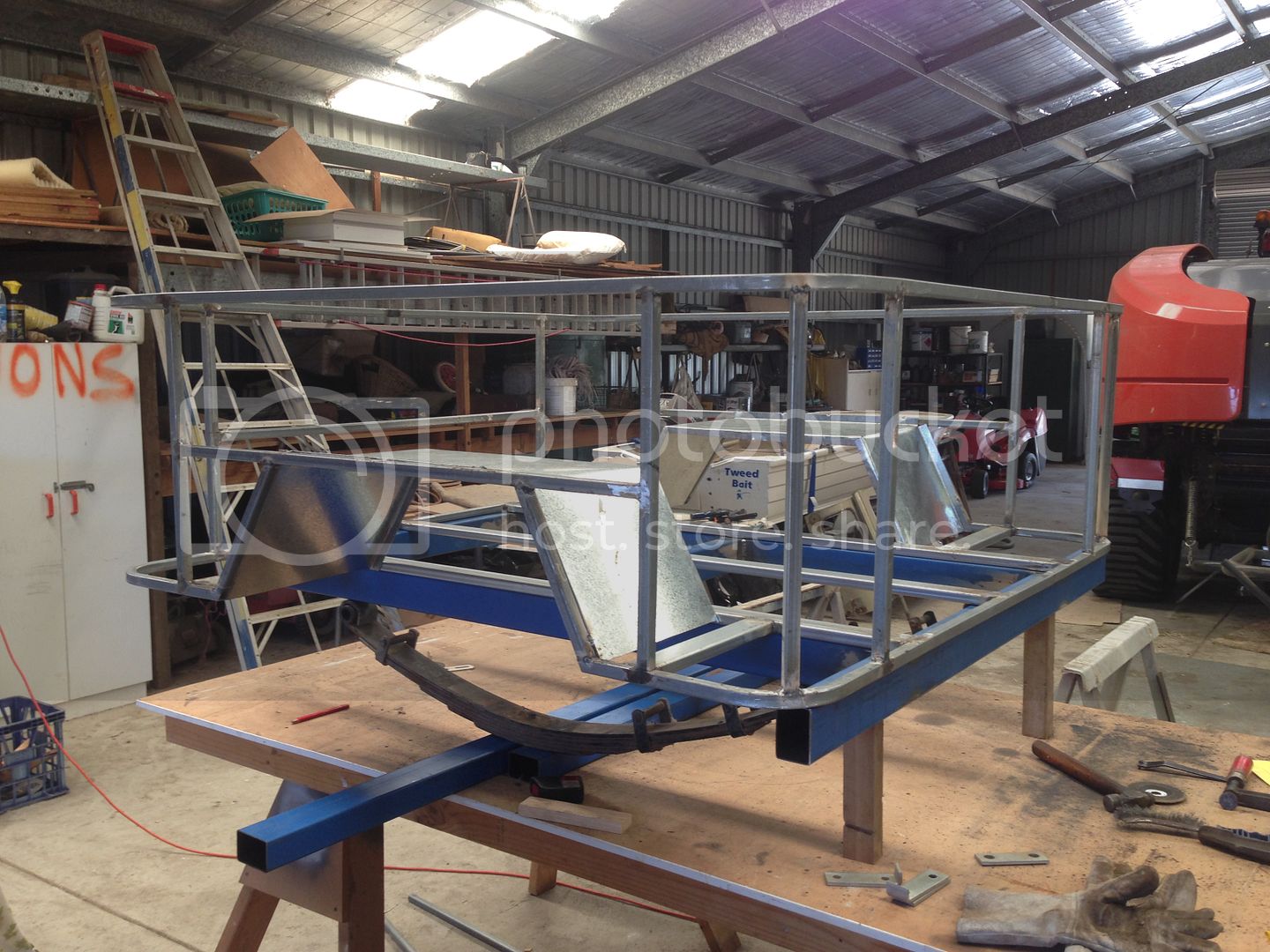

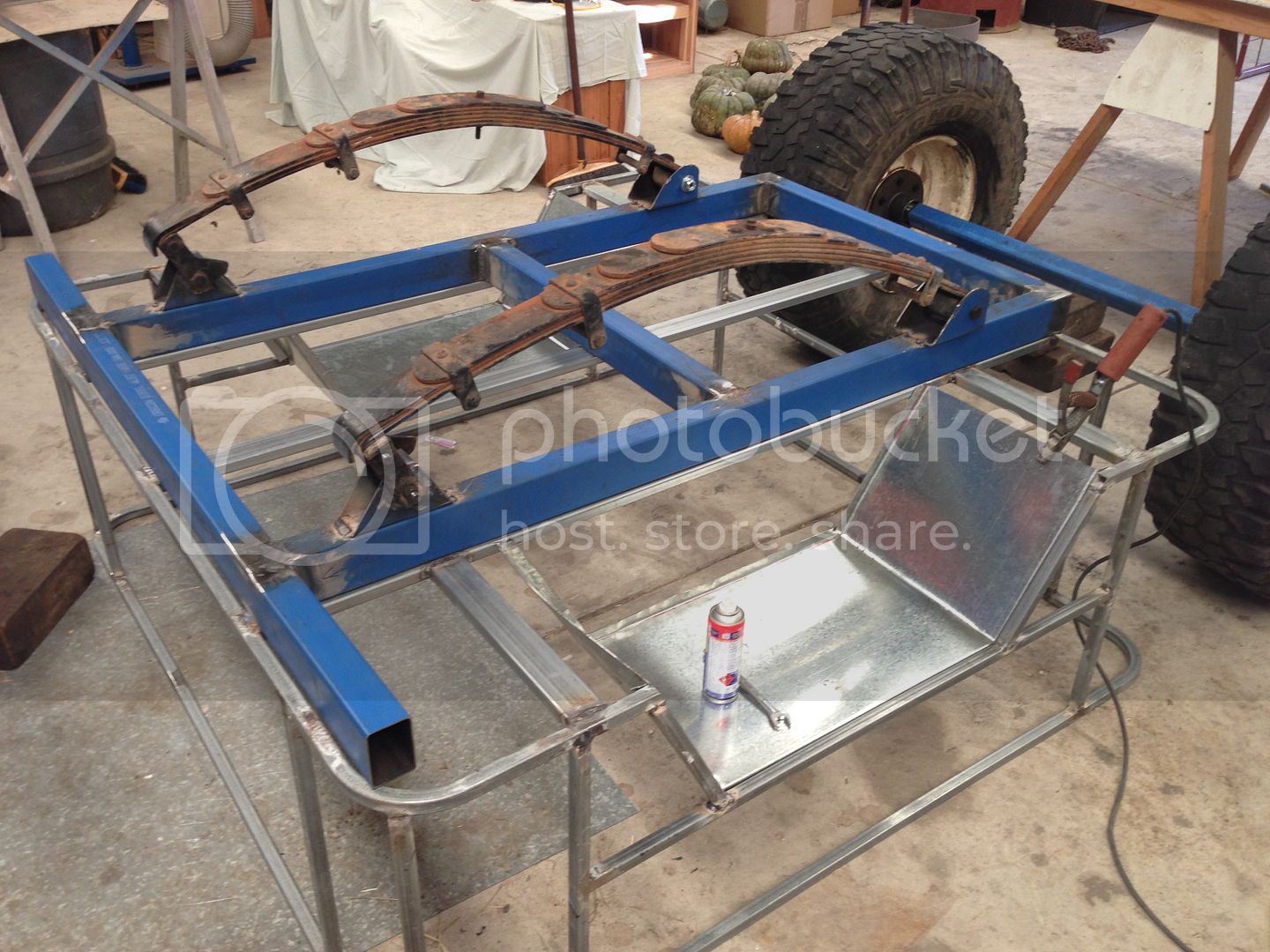

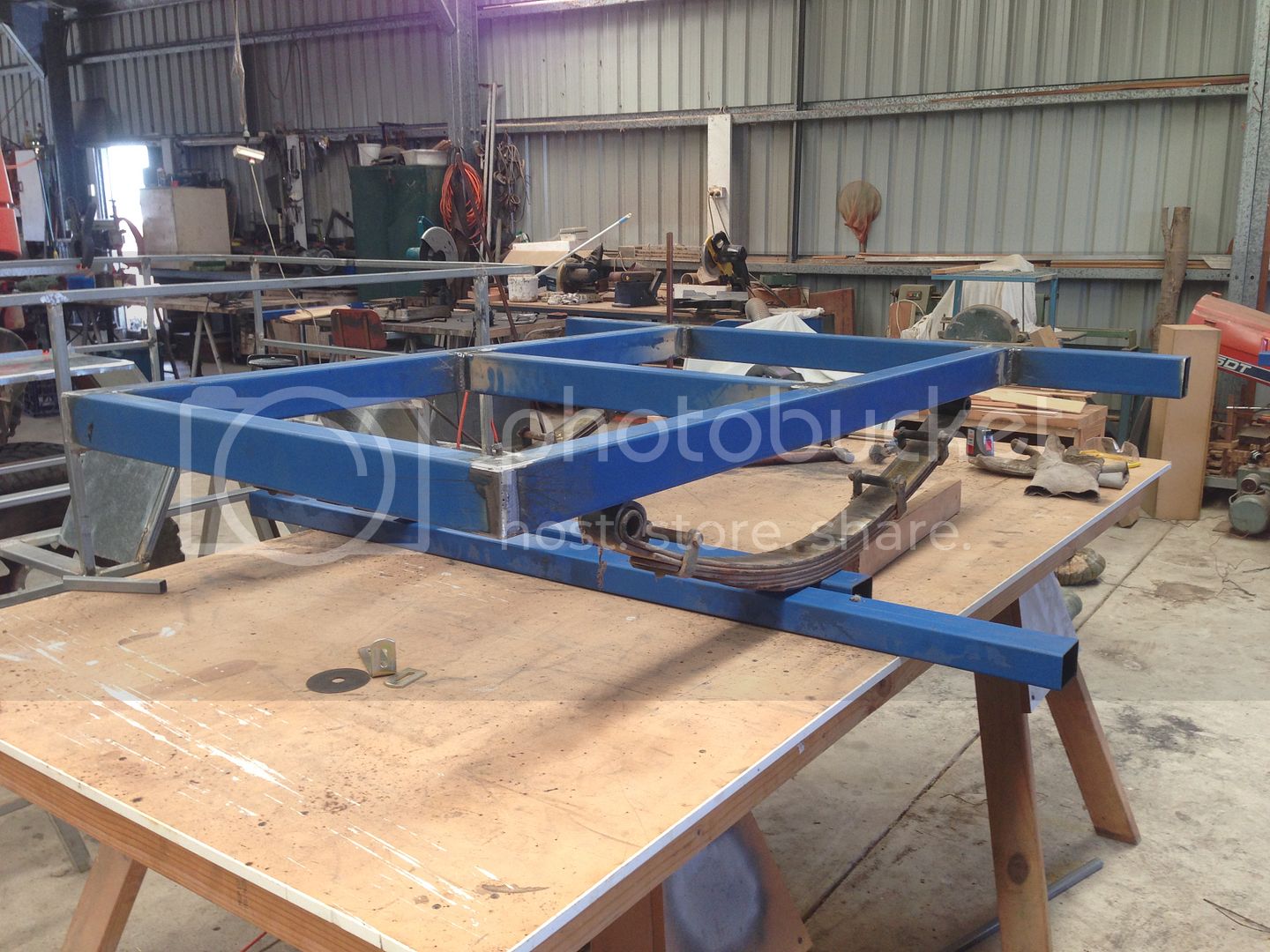

Next I set it all up on my workbench & put the springs I'm using under it to work out where the axle will sit.


Then I made up some spring hangers for the front of the springs.


Tomorrow I'll get a bit more done & hopfully have the springs all set up.



[croozy]

Well here's today's effort. I spent 4 hours running around town getting all the stuff I needed before the shops shut at lunch time & that way I could just get into it without stopping.
My aim for today was to get the chassis almost finished & the suspension in.
After measuring, checking & then measuring & checking again......& again. I set the springs into position.

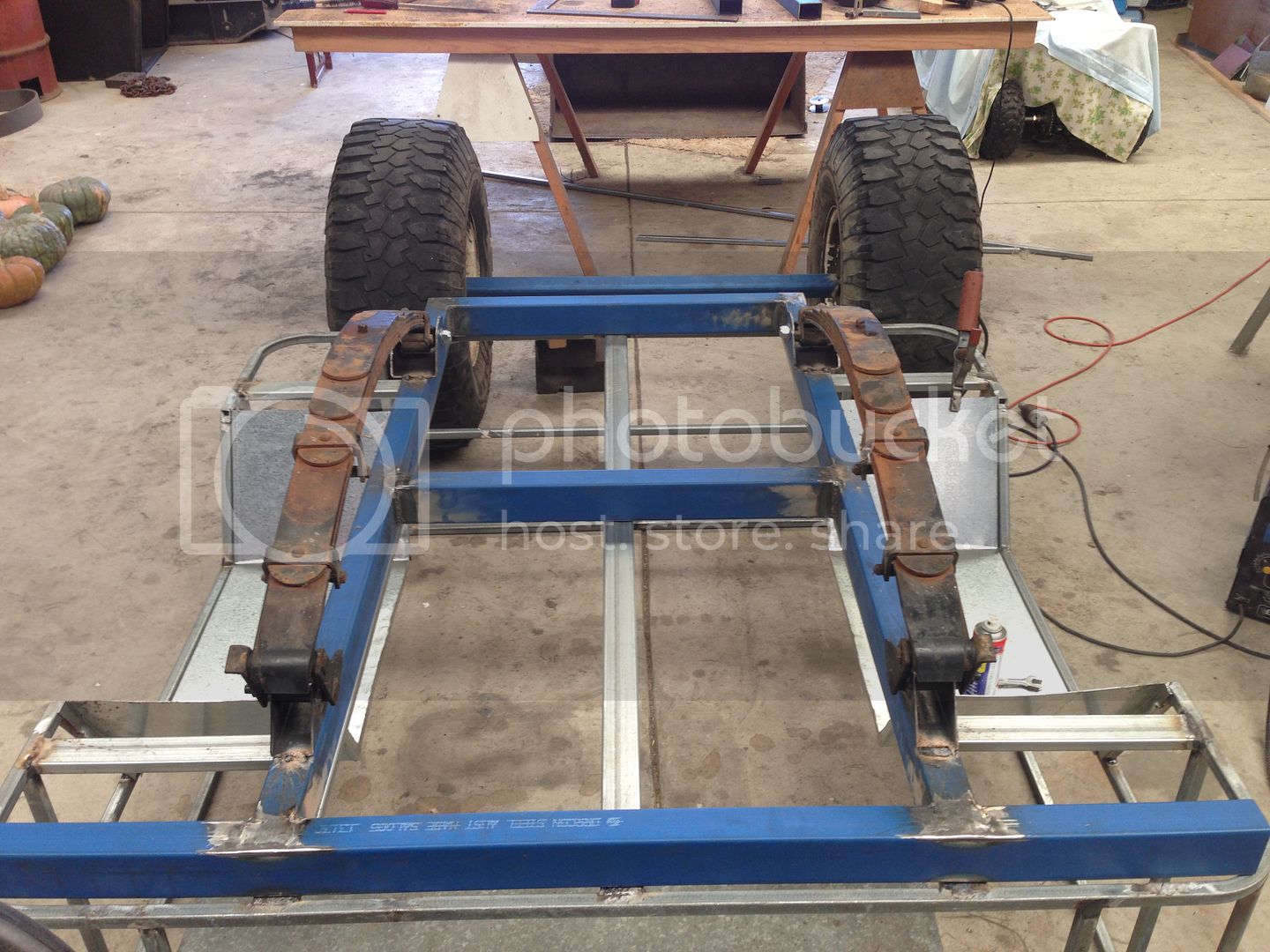

I had it set up with the spring on the axle to make measurements for drilling the axle to fit on th springs & then later took it back to spring under, cut the axle to length & tacked the stubs in.



[croozy]

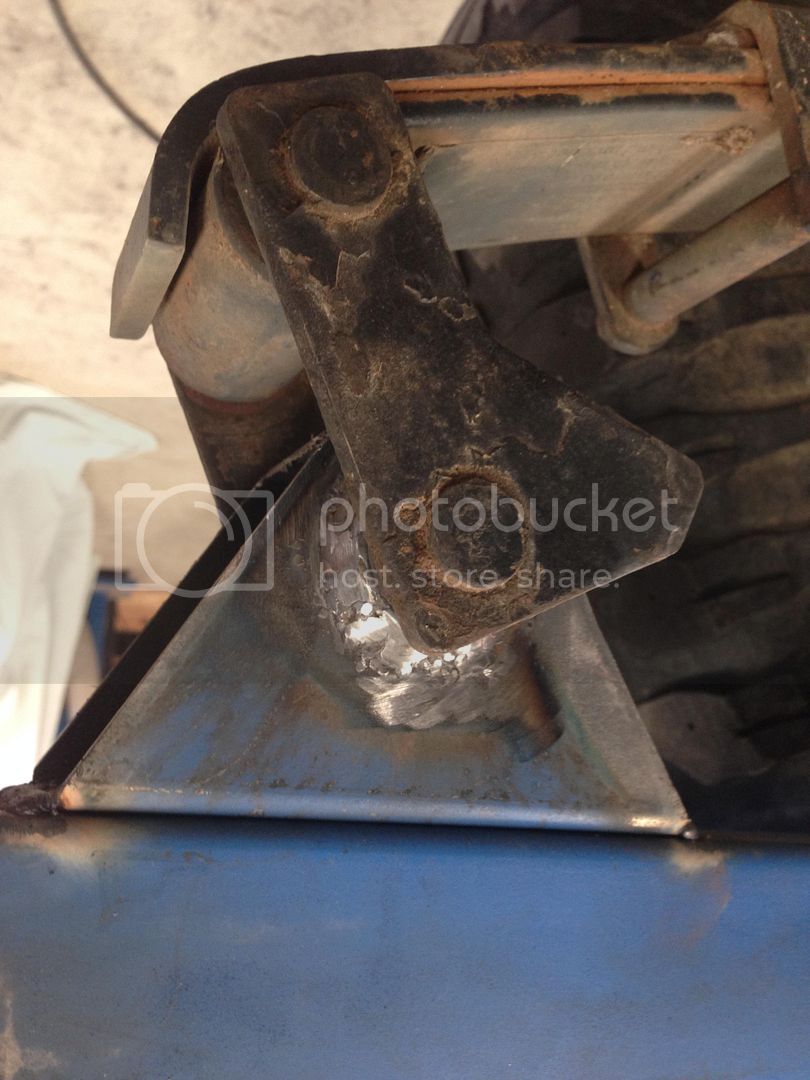

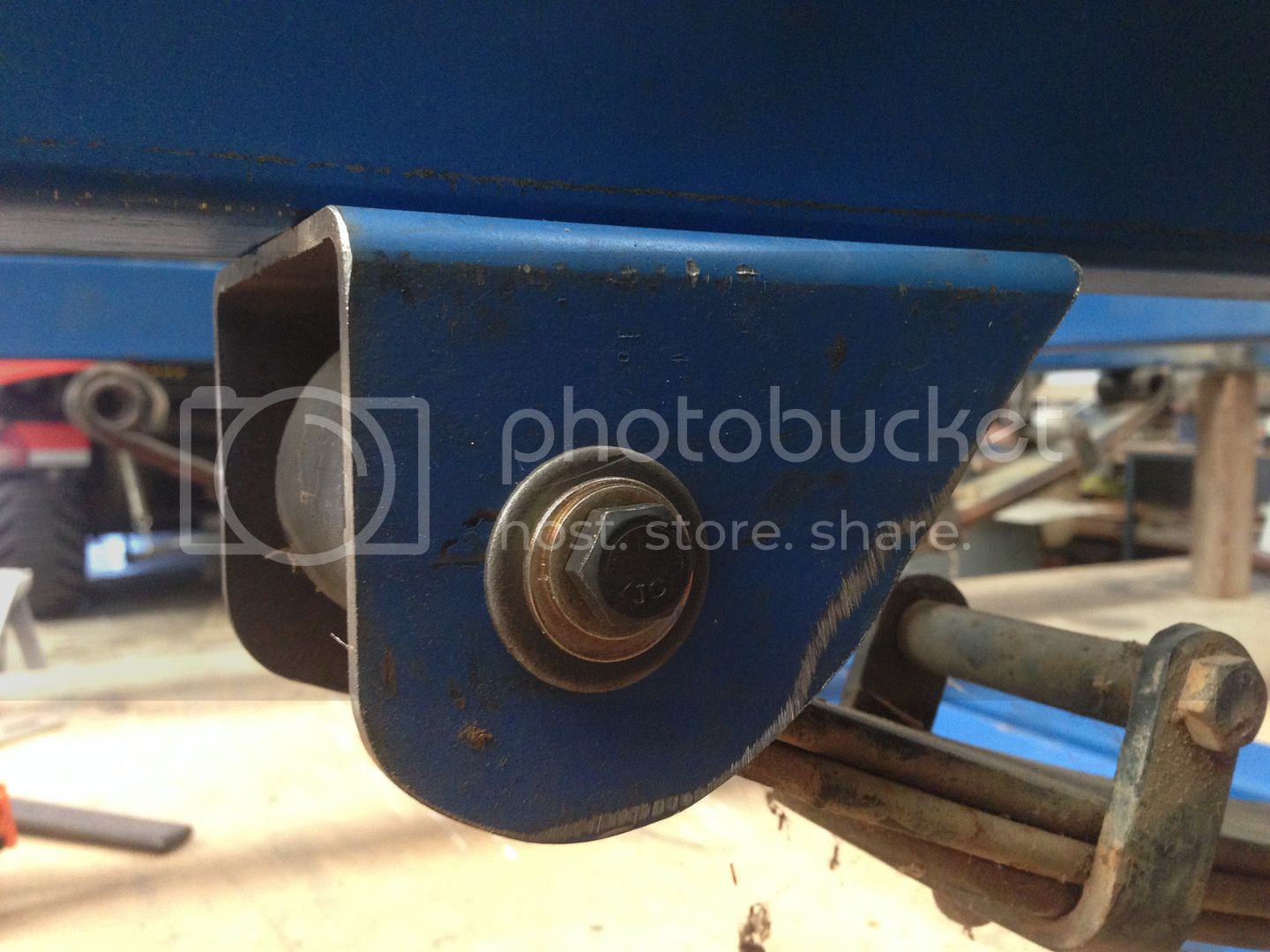

Here's a pic of the shackle hangers that I made up.


I cut the front cross bar & fit the drawbar & welded it in, then took it outside to sit it behind the shorty. to see how long I wanted the drawbar. The other thing I'm trying to decide on is where to put the spare wheel. either on the front or if to make a swingout carrier & put it on the rear.







I settled on a length of 1500mm for the drawbar in the end.



[area52]

AWESOME build!


Jim



[croozy]

Thanks mate. I want to use already & can't get it done quick enough.



[REZARF]

Good on you mate! Looks awesome, how are you going to skin your panels?



[croozy]

Thanks, for the outer skin I'm going to use 1.6mm hot rolled sheet & spot weld it to the frame work.



[cruiserpilot]

What springs are you using? Looks really good, enjoying your workmanship..



[Mark Harley]

Great work!
Looking forward to the finished product.
