As aftermarket suspension options are slowly rolling out, figured it's best to get a specific thread for suspension modifications. If you have completed any suspension modifications please add to the thread.

We'll start with my personal 250 (1958 Edition)

Stock height measurements from the ground up to the edge of the fender flares.

Front L: 36.5 in
Front R: 36.5 in
Rear L: 37.75 in
Rear R 37.75 in

New measurements will be added once the new suspension settles.

List of components used:

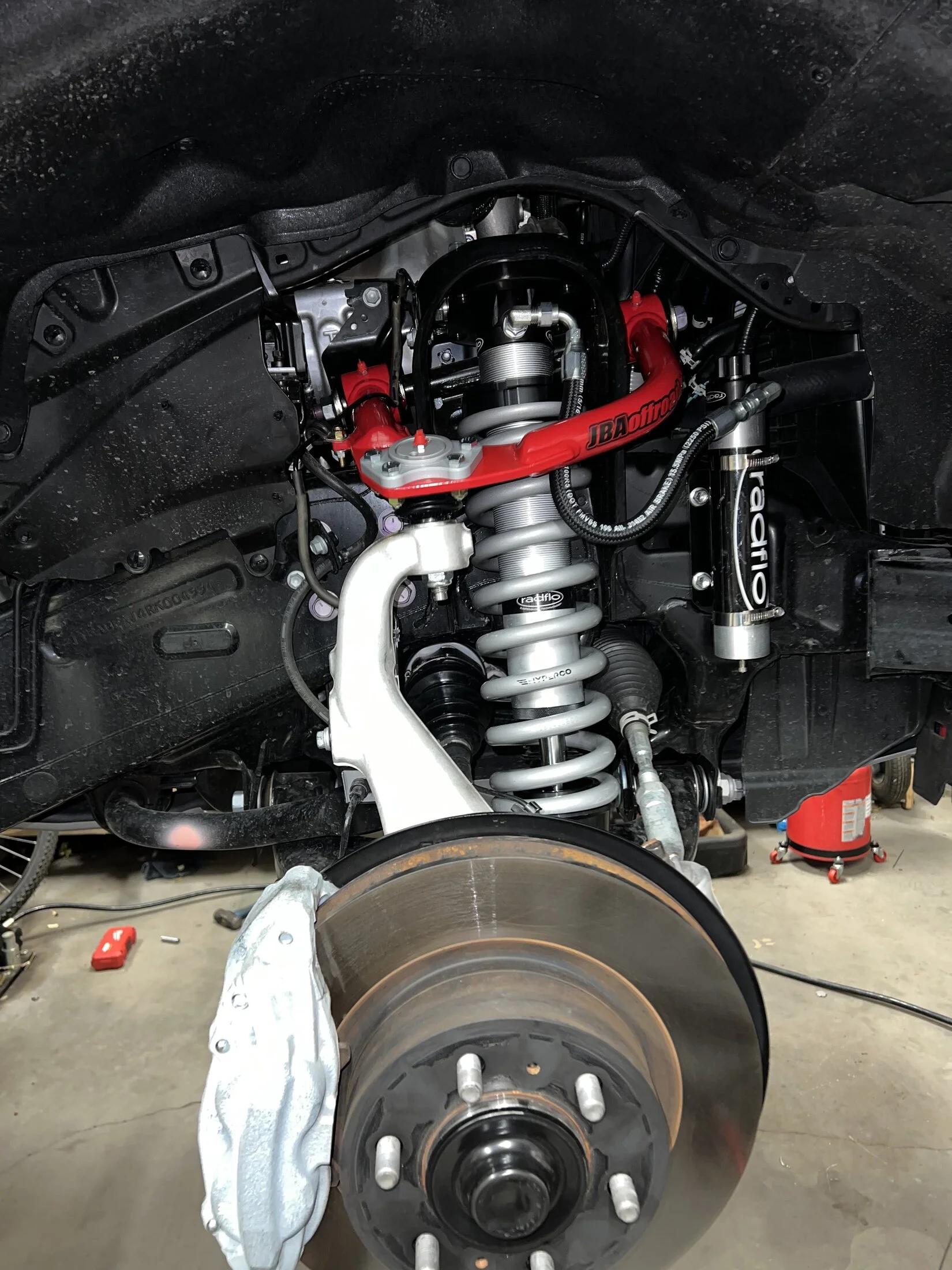

  • Radflo Coilovers with compression adjsuters
  • Radflo Rear Shocks with compression adjusters
  • JBA Offroad UCA (Suited for 24+ Tacoma.)

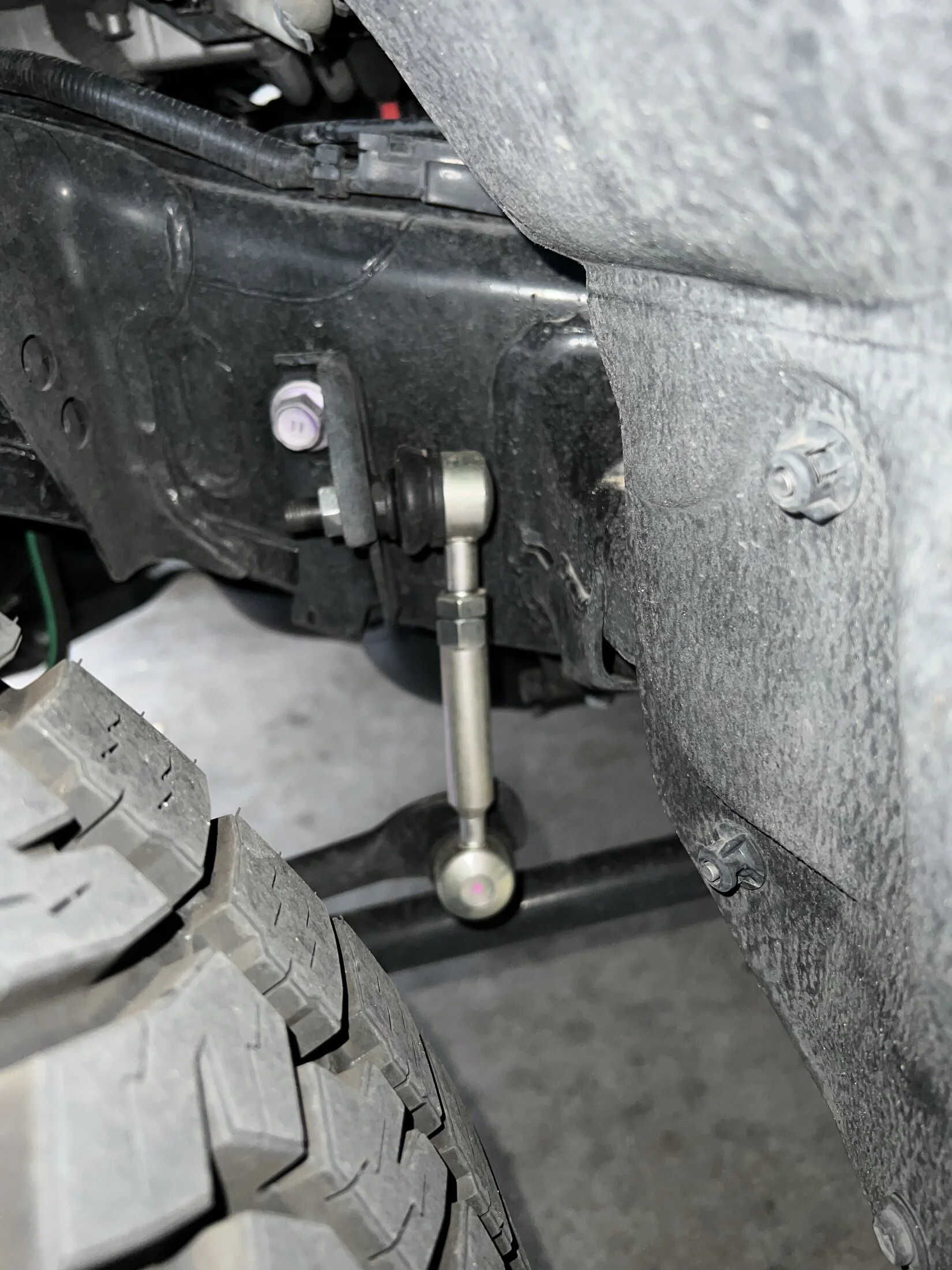

  • Dobinsons rear extended sway bar links.
  • SpiderTrax 1in wheel spacers (More on this below.)
  • Sequoia/Tundra Rear Coil Springs (48231-0C520)
Installation is a nothing new when comparing a 200. Same general steps required to install components minus KDSS.
To install the UCA on the driver the charge pipe needs to be disconnected from the intercooler in order to feed the UCA bolt toward the intercooler enough to remove the stock UCA.

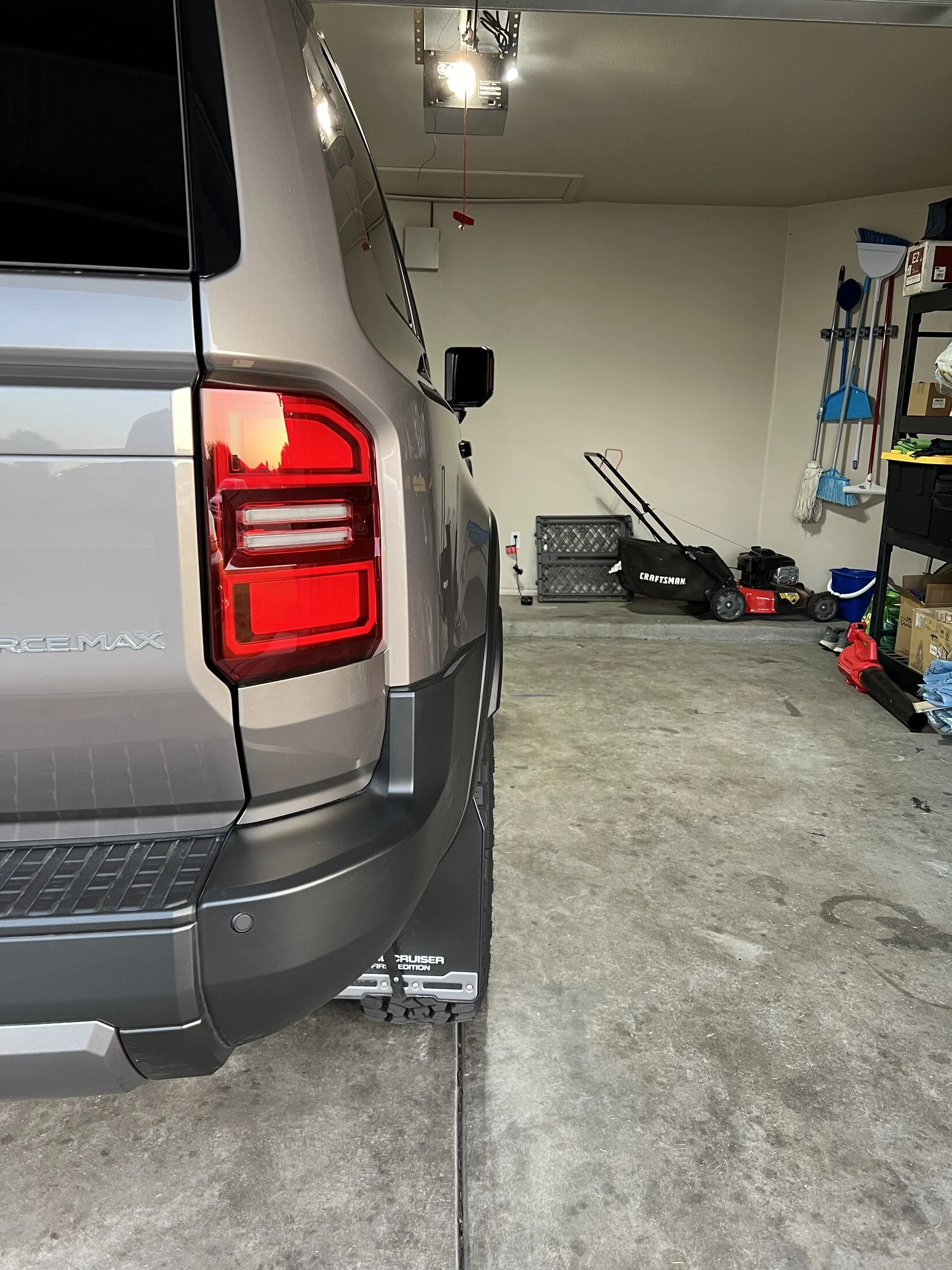

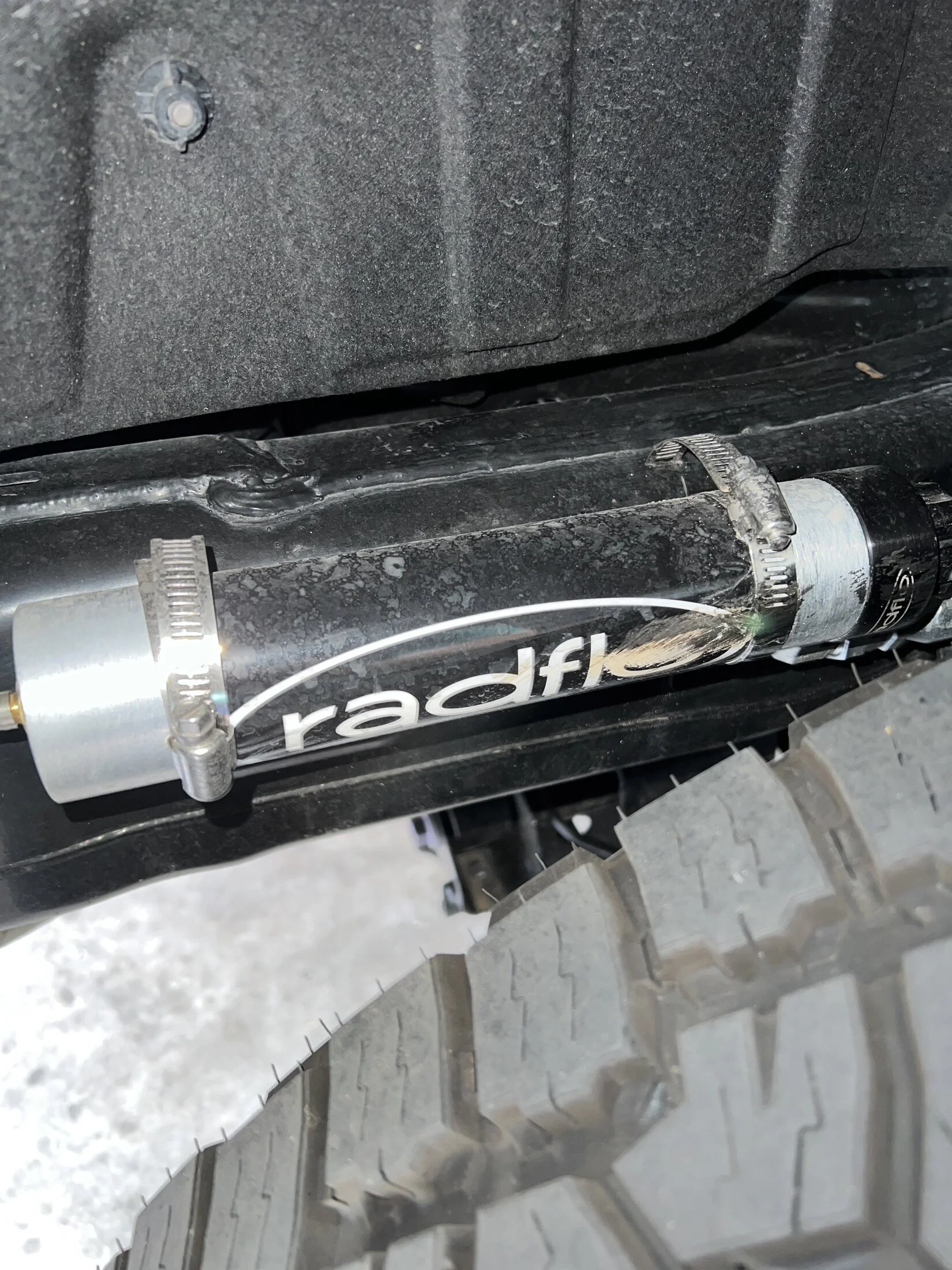

What I consider one major downside to the Radflo coilovers and shocks are the reservoir mounts. You are required to drill into the frame to secure the reservoir mounts. The hardware that is provided is a bit of a disappointment considering the cost of the components. My solution was to use riv-nuts for a cleaner install (M8x1.25 with OEM bolts.) For the rear shock reservoirs, the location you are required to mount the reservoirs will limit the wheel and tire setup you can run. The hose for the reservoir is not long enough to mount the reservoir toward the rear bumper. This caused some rubbing with my current wheel and tire setup, creating the necessity for wheel spacers. The spacers will be short lived once I make up my mind on a wheel. For reference an OEM wheel for a 1958 model has a +70mm offset (+60mm for LC and FE wheels, +65mm if you have 20s.) The extremely high offset place the tire (currently a 275/70R18) too close to the reservoir creating contact. I've attached pictures of the damage. I'll be informing Radlfo about this issue as a six inch longer hose for rge reservoir would solve this issue.

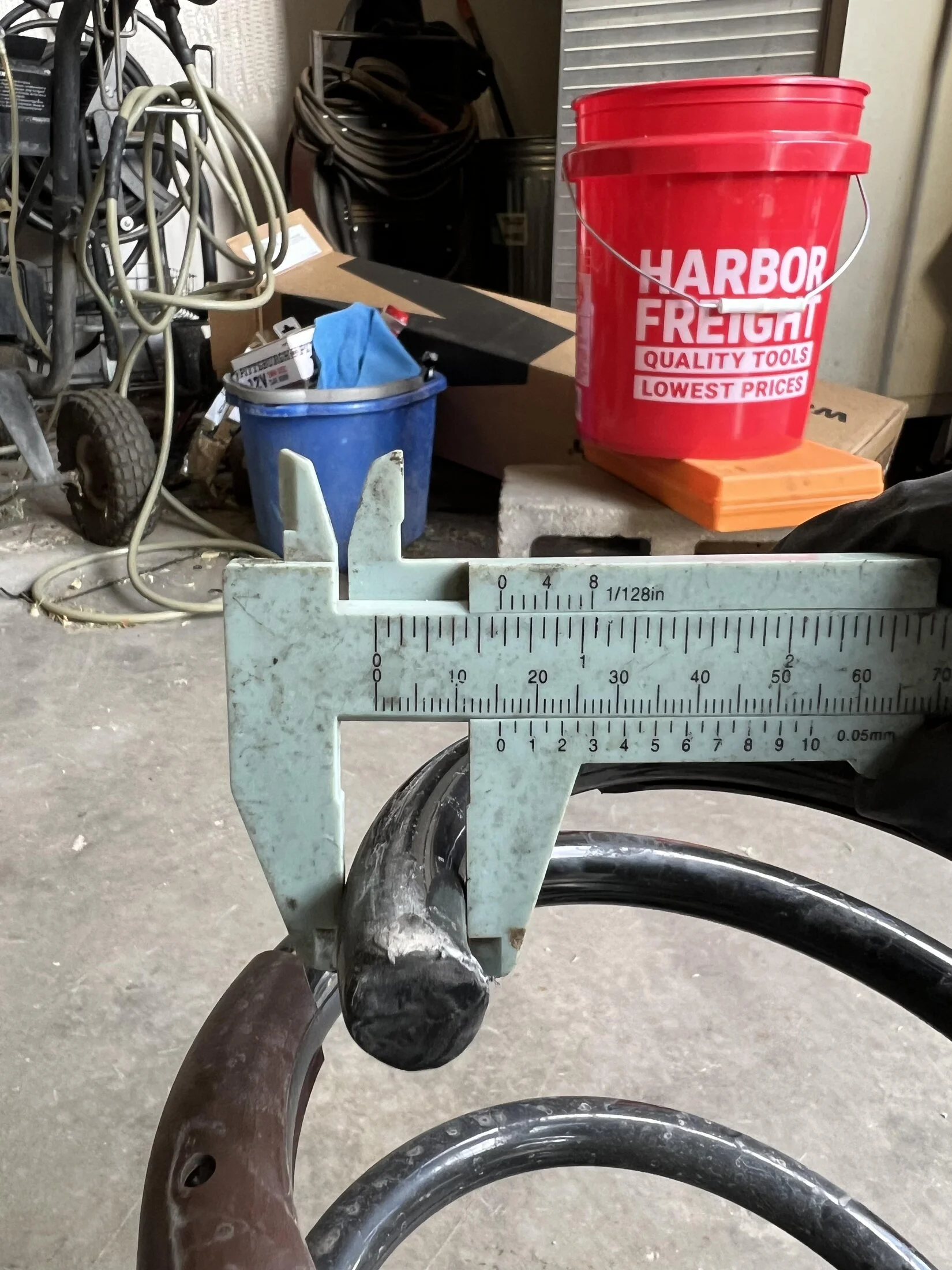

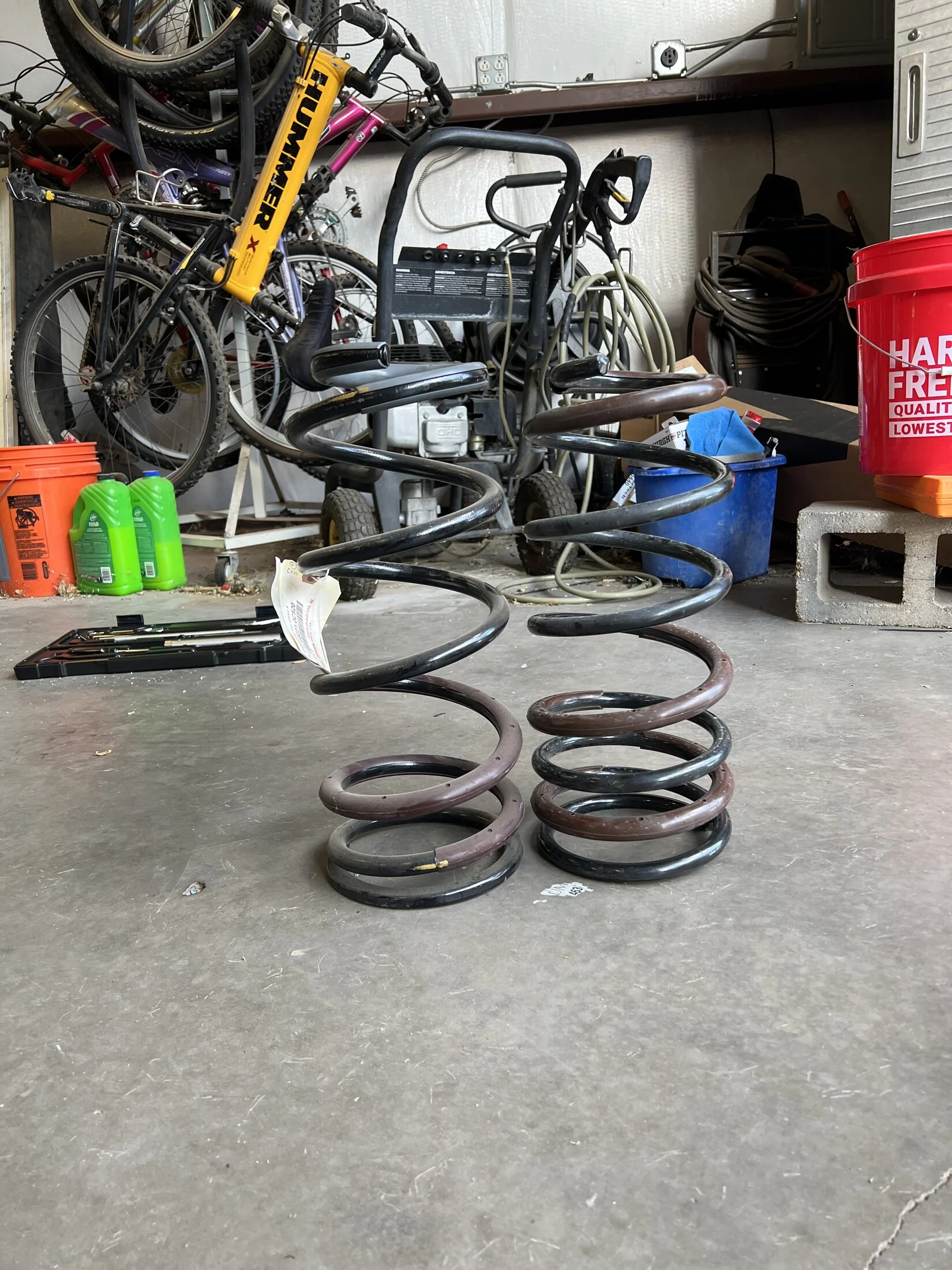

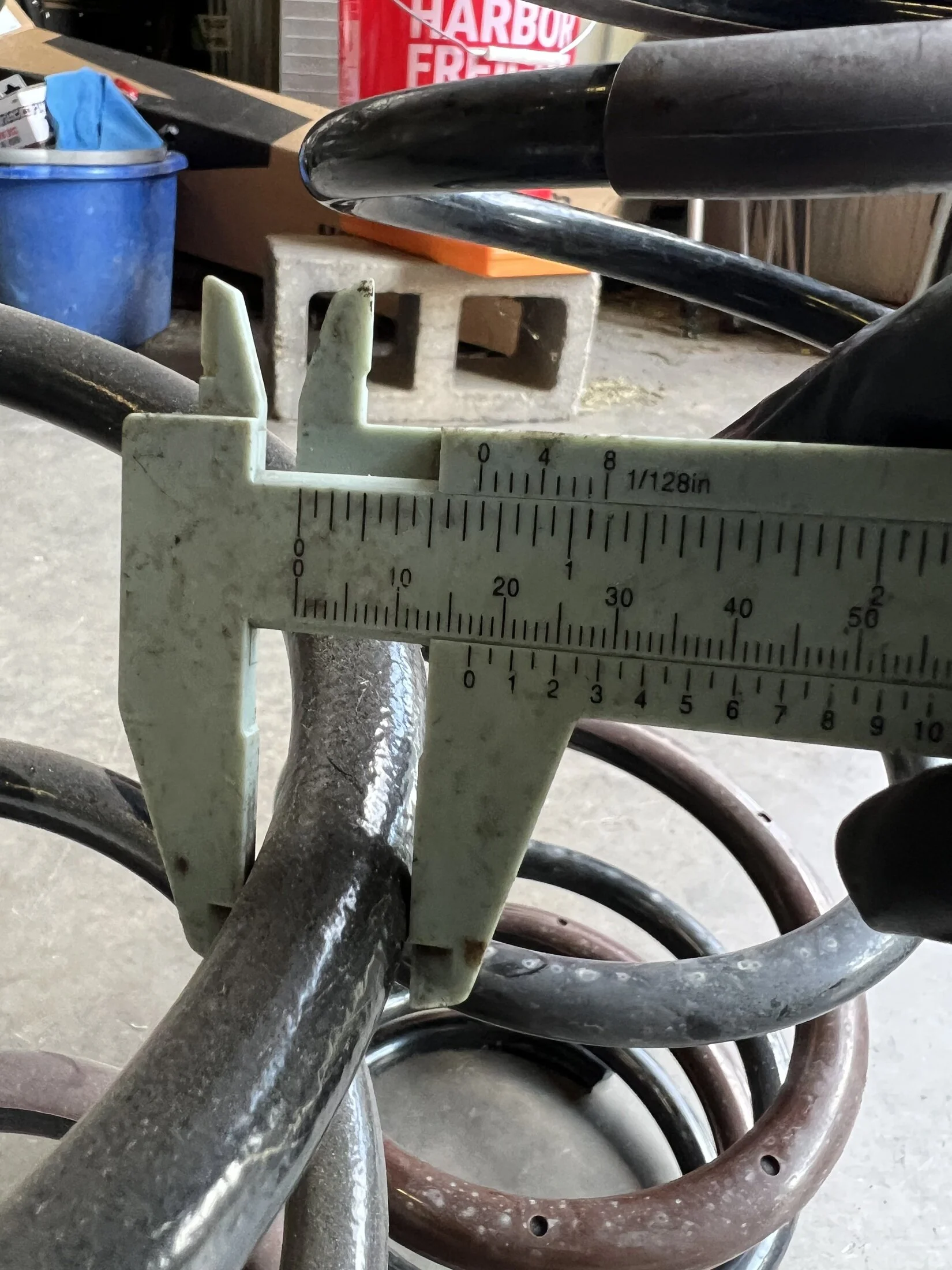

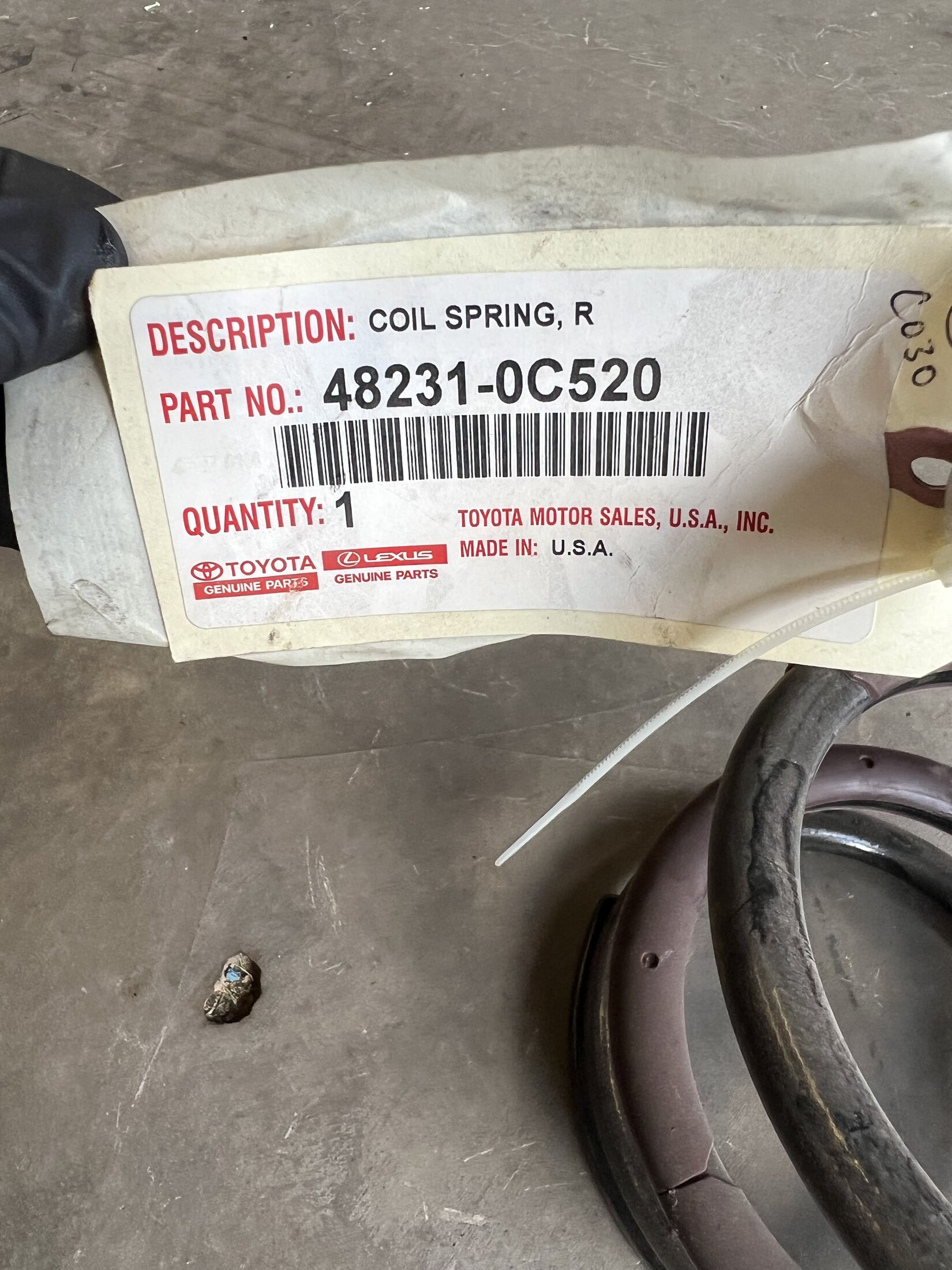

Rear springs. There are currently no aftermarket suspension manufacturers that are offering rear springs for the 250 platform. The LC now being part of the TNGA-F family allows you to use parts from other models. On a whim, I ordered OEM rear coils for a TRD Offroad '23+ Sequoia. The springs fit like the LC springs do, the difference being the Sequoia springs are slightly taller and the coil is thicker by a few millimeters and the LC has a progressive coil spring vs the linear Sequoia coil spring. Pictures attached below with part number and measurements.

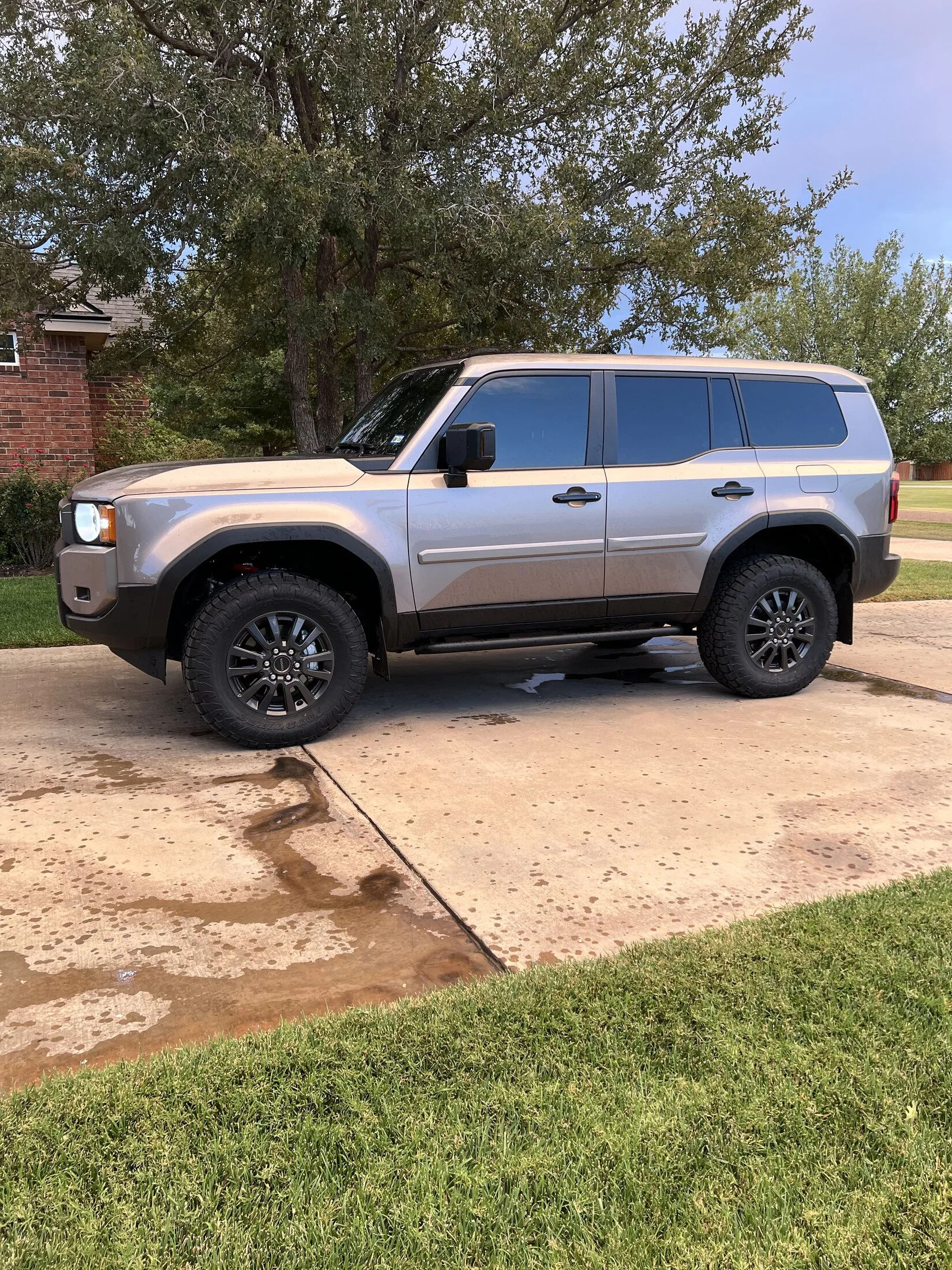

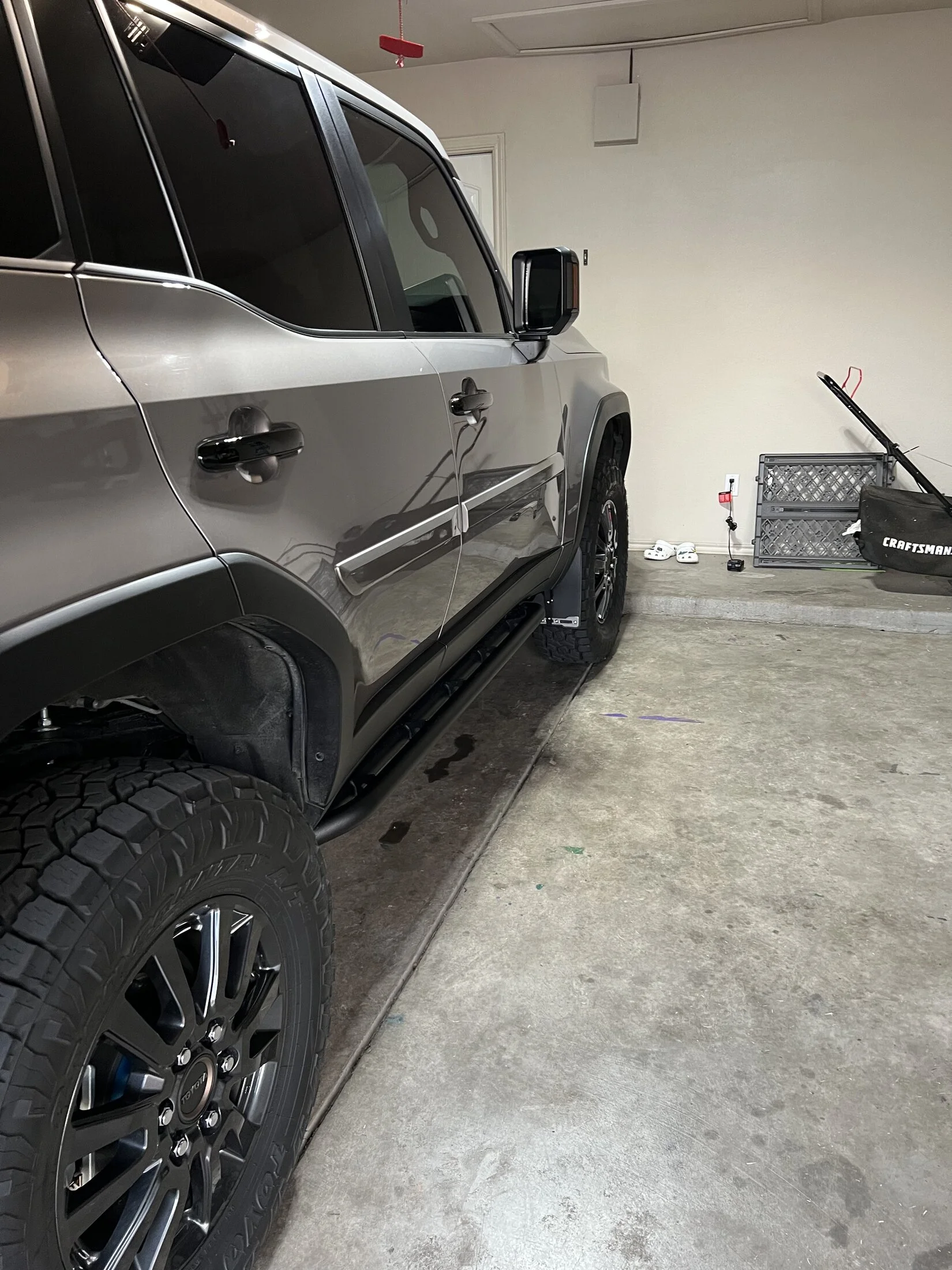

Overall impressions are positive. Gained roughly 2-2.5 in of height and quite a bit of down travel in the rear. The ride is slightly firmer than baseline. Will have more feedback once I go off pavement and have more miles under my belt. Next step would be a track bar relocation or an adjustable track bar to recenter the axle.










Last edited:
I may swap out the rear springs to the variable rate s
Most are same as 300 series except it's lighter. It just need less spring rate to achieve the lift.
Dobinsons seems to have quite a few selections for springs already.
819V is another option for you.
I may swap out to the variable rate springs in the future. Going to give the linear rate springs a try. So far the ride is better than expected. Have yet to test the ride with weight additional weight in the rear.

Westcott mentioned using OME 722 rear coils in two of their demo vehicles, but when asked they said they wouldnt recommend unless you have added weight. (They had a Jetski hanging off the rear) Give about 2" of height and a much firmer ride. In the video they mentioned 0.75" of lift, but thats what the coils are meant to give a 200... gives an unweighted 250 about 2" apparently.

Kudos on giving it a go on cross-platform compatibility of the rear springs, it will be interesting to see what parts can be swapped between models.

One thought I keep having is about front lower control arms. I see on GX and Tacoma a boxed, dual-sheer lower shock mount. Anyone know why the difference?

The GX is single shear for the shock, but dual shear for the EKDSS Sway bar connection.

Radflo has developed custom mounts for the LC250 which require no drilling and use the pockets in the frame. You can call in for more information they just became available.
Thanks for the info. I contacted one your sales reps. They are providing me with photos of the mounts to confirm fitment in relation to the rear tires.

Westcott mentioned using OME 722 rear coils in two of their demo vehicles, but when asked they said they wouldnt recommend unless you have added weight. (They had a Jetski hanging off the rear) Give about 2" of height and a much firmer ride. In the video they mentioned 0.75" of lift, but thats what the coils are meant to give a 200... gives an unweighted 250 about 2" apparently.
Have a set of Doninsons C59-817VB coils on order. These are a progressive spring, will report back how they perform.

Long overdue update. The 250 is what I considered “finished” or at least the image in my head of what I wanted. Simple and straight to the point. Had some time to go out and explore the dirt roads of West Texas and I am extremely pleased with the ride. Firm, but not too harsh.

Currently, I have around 2,500 mi of driving with the Radflo suspension components. Additional adjustments were made in order to get a rake of roughly one inch from front to rear.
The Sequoia rear coils which were installed originally have been replaced with Dobinson’s progressive coils (C59-817VB.) These are intended for the LX600, but they work quite well on the 250. Same amount of overall lift, without the harshness of the sequoia spring.
The second addition was the Icon rear adjustable track bar. At the time, the Icon products for the 250 were not yet available. Rolled the dice and ordered one that is fit for a 24+ Tacoma. Zero figment issues and my rear axle is now centered again.




Hey bud. The cruiser is looking good!!

Can you measure the hub to fender length on the rear?

Long overdue update. The 250 is what I considered “finished” or at least the image in my head of what I wanted. Simple and straight to the point. Had some time to go out and explore the dirt roads of West Texas and I am extremely pleased with the ride. Firm, but not too harsh.

Currently, I have around 2,500 mi of driving with the Radflo suspension components. Additional adjustments were made in order to get a rake of roughly one inch from front to rear.
The Sequoia rear coils which were installed originally have been replaced with Dobinson’s progressive coils (C59-817VB.) These are intended for the LX600, but they work quite well on the 250. Same amount of overall lift, without the harshness of the sequoia spring.
The second addition was the Icon rear adjustable track bar. At the time, the Icon products for the 250 were not yet available. Rolled the dice and ordered one that is fit for a 24+ Tacoma. Zero figment issues and my rear axle is now centered again.

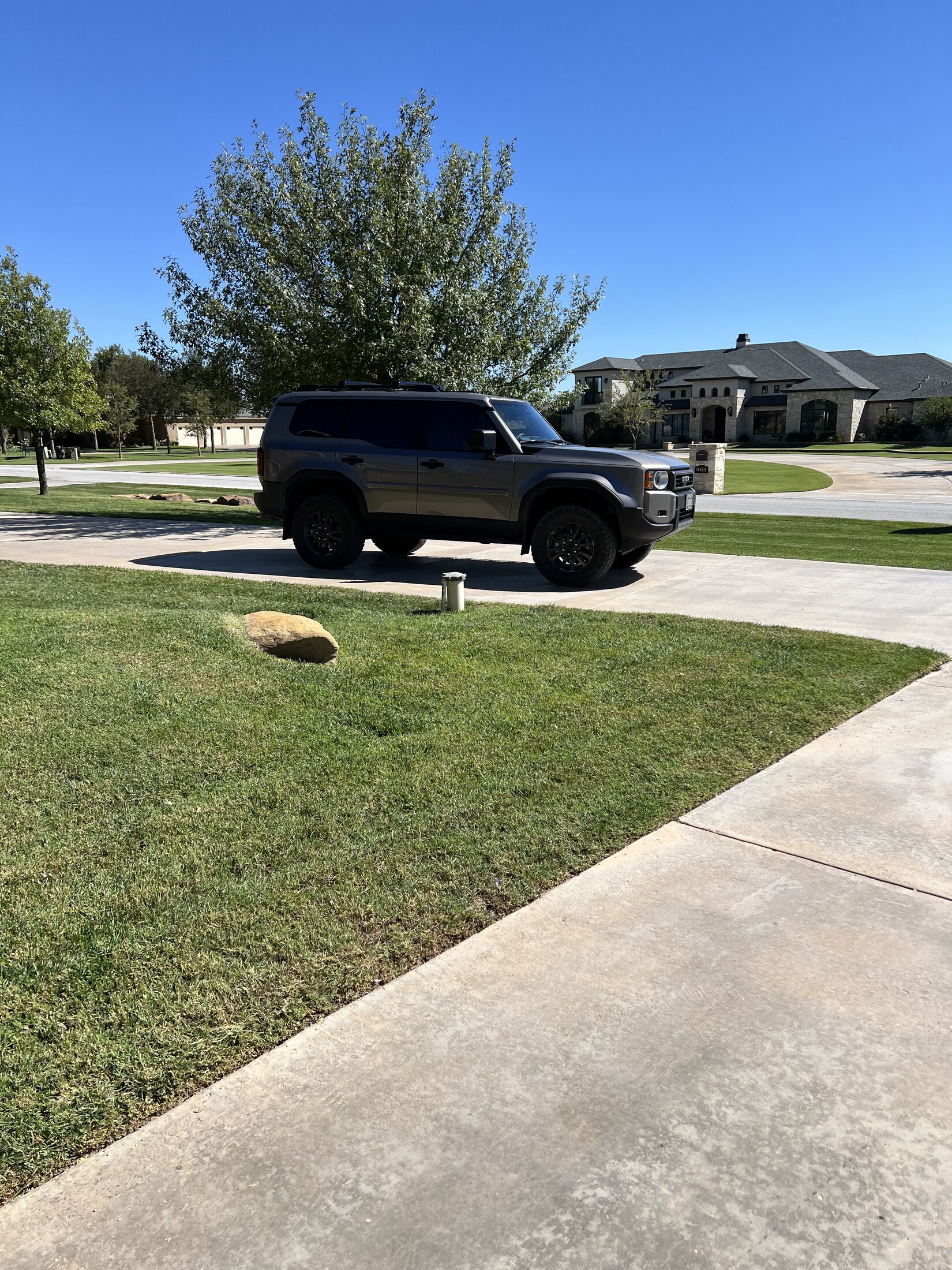

View attachment 3738418

View attachment 3738419
This is hands-down the best 250 set-up out there. Perfect lift height and no-poke

Don't be like this 4G Taco owner.

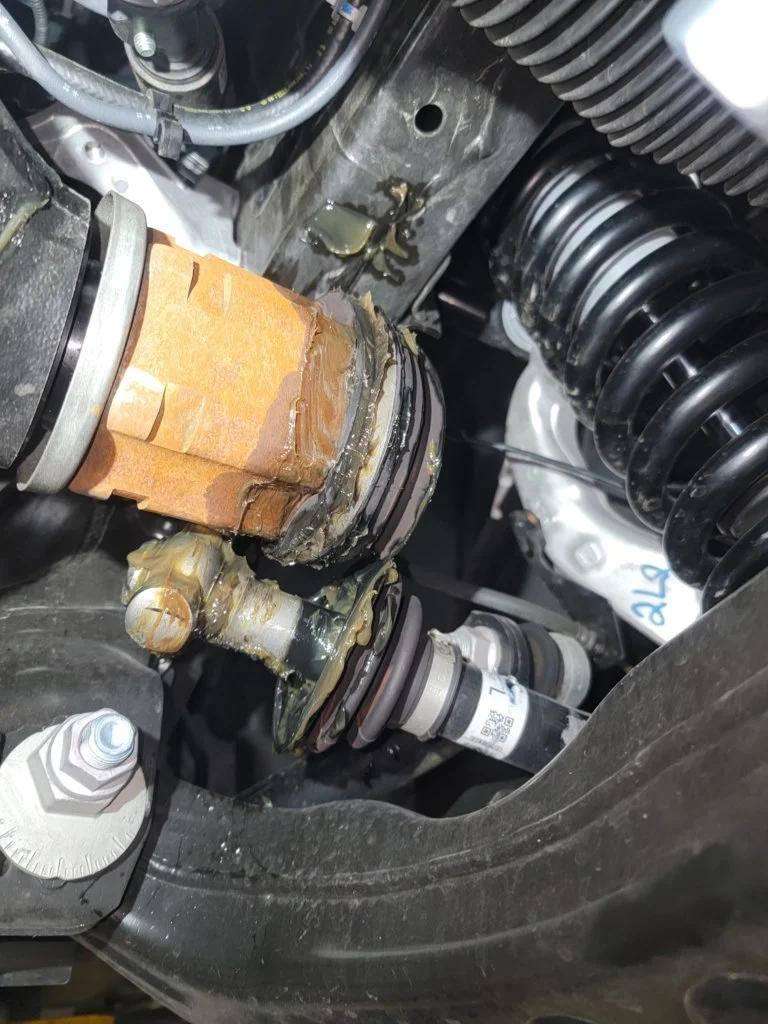

Installs an Icon lift, reverses in 4WD at full lock and pops the axle. Causing some carnage, including cracking the crankcase.
Took it to Toyota for a warranty claim. lol
Won't answer whether the not-included-in-kit-but-clearly-shown-as-required diff drop bracket was actually installed.

The bracket is included in the 250 Icon kits.

Don't be like this 4G Taco owner.


View attachment 3785612

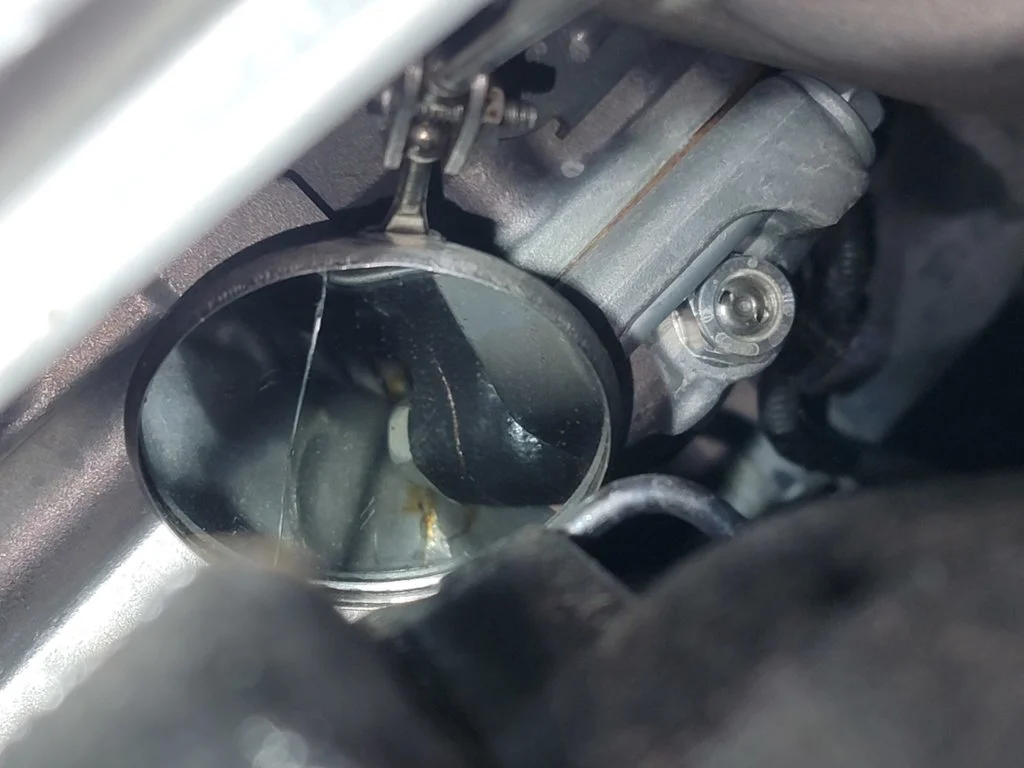

Installs an Icon lift, reverses in 4WD at full lock and pops the axle. Causing some carnage, including cracking the crankcase.
Took it to Toyota for a warranty claim. lol
Won't answer whether the not-included-in-kit-but-clearly-shown-as-required diff drop bracket was actually installed.

The bracket is included in the 250 Icon kits.
View attachment 3785614
Dang, that's not good. Busting a CV would have been fine, but busting the crank case at the same time is very not good.

Thanks for sharing, good info, specifically the different axles Toyota installs for the lifted Tacoma’s. I knew of potential CV wear on lifted vehicles without other modifications but didn’t realize the whole damn thing could fall apart.

Along those lines and as I’m looking to lift my 250 in the near future, other than the diff drop being required, think it’s worth it to source the Tacoma OEM CVs they install on their factory lifted Tacoma’s? Thought I read Taco/250 CVs are interchangeable, or does the diff drop make it a moot point?

You might want to watch this video from Tikerer's Adventure before making a decision on a diff drop. I have no experience on the subject, but his videos are pretty good.

You might want to watch this video from Tikerer's Adventure before making a decision on a diff drop. I have no experience on the subject, but his videos are pretty good.

I hate the way he generalizes every brand of front strut in that video. Some brands do reach longer than the ones he's testing, and without a diff drop in place, the CV's WILL BIND at full droop, just like the Icon link that was just posted. Ironman's and Bilstein's options are not extended travel enough to warrant the need for a diff drop kit, which is why they don't require it. Dobinsons on the other hand have longer extended travel front struts that do require a diff drop, regardless of the lift height. At full droop, the CV's will bind without it in place.

So for those that listen to this youtuber, then blow a few $500 CV axles, or get a $3000 repair bill like above, I hope they're happy with the information they got.
