Wanted Latch handle for FJ40 barn door

[Steve Abbott]

Vehicle Model

1. 40 Series

I'm looking for the latch handle for FJ40 barn style doors. I just need one. Thanks!



[kevos37]

I have the pins but no handle. Dont know of anyone re-popping them. A quick fix... find a socket head bolt with a long shank, similar to your picture. Modify to fit. You could also tig weld in the socket and then insert it into a drill and shape it.



[Steve Abbott]

I have the pins but no handle. Dont know of anyone re-popping them. A quick fix... find a socket head bolt with a long shank, similar to your picture. Modify to fit. You could also tig weld in the socket and then insert it into a drill and shape it.

Thanks for the reply. I have thought about making one that way but was hoping someone had one laying around.



[pardion]

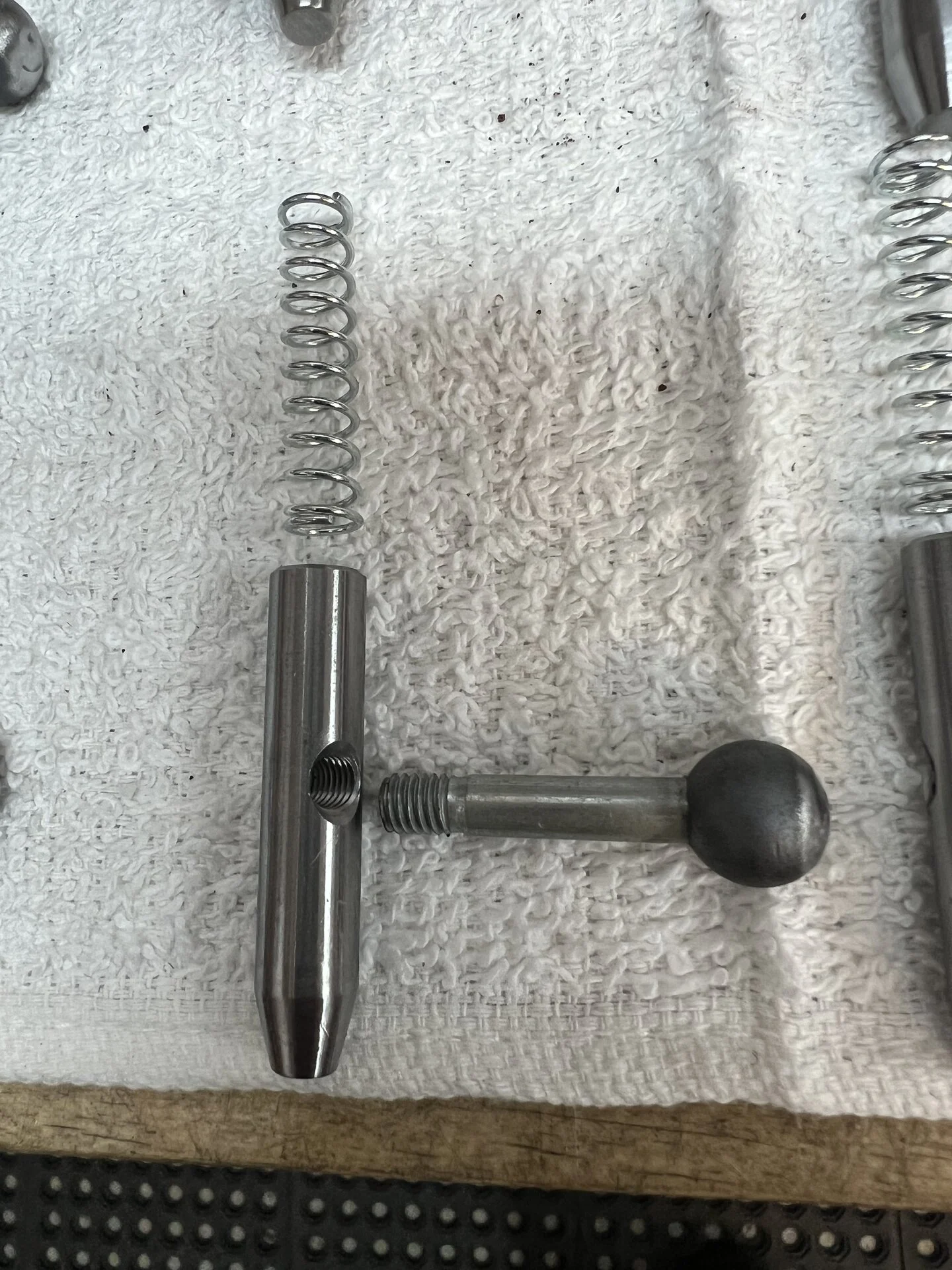

Here’s some! Contact @TacoMarv he has made some nice ones.



[pardion]



[Steve Abbott]

View attachment 3515356

Those do look nice! @TacoMarv are these currently available?



[TacoMarv]

Those do look nice! @TacoMarv are these currently available?

Hello! Yes, I made plenty. Would ship flat rate usps



[Steve Abbott]

Hello! Yes, I made plenty. Would ship flat rate usps

Are the handles available separately or just as a complete set? Either way, how much? Thanks!



[TacoMarv]

Are the handles available separately or just as a complete set? Either way, how much? Thanks!

When I machined the sets, I upsized the handle portion thread to 6mm to reduce the possibility of bending Like I’ve seen so many times. The sets will not work with OEM handle portion. However, I did machine separate pins only that are OEM 5mm threaded. OEM matched pins only $45, complete set (pin, spring, handle) $85
