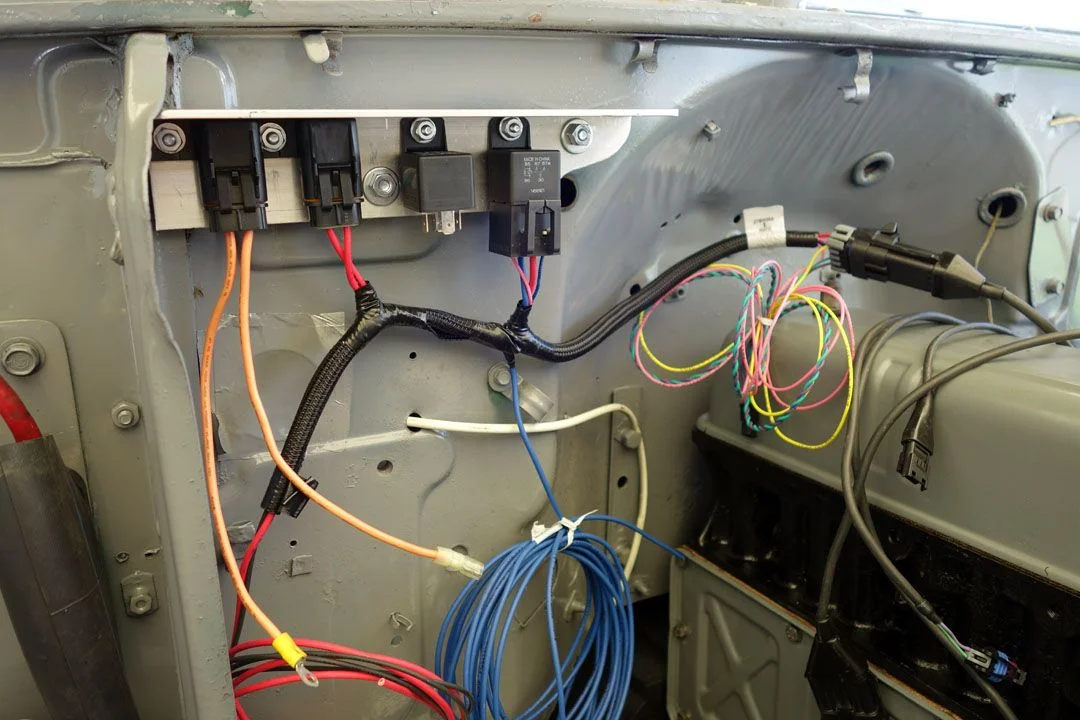

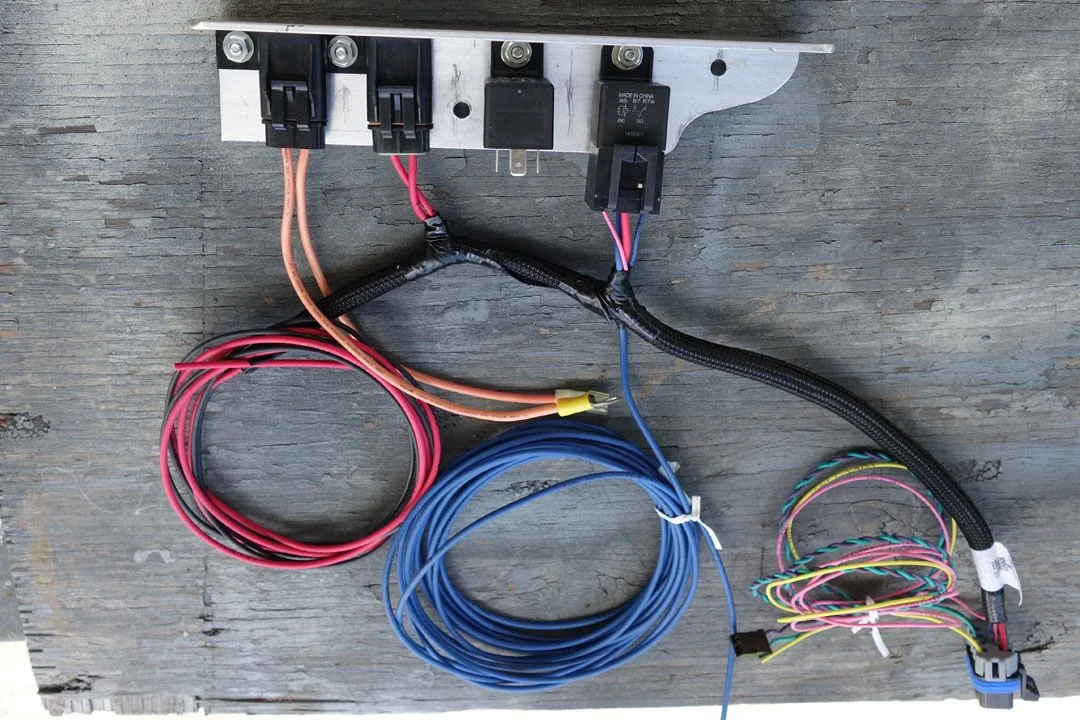

Starting to position the wiring and figure out how to keep it tidy and easy to troubleshoot if the need arises. Since I have no blower motor, this spot should work good. The extra fuse holder and relay that’s not part of the Holley harness, will energize the D.U.I.
EDITED below.
The Sniper has 5 cables coming out of it. Two are for the O2 and temp sensors. The other three have a ten, eight and seven pin connector attached. Nothing on the eight-pin connector will I use. On the ten-pin connector I will only use the one brown wire for my tach. On the harness that the seven pin connects to, red & black go to the battery, blue to the pump, pink to the ignition switch and yellow to the D.U.I’s “tach” terminal for speed sensing. That extra relay shown will feed the D.U.I’s “batt” terminal as is always has and is triggered by the ignition switch.
EDIT: I was wrong on the eight pin connector. I don't have one. On the front page of my included "Quick Start Manual" (that got wet) it says where to download the "Complete Instruction Manual" in PDF format which I did. All the info in that manual is good but the diagram in that one has the extra 8 pin connector. Confusing at first but finally figured it out. On the back page of the included "Quick Start Manual" that has the correct diagram, I got the form # "199R11364" & googled up the PDF. Also, the cable I forgot to mention is the one for the digital display. So it's still 5 cables out of the unit.
Fairly simple. Hardest part will be tidying up all the unused wires. I got the Holley pin removal tool and plugs to remove un-used wires and plug the holes. Only comes with ten plugs. I will hook it up temporary before cutting or removing wires to make sure it runs properly and I don’t have to send the whole thing back to Holley for service.
EDITED below.
The Sniper has 5 cables coming out of it. Two are for the O2 and temp sensors. The other three have a ten, eight and seven pin connector attached. Nothing on the eight-pin connector will I use. On the ten-pin connector I will only use the one brown wire for my tach. On the harness that the seven pin connects to, red & black go to the battery, blue to the pump, pink to the ignition switch and yellow to the D.U.I’s “tach” terminal for speed sensing. That extra relay shown will feed the D.U.I’s “batt” terminal as is always has and is triggered by the ignition switch.
EDIT: I was wrong on the eight pin connector. I don't have one. On the front page of my included "Quick Start Manual" (that got wet) it says where to download the "Complete Instruction Manual" in PDF format which I did. All the info in that manual is good but the diagram in that one has the extra 8 pin connector. Confusing at first but finally figured it out. On the back page of the included "Quick Start Manual" that has the correct diagram, I got the form # "199R11364" & googled up the PDF. Also, the cable I forgot to mention is the one for the digital display. So it's still 5 cables out of the unit.
Fairly simple. Hardest part will be tidying up all the unused wires. I got the Holley pin removal tool and plugs to remove un-used wires and plug the holes. Only comes with ten plugs. I will hook it up temporary before cutting or removing wires to make sure it runs properly and I don’t have to send the whole thing back to Holley for service.
